PSMCBT Temperatures Check
Summary
| Date start | 2023:115:03:08:54.016 |
| Date stop | 2023:120:21:34:02.416 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/APR2523/oflsb |
| Run time | Thu Oct 8 16:01:32 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.47 | -2.64 | -1.80 | -0.06 | 1.17 | 1.66 | 2.15 |
| pitch | -10.530 | -0.490 | -0.003 | -0.000 | 0.002 | 0.185 | 10.470 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 1 | 1 |
| roll | -1.719 | -0.075 | -0.003 | -0.000 | 0.004 | 0.138 | 1.840 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.47 | 2.50 |
| PITCH | 1 | -10.53 | 3.00 |
| PITCH | 99 | 10.47 | 3.00 |

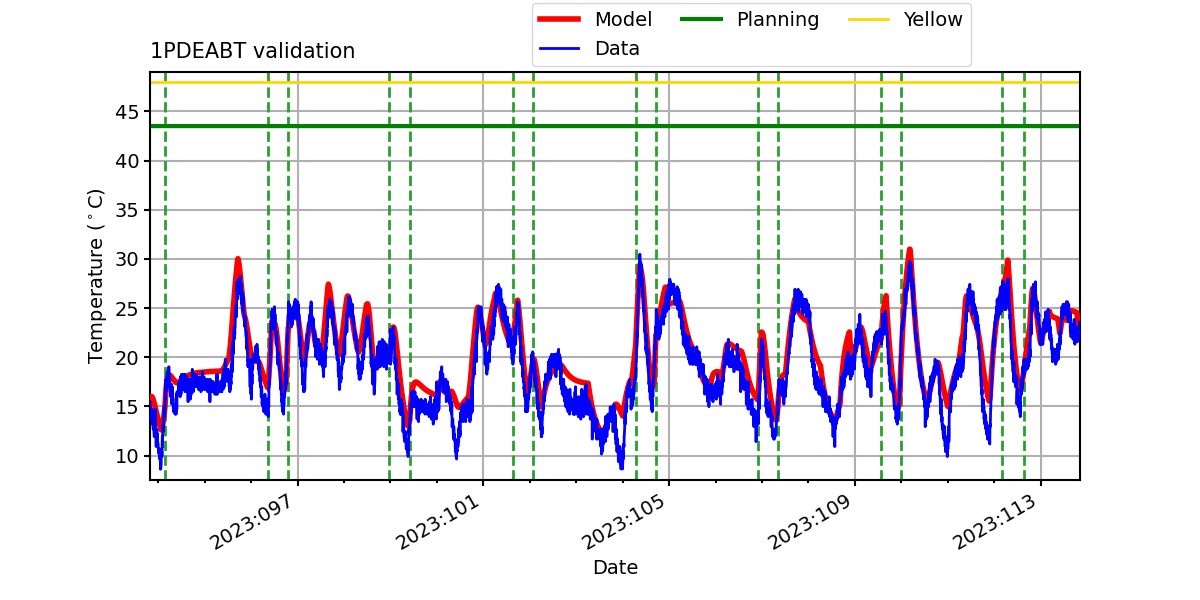

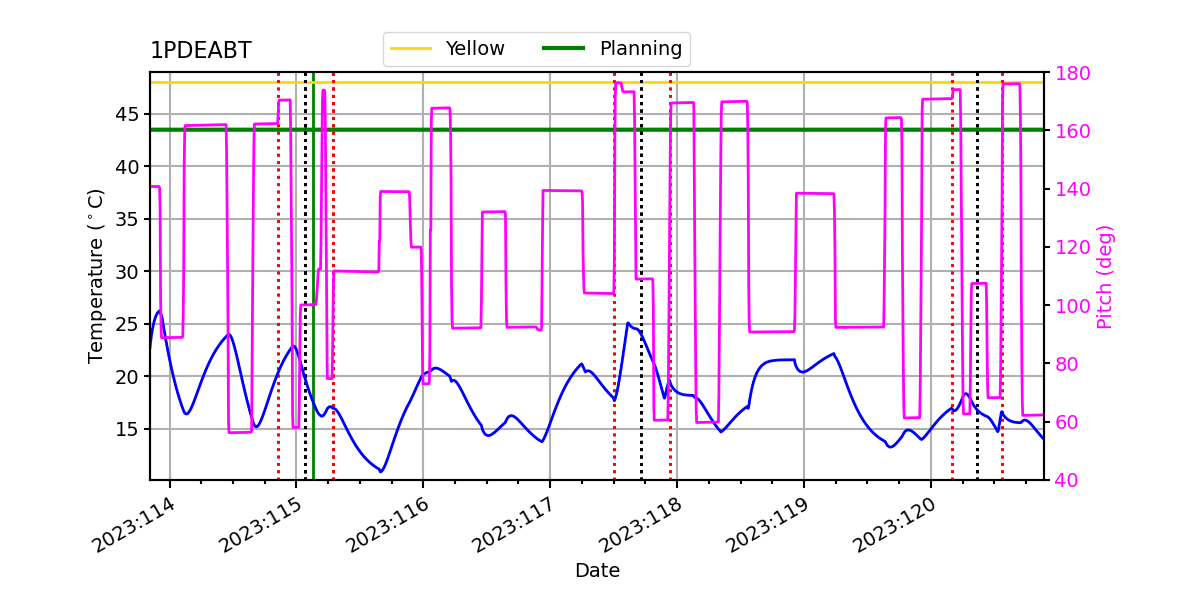

1PDEABT

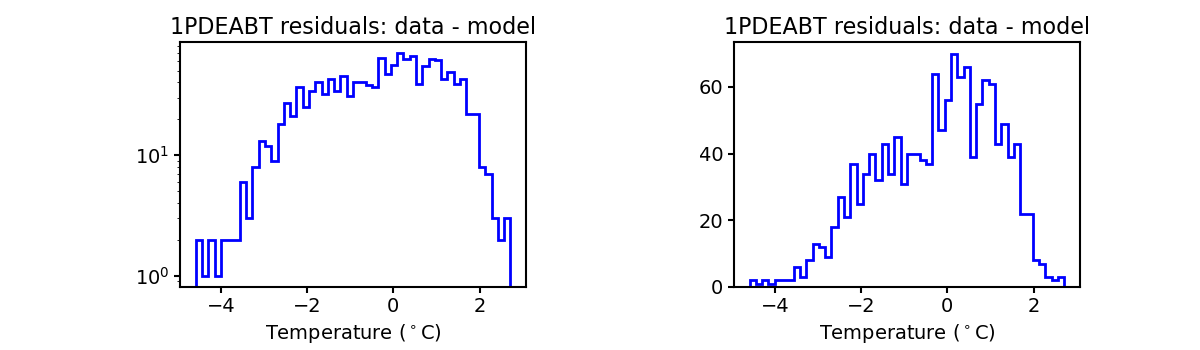

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

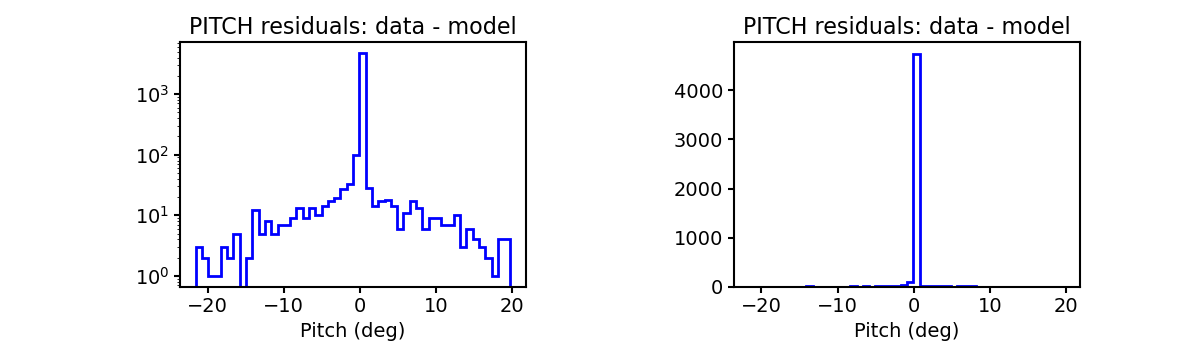

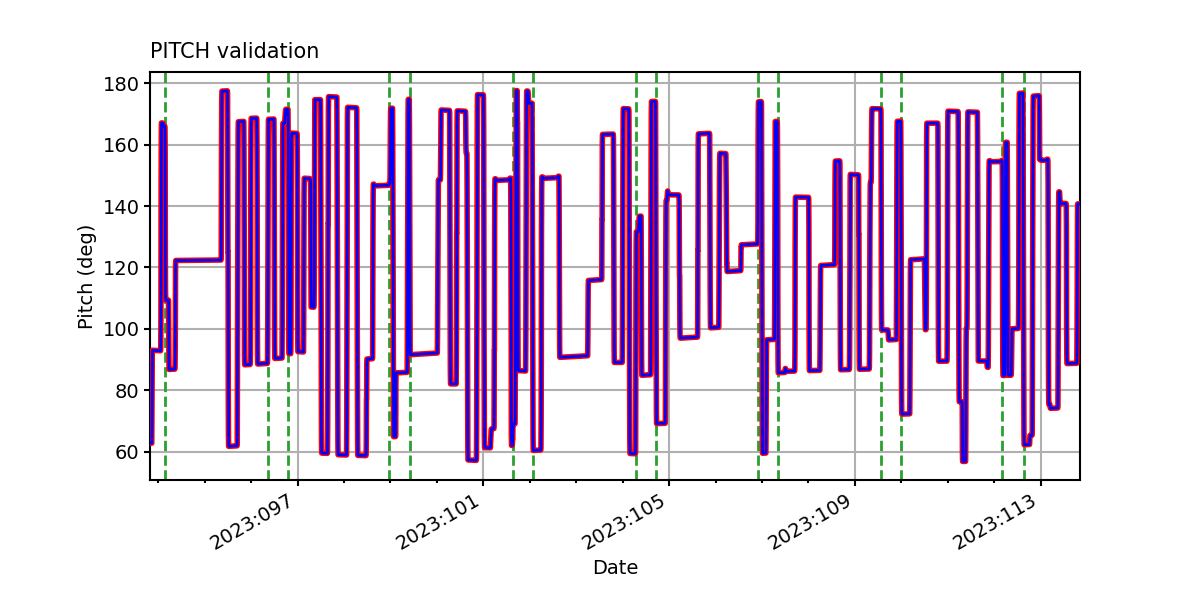

PITCH

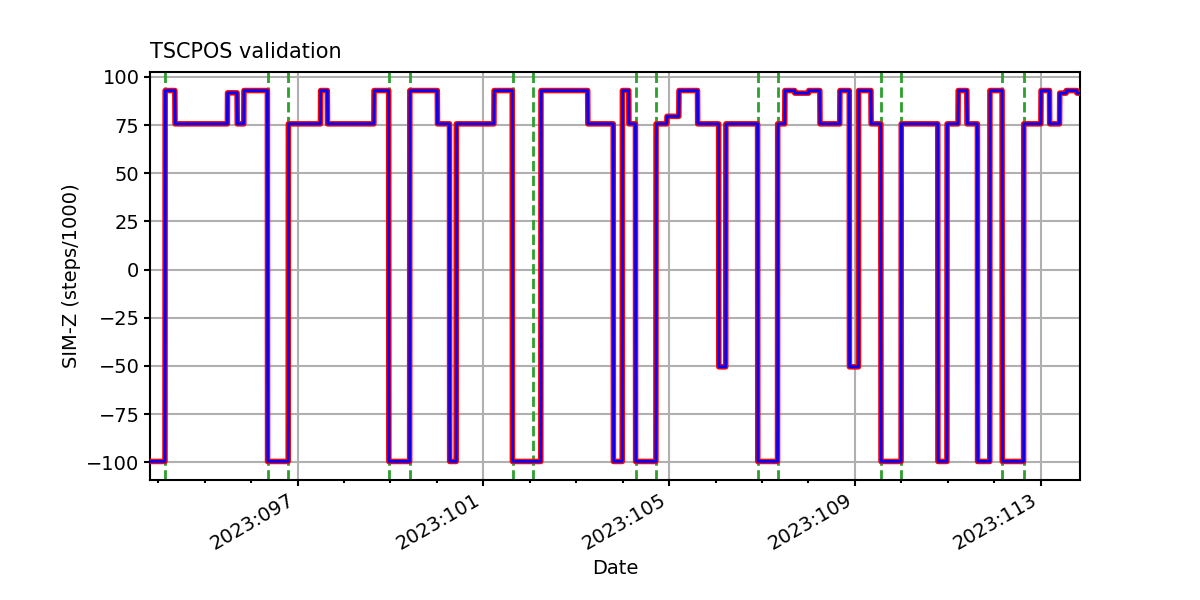

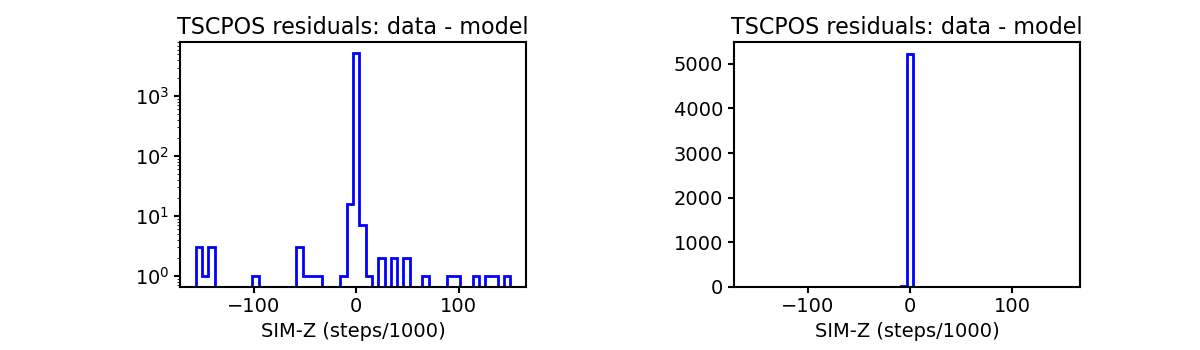

TSCPOS

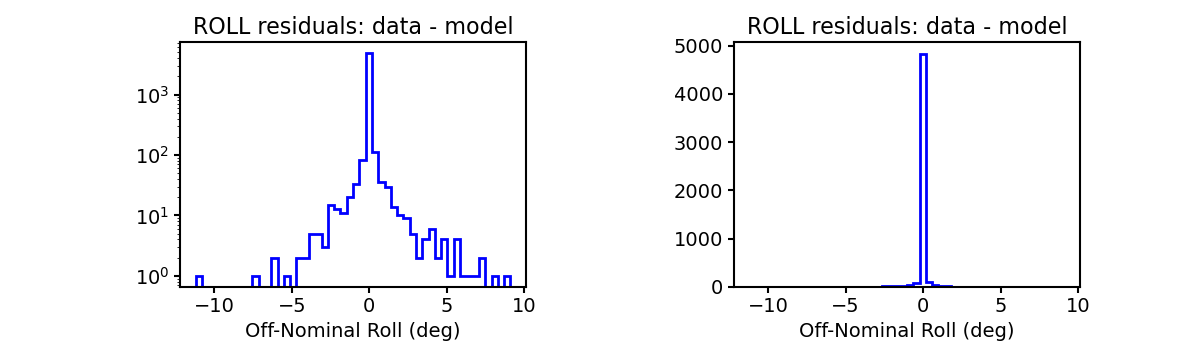

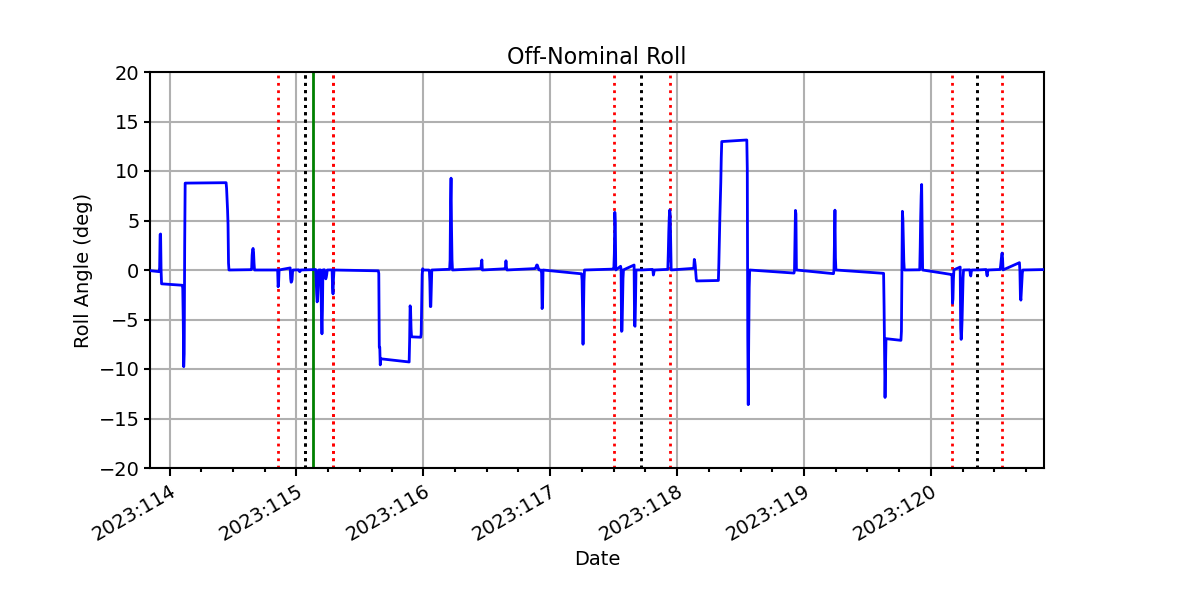

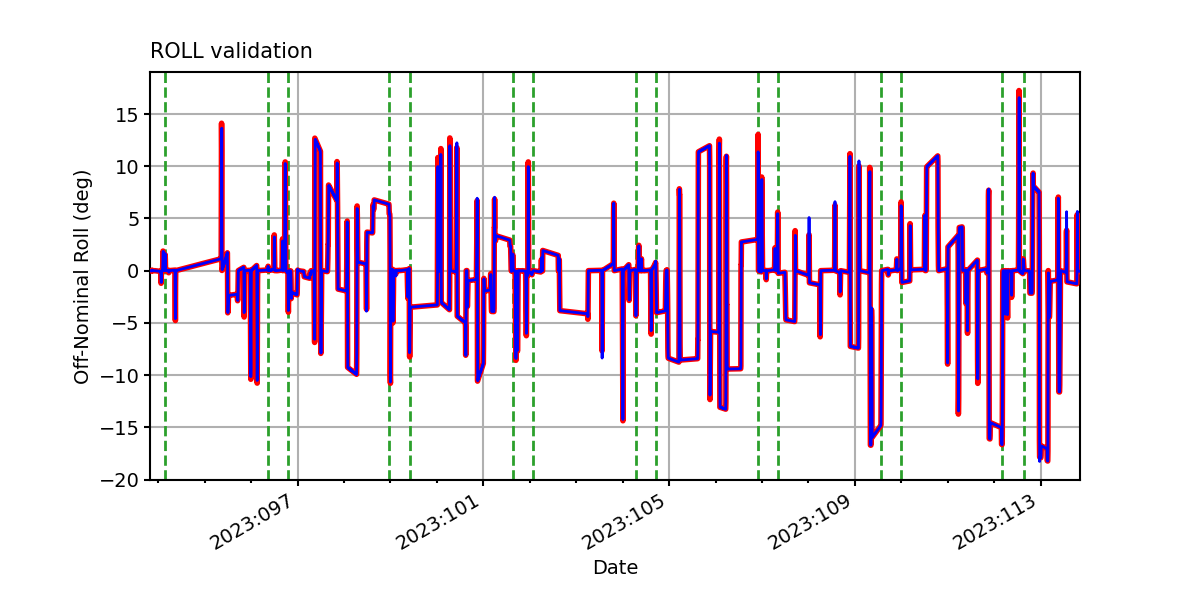

ROLL

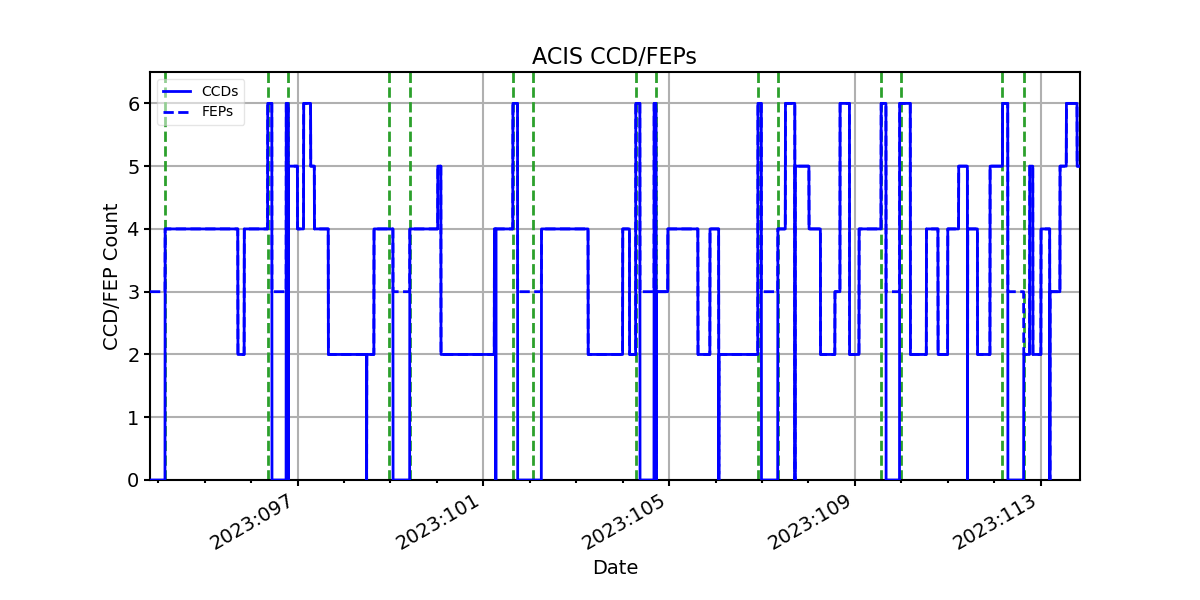

ACIS CCD/FEP Count
