PSMCBT Temperatures Check
Summary
| Date start | 2025:118:00:21:12.316 |
| Date stop | 2025:125:01:52:24.916 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/APR2825/oflsa |
| Run time | Thu Oct 8 16:02:01 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

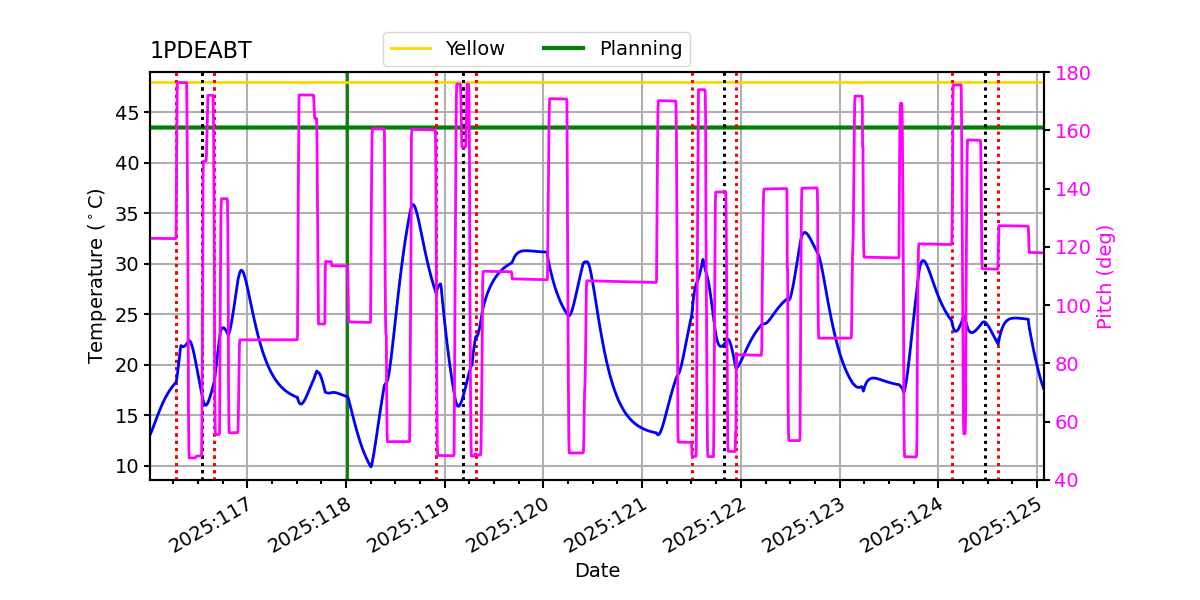

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.36 | -2.49 | -1.56 | 0.04 | 1.29 | 2.04 | 2.66 |
| pitch | -9.731 | -1.094 | -0.004 | -0.000 | 0.004 | 0.801 | 11.279 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.998 | -0.182 | -0.009 | 0.000 | 0.010 | 0.267 | 2.304 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.36 | 2.50 |
| PITCH | 1 | -9.731 | 3.00 |
| PITCH | 99 | 11.279 | 3.00 |

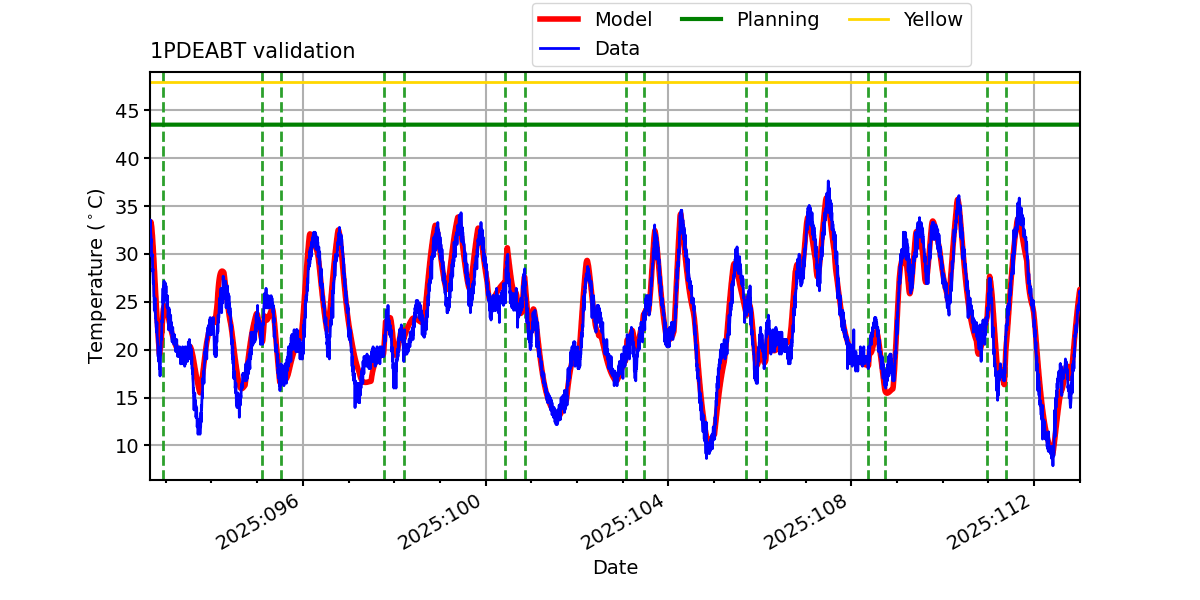

1PDEABT
Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

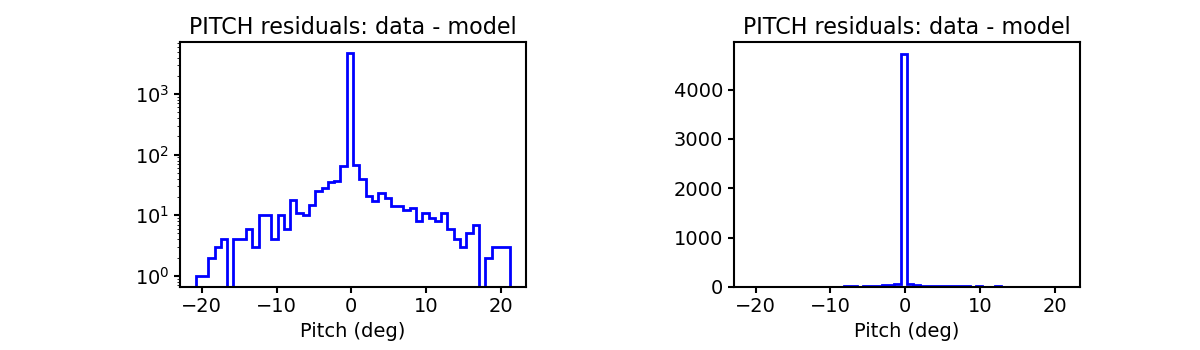

PITCH

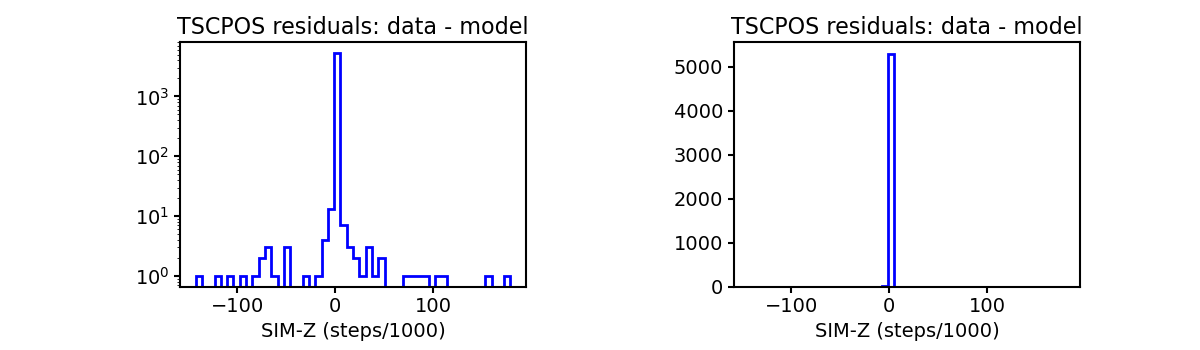

TSCPOS

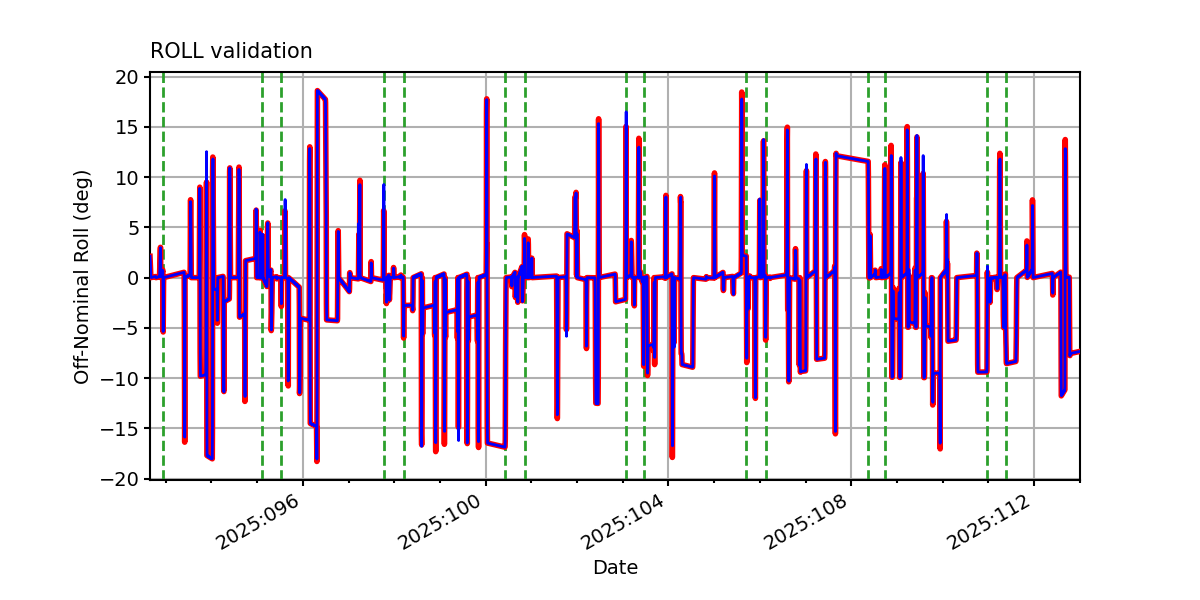

ROLL

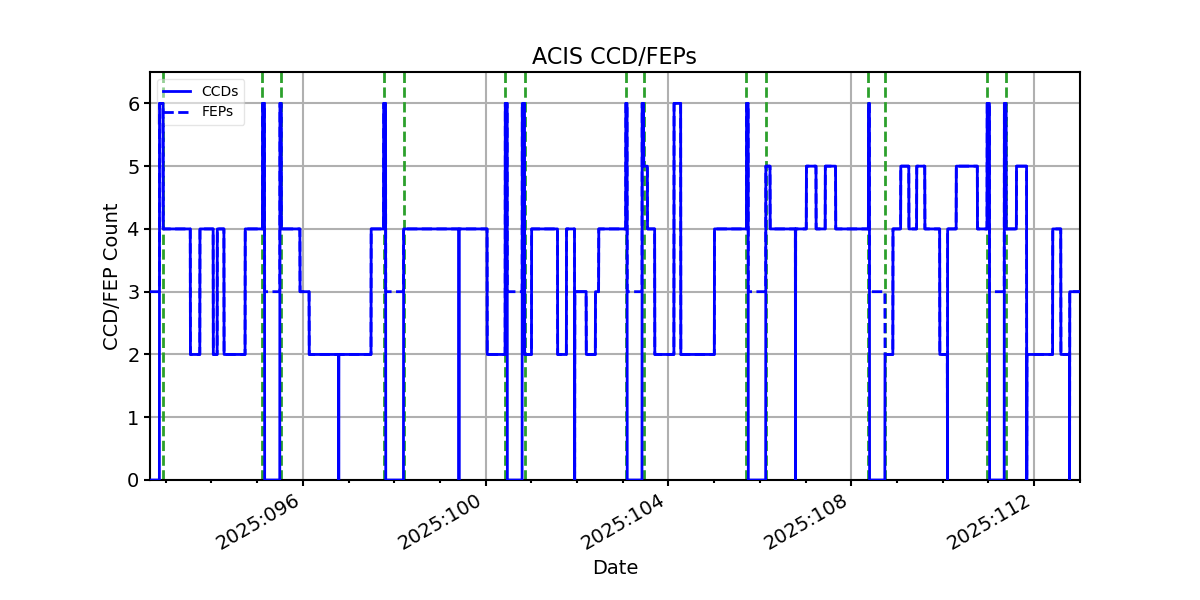

ACIS CCD/FEP Count
