PSMCBT Temperatures Check
Summary
| Date start | 2024:120:01:32:00.016 |
| Date stop | 2024:126:22:06:38.616 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/APR2924/oflsa |
| Run time | Thu Oct 8 16:02:01 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.63 | -2.76 | -1.74 | -0.10 | 1.14 | 1.85 | 2.39 |
| pitch | -9.069 | -0.756 | -0.004 | -0.000 | 0.004 | 0.560 | 9.368 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 1 | 1 |
| roll | -1.892 | -0.186 | -0.008 | 0.000 | 0.008 | 0.176 | 2.196 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.63 | 2.50 |
| PITCH | 1 | -9.069 | 3.00 |
| PITCH | 99 | 9.368 | 3.00 |

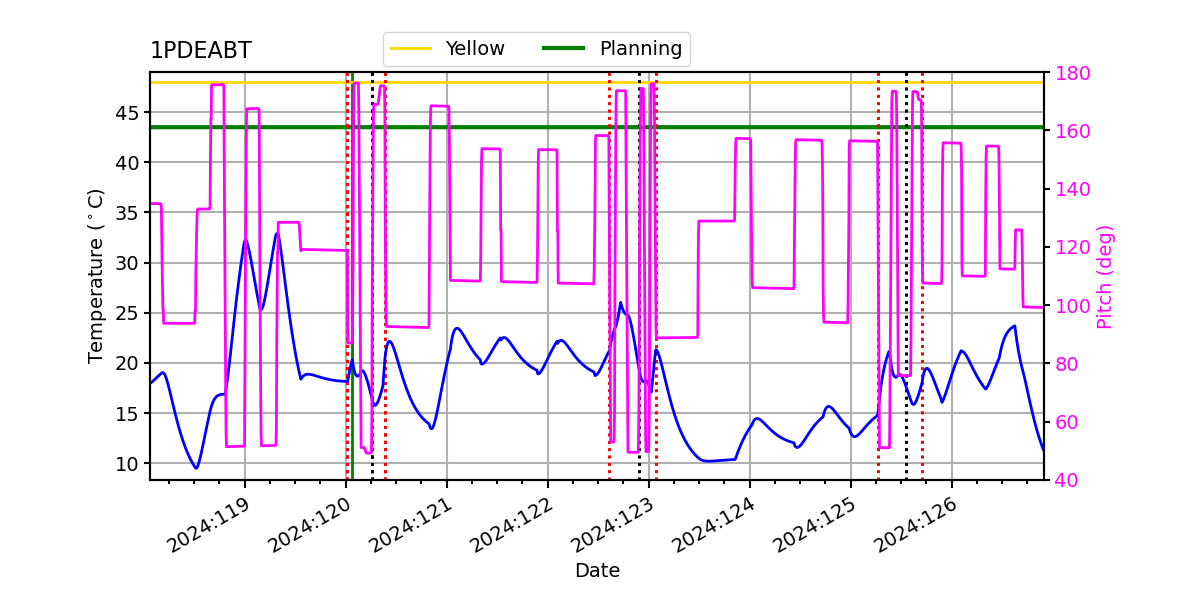

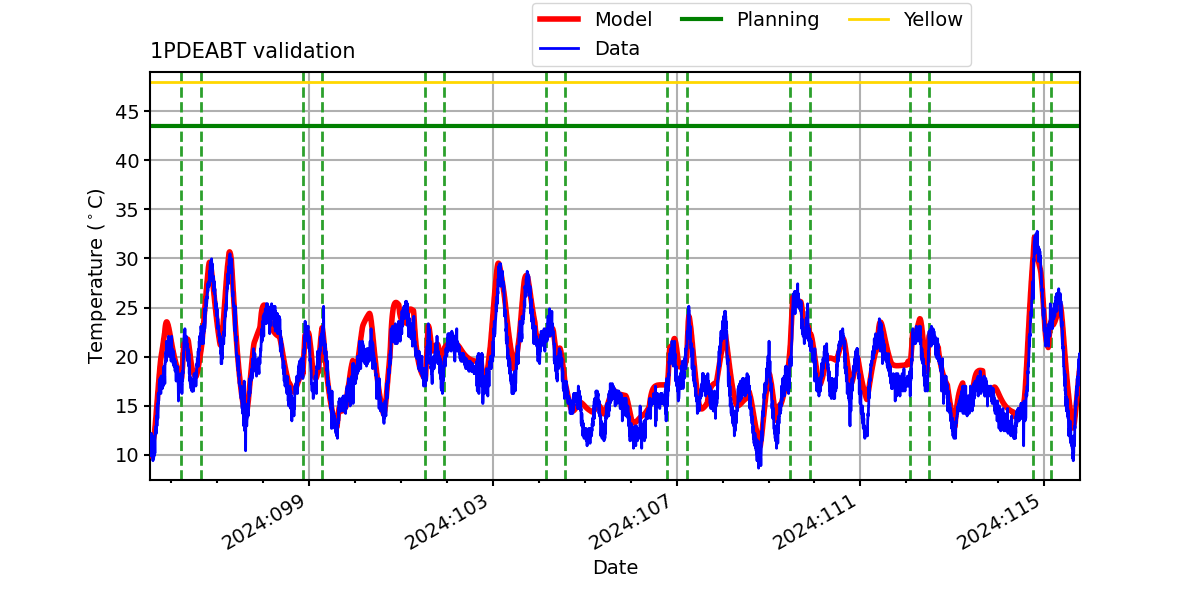

1PDEABT

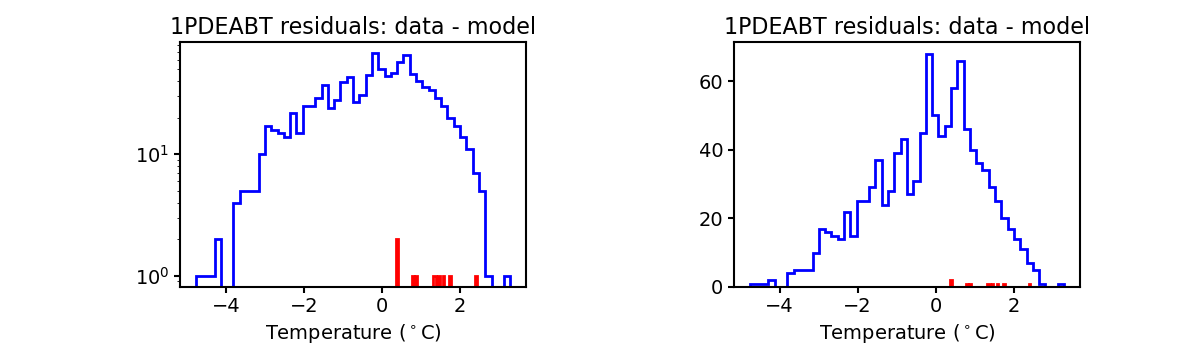

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

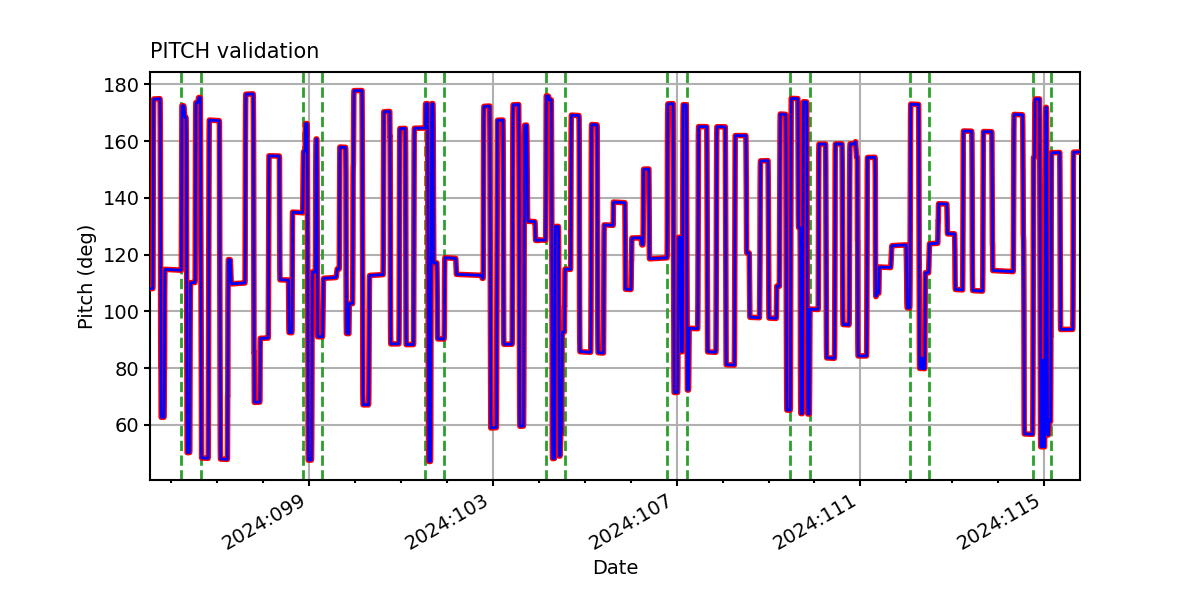

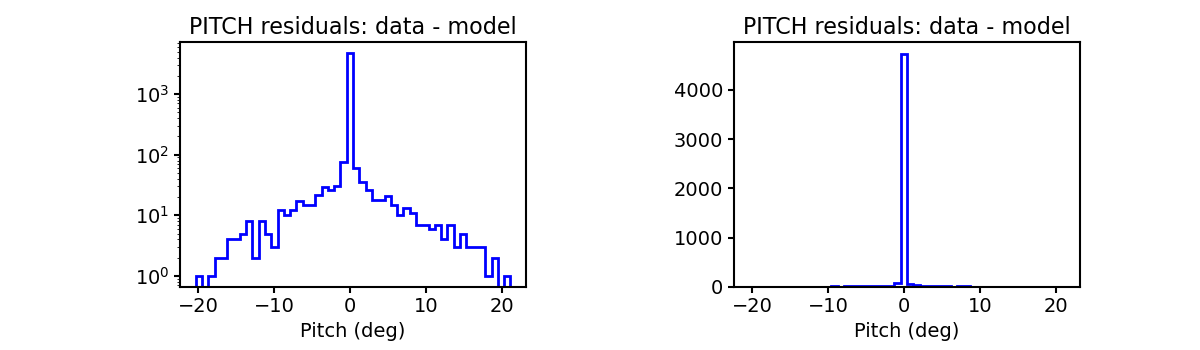

PITCH

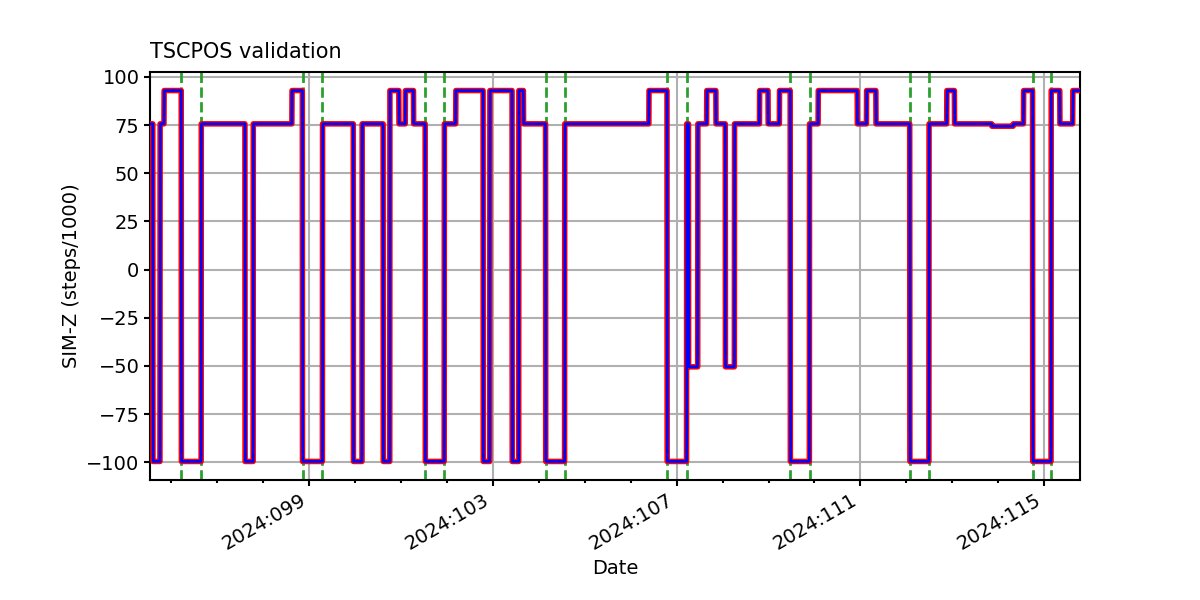

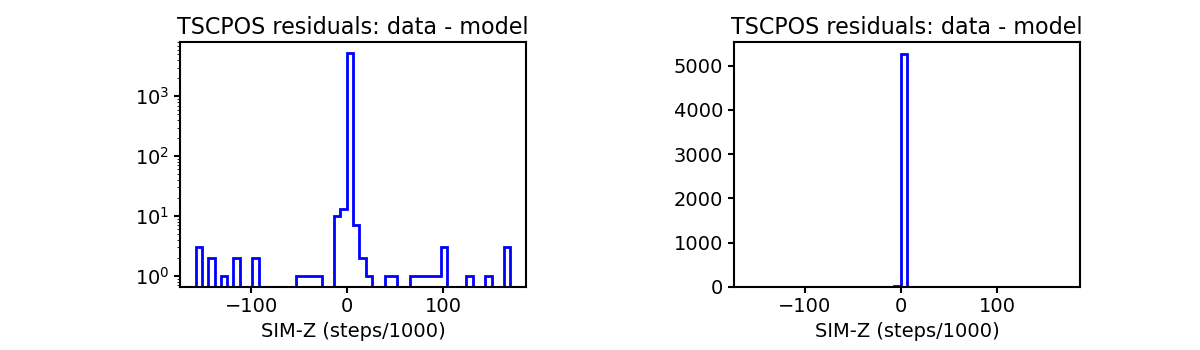

TSCPOS

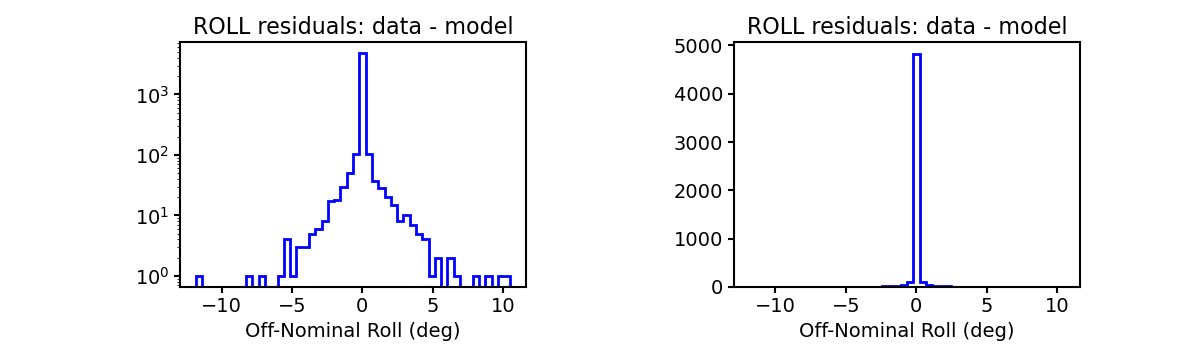

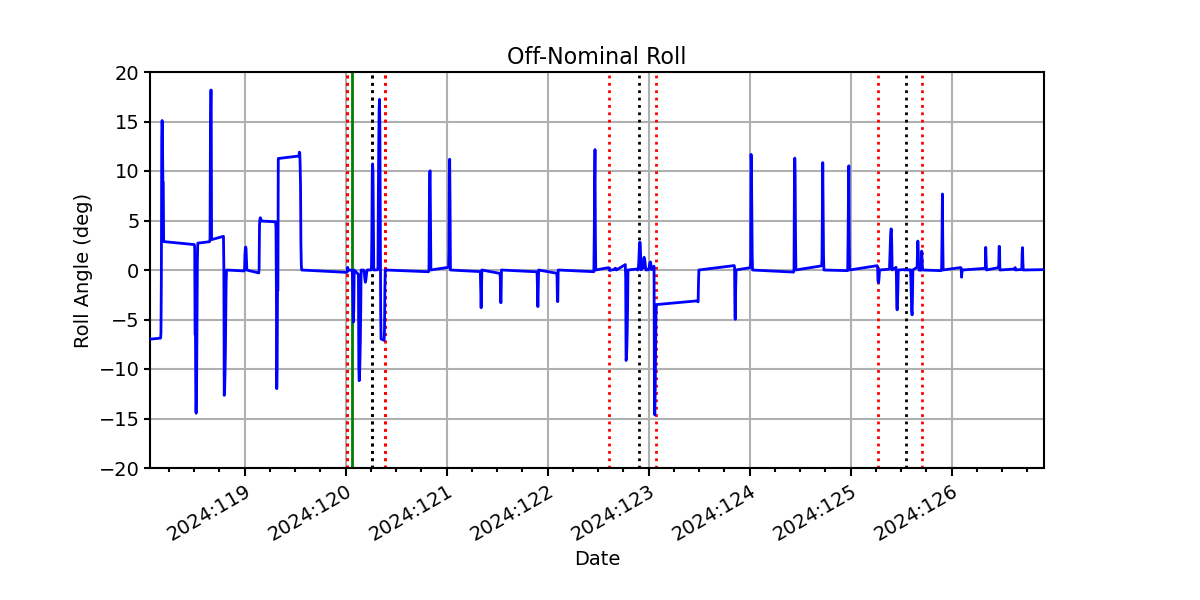

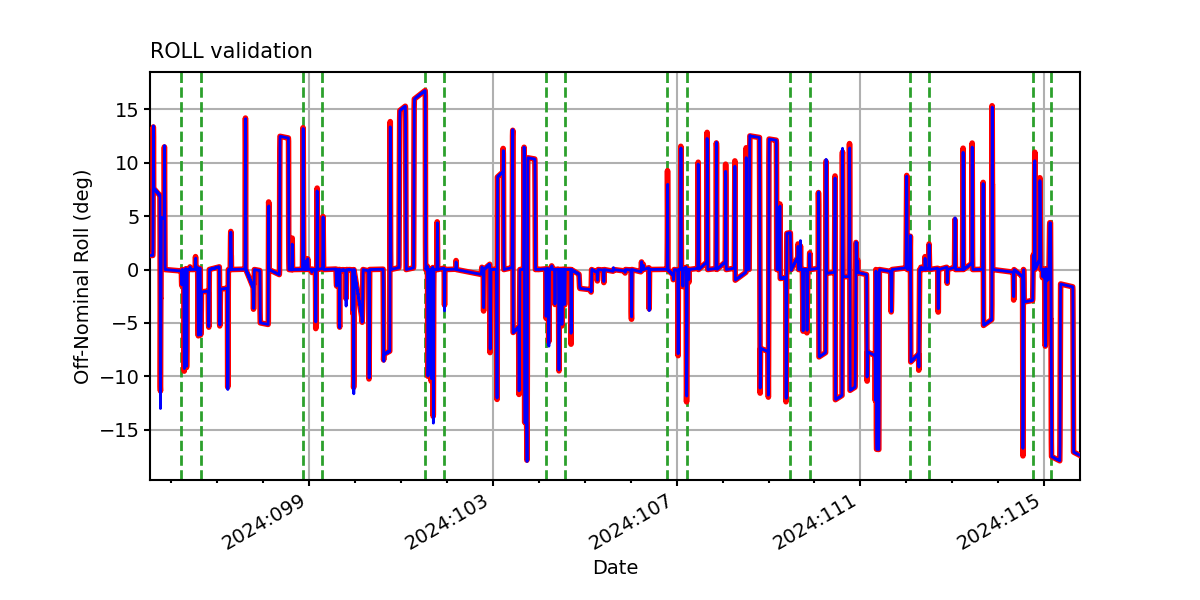

ROLL

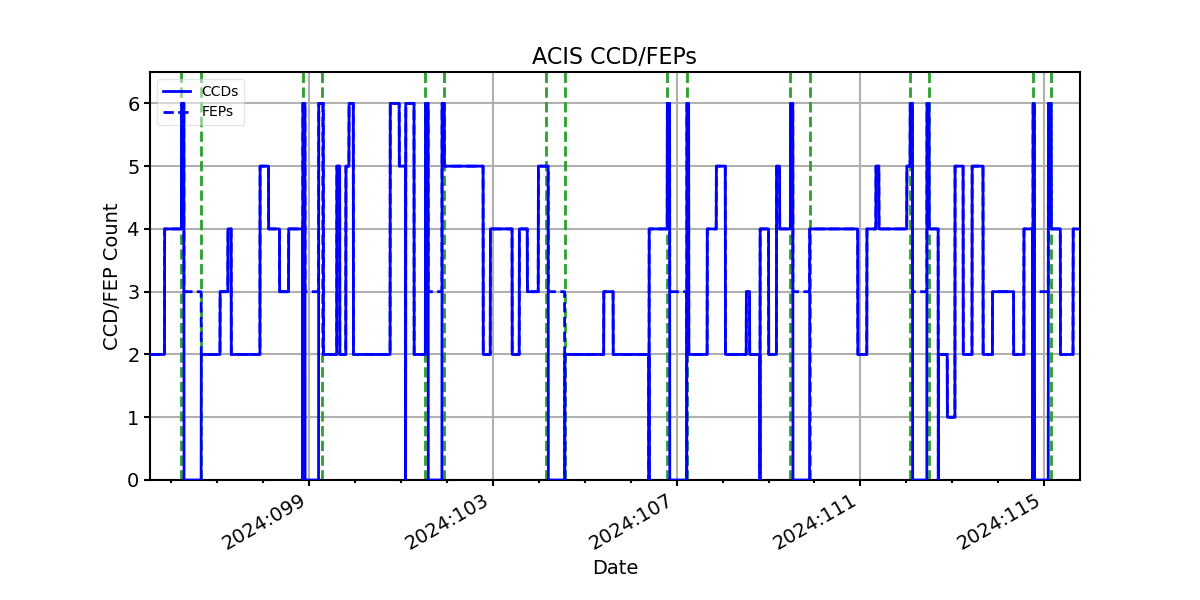

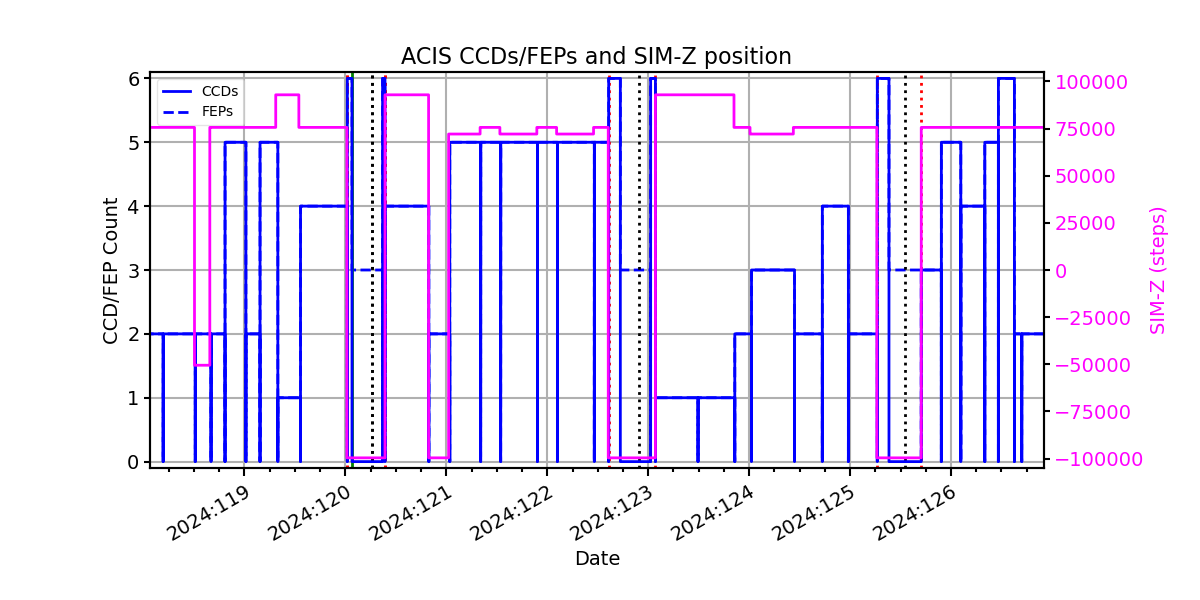

ACIS CCD/FEP Count
