PSMCBT Temperatures Check
Summary
| Date start | 2025:216:00:55:48.416 |
| Date stop | 2025:222:16:35:40.916 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/AUG0425/oflsa |
| Run time | Thu Oct 8 16:02:01 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

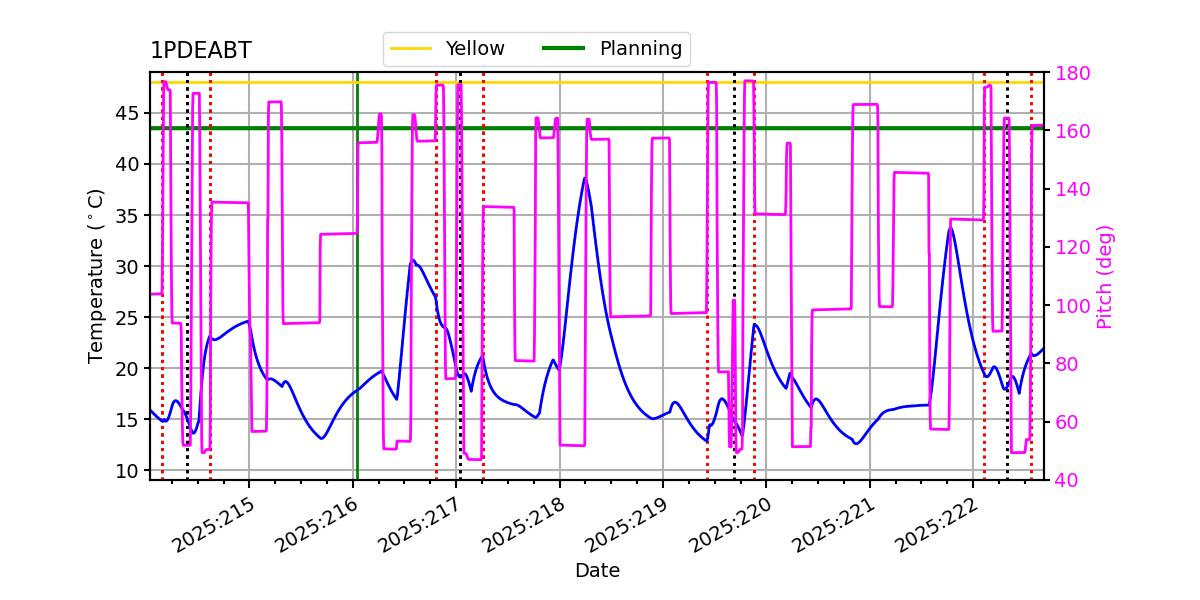

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.35 | -1.63 | -0.84 | 1.09 | 2.47 | 3.16 | 3.82 |
| pitch | -9.335 | -0.136 | -0.004 | 0.000 | 0.004 | 0.371 | 8.459 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 1 | 1 |
| roll | -2.035 | -0.108 | -0.006 | -0.000 | 0.006 | 0.093 | 1.802 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 50 | 1.09 | 1.00 |
| PITCH | 1 | -9.335 | 3.00 |
| PITCH | 99 | 8.459 | 3.00 |

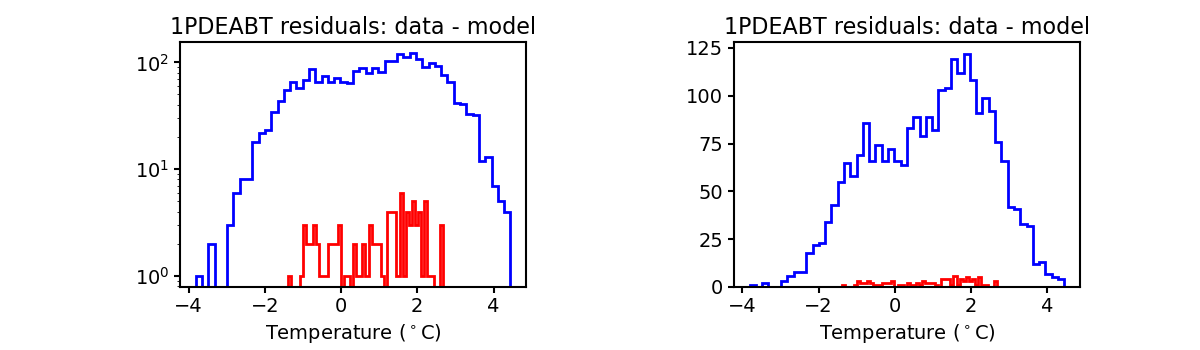

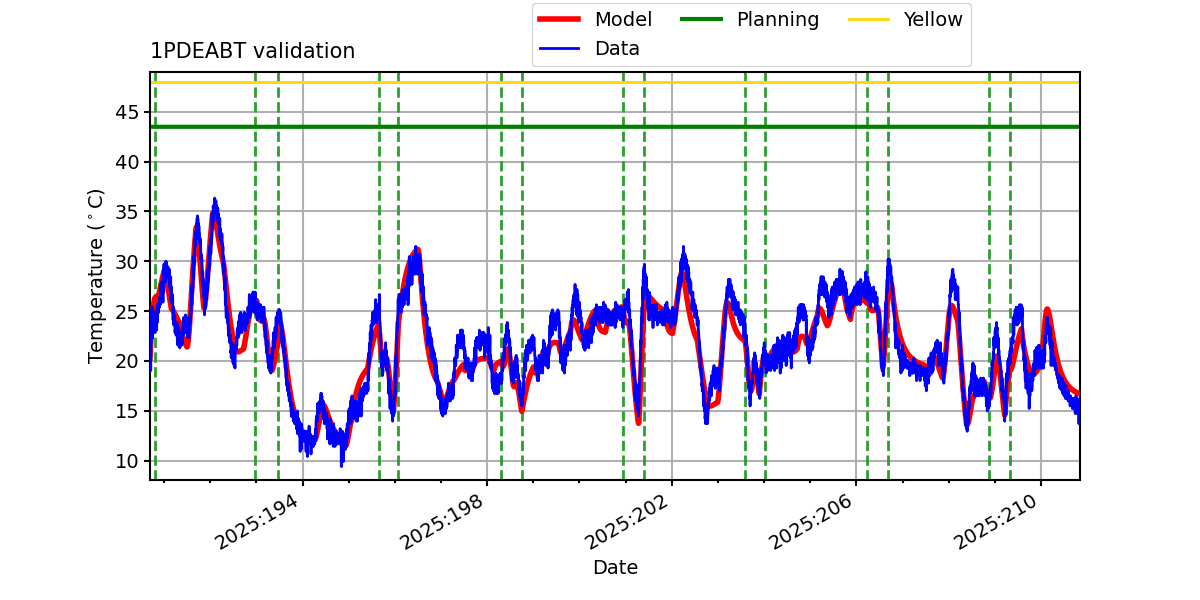

1PDEABT
Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

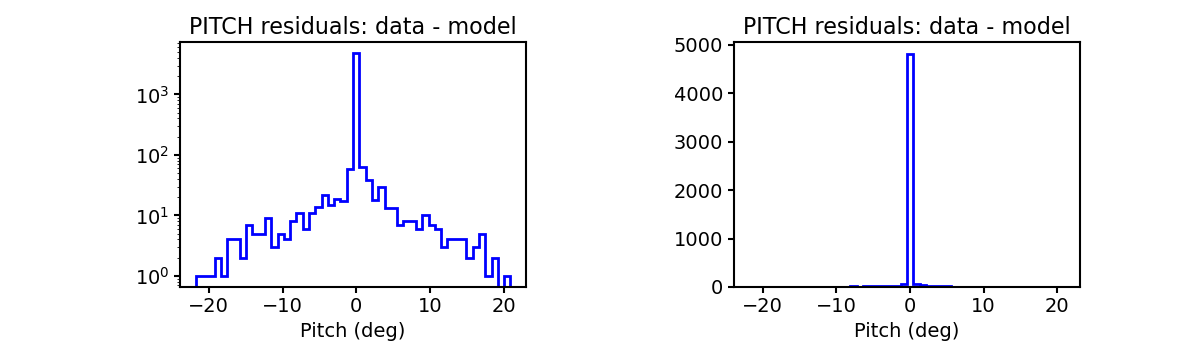

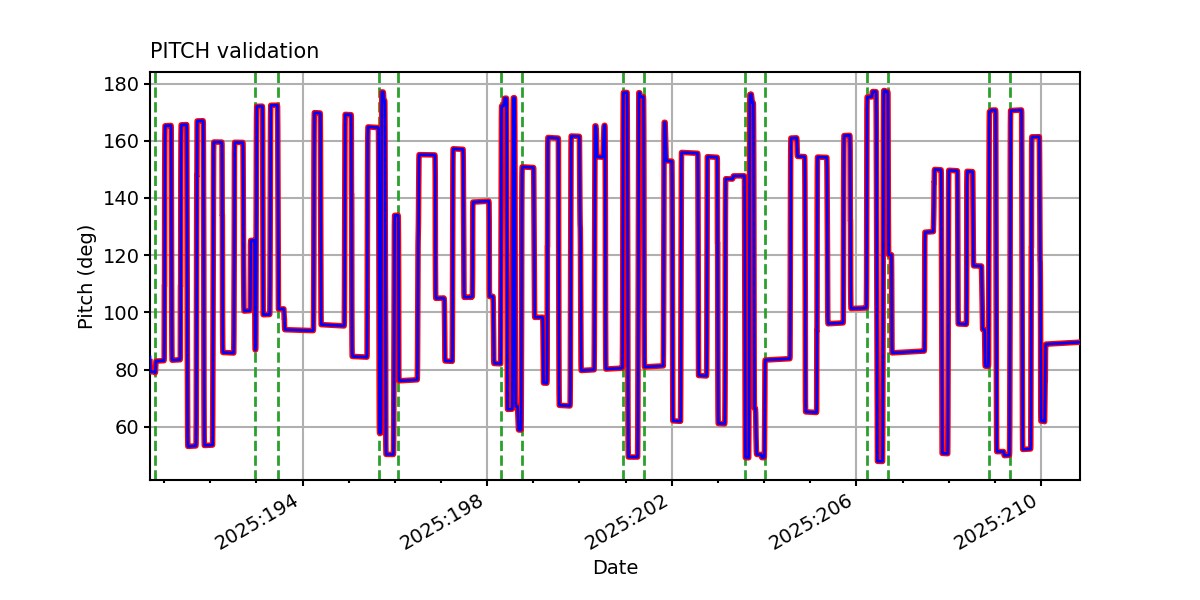

PITCH

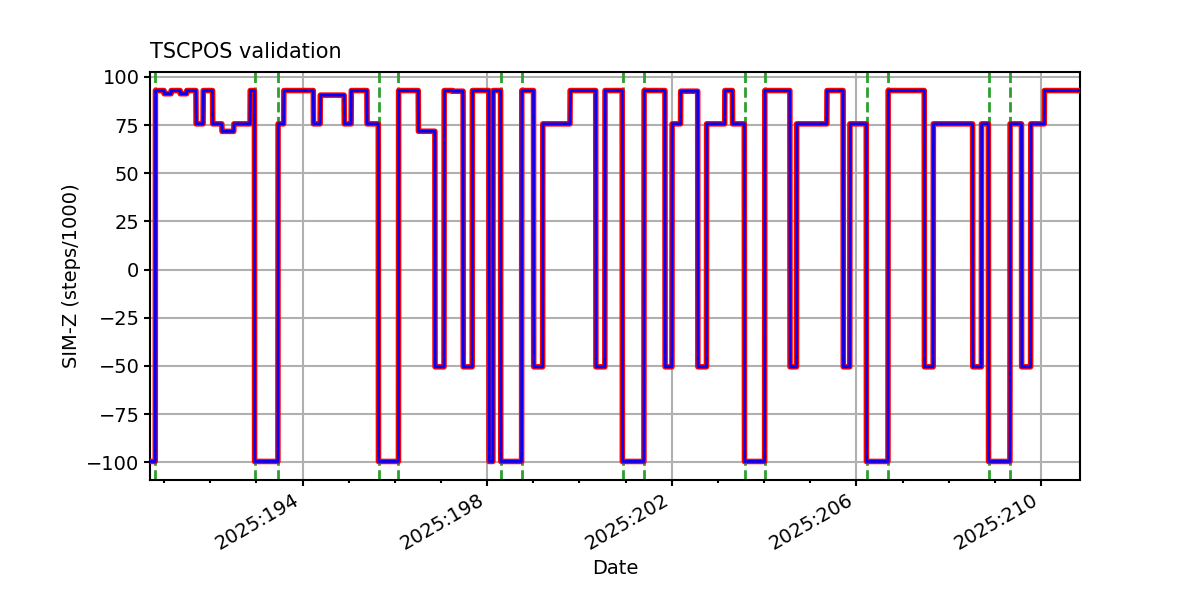

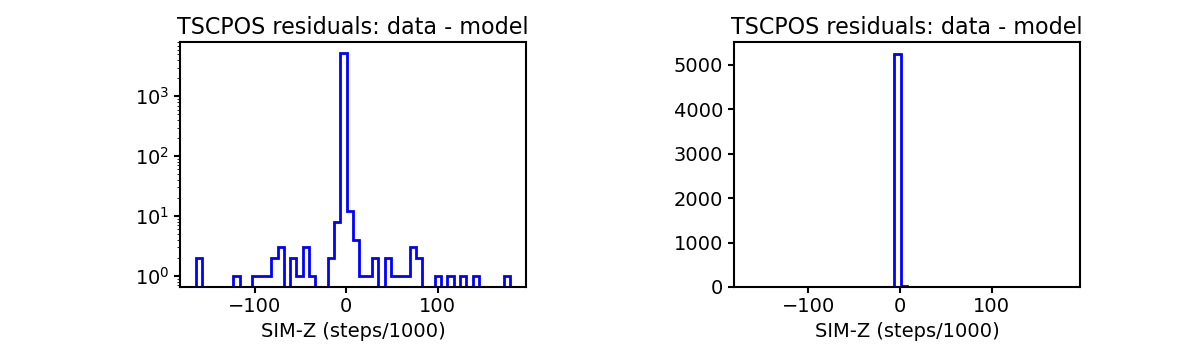

TSCPOS

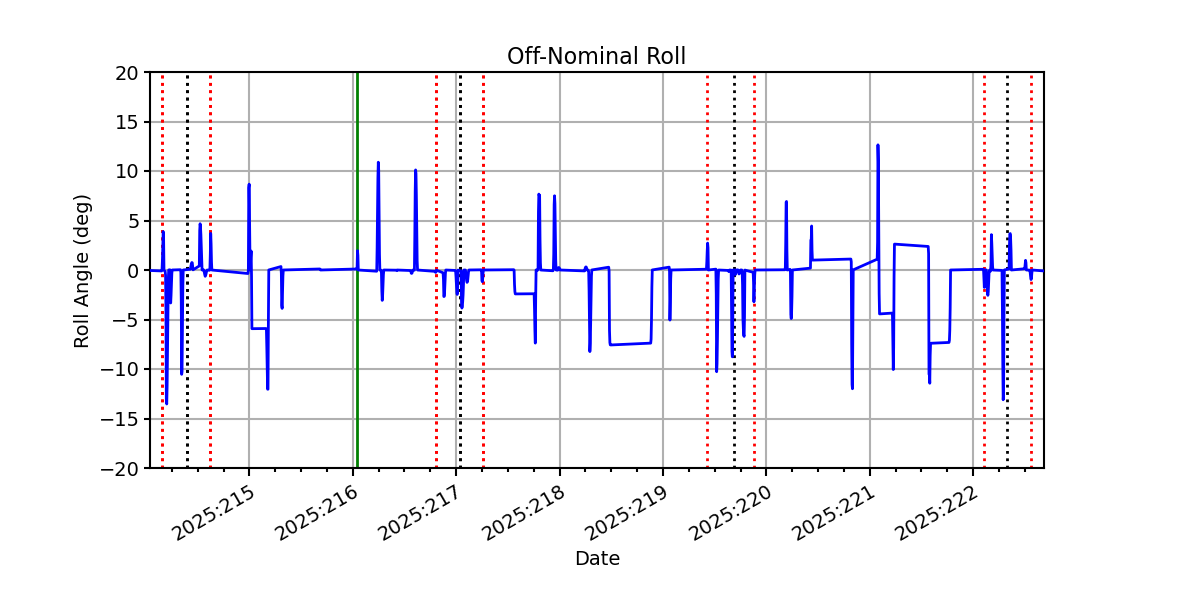

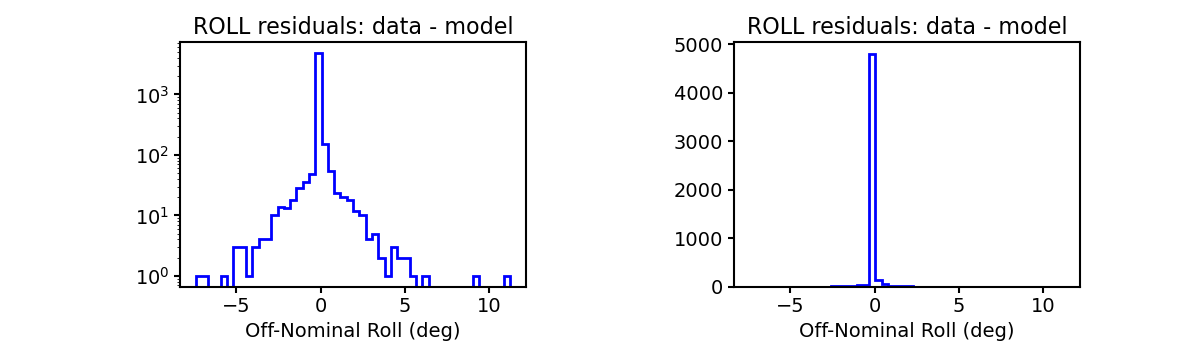

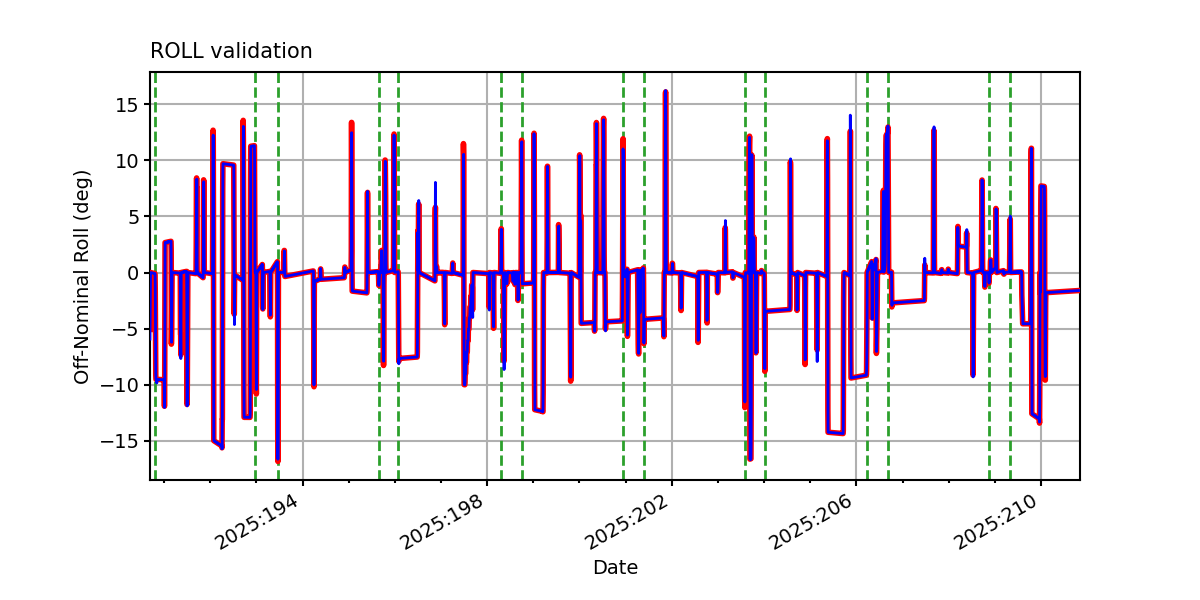

ROLL

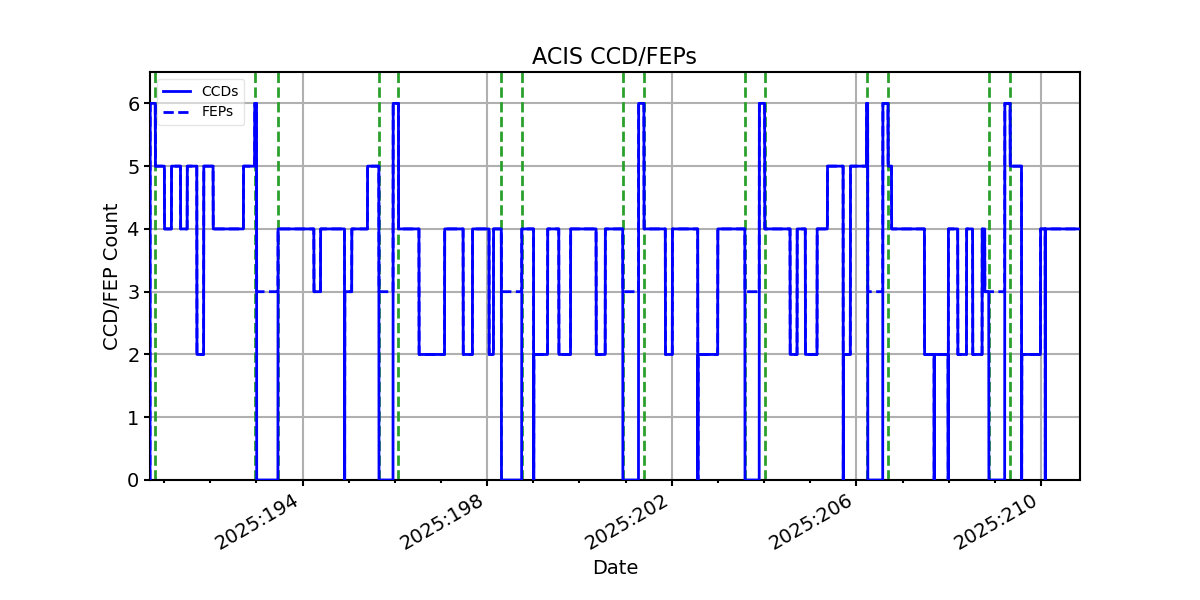

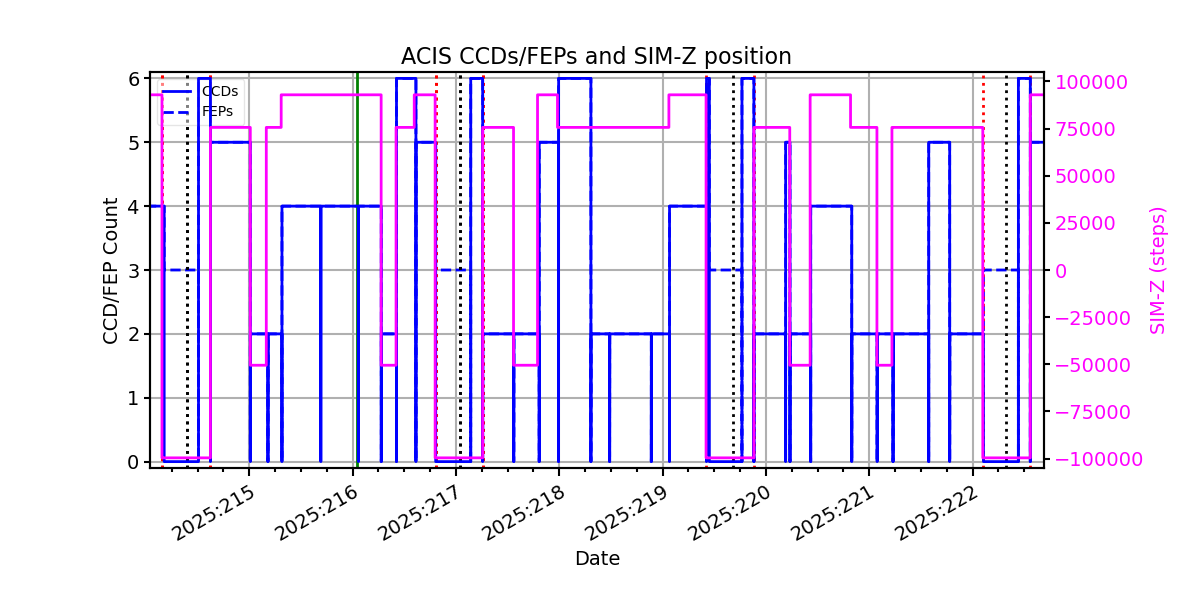

ACIS CCD/FEP Count
