PSMCBT Temperatures Check
Summary
| Date start | 2024:217:21:56:00.016 |
| Date stop | 2024:224:23:51:45.216 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/AUG0524/oflsb |
| Run time | Thu Oct 8 16:02:01 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

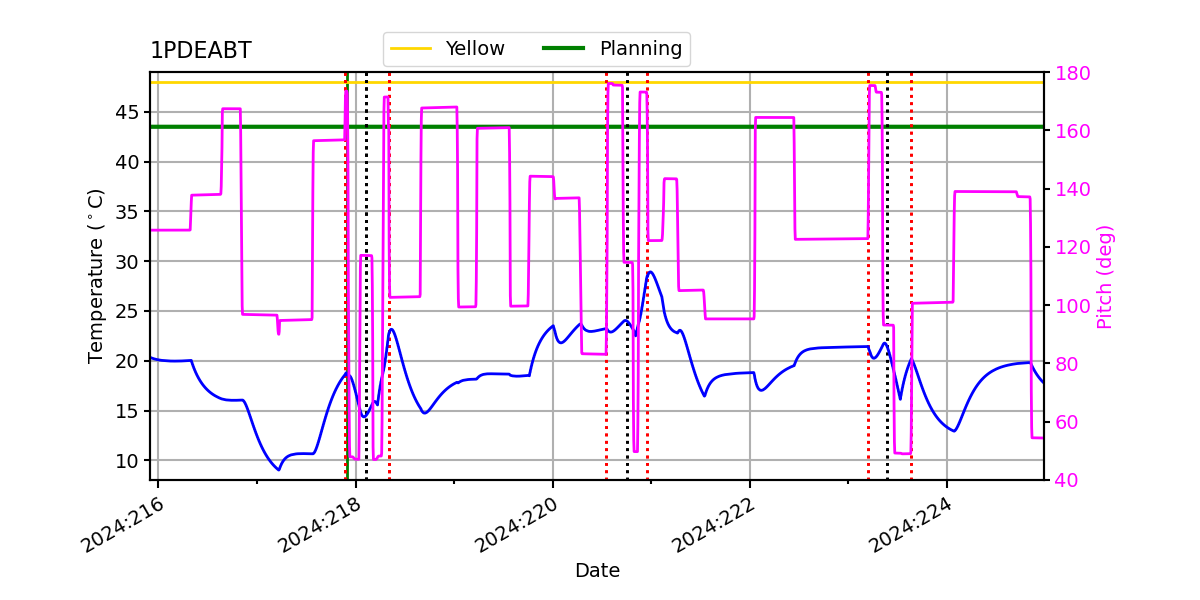

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.22 | -2.52 | -1.54 | -0.00 | 1.58 | 2.47 | 3.36 |
| pitch | -7.466 | -0.181 | -0.004 | -0.000 | 0.004 | 0.049 | 8.162 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 0 |
| roll | -2.085 | -0.052 | -0.005 | -0.000 | 0.005 | 0.041 | 1.805 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.22 | 2.50 |
| PITCH | 1 | -7.466 | 3.00 |
| PITCH | 99 | 8.162 | 3.00 |
1PDEABT
Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

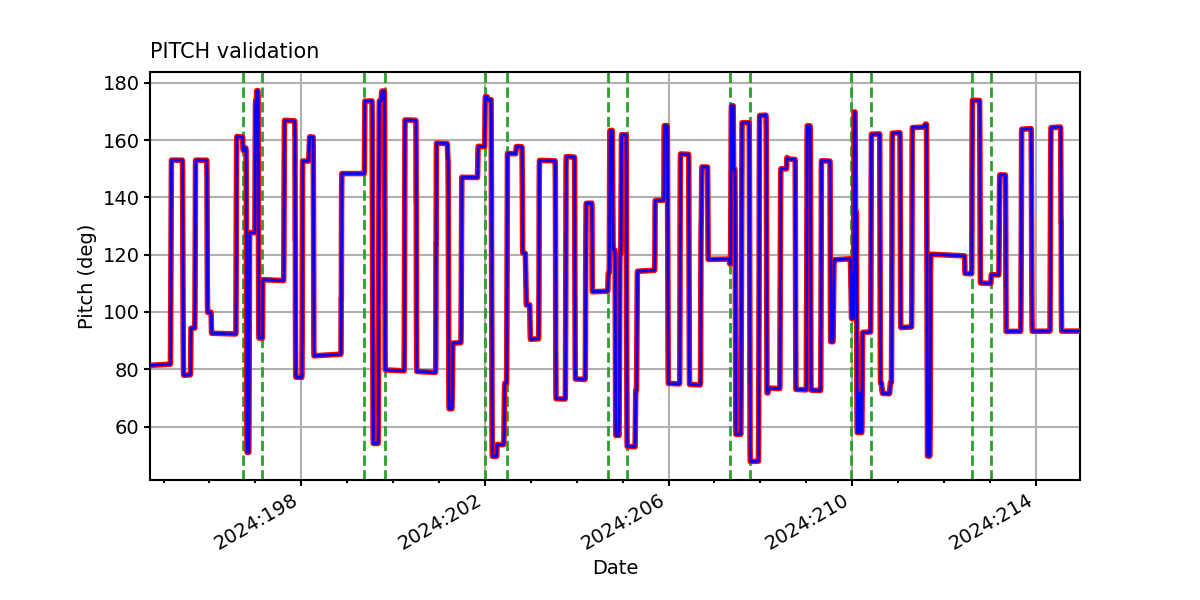

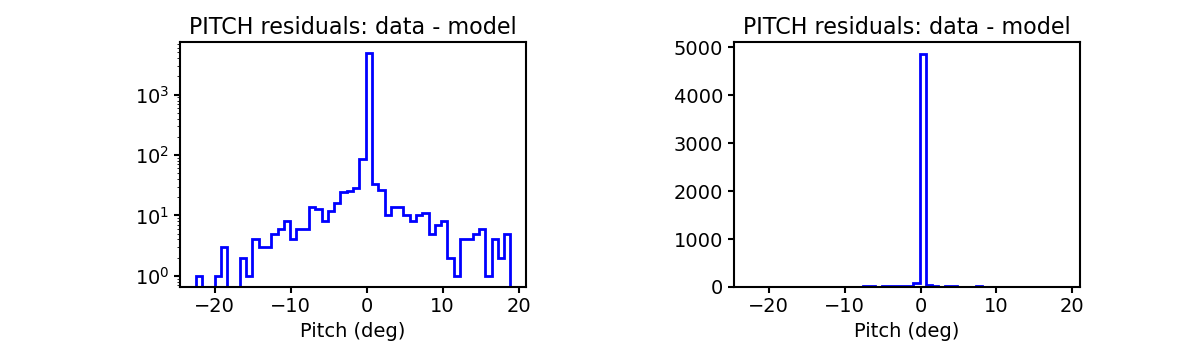

PITCH

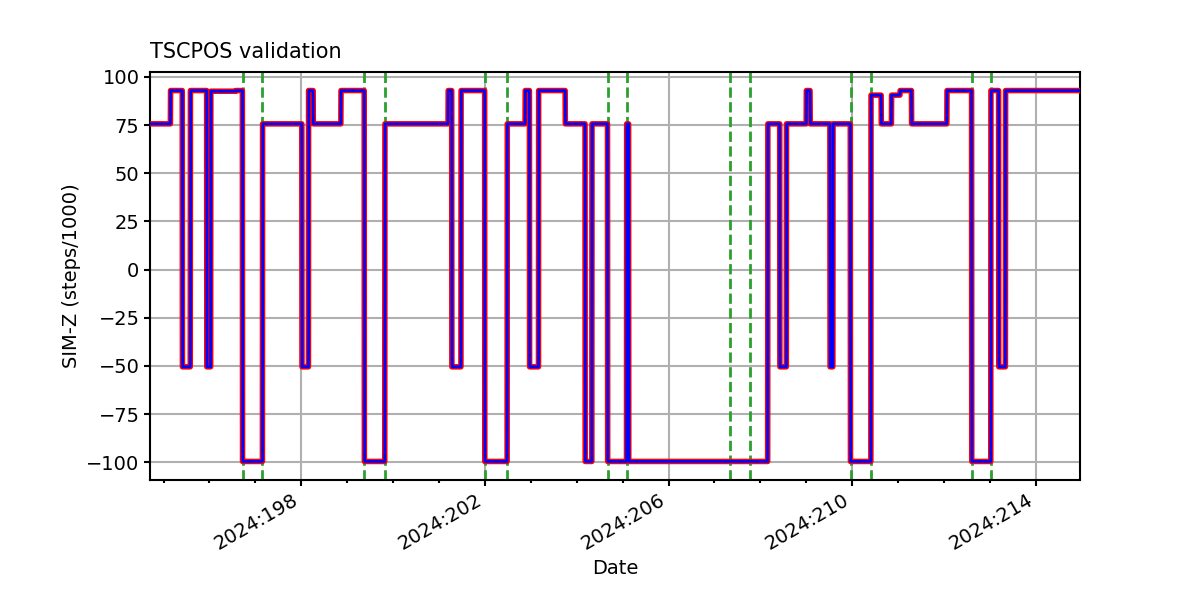

TSCPOS

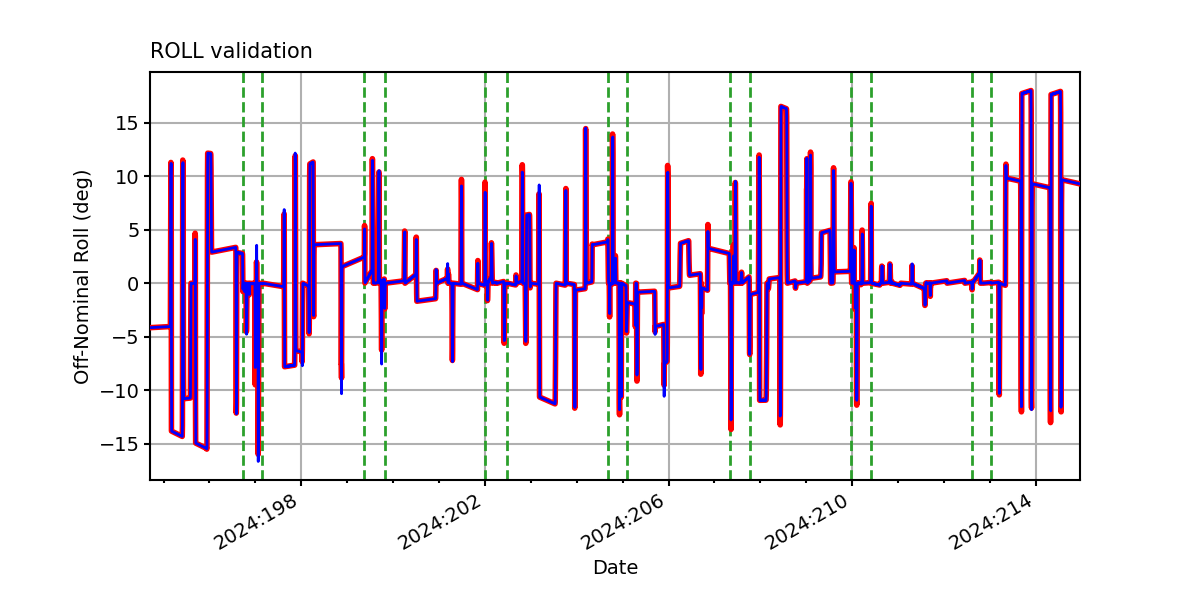

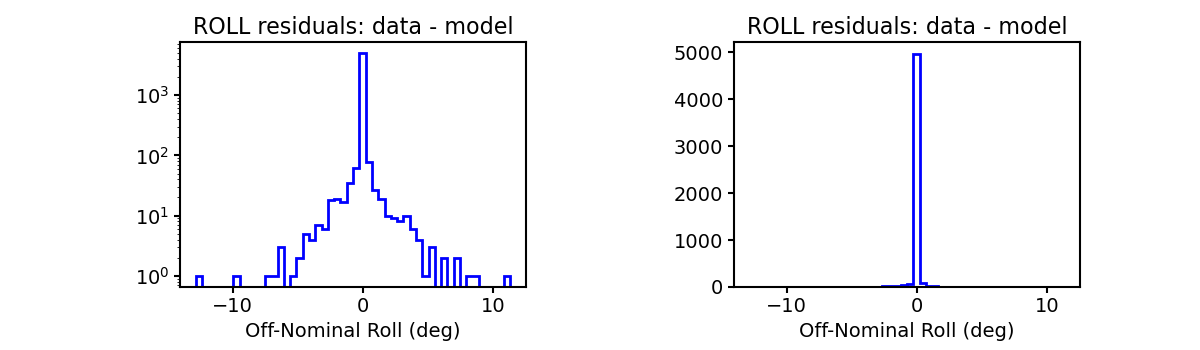

ROLL

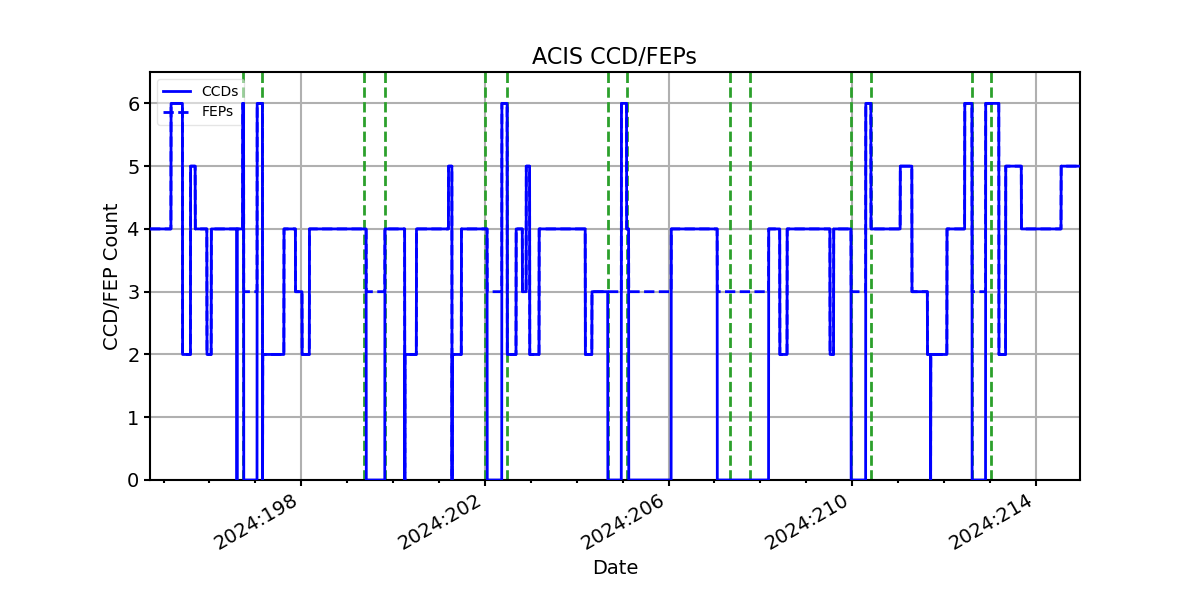

ACIS CCD/FEP Count
