PSMCBT Temperatures Check
Summary
| Date start | 2023:226:00:15:00.016 |
| Date stop | 2023:232:23:21:10.216 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/AUG1423/oflsa |
| Run time | Thu Oct 8 16:02:30 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

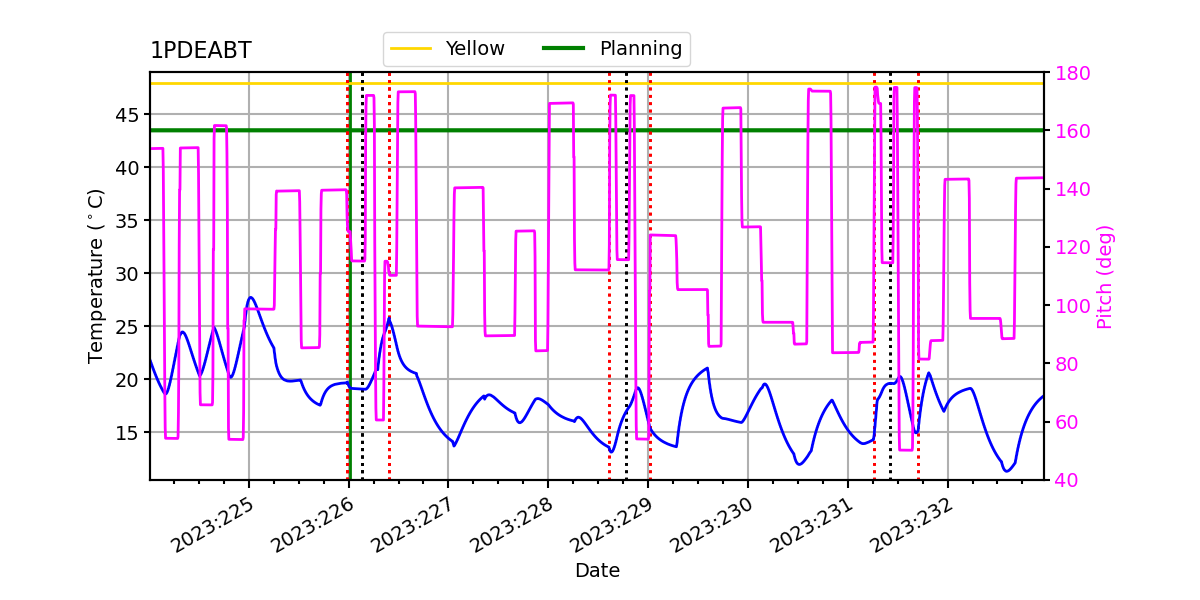

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.15 | -2.38 | -1.51 | -0.17 | 0.98 | 1.76 | 2.49 |
| pitch | -7.838 | -0.053 | -0.004 | -0.000 | 0.004 | 0.022 | 7.093 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.368 | -0.023 | -0.002 | 0.000 | 0.003 | 0.044 | 1.240 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.15 | 2.50 |
| PITCH | 1 | -7.838 | 3.00 |
| PITCH | 99 | 7.093 | 3.00 |

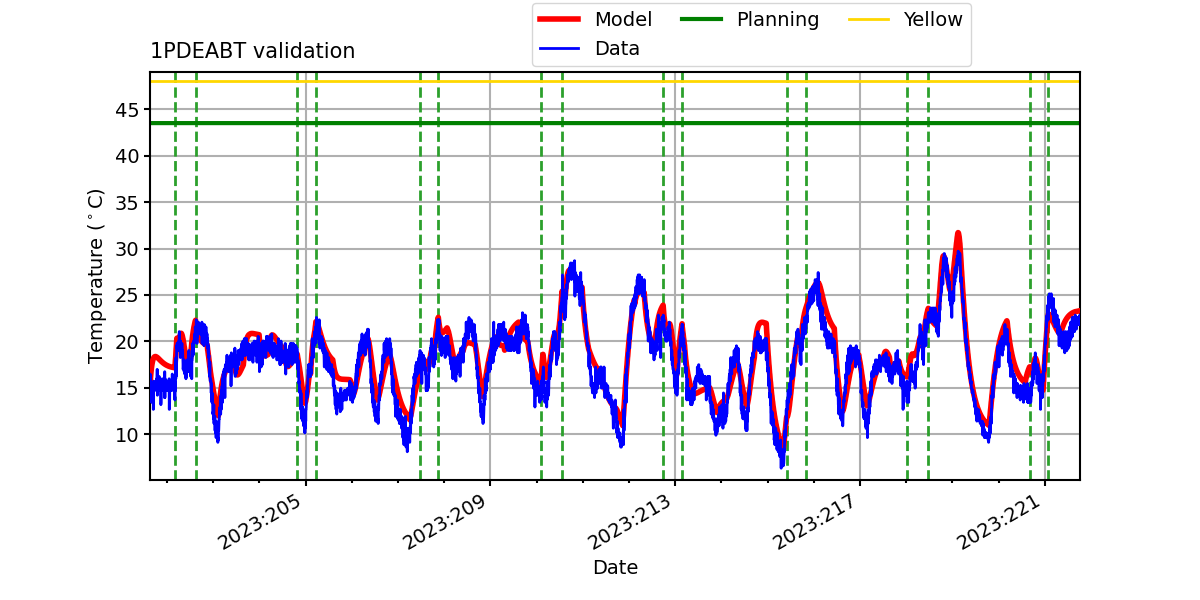

1PDEABT

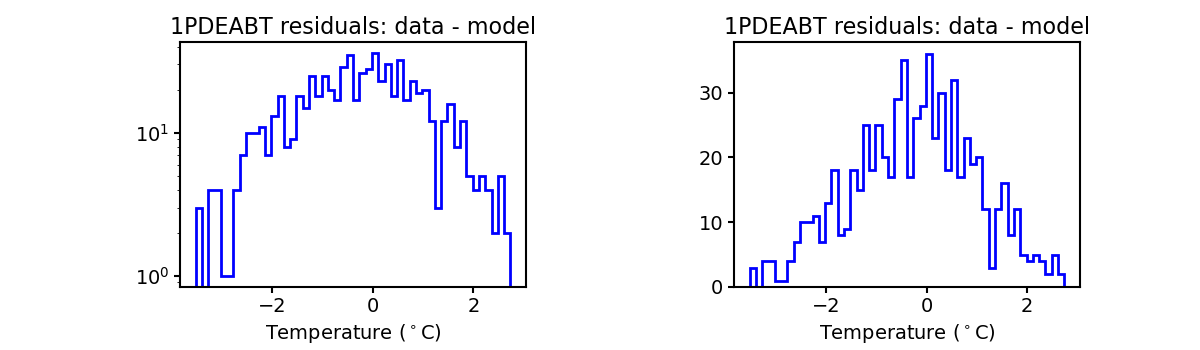

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

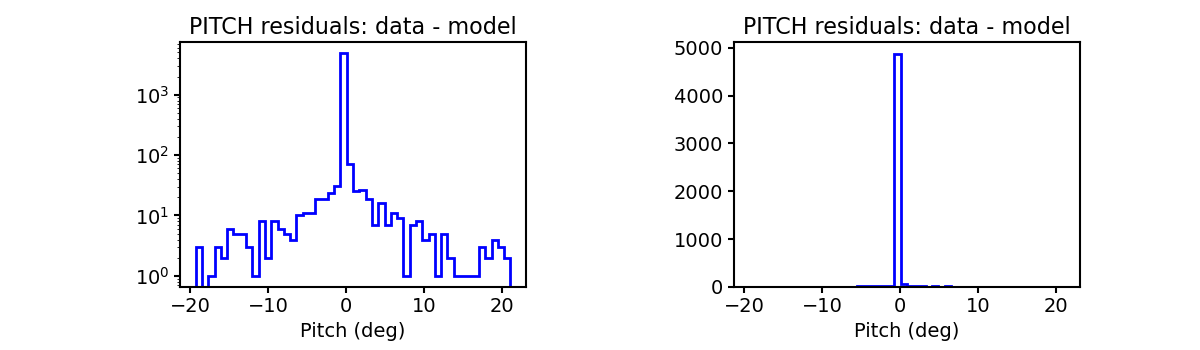

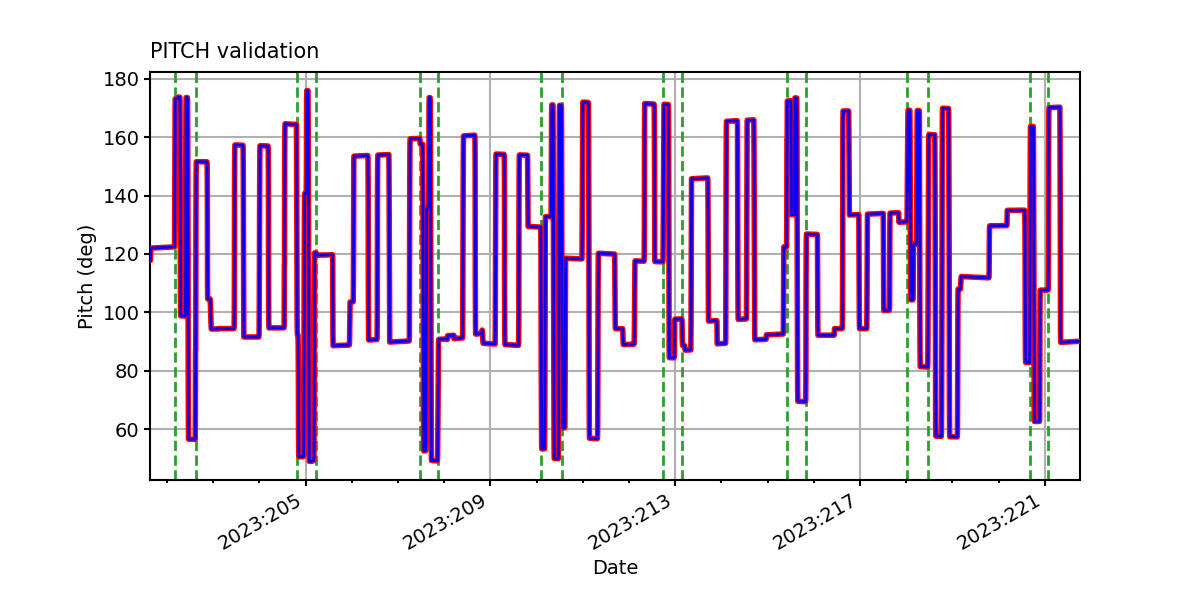

PITCH

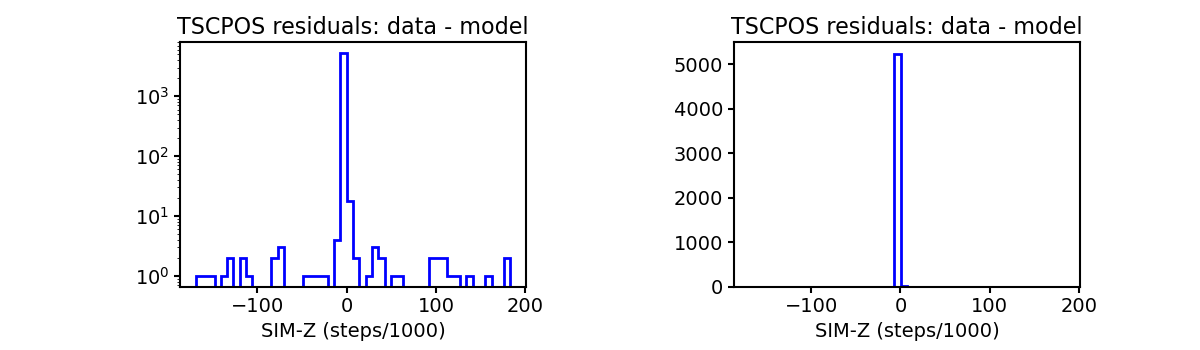

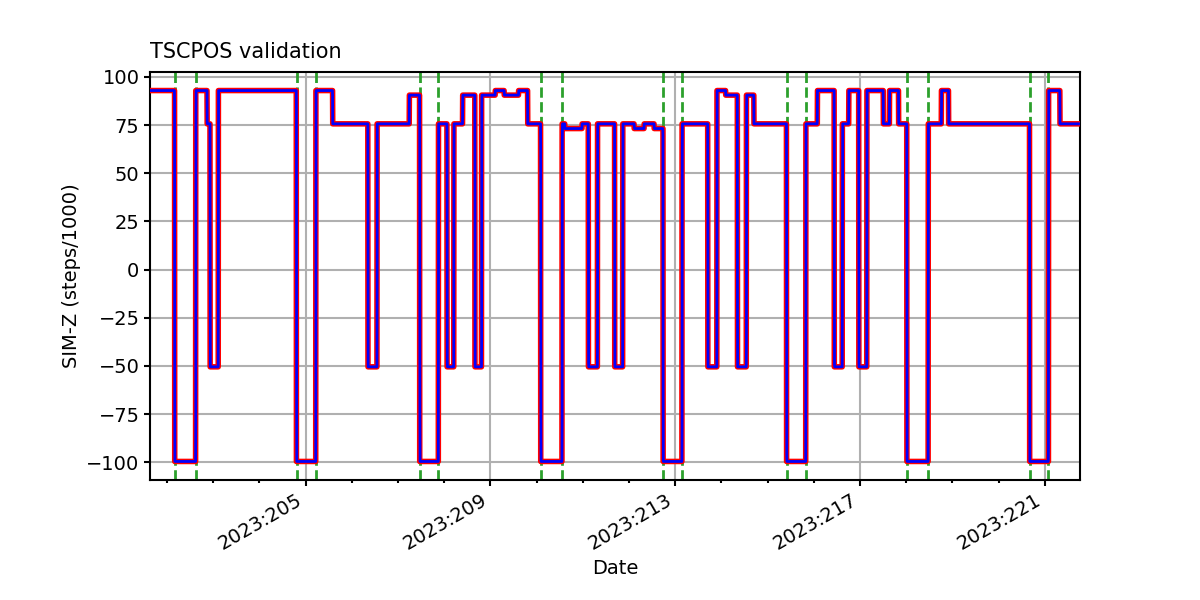

TSCPOS

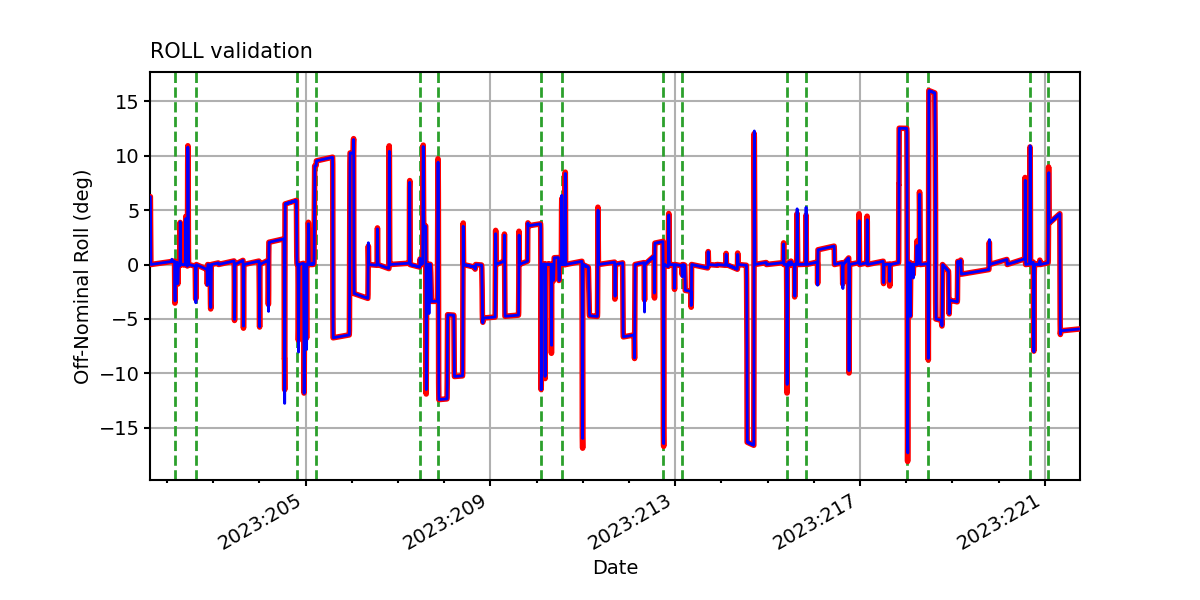

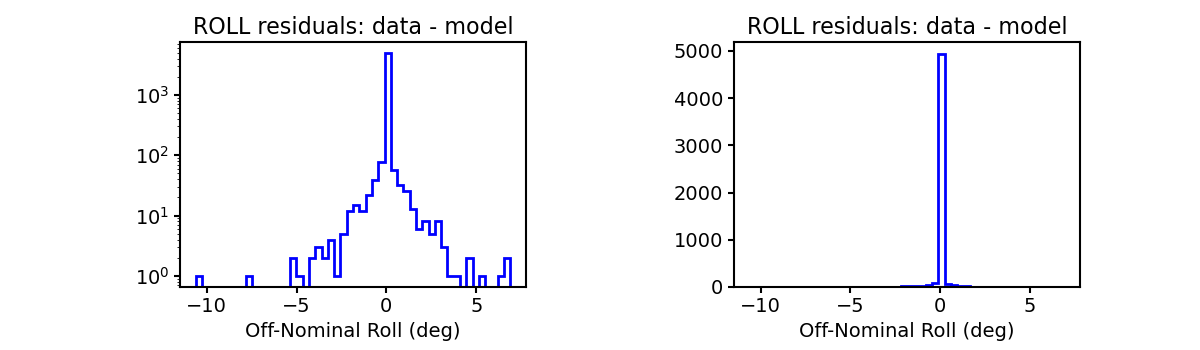

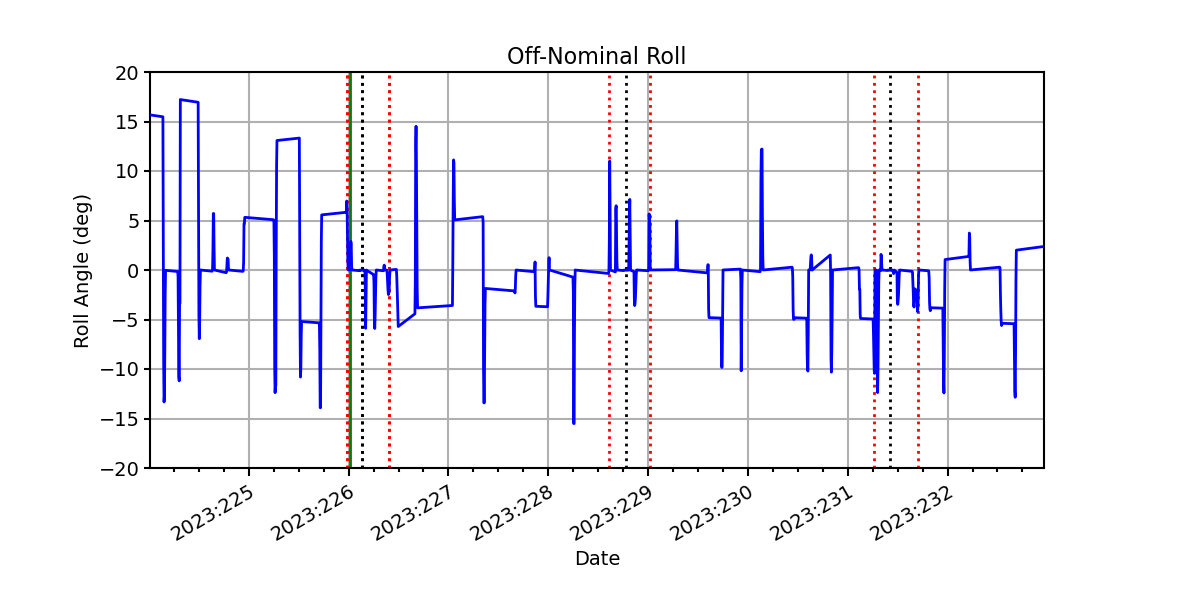

ROLL

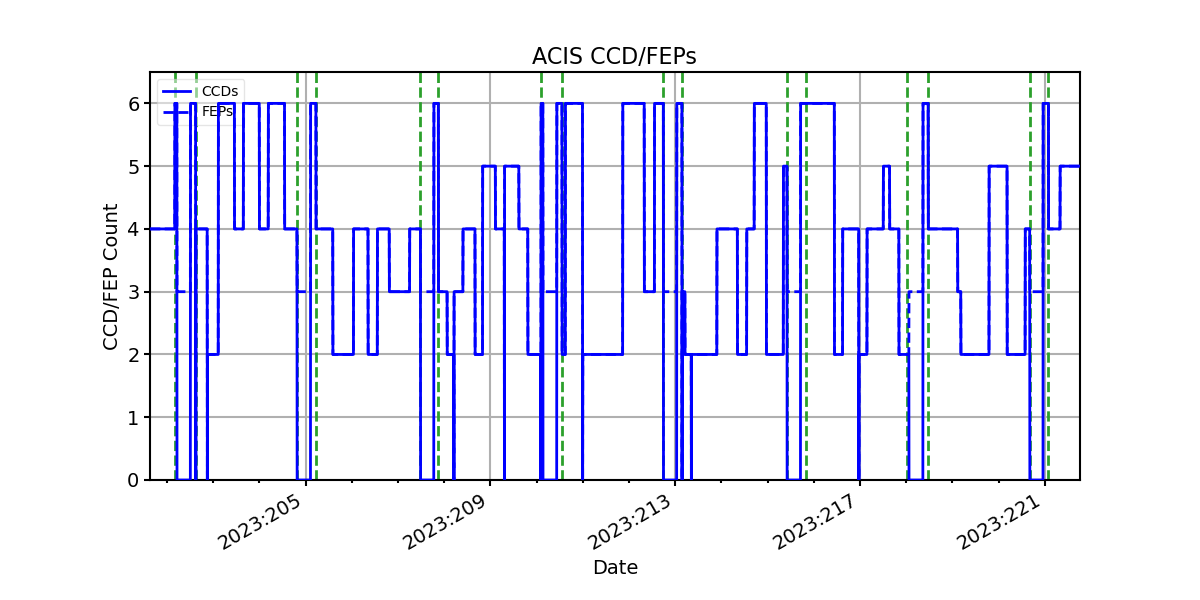

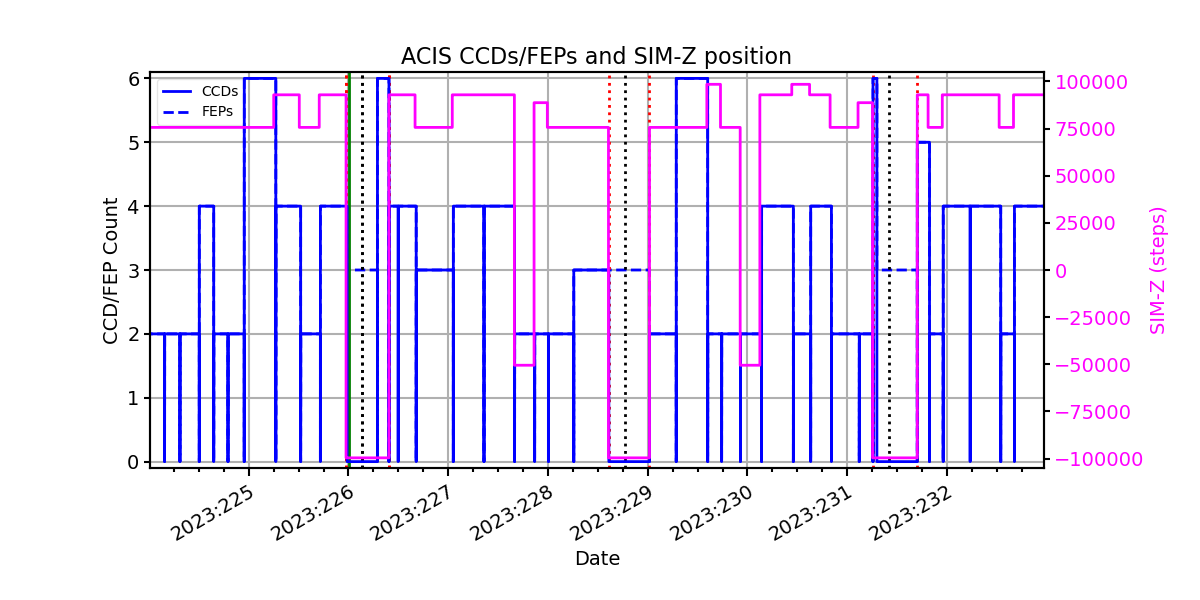

ACIS CCD/FEP Count
