PSMCBT Temperatures Check
Summary
| Date start | 2023:232:23:18:10.216 |
| Date stop | 2023:239:23:11:59.616 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/AUG2123/oflsa |
| Run time | Thu Oct 8 16:02:30 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.03 | -2.20 | -1.30 | -0.01 | 1.19 | 1.84 | 2.58 |
| pitch | -8.070 | -0.070 | -0.004 | 0.000 | 0.004 | 0.079 | 7.358 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.558 | -0.027 | -0.002 | 0.000 | 0.003 | 0.049 | 1.556 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.03 | 2.50 |
| PITCH | 1 | -8.07 | 3.00 |
| PITCH | 99 | 7.358 | 3.00 |
1PDEABT

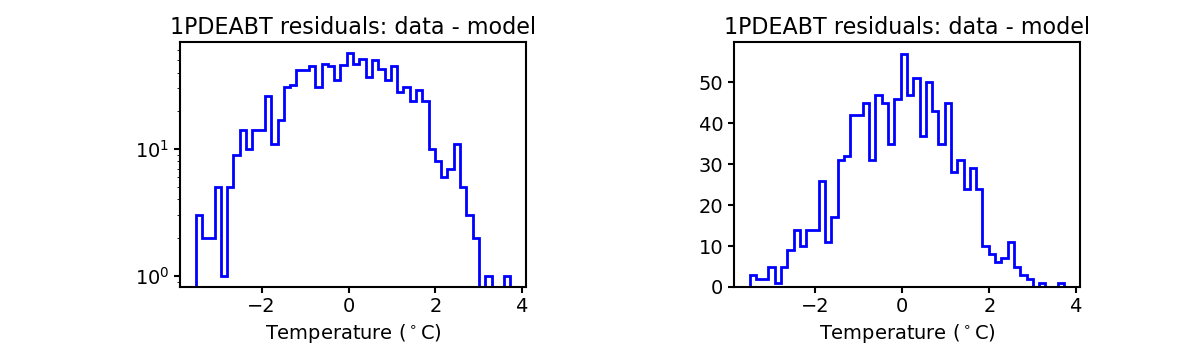

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

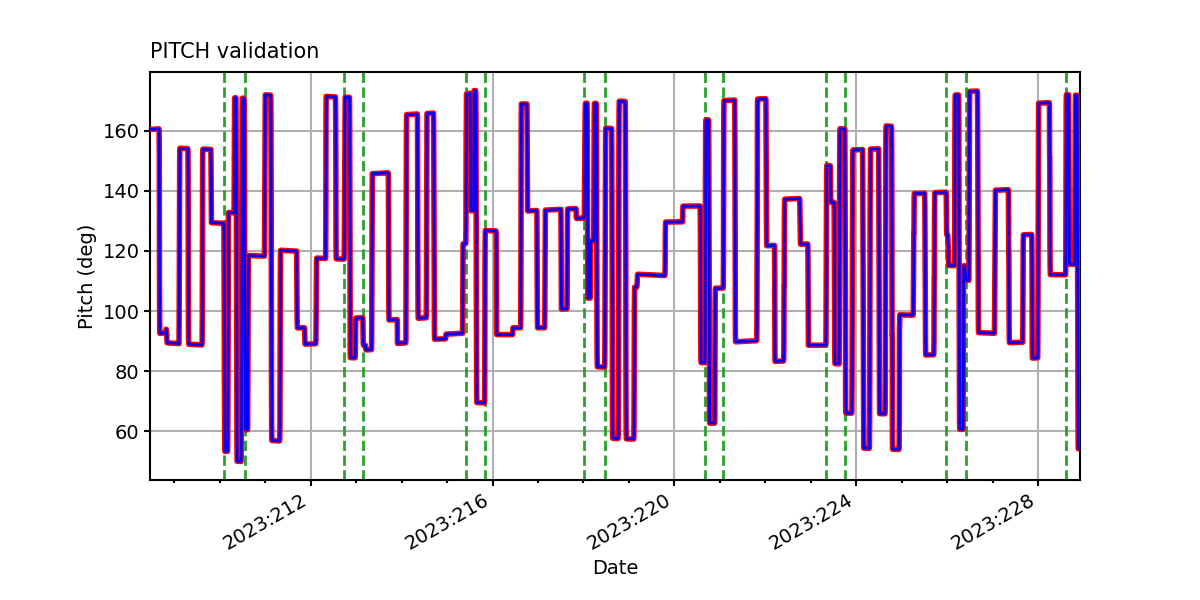

PITCH

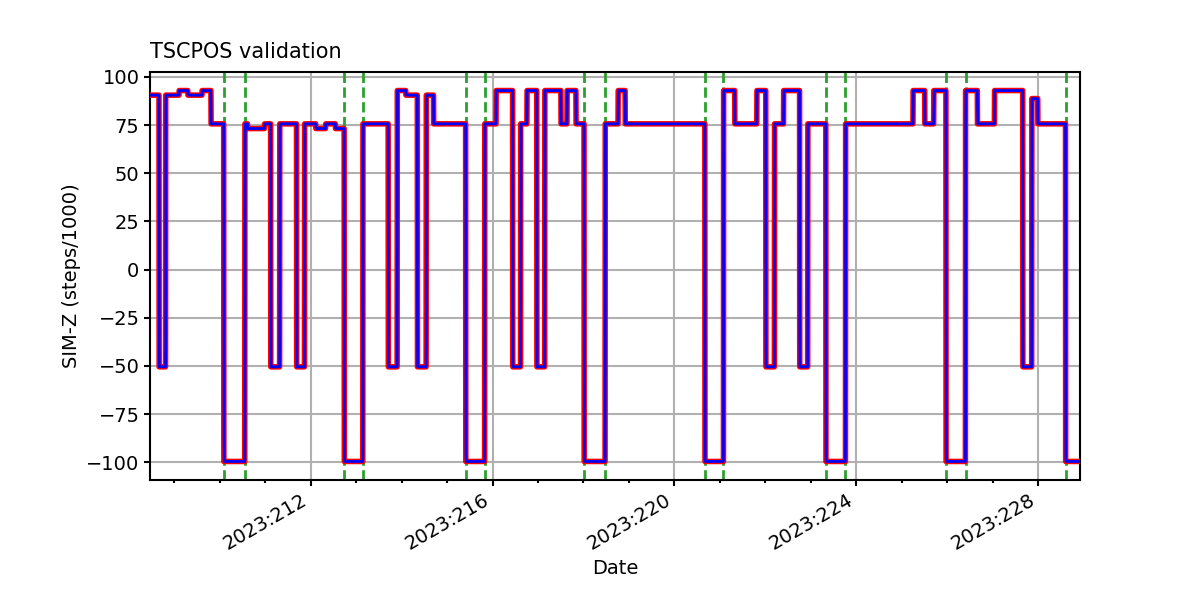

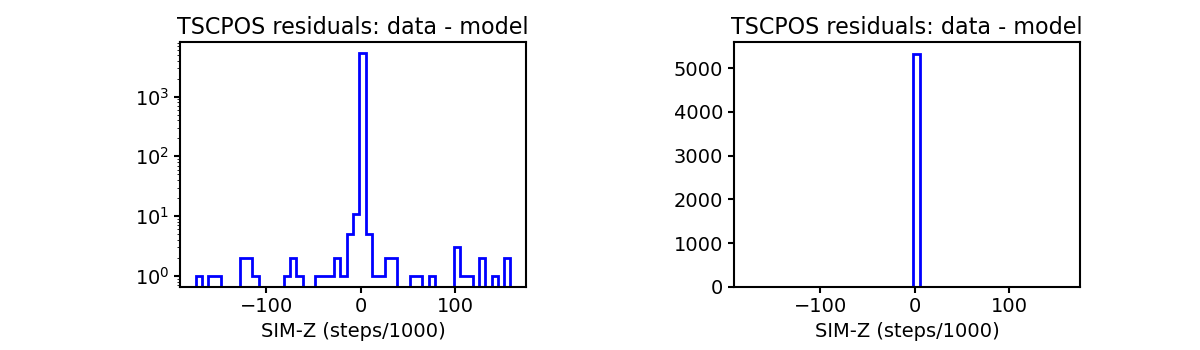

TSCPOS

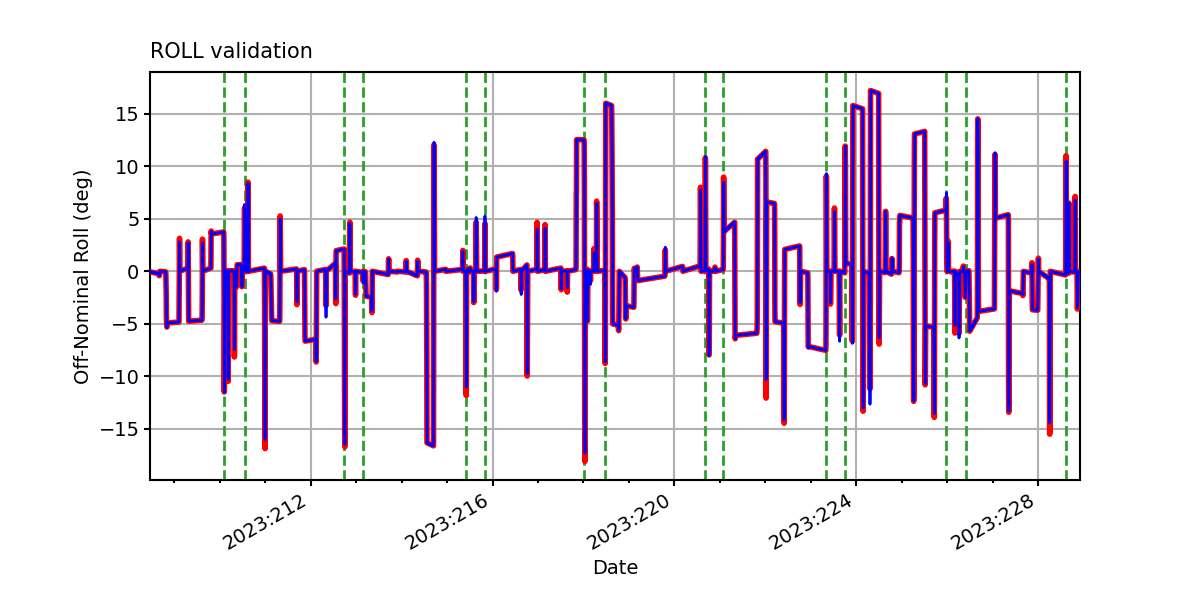

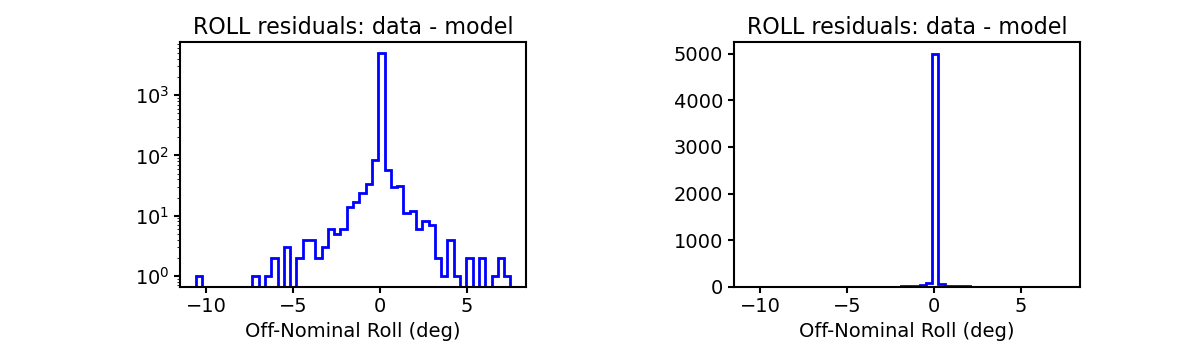

ROLL

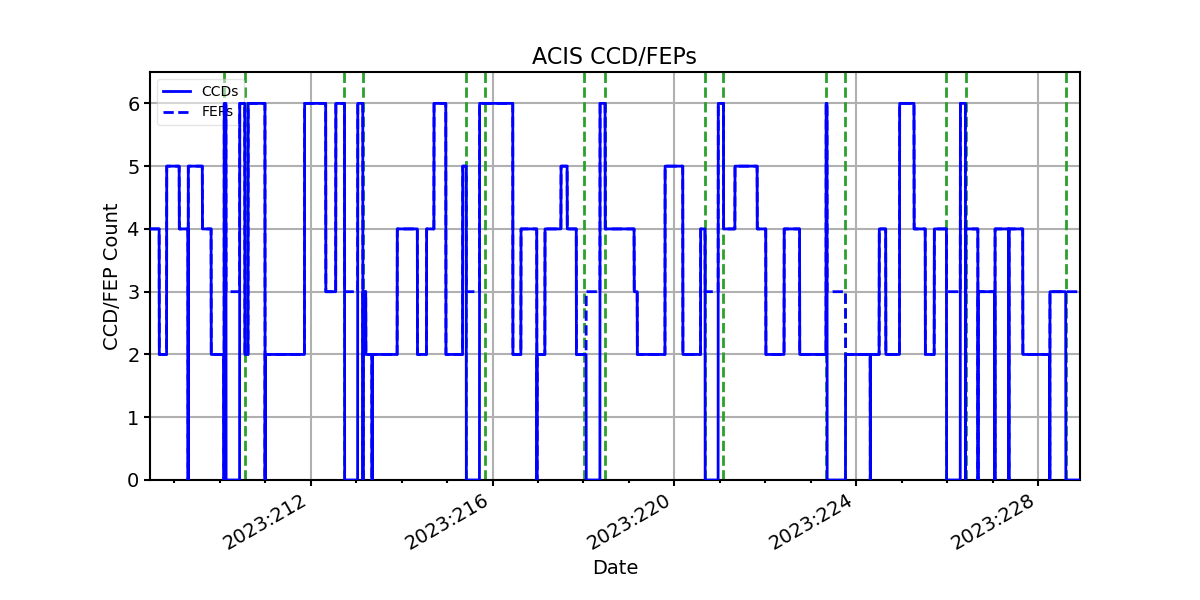

ACIS CCD/FEP Count
