PSMCBT Temperatures Check
Summary
| Date start | 2026:235:21:56:21.316 |
| Date stop | 2026:242:22:06:33.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/AUG2426/oflsa |
| Run time | Thu Oct 8 16:02:30 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.52 | -1.79 | -0.95 | 0.40 | 1.80 | 2.37 | 2.97 |
| pitch | -10.114 | -1.018 | -0.004 | -0.000 | 0.004 | 0.970 | 10.524 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 1 | 1 |
| roll | -1.786 | -0.196 | -0.007 | 0.000 | 0.008 | 0.294 | 1.955 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.52 | 2.50 |
| PITCH | 1 | -10.114 | 3.00 |
| PITCH | 99 | 10.524 | 3.00 |

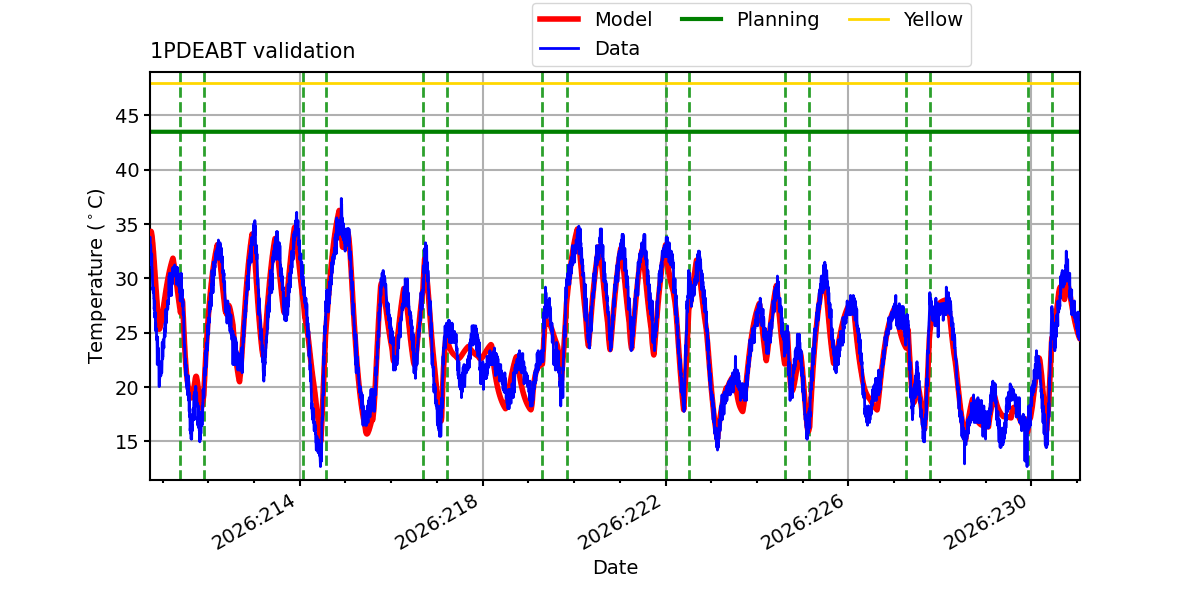

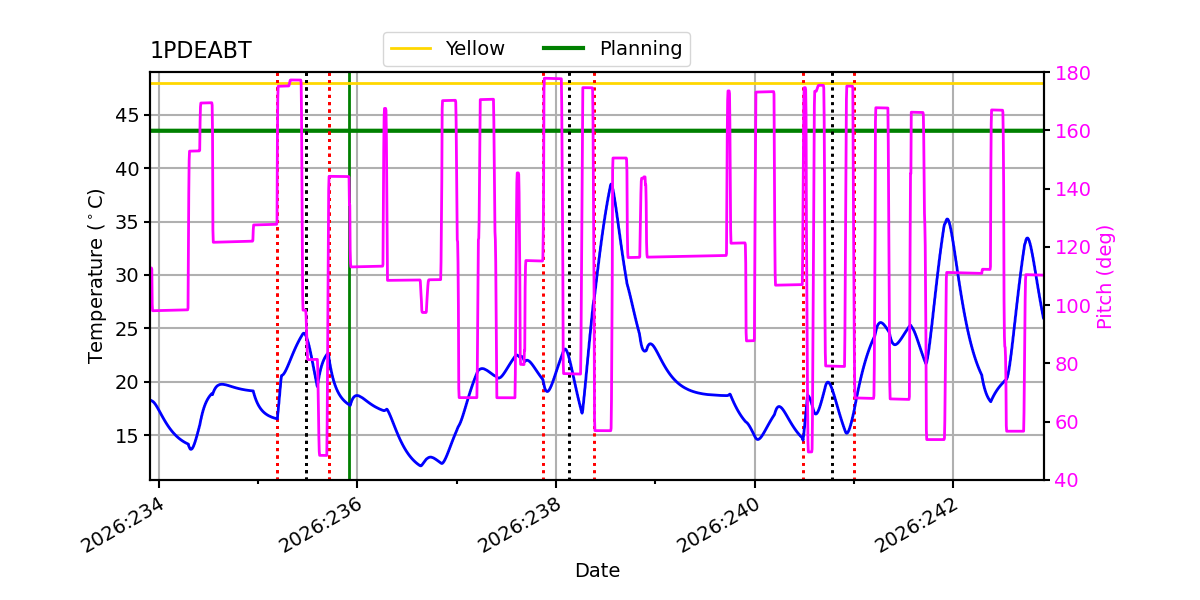

1PDEABT

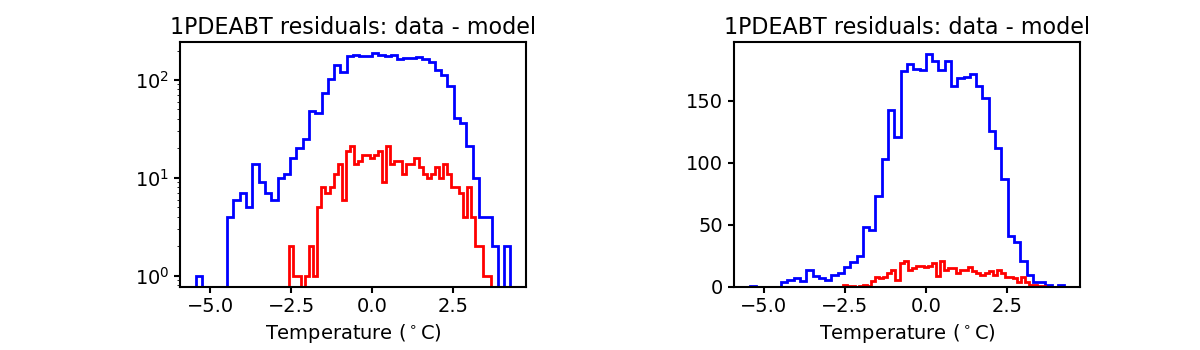

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

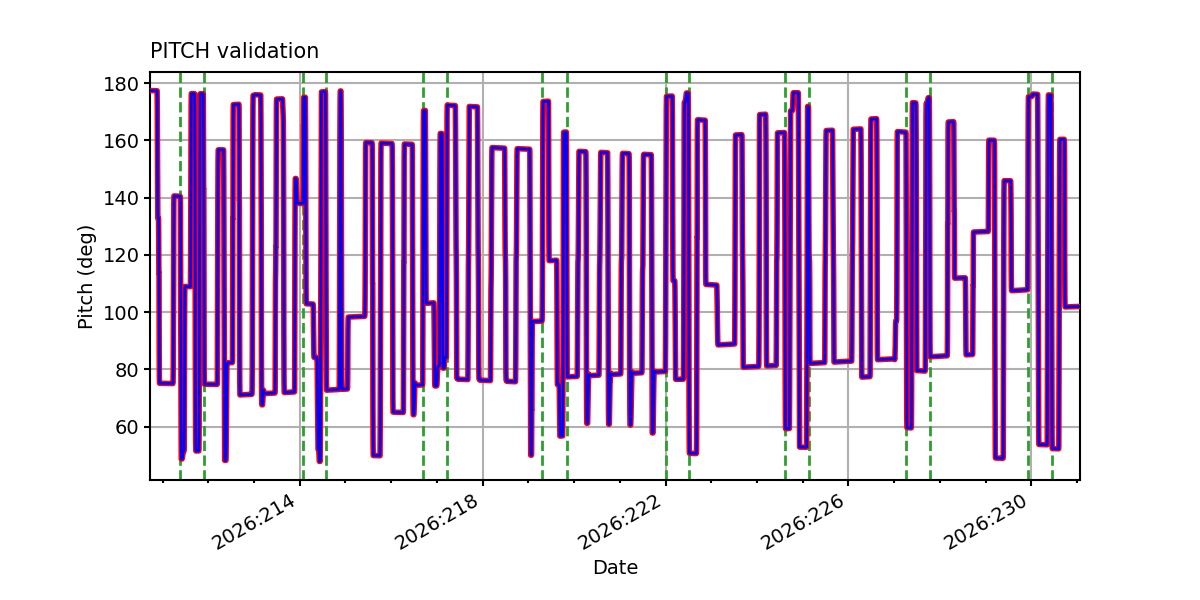

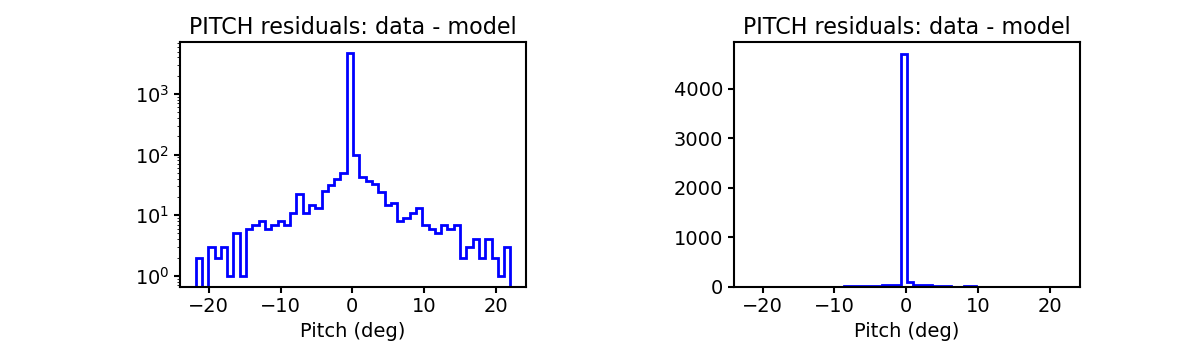

PITCH

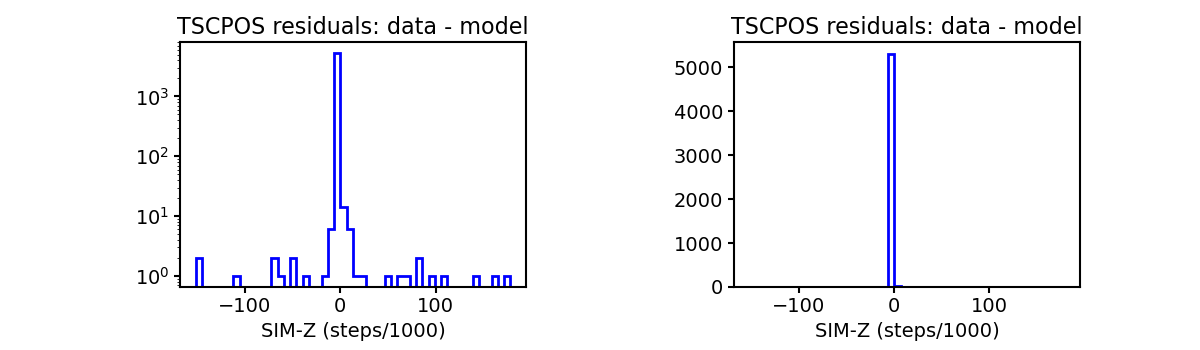

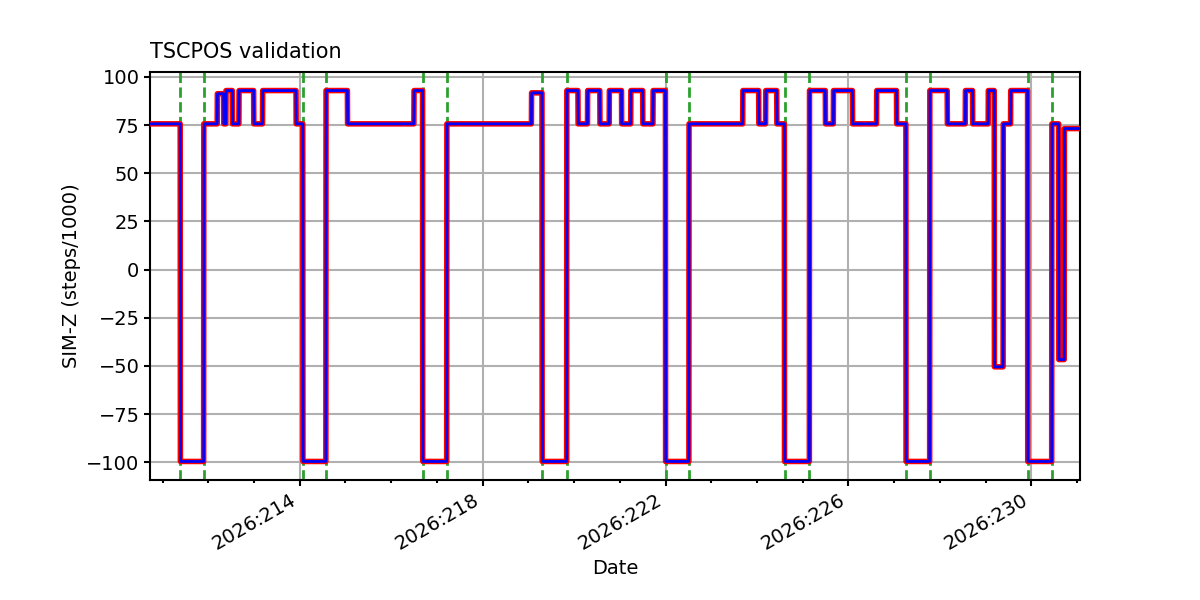

TSCPOS

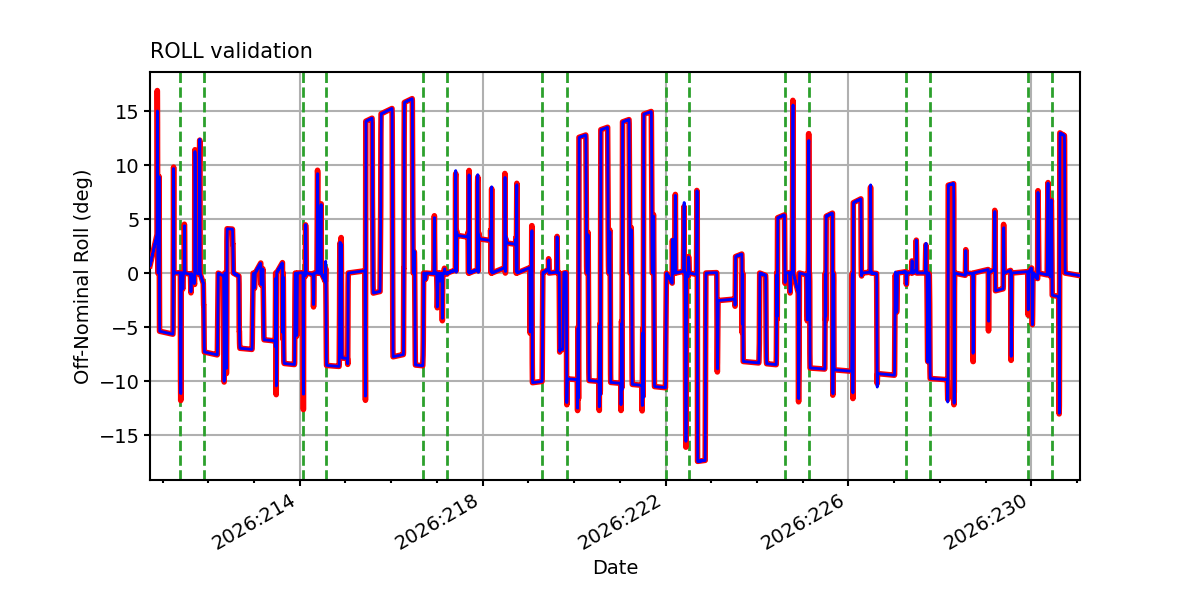

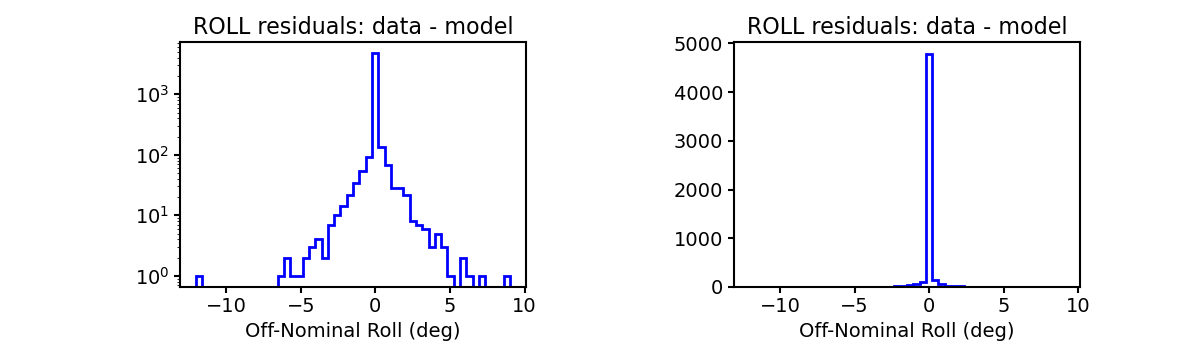

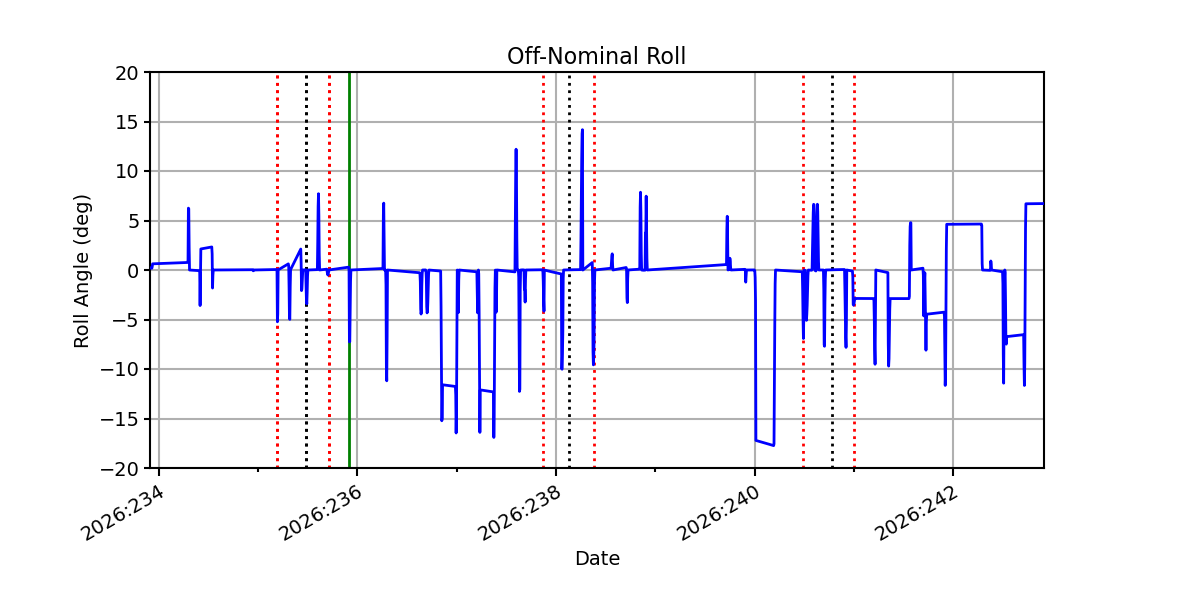

ROLL

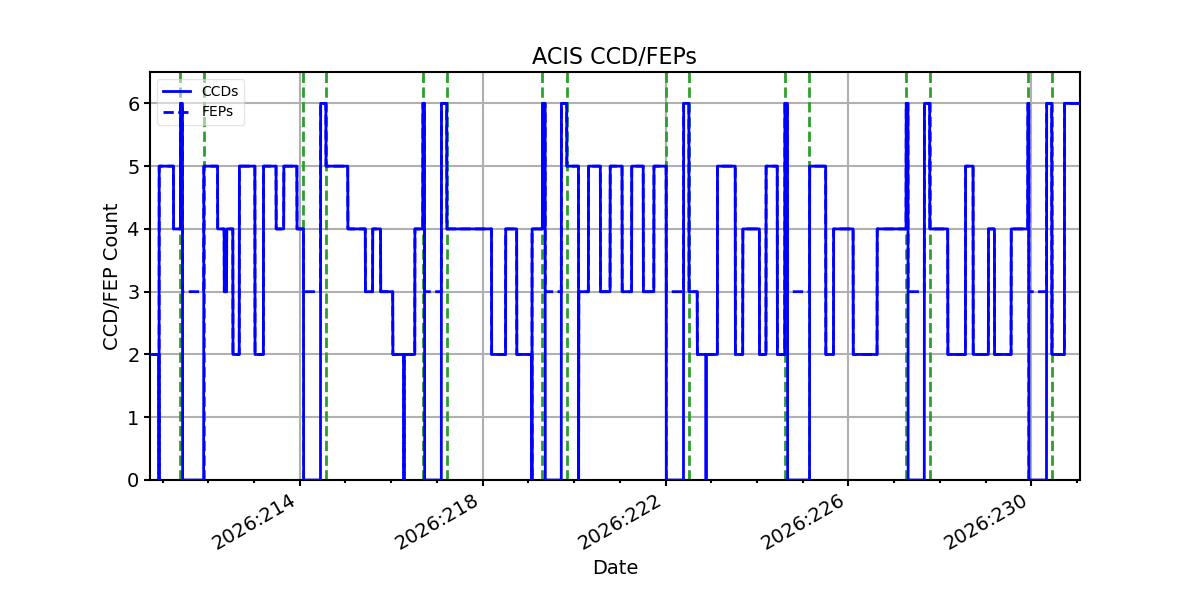

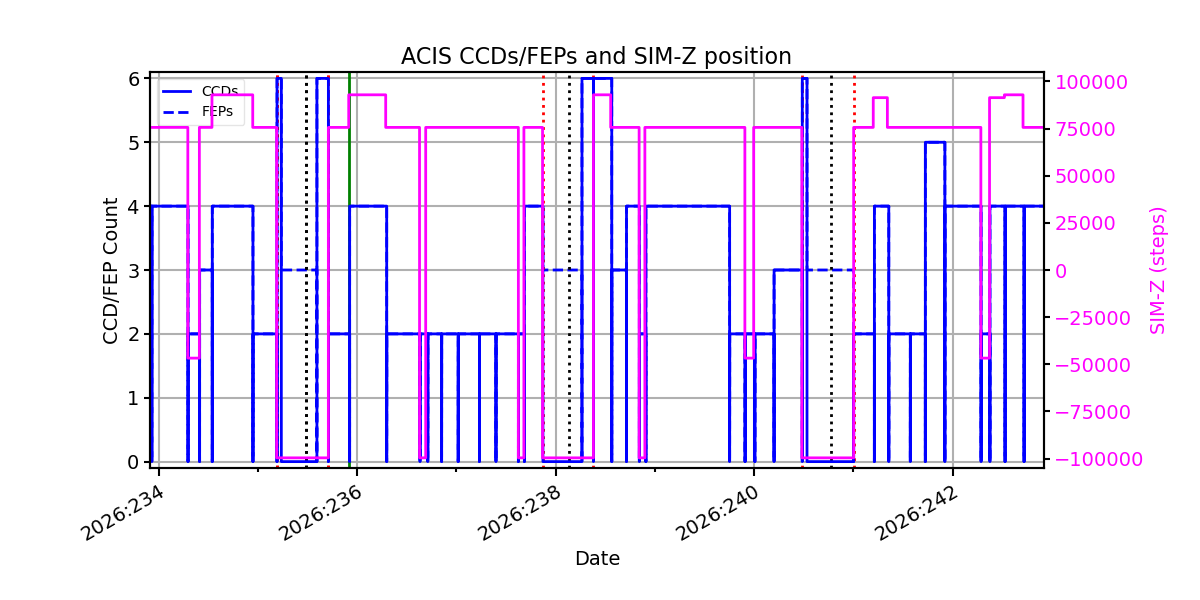

ACIS CCD/FEP Count
