PSMCBT Temperatures Check
Summary
| Date start | 2025:237:02:26:32.916 |
| Date stop | 2025:244:00:23:40.116 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/AUG2525/oflsa |
| Run time | Thu Oct 8 16:02:30 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.87 | -2.00 | -1.05 | 0.48 | 2.02 | 3.12 | 4.14 |
| pitch | -8.091 | -0.284 | -0.004 | -0.000 | 0.004 | 0.146 | 10.324 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 1 | 1 |
| roll | -1.336 | -0.068 | -0.005 | 0.000 | 0.005 | 0.092 | 1.580 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.87 | 2.50 |
| PITCH | 1 | -8.091 | 3.00 |
| PITCH | 99 | 10.324 | 3.00 |
1PDEABT
Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

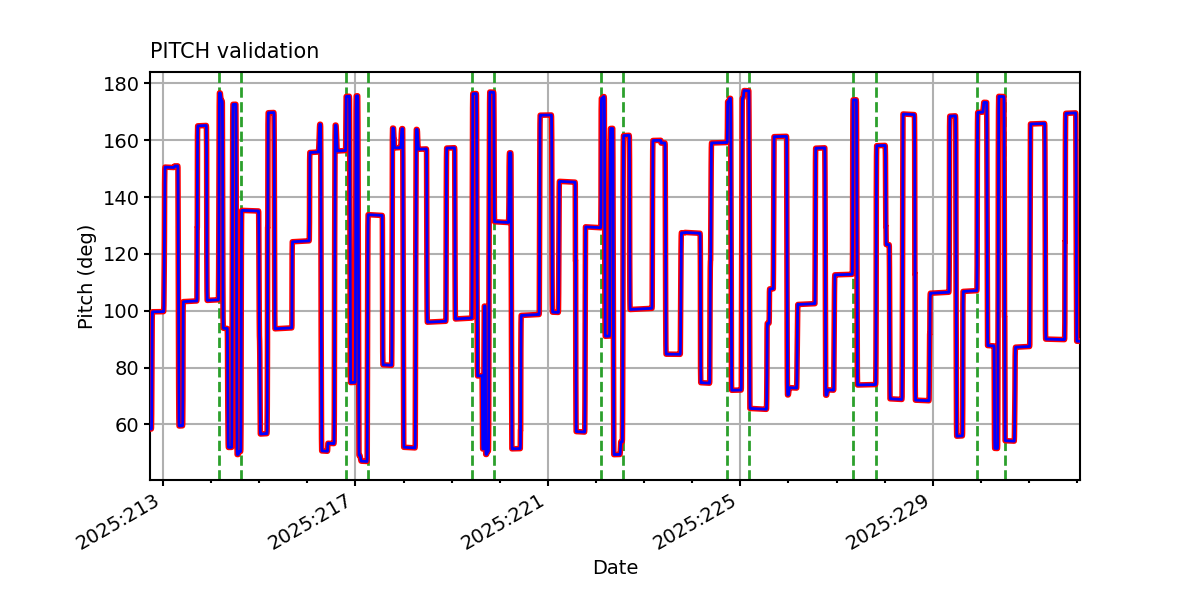

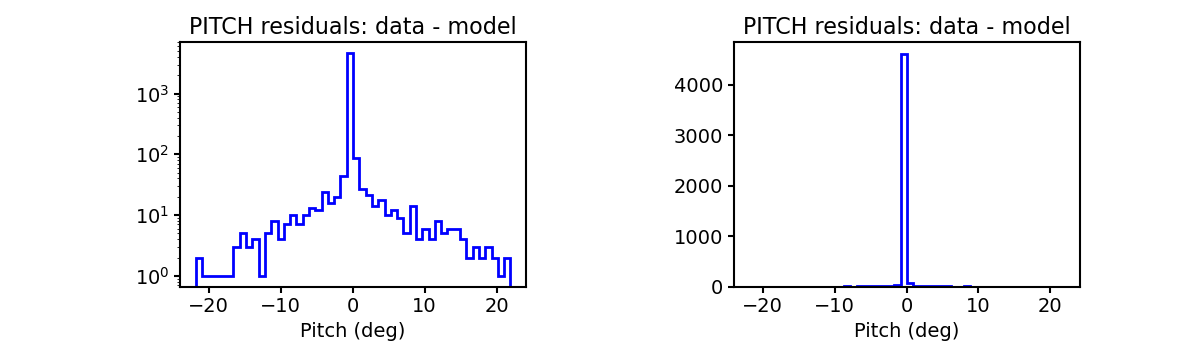

PITCH

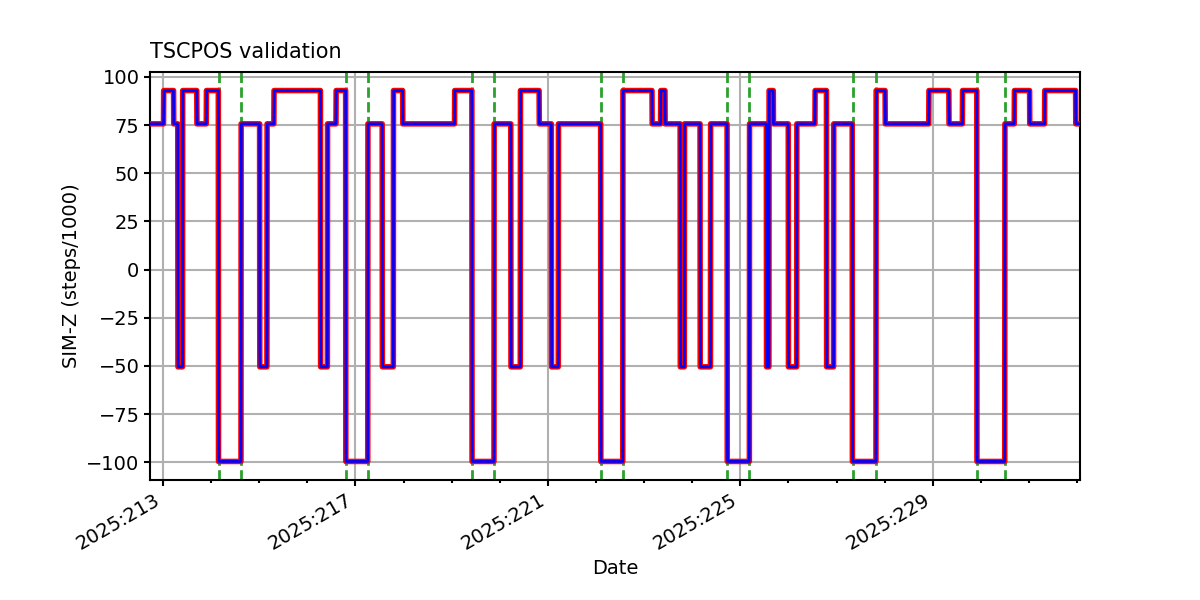

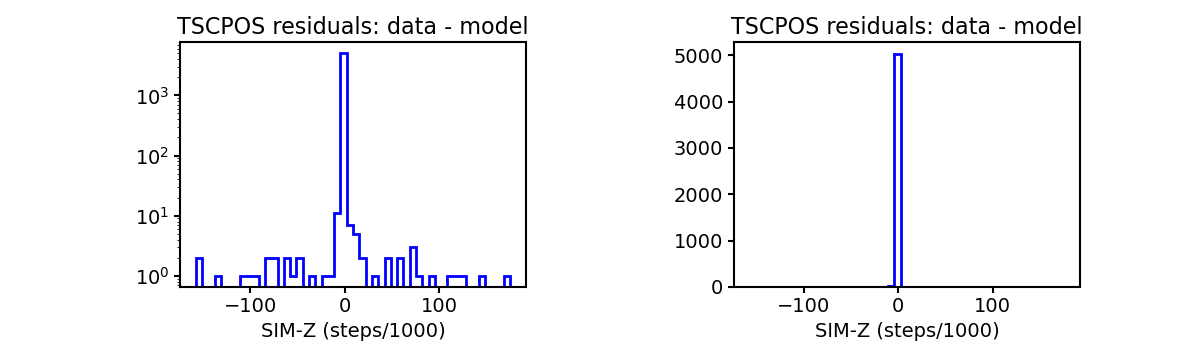

TSCPOS

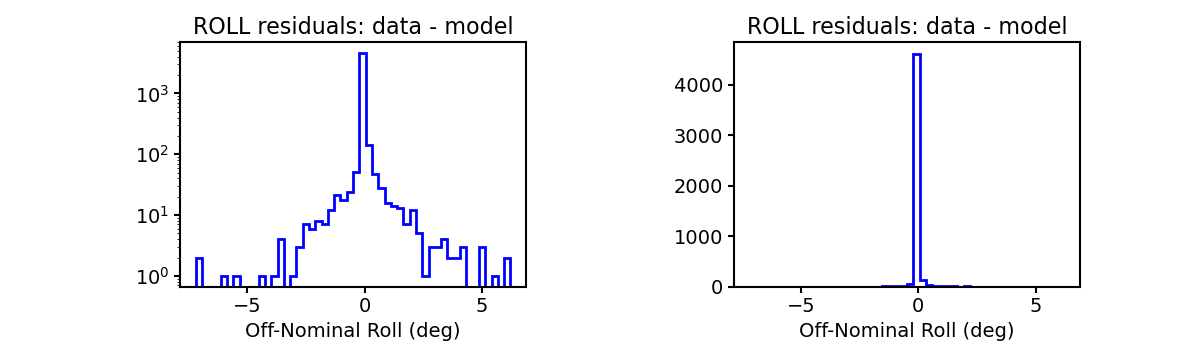

ROLL

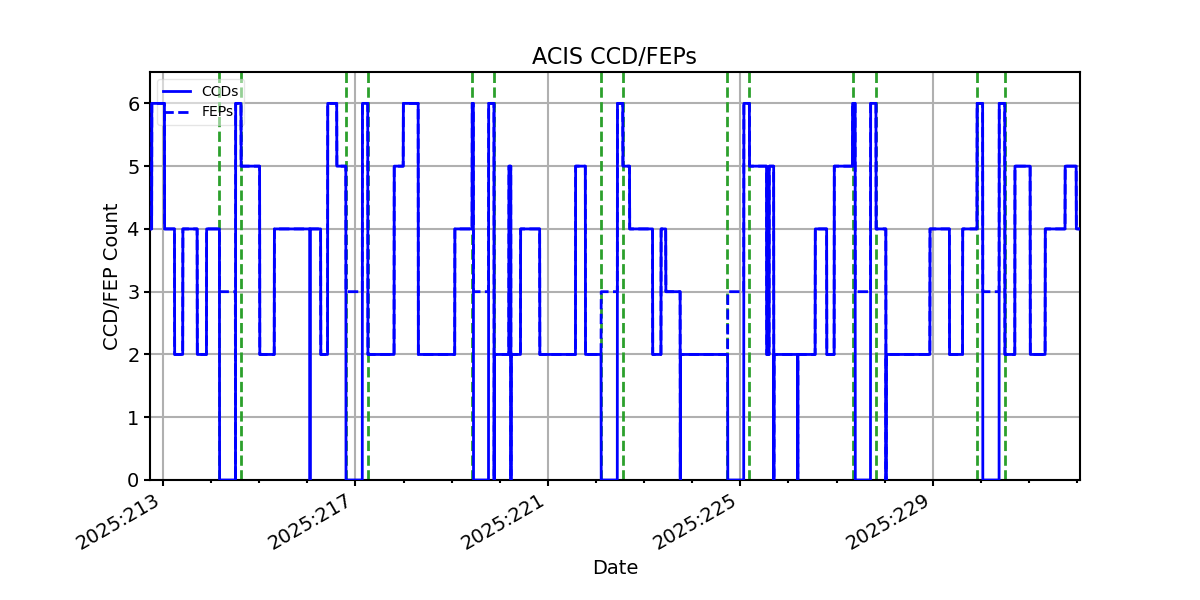

ACIS CCD/FEP Count
