PSMCBT Temperatures Check
Summary
| Date start | 2024:239:02:18:00.016 |
| Date stop | 2024:245:23:12:37.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/AUG2624/oflsa |
| Run time | Thu Oct 8 16:02:58 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.07 | -2.37 | -1.55 | -0.40 | 0.75 | 1.54 | 1.99 |
| pitch | -5.766 | -0.045 | -0.004 | 0.000 | 0.004 | 0.026 | 6.993 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 0 |
| roll | -1.493 | -0.032 | -0.004 | 0.000 | 0.005 | 0.032 | 1.765 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.07 | 2.50 |
| PITCH | 1 | -5.766 | 3.00 |
| PITCH | 99 | 6.993 | 3.00 |

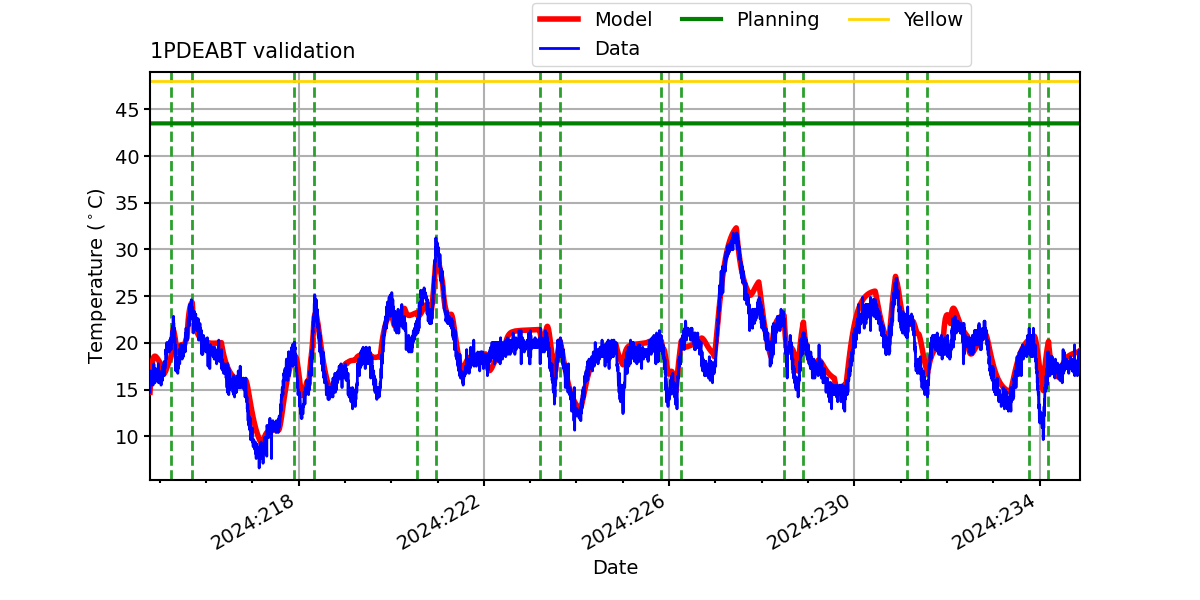

1PDEABT

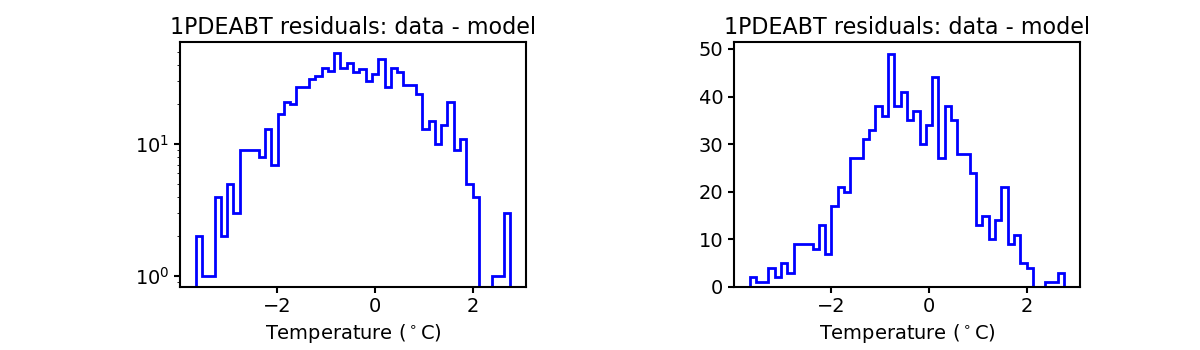

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

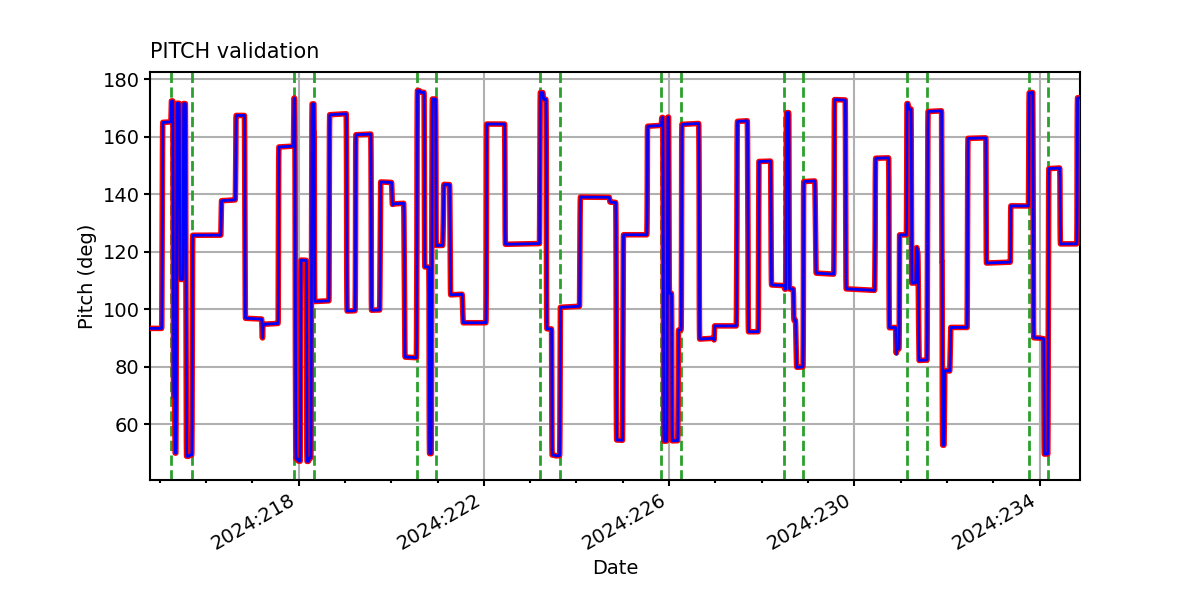

PITCH

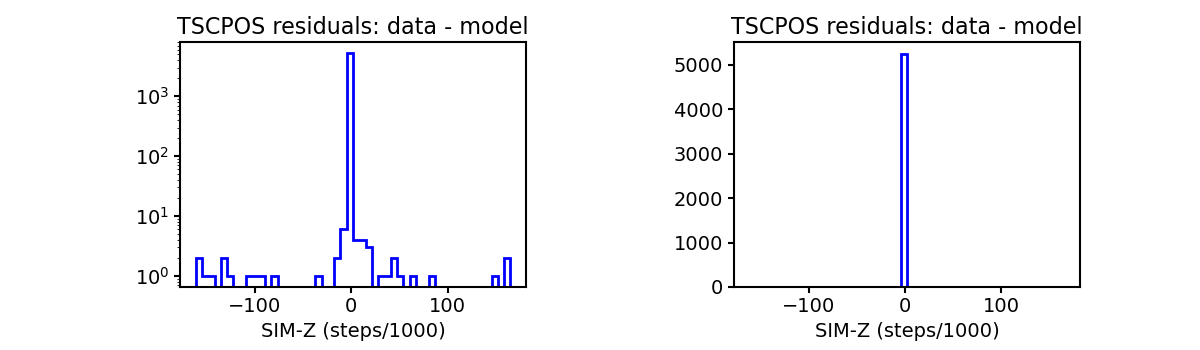

TSCPOS

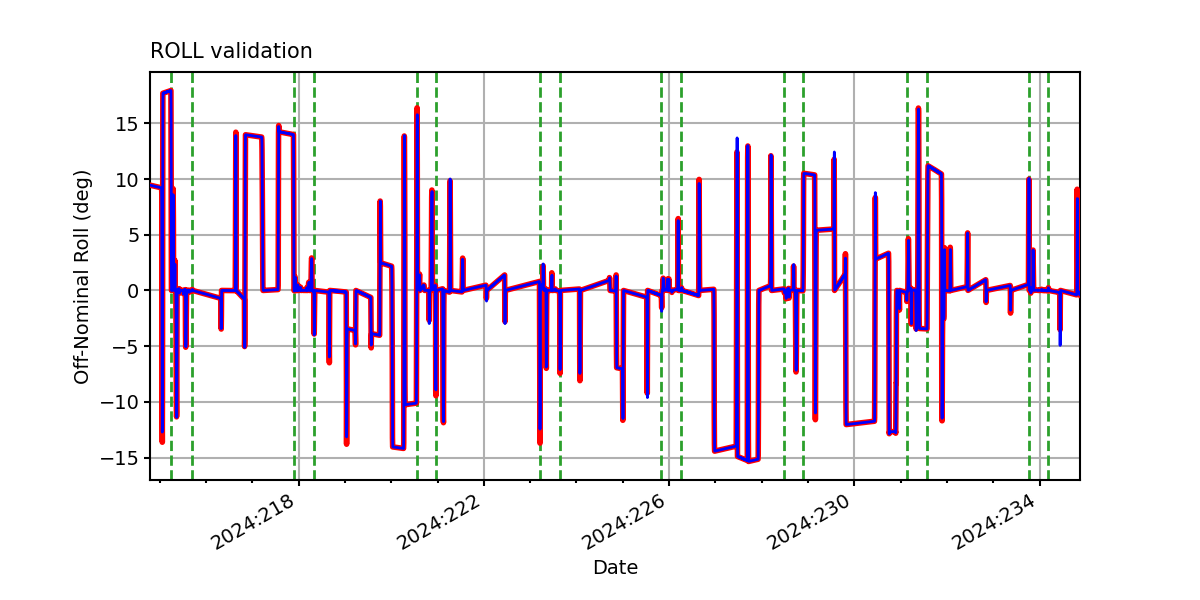

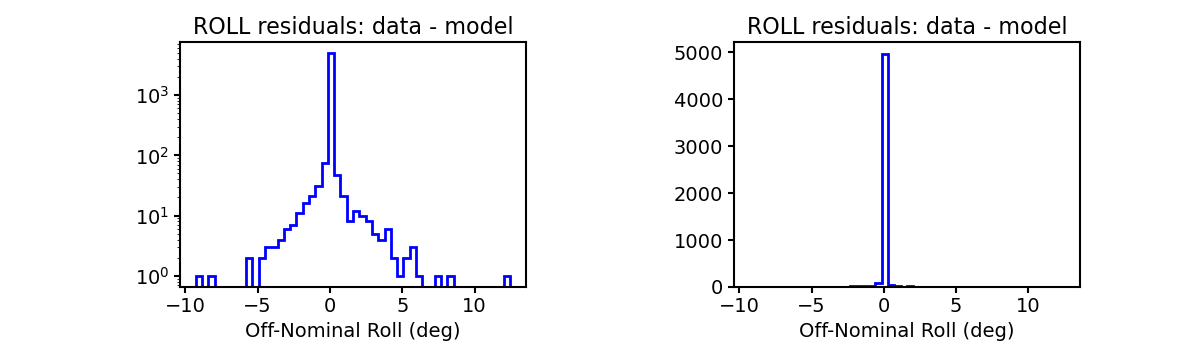

ROLL

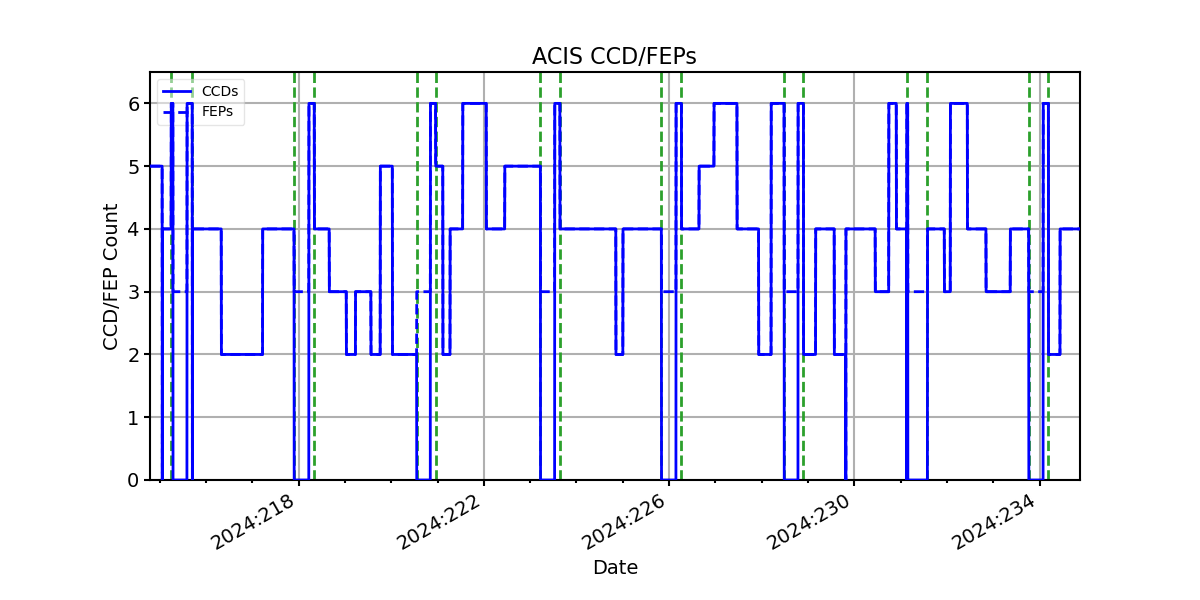

ACIS CCD/FEP Count
