PSMCBT Temperatures Check
Summary
| Date start | 2024:242:18:59:59.016 |
| Date stop | 2024:245:23:12:37.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/AUG2924/oflsa |
| Run time | Thu Oct 8 16:02:58 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.70 | -3.00 | -2.09 | -0.57 | 0.62 | 1.33 | 1.86 |
| pitch | -5.862 | -0.005 | -0.004 | 0.000 | 0.004 | 0.025 | 7.270 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 0 |
| roll | -1.482 | -0.031 | -0.004 | 0.000 | 0.004 | 0.031 | 1.410 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.7 | 2.50 |
| PITCH | 1 | -5.862 | 3.00 |
| PITCH | 99 | 7.27 | 3.00 |

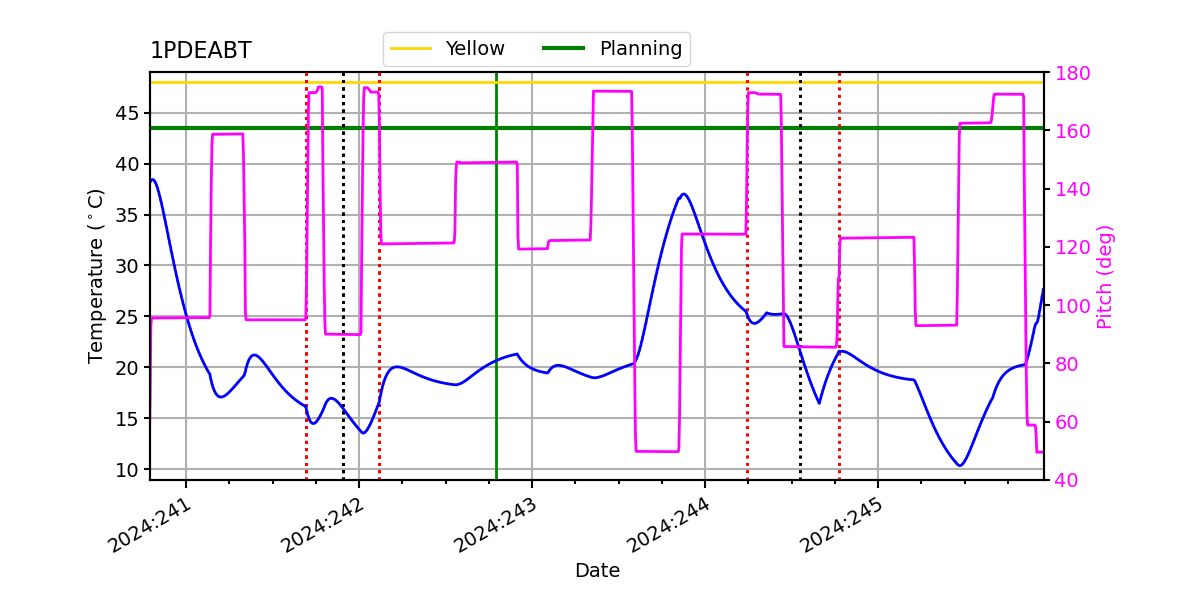

1PDEABT

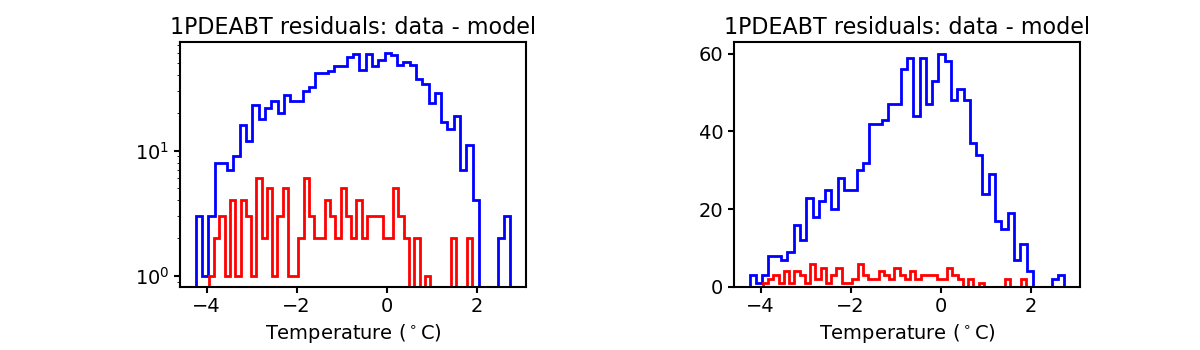

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.
PITCH

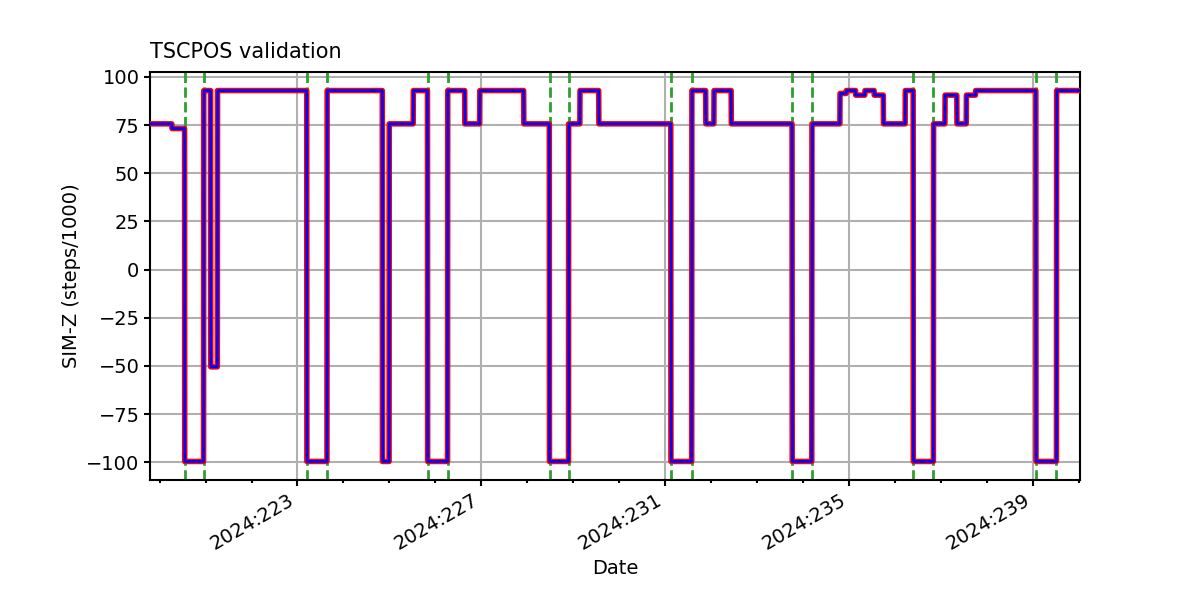

TSCPOS

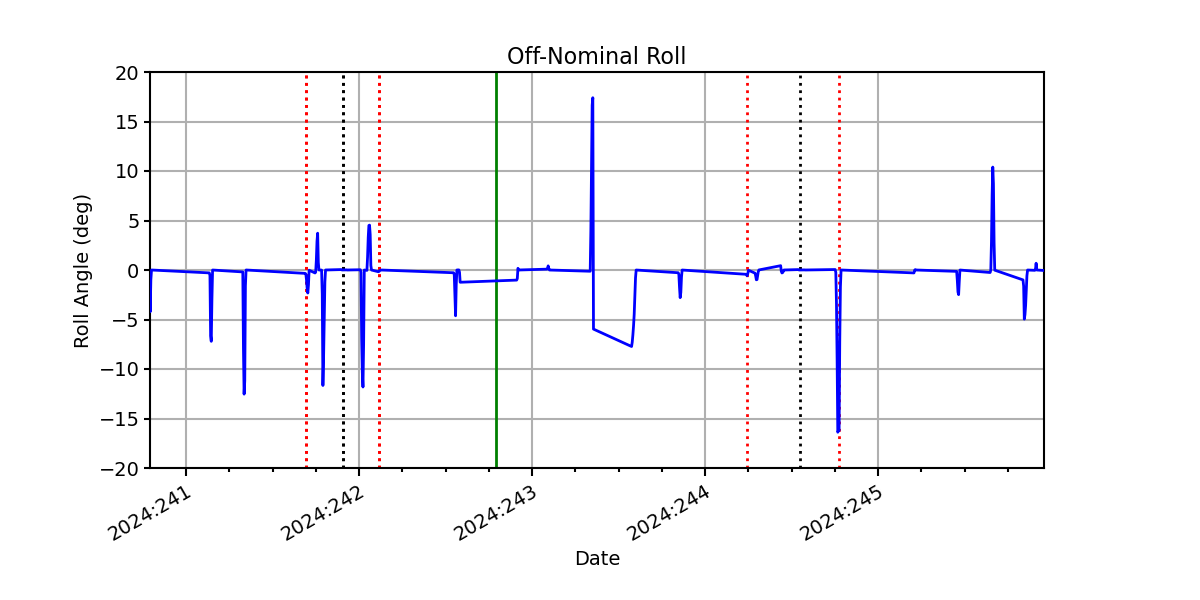

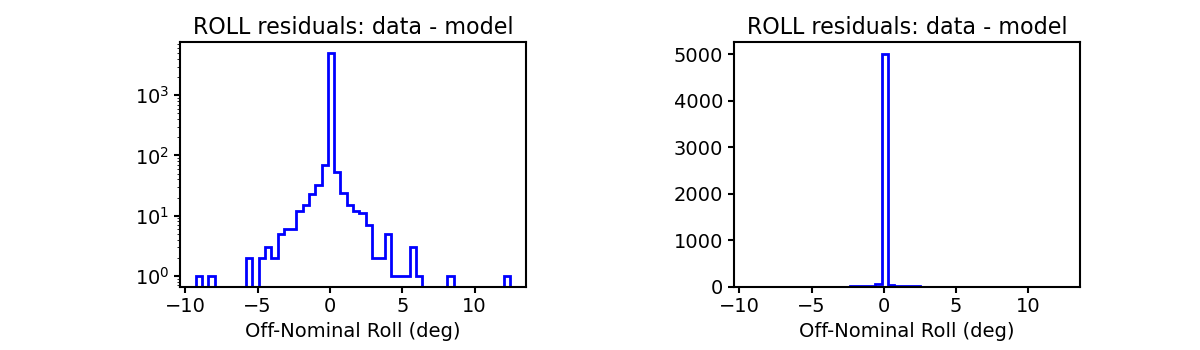

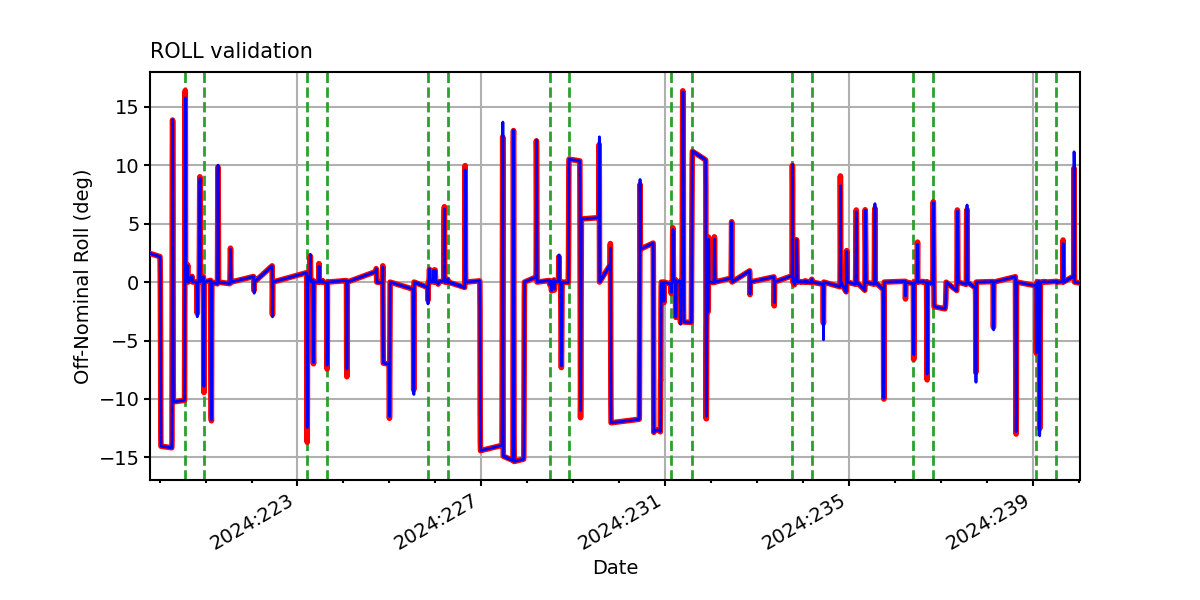

ROLL

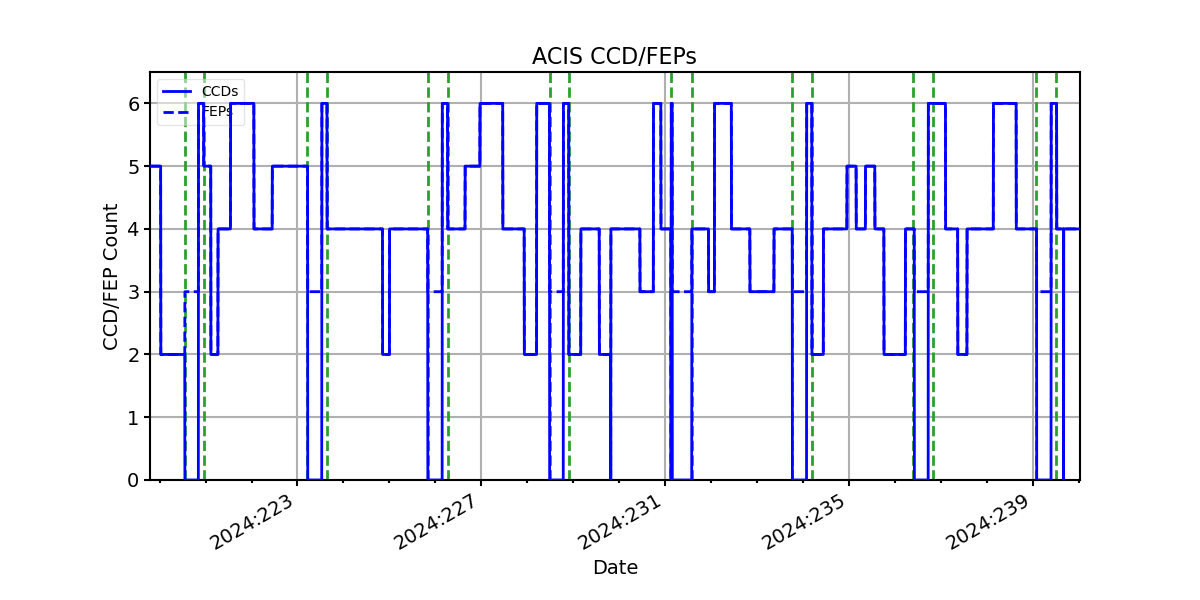

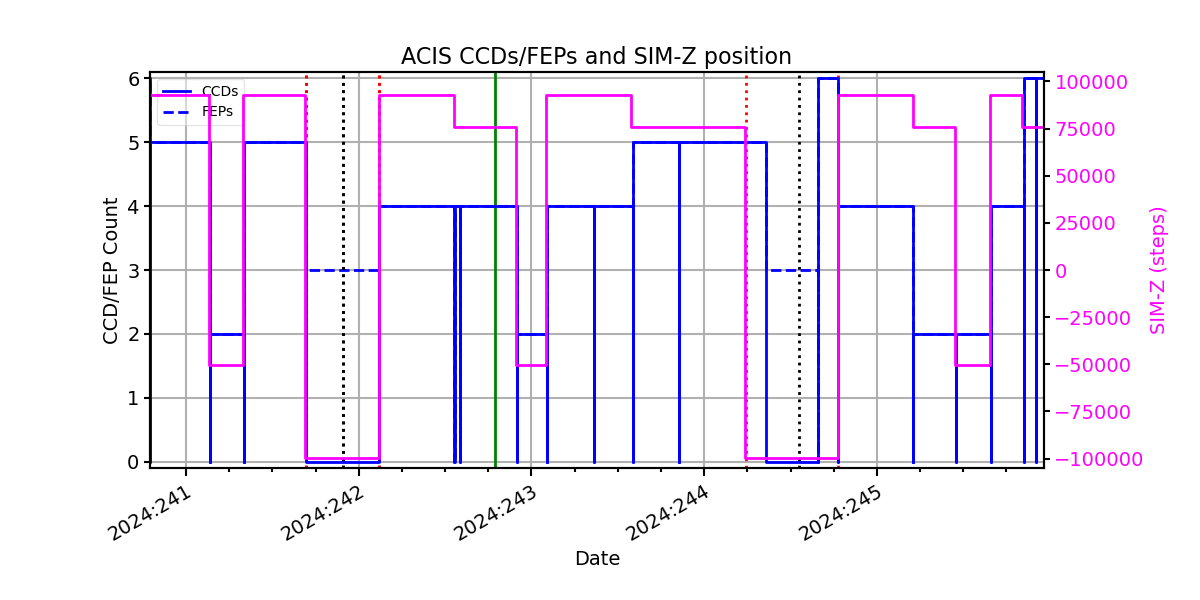

ACIS CCD/FEP Count
