PSMCBT Temperatures Check
Summary
| Date start | 2024:336:21:55:00.016 |
| Date stop | 2024:344:02:03:12.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/DEC0224/oflsa |
| Run time | Thu Oct 8 16:02:59 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

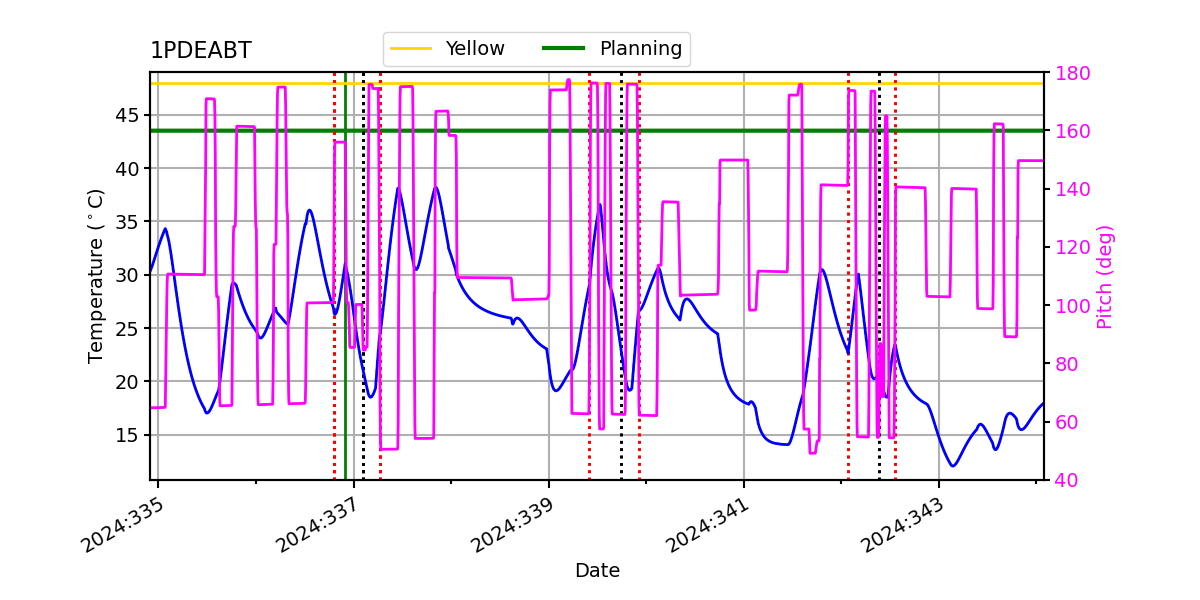

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -4.57 | -2.43 | -1.56 | -0.15 | 1.23 | 2.01 | 2.65 |
| pitch | -8.914 | -0.651 | -0.004 | -0.000 | 0.004 | 0.419 | 11.119 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 1 | 1 |
| roll | -1.808 | -0.160 | -0.009 | -0.000 | 0.007 | 0.094 | 1.782 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -4.57 | 2.50 |
| PITCH | 1 | -8.914 | 3.00 |
| PITCH | 99 | 11.119 | 3.00 |

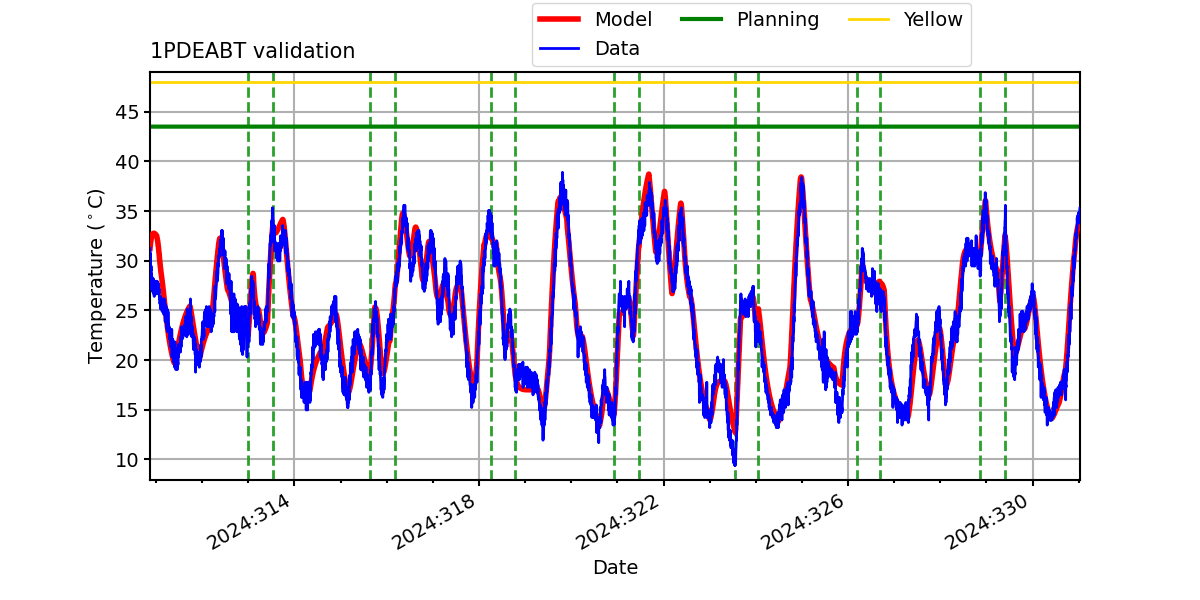

1PDEABT

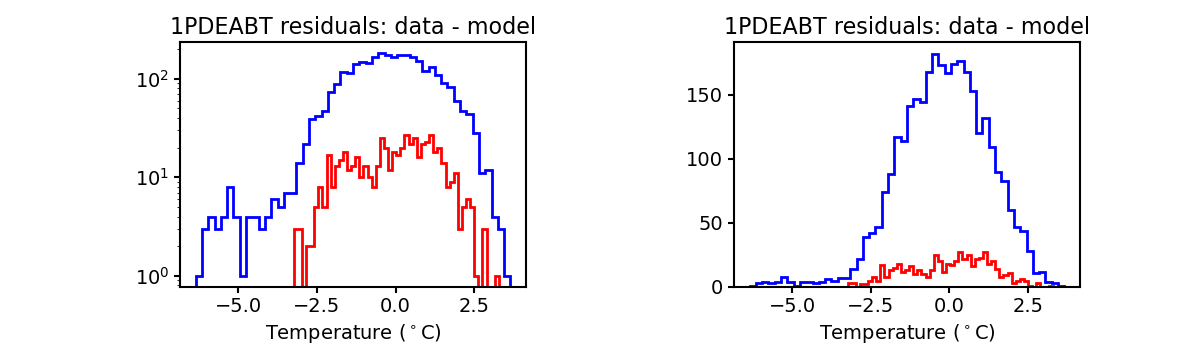

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

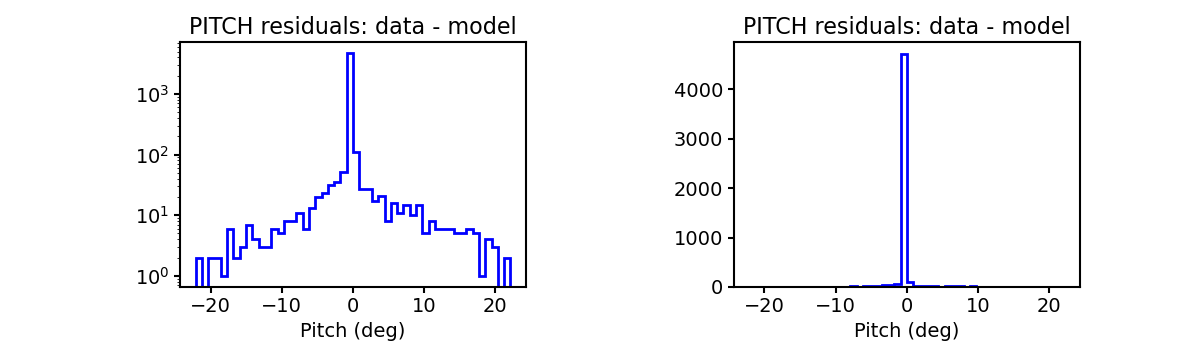

PITCH

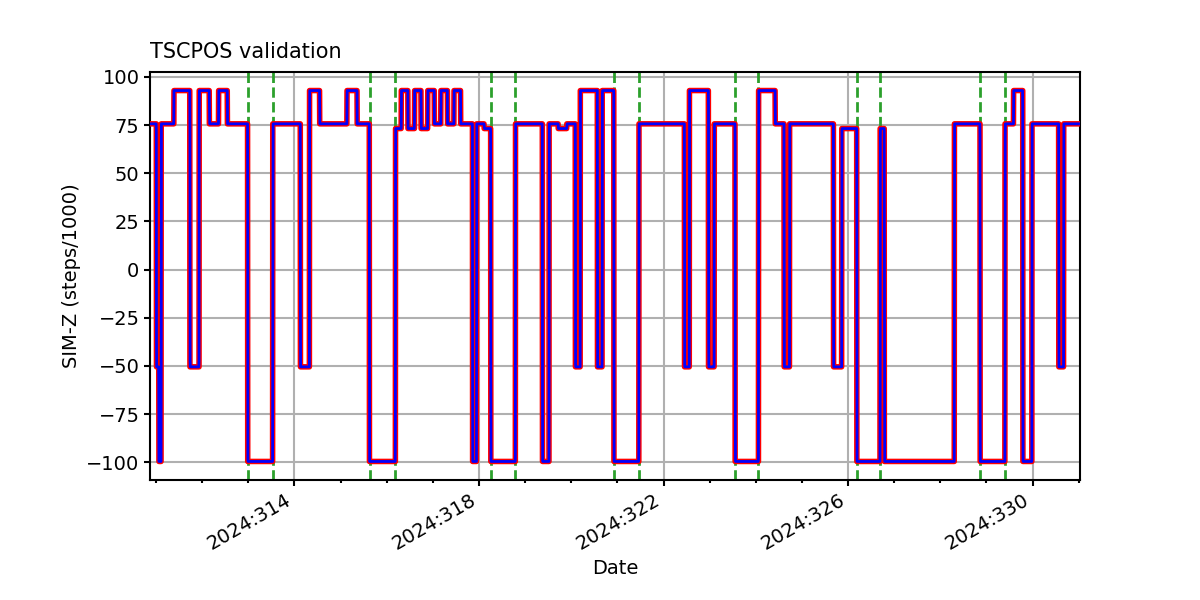

TSCPOS

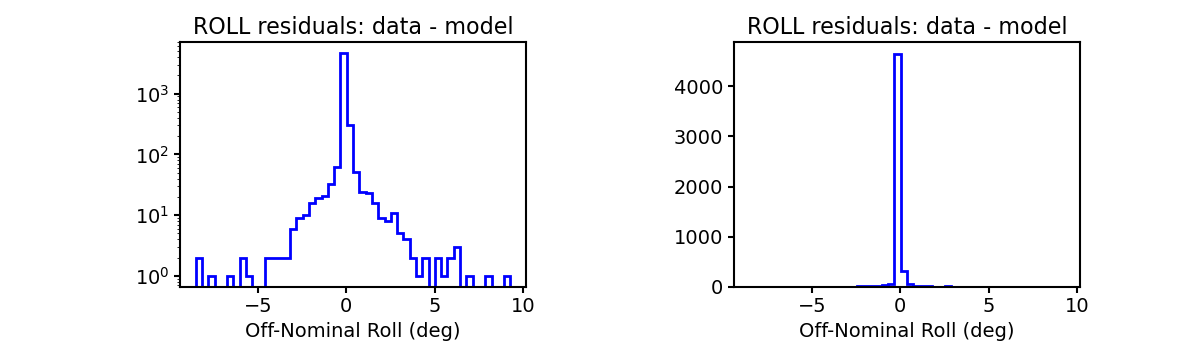

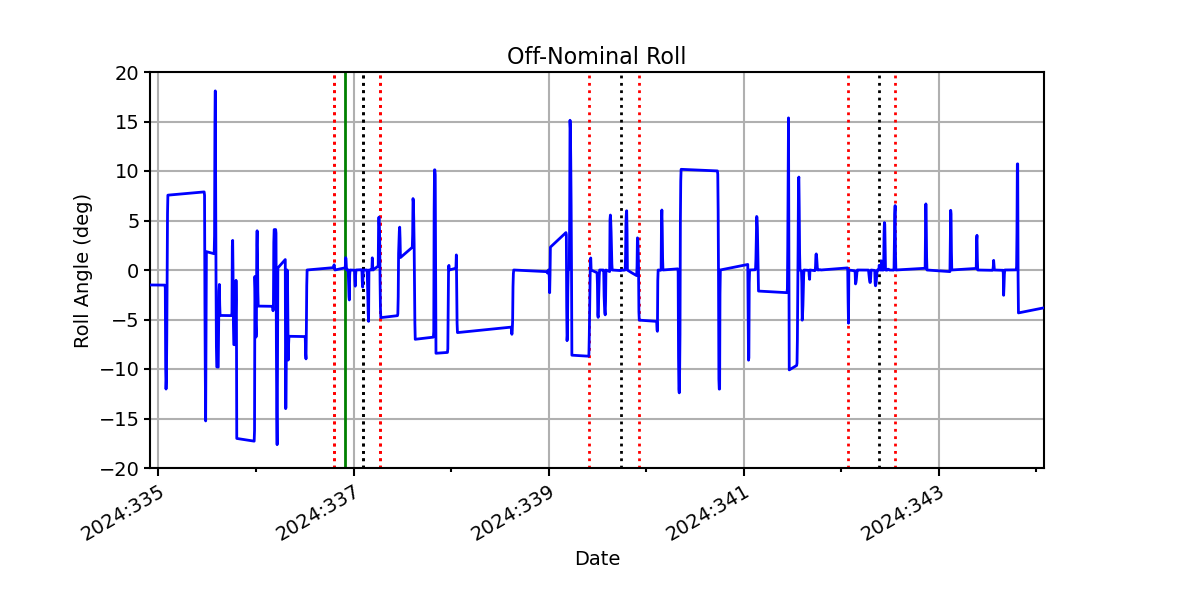

ROLL

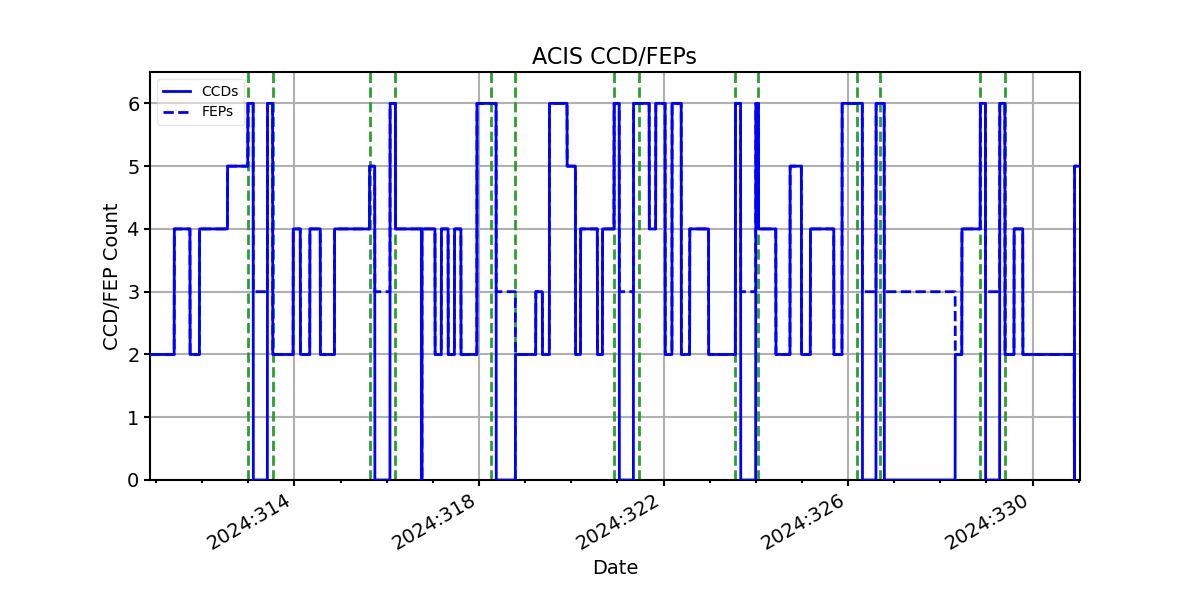

ACIS CCD/FEP Count
