PSMCBT Temperatures Check
Summary
| Date start | 2024:345:13:30:30.016 |
| Date stop | 2024:351:00:17:57.916 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/DEC1024/oflsa |
| Run time | Thu Oct 8 16:03:36 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

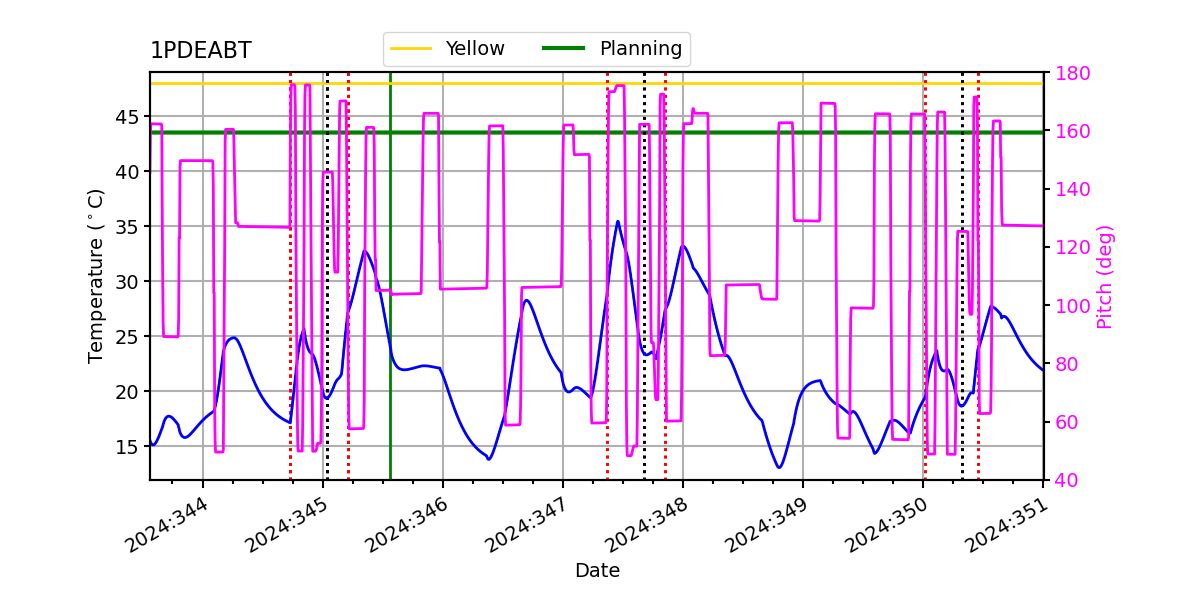

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.78 | -1.98 | -1.25 | -0.14 | 1.10 | 1.92 | 2.64 |
| pitch | -9.467 | -0.629 | -0.004 | -0.000 | 0.004 | 0.534 | 9.841 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -2.442 | -0.184 | -0.007 | -0.000 | 0.007 | 0.166 | 2.372 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.78 | 2.50 |
| PITCH | 1 | -9.467 | 3.00 |
| PITCH | 99 | 9.841 | 3.00 |
1PDEABT
Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

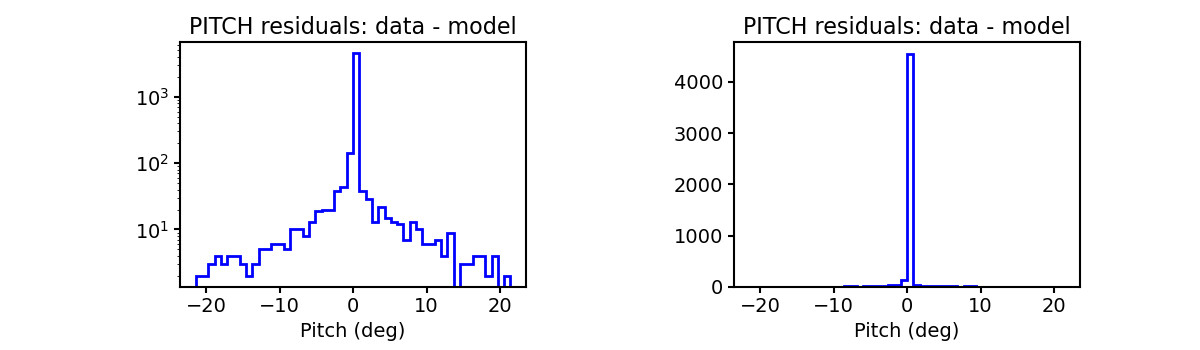

PITCH

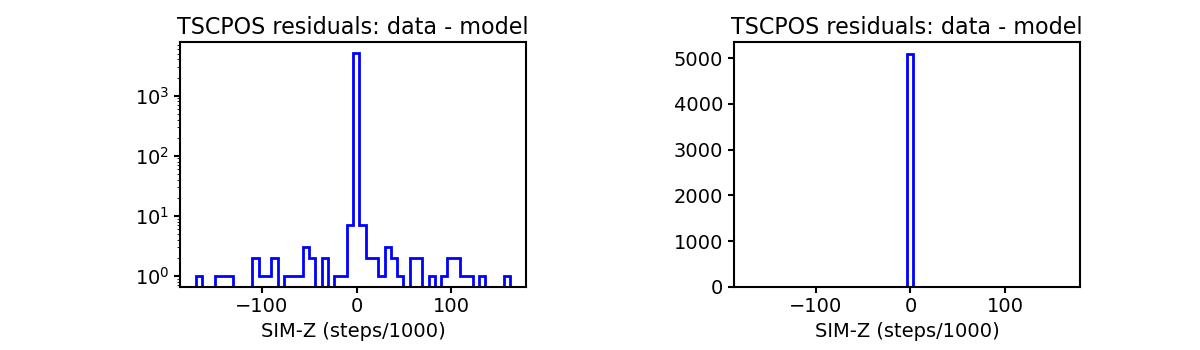

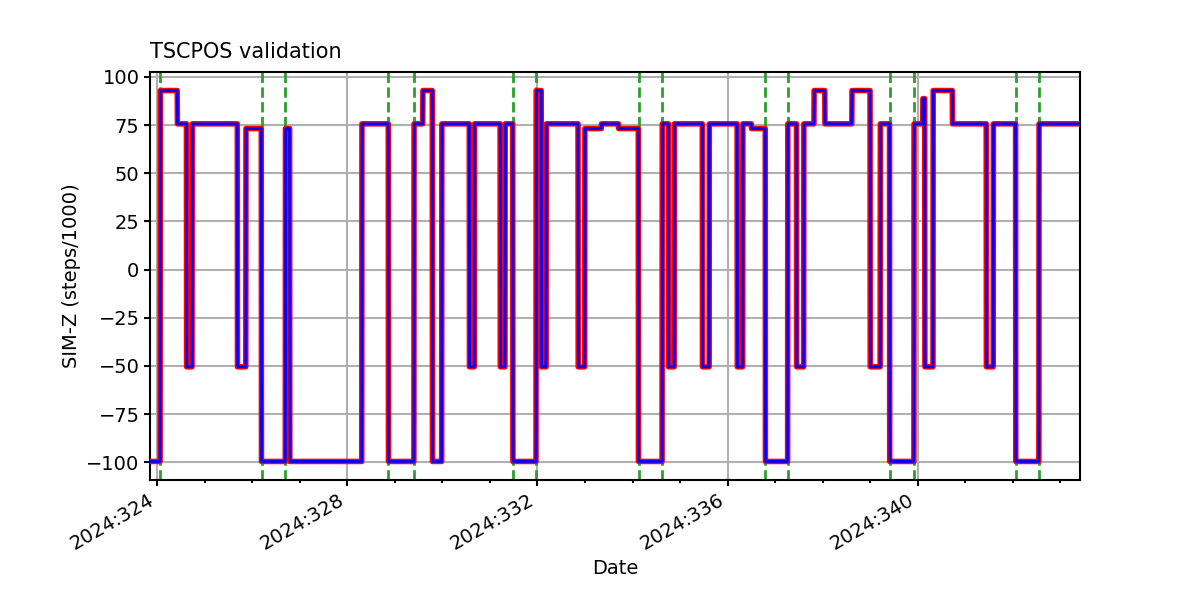

TSCPOS

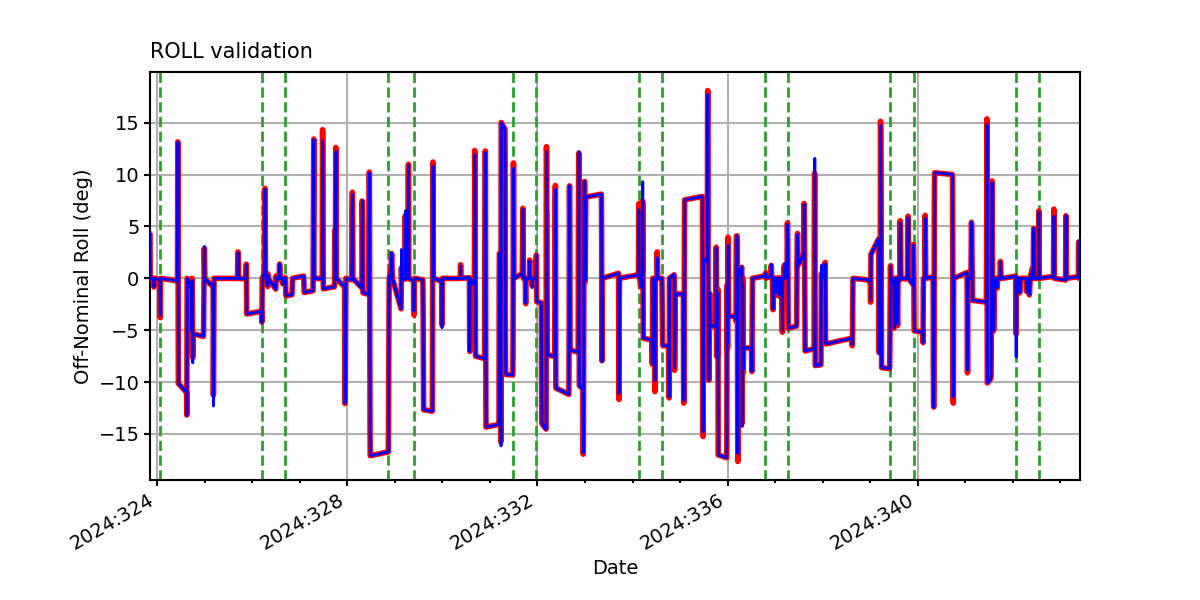

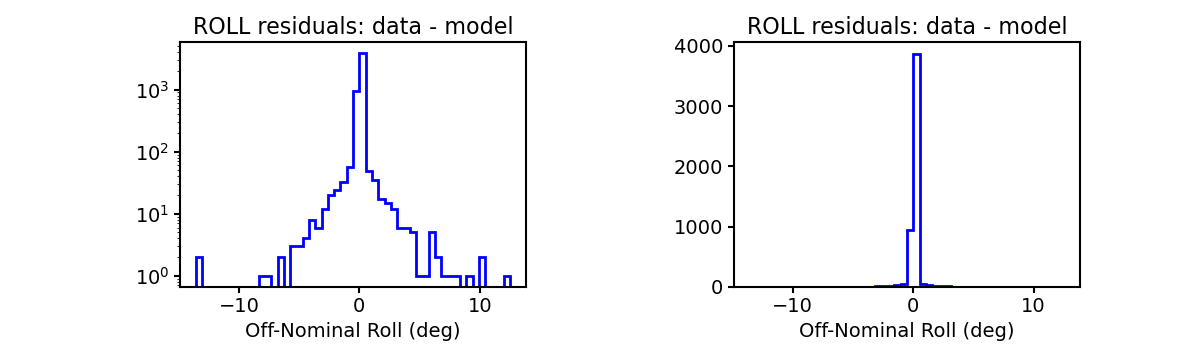

ROLL

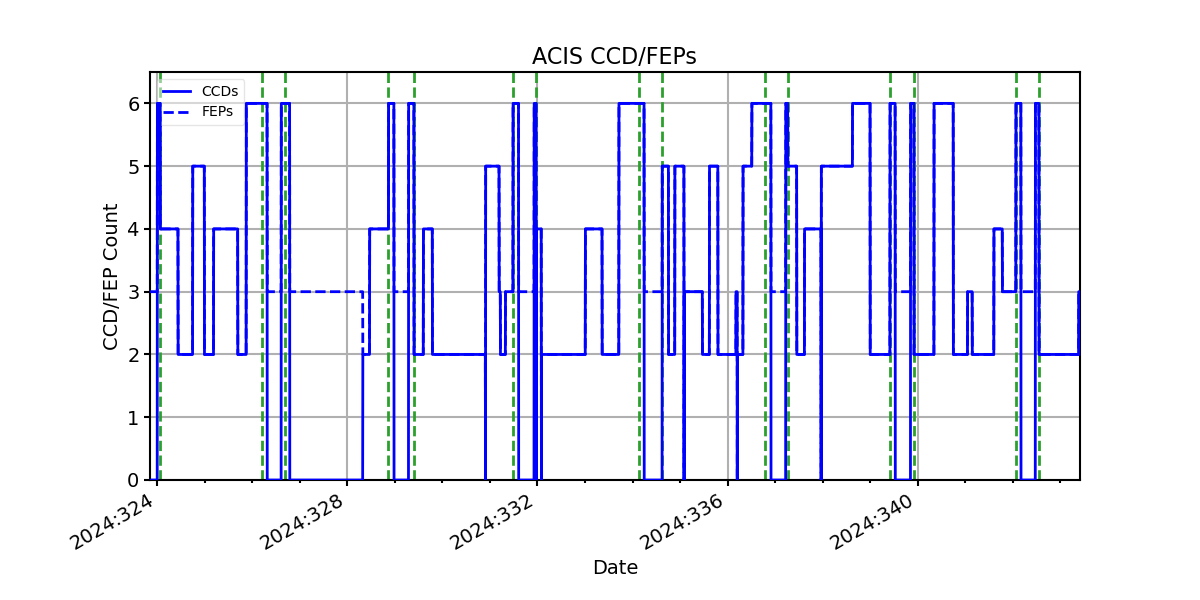

ACIS CCD/FEP Count
