PSMCBT Temperatures Check

Summary

Date start 2023:344:23:30:00.016
Date stop 2023:352:08:31:06.316
Model status OK
Load directory /data/acis/LoadReviews/2023/DEC1123/oflsa
Run time Thu Oct 8 16:03:36 2026 by jsteiner
Run log run.dat
Temperatures temperatures.dat
States states.dat

No 1PDEABT Upper Limit Violations

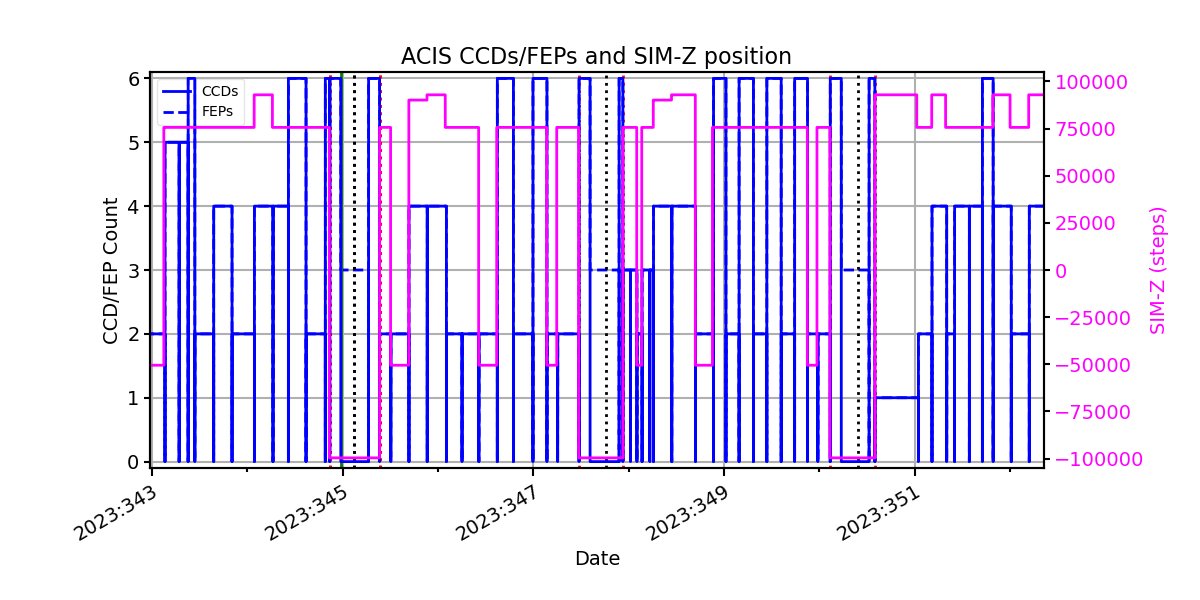

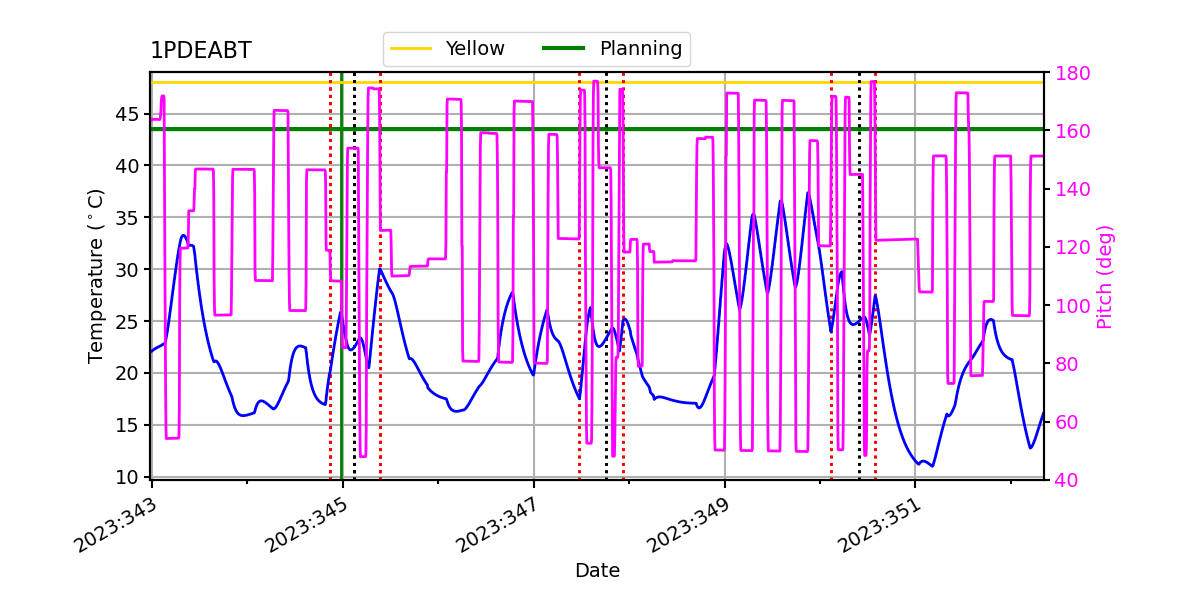

1pdeabt.png pow_sim.png roll.png

PSMCBT Model Validation

MSID quantiles

Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.

MSID 1% 5% 16% 50% 84% 95% 99%
1pdeabt -3.31 -2.80 -2.04 -0.93 0.17 0.79 1.55
pitch -7.705 -0.461 -0.004 -0.000 0.004 0.325 10.244
tscpos -1 -1 -1 0 0 0 1
roll -2.443 -0.144 -0.007 0.000 0.008 0.213 2.577

Validation Violations

MSID Quantile Value Limit
1PDEABT 1 -3.31 2.50
PITCH 1 -7.705 3.00
PITCH 99 10.244 3.00

1PDEABT

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

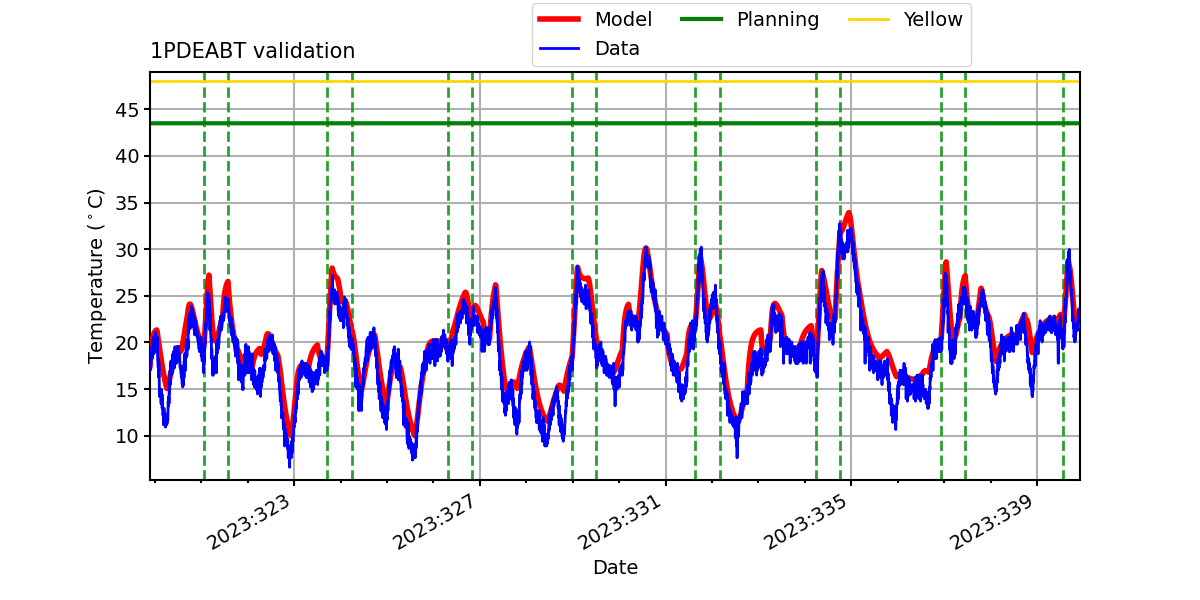

1pdeabt_valid.png 1pdeabt_valid_hist.png

PITCH

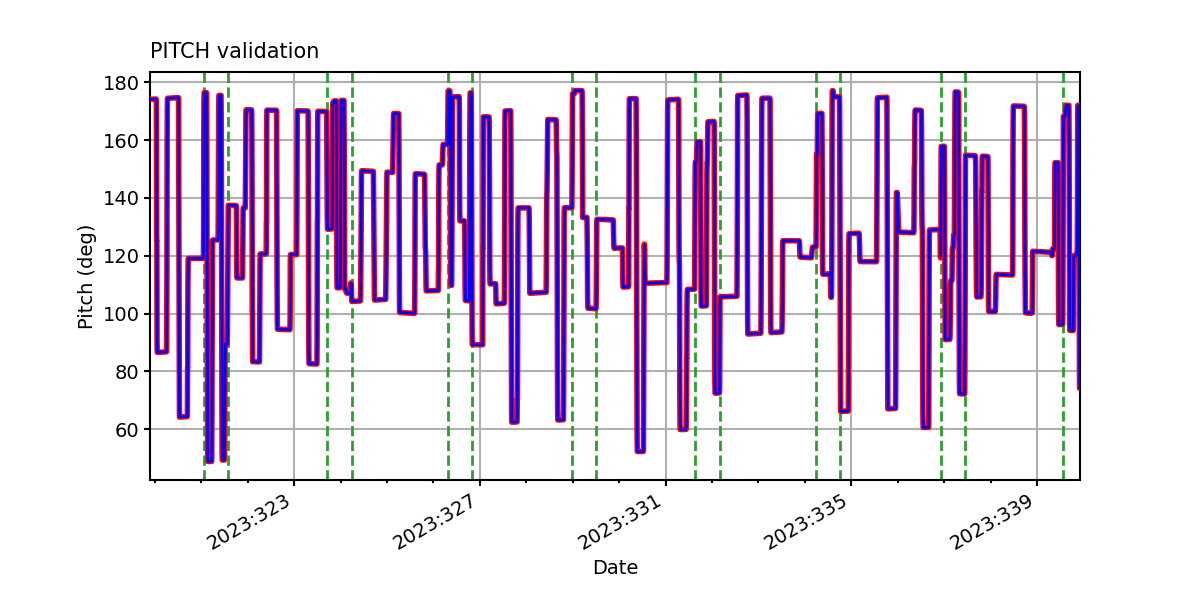

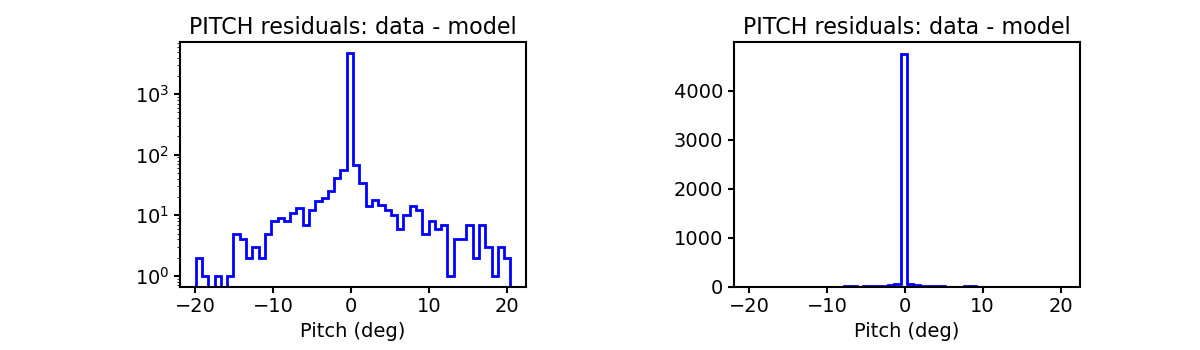

pitch_valid.png pitch_valid_hist.png

TSCPOS

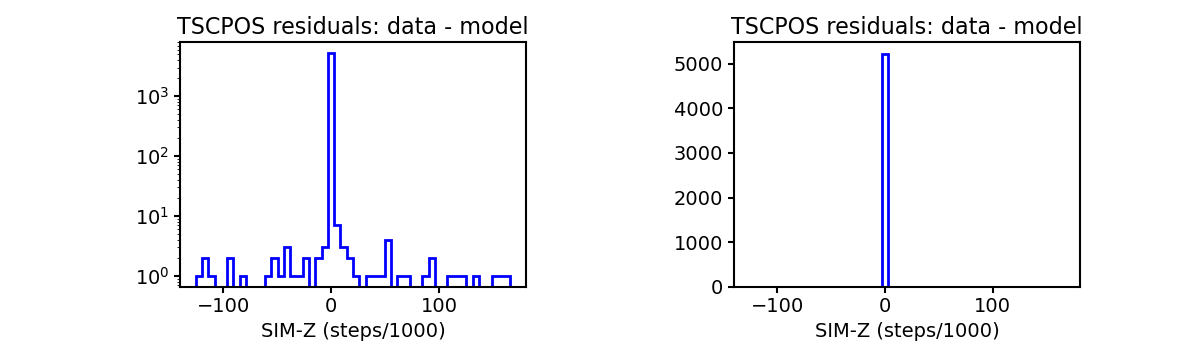

tscpos_valid.png tscpos_valid_hist.png

ROLL

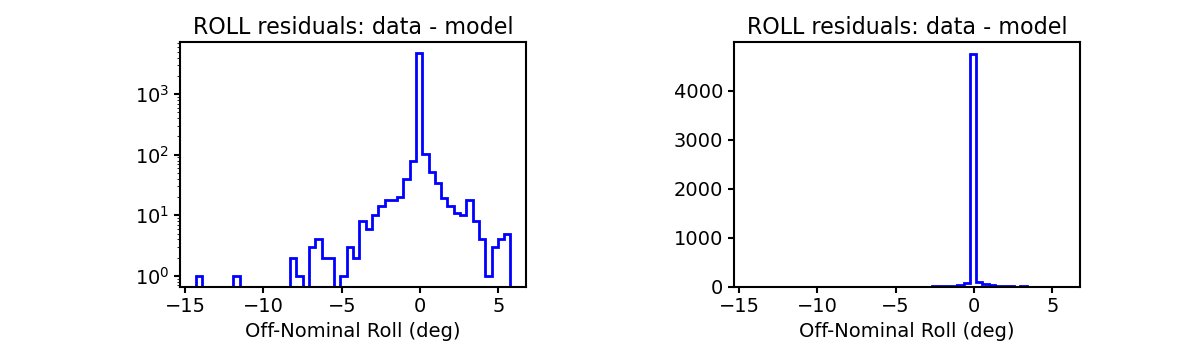

roll_valid.png roll_valid_hist.png

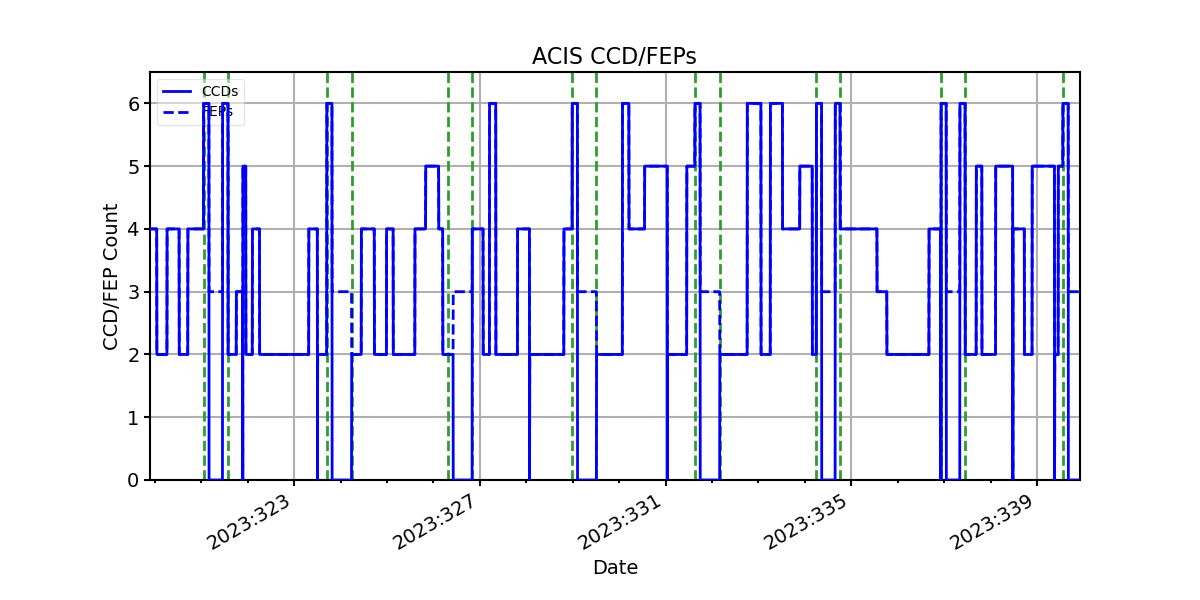

ACIS CCD/FEP Count
