PSMCBT Temperatures Check
Summary
| Date start | 2025:349:00:38:00.016 |
| Date stop | 2025:355:22:58:21.916 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/DEC1525/oflsa |
| Run time | Thu Oct 8 16:03:36 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.36 | -1.68 | -0.91 | 0.52 | 2.21 | 3.06 | 3.82 |
| pitch | -9.702 | -0.366 | -0.004 | -0.000 | 0.004 | 0.448 | 10.293 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.000 | -0.101 | -0.007 | -0.000 | 0.007 | 0.137 | 2.045 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -9.702 | 3.00 |
| PITCH | 99 | 10.293 | 3.00 |

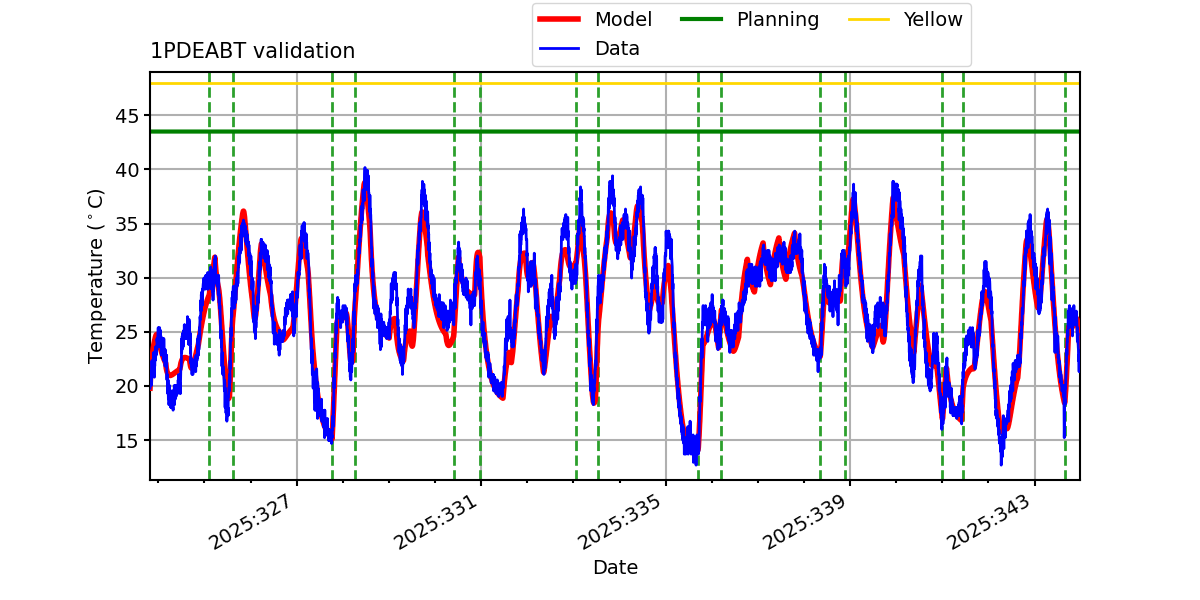

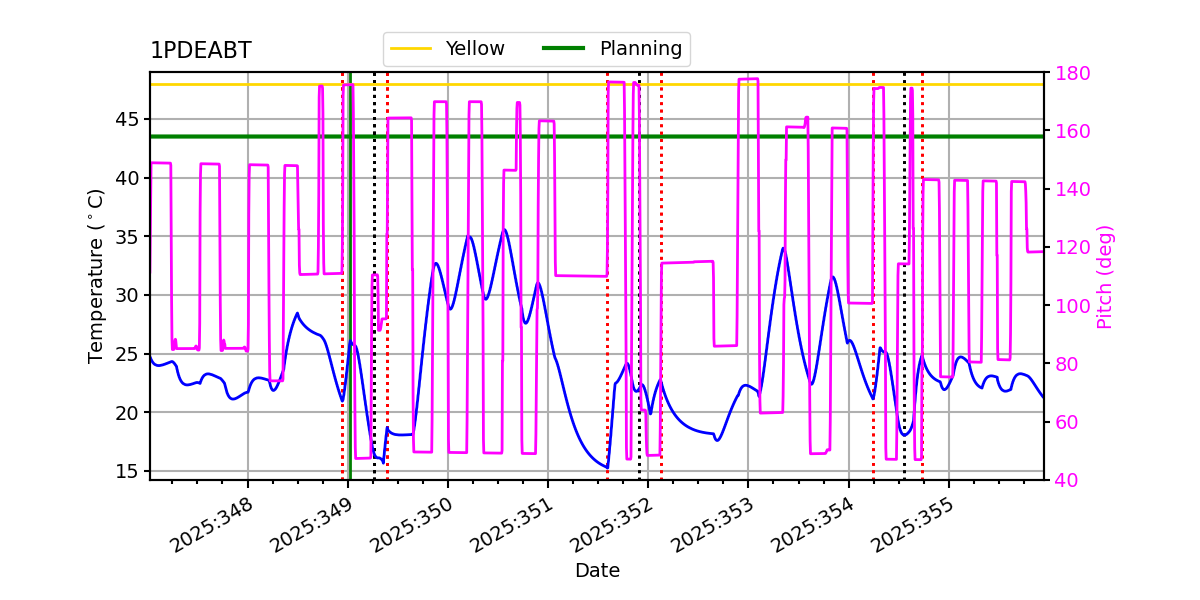

1PDEABT

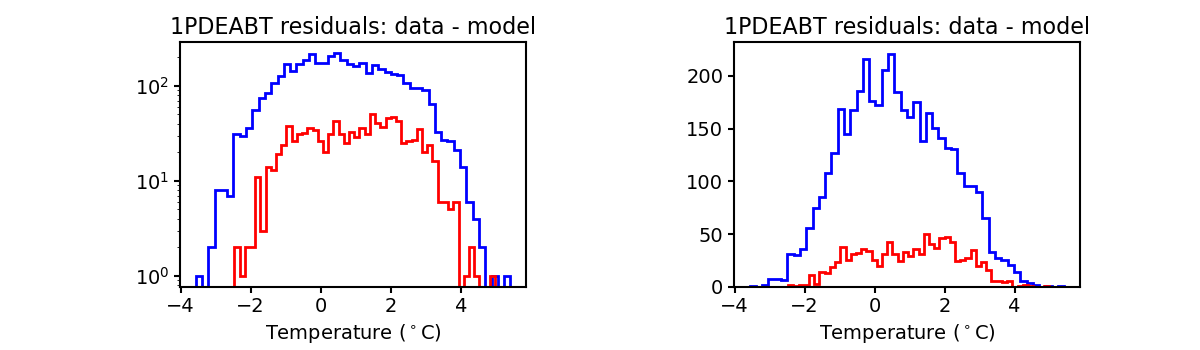

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

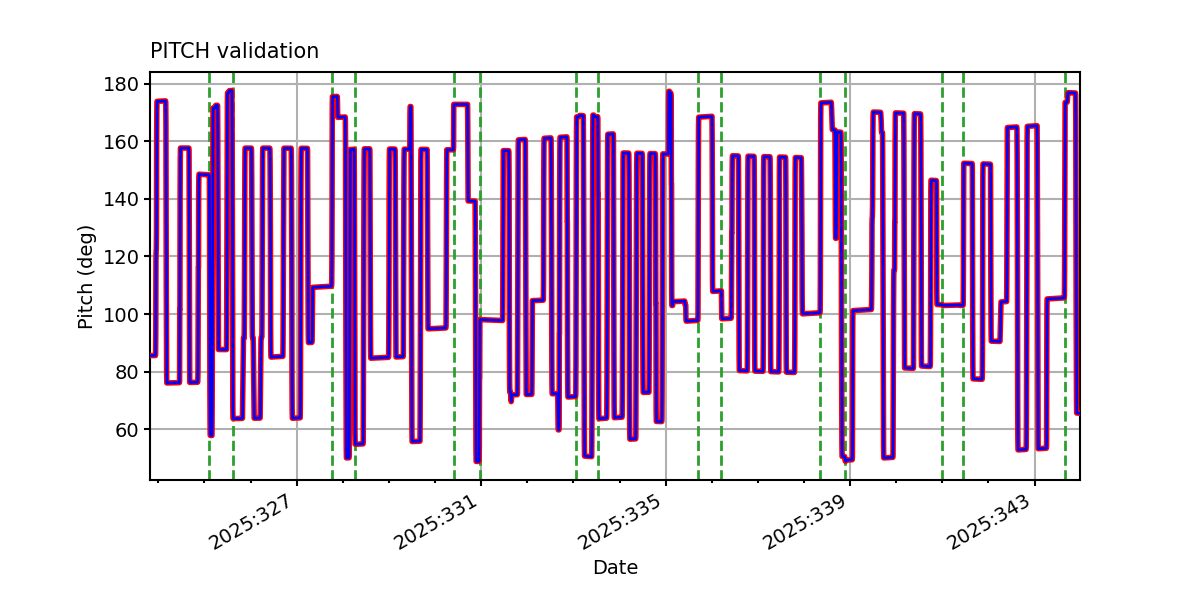

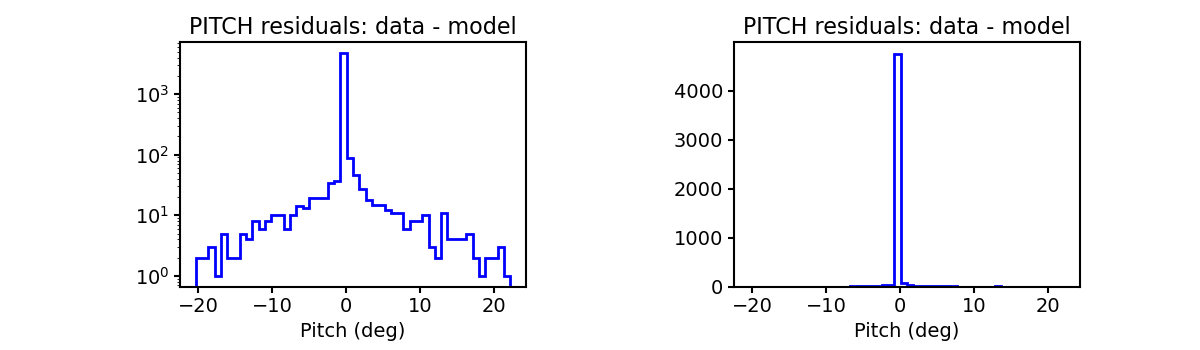

PITCH

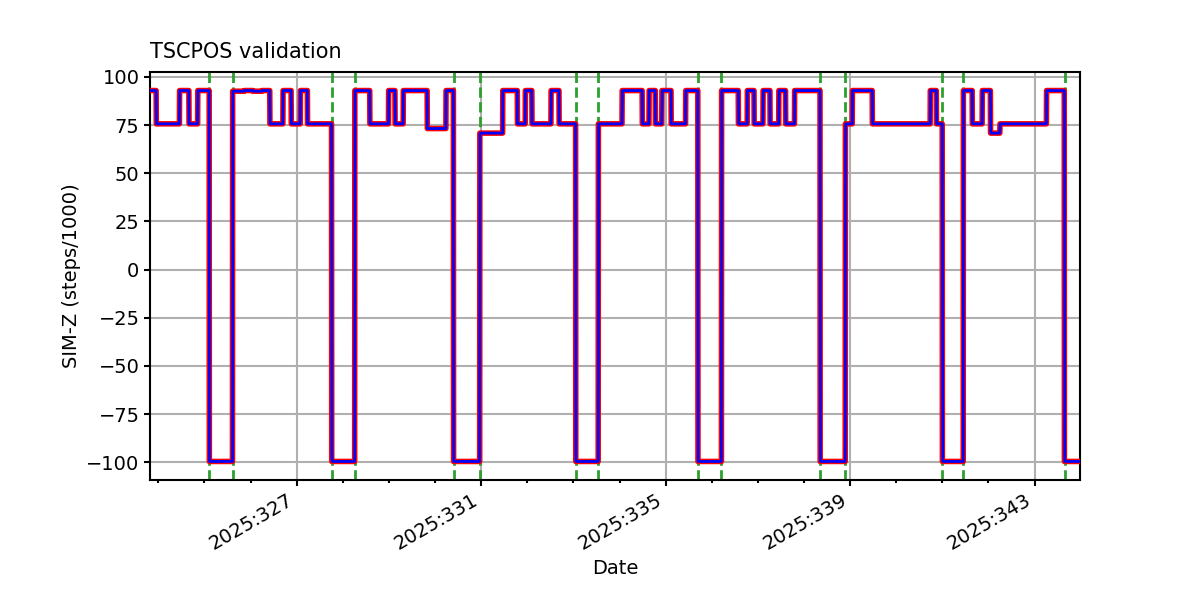

TSCPOS

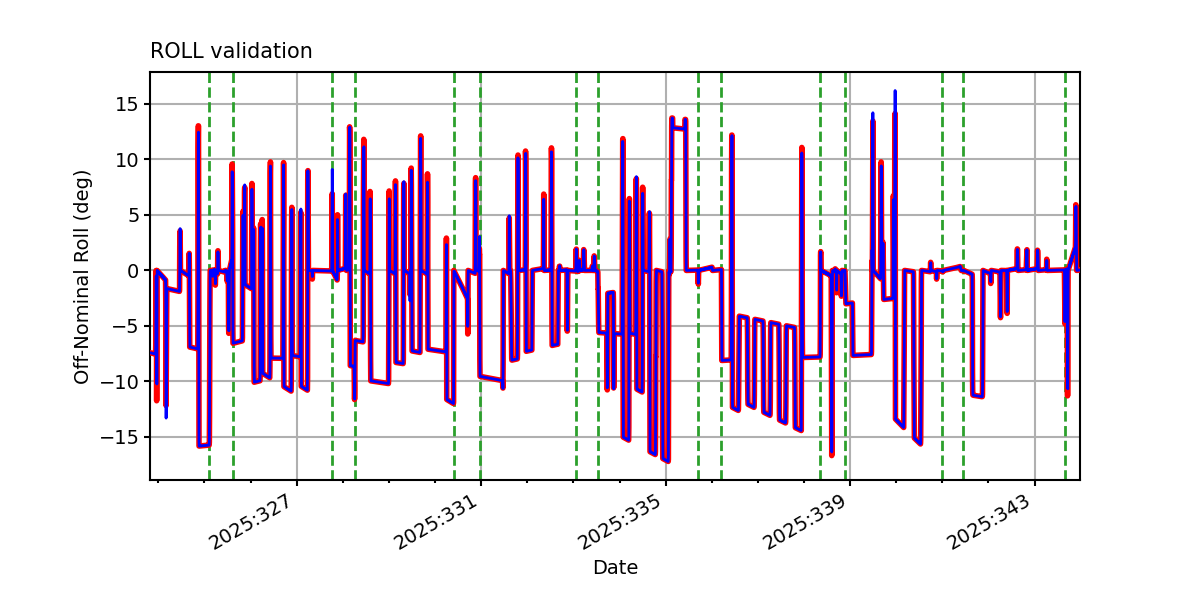

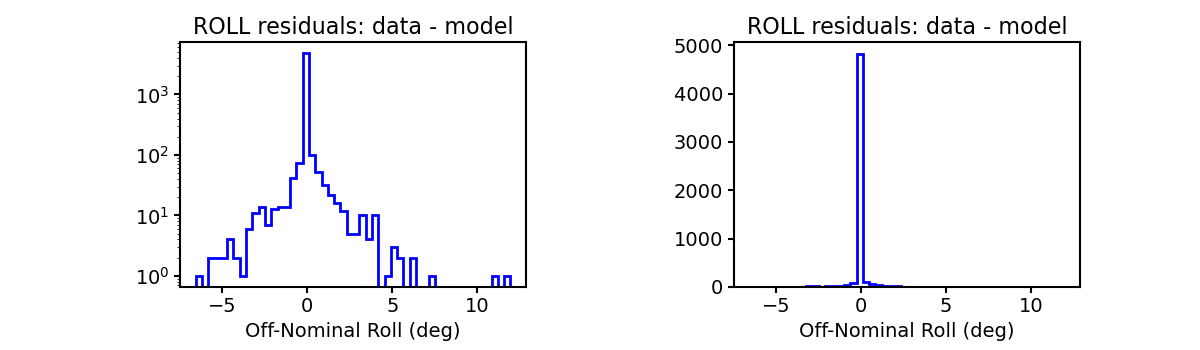

ROLL

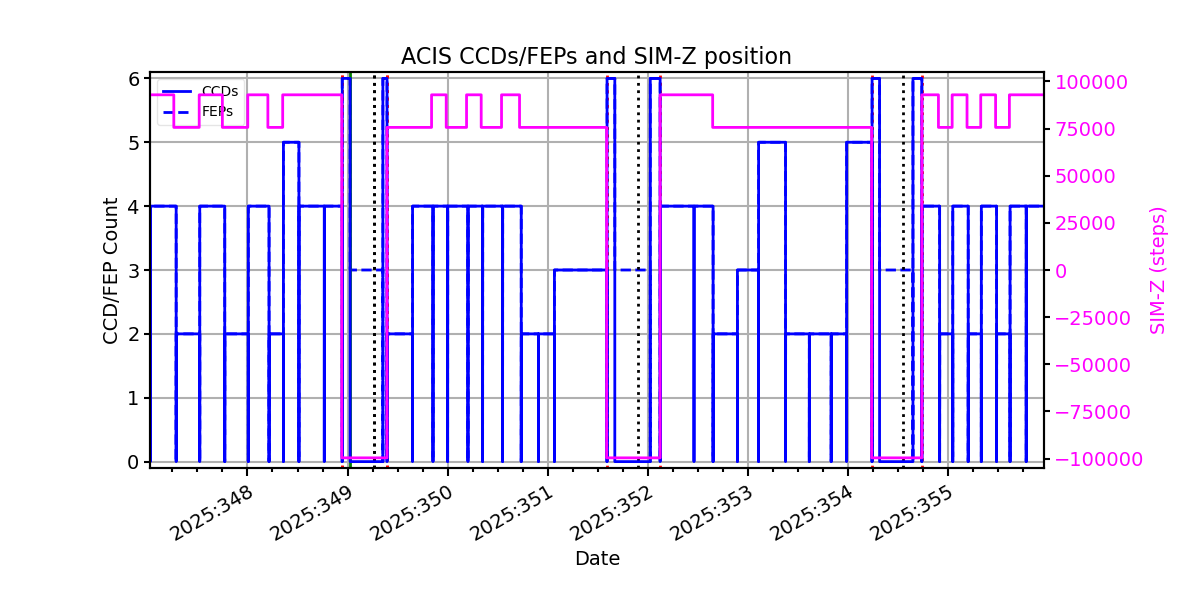

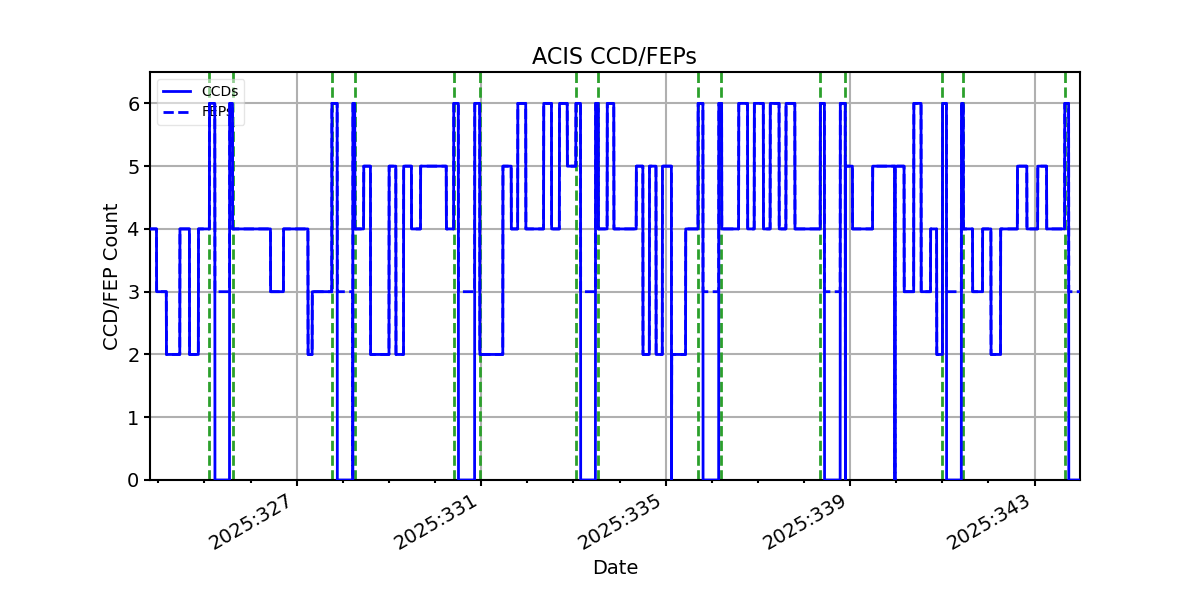

ACIS CCD/FEP Count
