PSMCBT Temperatures Check
Summary
| Date start | 2024:351:00:14:57.916 |
| Date stop | 2024:358:01:14:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/DEC1624/oflsa |
| Run time | Thu Oct 8 16:03:36 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.60 | -1.89 | -1.24 | -0.11 | 1.12 | 1.93 | 2.67 |
| pitch | -10.773 | -0.916 | -0.004 | -0.000 | 0.004 | 0.657 | 10.749 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 0 |
| roll | -2.458 | -0.197 | -0.007 | 0.000 | 0.007 | 0.203 | 2.358 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.6 | 2.50 |
| PITCH | 1 | -10.773 | 3.00 |
| PITCH | 99 | 10.749 | 3.00 |

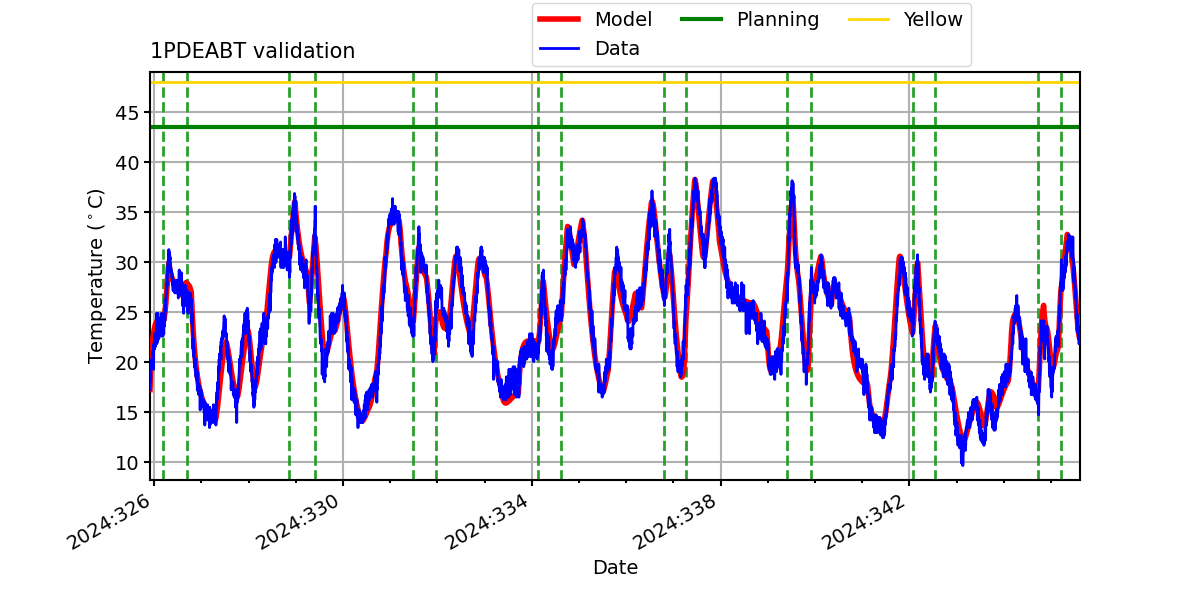

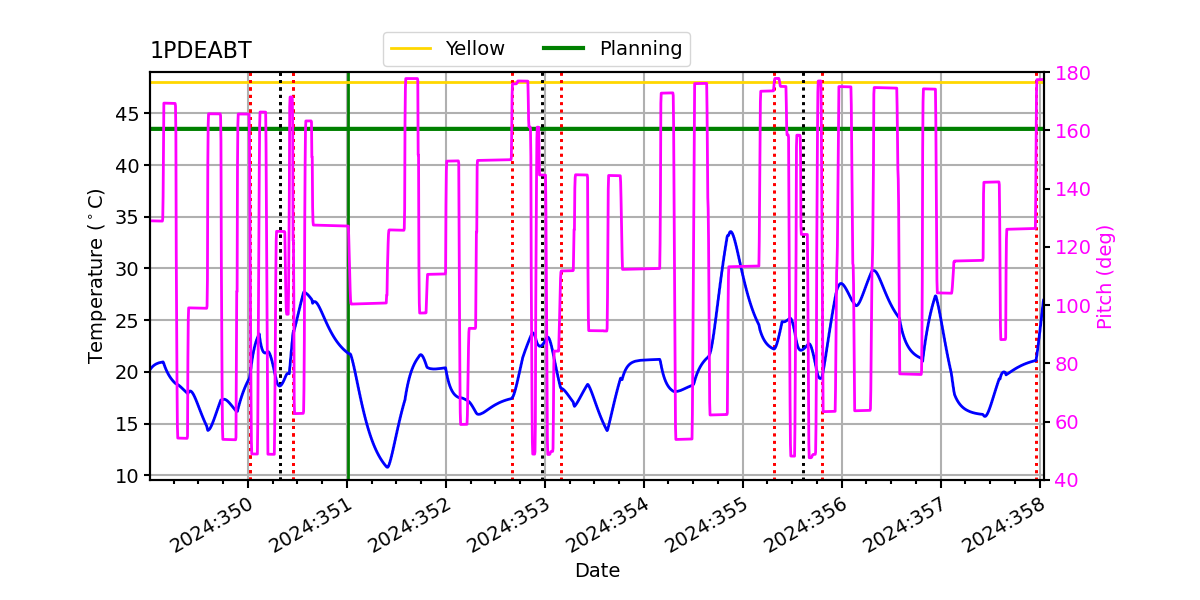

1PDEABT

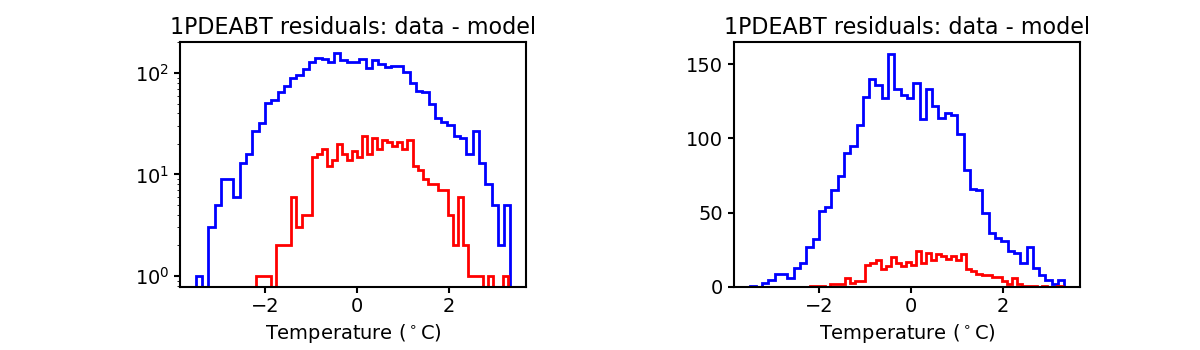

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

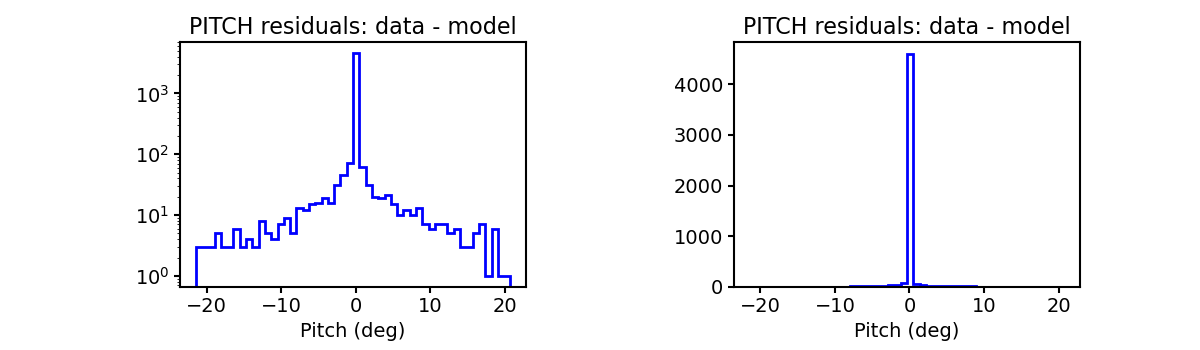

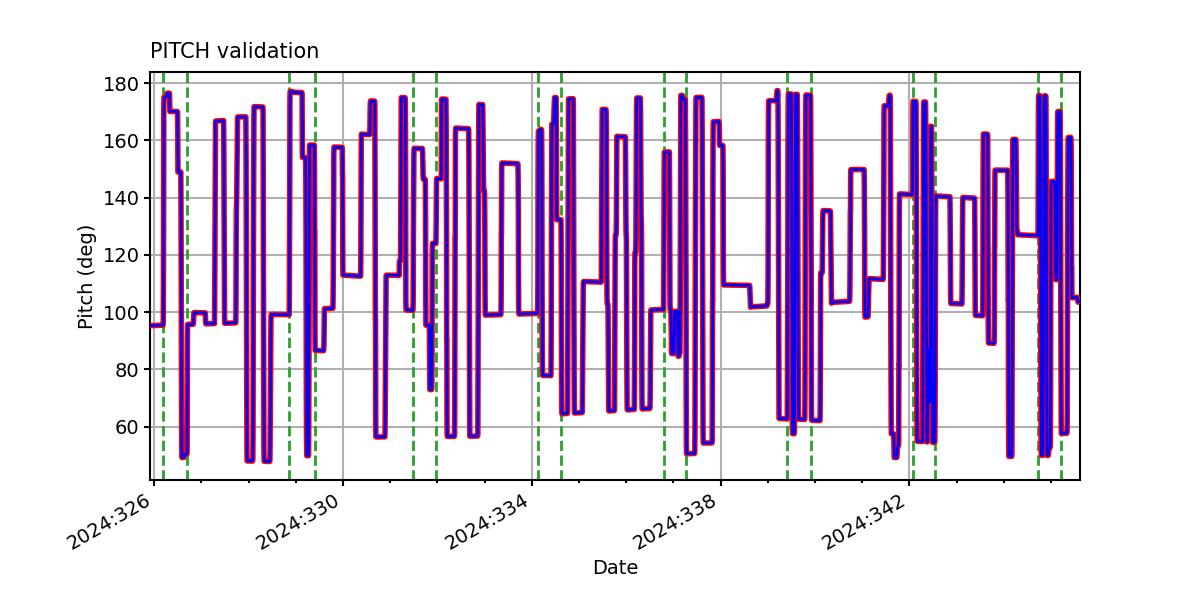

PITCH

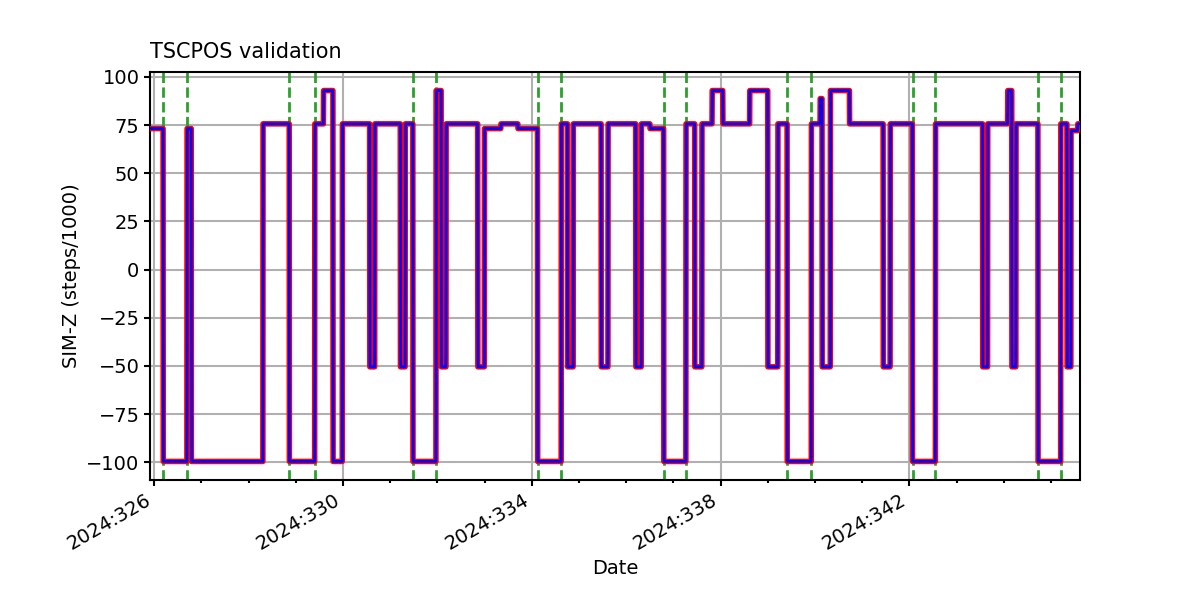

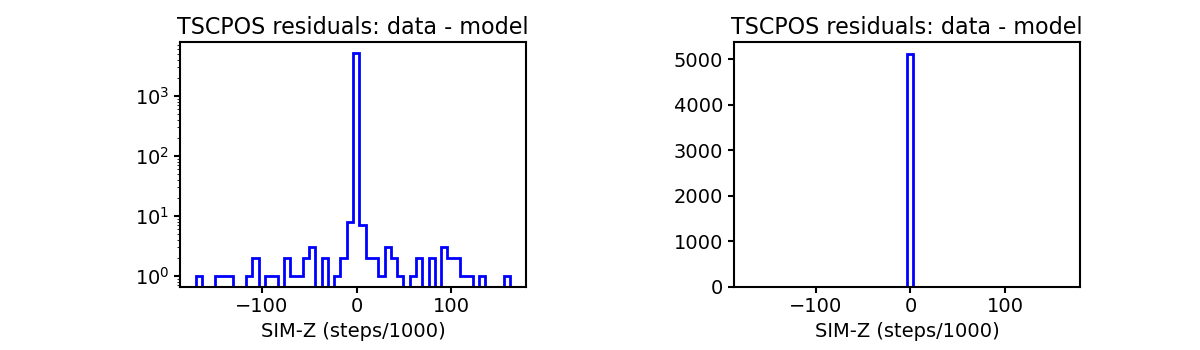

TSCPOS

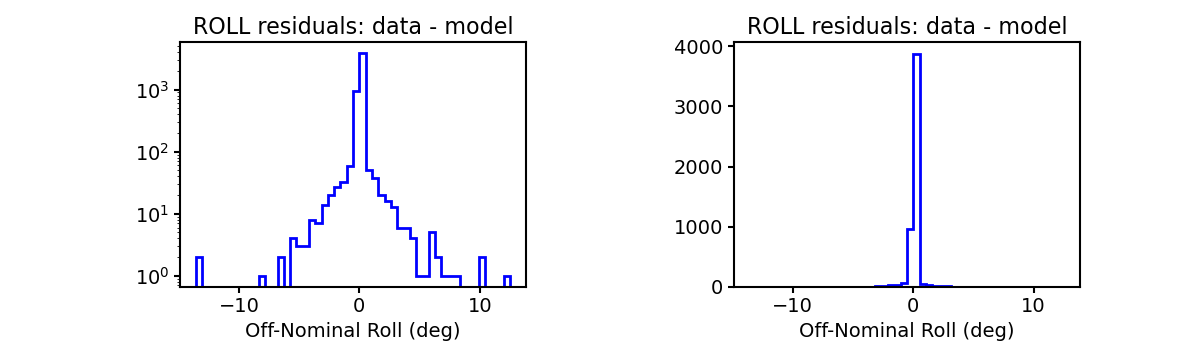

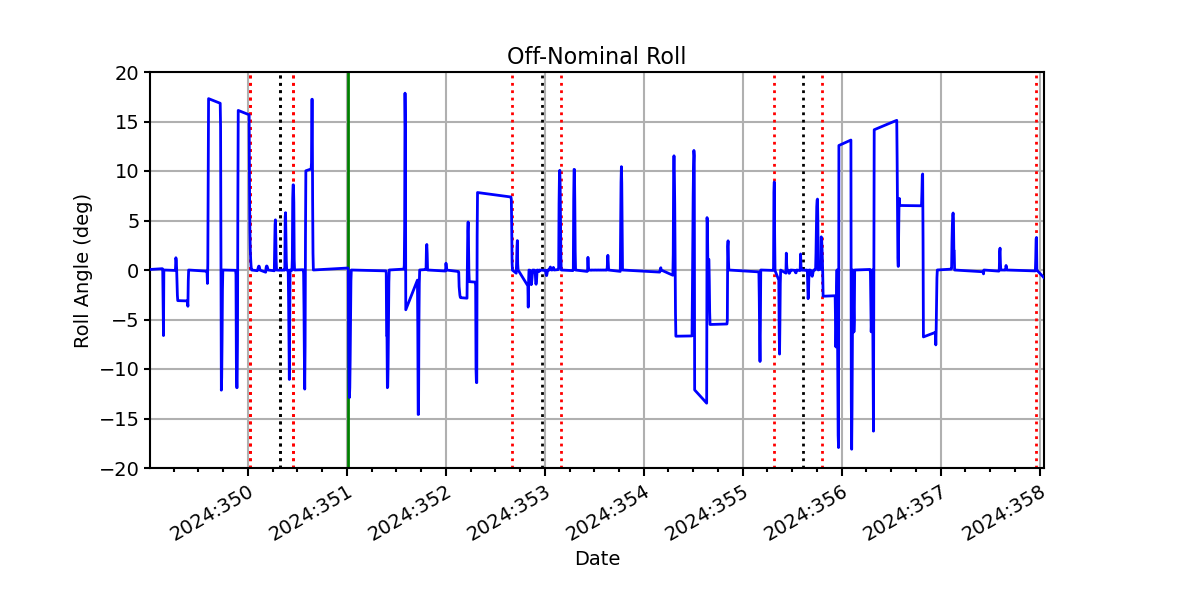

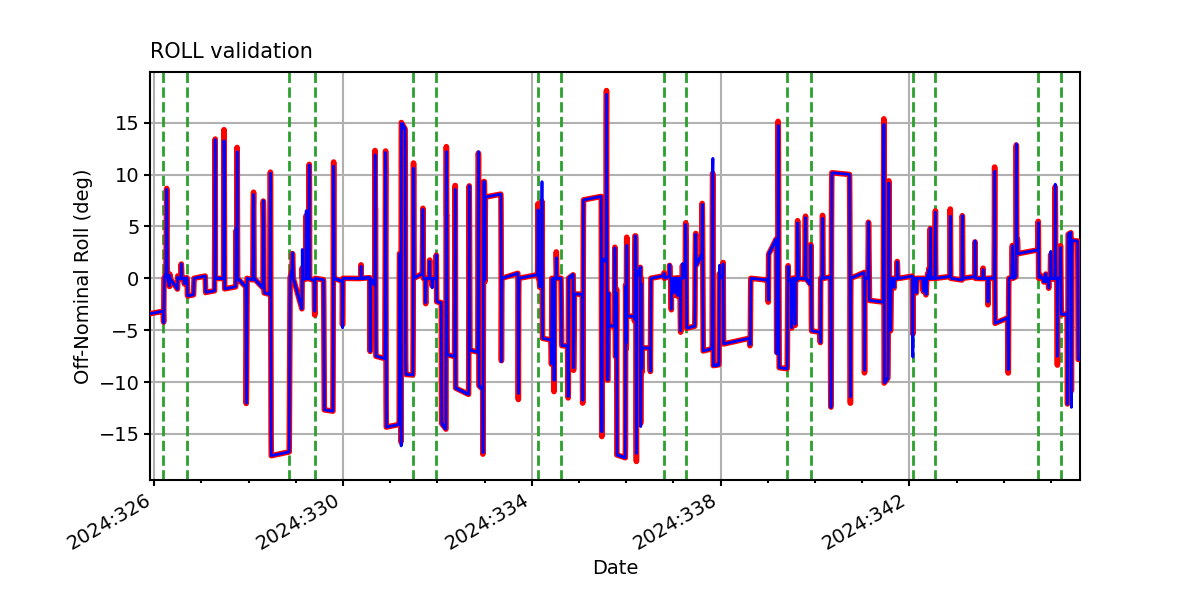

ROLL

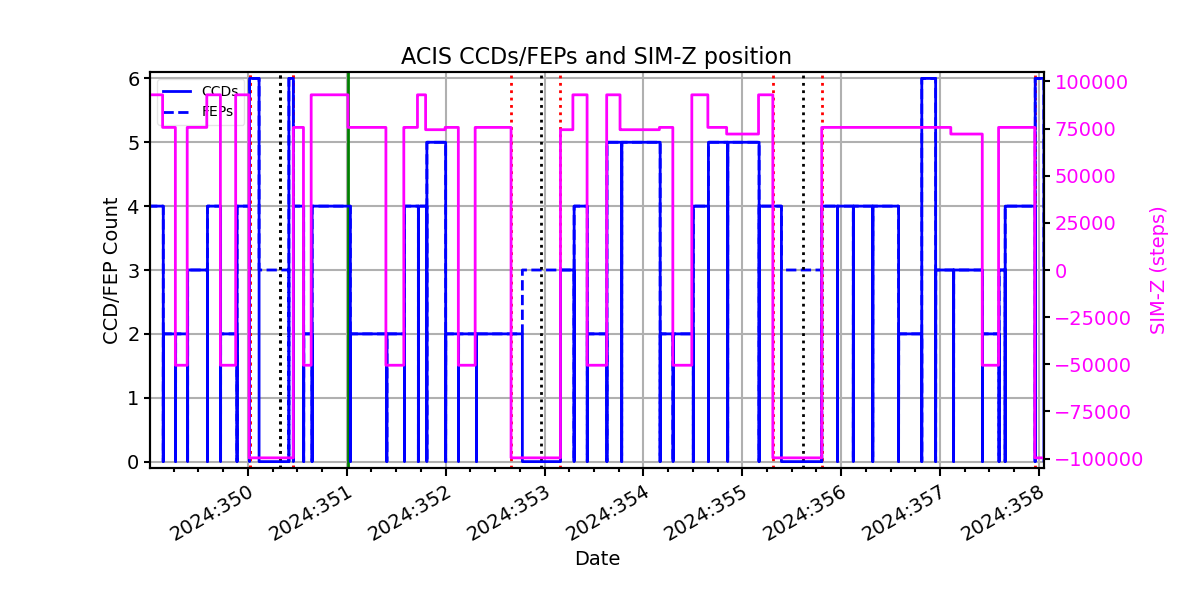

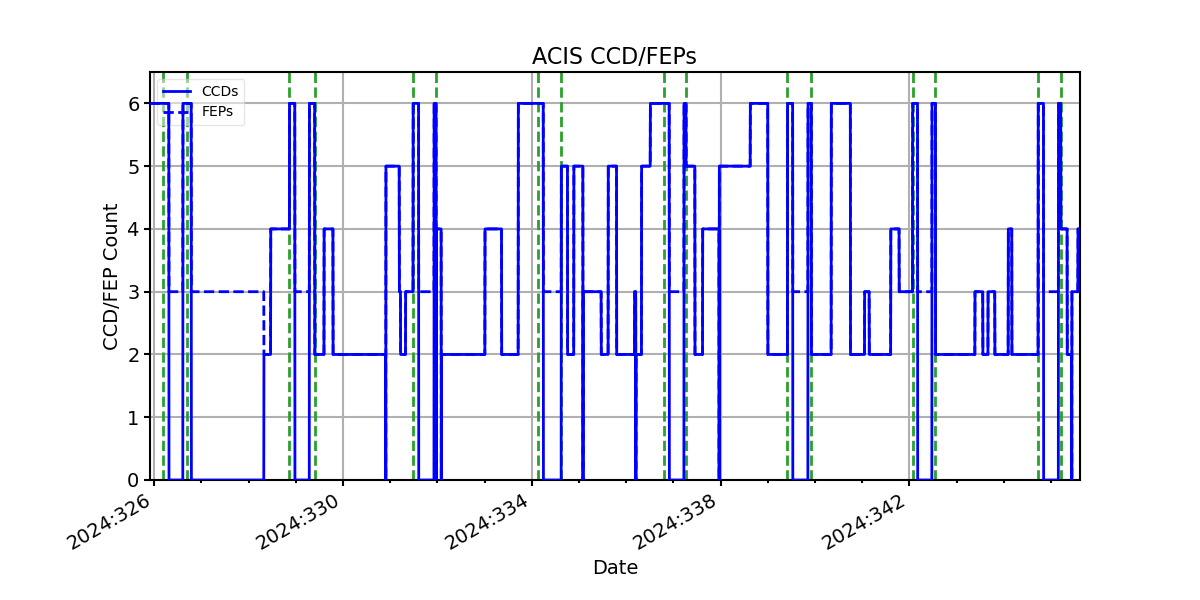

ACIS CCD/FEP Count
