PSMCBT Temperatures Check
Summary
| Date start | 2023:352:08:28:06.316 |
| Date stop | 2023:358:23:27:48.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/DEC1823/oflsa |
| Run time | Thu Oct 8 16:03:36 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.25 | -2.53 | -1.72 | -0.32 | 0.90 | 1.48 | 1.96 |
| pitch | -8.338 | -0.501 | -0.004 | -0.000 | 0.004 | 0.403 | 10.028 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.415 | -0.123 | -0.007 | -0.000 | 0.007 | 0.194 | 2.166 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.25 | 2.50 |
| PITCH | 1 | -8.338 | 3.00 |
| PITCH | 99 | 10.028 | 3.00 |

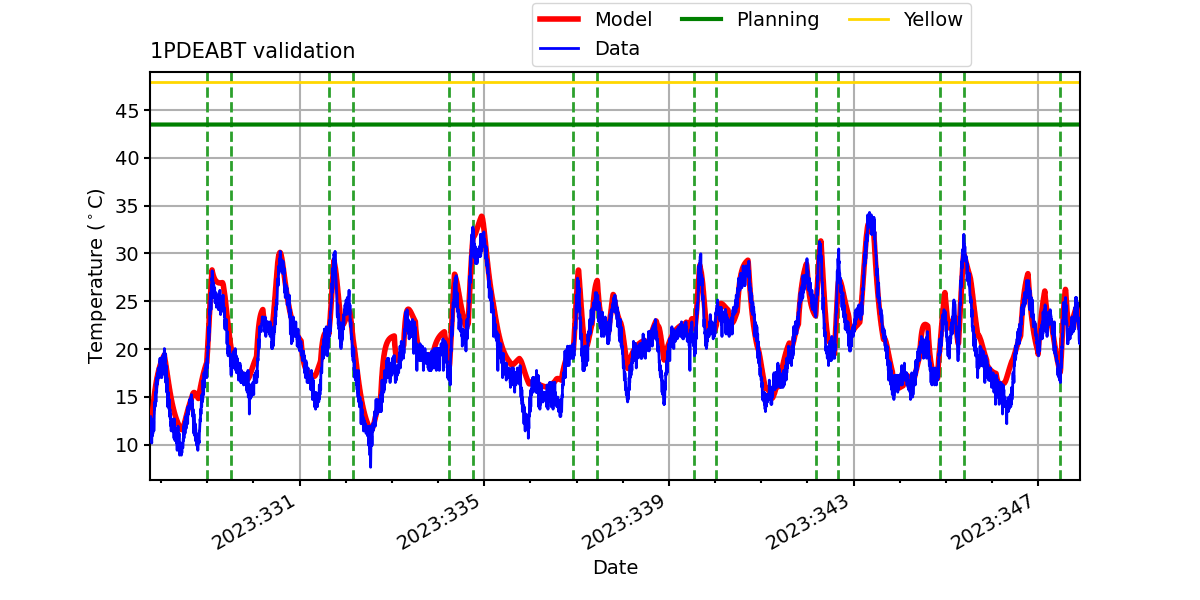

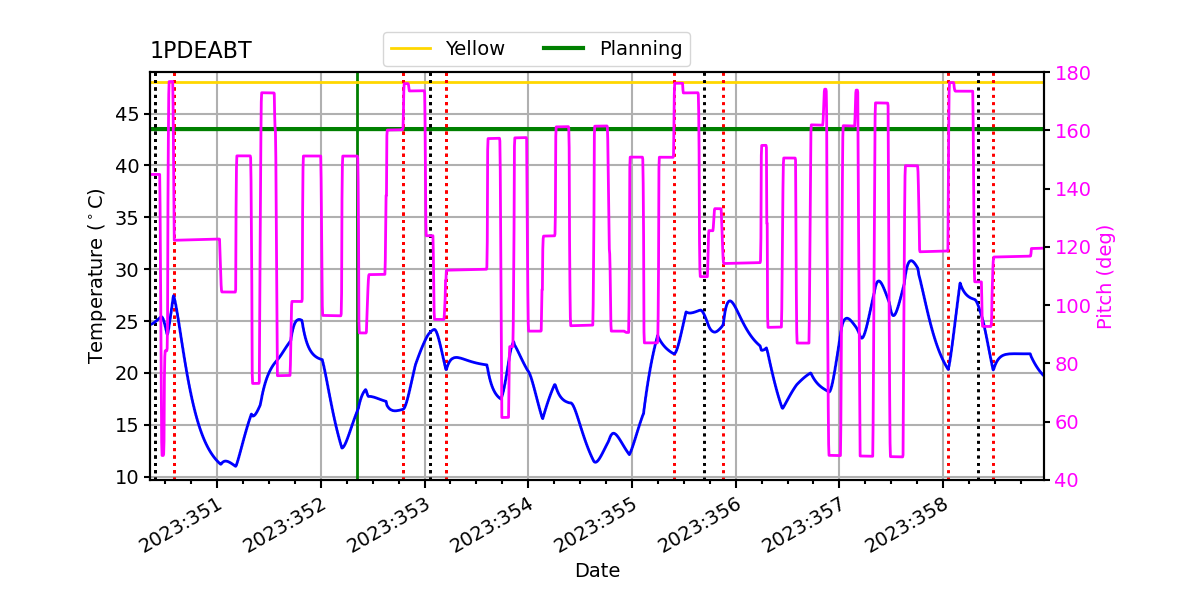

1PDEABT

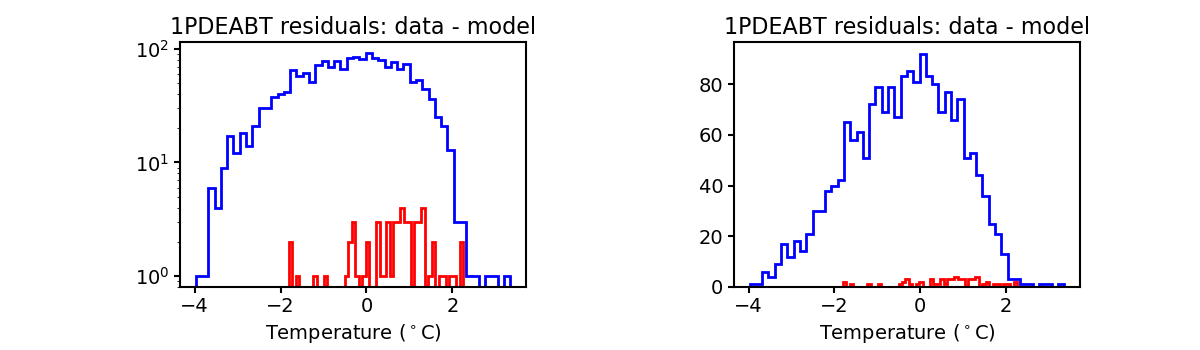

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

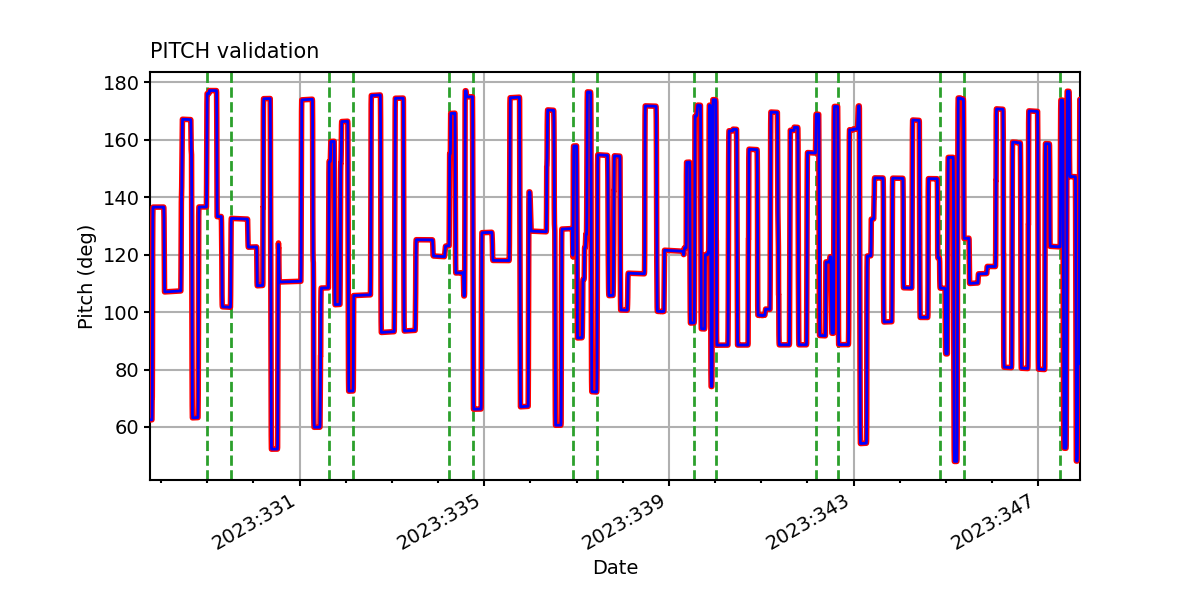

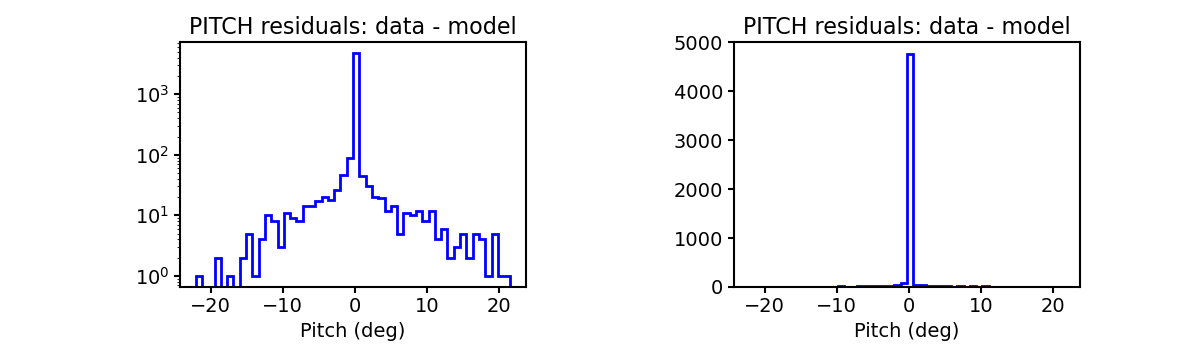

PITCH

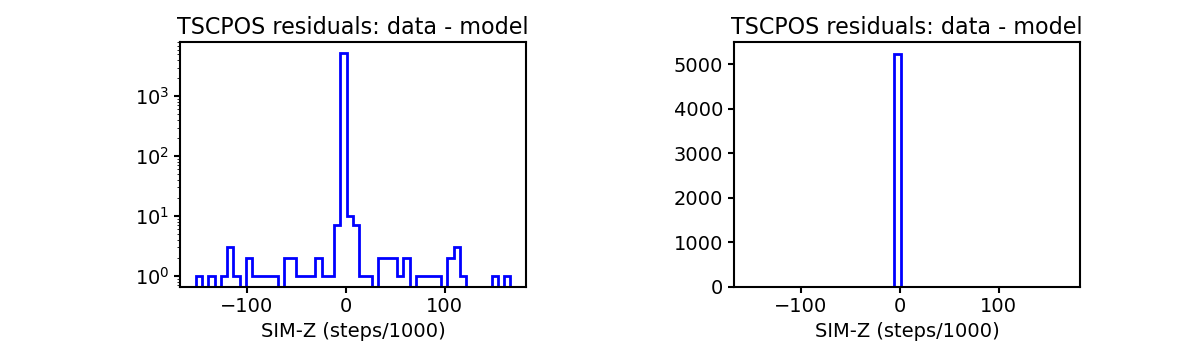

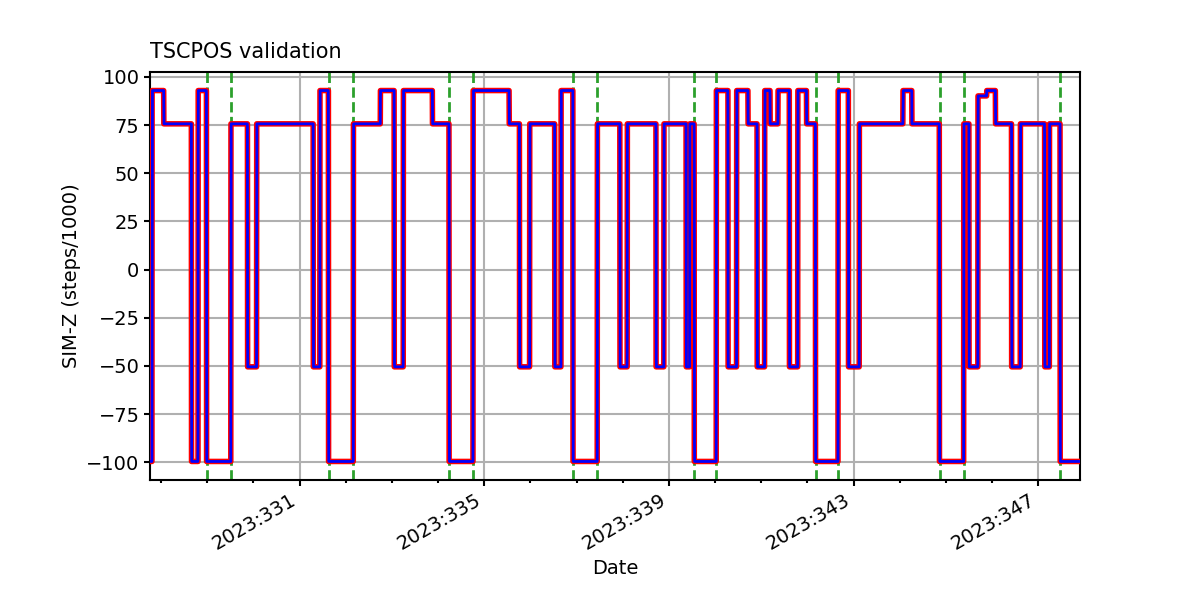

TSCPOS

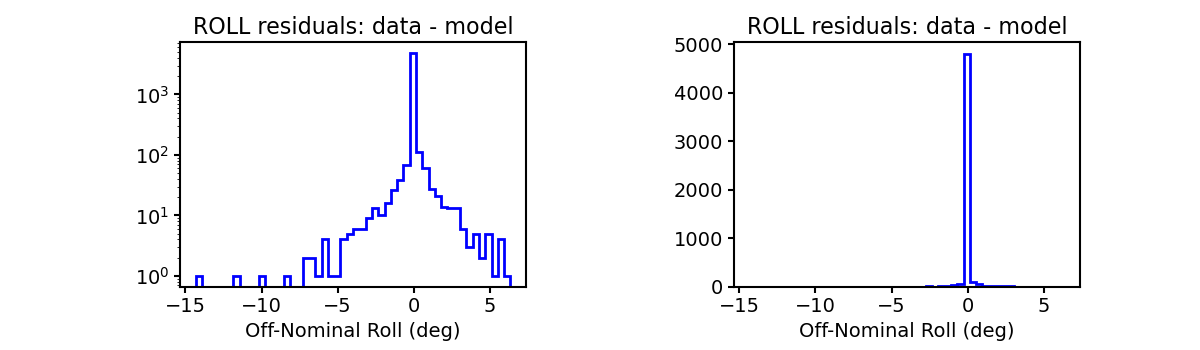

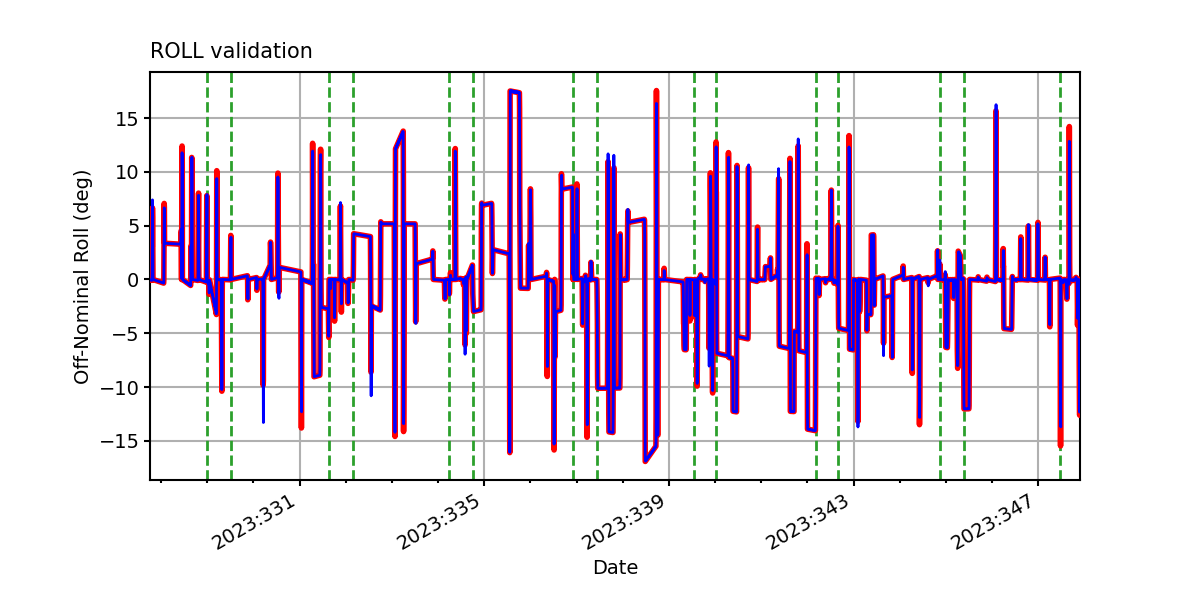

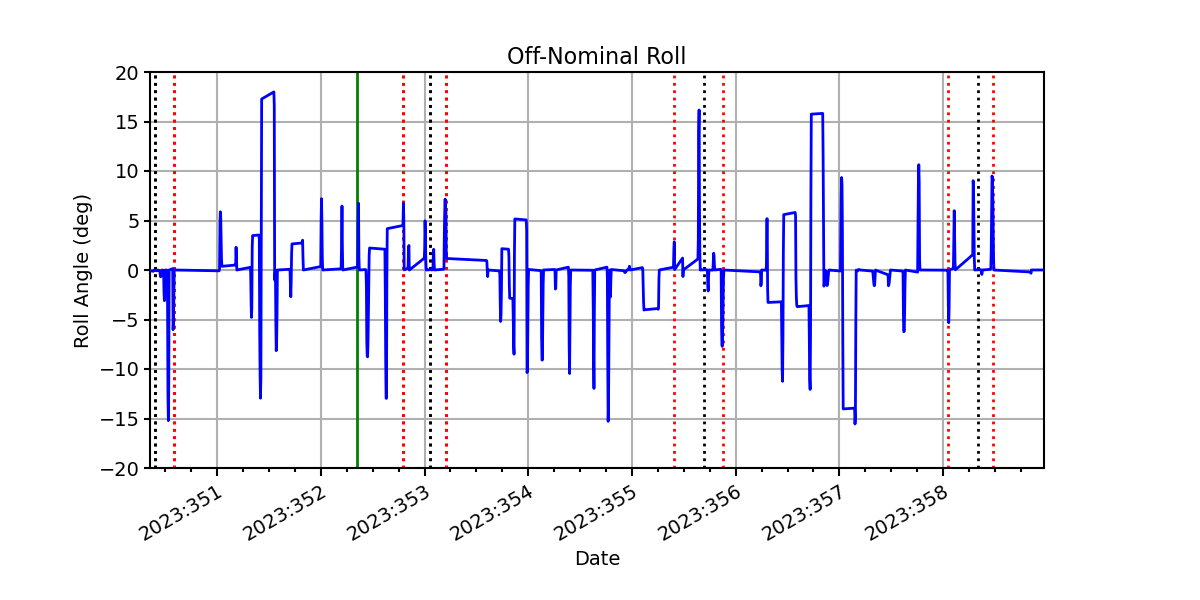

ROLL

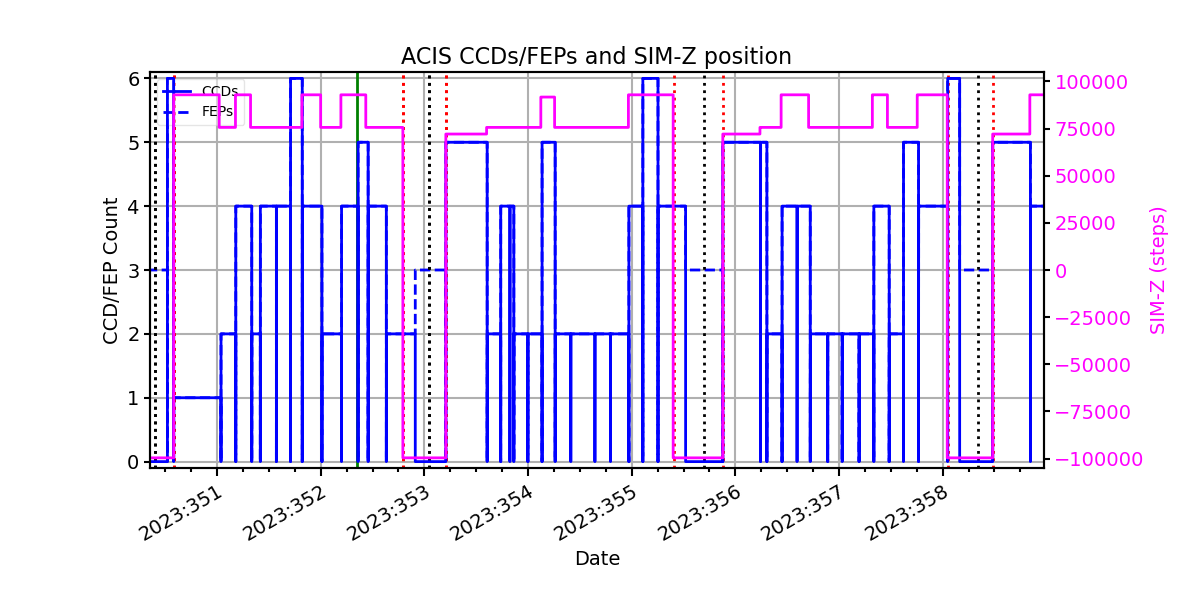

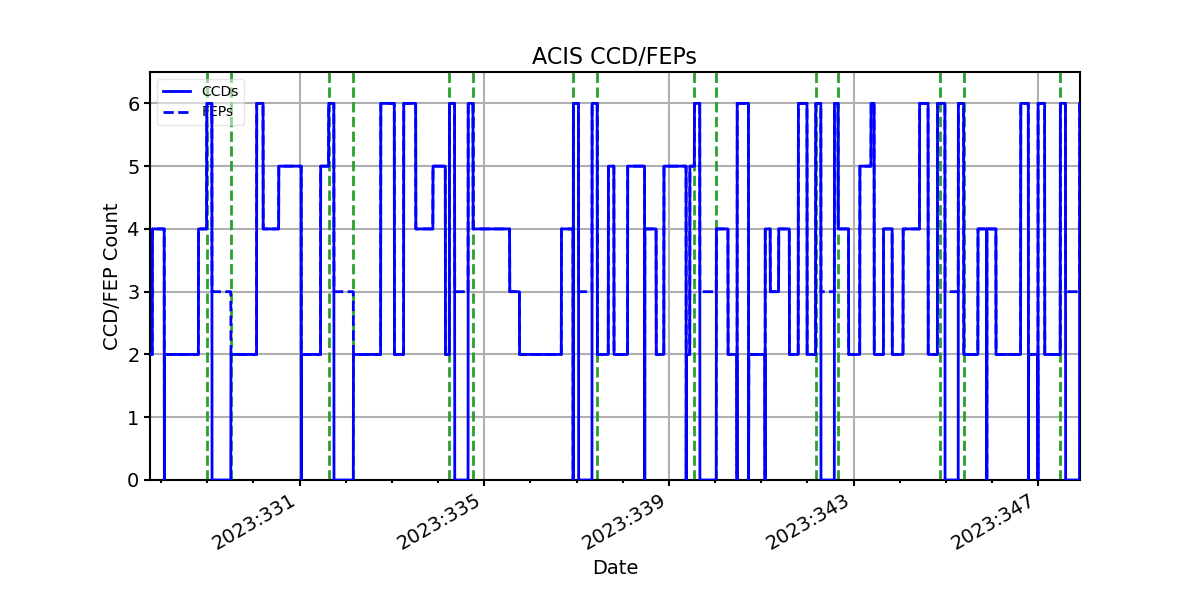

ACIS CCD/FEP Count
