PSMCBT Temperatures Check
Summary
| Date start | 2024:358:01:11:00.016 |
| Date stop | 2025:006:06:03:37.416 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/DEC2324/oflsb |
| Run time | Thu Oct 8 16:03:36 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.62 | -2.02 | -1.21 | 0.01 | 1.28 | 2.03 | 2.81 |
| pitch | -10.927 | -1.277 | -0.004 | -0.000 | 0.004 | 1.325 | 11.452 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 625 |
| roll | -2.593 | -0.242 | -0.006 | 0.000 | 0.006 | 0.257 | 2.117 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.62 | 2.50 |
| PITCH | 1 | -10.927 | 3.00 |
| PITCH | 99 | 11.452 | 3.00 |
| TSCPOS | 99 | 625.0 | 2.50 |

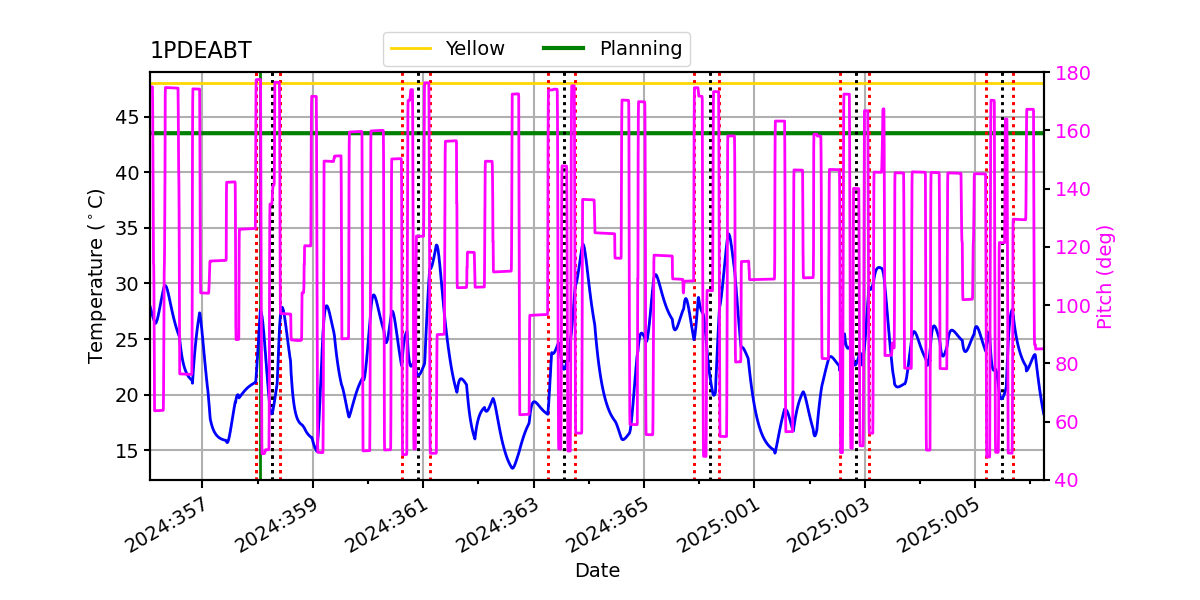

1PDEABT
Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

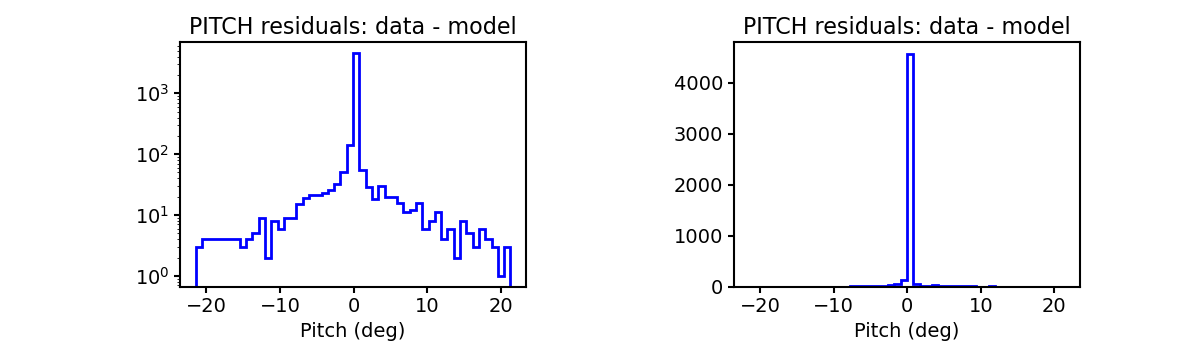

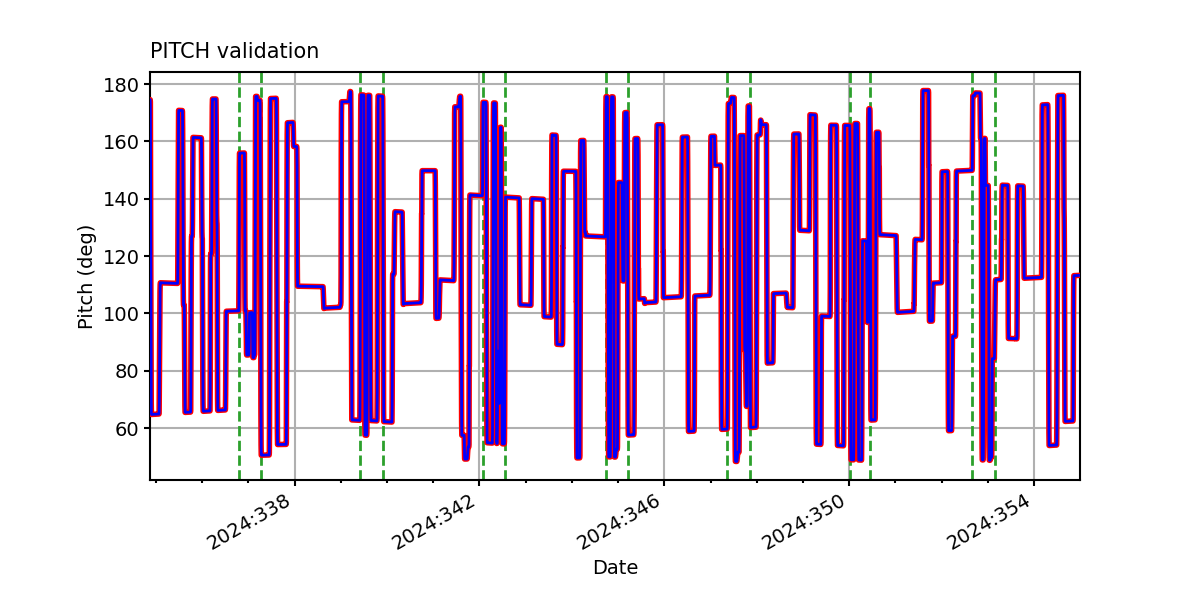

PITCH

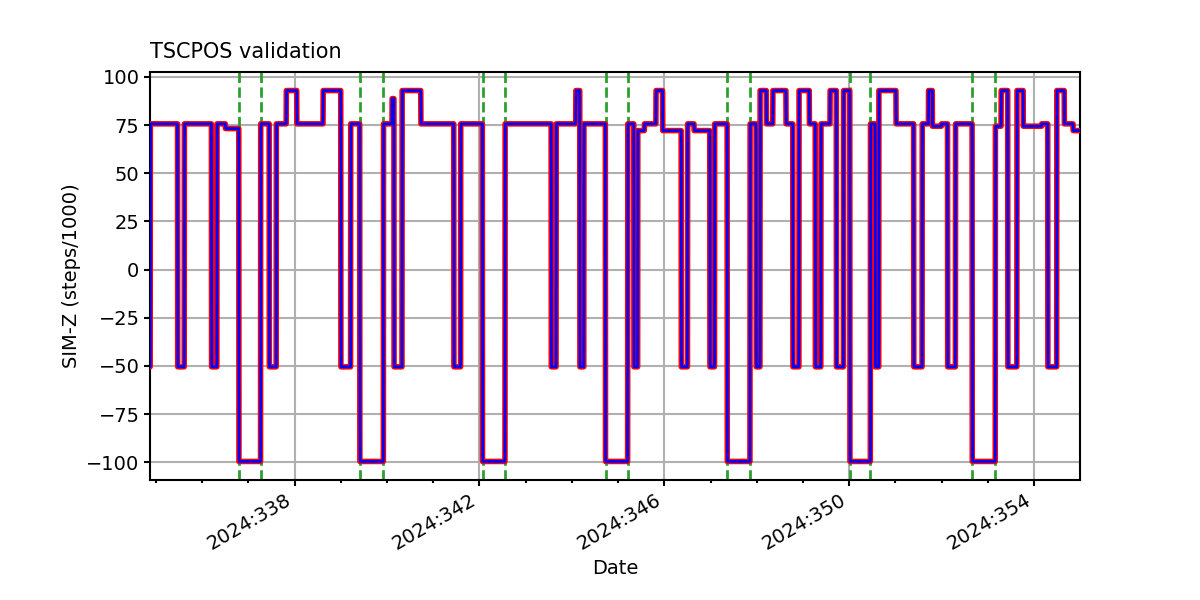

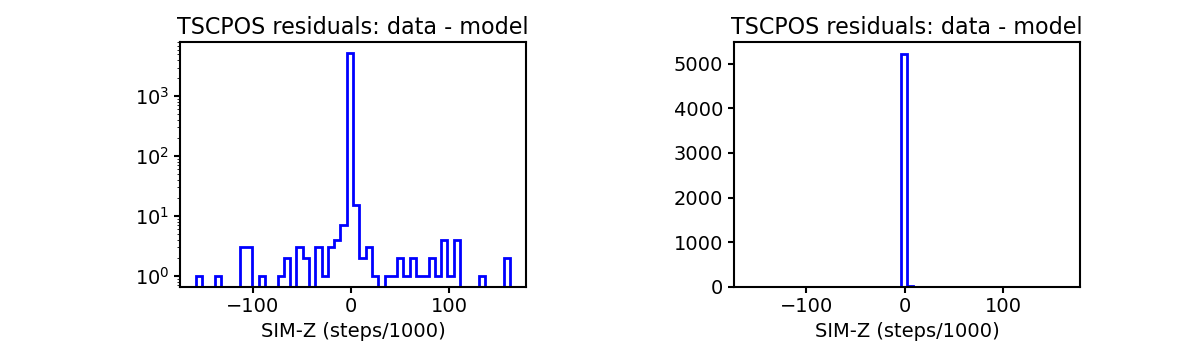

TSCPOS

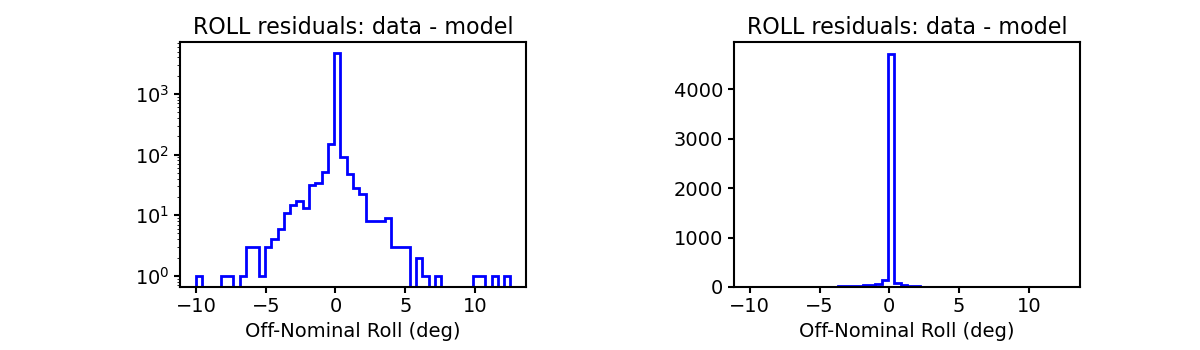

ROLL

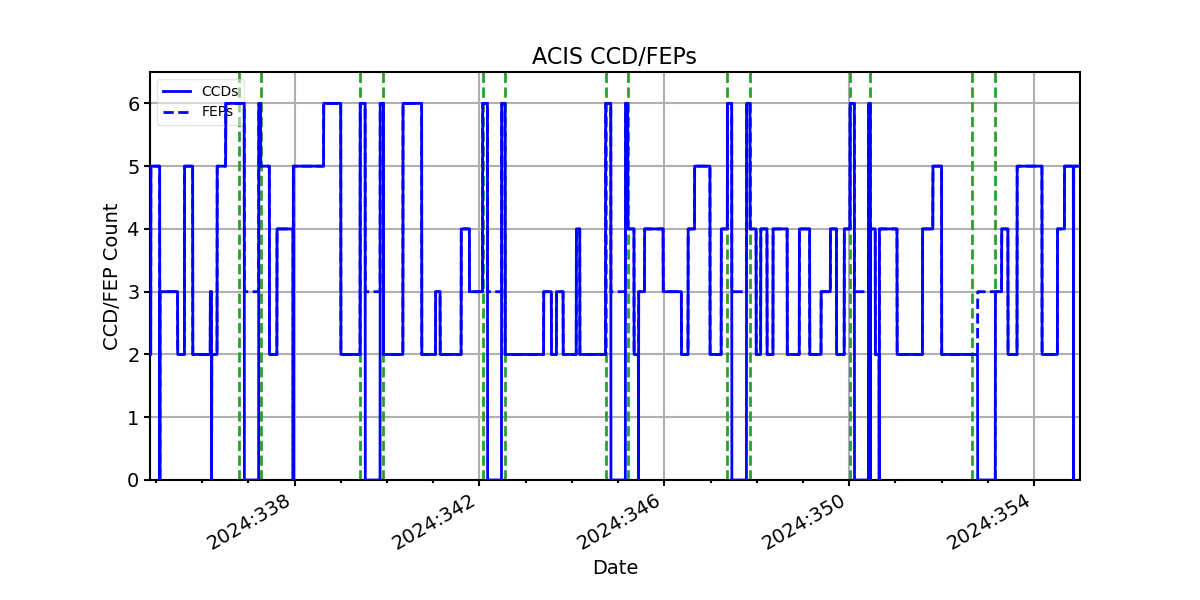

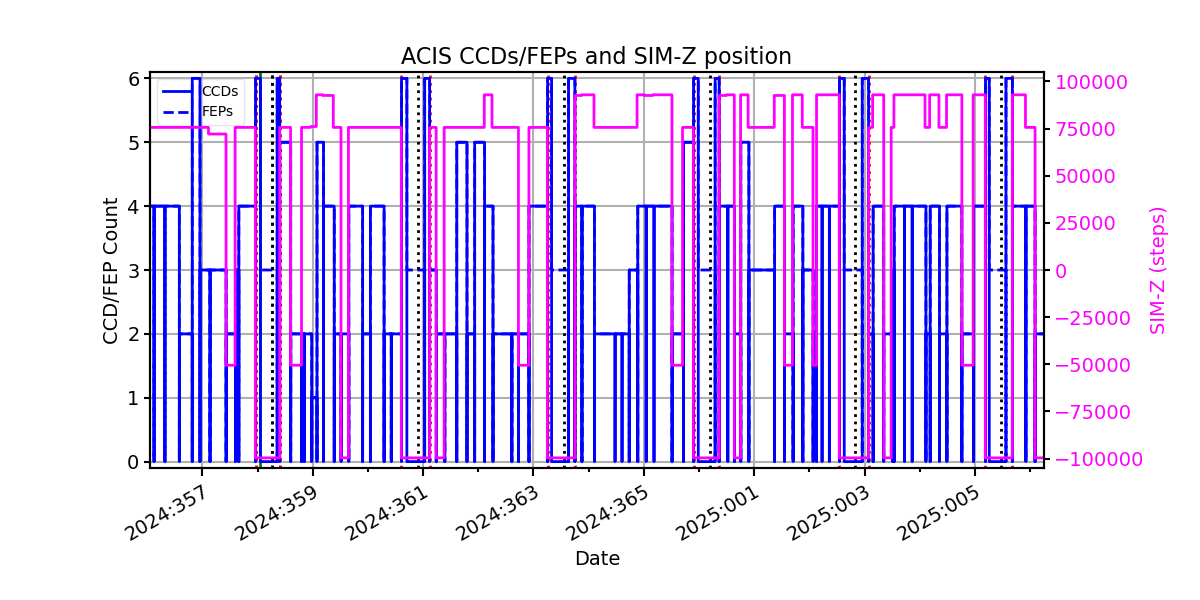

ACIS CCD/FEP Count
