PSMCBT Temperatures Check
Summary
| Date start | 2025:033:20:54:05.816 |
| Date stop | 2025:041:02:29:04.916 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/FEB0325/oflsa |
| Run time | Thu Oct 8 16:04:07 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

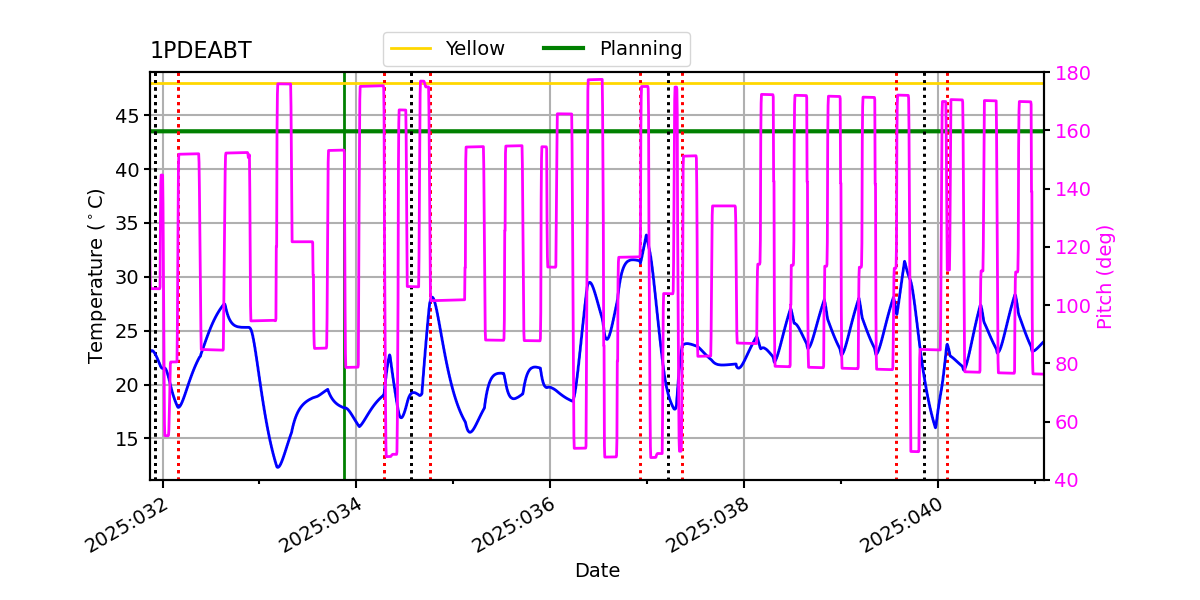

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -4.28 | -2.24 | -1.23 | 0.22 | 1.40 | 2.13 | 2.81 |
| pitch | -10.436 | -0.921 | -0.004 | -0.000 | 0.004 | 0.649 | 10.680 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.102 | -0.233 | -0.010 | 0.000 | 0.009 | 0.225 | 2.040 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -4.28 | 2.50 |
| PITCH | 1 | -10.436 | 3.00 |
| PITCH | 99 | 10.68 | 3.00 |

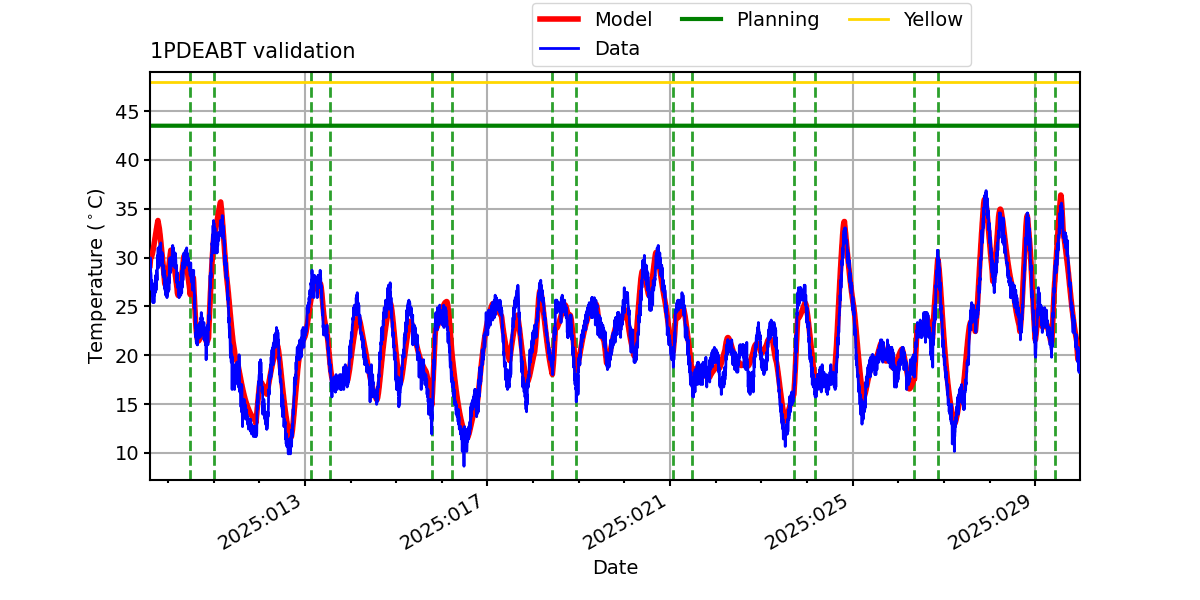

1PDEABT
Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

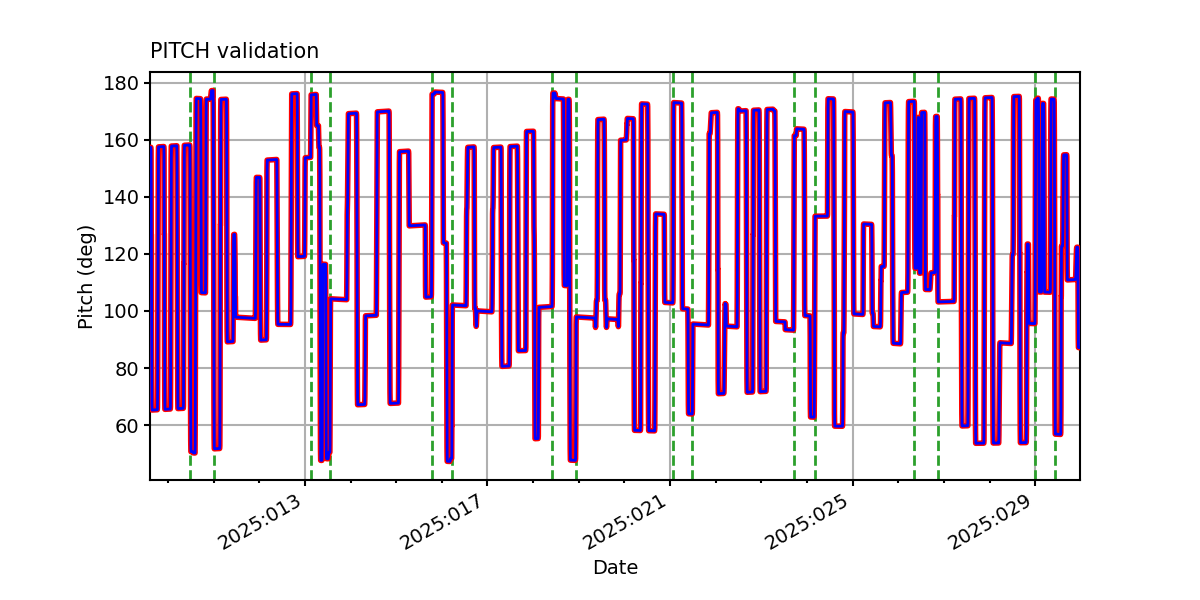

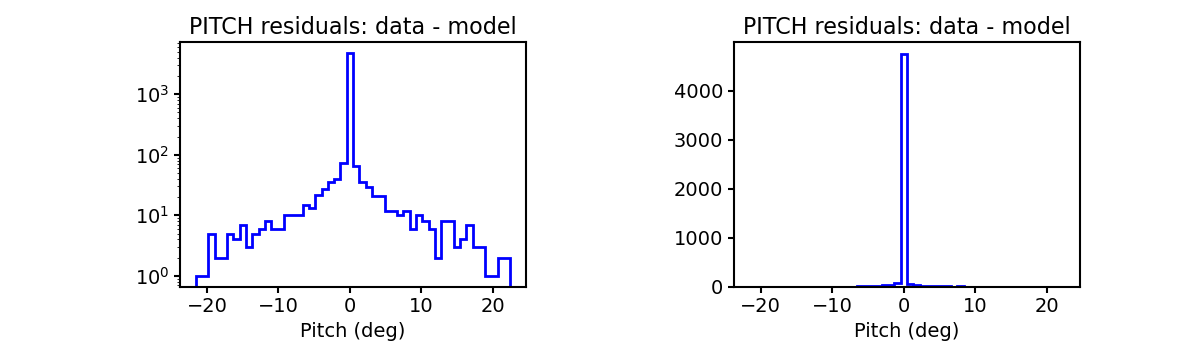

PITCH

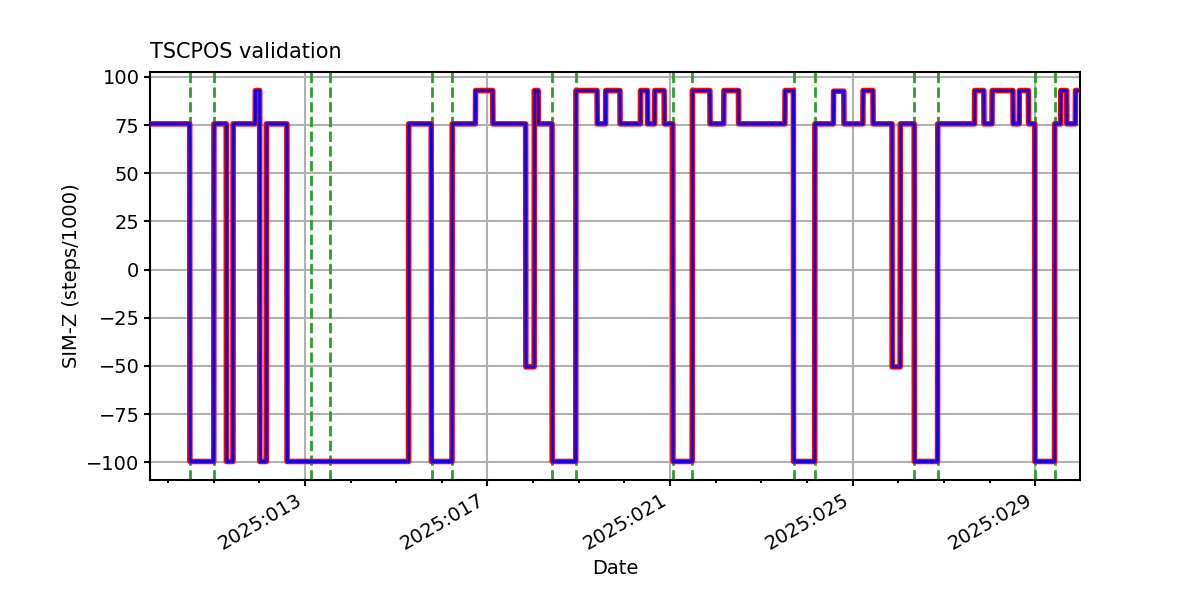

TSCPOS

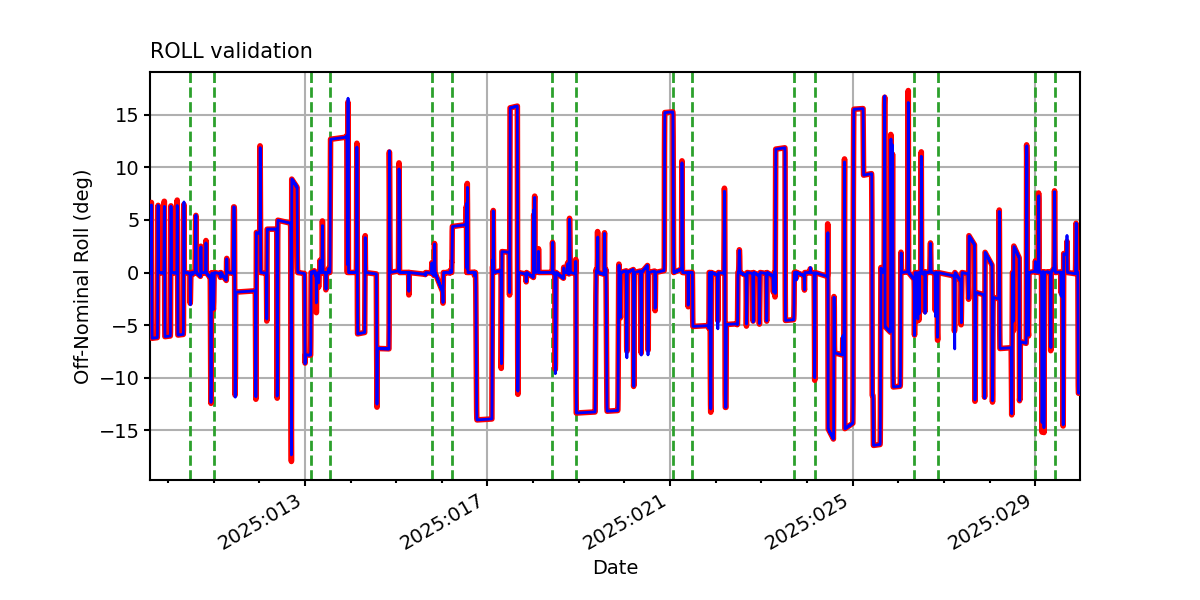

ROLL

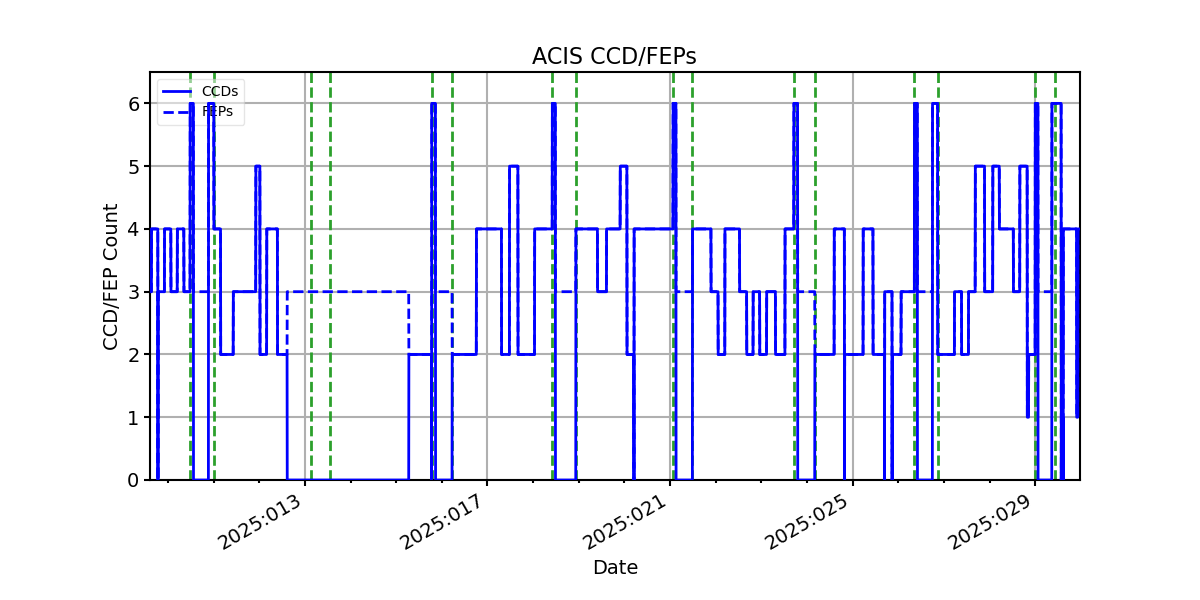

ACIS CCD/FEP Count
