PSMCBT Temperatures Check
Summary
| Date start | 2024:036:00:45:18.016 |
| Date stop | 2024:043:01:45:33.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/FEB0524/oflsa |
| Run time | Thu Oct 8 16:04:07 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.01 | -2.39 | -1.67 | -0.52 | 0.72 | 1.39 | 2.09 |
| pitch | -9.925 | -0.632 | -0.004 | 0.000 | 0.004 | 1.240 | 9.146 |
| tscpos | -1 | -1 | -1 | 0 | 1 | 1 | 1 |
| roll | -1.515 | -0.092 | -0.007 | 0.000 | 0.021 | 1.836 | 10.359 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.01 | 2.50 |
| PITCH | 1 | -9.925 | 3.00 |
| PITCH | 99 | 9.146 | 3.00 |

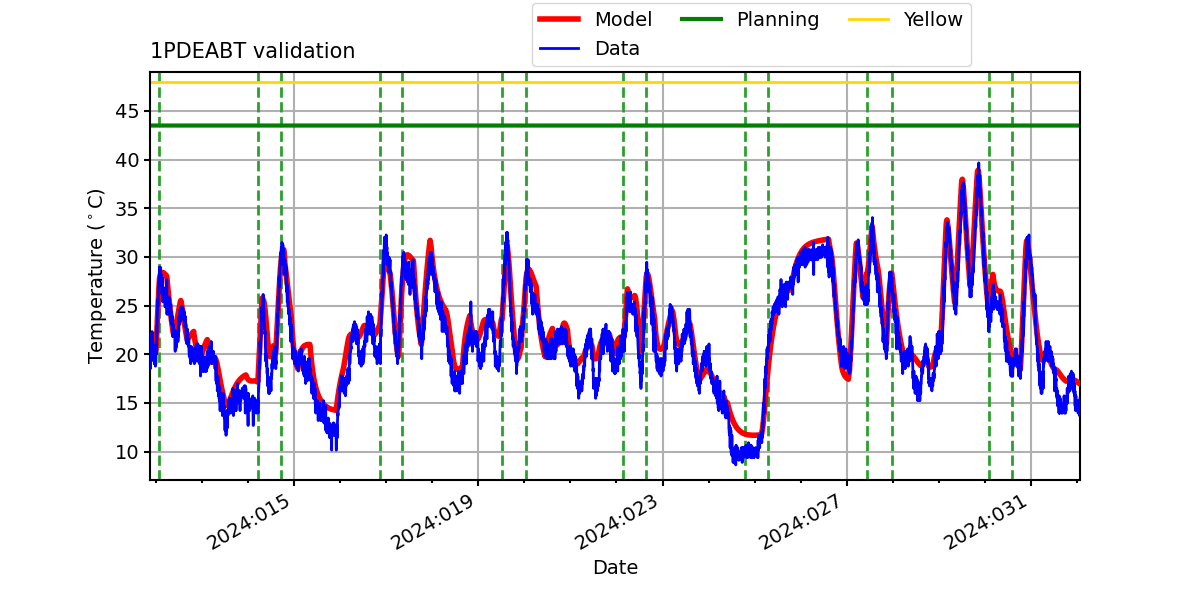

1PDEABT

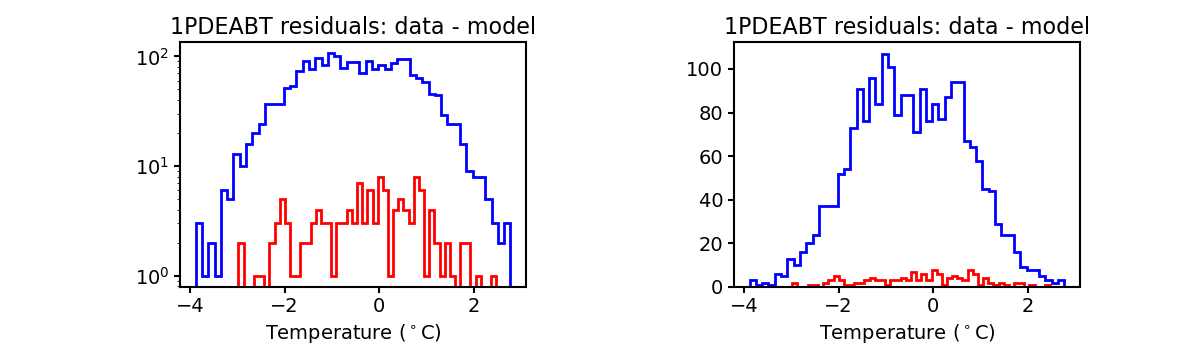

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

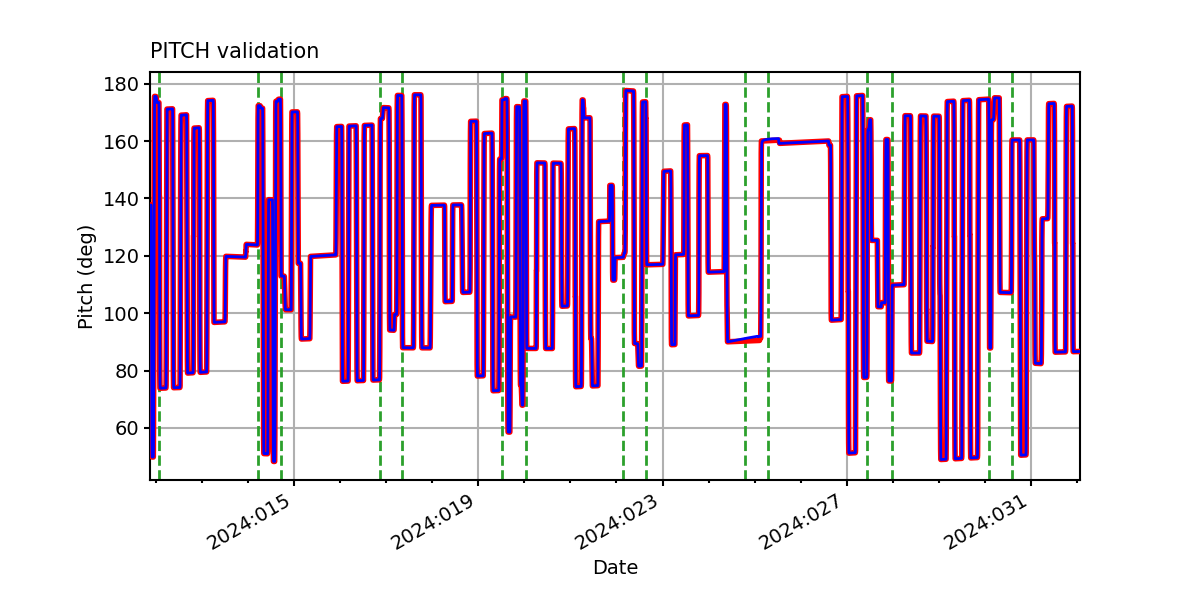

PITCH

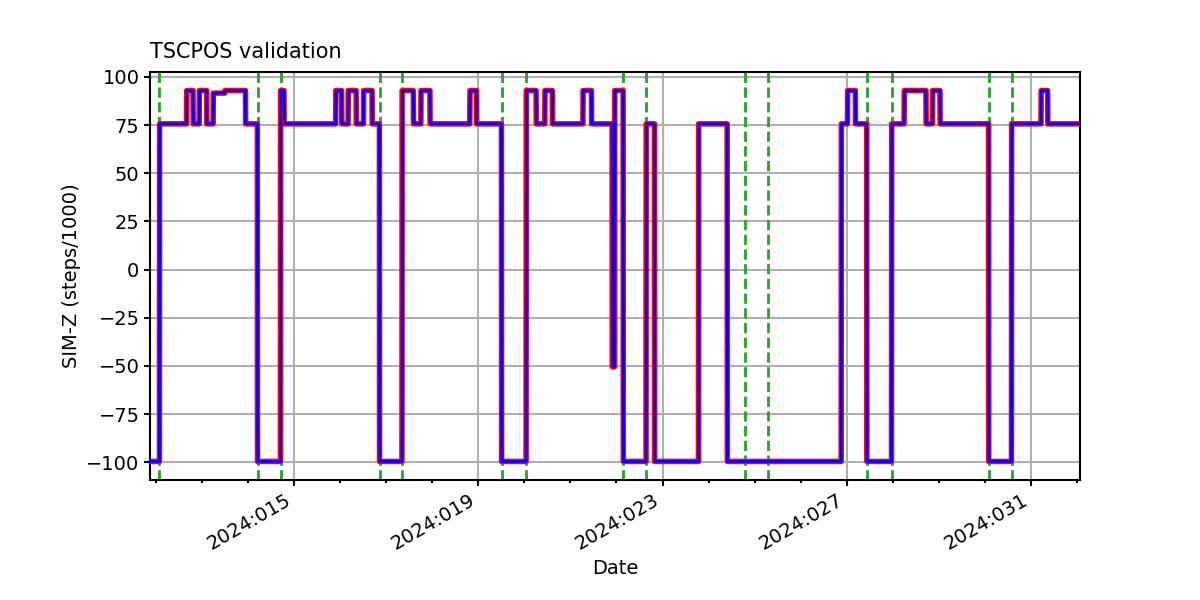

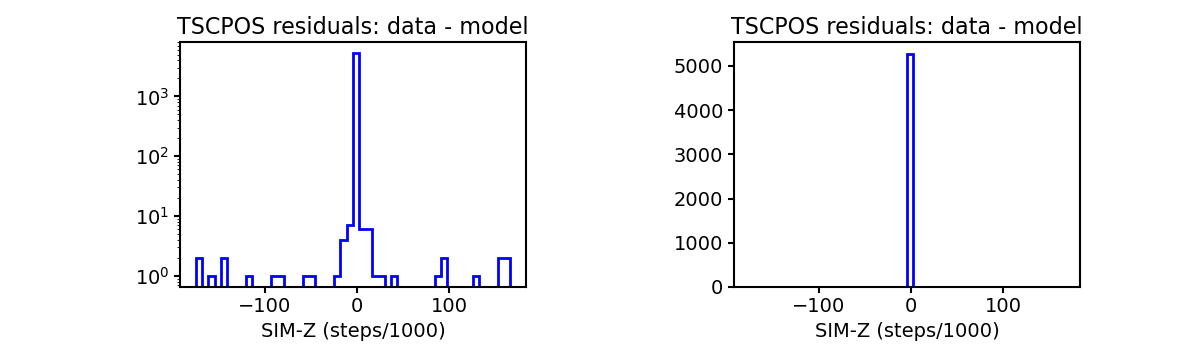

TSCPOS

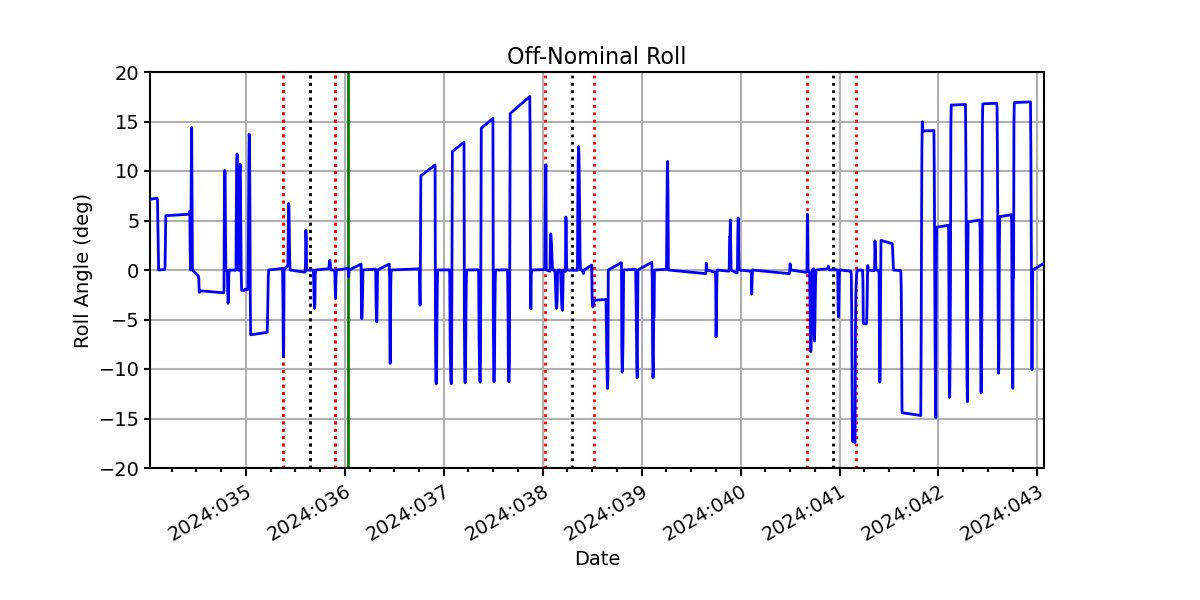

ROLL

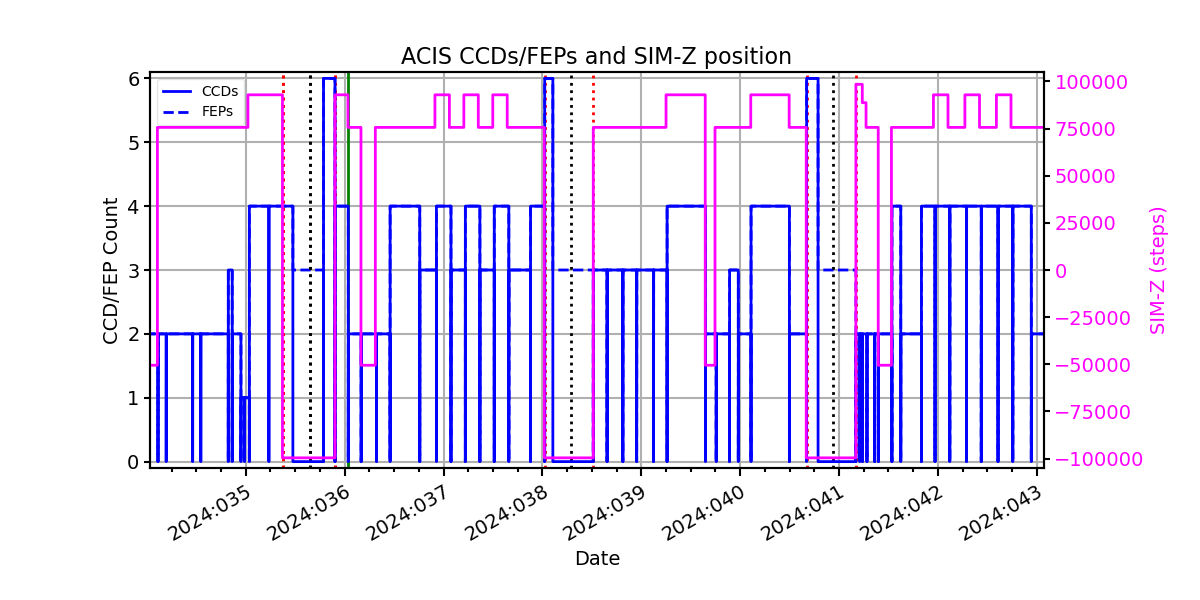

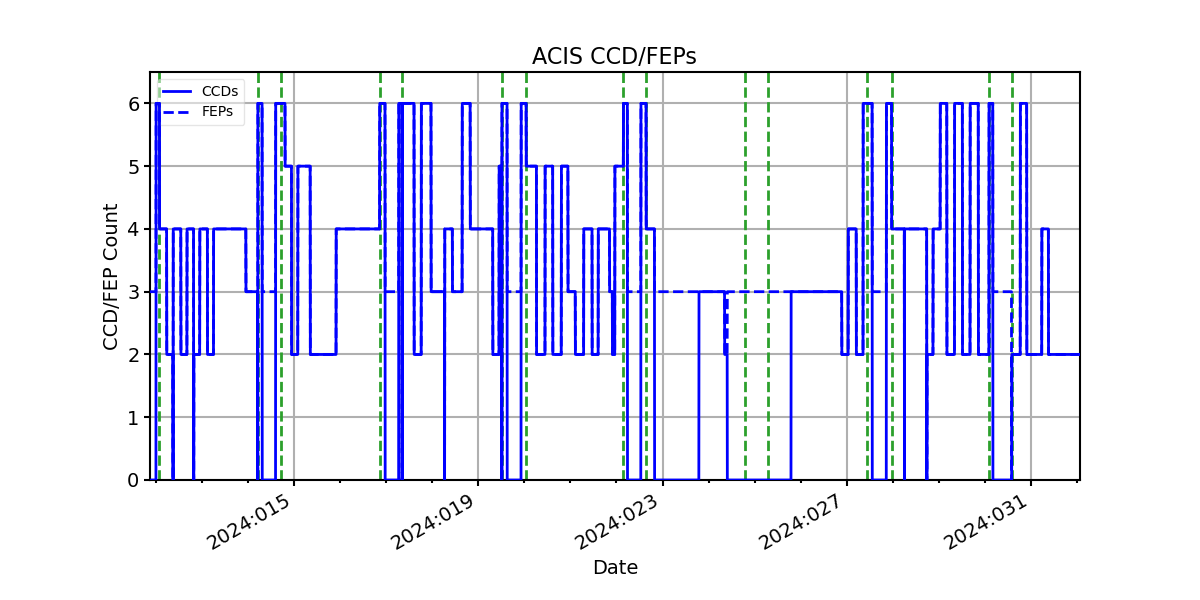

ACIS CCD/FEP Count
