PSMCBT Temperatures Check
Summary
| Date start | 2024:038:01:12:00.016 |
| Date stop | 2024:043:01:45:33.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/FEB0724/oflsa |
| Run time | Thu Oct 8 16:04:07 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

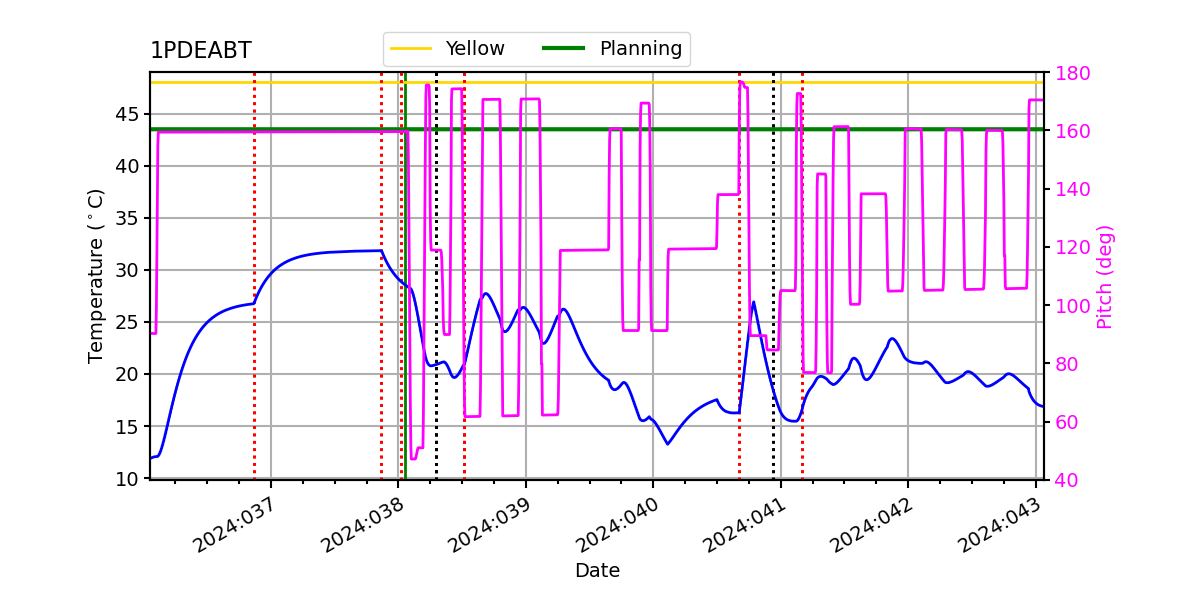

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.00 | -2.39 | -1.64 | -0.56 | 0.67 | 1.36 | 2.11 |
| pitch | -9.925 | -0.621 | -0.004 | 0.000 | 0.069 | 1.219 | 9.317 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.850 | -0.104 | -0.006 | 0.000 | 0.057 | 2.082 | 10.414 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.0 | 2.50 |
| PITCH | 1 | -9.925 | 3.00 |
| PITCH | 99 | 9.317 | 3.00 |

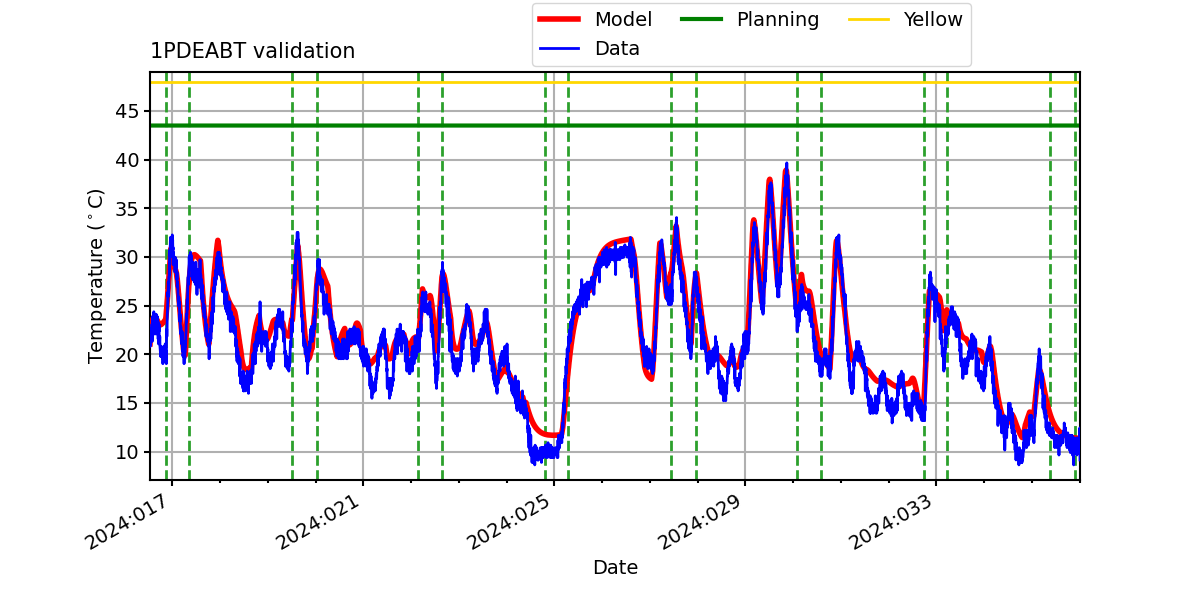

1PDEABT

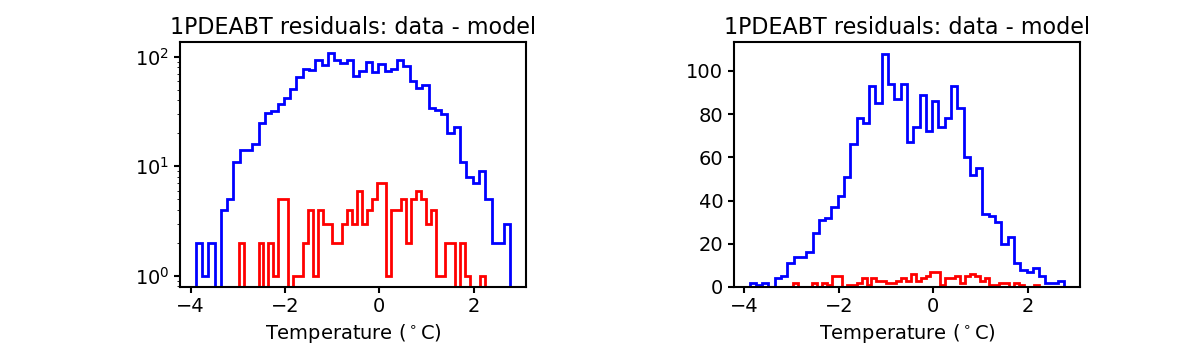

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

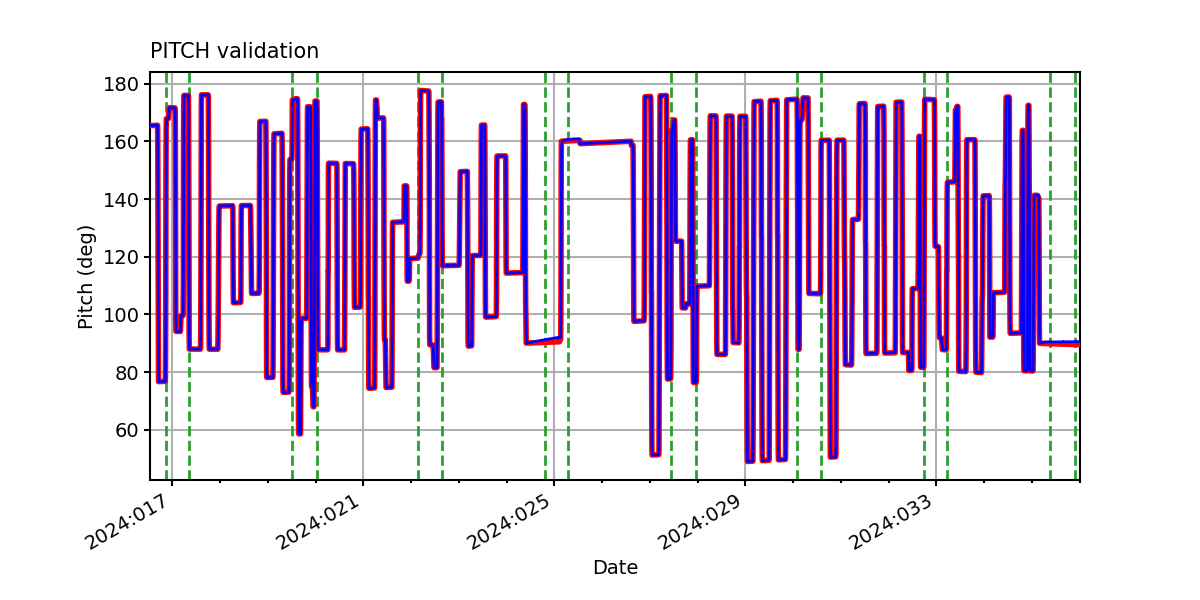

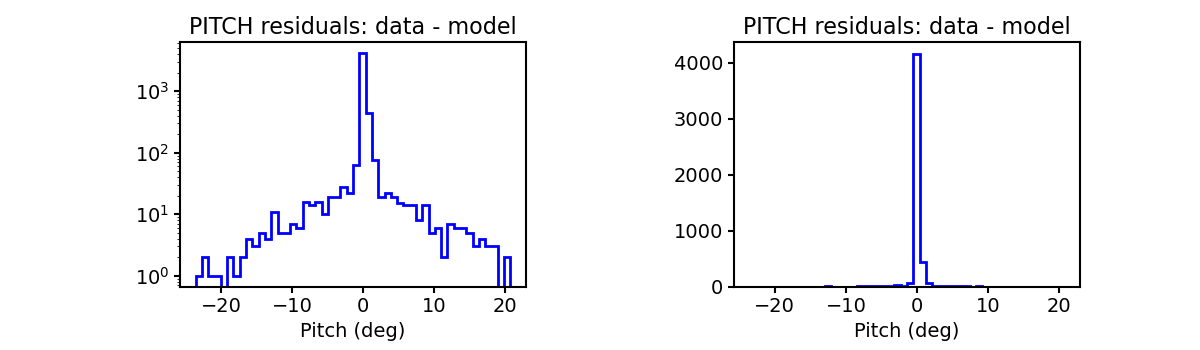

PITCH

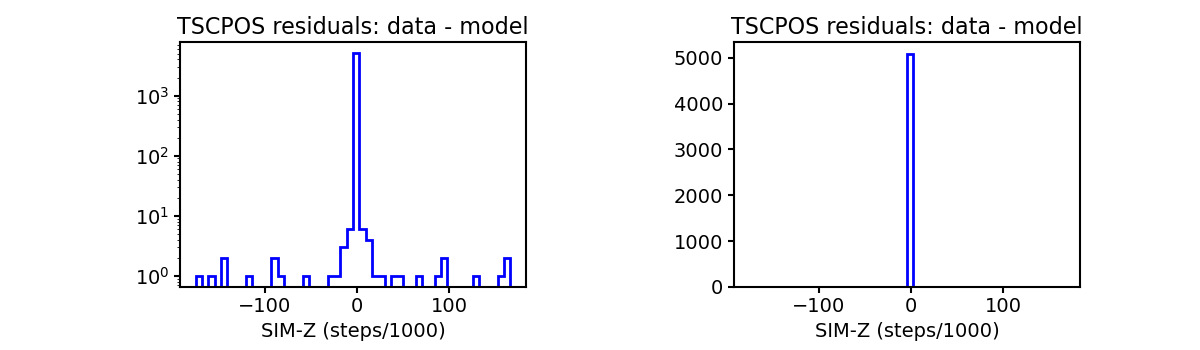

TSCPOS

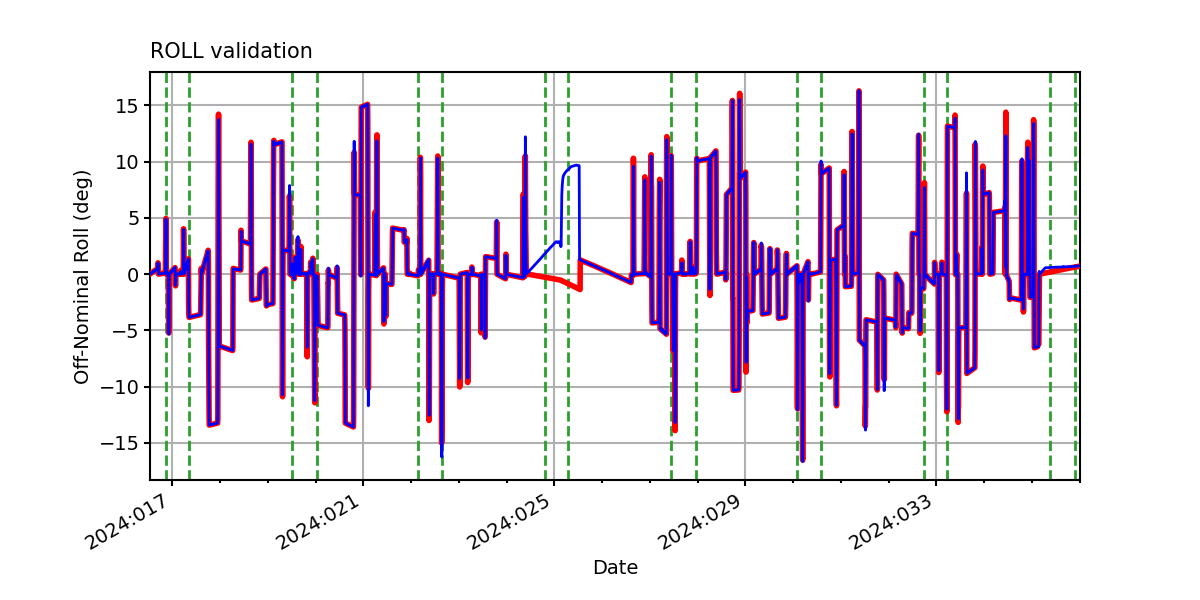

ROLL

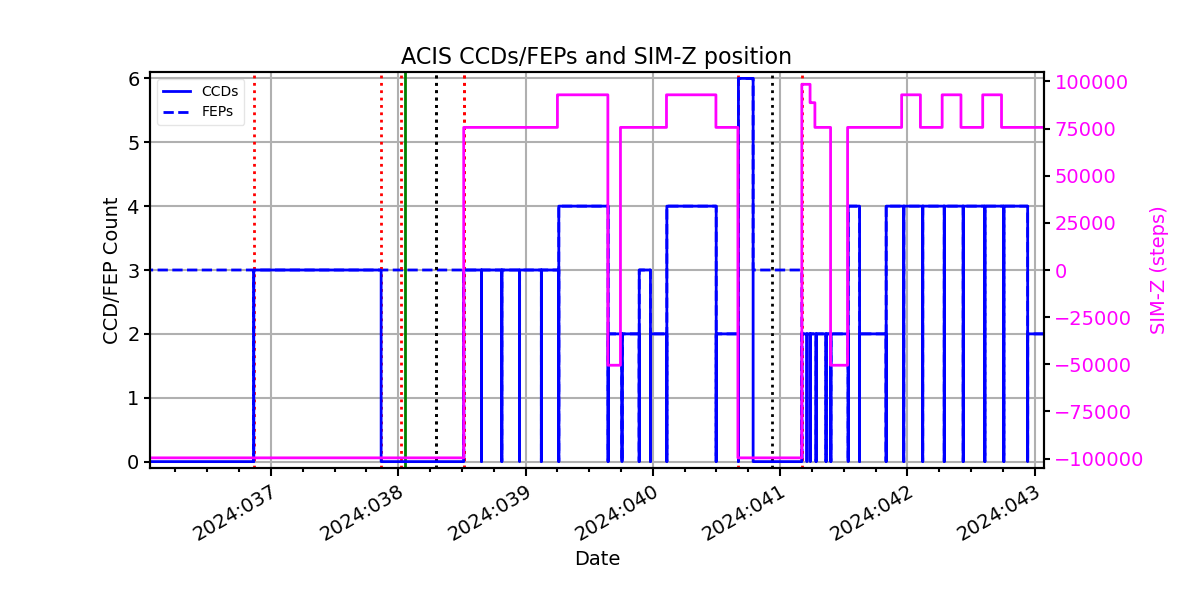

ACIS CCD/FEP Count
