PSMCBT Temperatures Check
Summary
| Date start | 2024:042:03:52:00.016 |
| Date stop | 2024:050:02:35:43.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/FEB1124/oflsa |
| Run time | Thu Oct 8 16:04:38 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.00 | -2.34 | -1.67 | -0.63 | 0.70 | 1.31 | 2.08 |
| pitch | -9.182 | -0.422 | -0.004 | 0.000 | 0.424 | 1.138 | 8.907 |
| tscpos | -1 | -1 | -1 | 0 | 1 | 1 | 1 |
| roll | -1.917 | -0.394 | -0.008 | 0.000 | 0.114 | 2.010 | 10.386 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.0 | 2.50 |
| PITCH | 1 | -9.182 | 3.00 |
| PITCH | 99 | 8.907 | 3.00 |

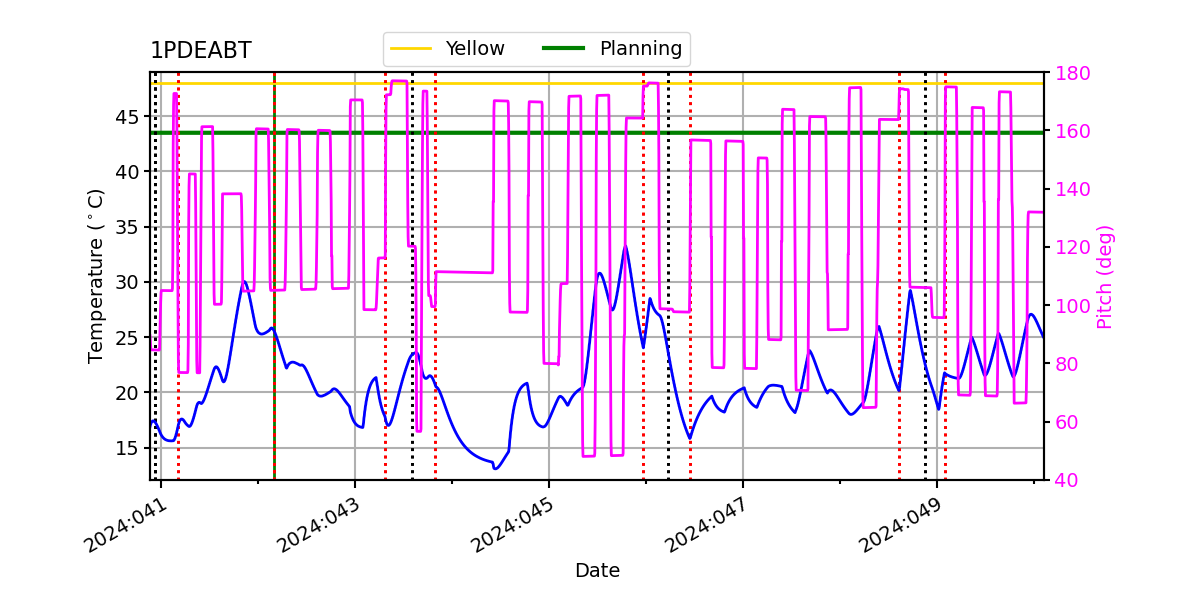

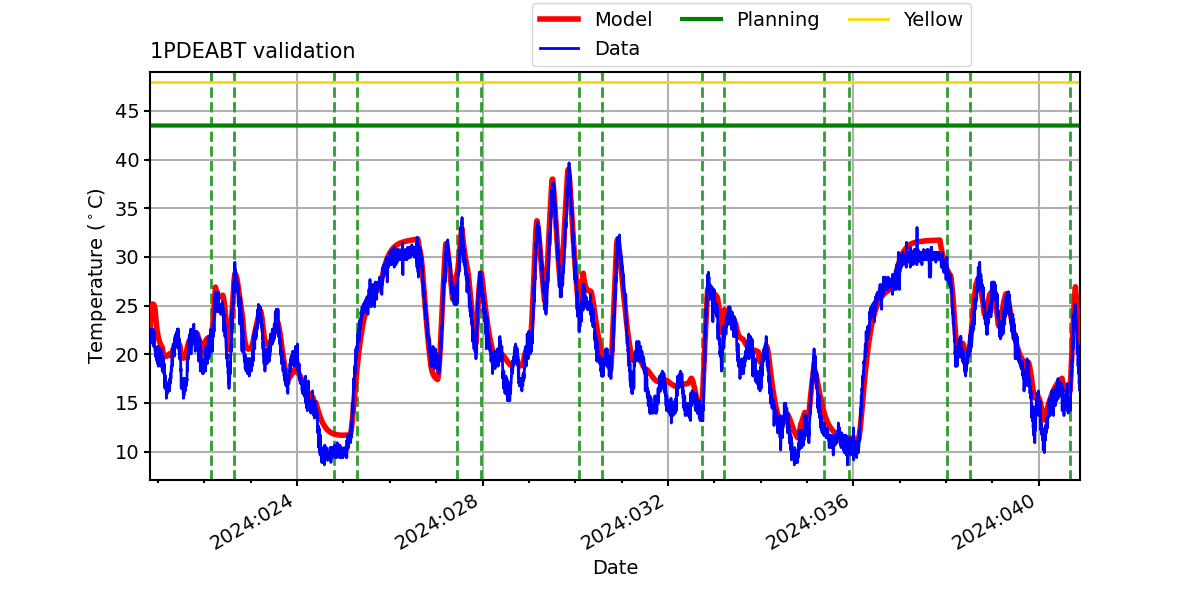

1PDEABT

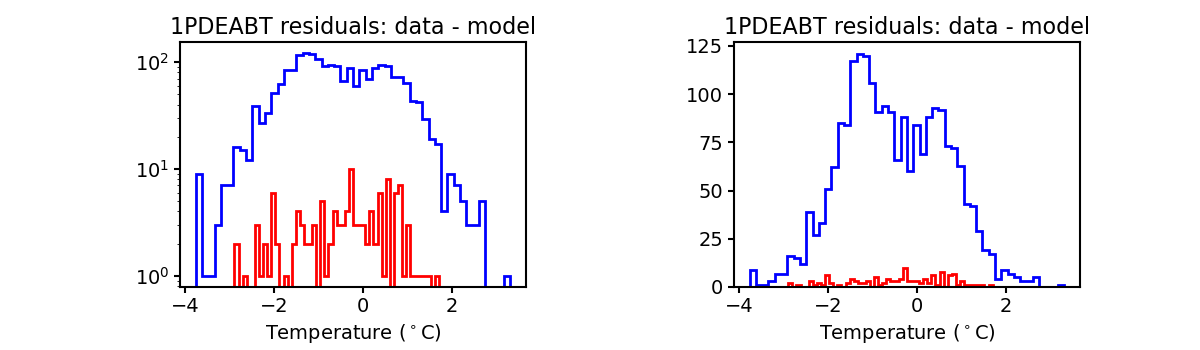

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.
PITCH

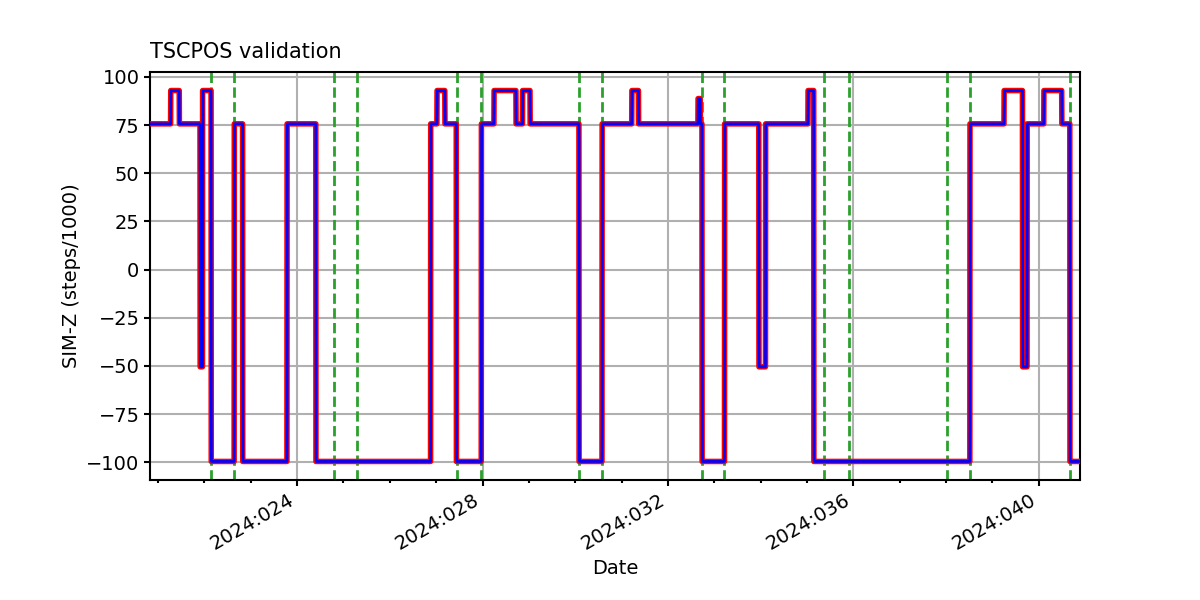

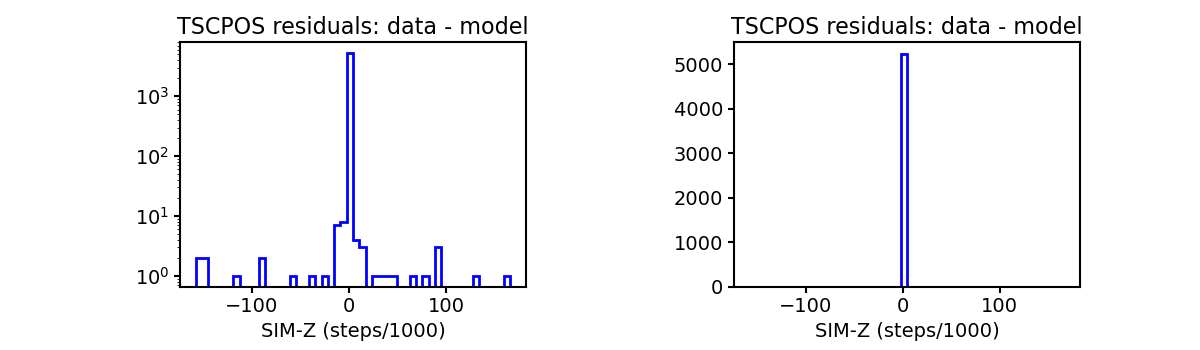

TSCPOS

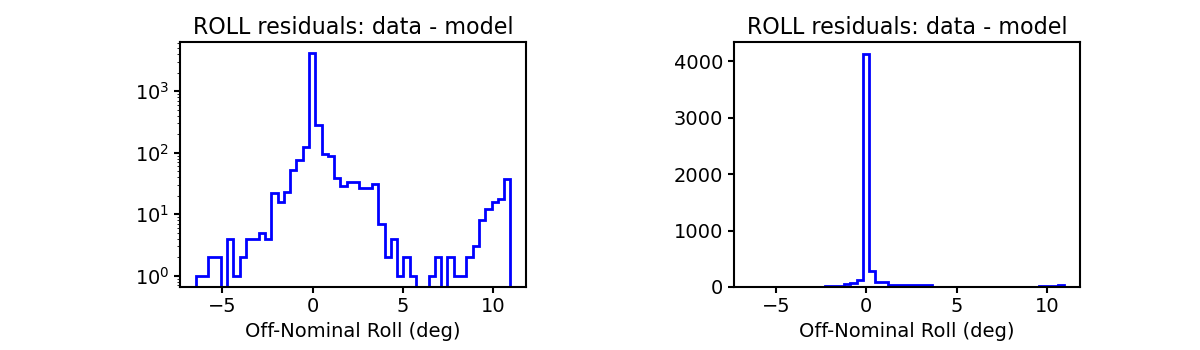

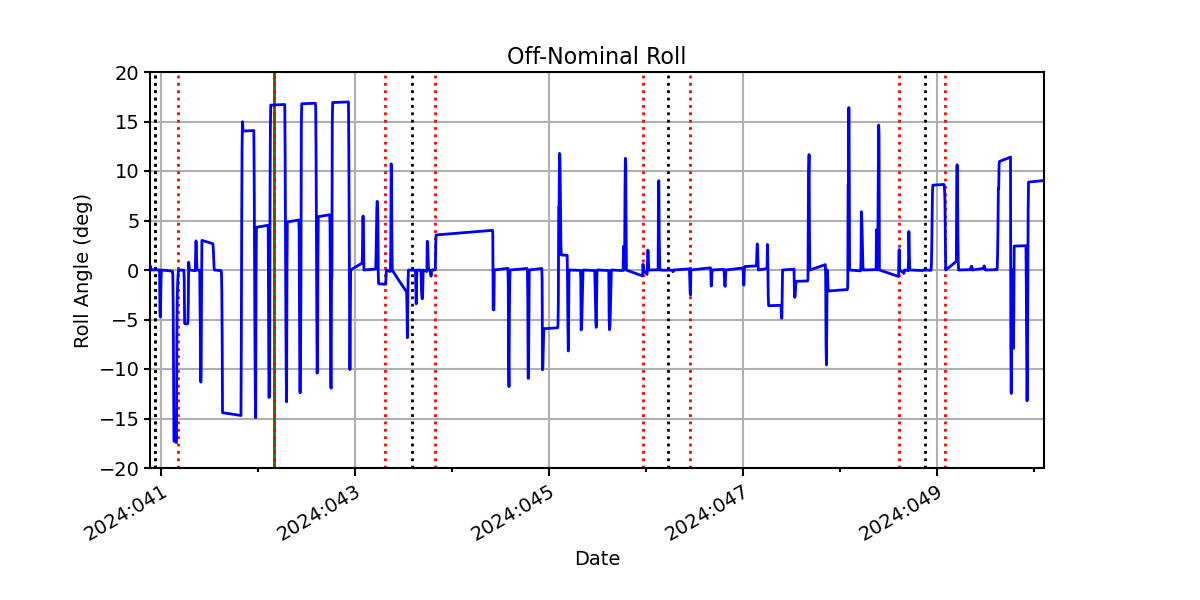

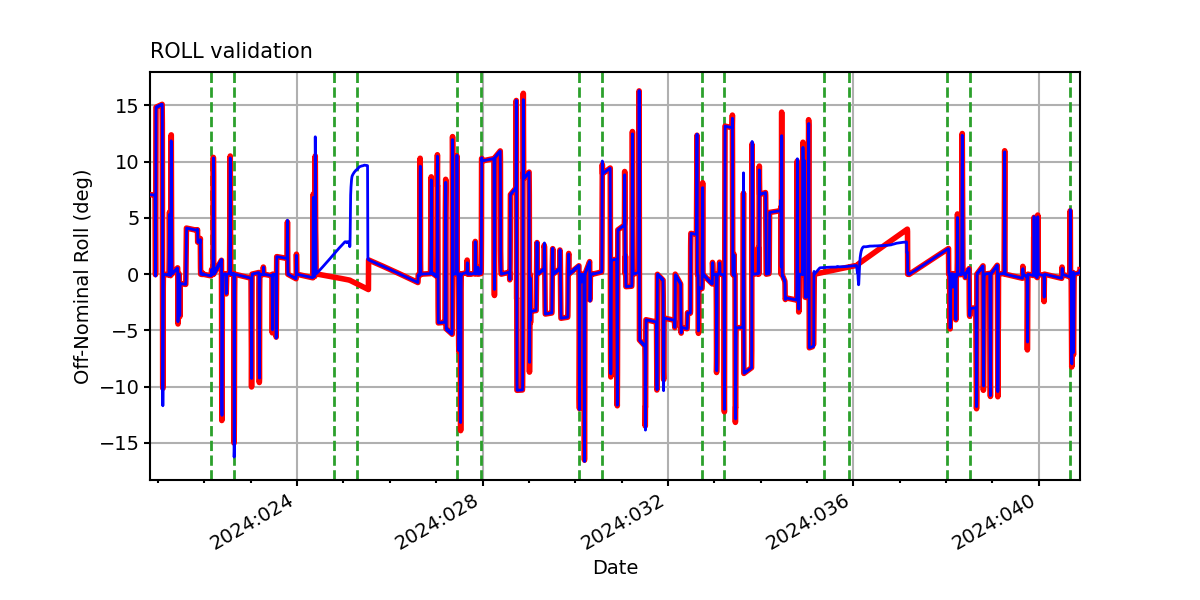

ROLL
ACIS CCD/FEP Count
