PSMCBT Temperatures Check
Summary
| Date start | 2025:043:13:00:00.016 |
| Date stop | 2025:047:14:11:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/FEB1225/oflsa |
| Run time | Thu Oct 8 16:04:38 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.59 | -2.07 | -1.44 | -0.14 | 1.13 | 1.74 | 2.53 |
| pitch | -11.149 | -1.292 | -0.004 | -0.000 | 0.004 | 1.221 | 10.940 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.606 | -0.335 | -0.014 | -0.000 | 0.010 | 0.206 | 2.341 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.59 | 2.50 |
| PITCH | 1 | -11.149 | 3.00 |
| PITCH | 99 | 10.94 | 3.00 |

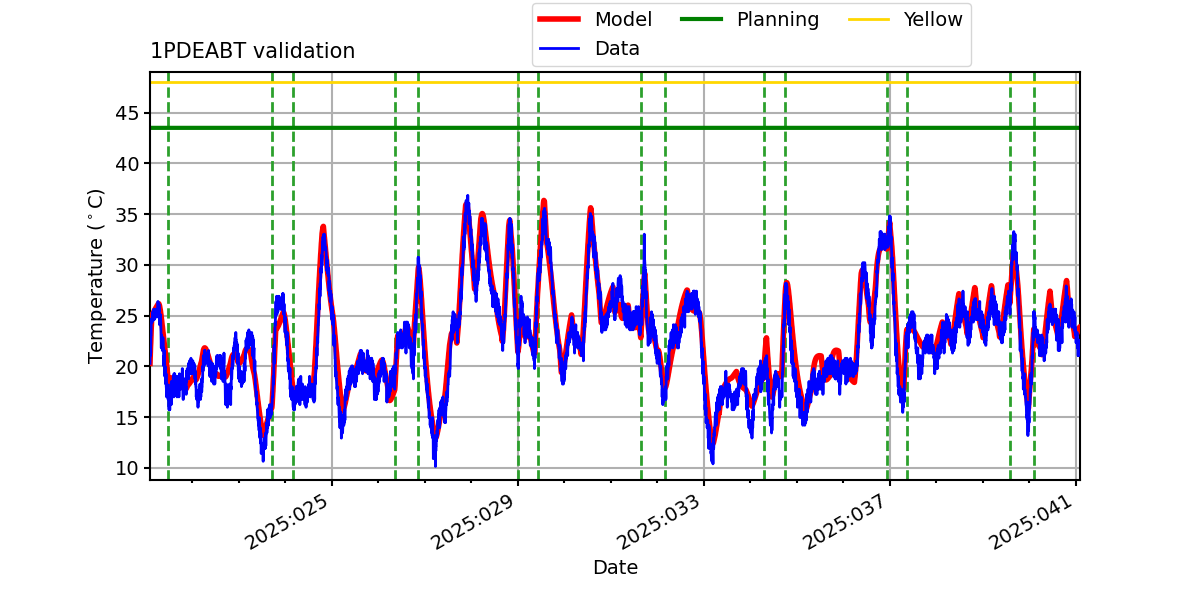

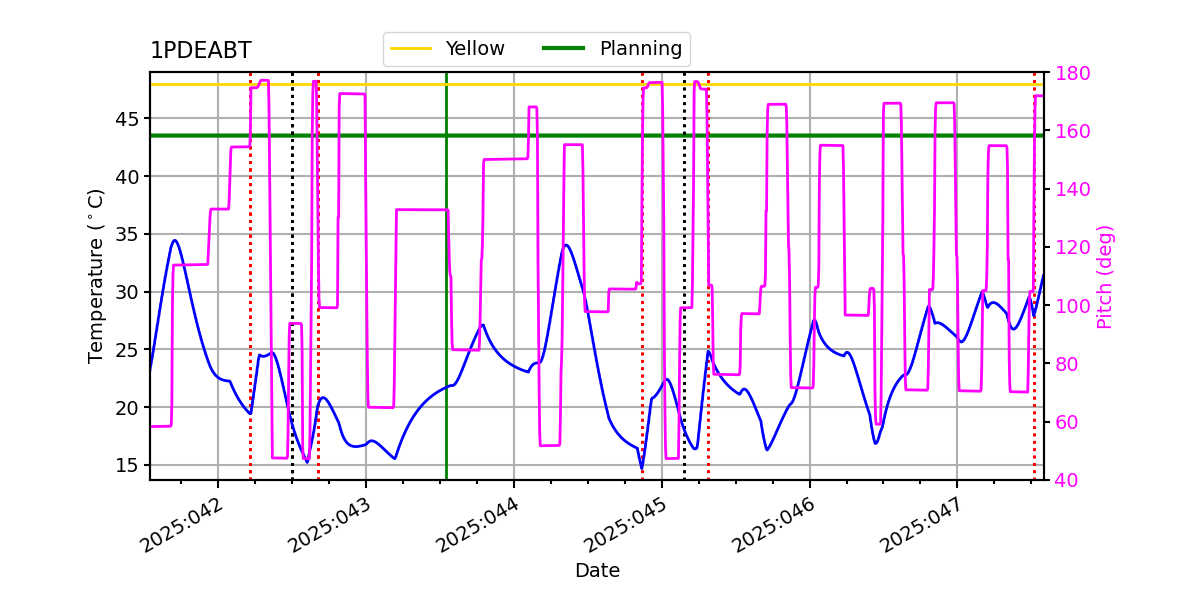

1PDEABT

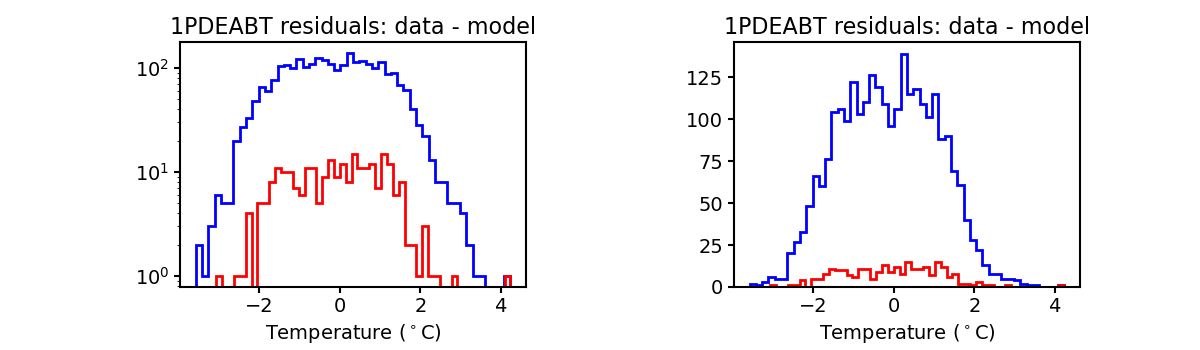

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

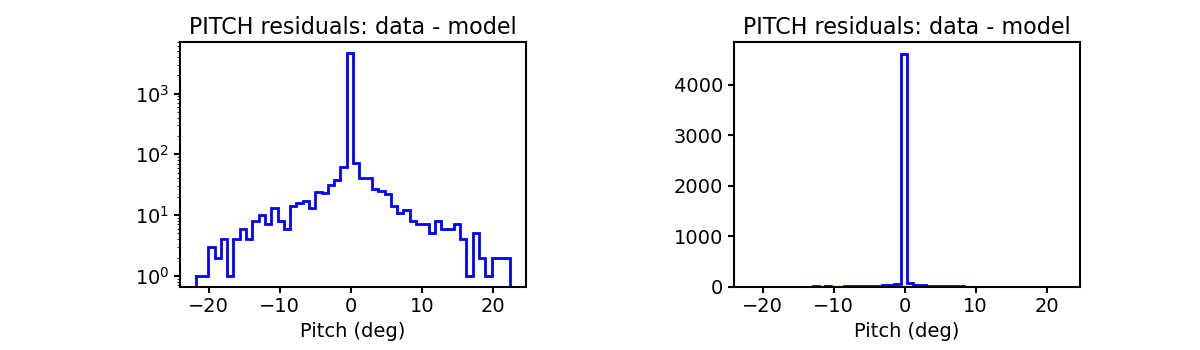

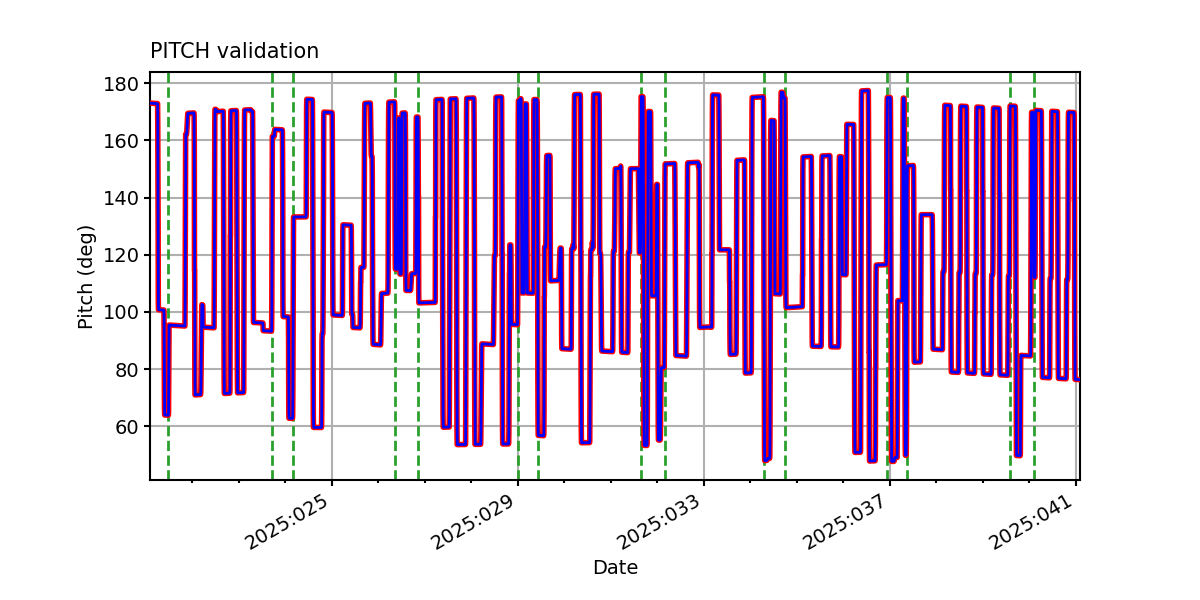

PITCH

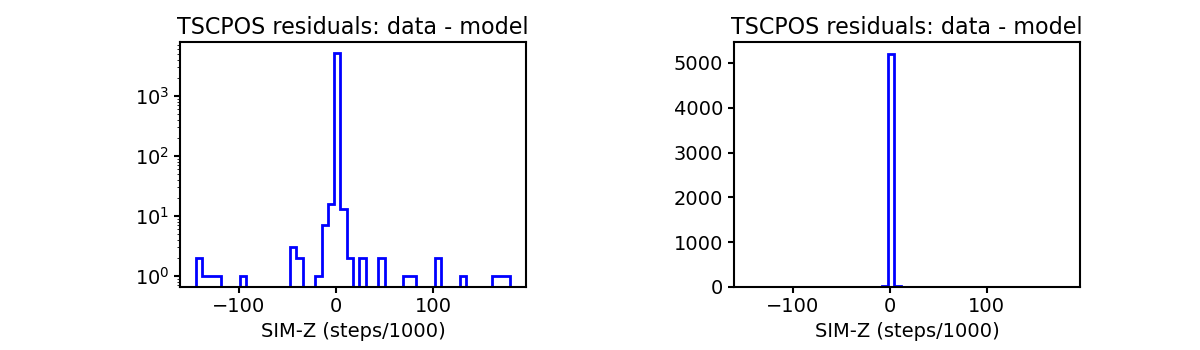

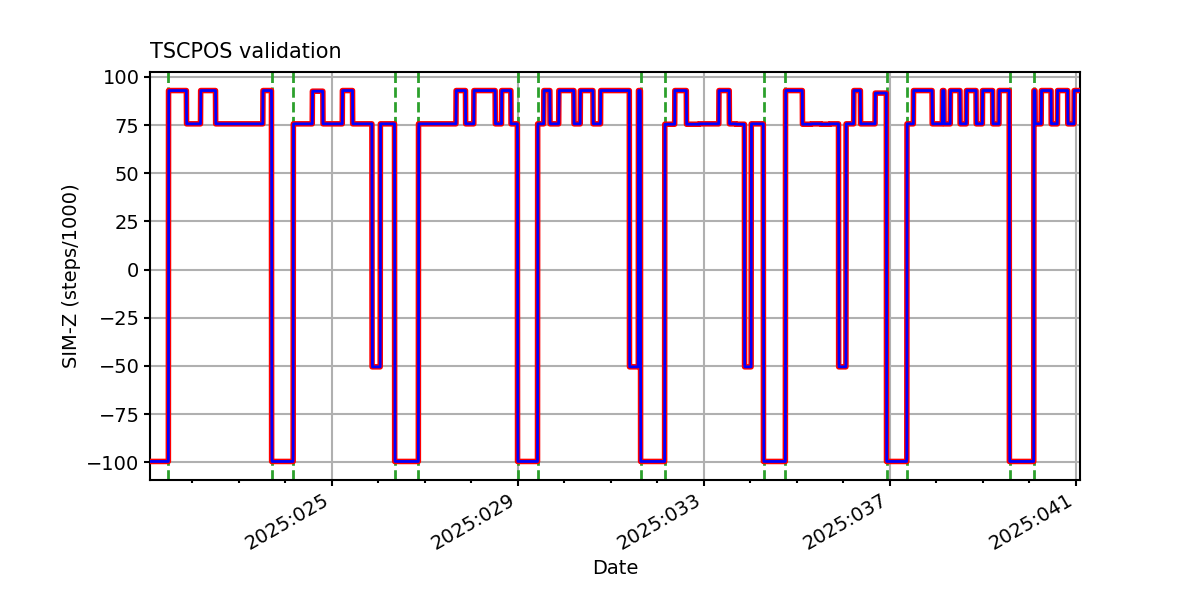

TSCPOS

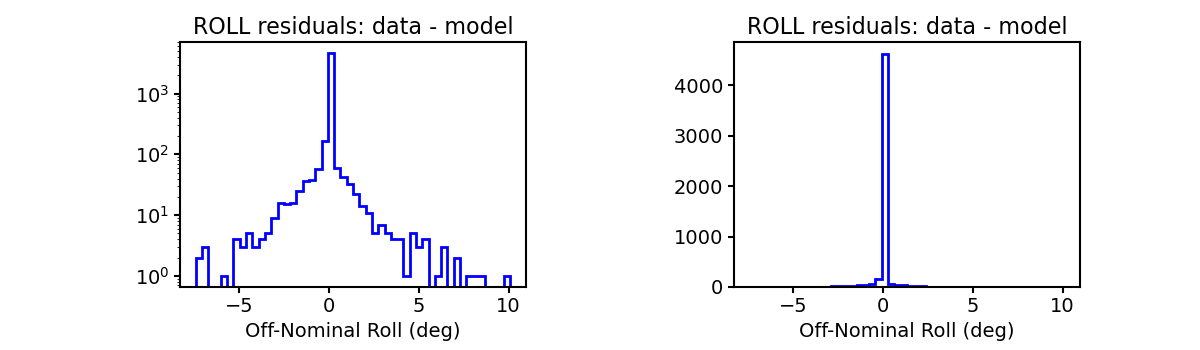

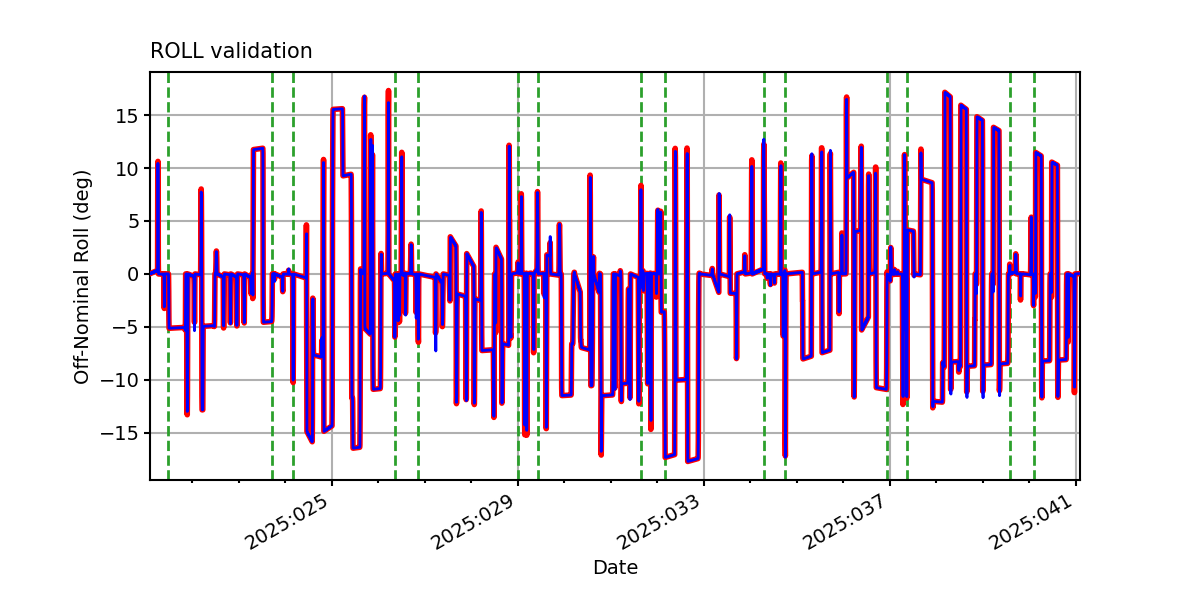

ROLL

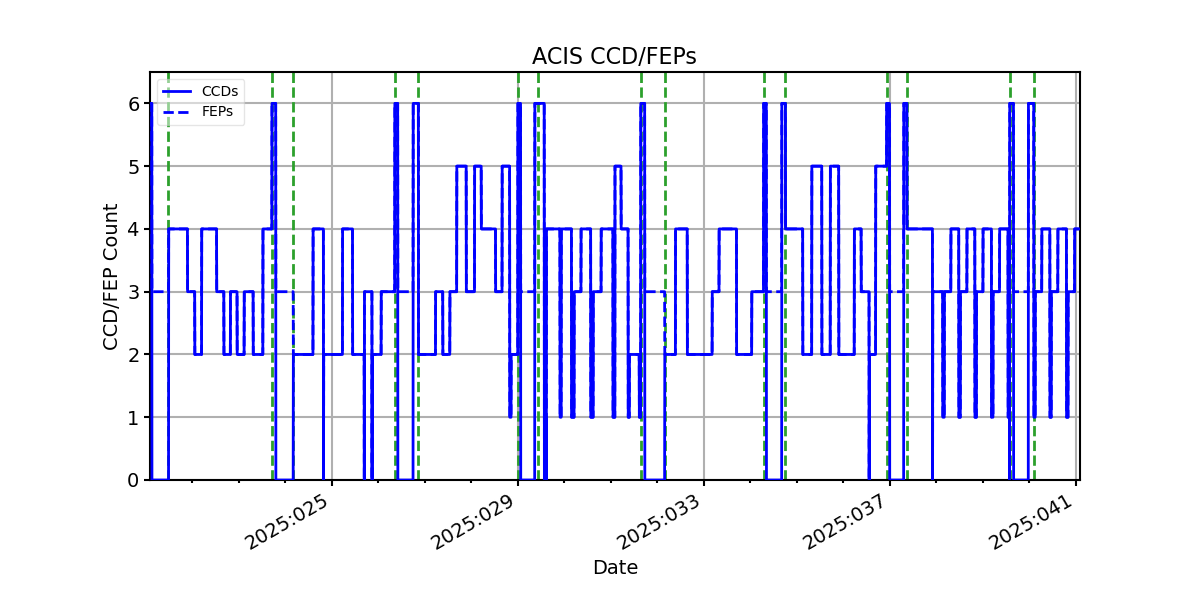

ACIS CCD/FEP Count
