PSMCBT Temperatures Check
Summary
| Date start | 2023:051:07:27:00.016 |
| Date stop | 2023:056:19:40:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/FEB2023/oflsb |
| Run time | Thu Oct 8 16:05:08 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

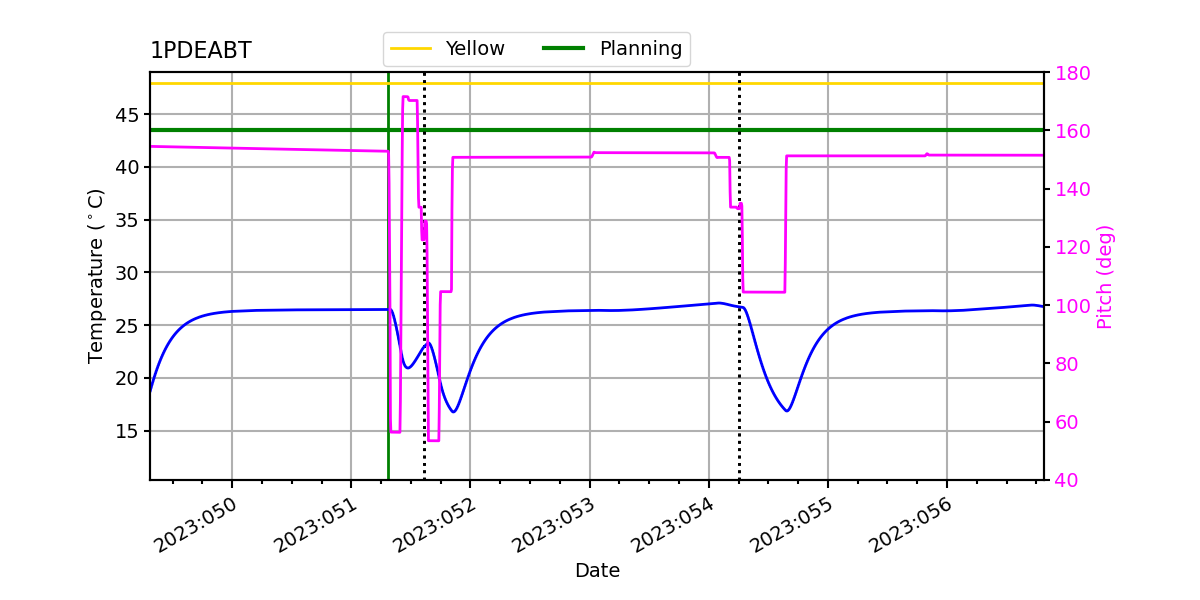

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.48 | -2.82 | -2.10 | -0.66 | 0.70 | 1.28 | 1.92 |
| pitch | -14.567 | -2.018 | -0.004 | -0.000 | 0.003 | 0.437 | 10.359 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -173.574 | -0.405 | -0.004 | -0.000 | 0.003 | 0.125 | 2.170 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.48 | 2.50 |
| PITCH | 1 | -14.567 | 3.00 |
| PITCH | 99 | 10.359 | 3.00 |

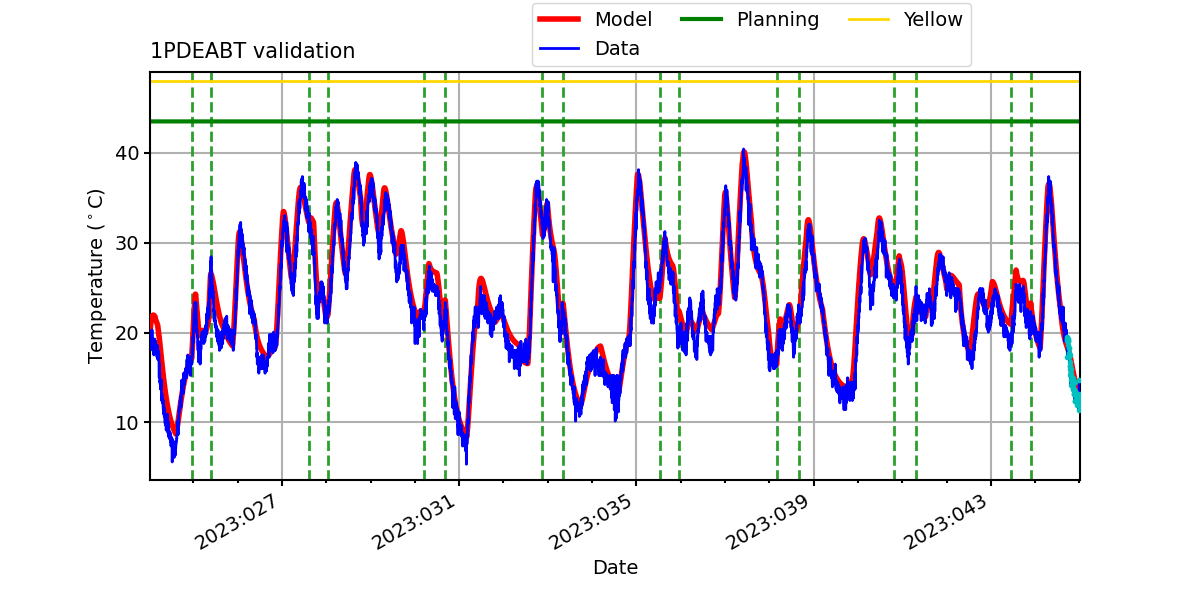

1PDEABT

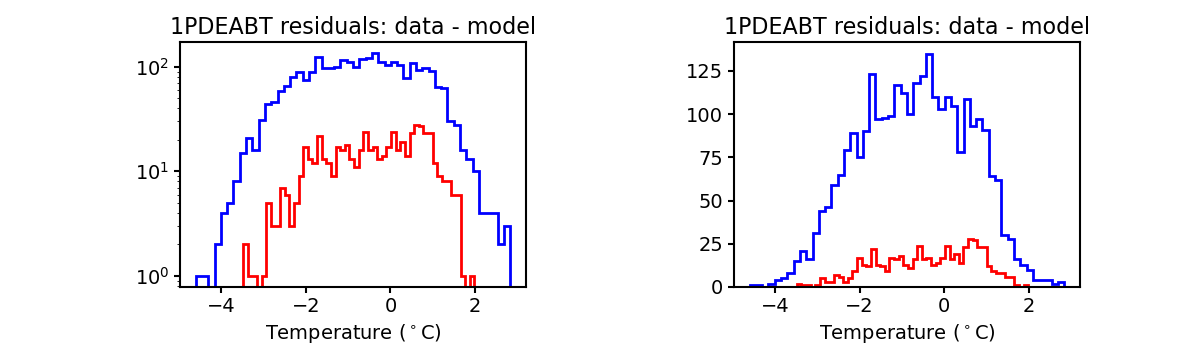

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

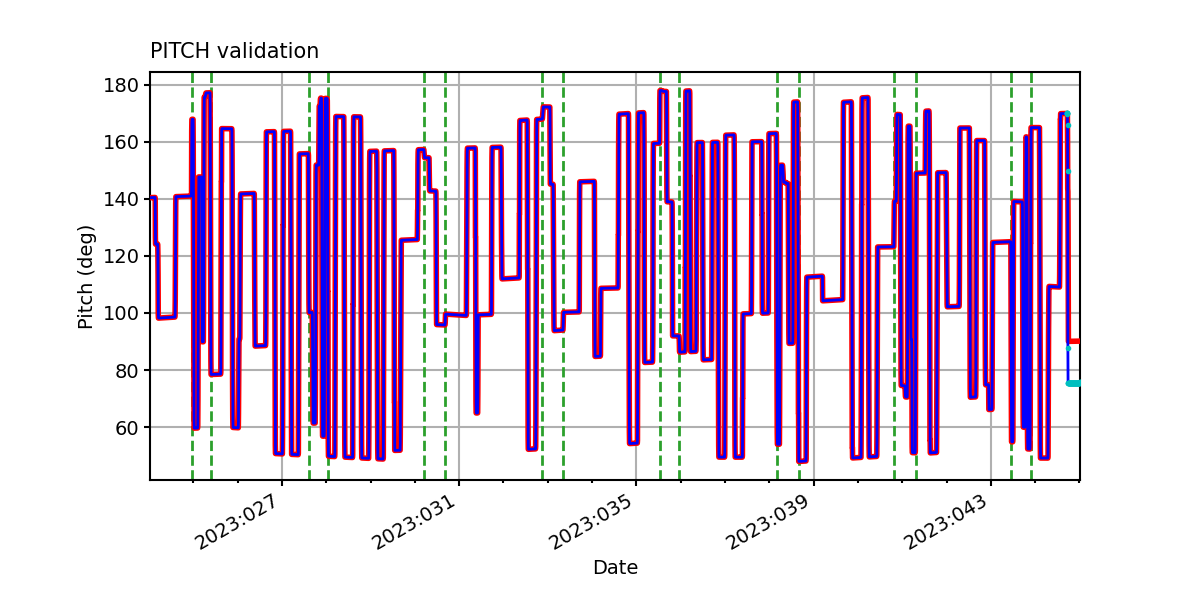

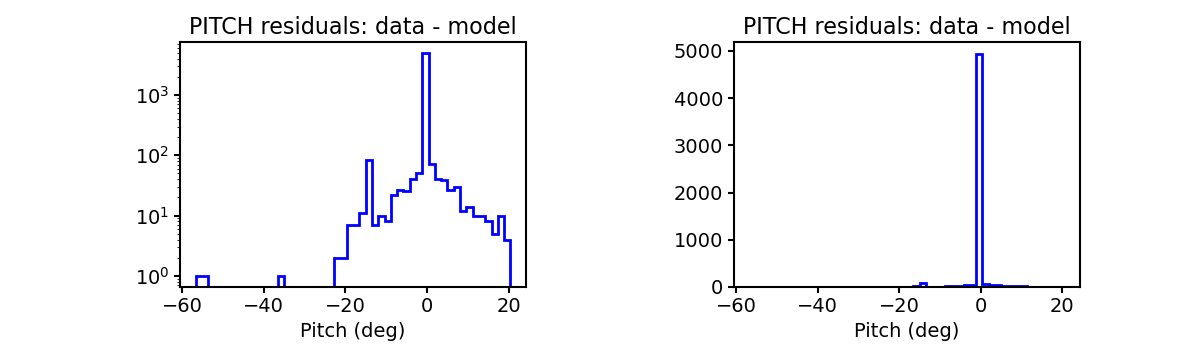

PITCH

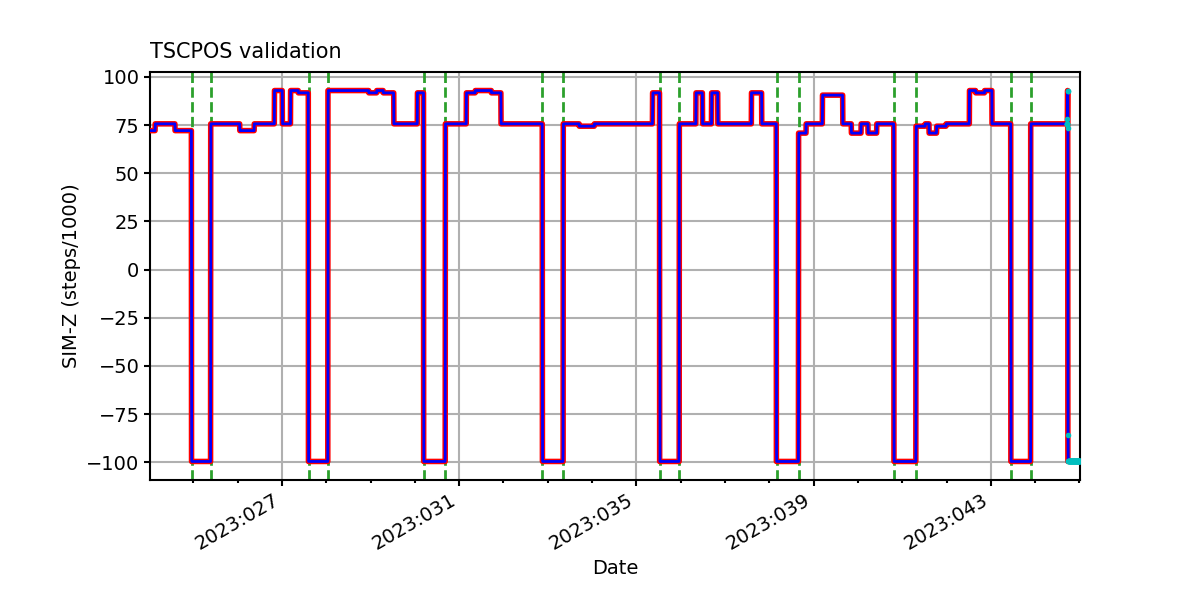

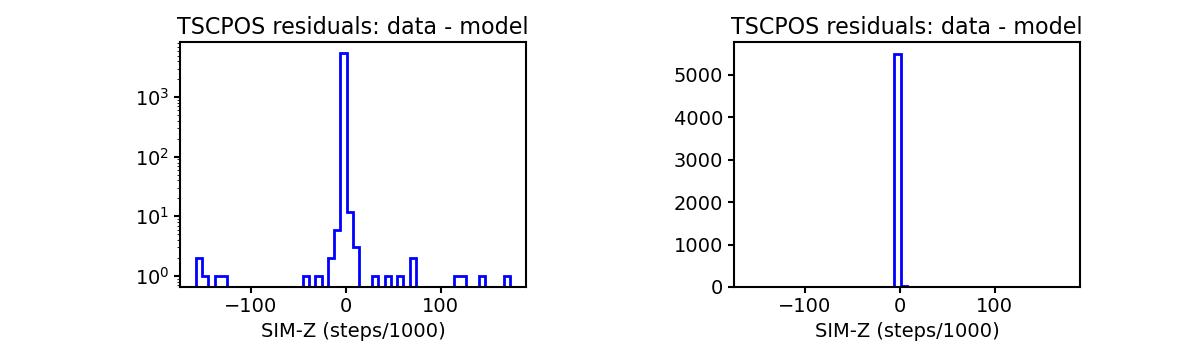

TSCPOS

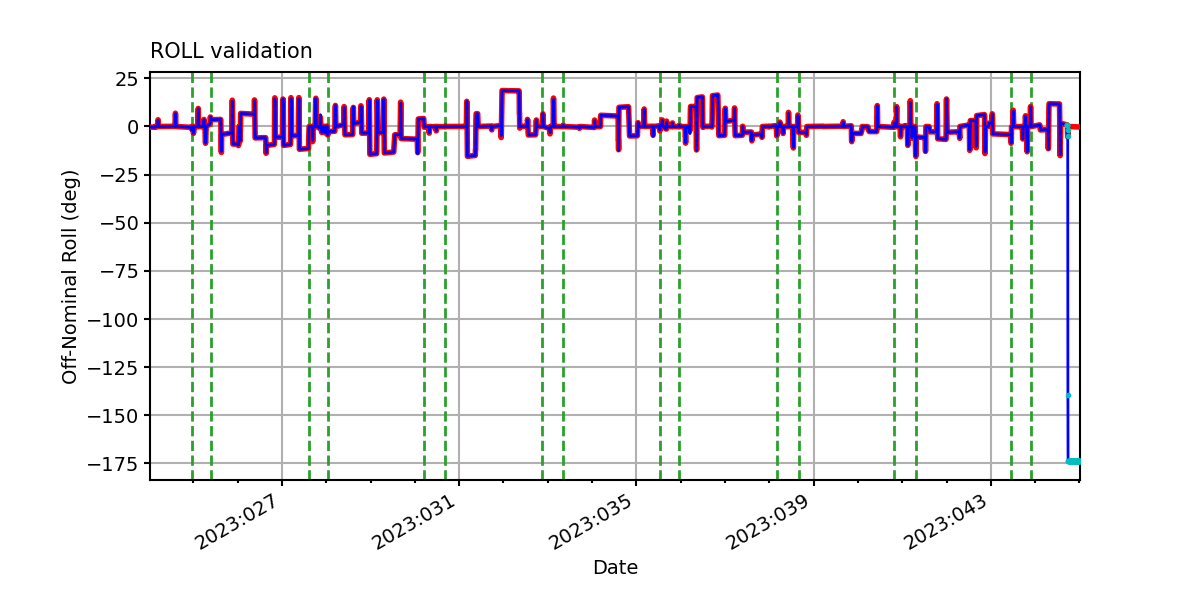

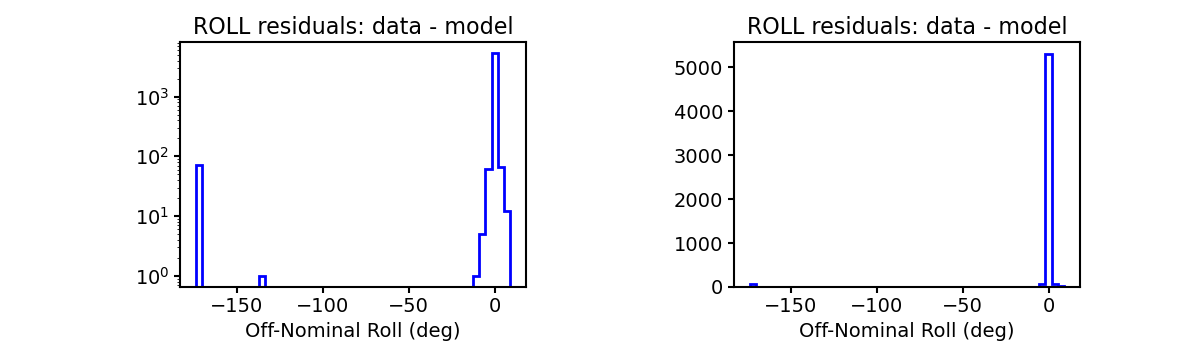

ROLL

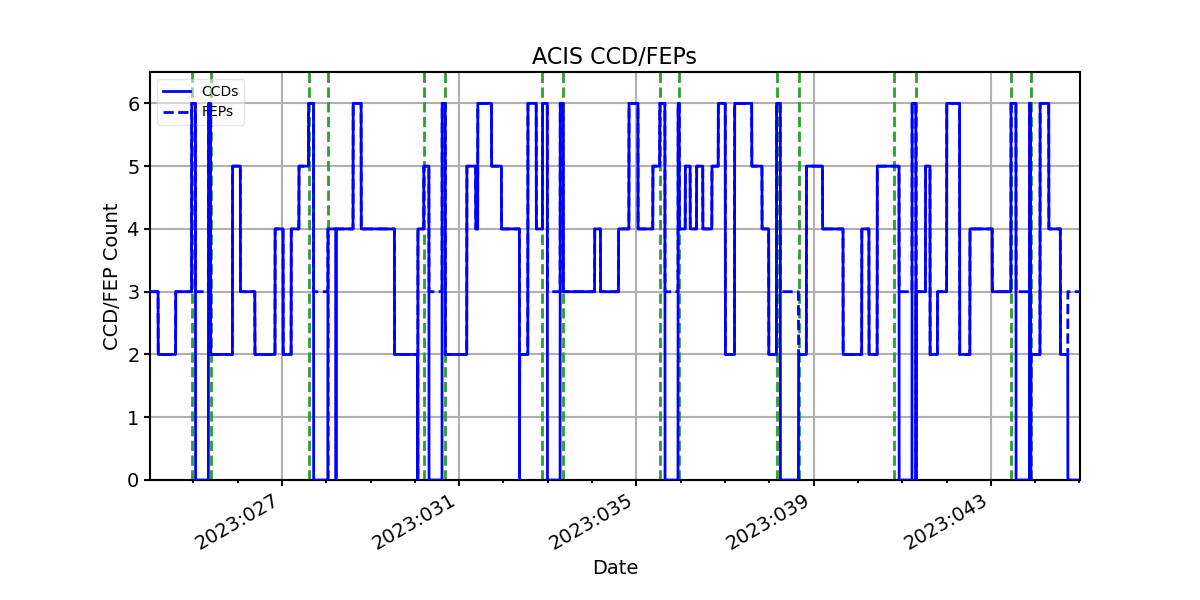

ACIS CCD/FEP Count
