PSMCBT Temperatures Check
Summary
| Date start | 2023:055:15:36:00.016 |
| Date stop | 2023:064:17:41:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/FEB2423/oflsa |
| Run time | Thu Oct 8 16:05:08 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

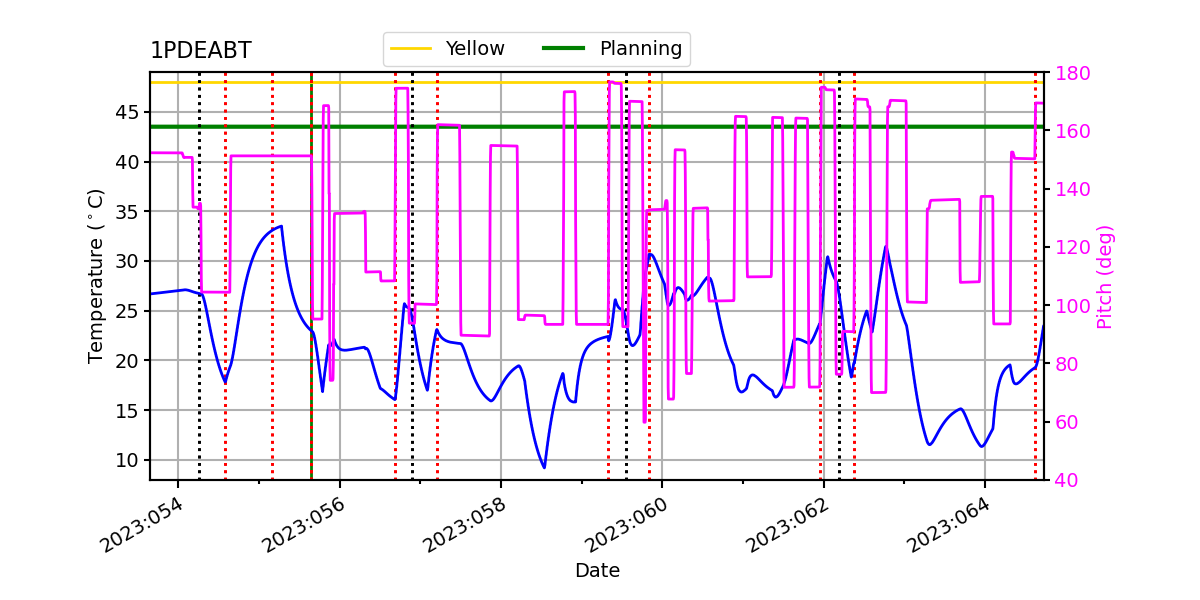

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.57 | -2.89 | -2.17 | -0.69 | 0.70 | 1.32 | 2.05 |
| pitch | -59.650 | -52.499 | -5.162 | -0.000 | 0.004 | 72.083 | 80.614 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -173.602 | -169.083 | -0.033 | -0.000 | 0.011 | 67.692 | 75.335 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.57 | 2.50 |
| PITCH | 1 | -59.65 | 3.00 |
| PITCH | 99 | 80.614 | 3.00 |

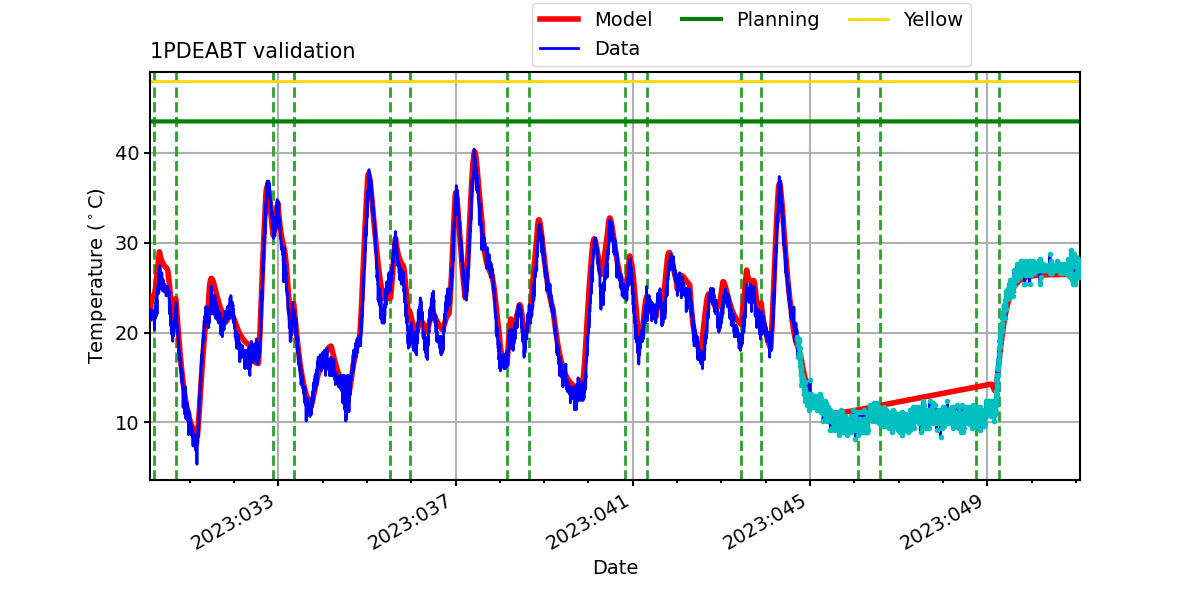

1PDEABT

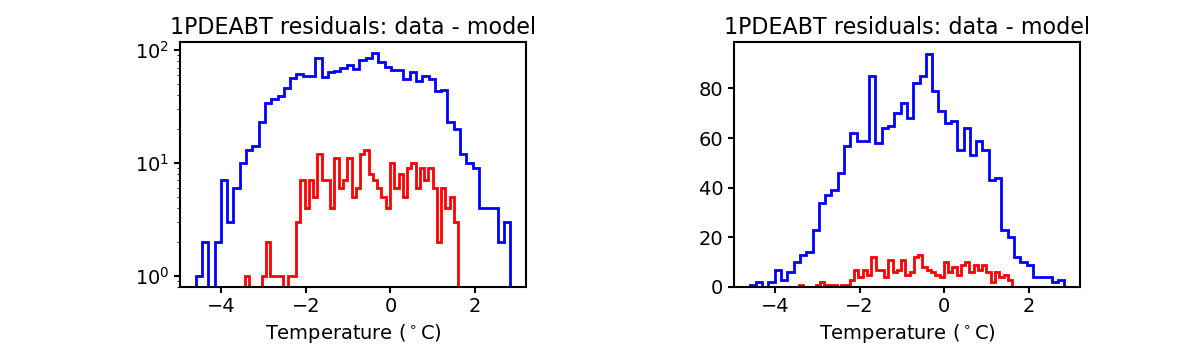

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

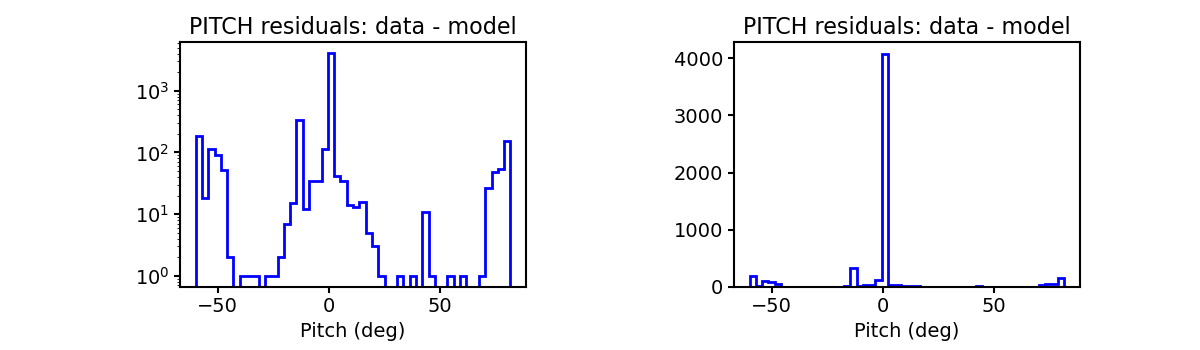

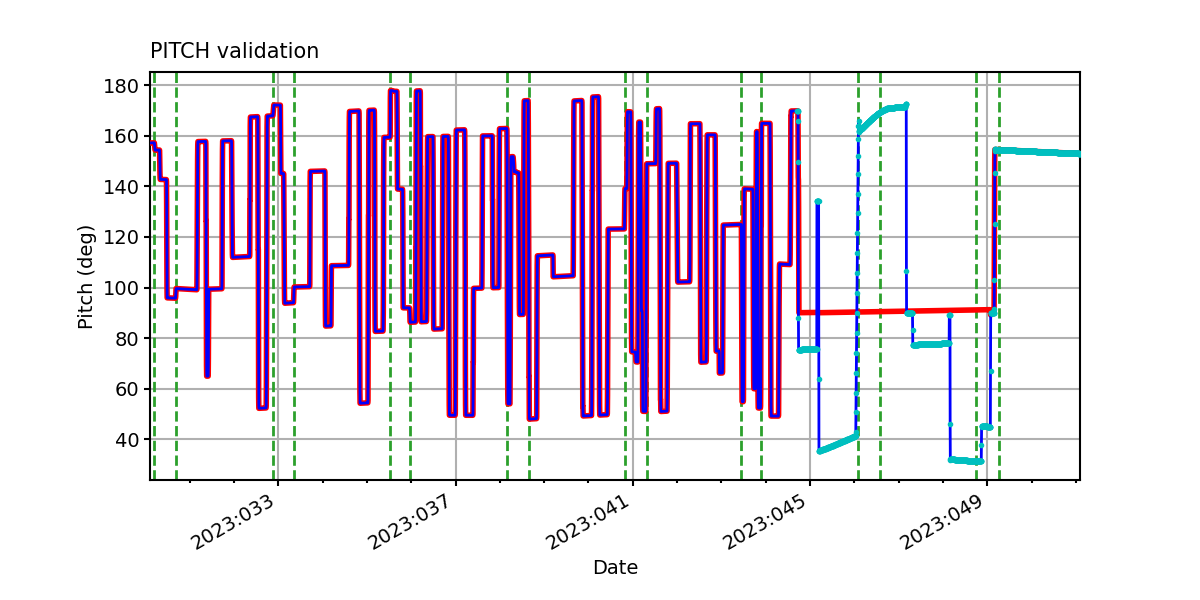

PITCH

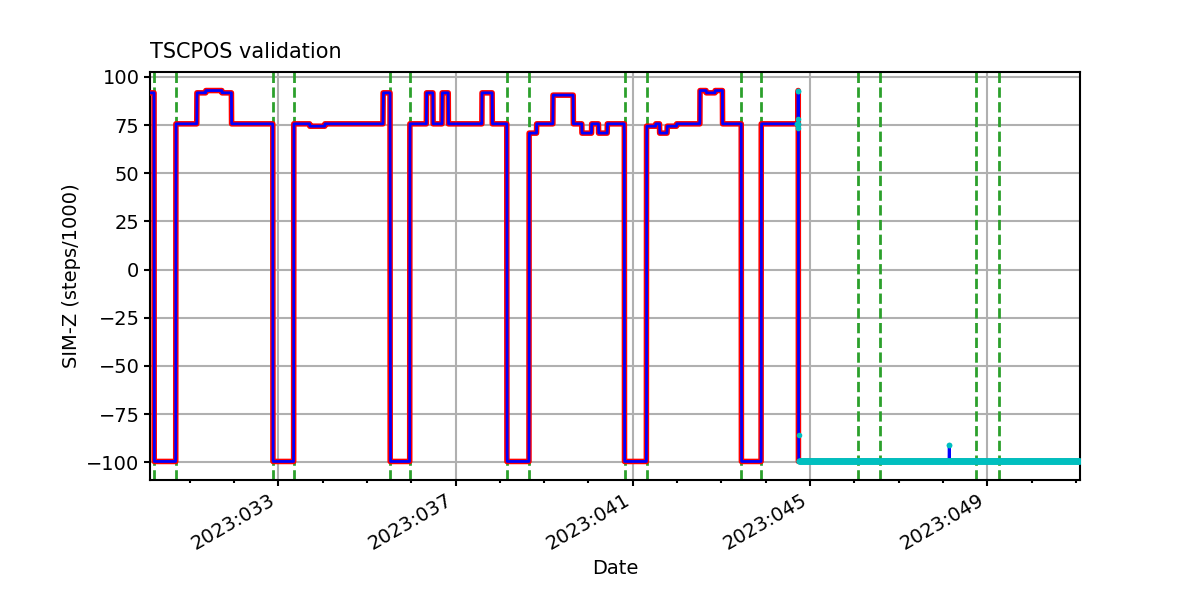

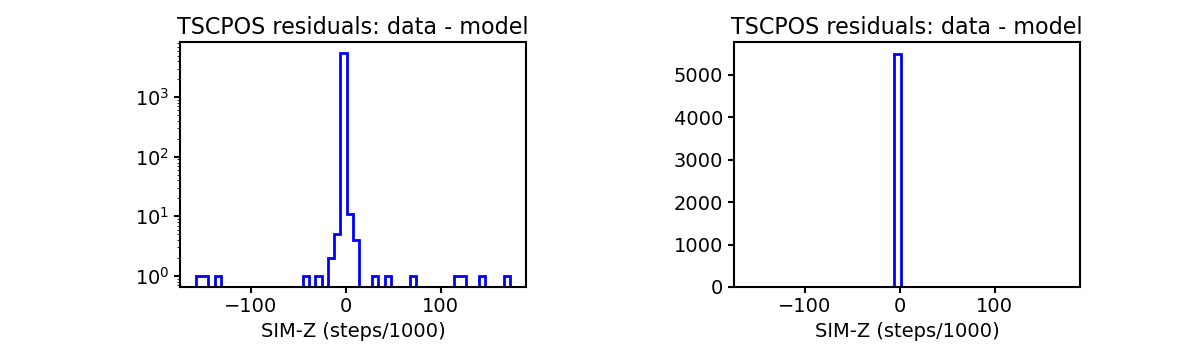

TSCPOS

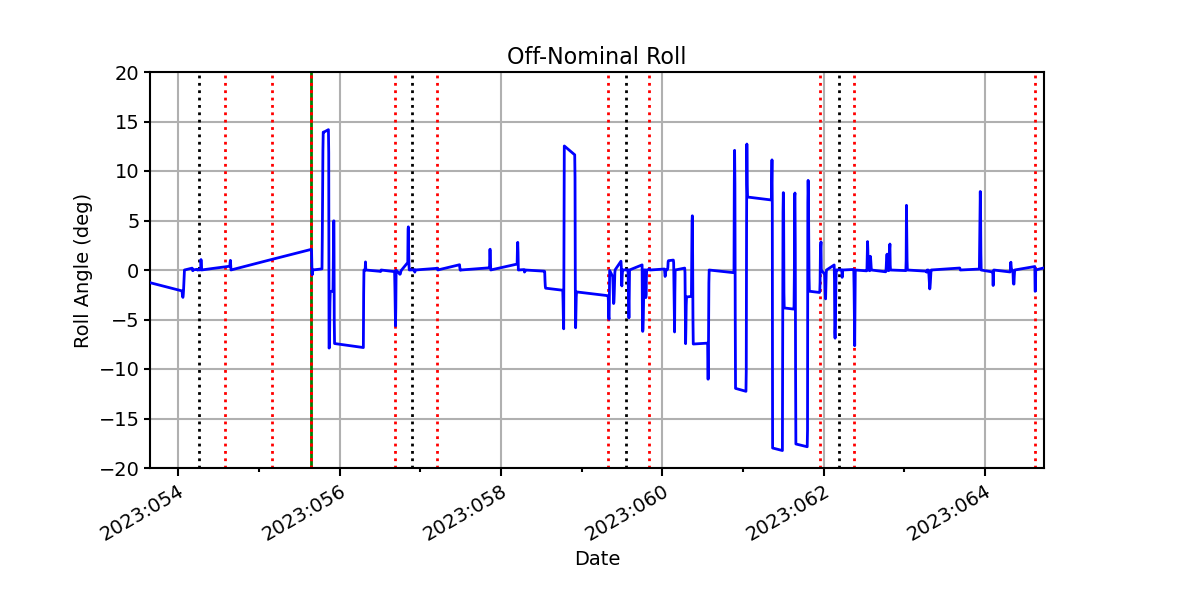

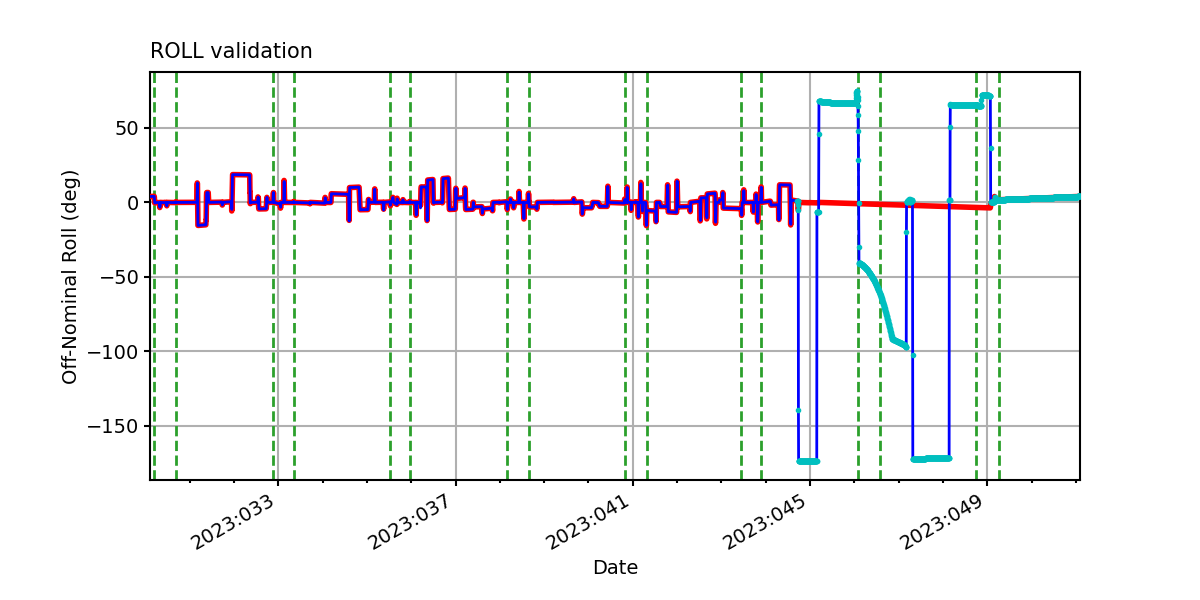

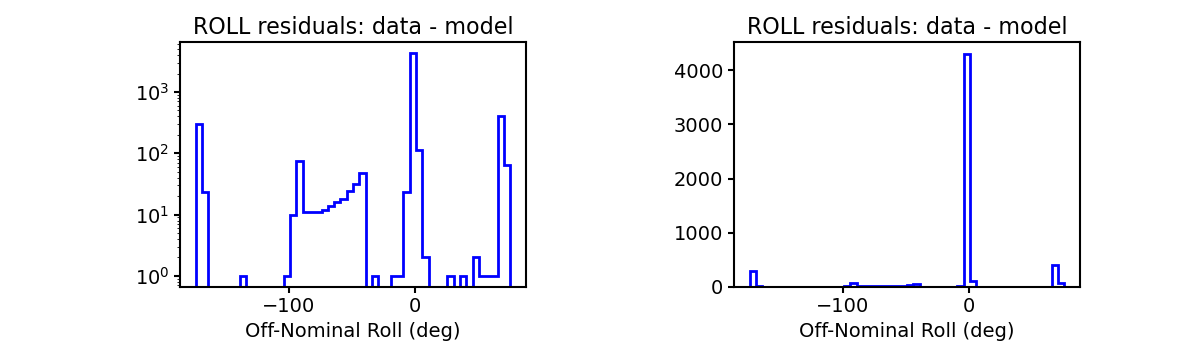

ROLL

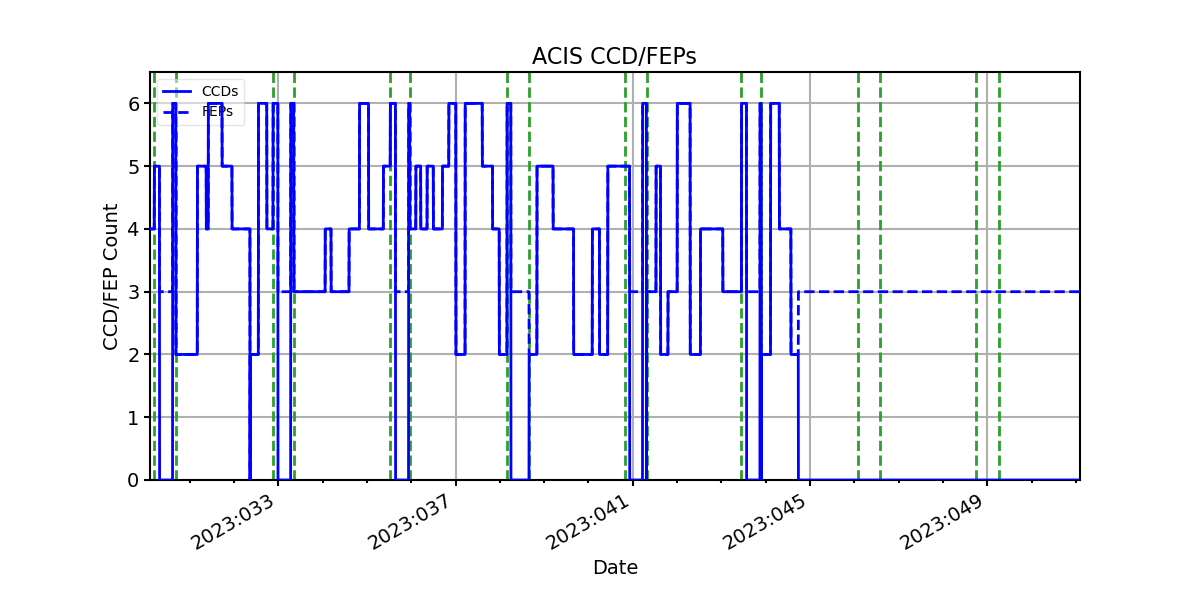

ACIS CCD/FEP Count
