PSMCBT Temperatures Check
Summary
| Date start | 2025:054:22:28:23.016 |
| Date stop | 2025:061:23:35:37.116 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/FEB2425/oflsa |
| Run time | Thu Oct 8 16:05:09 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.01 | -2.18 | -1.51 | -0.07 | 1.19 | 1.82 | 2.64 |
| pitch | -9.919 | -1.109 | -0.004 | -0.000 | 0.004 | 1.214 | 10.583 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 1 | 1 |
| roll | -2.514 | -0.254 | -0.009 | 0.000 | 0.009 | 0.232 | 2.157 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.01 | 2.50 |
| PITCH | 1 | -9.919 | 3.00 |
| PITCH | 99 | 10.583 | 3.00 |

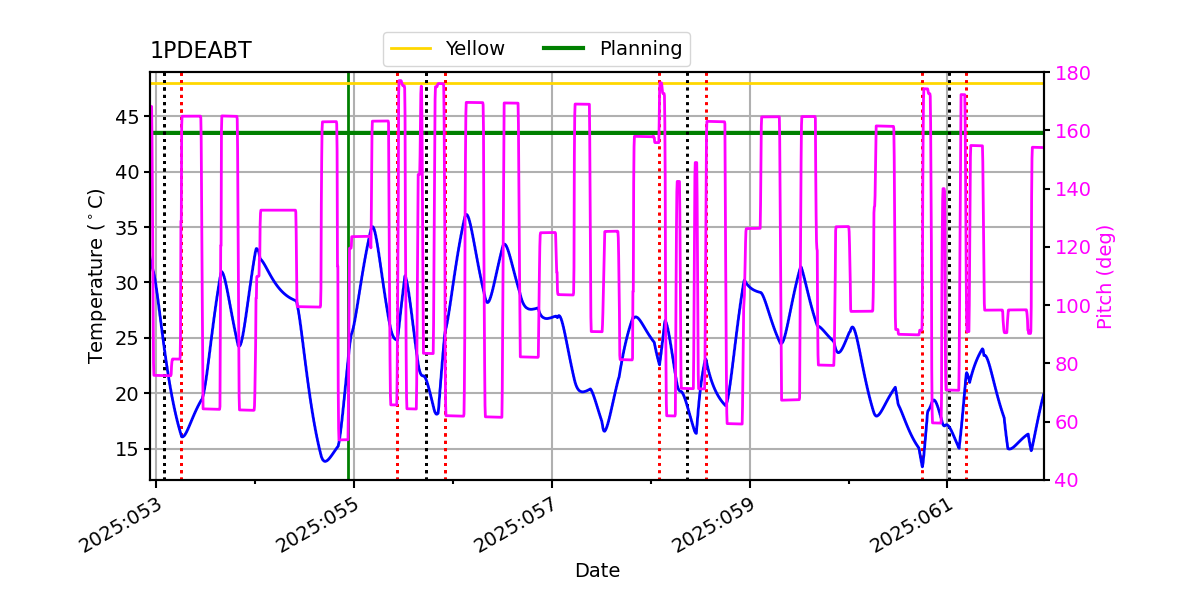

1PDEABT
Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

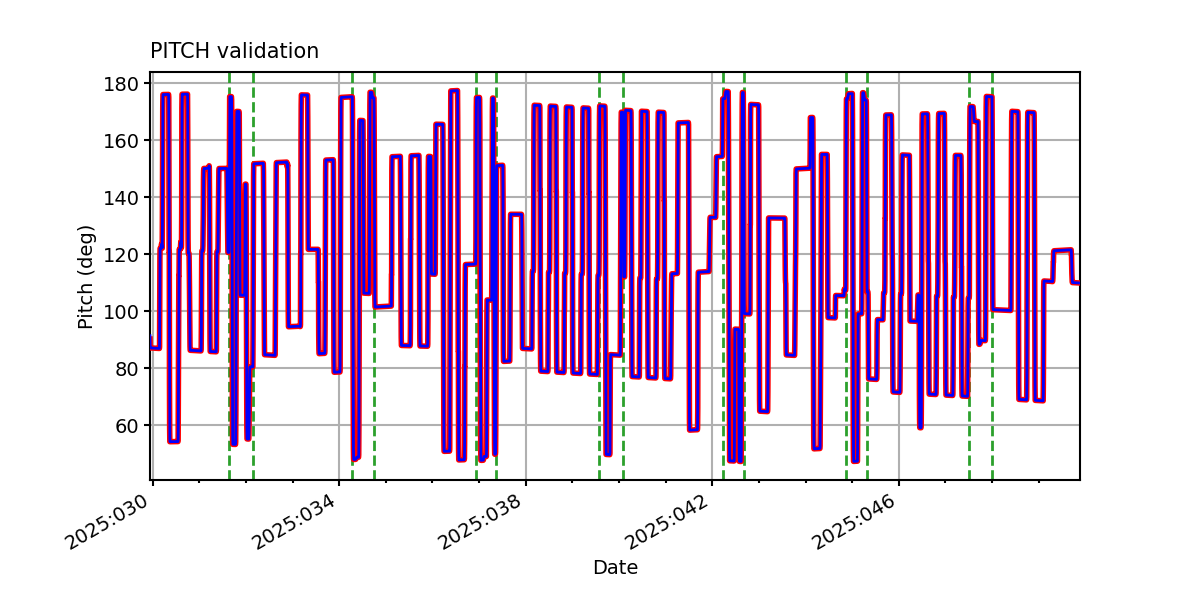

PITCH

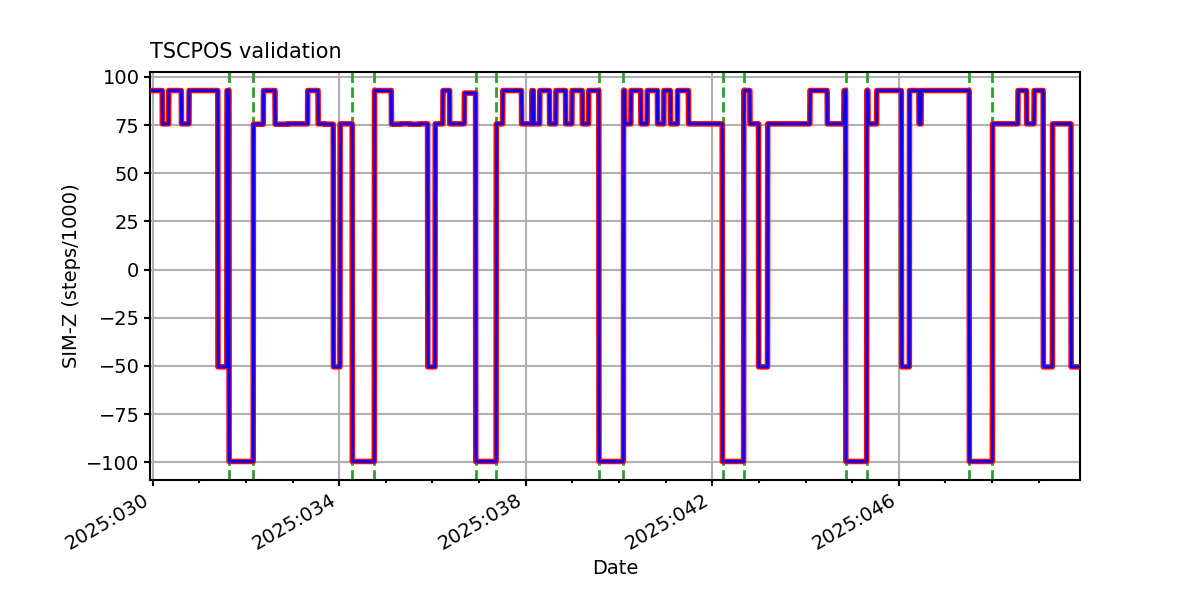

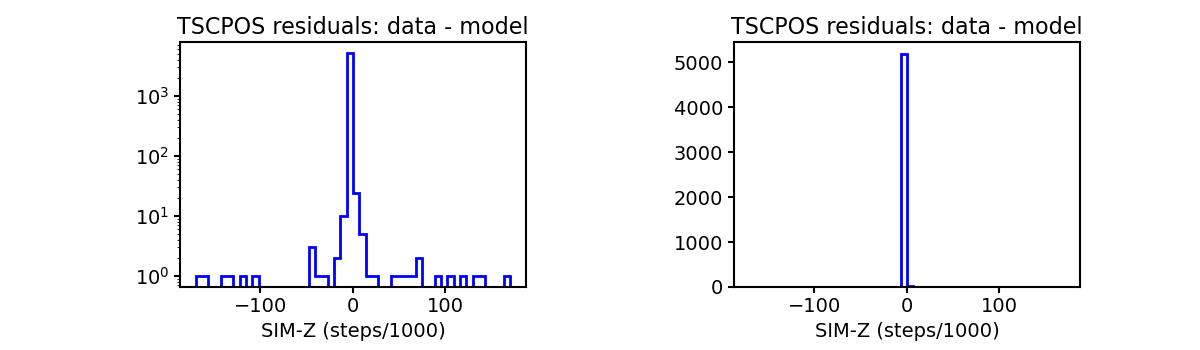

TSCPOS

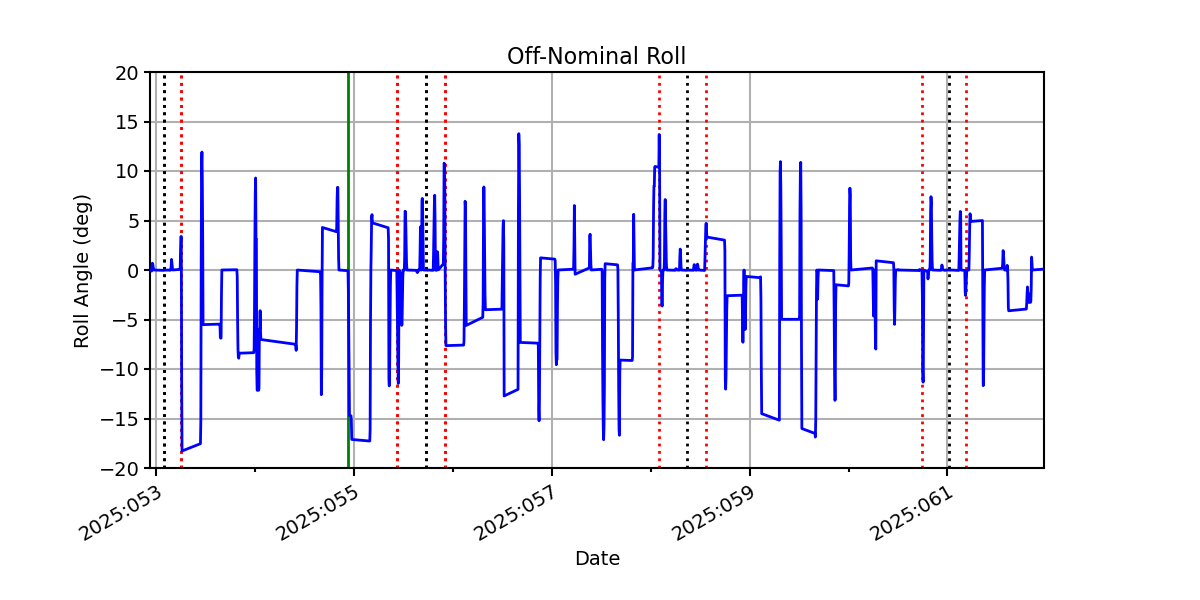

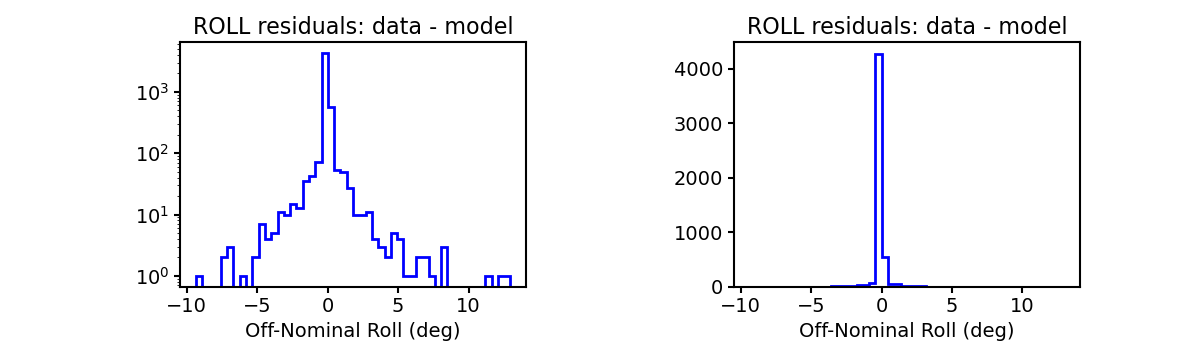

ROLL

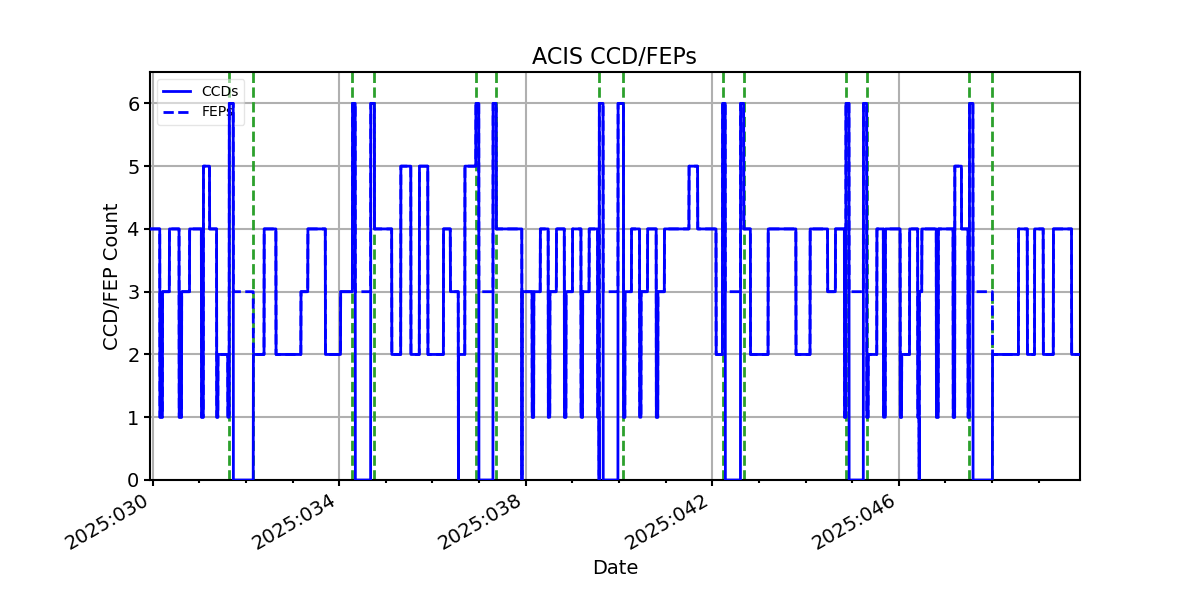

ACIS CCD/FEP Count
