PSMCBT Temperatures Check
Summary
| Date start | 2024:056:15:40:00.016 |
| Date stop | 2024:064:01:50:11.316 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/FEB2624/oflsa |
| Run time | Thu Oct 8 16:05:13 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.24 | -2.48 | -1.78 | -0.51 | 0.82 | 1.44 | 2.15 |
| pitch | -9.200 | -0.496 | -0.004 | 0.001 | 0.163 | 1.033 | 10.601 |
| tscpos | -1 | -1 | -1 | 0 | 1 | 1 | 1 |
| roll | -2.184 | -0.480 | -0.010 | 0.000 | 0.023 | 0.506 | 2.327 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.24 | 2.50 |
| PITCH | 1 | -9.2 | 3.00 |
| PITCH | 99 | 10.601 | 3.00 |

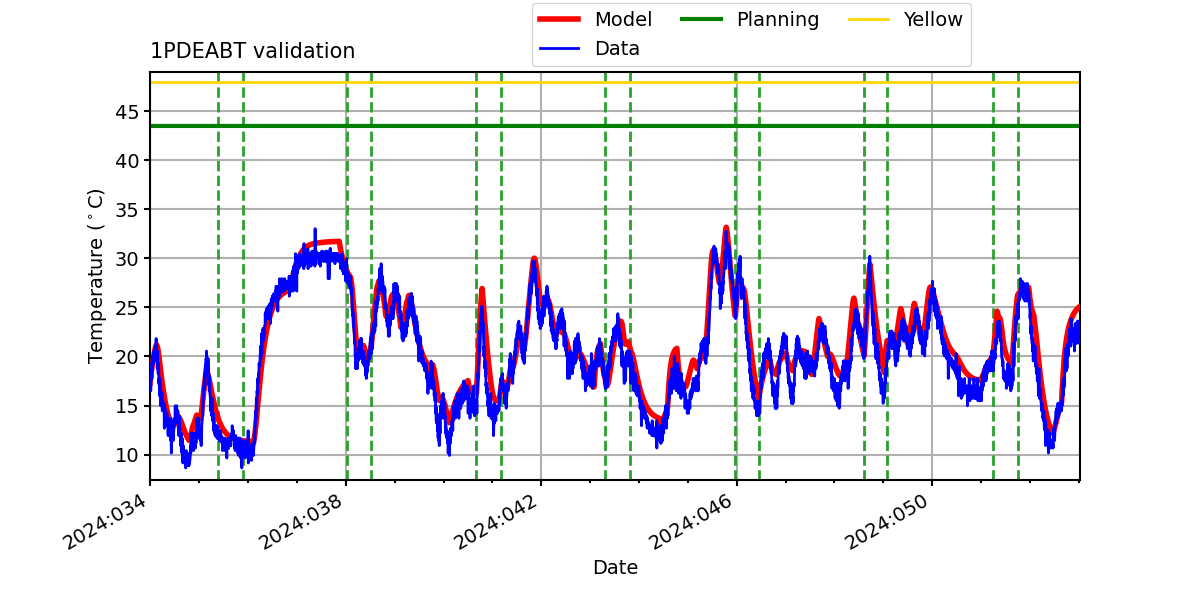

1PDEABT

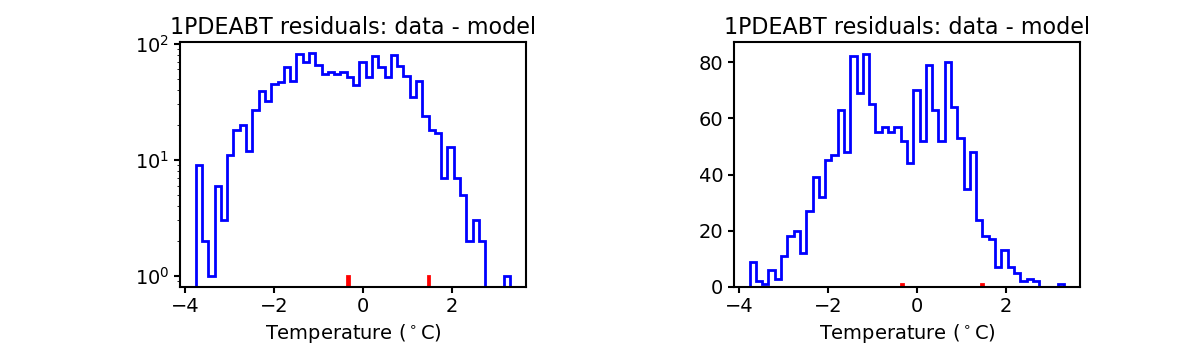

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

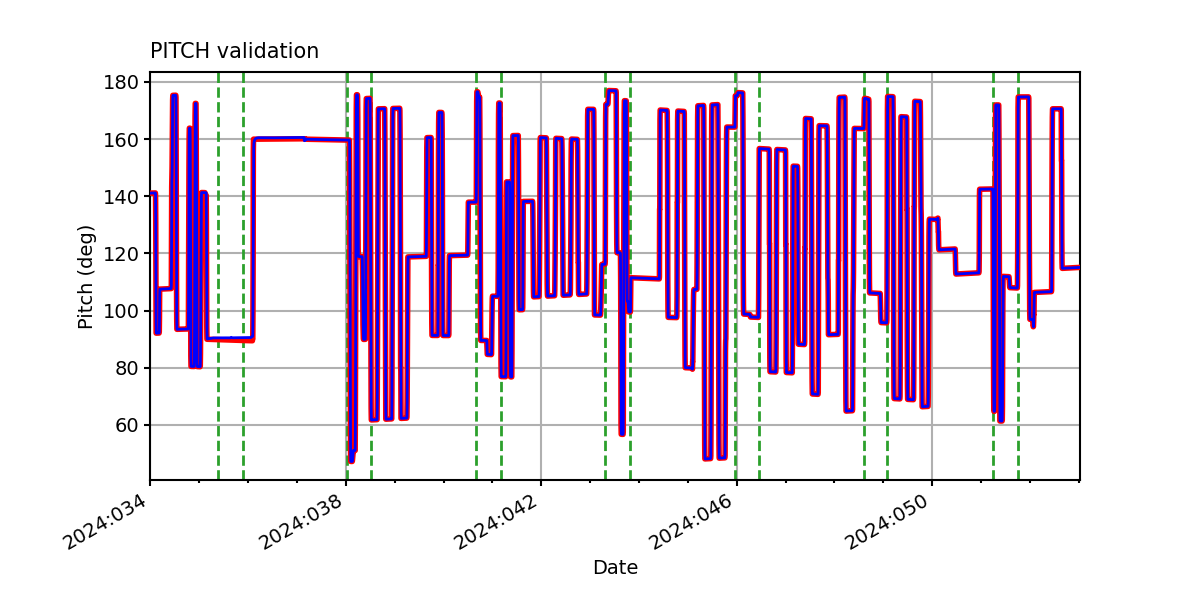

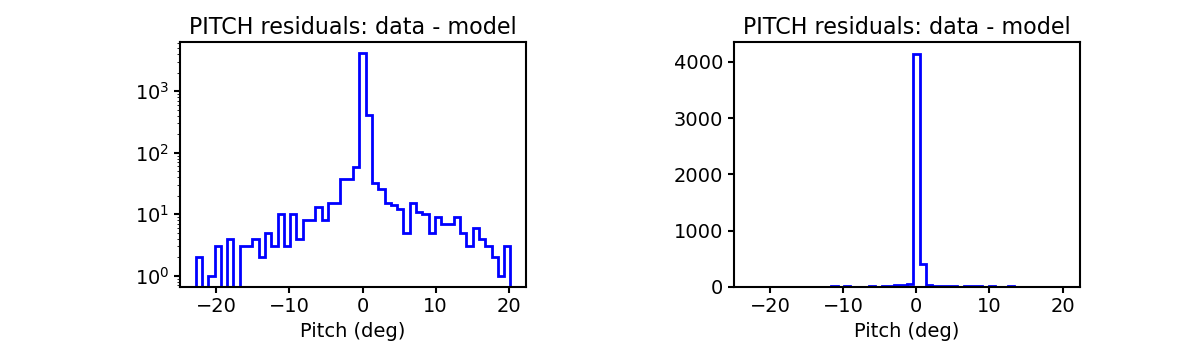

PITCH

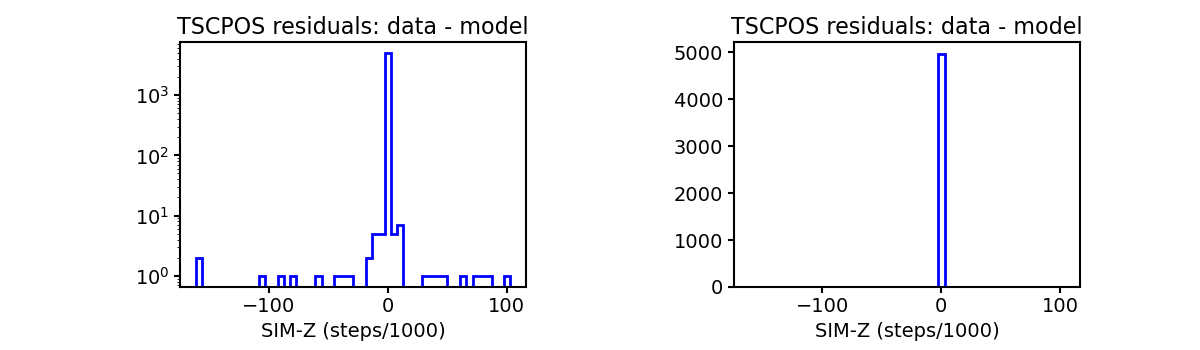

TSCPOS

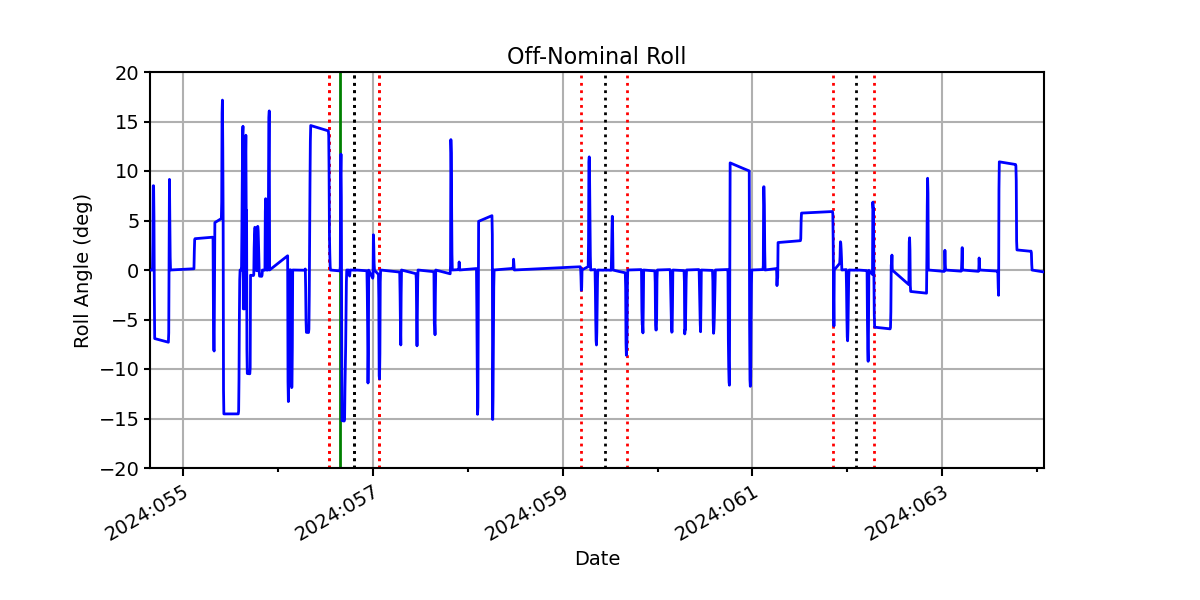

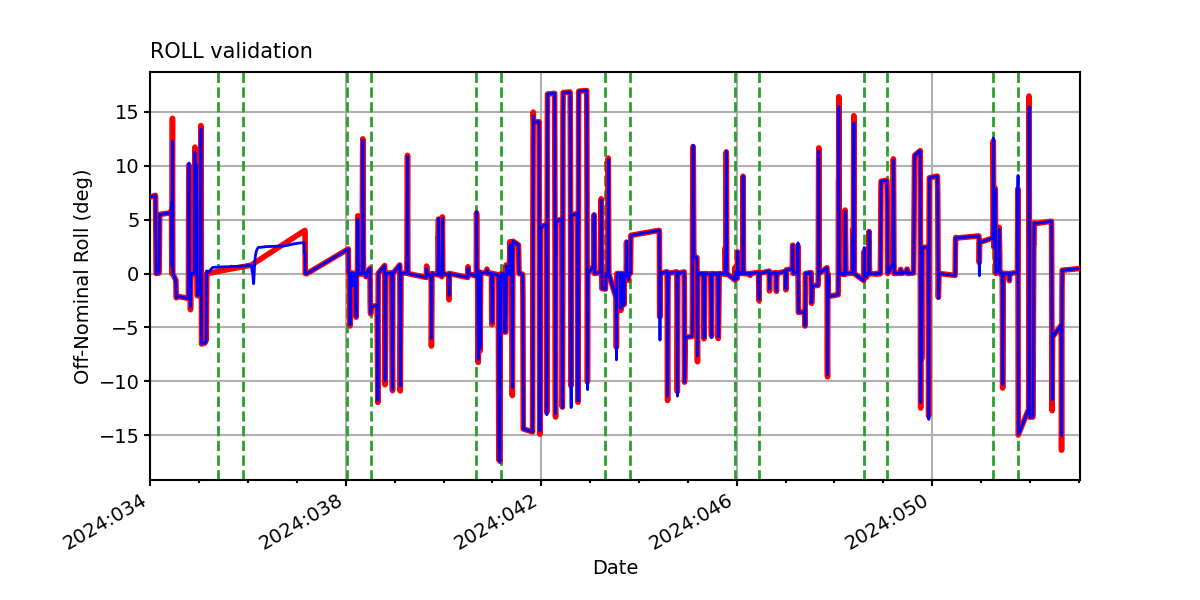

ROLL

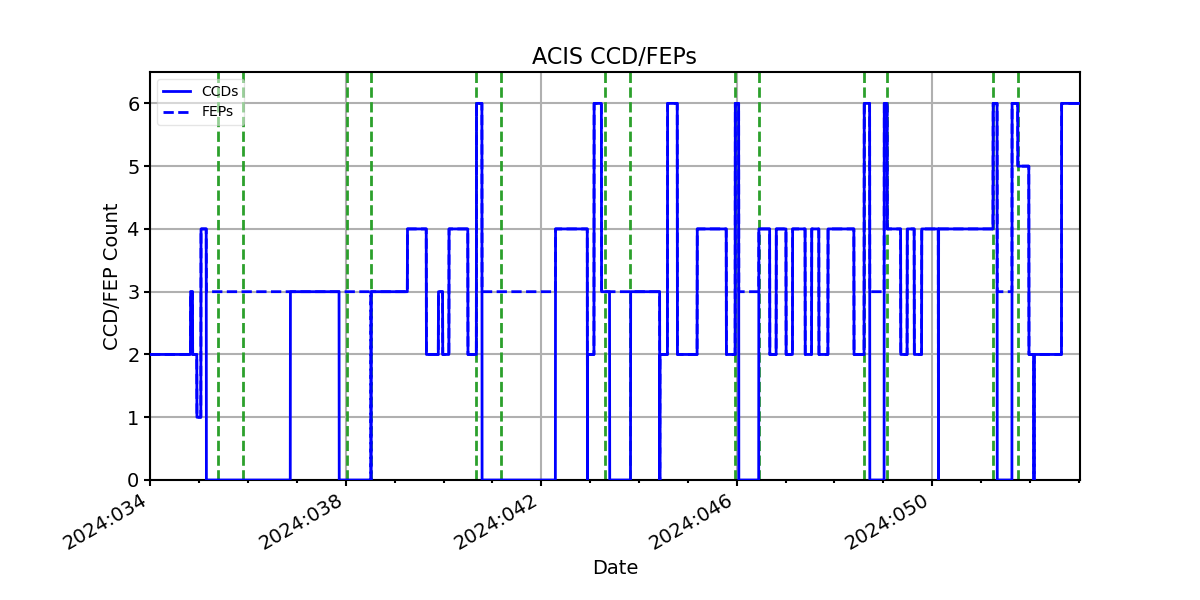

ACIS CCD/FEP Count
