PSMCBT Temperatures Check
Summary
| Date start | 2025:013:04:41:00.016 |
| Date stop | 2025:020:00:56:32.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/JAN1325/oflsa |
| Run time | Thu Oct 8 16:05:53 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.75 | -1.92 | -1.04 | 0.52 | 1.79 | 2.34 | 2.86 |
| pitch | -10.306 | -1.175 | -0.004 | -0.000 | 0.004 | 1.145 | 10.186 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.736 | -0.189 | -0.006 | 0.000 | 0.007 | 0.252 | 1.856 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.75 | 2.50 |
| PITCH | 1 | -10.306 | 3.00 |
| PITCH | 99 | 10.186 | 3.00 |

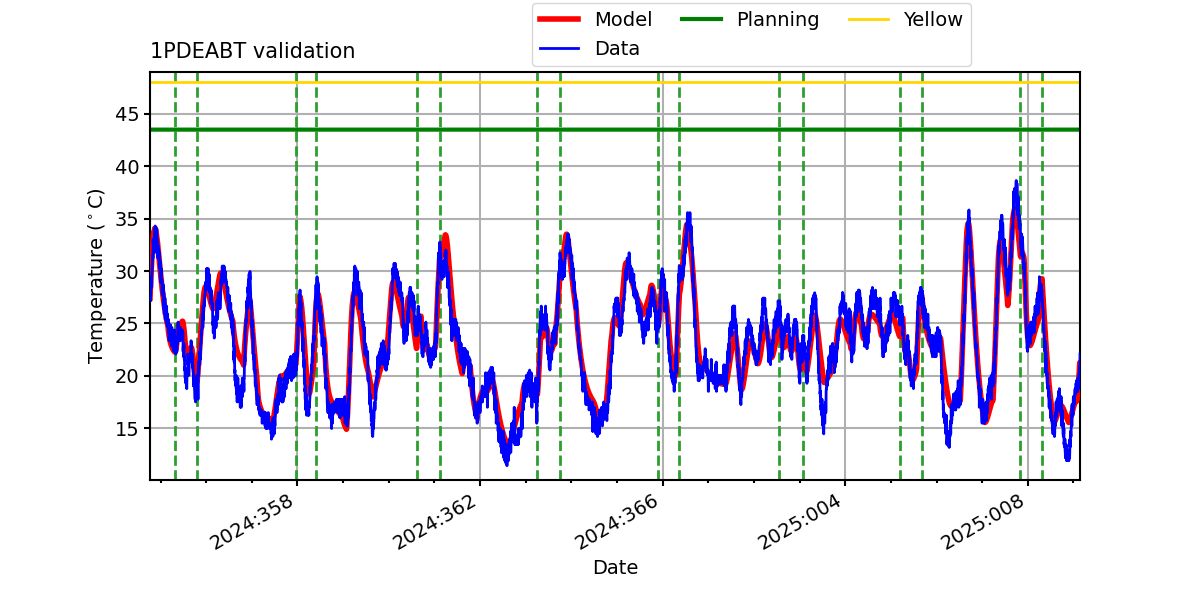

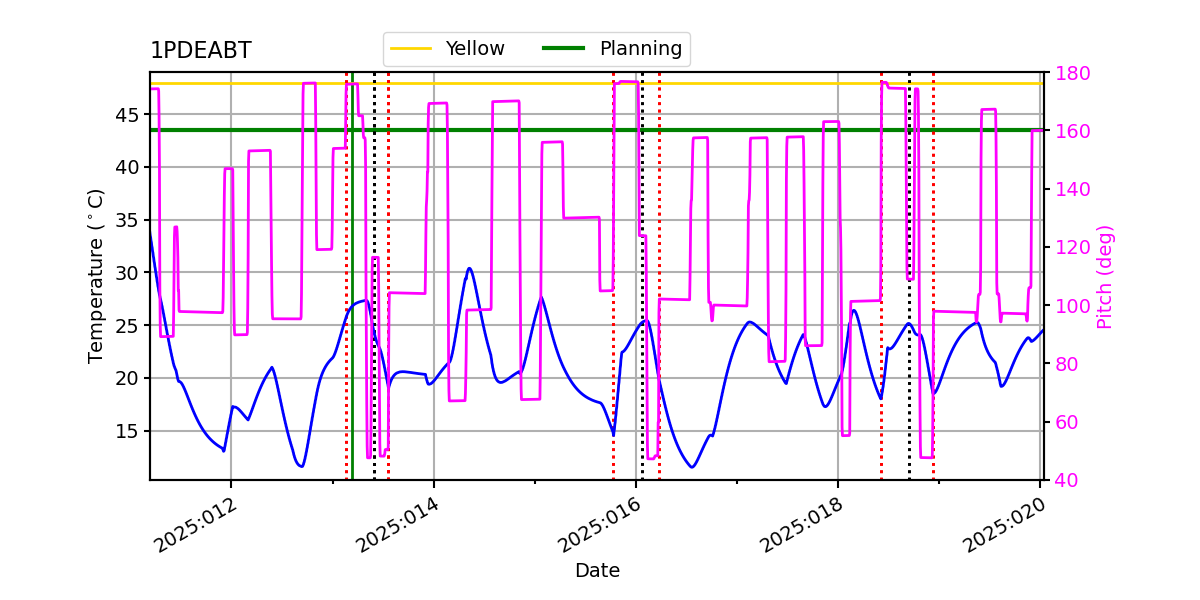

1PDEABT

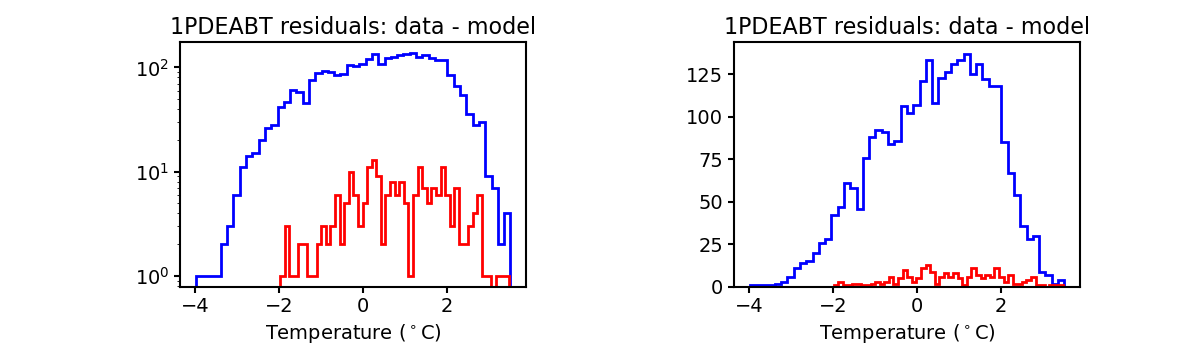

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

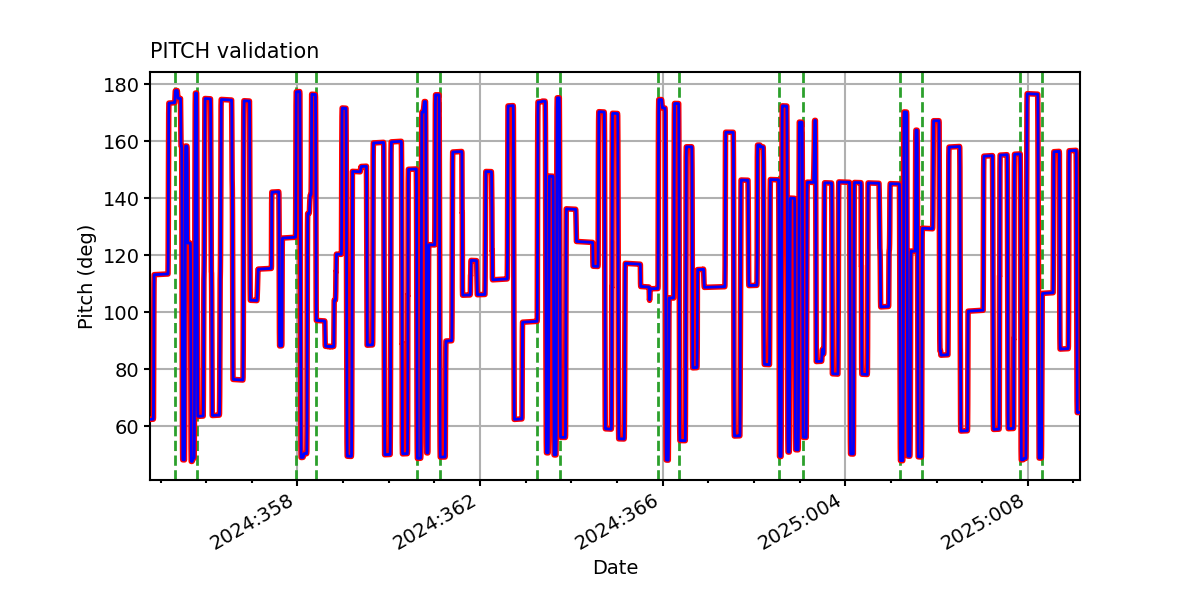

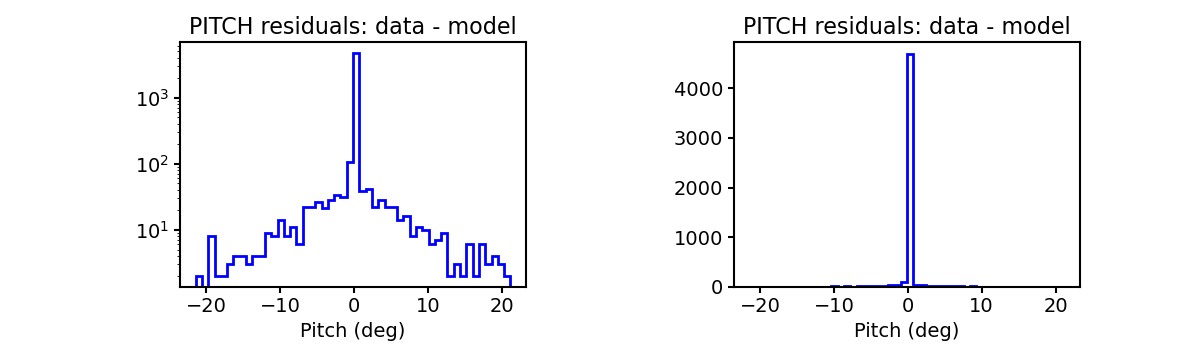

PITCH

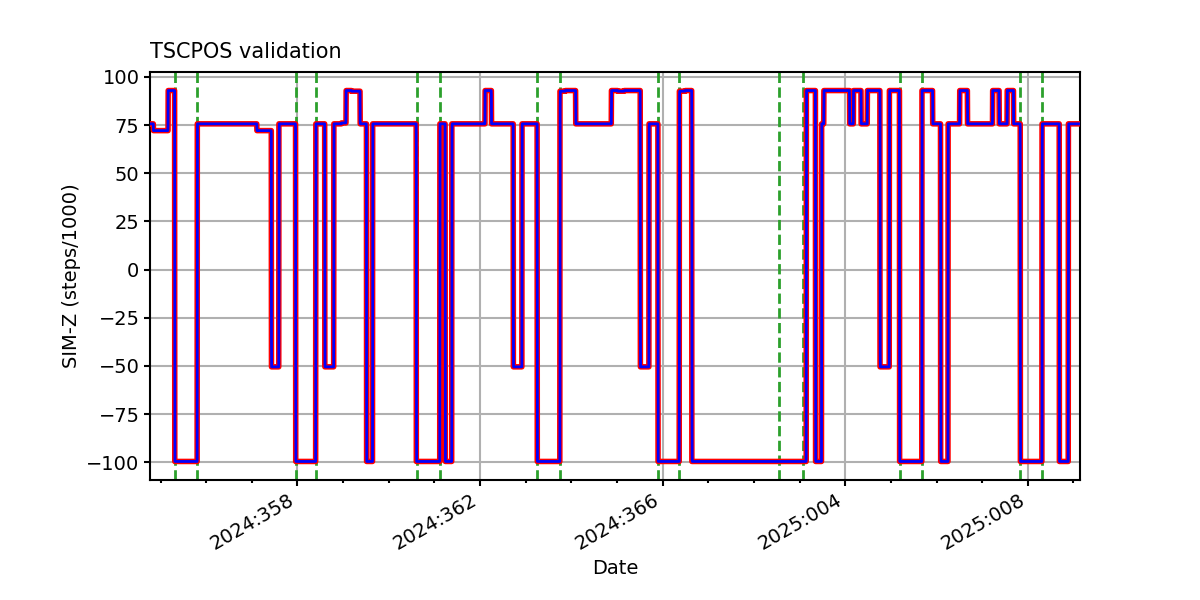

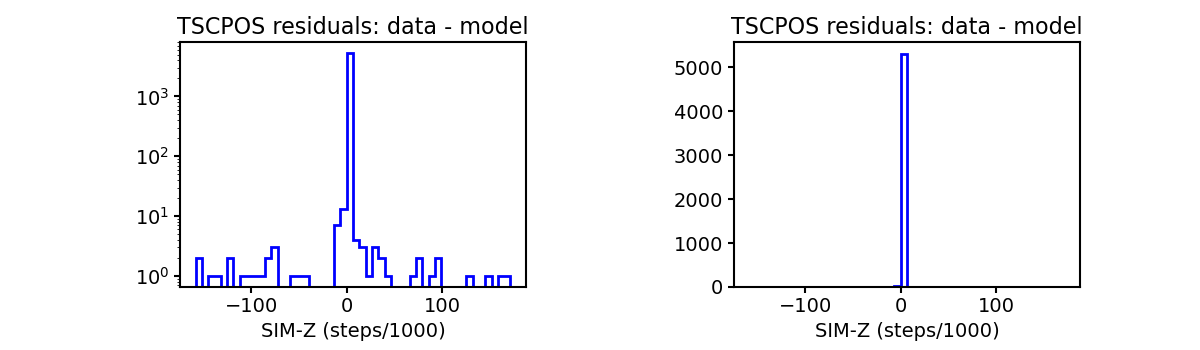

TSCPOS

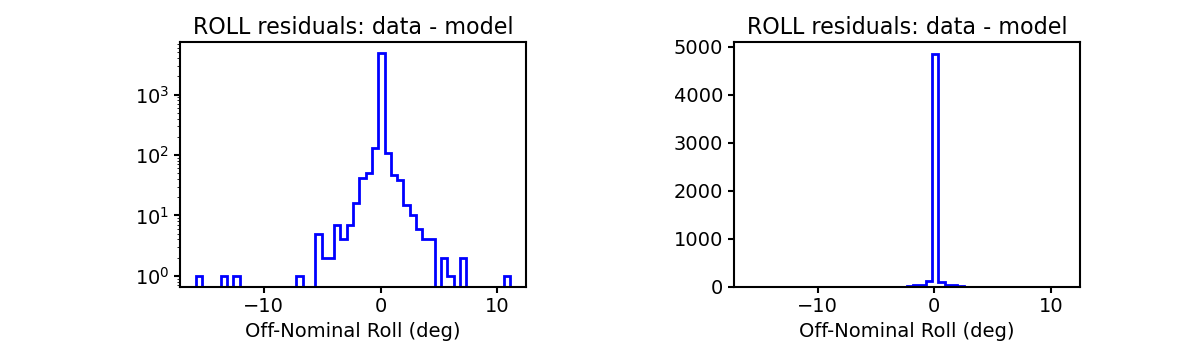

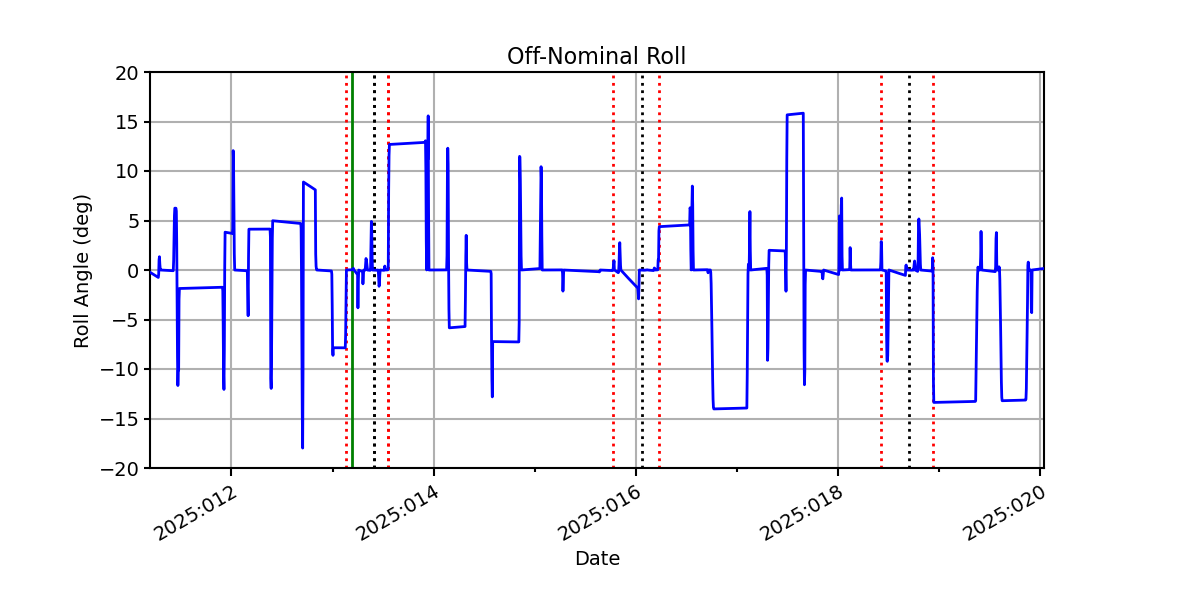

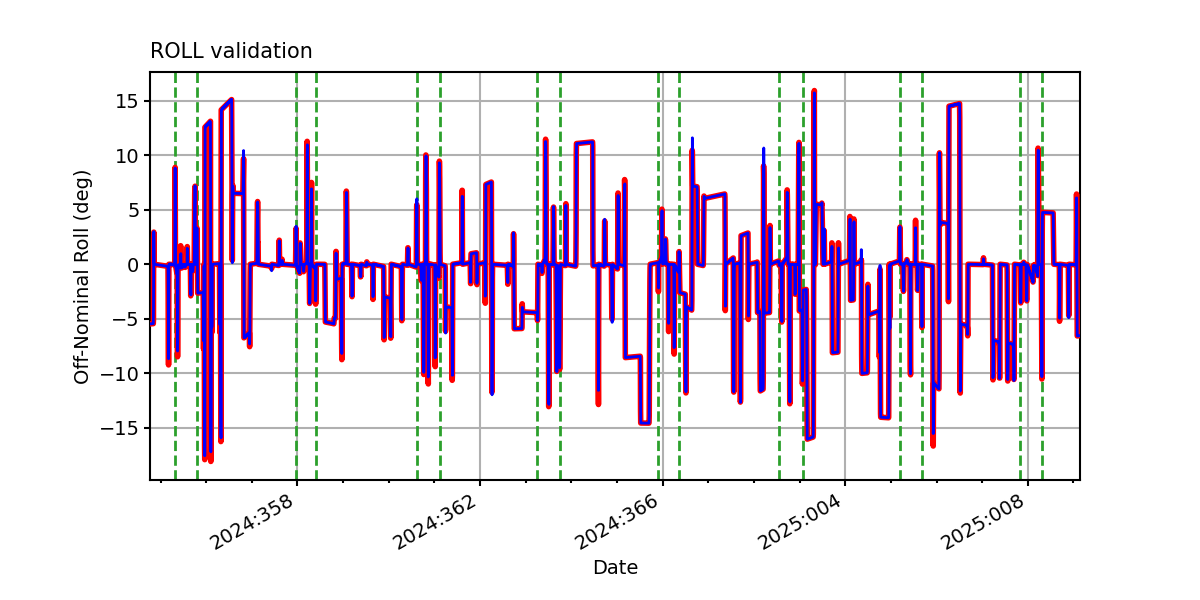

ROLL

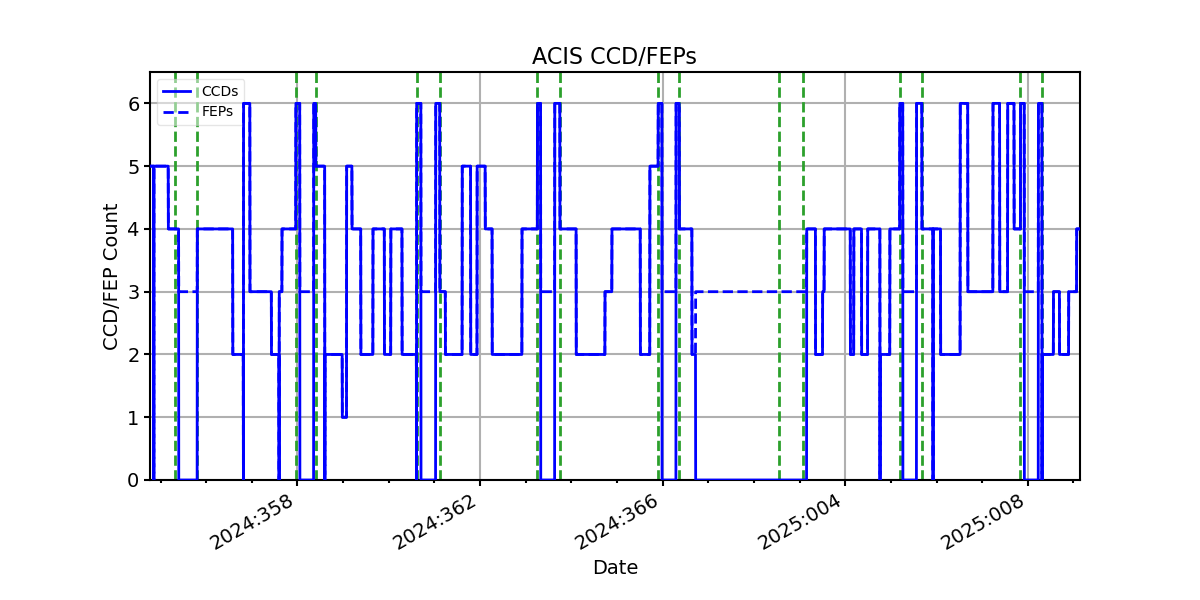

ACIS CCD/FEP Count
