PSMCBT Temperatures Check
Summary
| Date start | 2025:015:06:00:00.016 |
| Date stop | 2025:020:00:56:32.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/JAN1525/oflsa |
| Run time | Thu Oct 8 16:05:54 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

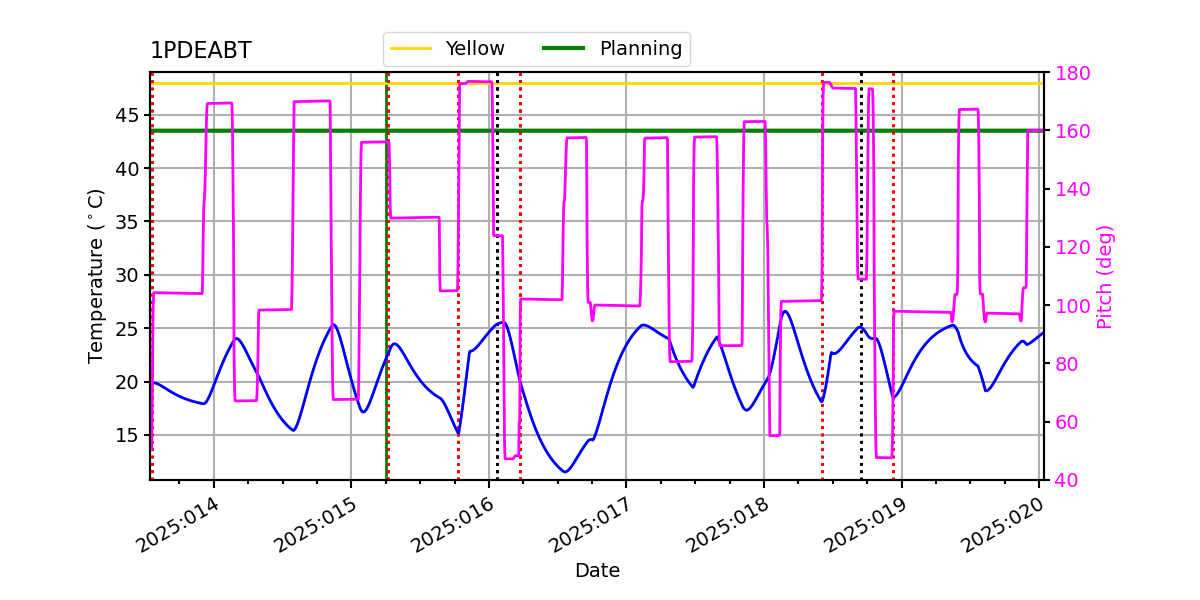

No 1PDEABT Upper Limit Violations

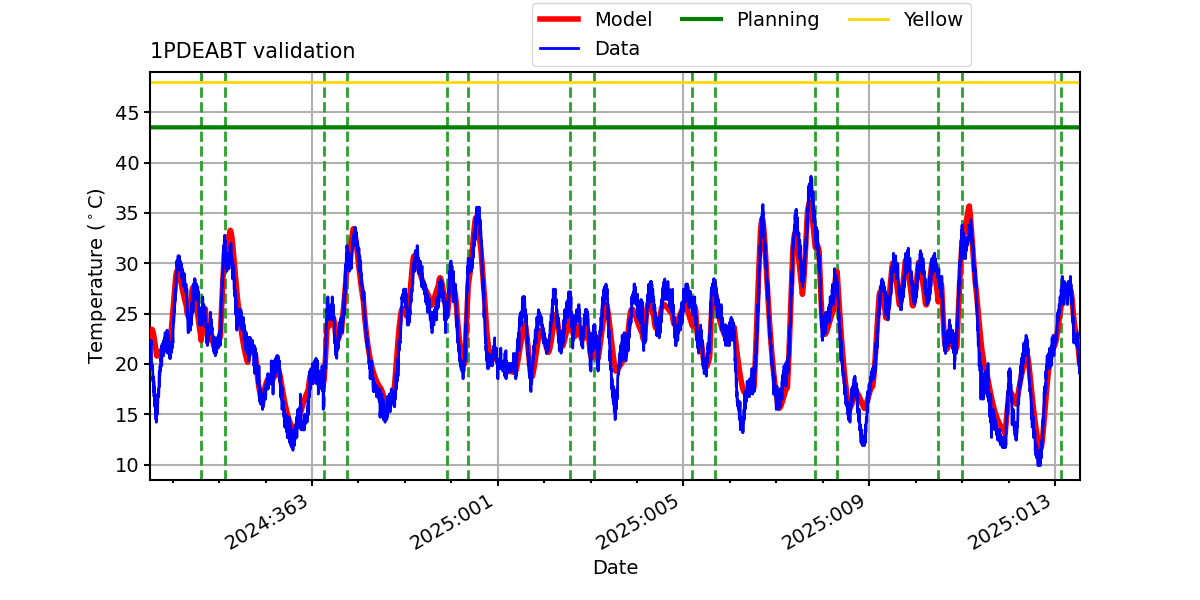

PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.68 | -1.87 | -0.95 | 0.55 | 1.75 | 2.33 | 2.83 |
| pitch | -10.446 | -1.298 | -0.004 | -0.000 | 0.004 | 1.474 | 11.446 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.855 | -0.214 | -0.007 | 0.000 | 0.007 | 0.263 | 1.892 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.68 | 2.50 |
| PITCH | 1 | -10.446 | 3.00 |
| PITCH | 99 | 11.446 | 3.00 |
1PDEABT

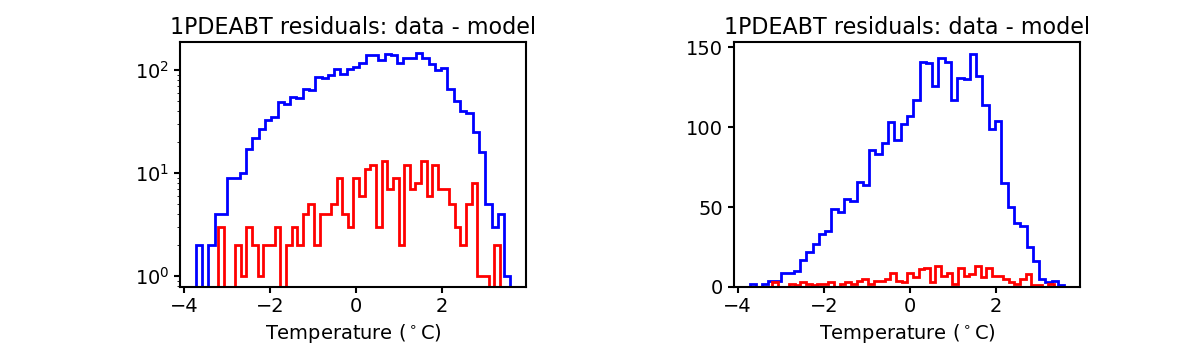

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

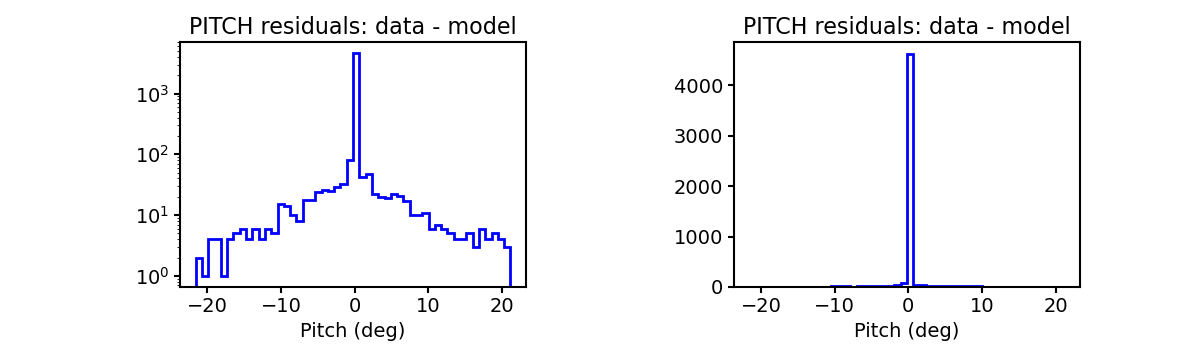

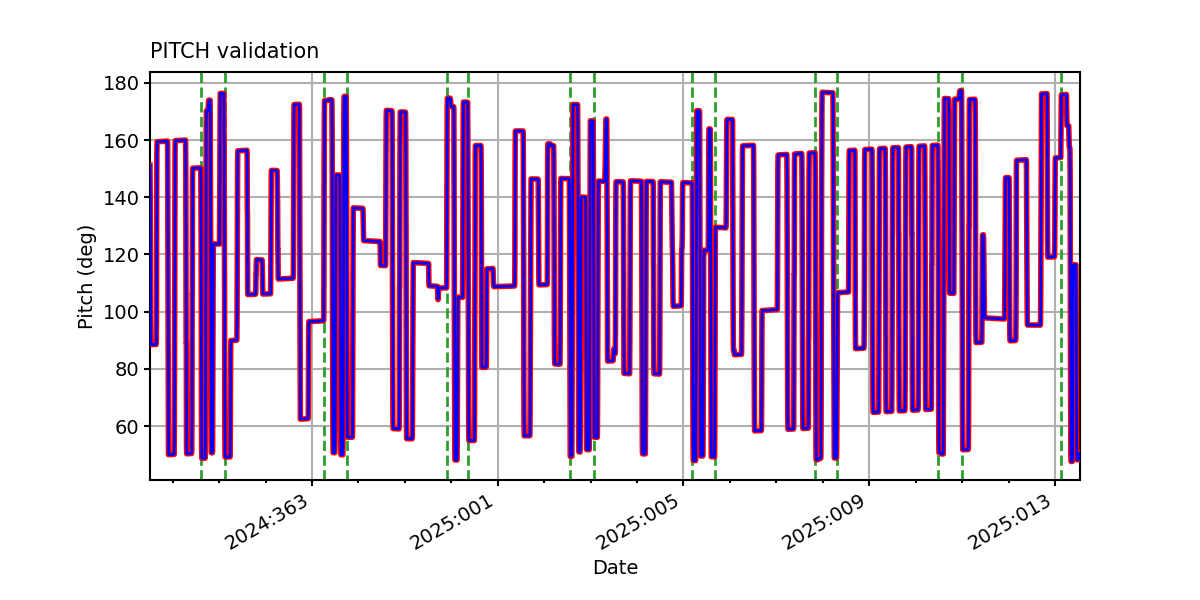

PITCH

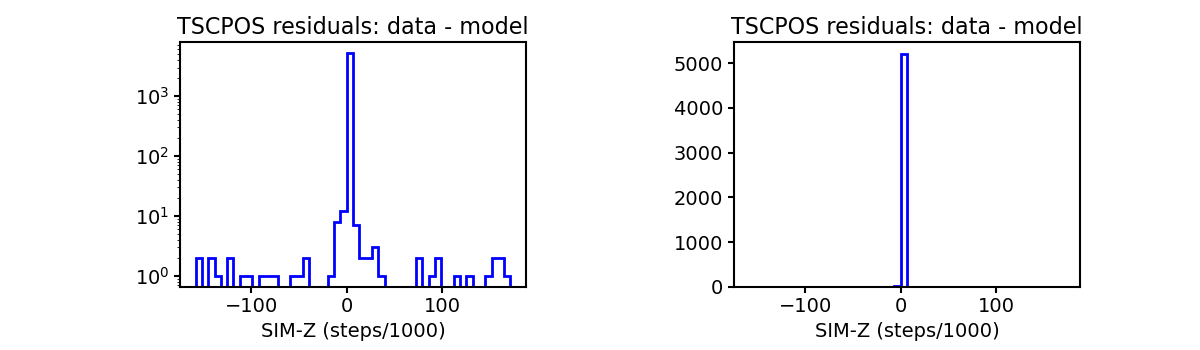

TSCPOS

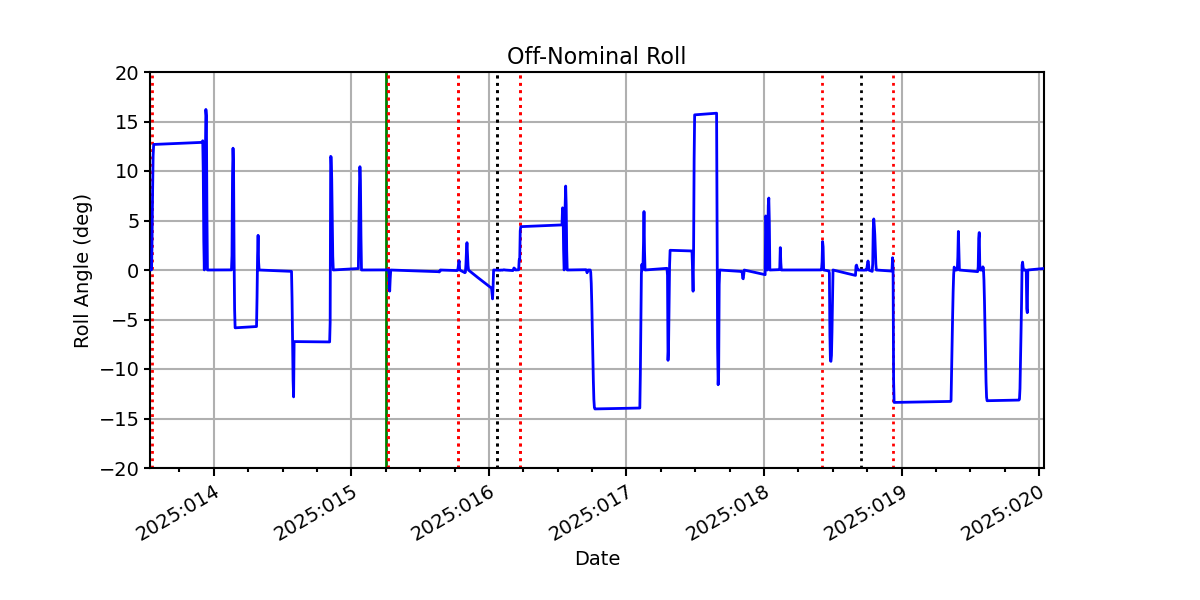

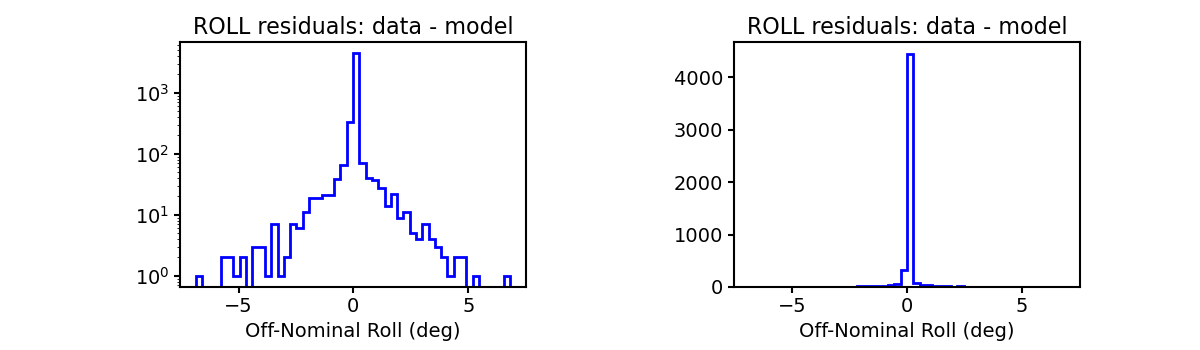

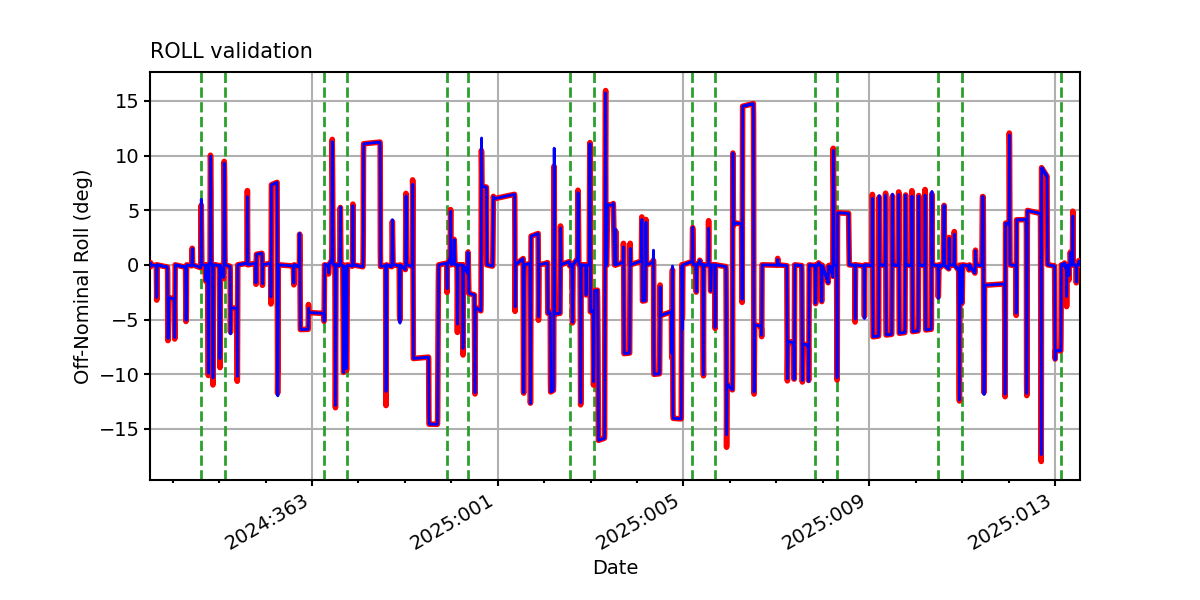

ROLL

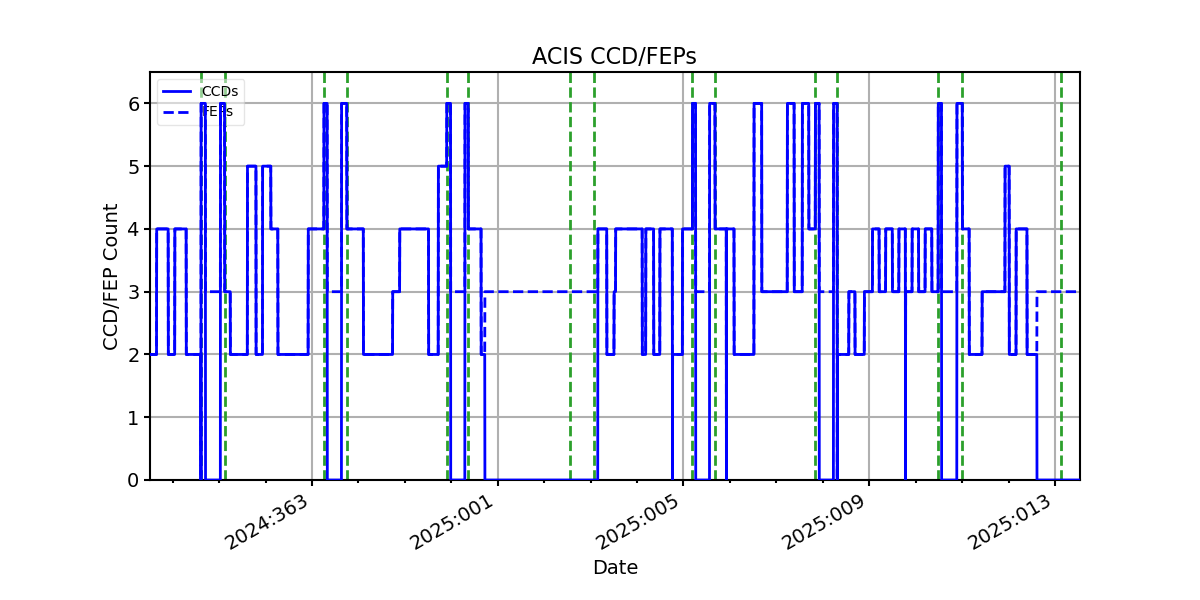

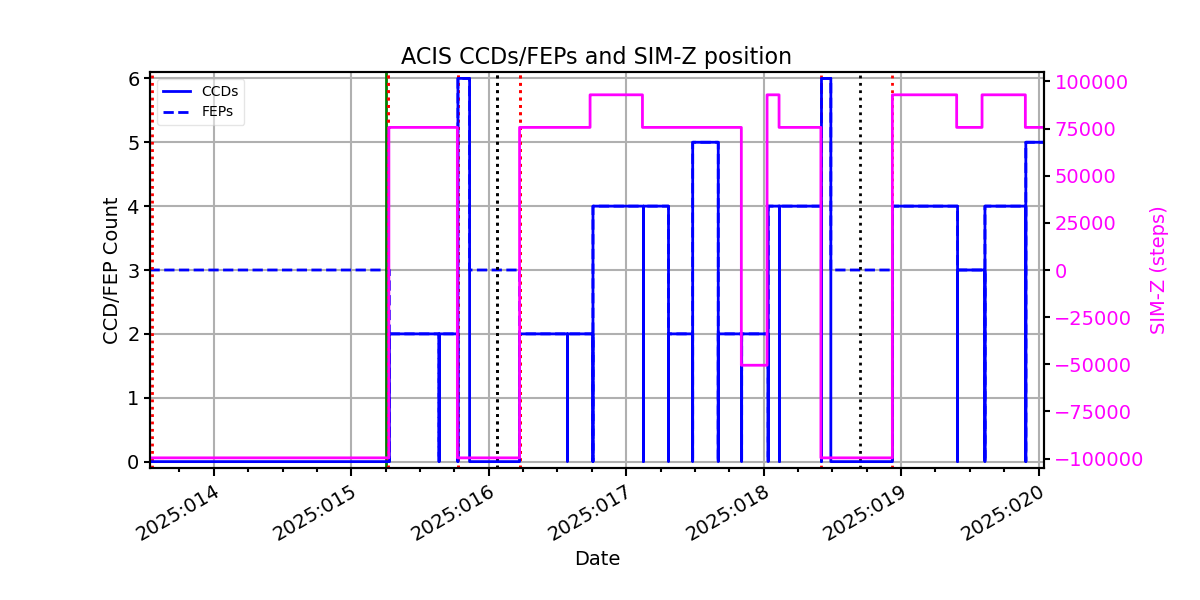

ACIS CCD/FEP Count
