PSMCBT Temperatures Check
Summary
| Date start | 2023:016:03:56:36.416 |
| Date stop | 2023:023:10:50:43.216 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/JAN1623/oflsa |
| Run time | Thu Oct 8 16:05:54 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.89 | -2.37 | -1.74 | -0.37 | 1.01 | 1.68 | 3.32 |
| pitch | -8.395 | -0.395 | -0.002 | 0.000 | 0.002 | 0.262 | 10.231 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 1 | 1 |
| roll | -1.447 | -0.052 | -0.003 | -0.000 | 0.003 | 0.069 | 1.613 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.89 | 2.50 |
| PITCH | 1 | -8.395 | 3.00 |
| PITCH | 99 | 10.231 | 3.00 |

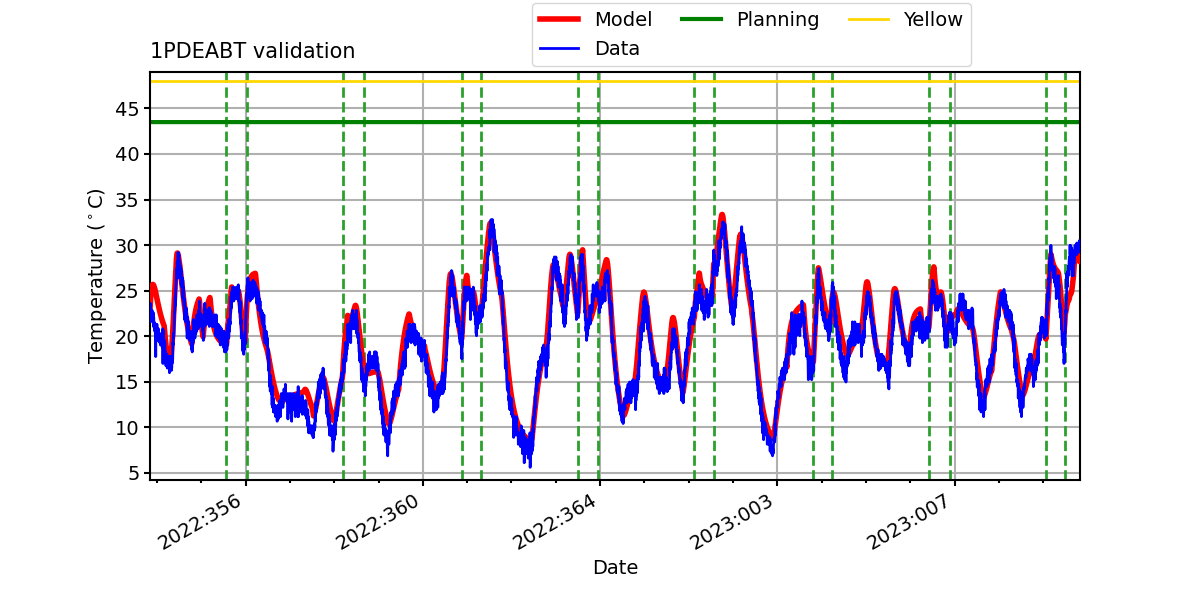

1PDEABT
Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

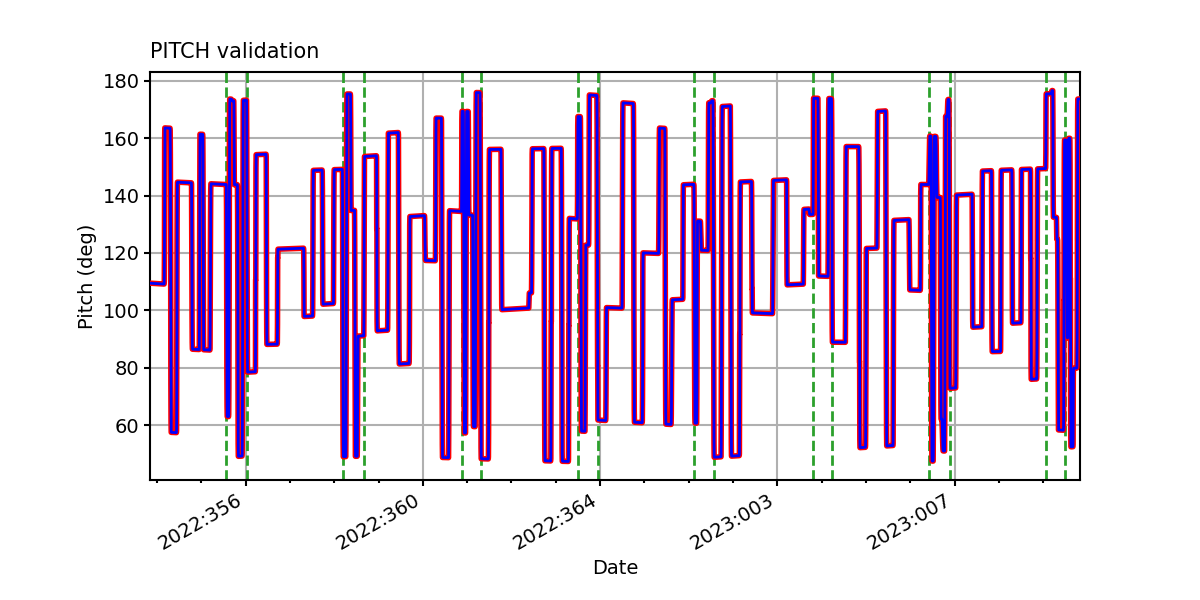

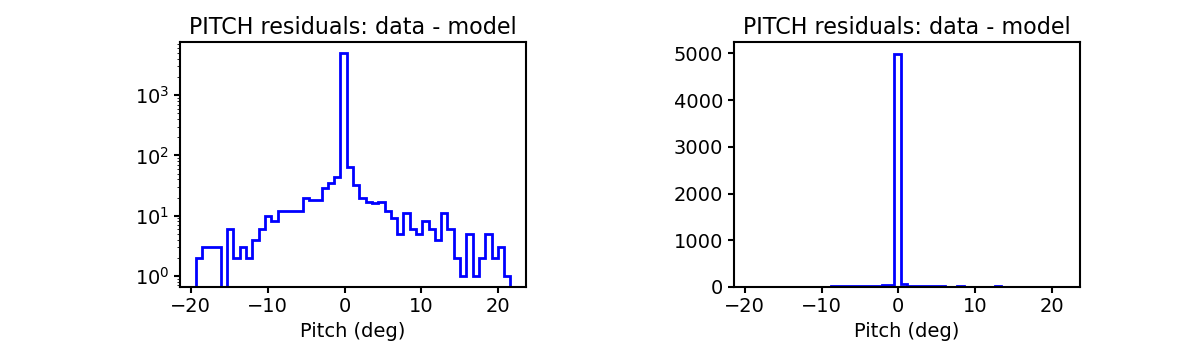

PITCH

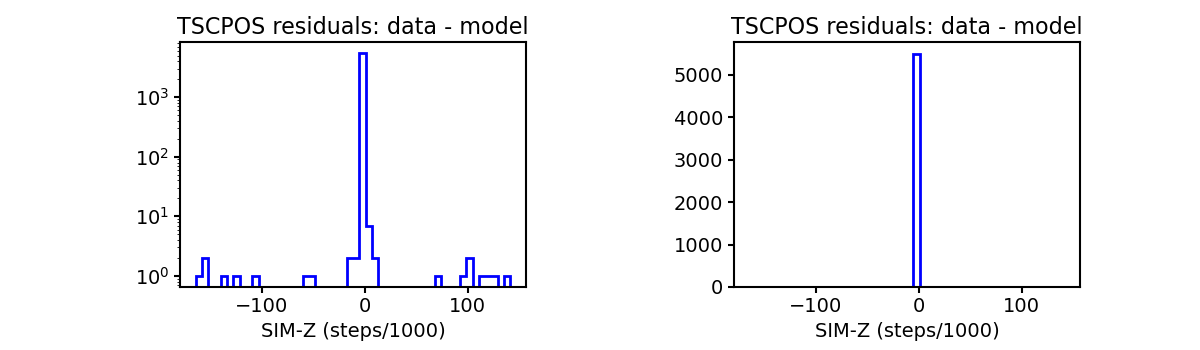

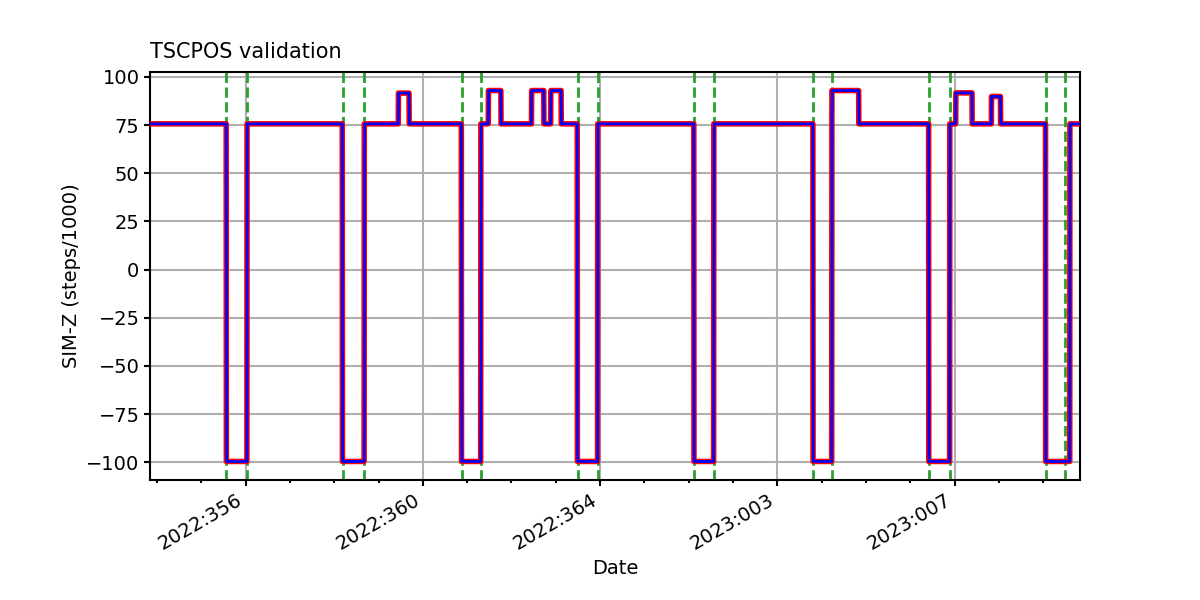

TSCPOS

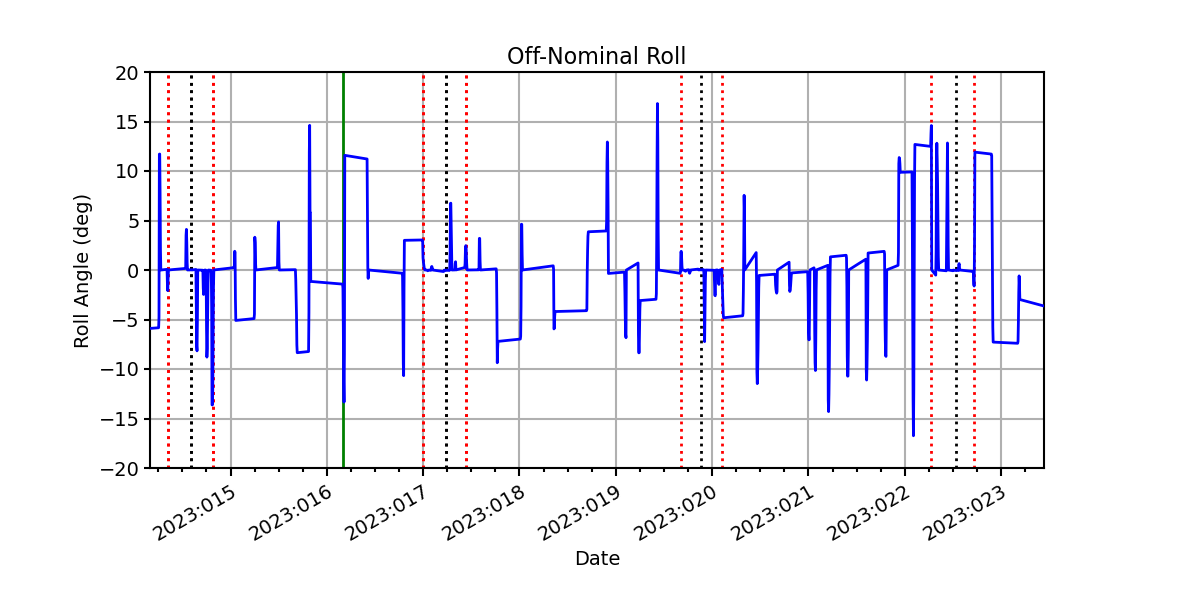

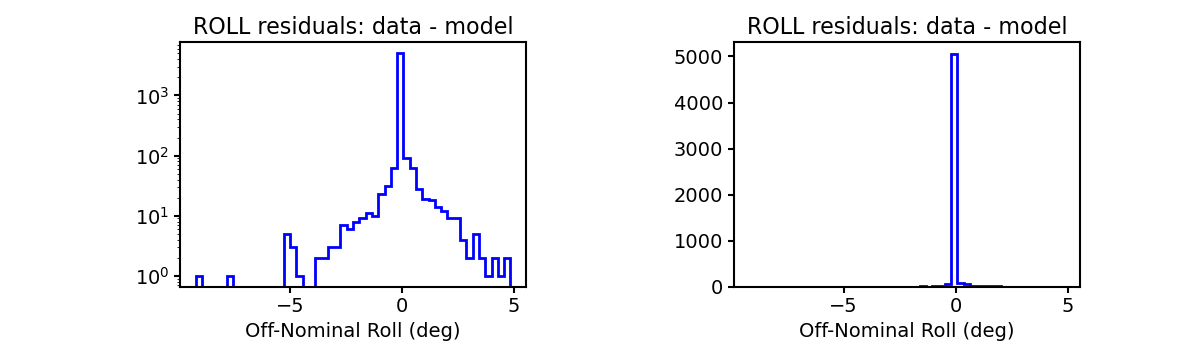

ROLL

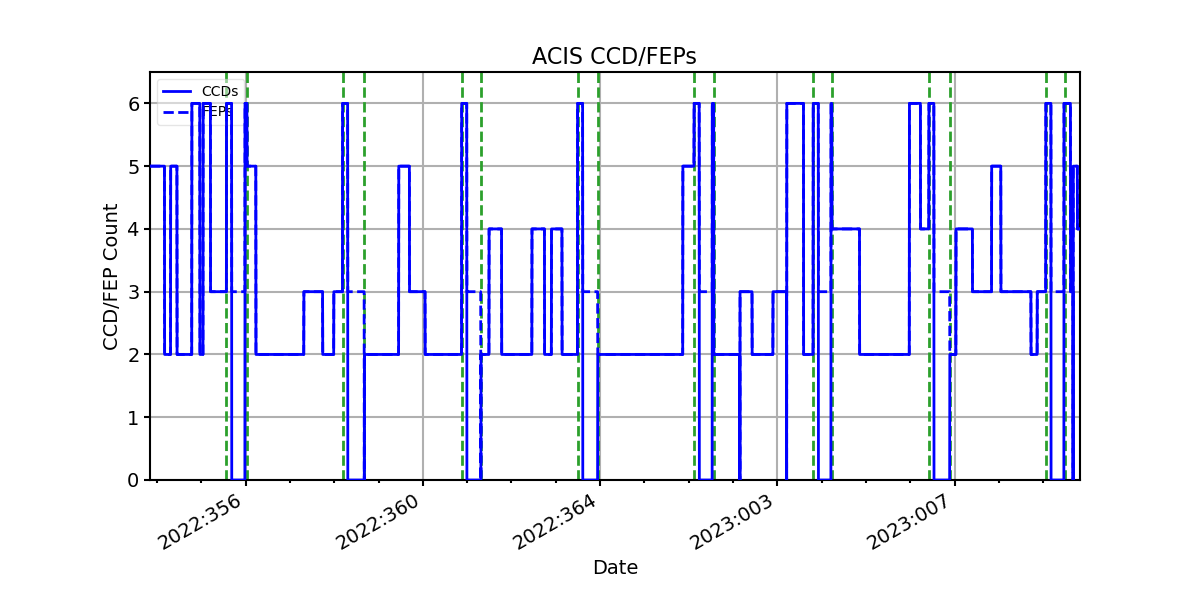

ACIS CCD/FEP Count
