PSMCBT Temperatures Check
Summary
| Date start | 2026:021:13:00:00.016 |
| Date stop | 2026:025:19:08:18.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JAN2126/oflsa |
| Run time | Thu Oct 8 16:06:25 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

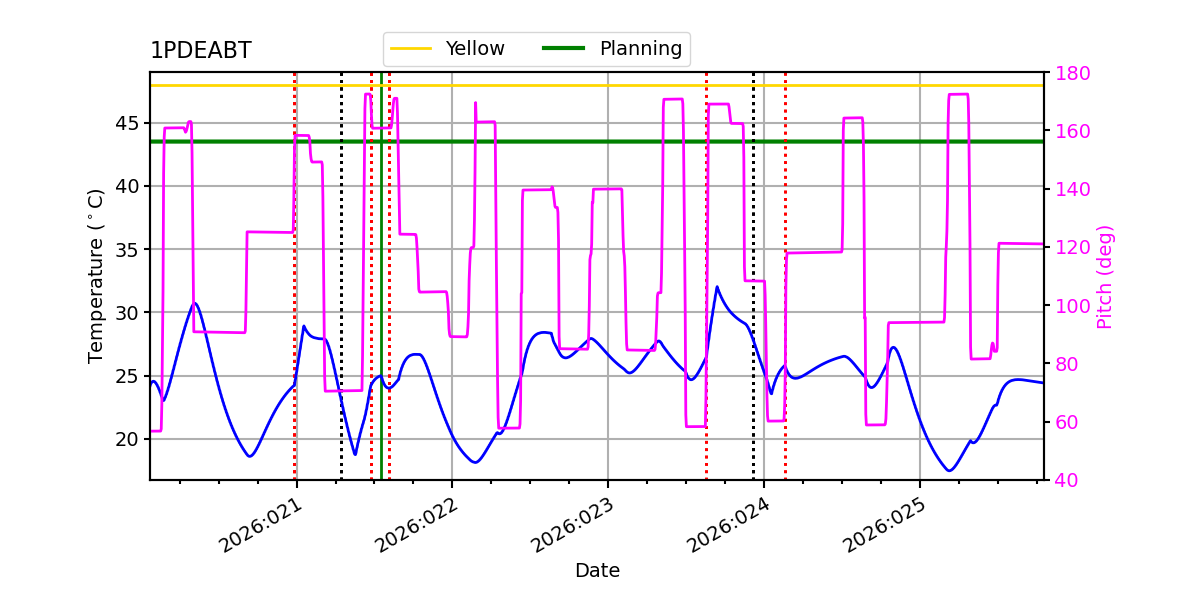

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -1.97 | -1.27 | -0.64 | 0.71 | 1.92 | 2.61 | 3.26 |
| pitch | -11.845 | -0.750 | -0.004 | 0.000 | 0.004 | 0.744 | 11.250 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.132 | -0.245 | -0.009 | -0.000 | 0.007 | 0.172 | 2.019 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -11.845 | 3.00 |
| PITCH | 99 | 11.25 | 3.00 |

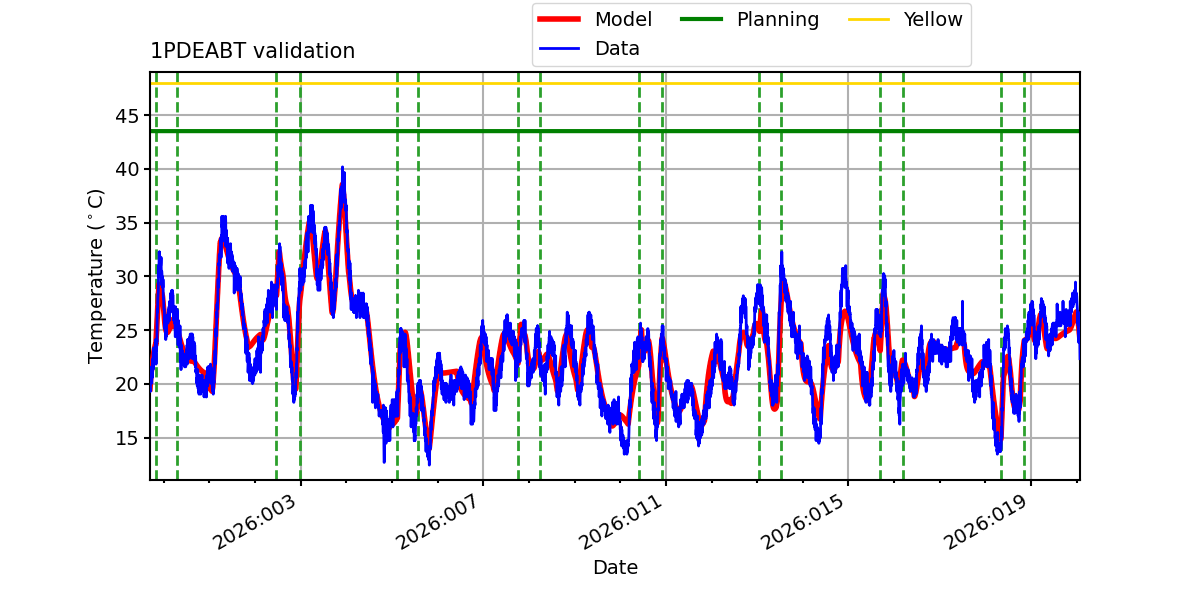

1PDEABT

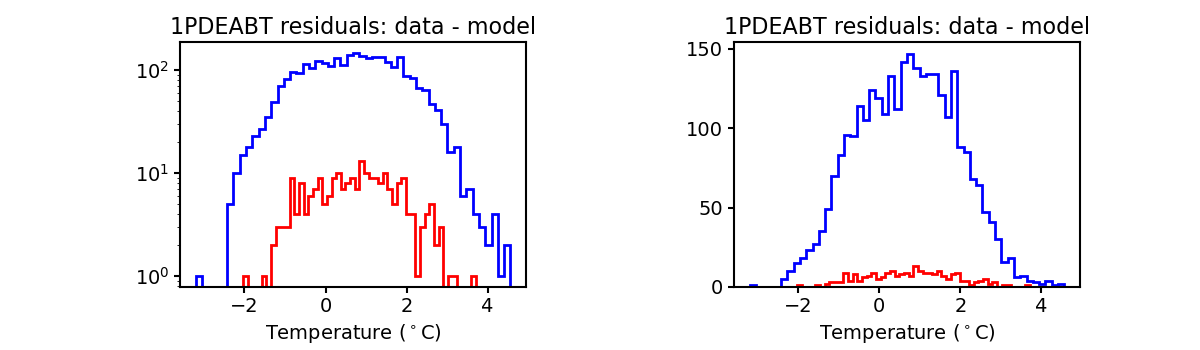

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

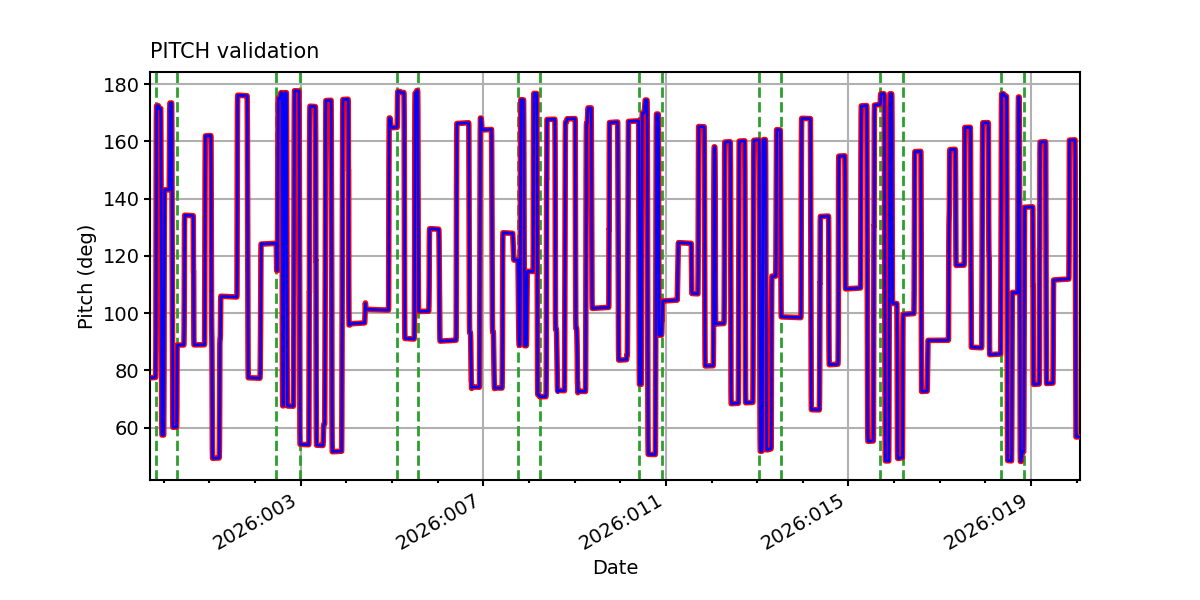

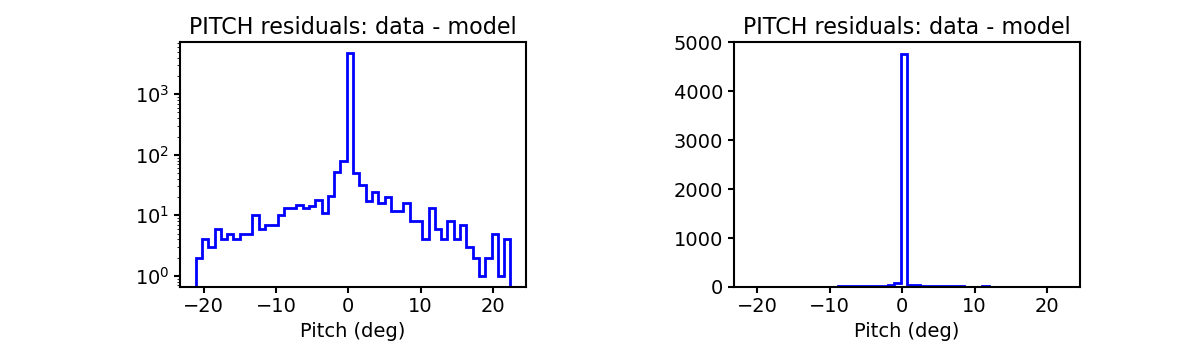

PITCH

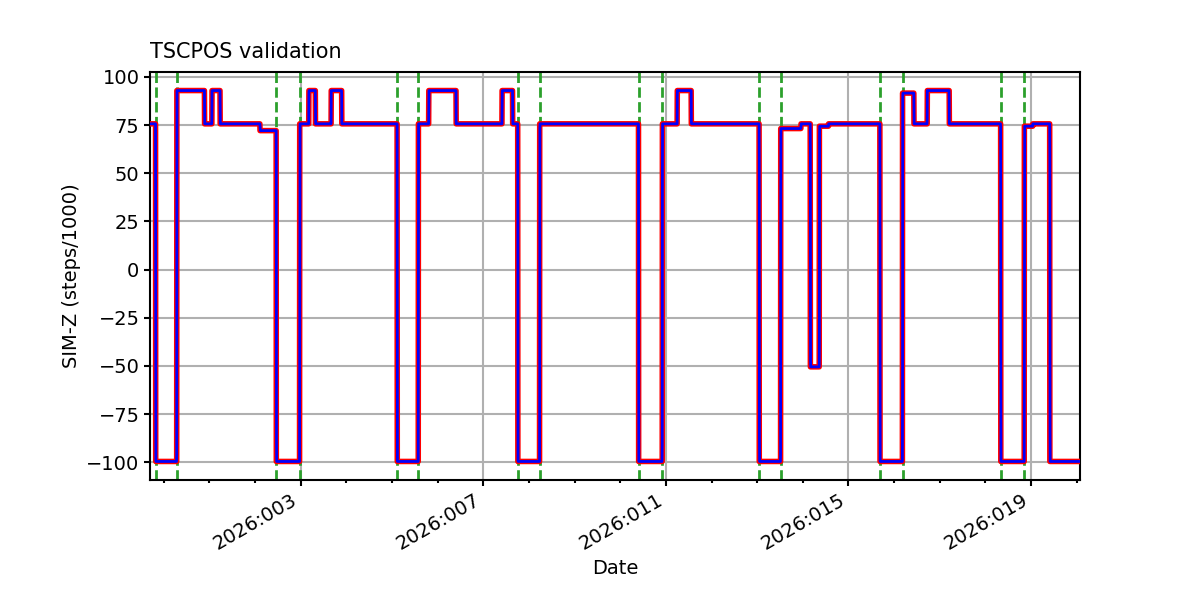

TSCPOS

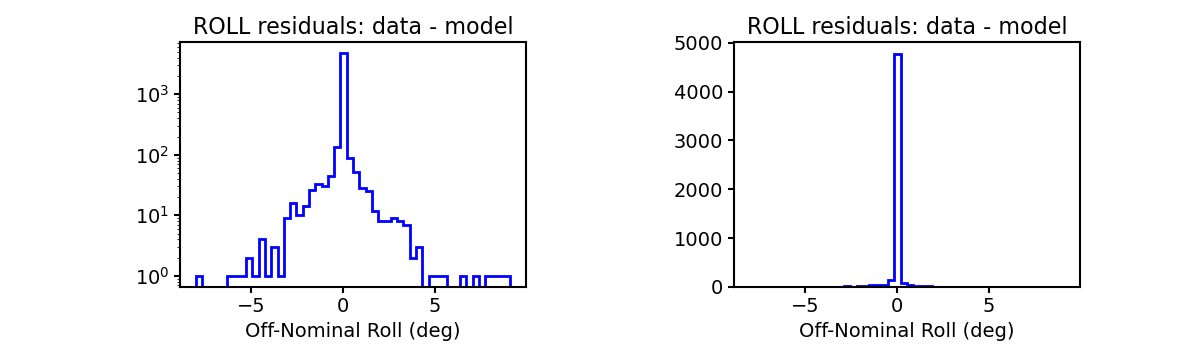

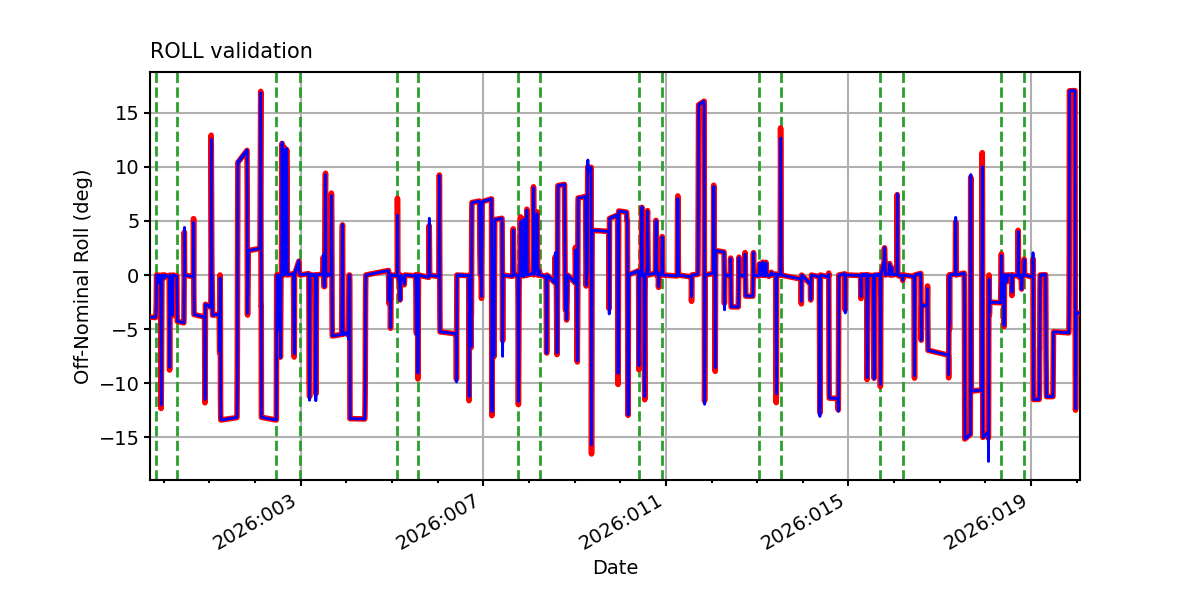

ROLL

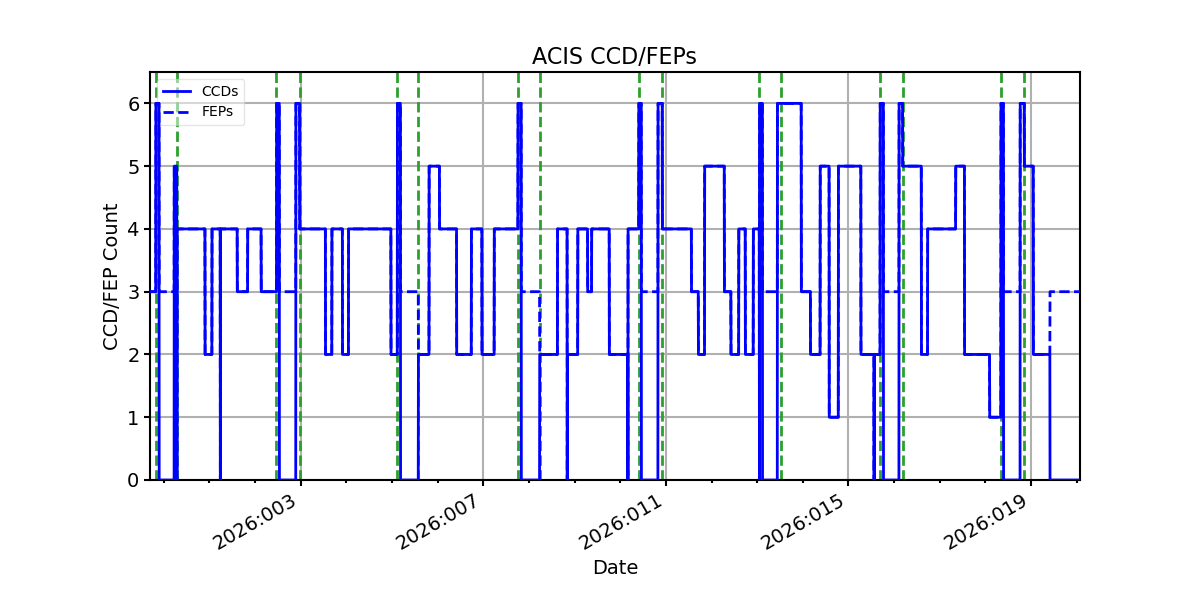

ACIS CCD/FEP Count
