PSMCBT Temperatures Check
Summary
| Date start | 2023:023:10:47:43.216 |
| Date stop | 2023:030:07:38:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/JAN2323/oflsa |
| Run time | Thu Oct 8 16:06:25 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

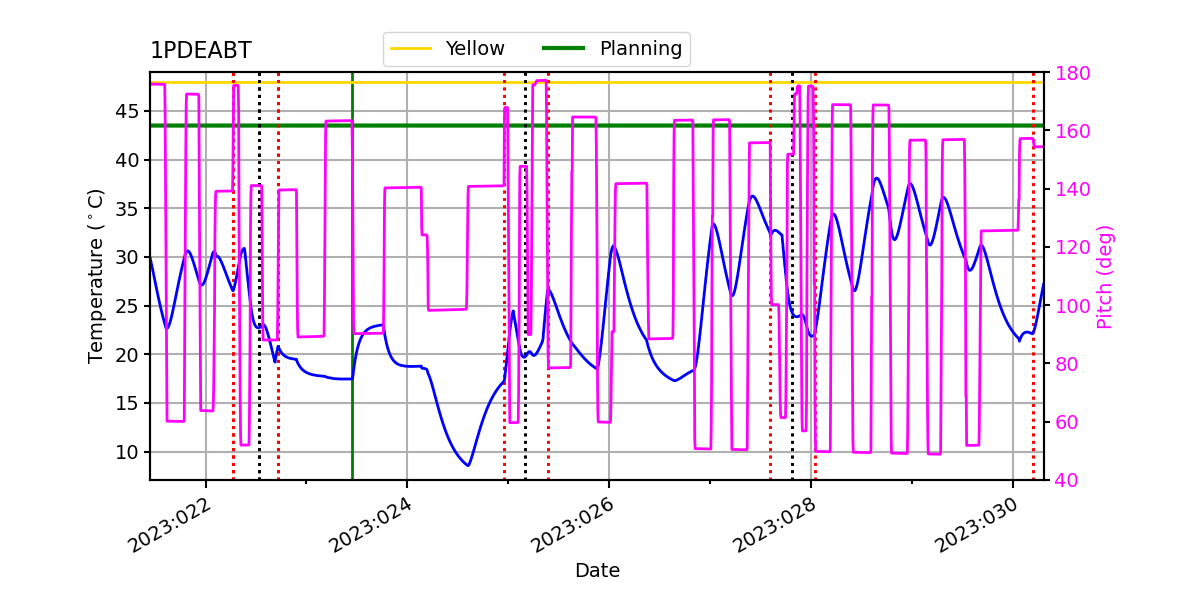

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -4.91 | -2.56 | -1.81 | -0.43 | 1.00 | 1.63 | 2.82 |
| pitch | -9.400 | -0.521 | -0.003 | -0.000 | 0.003 | 0.346 | 10.217 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.620 | -0.089 | -0.003 | -0.000 | 0.003 | 0.084 | 1.699 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -4.91 | 2.50 |
| PITCH | 1 | -9.4 | 3.00 |
| PITCH | 99 | 10.217 | 3.00 |

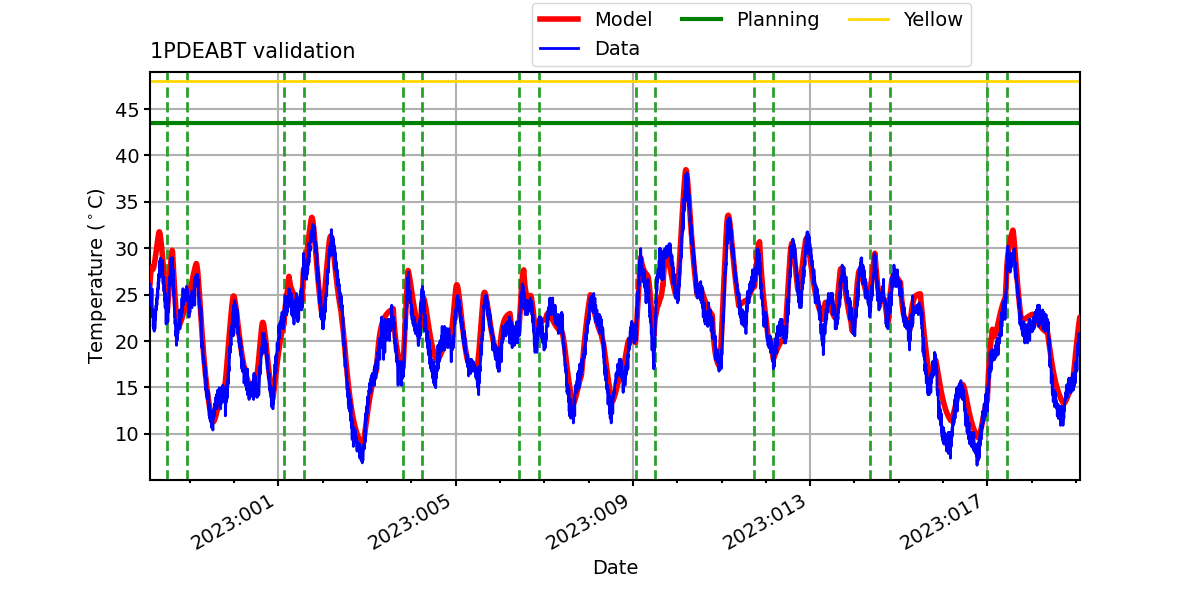

1PDEABT

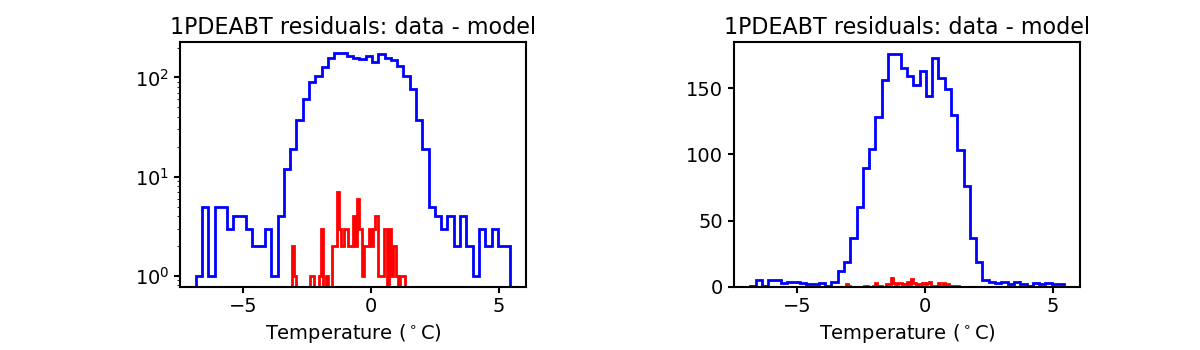

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

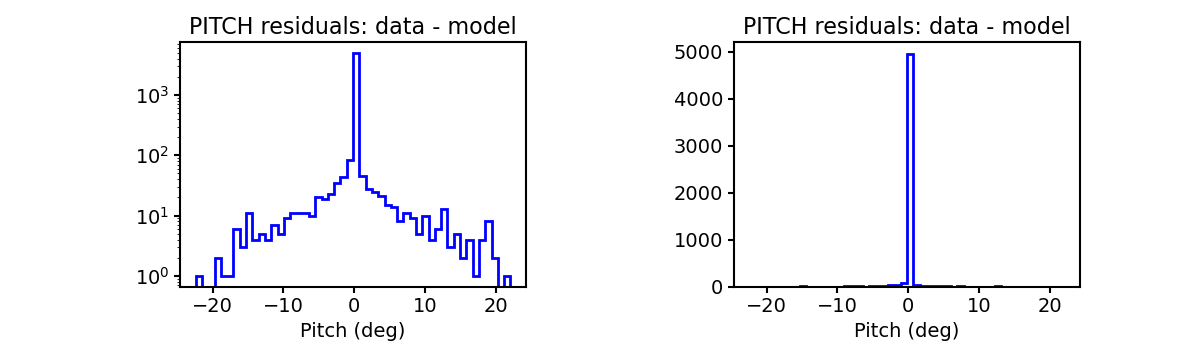

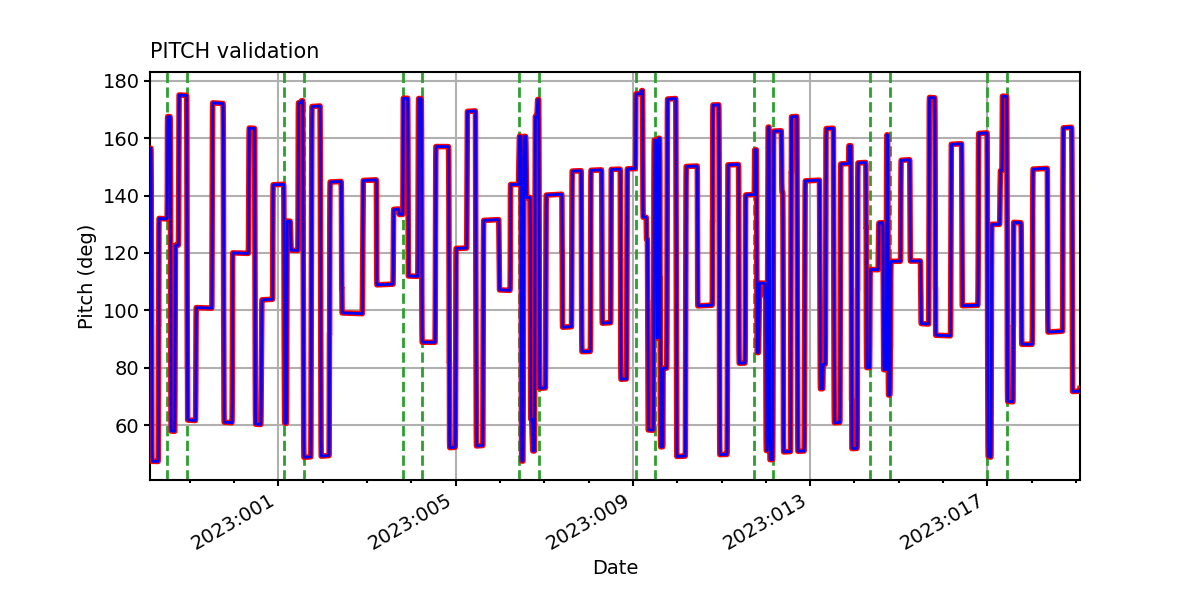

PITCH

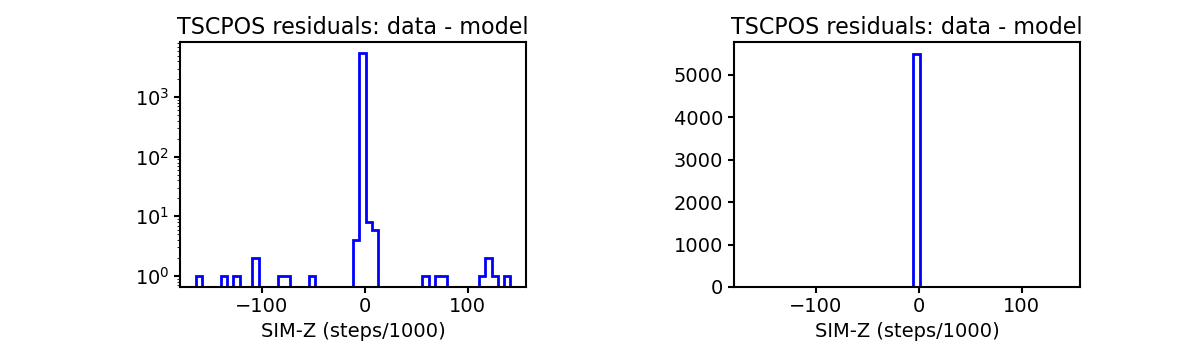

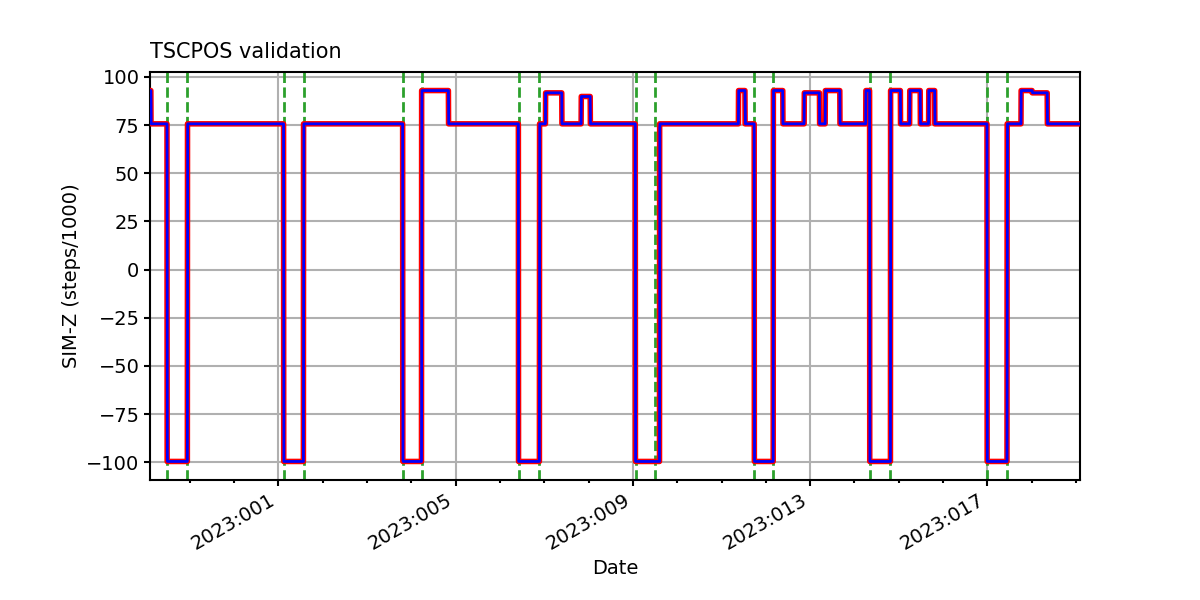

TSCPOS

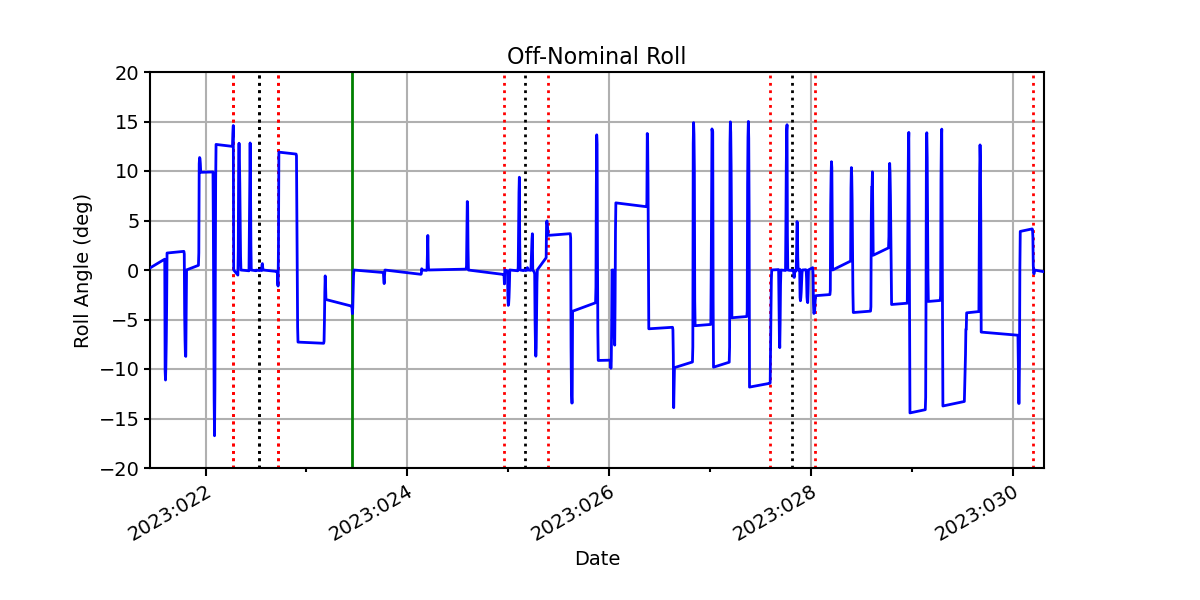

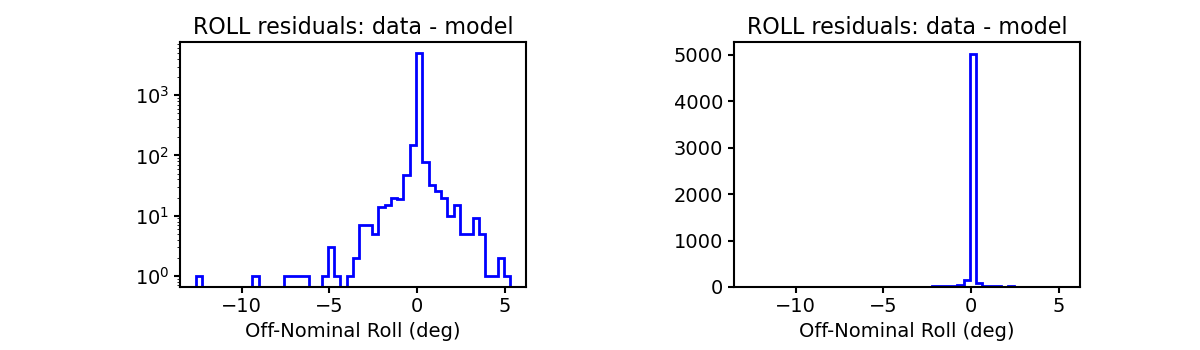

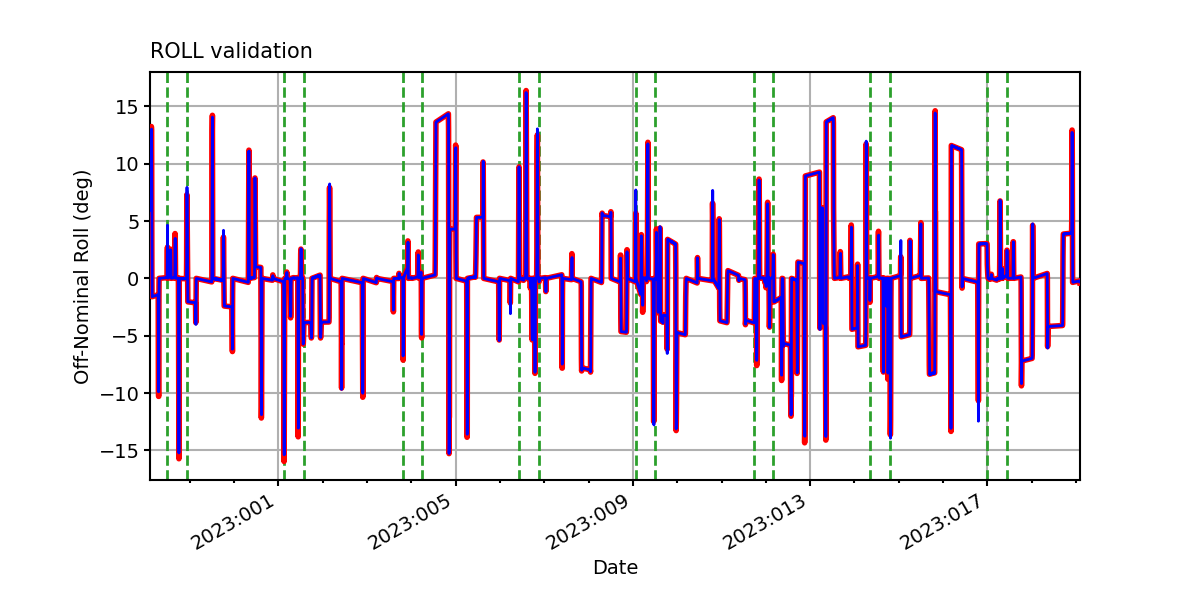

ROLL

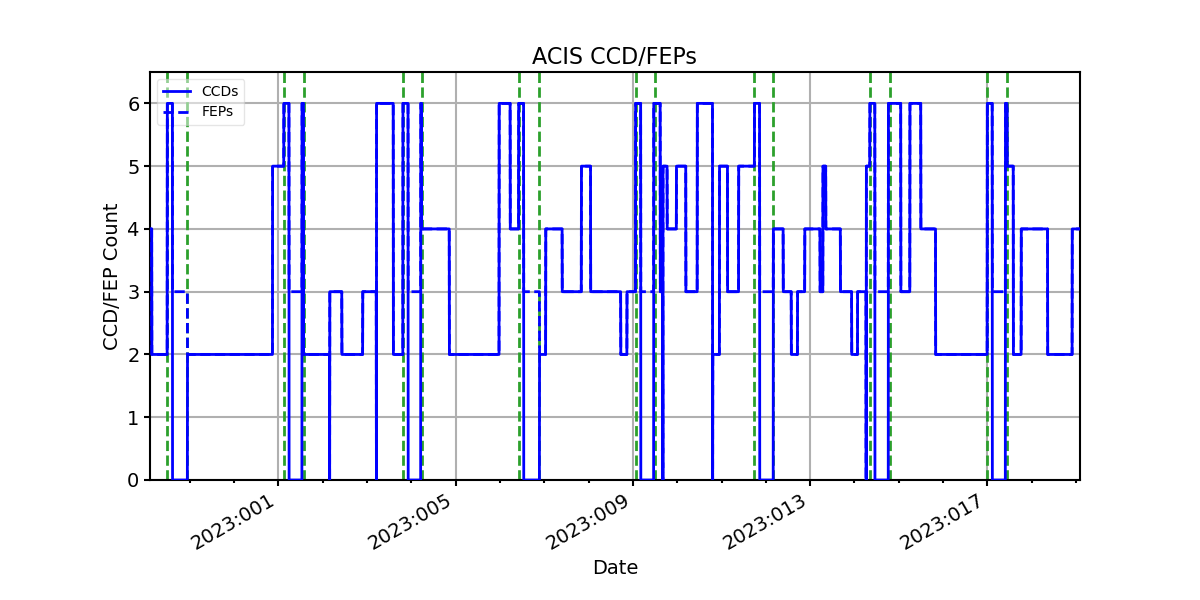

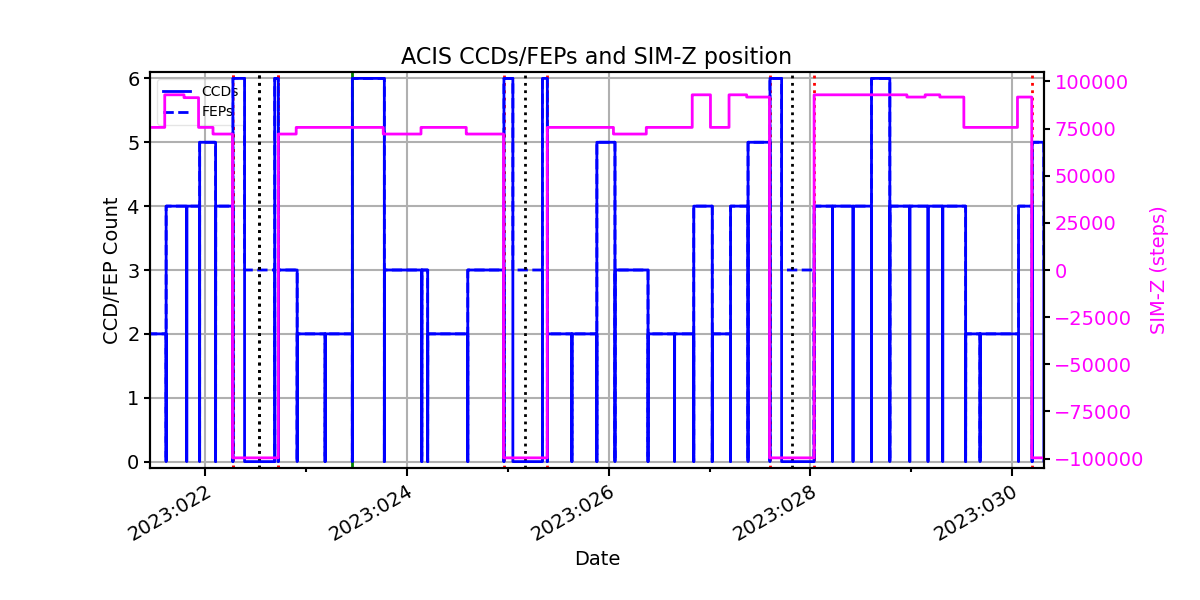

ACIS CCD/FEP Count
