PSMCBT Temperatures Check
Summary
| Date start | 2024:023:14:57:00.016 |
| Date stop | 2024:029:01:21:43.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/JAN2324/oflsb |
| Run time | Thu Oct 8 16:06:26 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.93 | -2.38 | -1.69 | -0.29 | 1.01 | 1.63 | 2.09 |
| pitch | -9.070 | -1.320 | -0.004 | -0.000 | 0.004 | 0.662 | 10.551 |
| tscpos | -1 | -1 | -1 | 0 | 1 | 1 | 1 |
| roll | -1.599 | -0.143 | -0.008 | 0.000 | 0.010 | 0.232 | 1.796 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.93 | 2.50 |
| PITCH | 1 | -9.07 | 3.00 |
| PITCH | 99 | 10.551 | 3.00 |

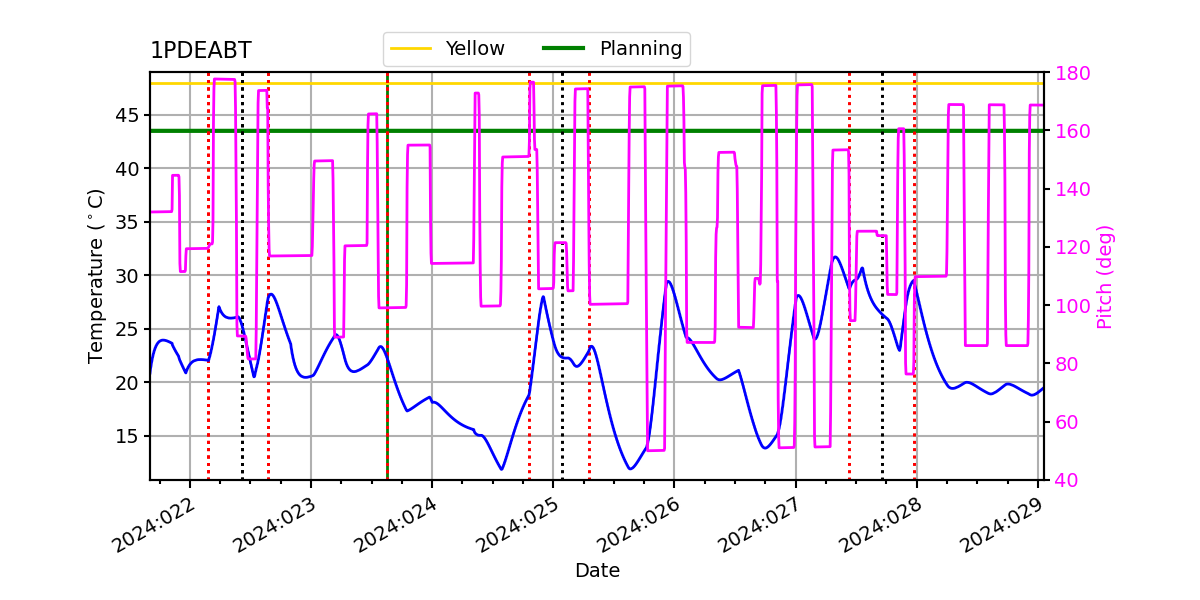

1PDEABT
Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

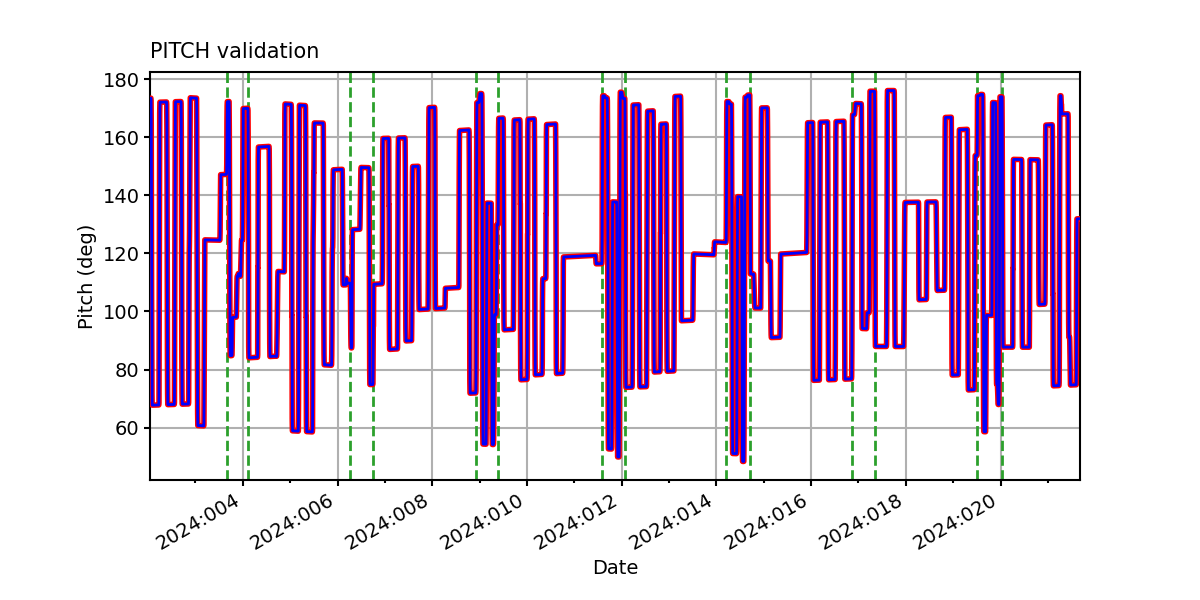

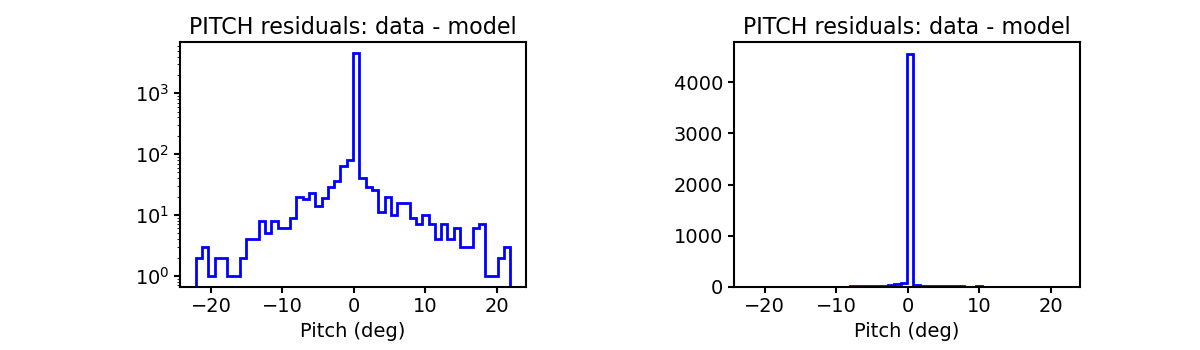

PITCH
TSCPOS

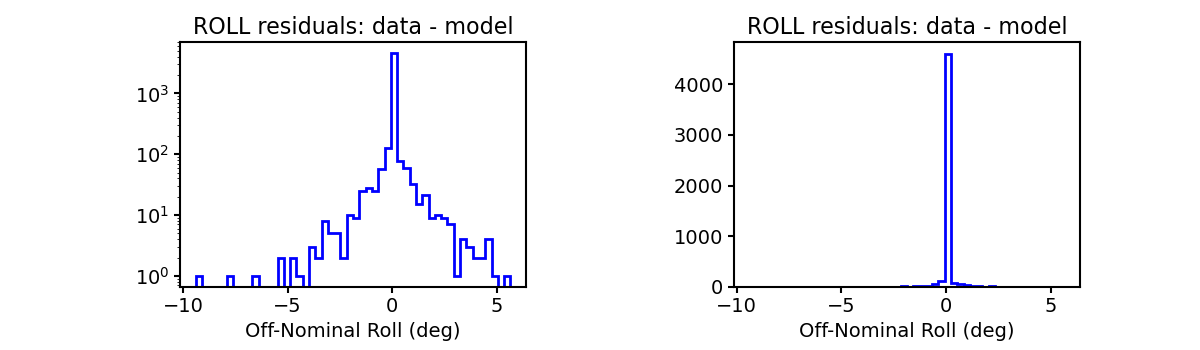

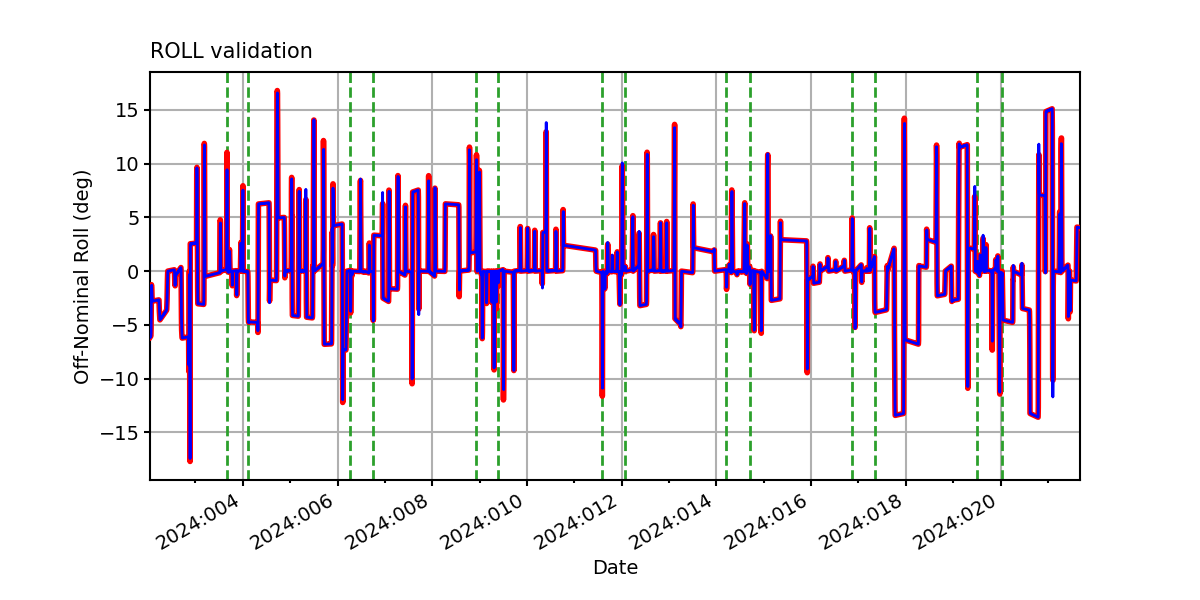

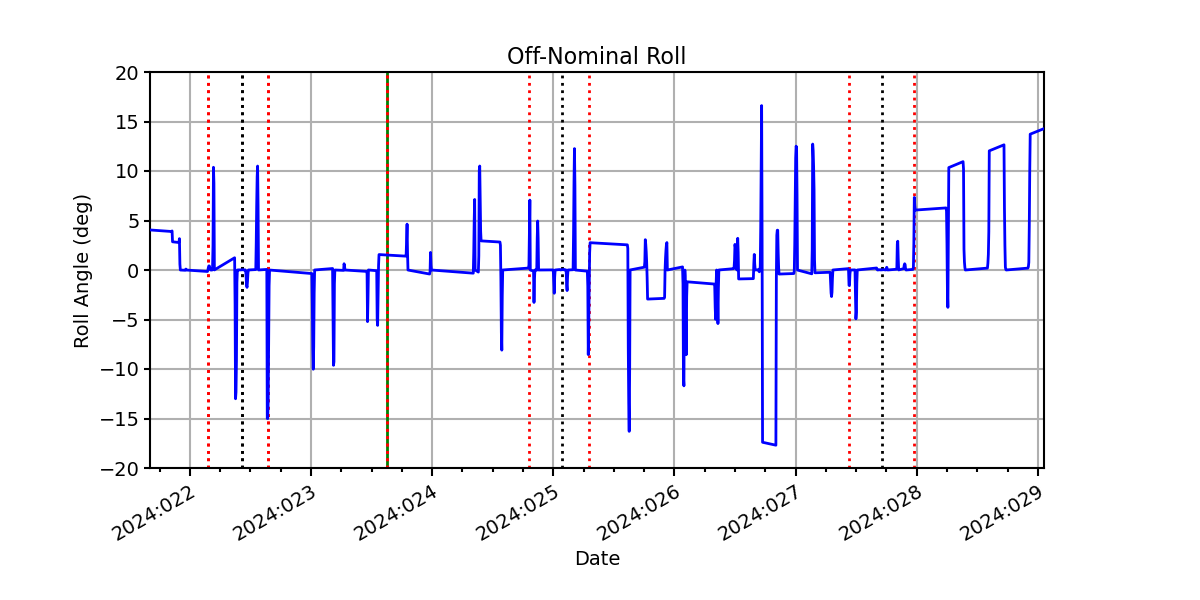

ROLL

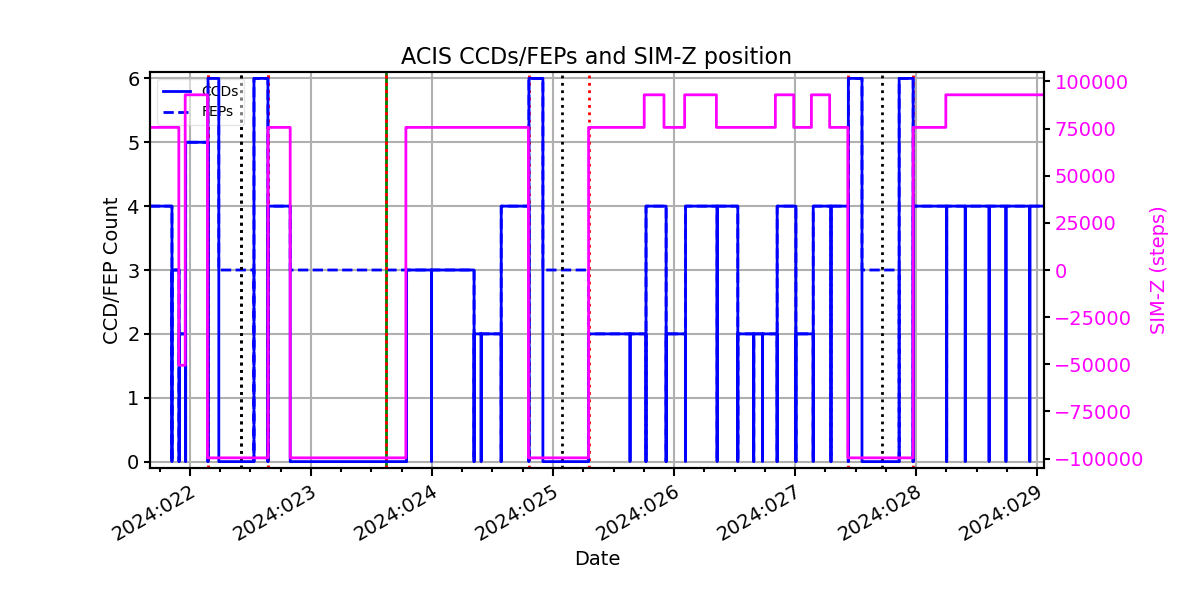

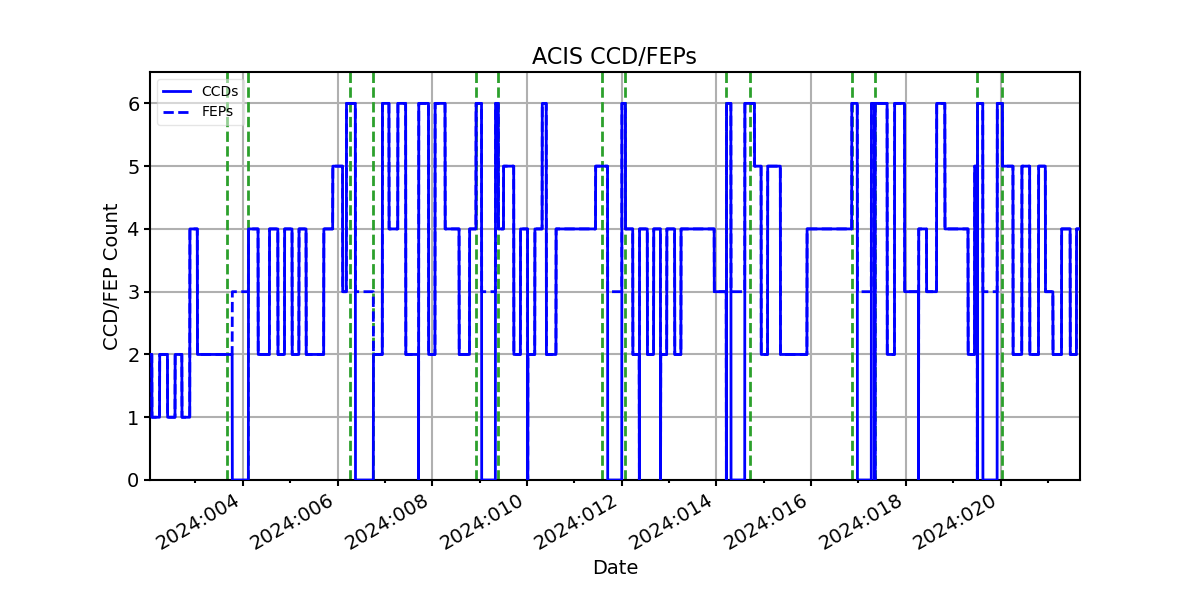

ACIS CCD/FEP Count
