PSMCBT Temperatures Check
Summary
| Date start | 2024:026:14:31:52.416 |
| Date stop | 2024:029:00:08:52.616 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/JAN2624/oflsa |
| Run time | Thu Oct 8 16:06:26 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.08 | -2.36 | -1.66 | -0.36 | 0.89 | 1.62 | 2.17 |
| pitch | -9.021 | -1.002 | -0.004 | 0.000 | 0.004 | 1.058 | 9.869 |
| tscpos | -1 | -1 | -1 | 0 | 1 | 1 | 1 |
| roll | -1.559 | -0.110 | -0.007 | 0.000 | 0.013 | 0.742 | 2.676 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.08 | 2.50 |
| PITCH | 1 | -9.021 | 3.00 |
| PITCH | 99 | 9.869 | 3.00 |

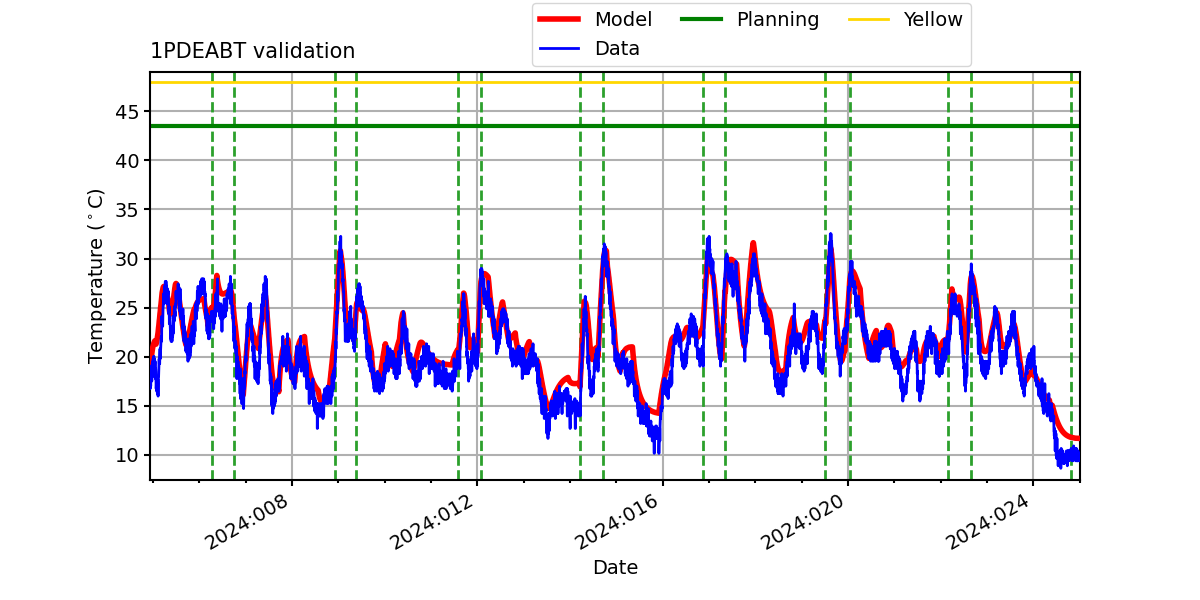

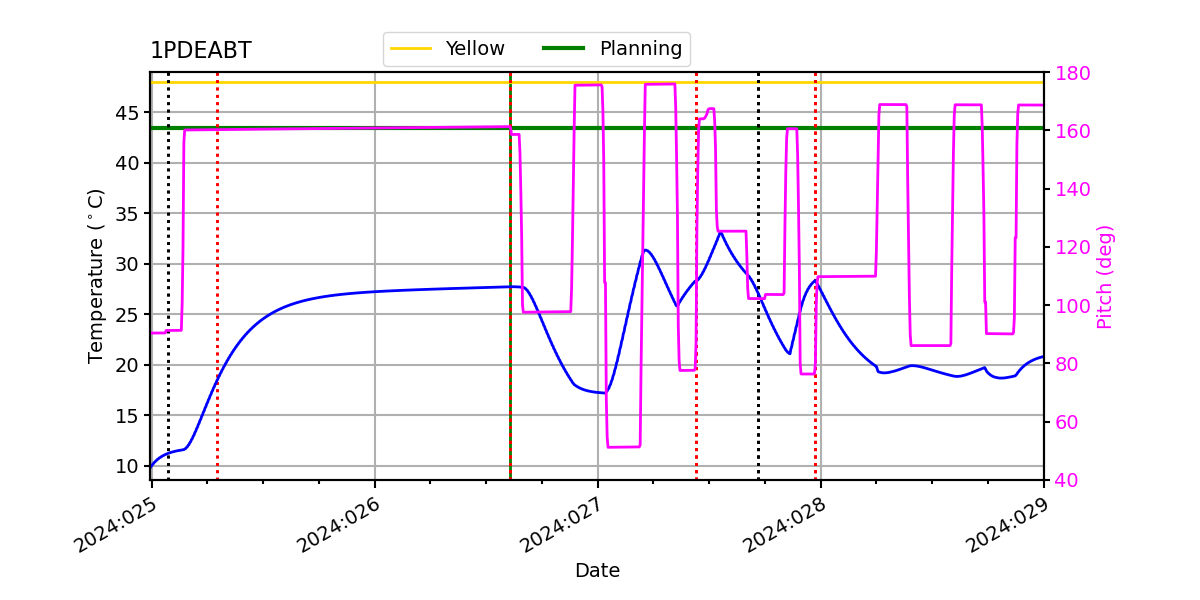

1PDEABT

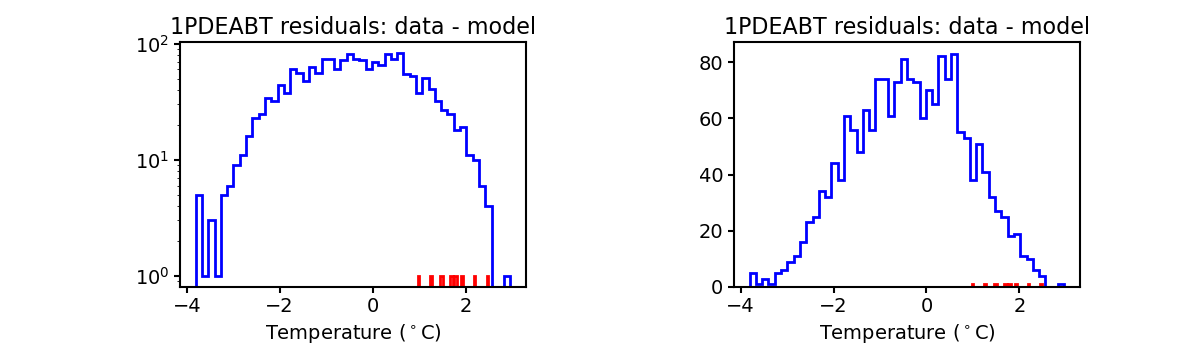

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

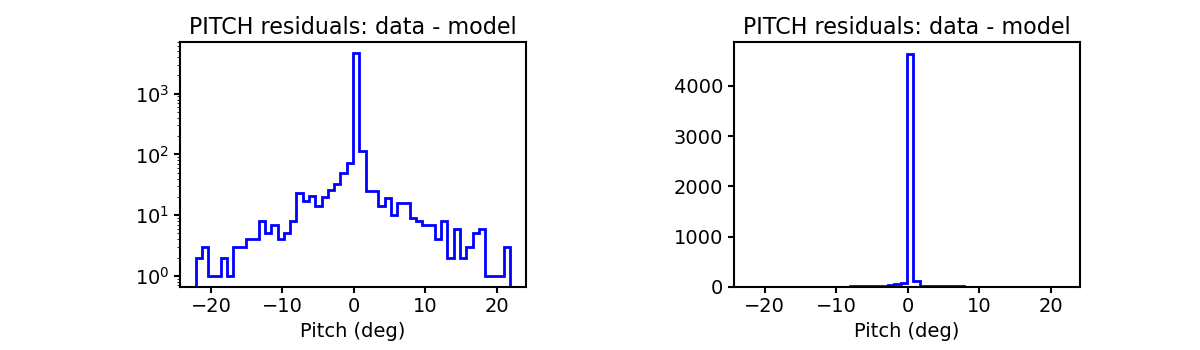

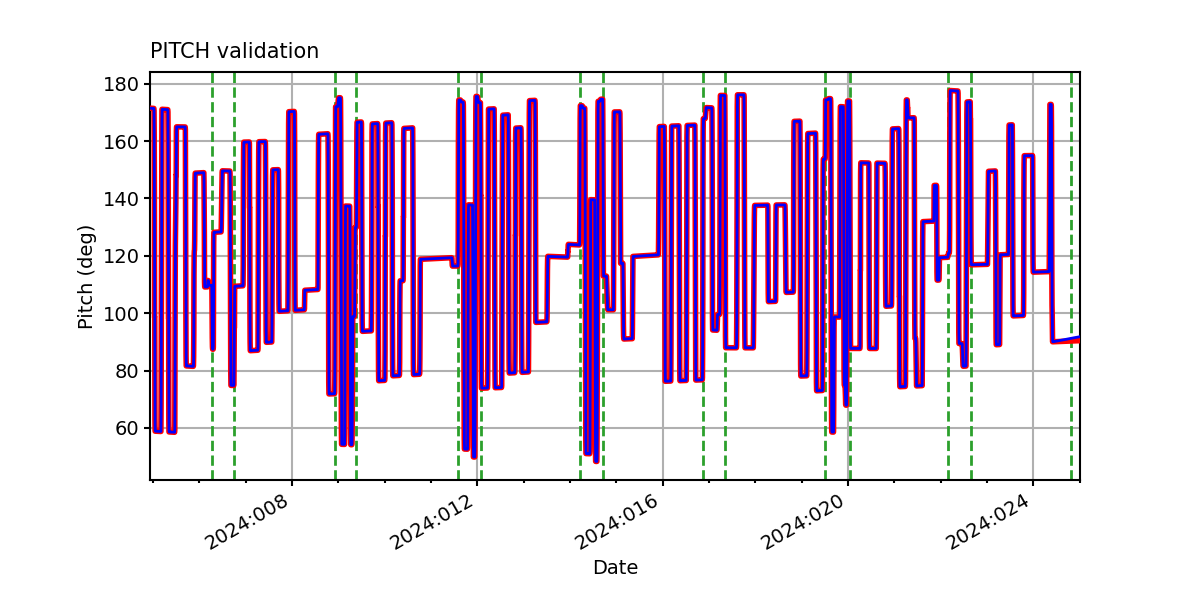

PITCH

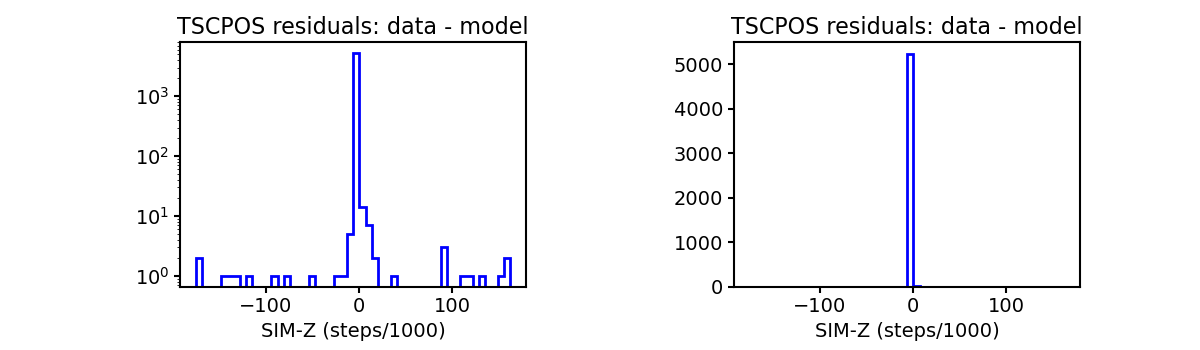

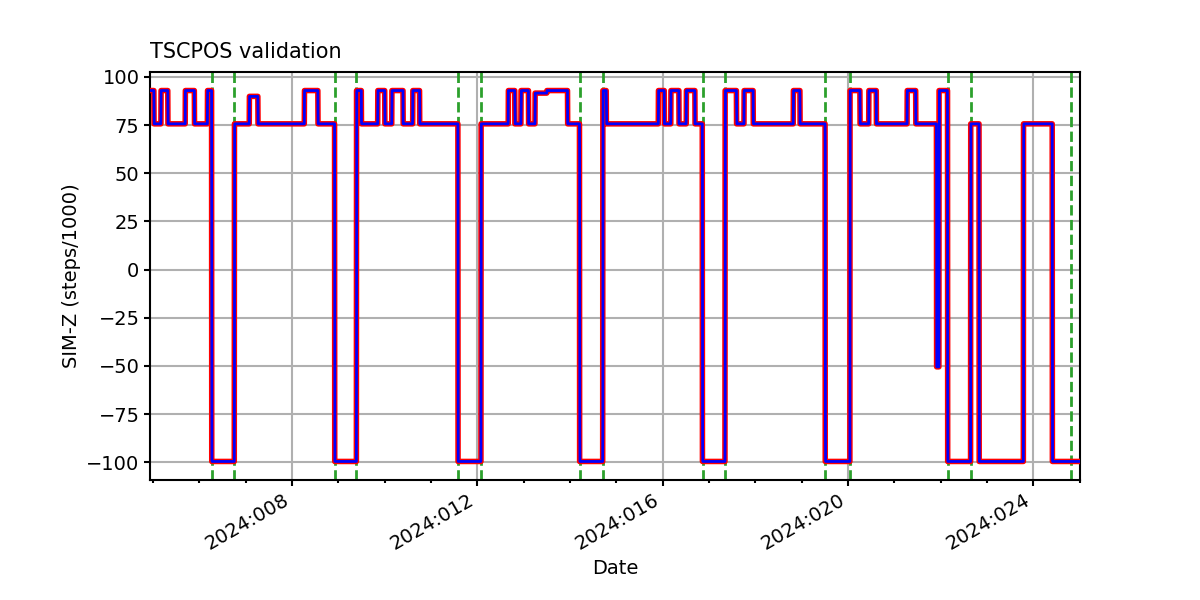

TSCPOS

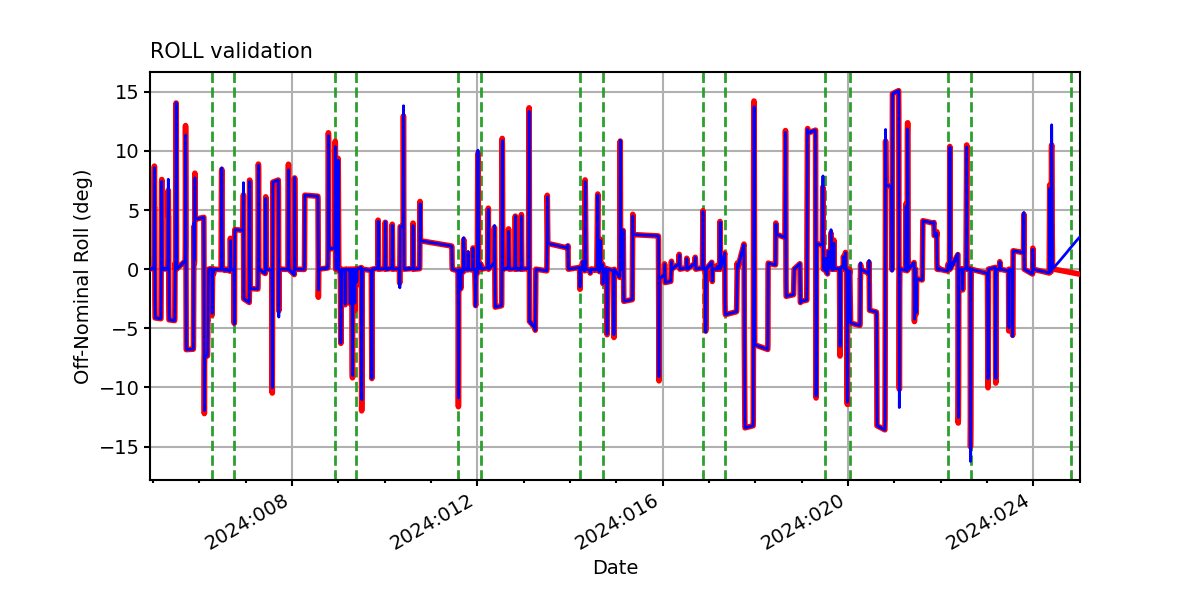

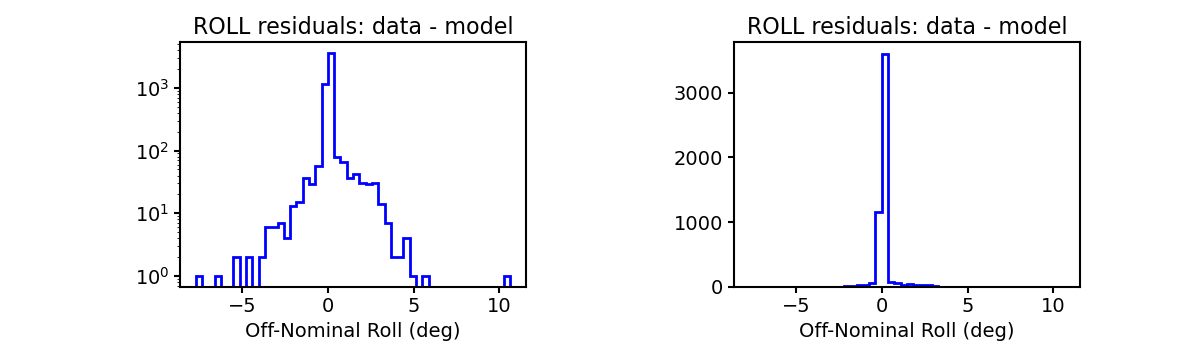

ROLL

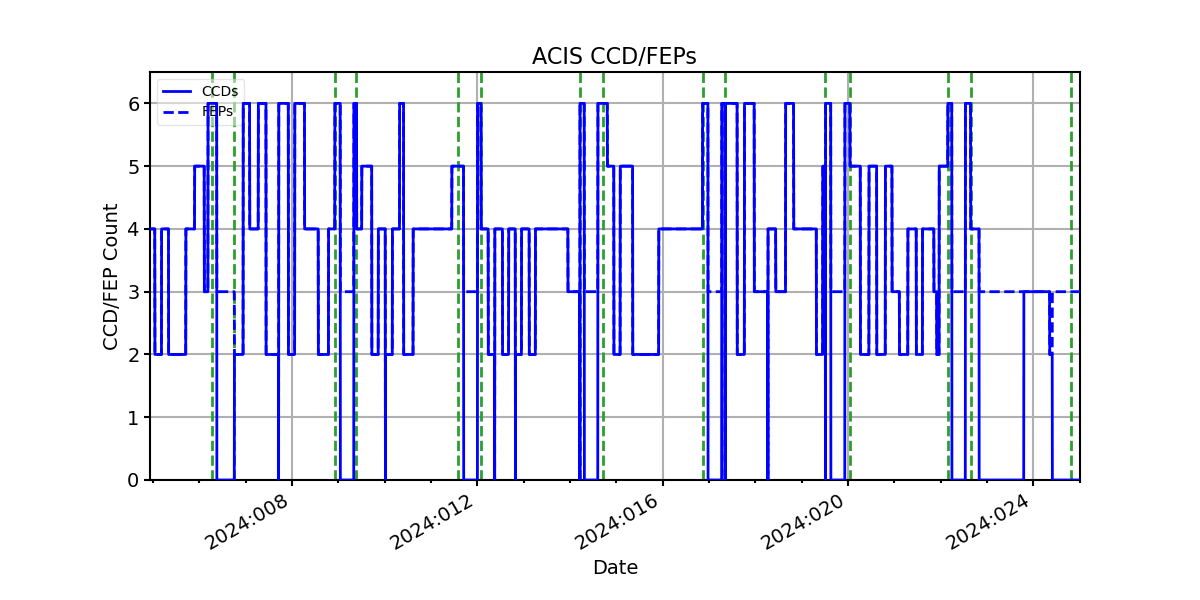

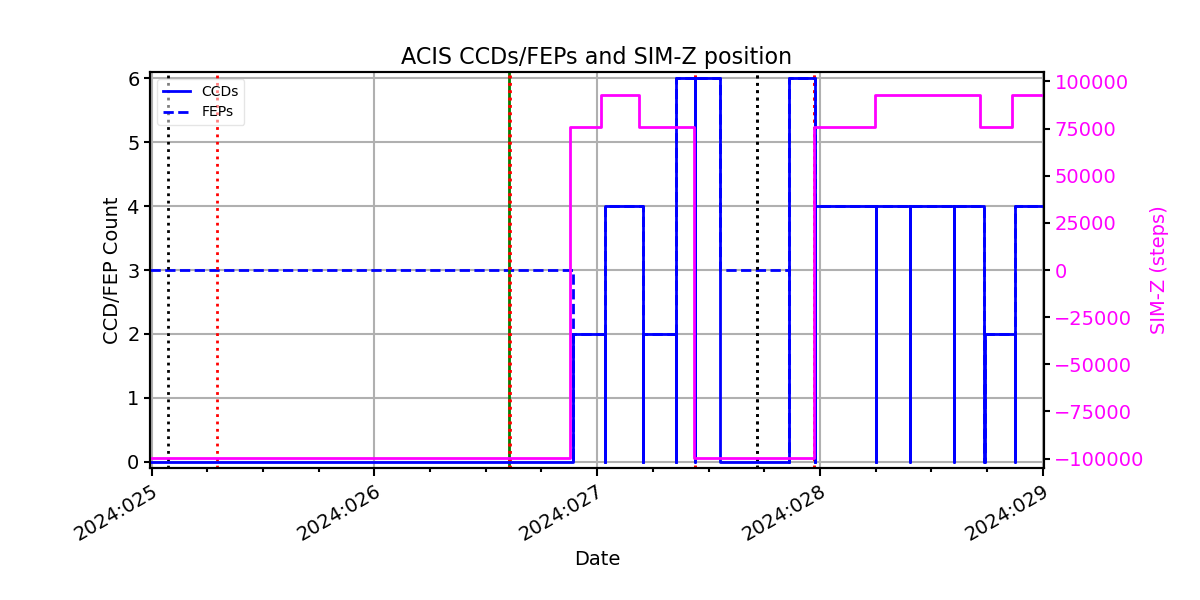

ACIS CCD/FEP Count
