PSMCBT Temperatures Check
Summary
| Date start | 2025:026:10:00:00.016 |
| Date stop | 2025:033:20:57:05.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/JAN2725/oflsa |
| Run time | Thu Oct 8 16:06:25 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.49 | -1.60 | -0.75 | 0.56 | 1.77 | 2.37 | 2.87 |
| pitch | -9.965 | -0.688 | -0.004 | -0.000 | 0.004 | 0.694 | 10.254 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.803 | -0.183 | -0.008 | 0.000 | 0.008 | 0.193 | 1.776 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -9.965 | 3.00 |
| PITCH | 99 | 10.254 | 3.00 |

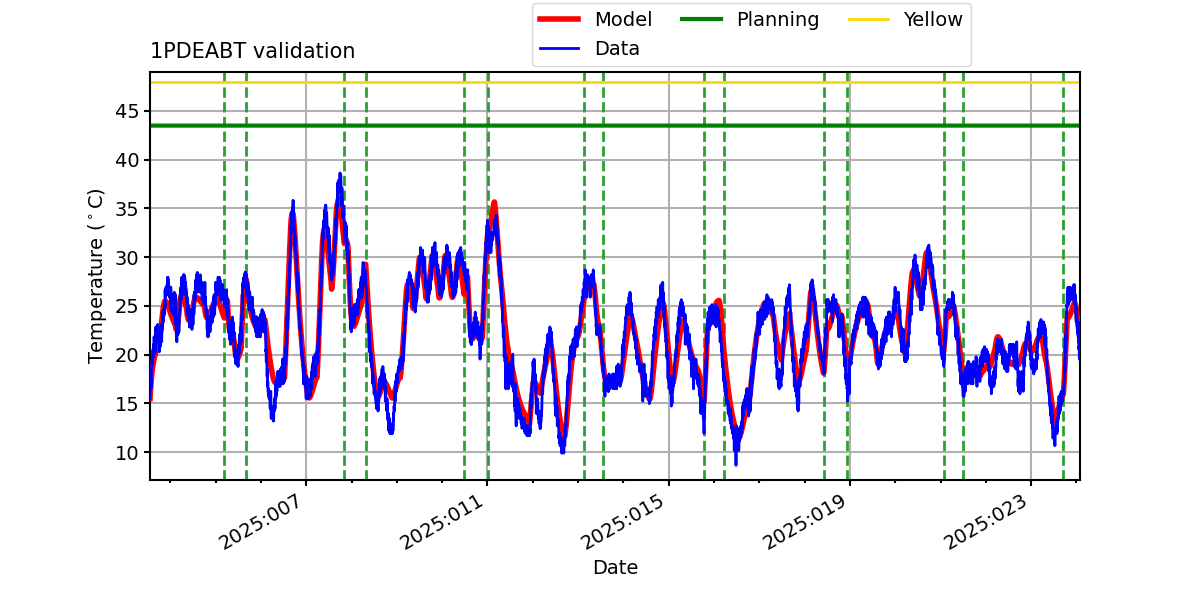

1PDEABT

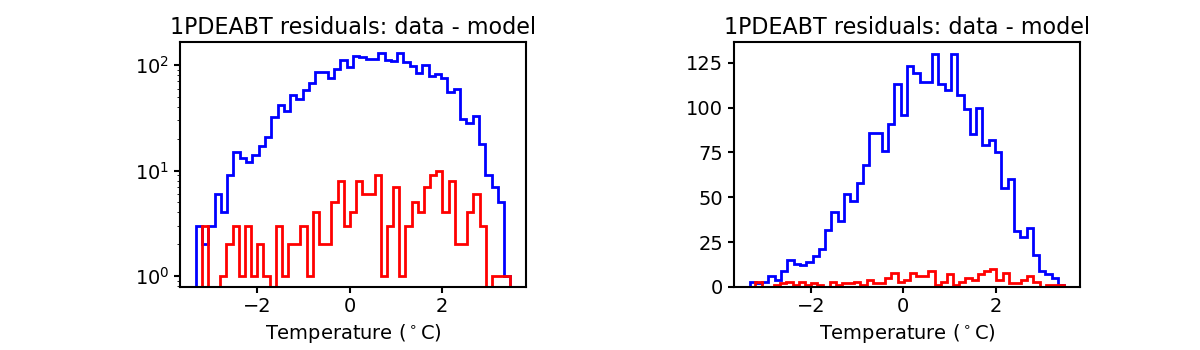

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

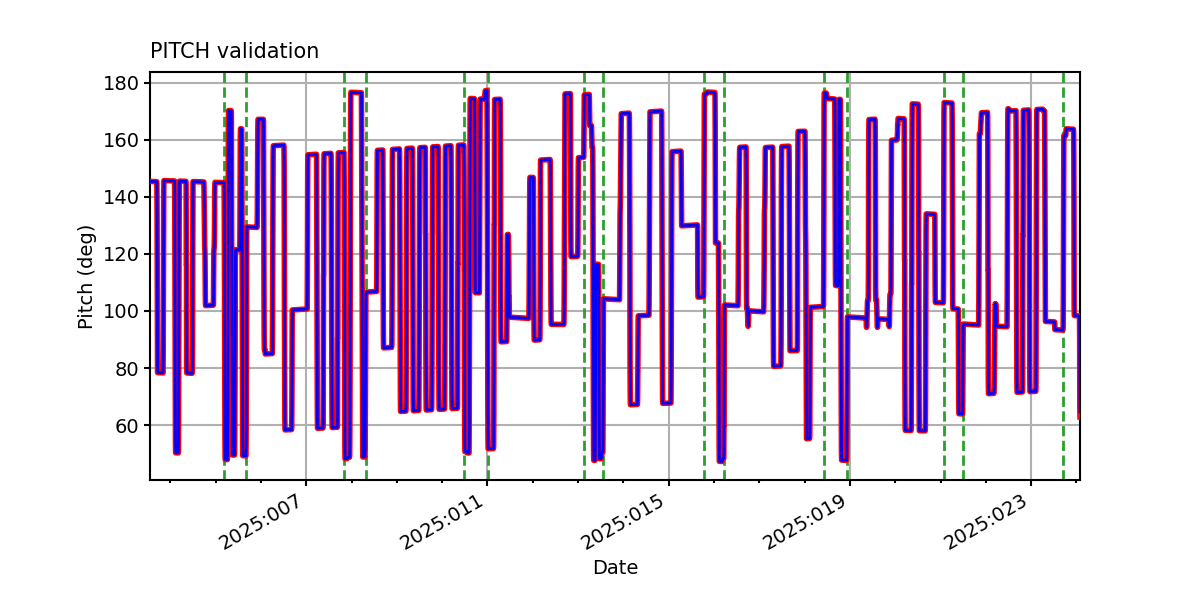

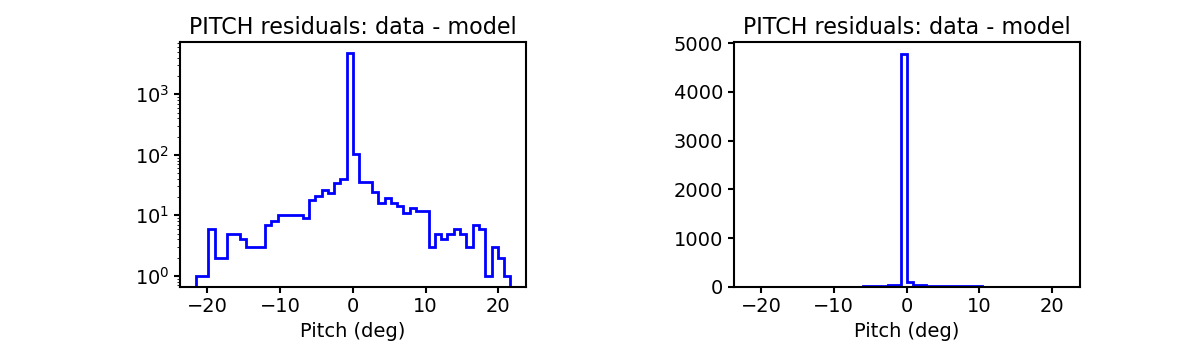

PITCH

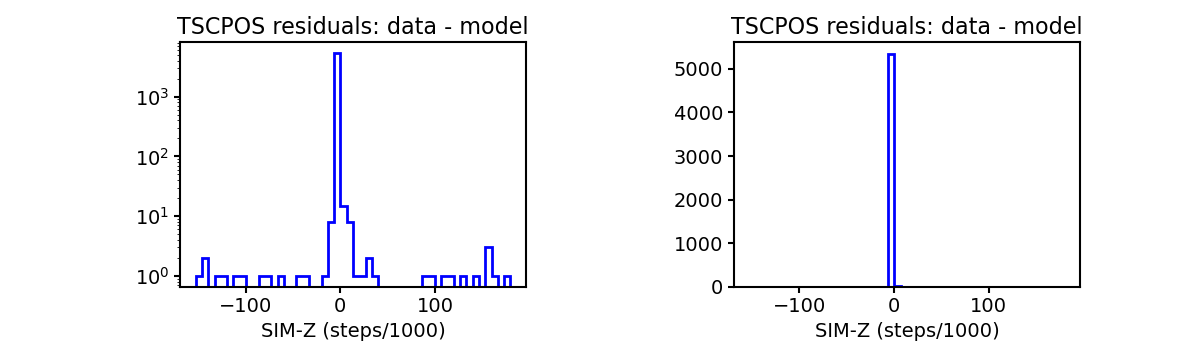

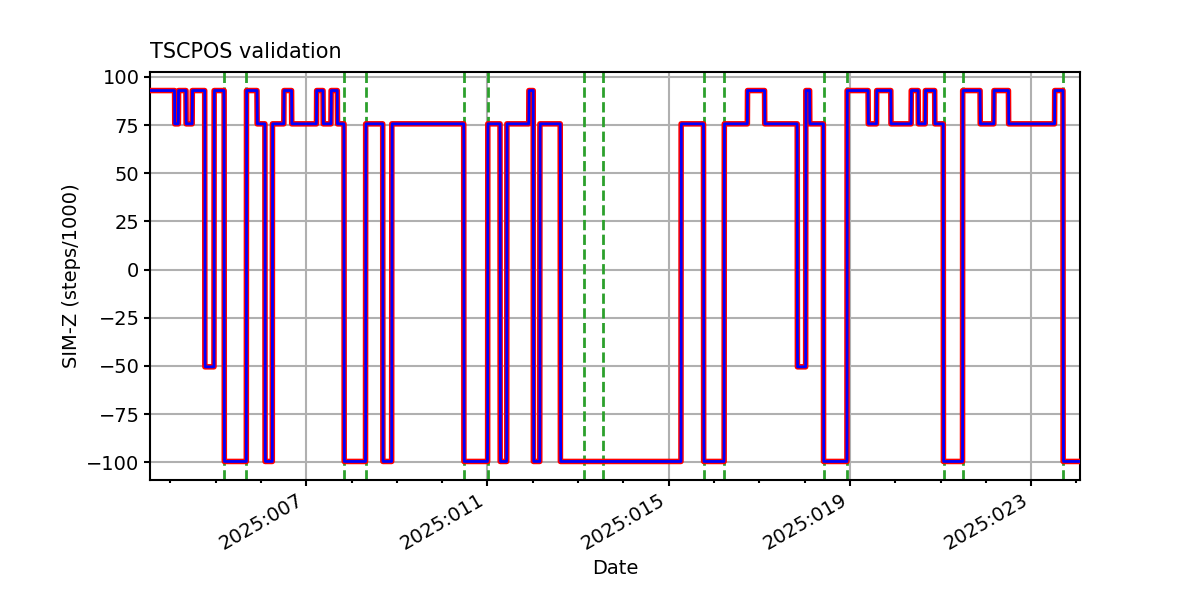

TSCPOS

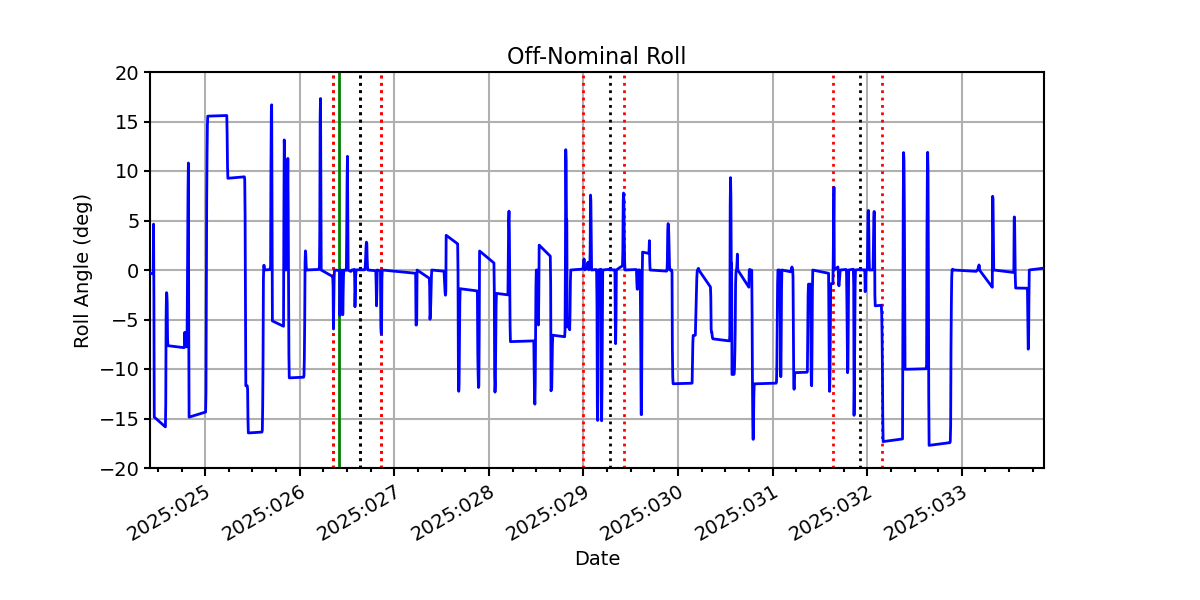

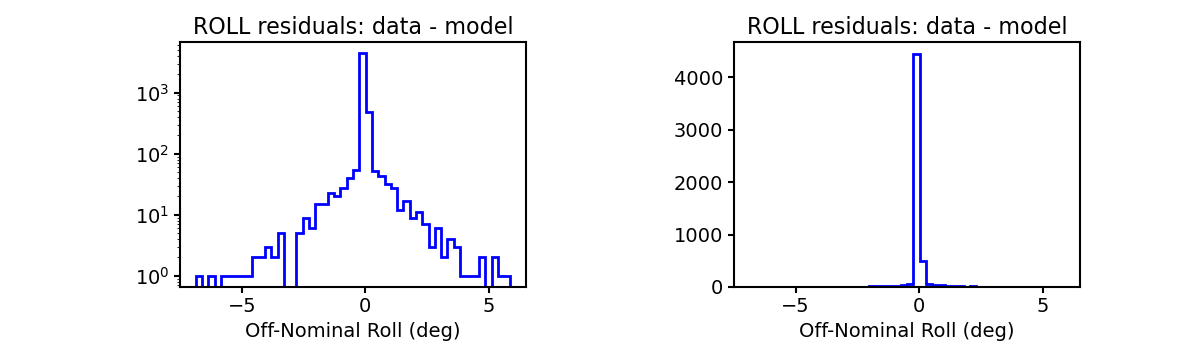

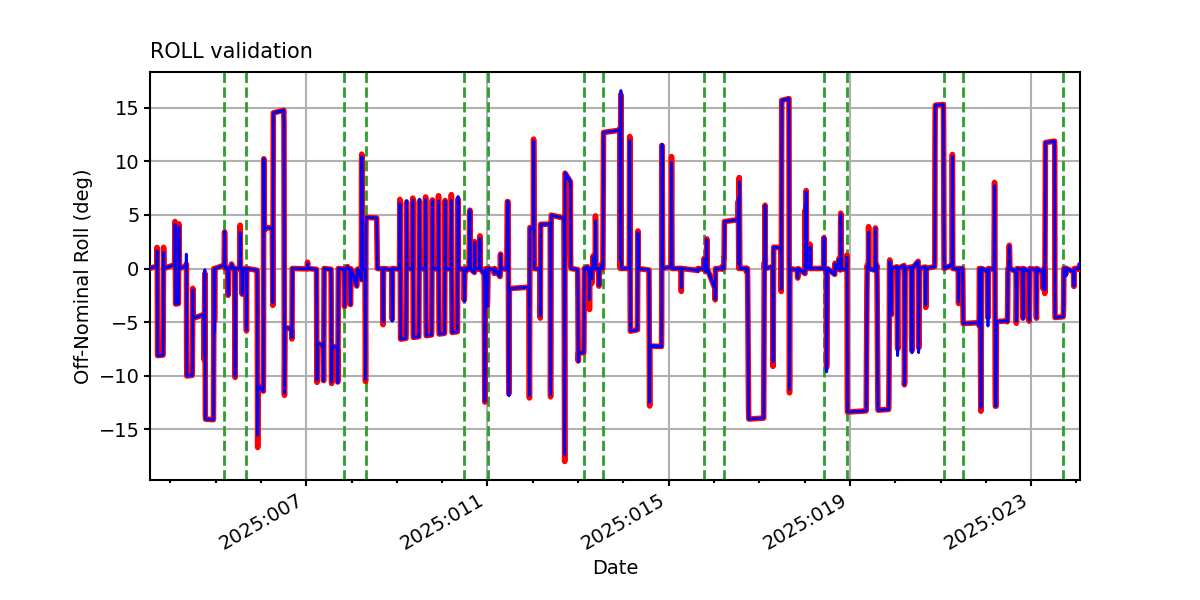

ROLL

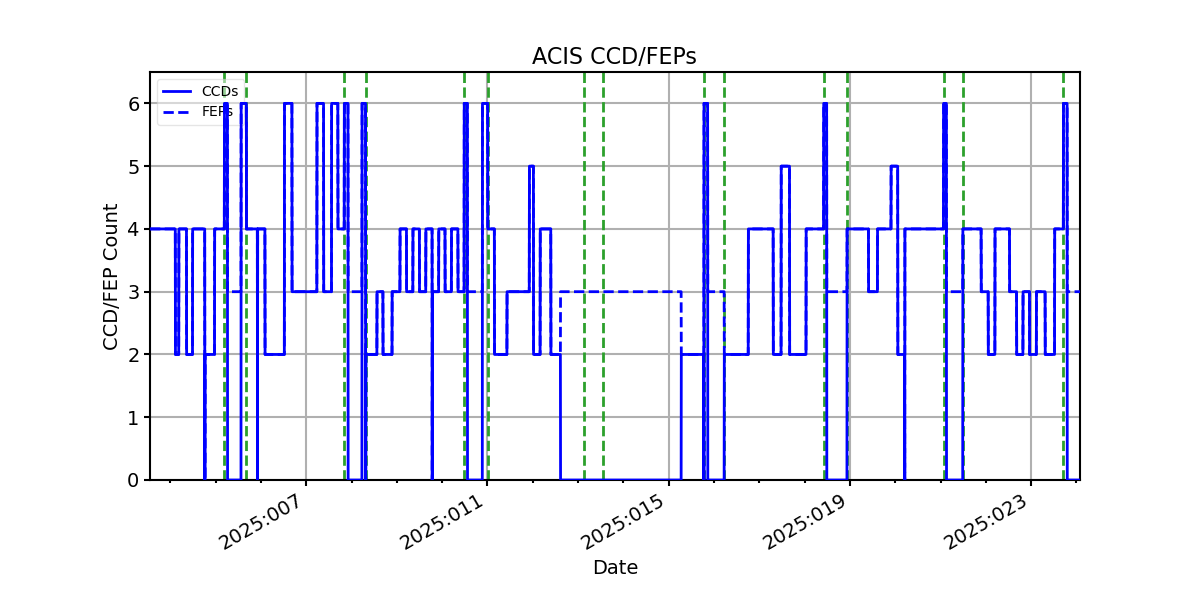

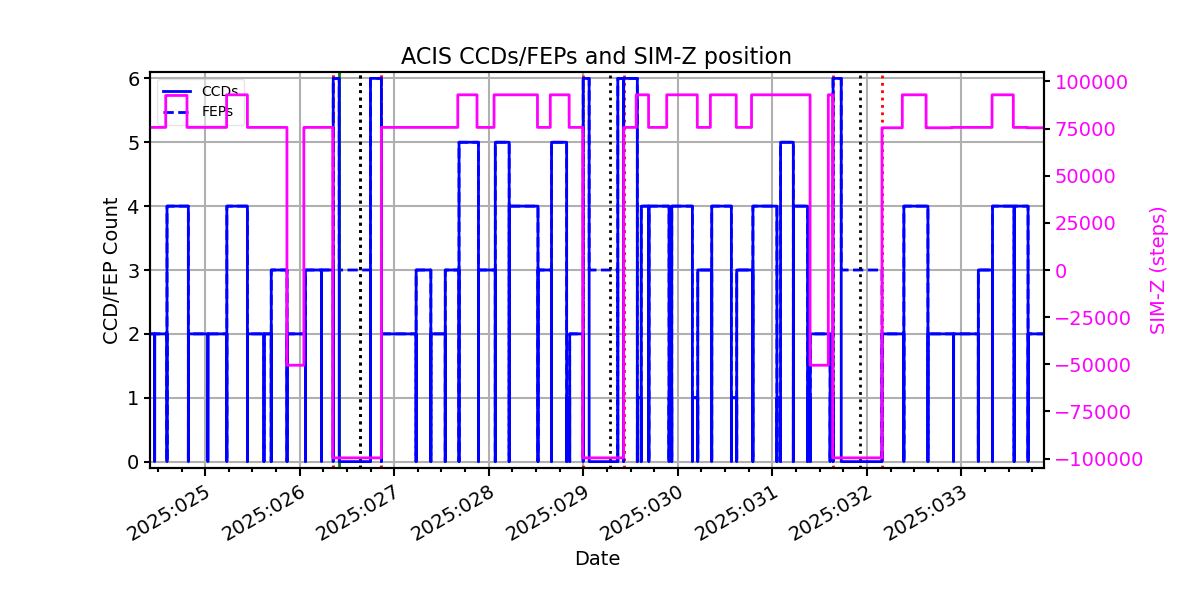

ACIS CCD/FEP Count
