PSMCBT Temperatures Check
Summary
| Date start | 2024:029:00:05:52.616 |
| Date stop | 2024:036:00:48:18.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/JAN2924/oflsa |
| Run time | Thu Oct 8 16:06:55 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.90 | -2.31 | -1.58 | -0.26 | 0.95 | 1.66 | 2.26 |
| pitch | -8.836 | -0.908 | -0.004 | 0.000 | 0.004 | 1.170 | 9.243 |
| tscpos | -1 | -1 | -1 | 0 | 1 | 1 | 1 |
| roll | -1.484 | -0.092 | -0.006 | 0.000 | 0.017 | 1.720 | 10.386 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.9 | 2.50 |
| PITCH | 1 | -8.836 | 3.00 |
| PITCH | 99 | 9.243 | 3.00 |

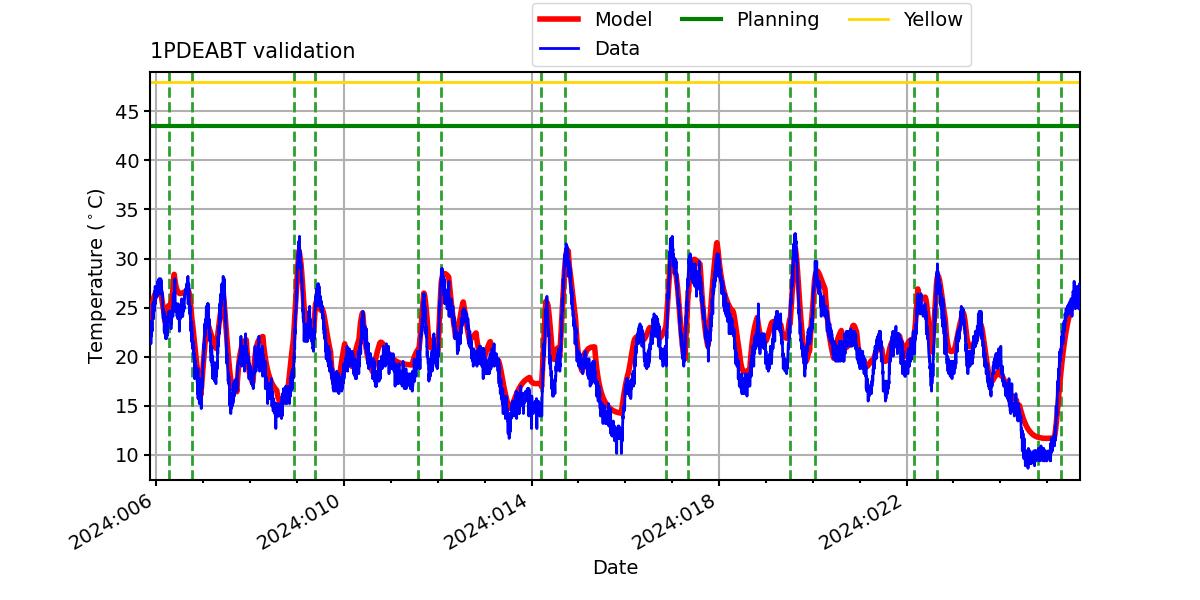

1PDEABT

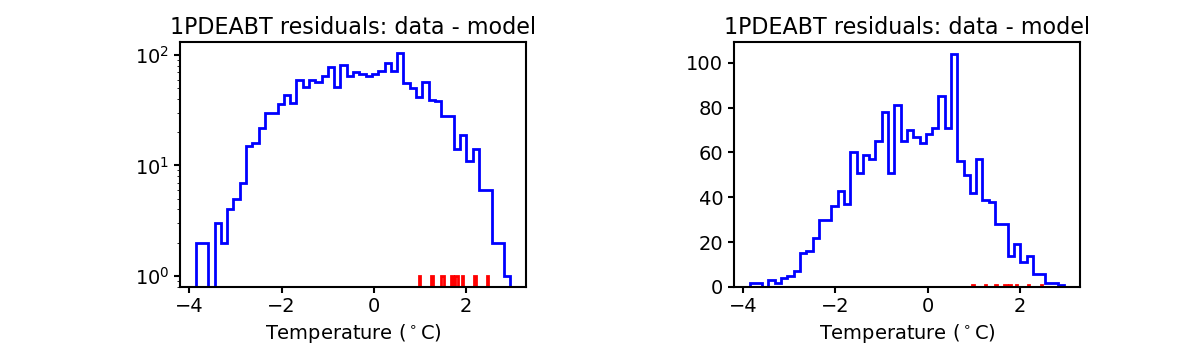

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

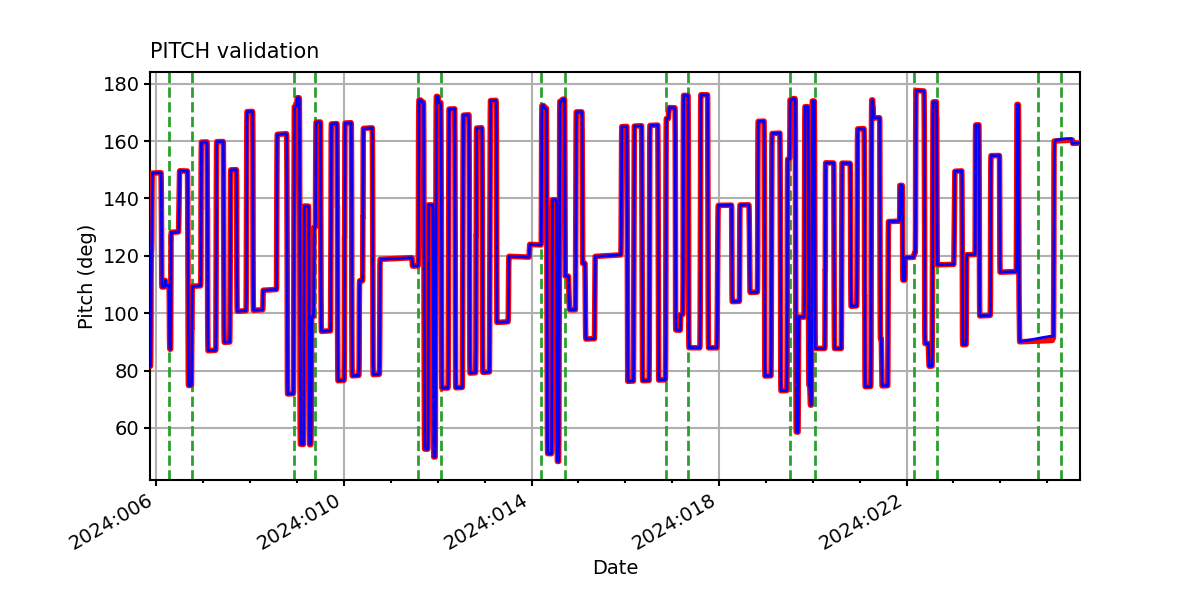

PITCH

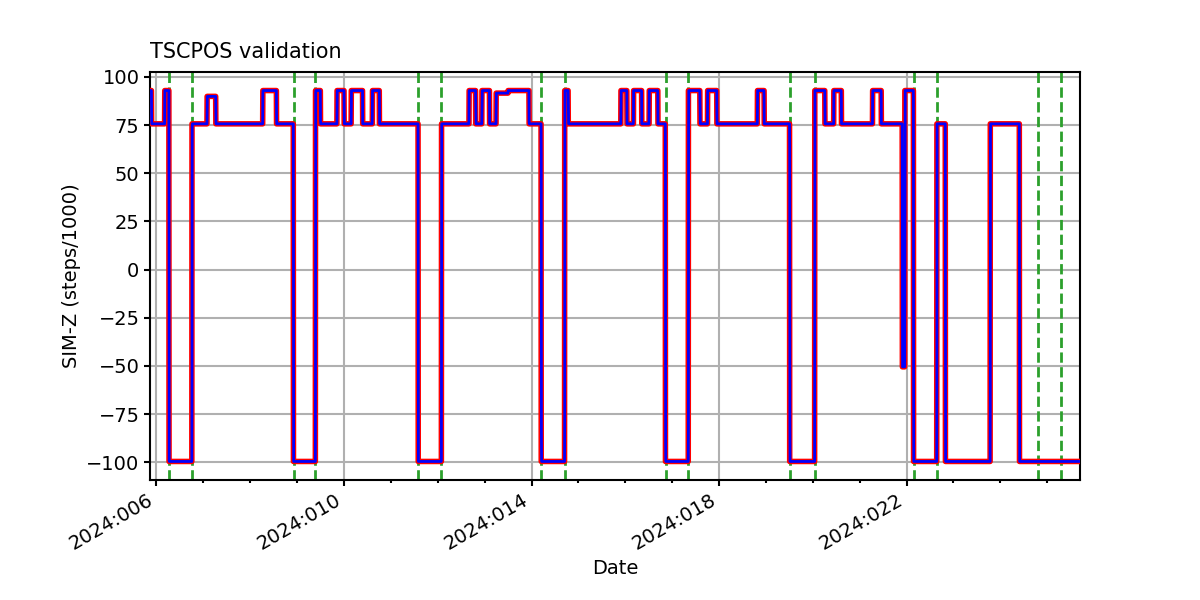

TSCPOS

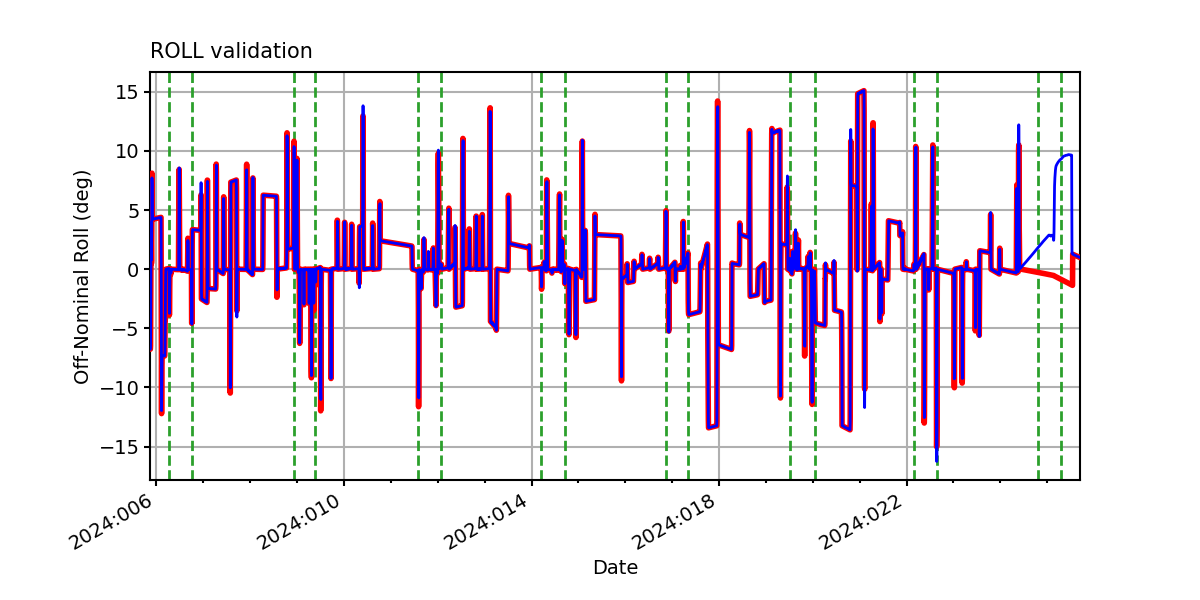

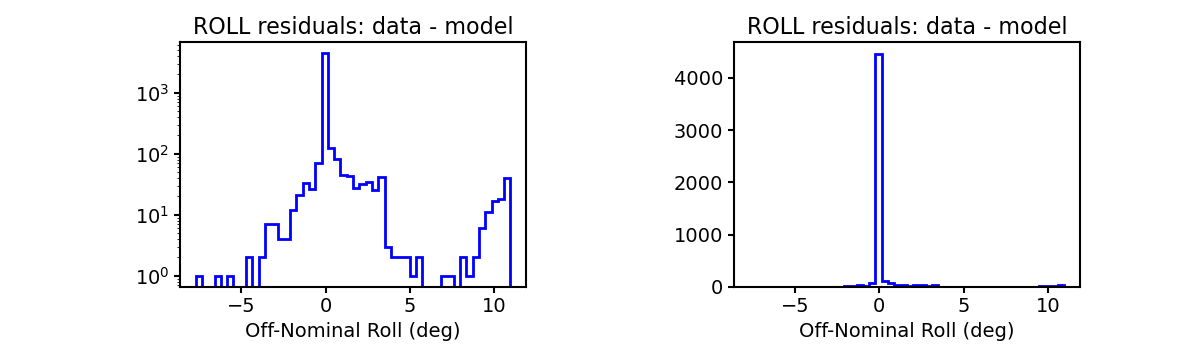

ROLL

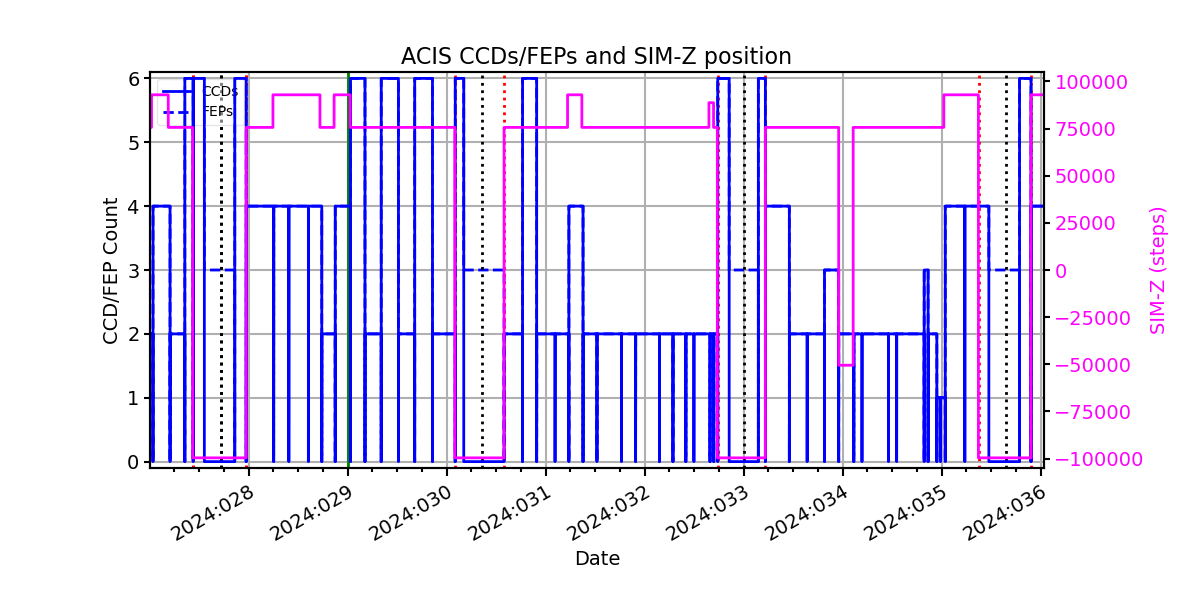

ACIS CCD/FEP Count
