PSMCBT Temperatures Check
Summary
| Date start | 2023:030:07:35:00.016 |
| Date stop | 2023:036:20:04:06.316 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/JAN3023/oflsa |
| Run time | Thu Oct 8 16:06:55 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

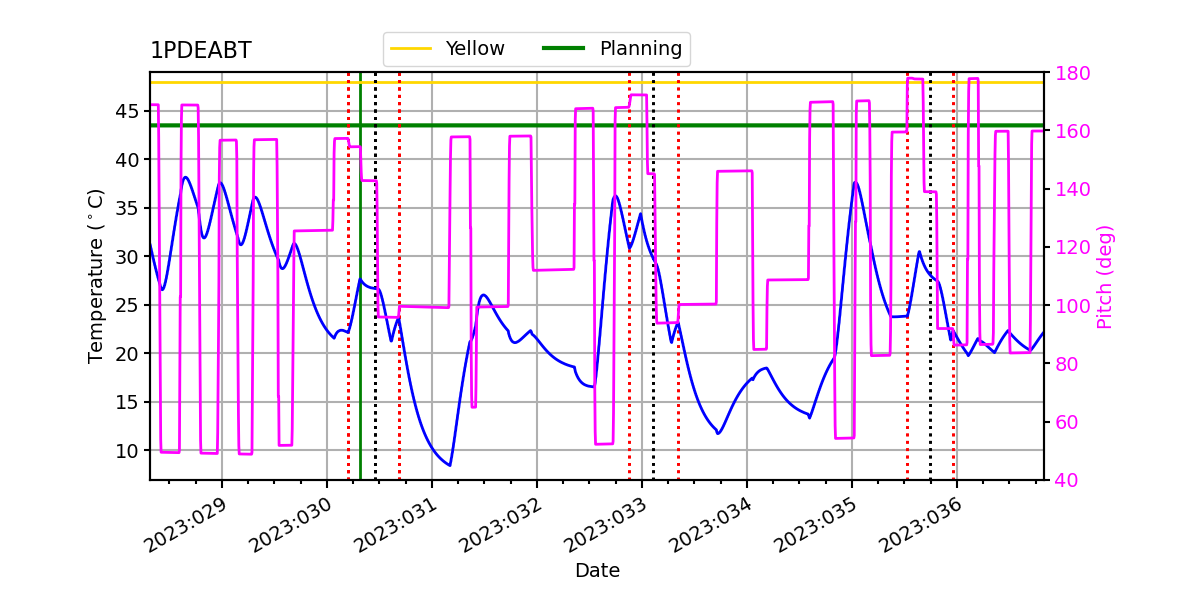

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.17 | -2.55 | -1.80 | -0.29 | 0.96 | 1.60 | 2.71 |
| pitch | -10.838 | -0.669 | -0.004 | -0.000 | 0.003 | 0.731 | 11.062 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.611 | -0.133 | -0.003 | -0.000 | 0.003 | 0.116 | 2.158 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.17 | 2.50 |
| PITCH | 1 | -10.838 | 3.00 |
| PITCH | 99 | 11.062 | 3.00 |

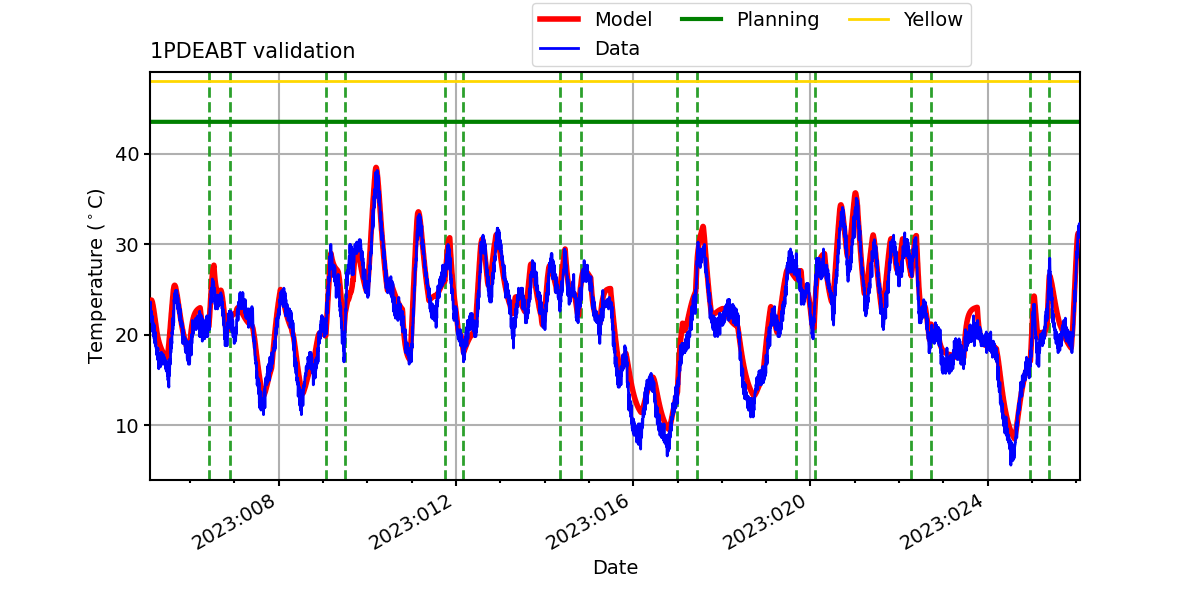

1PDEABT

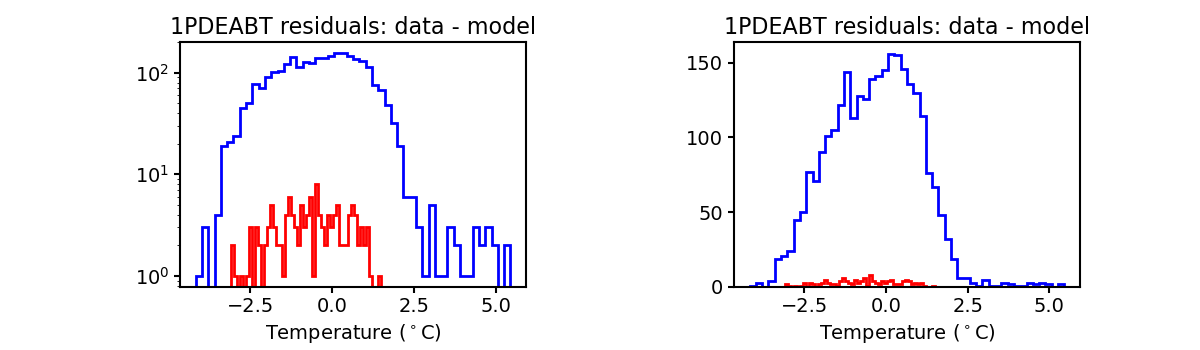

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

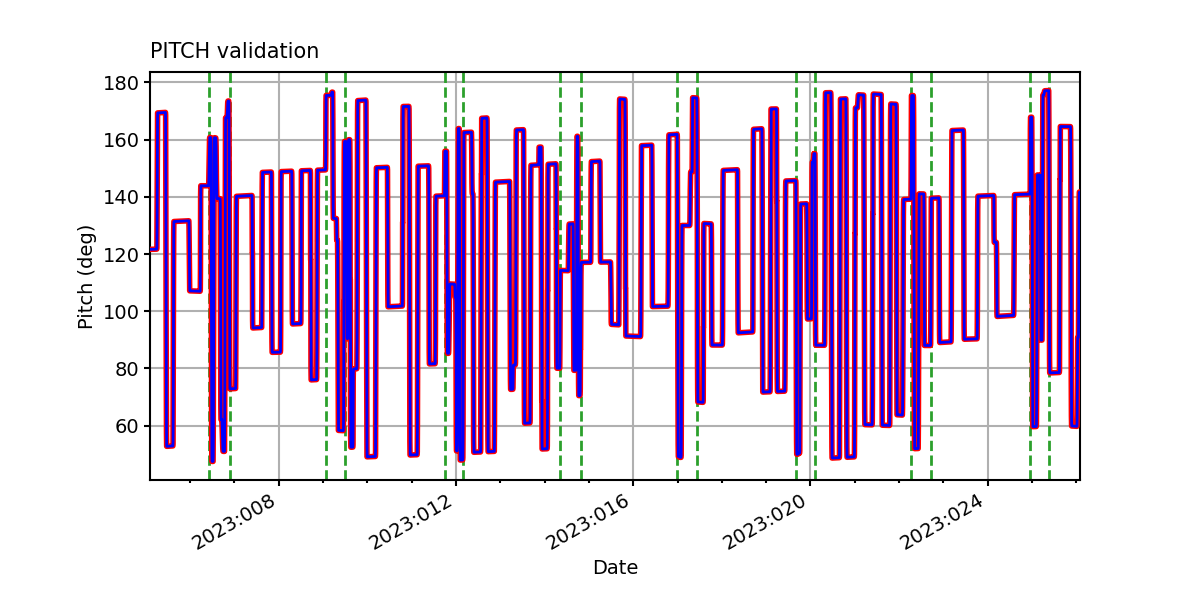

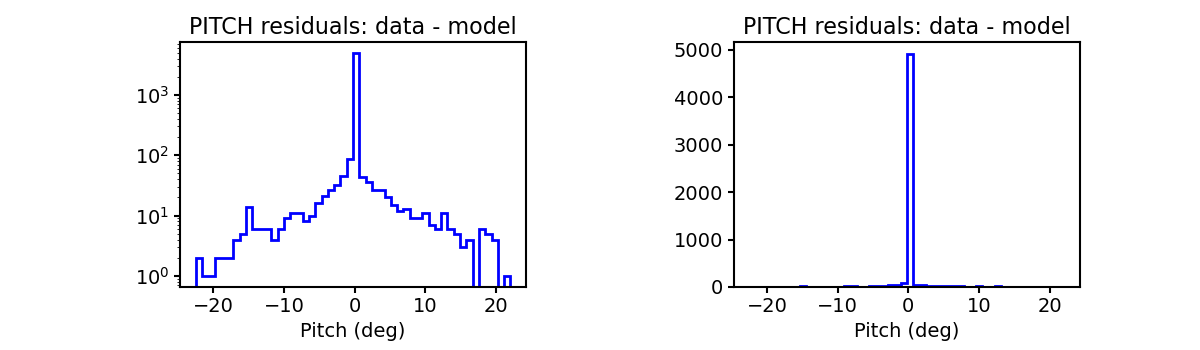

PITCH

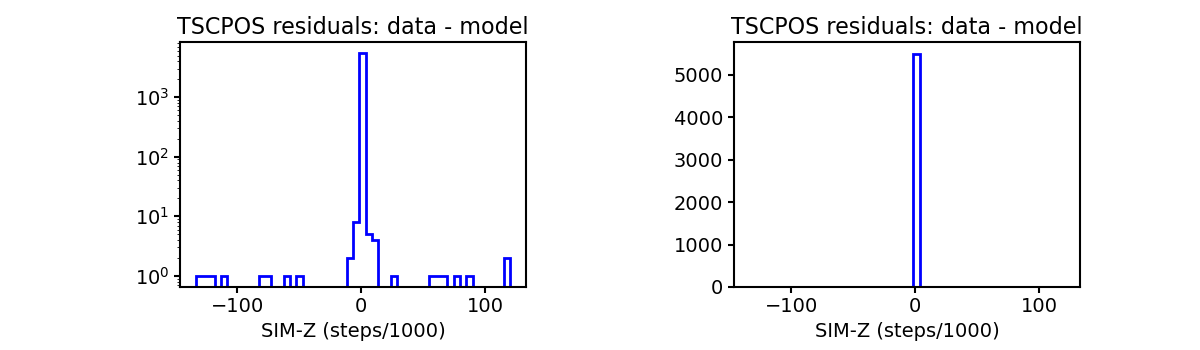

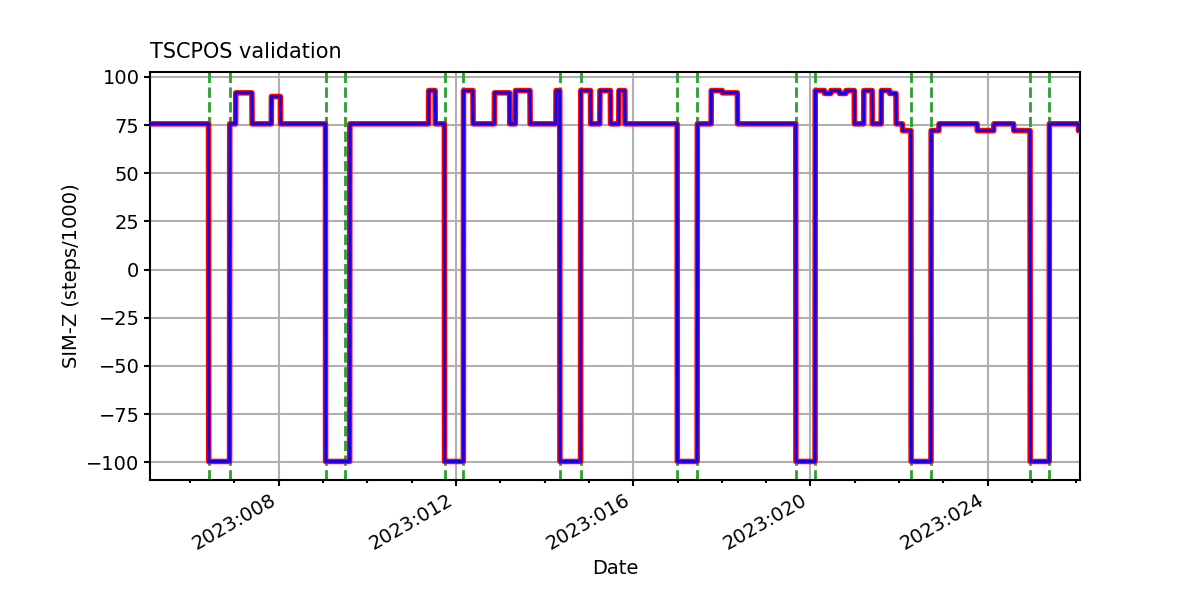

TSCPOS

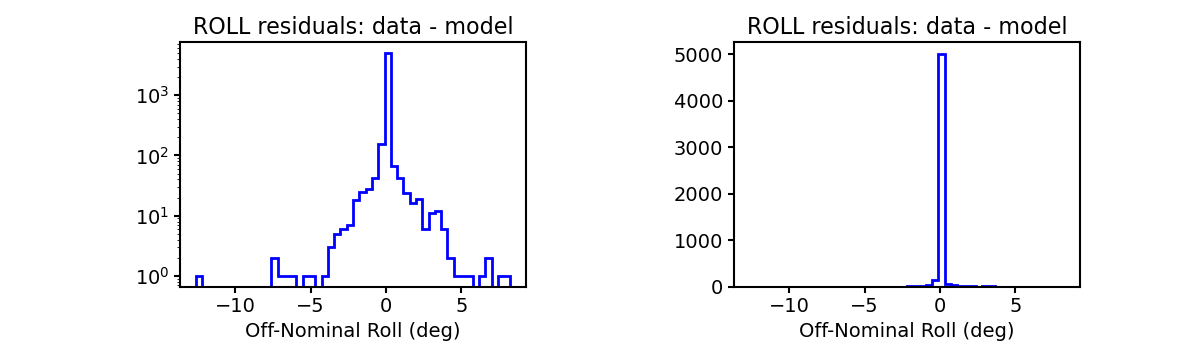

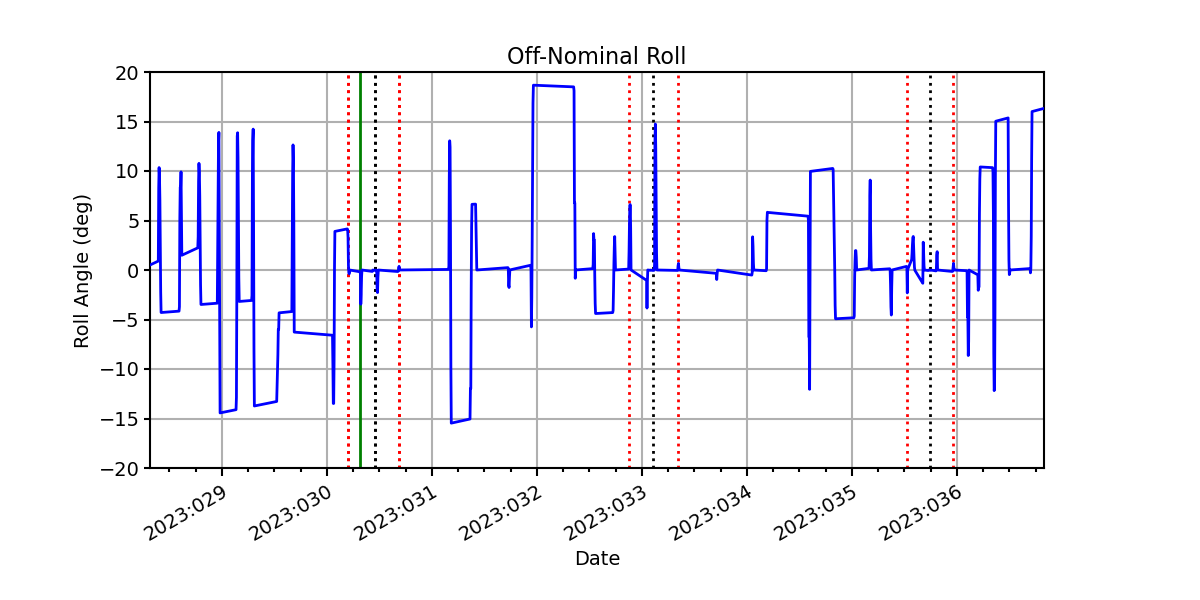

ROLL

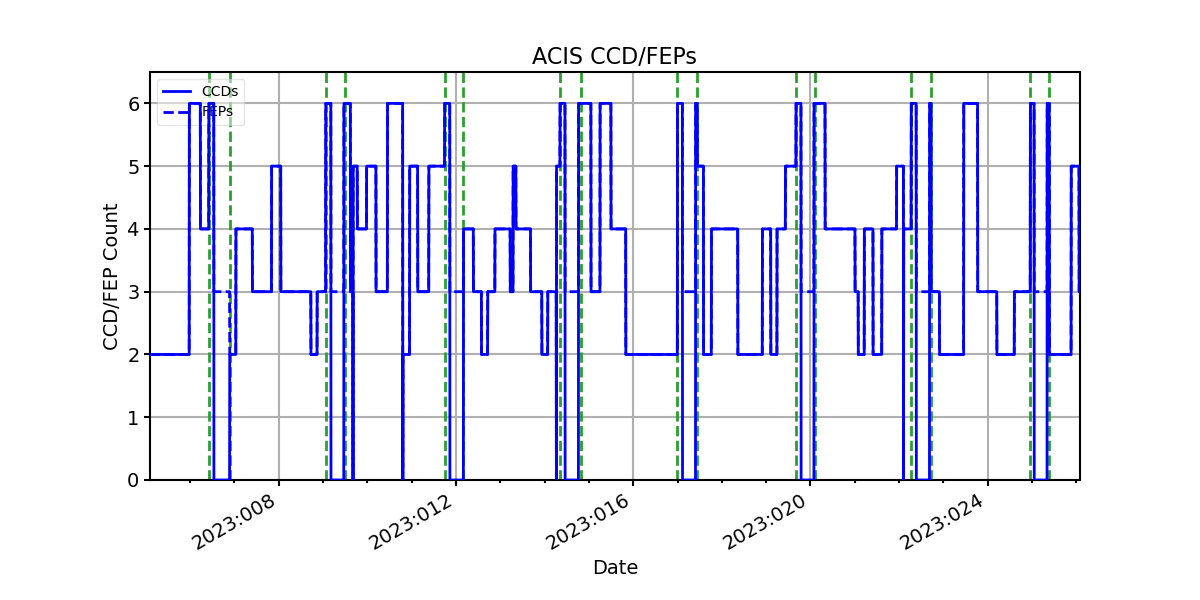

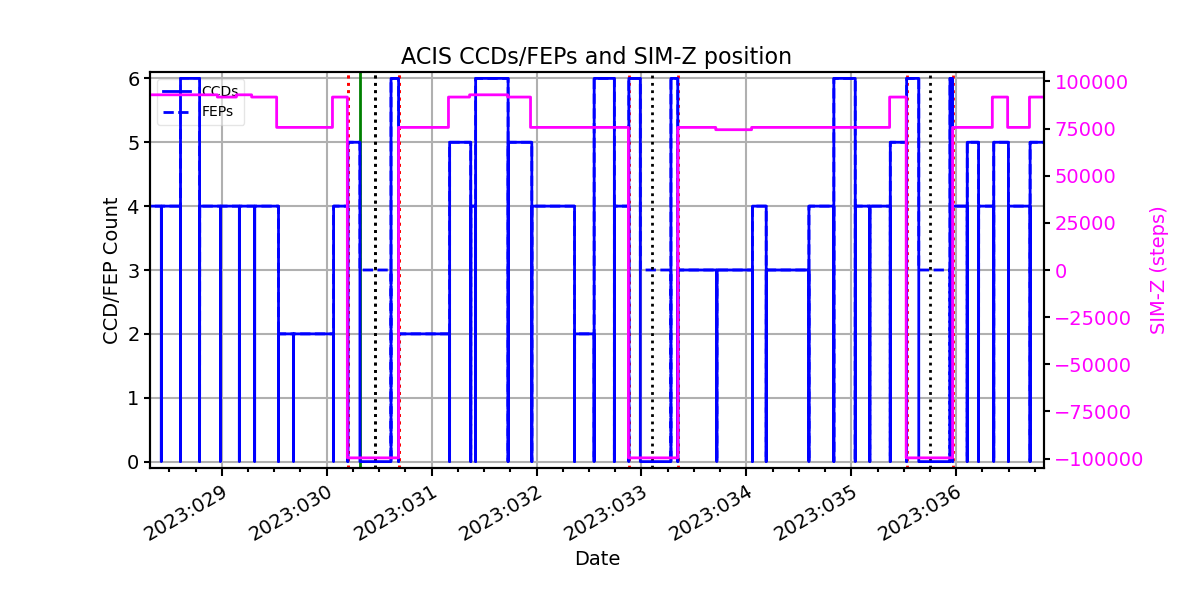

ACIS CCD/FEP Count
