PSMCBT Temperatures Check
Summary
| Date start | 2024:183:00:12:18.316 |
| Date stop | 2024:190:00:00:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/JUL0124/oflsa |
| Run time | Thu Oct 8 16:06:55 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -4.03 | -3.35 | -2.57 | -0.67 | 1.03 | 2.07 | 2.98 |
| pitch | -7.583 | -0.373 | -0.004 | -0.000 | 0.004 | 0.239 | 7.777 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 0 |
| roll | -2.249 | -0.176 | -0.006 | -0.000 | 0.006 | 0.100 | 2.154 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -4.03 | 2.50 |
| PITCH | 1 | -7.583 | 3.00 |
| PITCH | 99 | 7.777 | 3.00 |

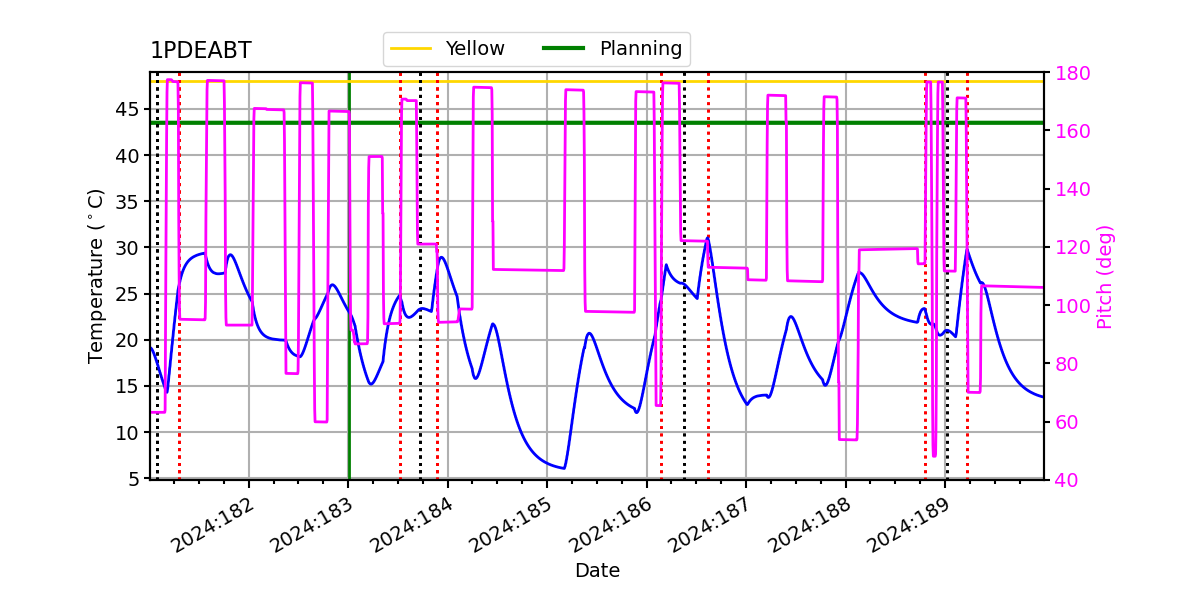

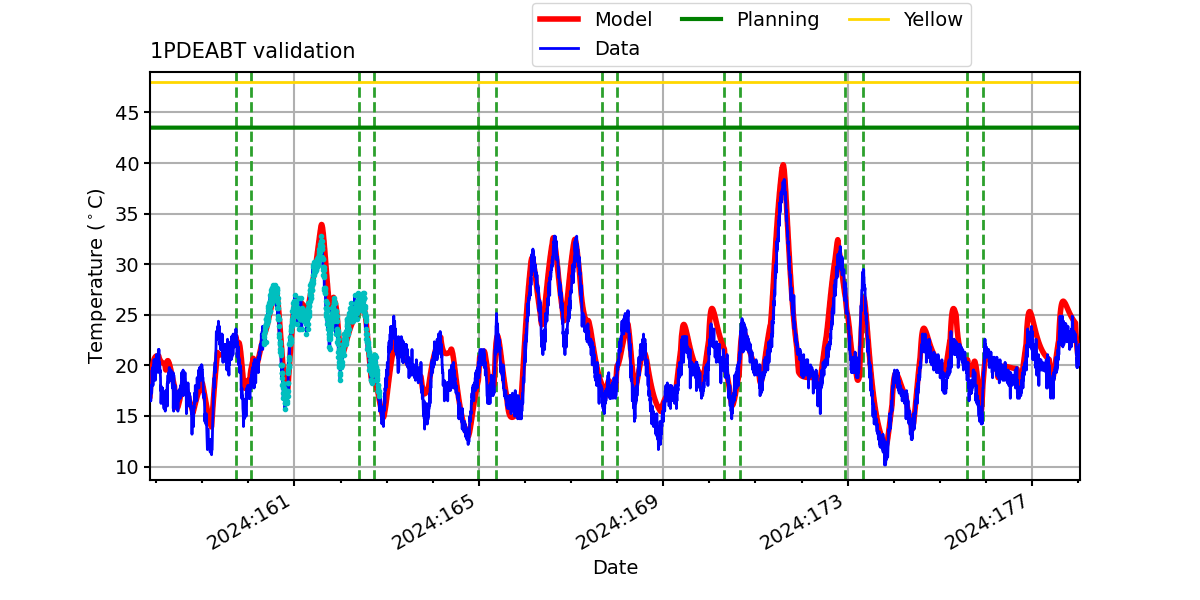

1PDEABT

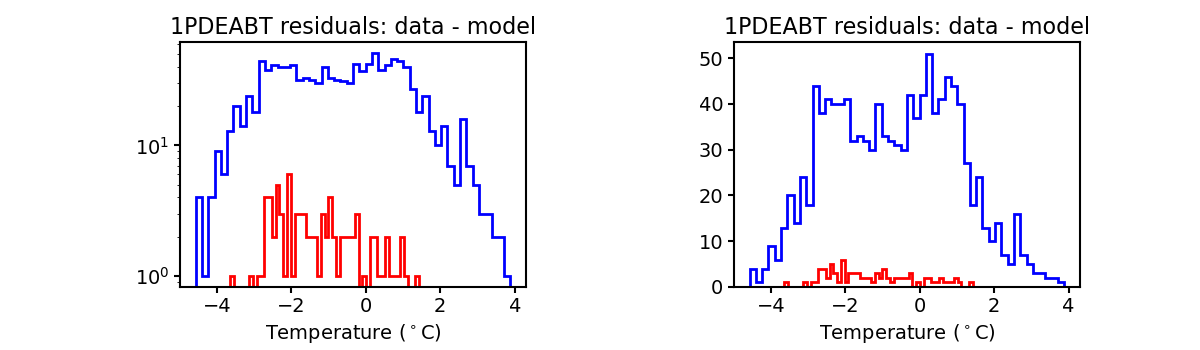

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

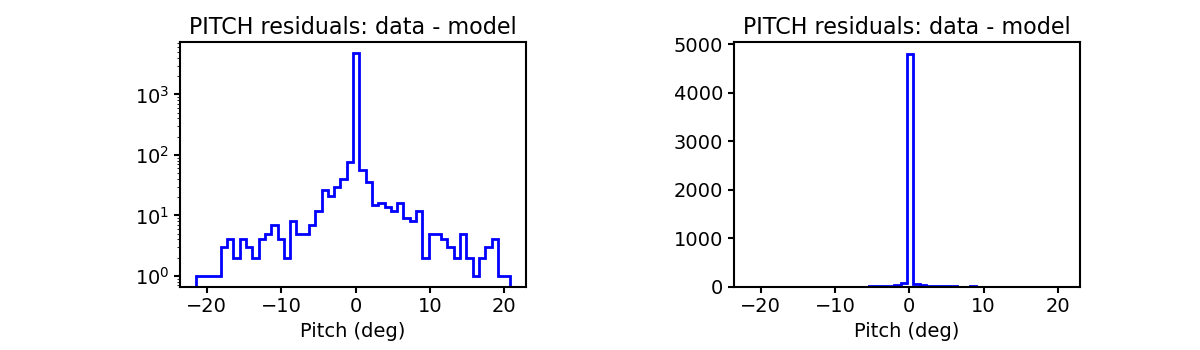

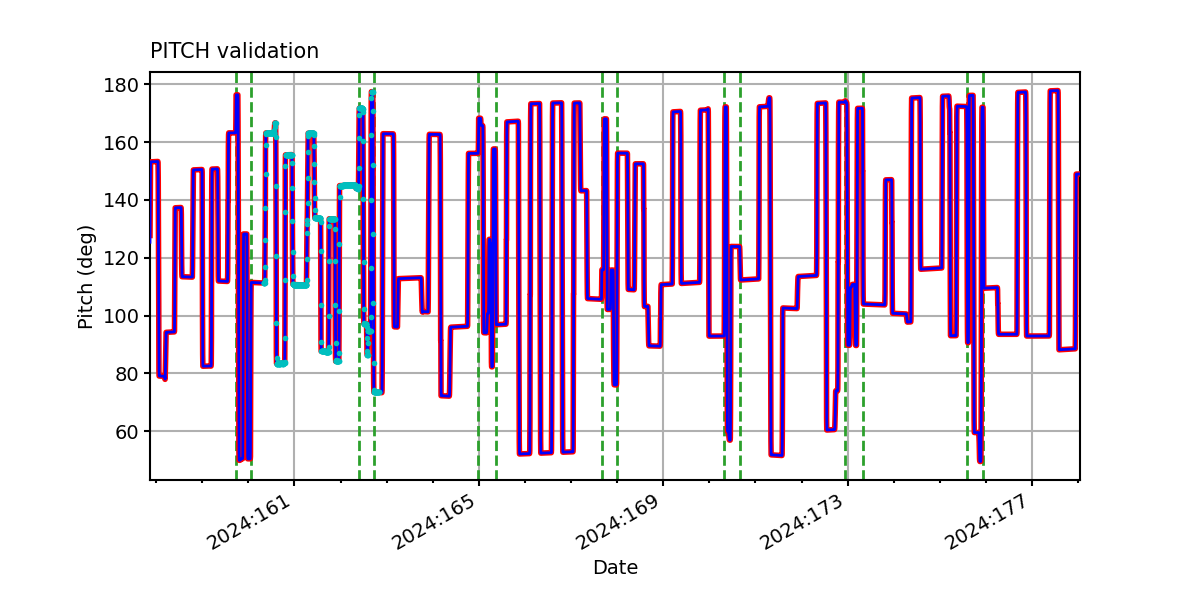

PITCH

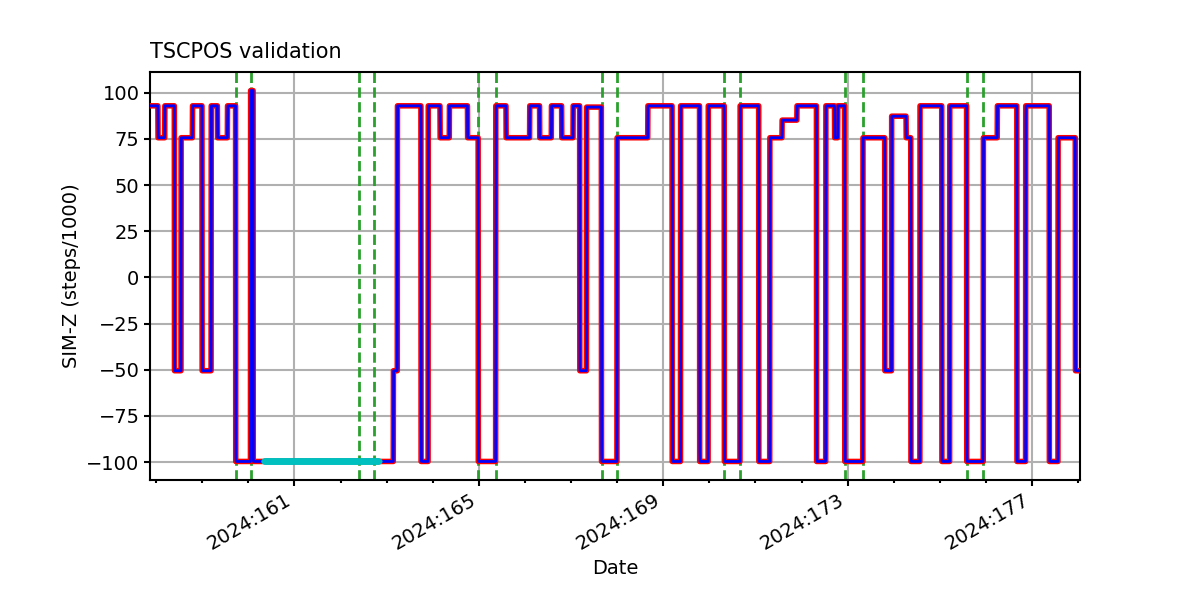

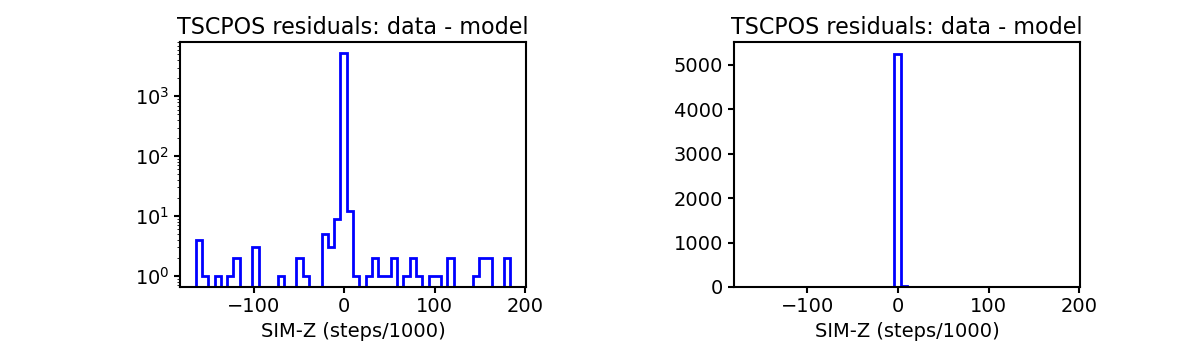

TSCPOS

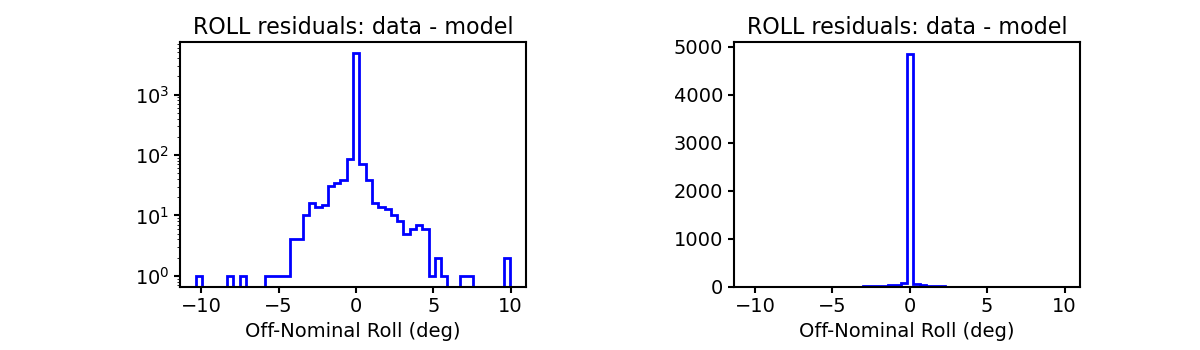

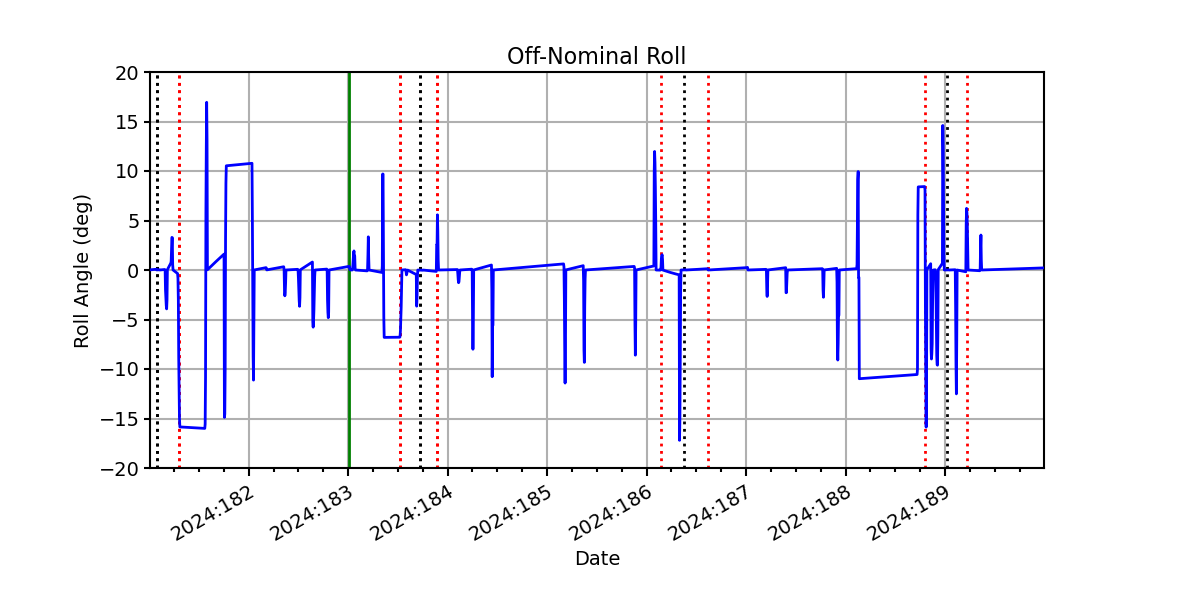

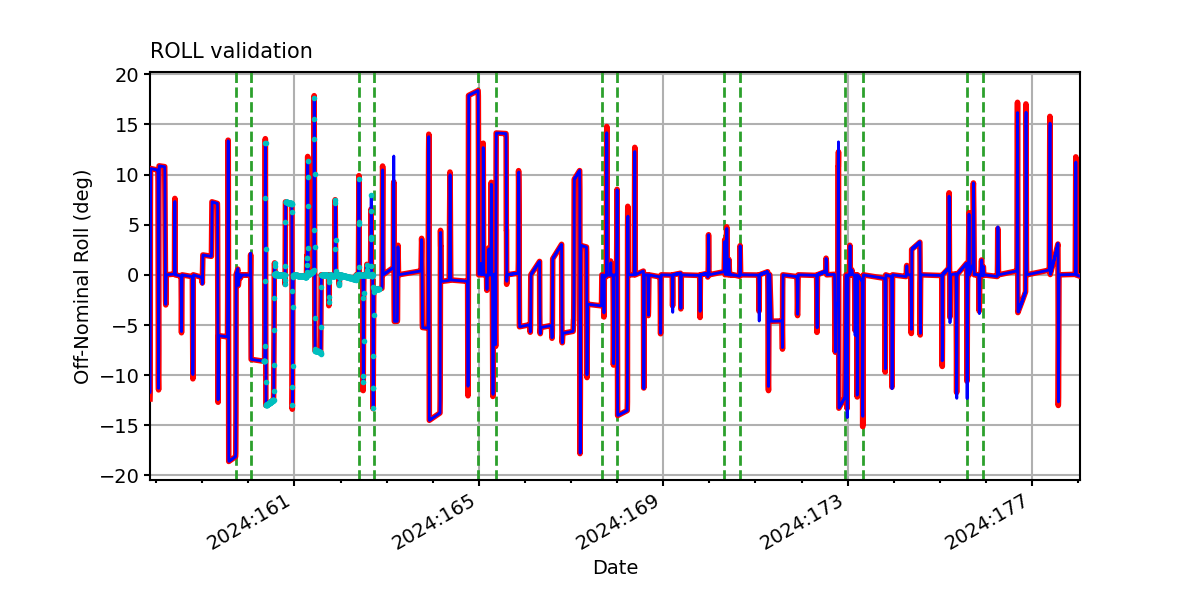

ROLL

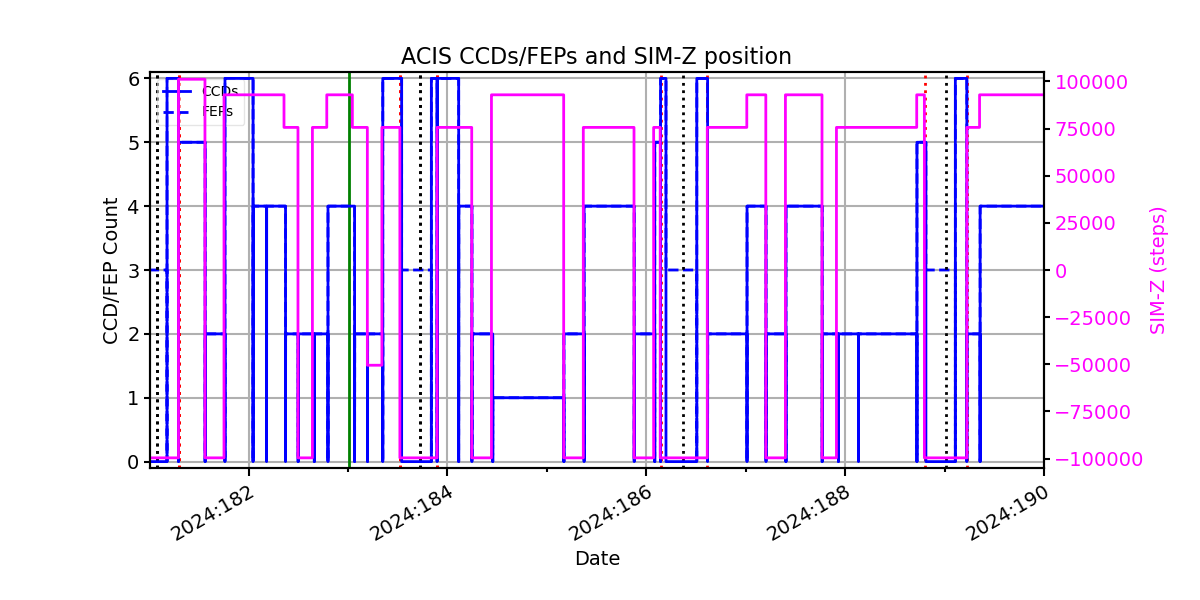

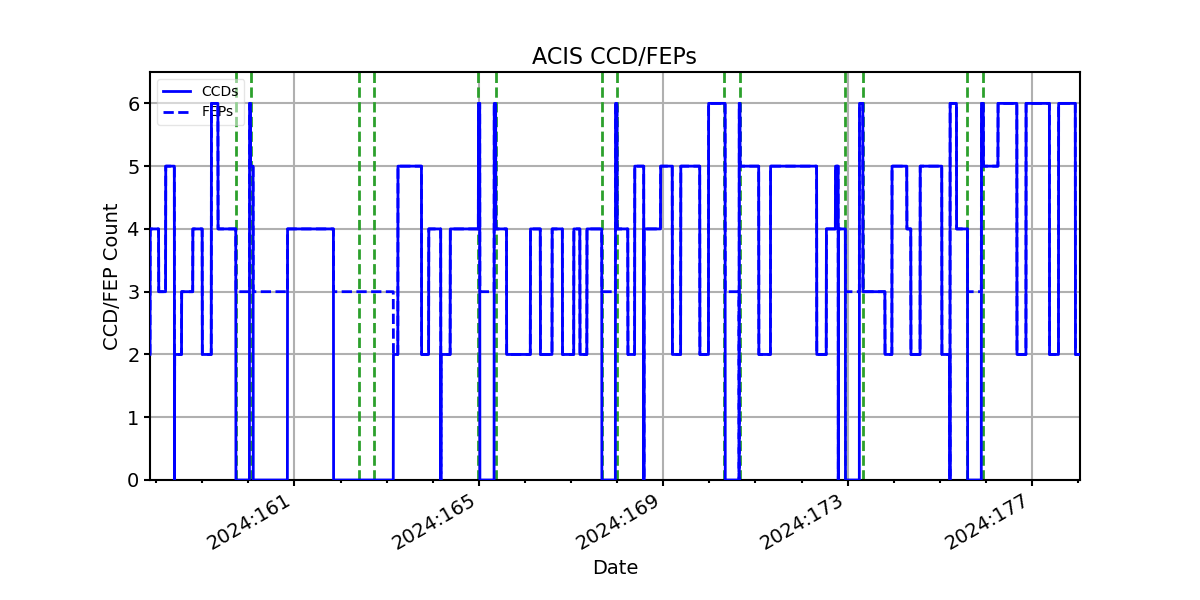

ACIS CCD/FEP Count
