PSMCBT Temperatures Check
Summary
| Date start | 2023:183:16:39:00.016 |
| Date stop | 2023:191:03:46:28.616 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/JUL0323/oflsa |
| Run time | Thu Oct 8 16:06:55 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

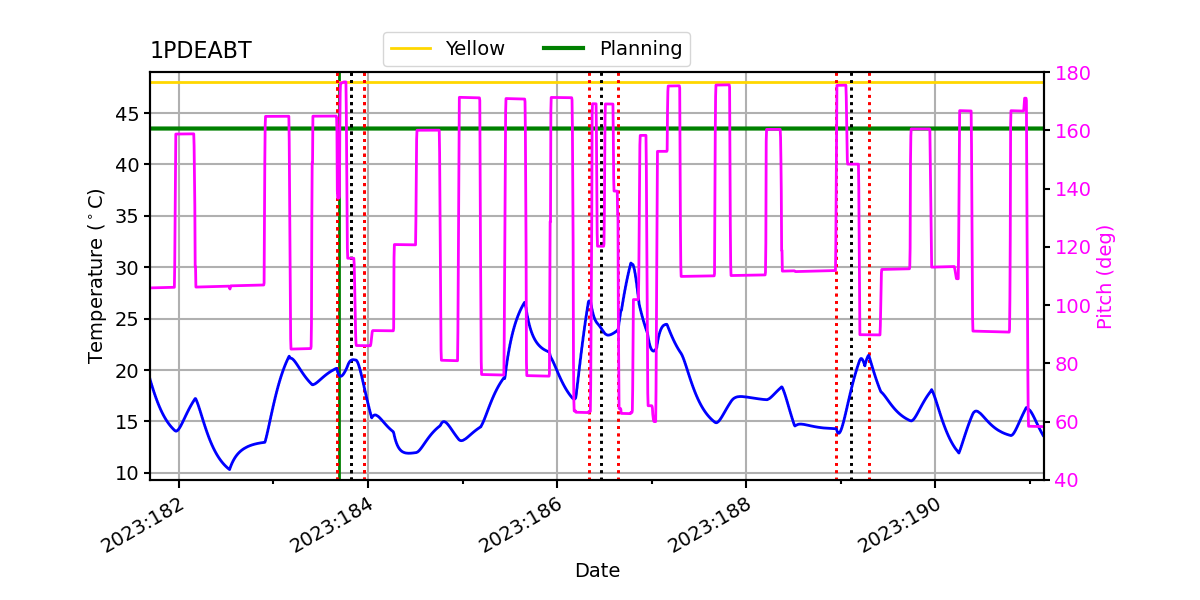

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.31 | -2.58 | -1.80 | -0.13 | 1.72 | 3.33 | 5.82 |
| pitch | -9.688 | -0.510 | -0.004 | -0.000 | 0.004 | 0.448 | 11.904 |
| tscpos | -6 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -1.292 | -0.070 | -0.006 | 0.000 | 0.007 | 0.089 | 1.629 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.31 | 2.50 |
| 1PDEABT | 99 | 5.82 | 5.50 |
| PITCH | 1 | -9.688 | 3.00 |
| PITCH | 99 | 11.904 | 3.00 |
| TSCPOS | 1 | -6.0 | 2.50 |

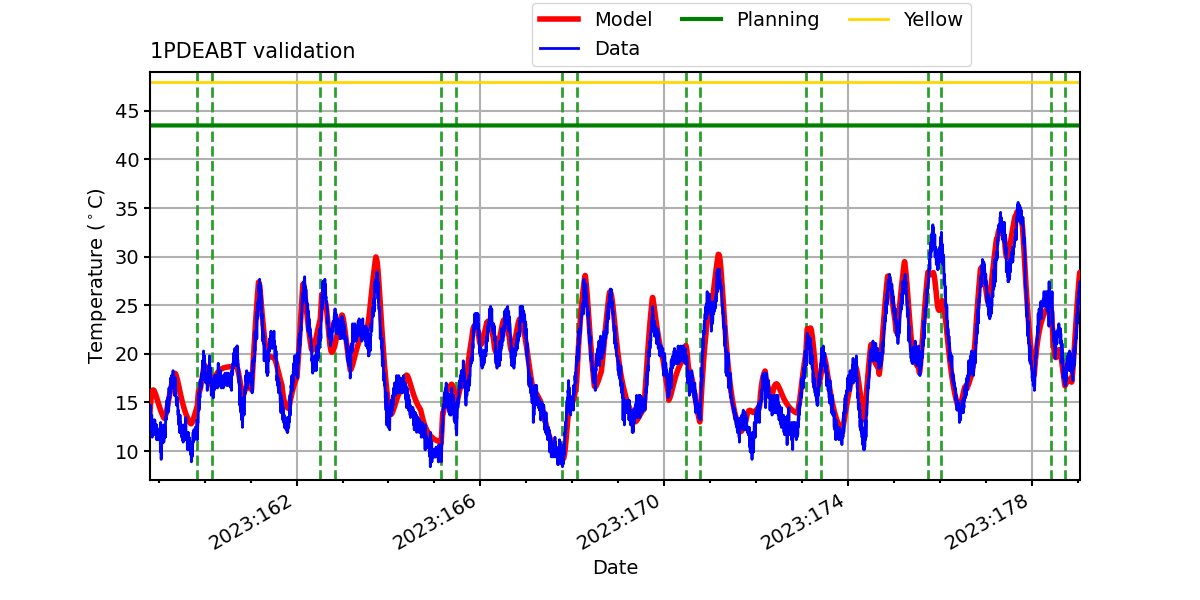

1PDEABT

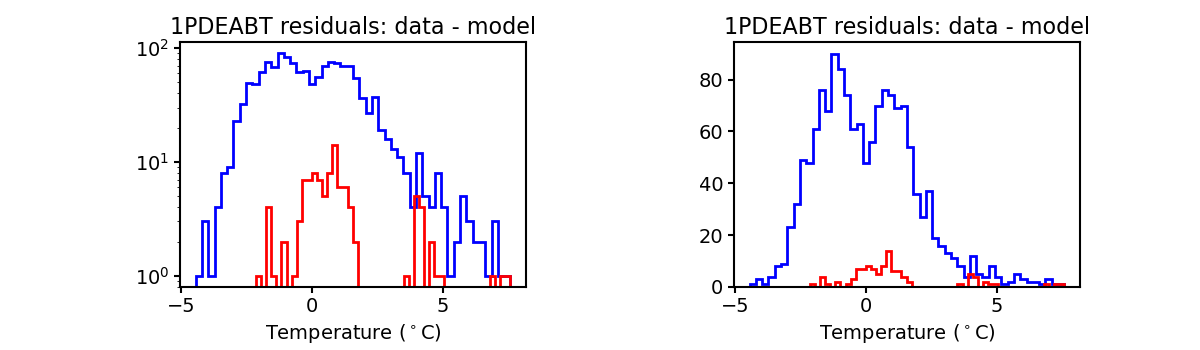

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

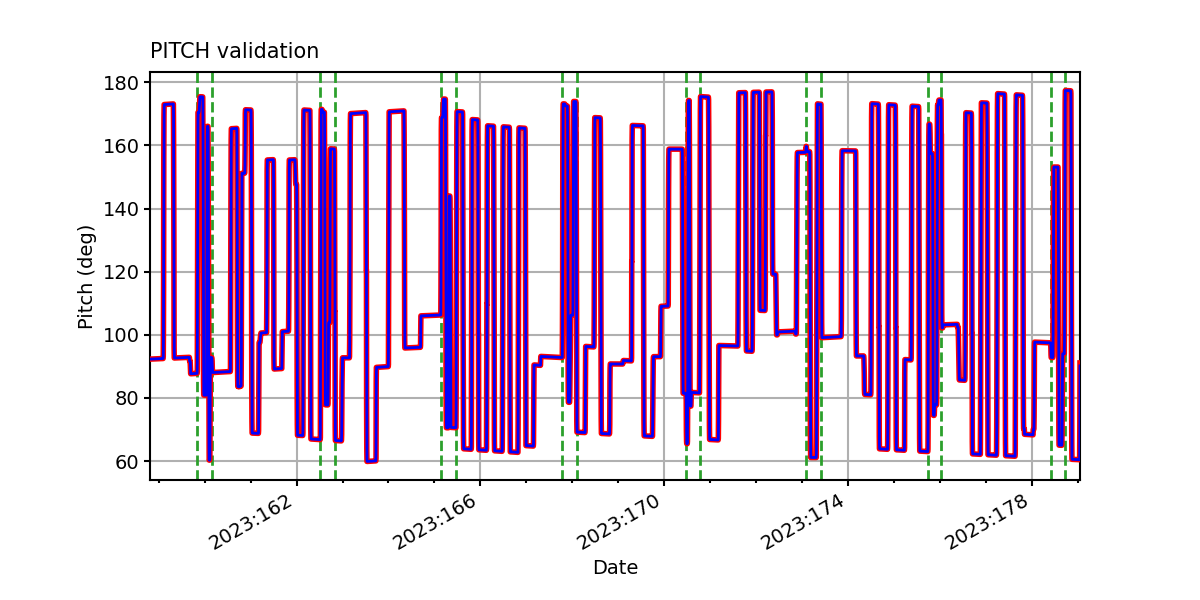

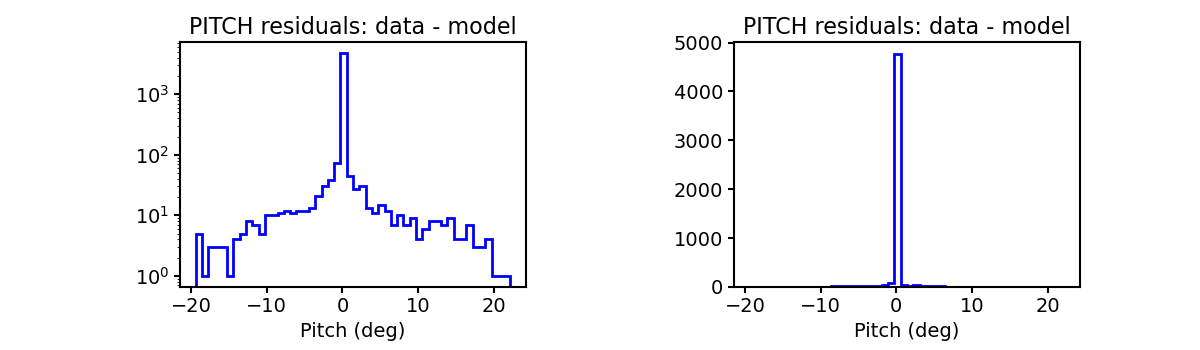

PITCH

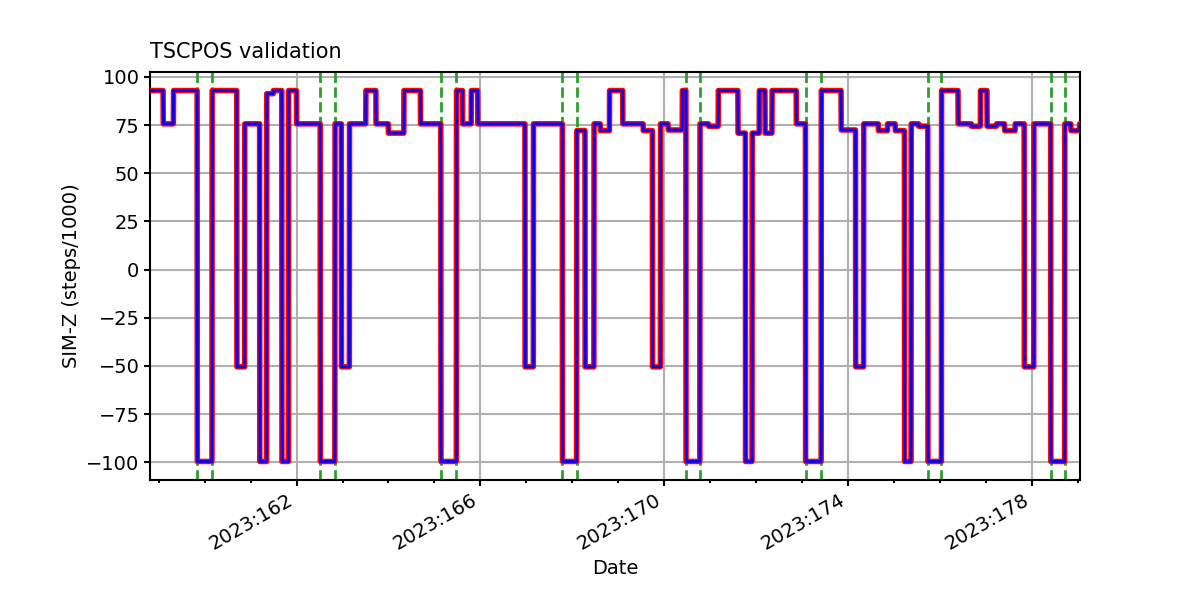

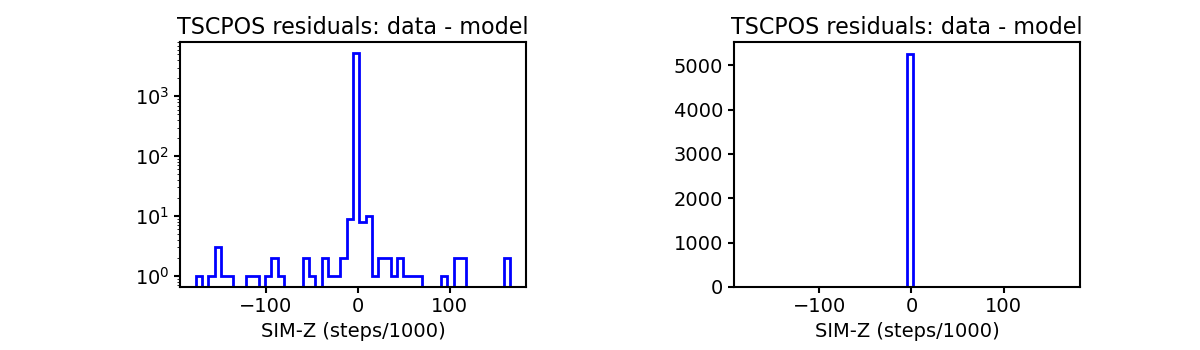

TSCPOS

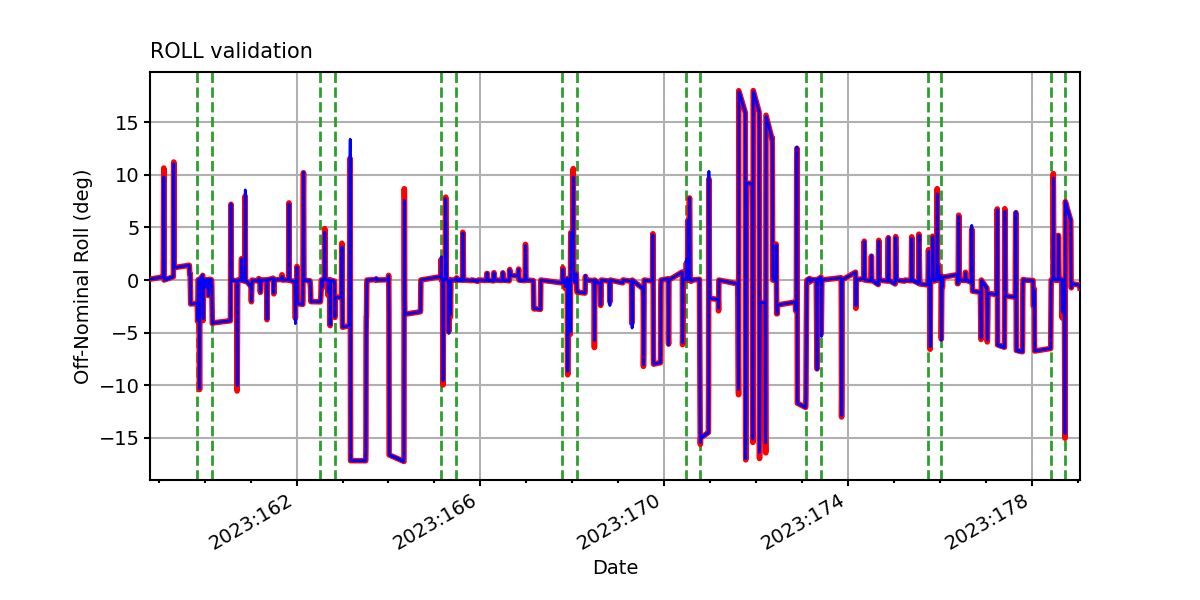

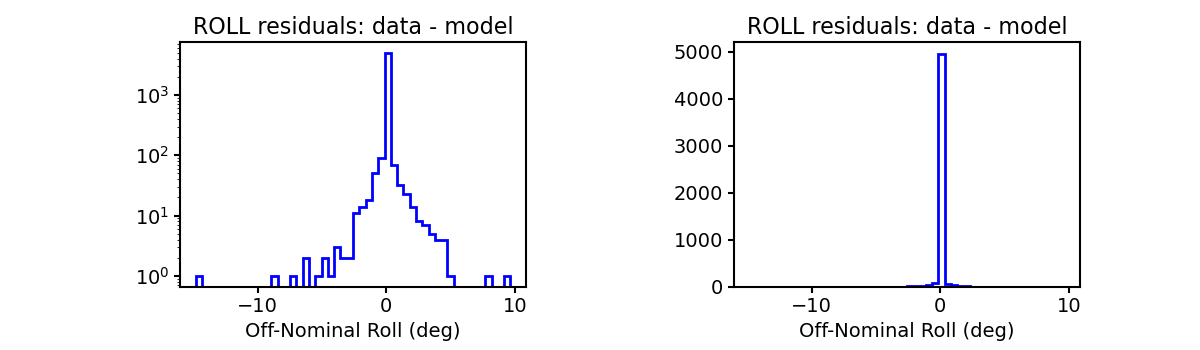

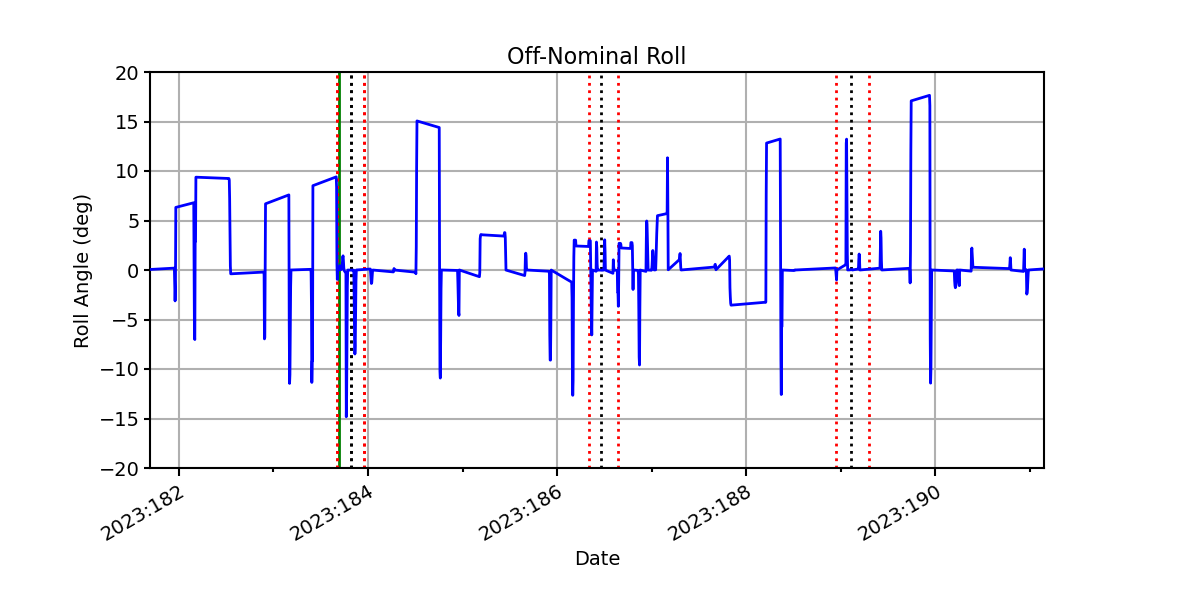

ROLL

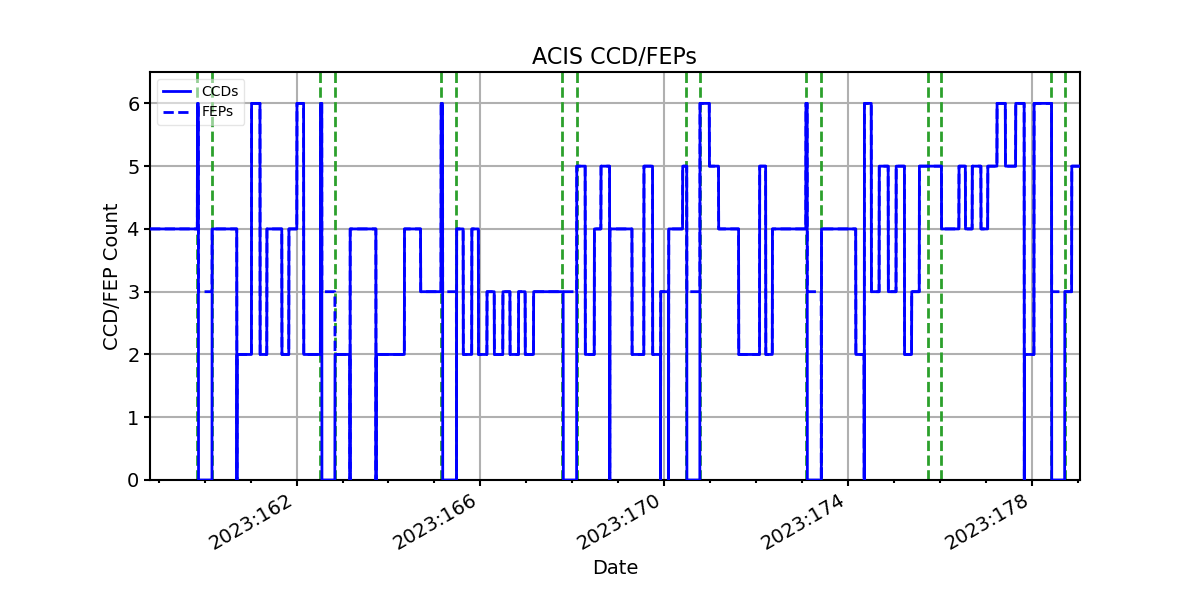

ACIS CCD/FEP Count
