PSMCBT Temperatures Check
Summary
| Date start | 2023:191:03:43:28.616 |
| Date stop | 2023:197:10:07:02.216 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/JUL1023/oflsb |
| Run time | Thu Oct 8 16:06:55 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.97 | -2.42 | -1.74 | -0.06 | 1.70 | 3.22 | 5.80 |
| pitch | -9.195 | -0.272 | -0.004 | 0.000 | 0.004 | 0.366 | 11.169 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -1.508 | -0.075 | -0.006 | 0.000 | 0.005 | 0.079 | 1.700 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.97 | 2.50 |
| 1PDEABT | 99 | 5.8 | 5.50 |
| PITCH | 1 | -9.195 | 3.00 |
| PITCH | 99 | 11.169 | 3.00 |

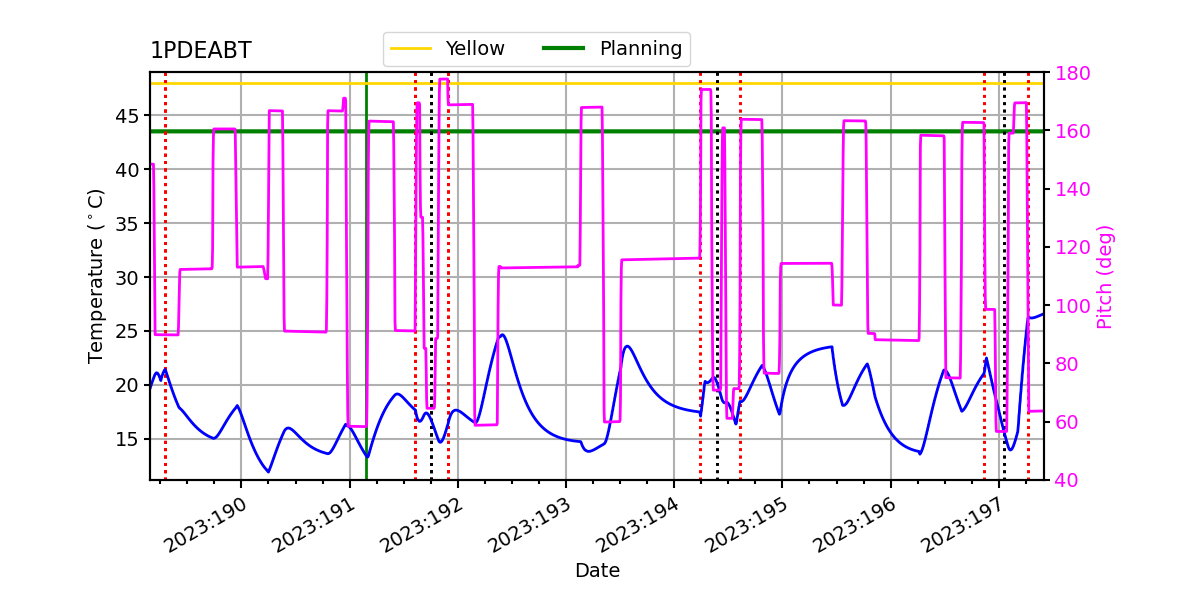

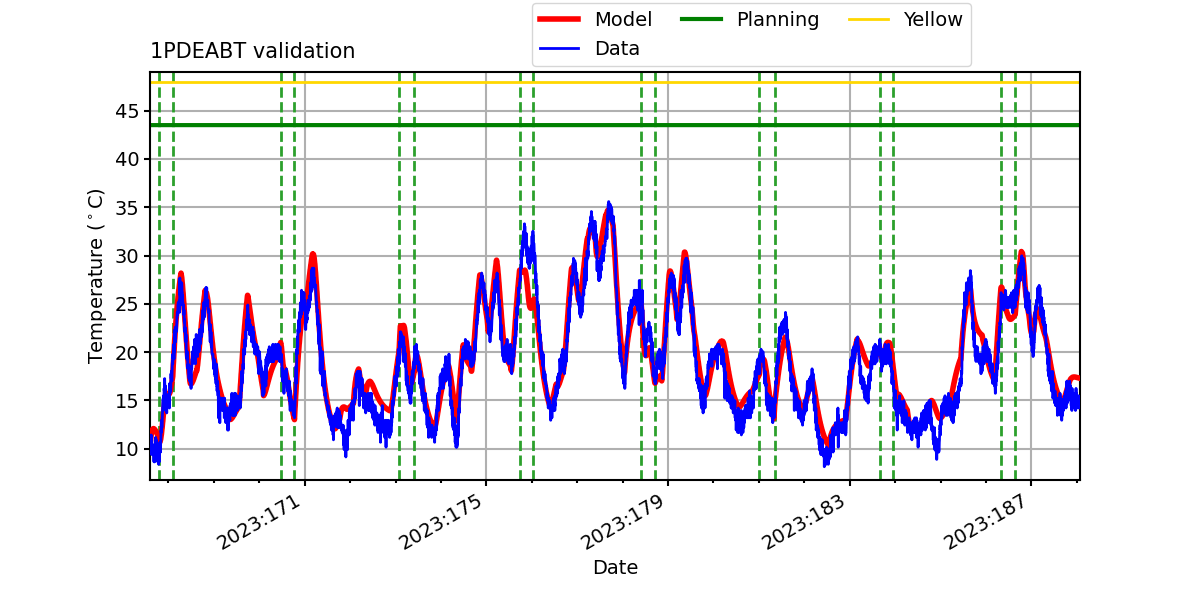

1PDEABT

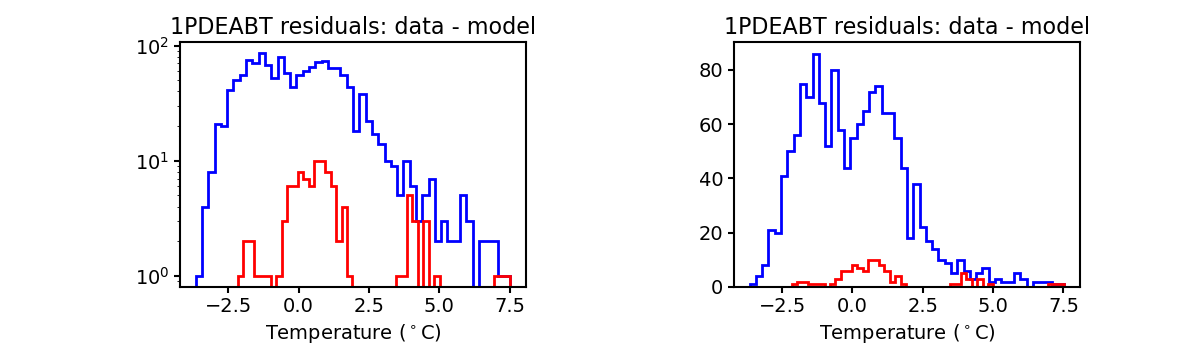

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.
PITCH

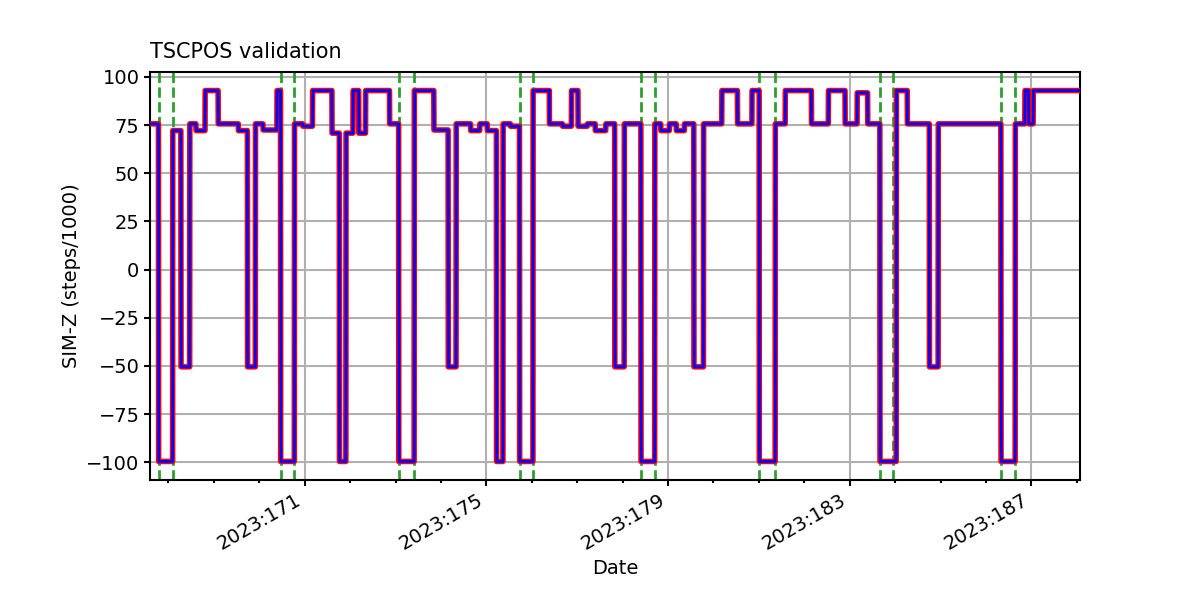

TSCPOS

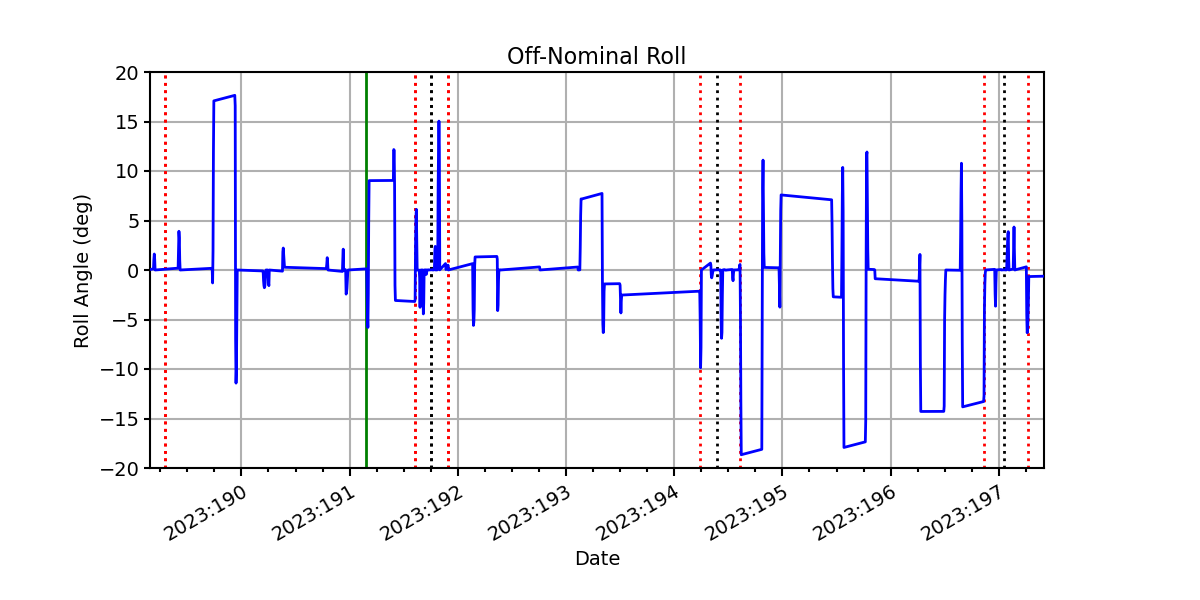

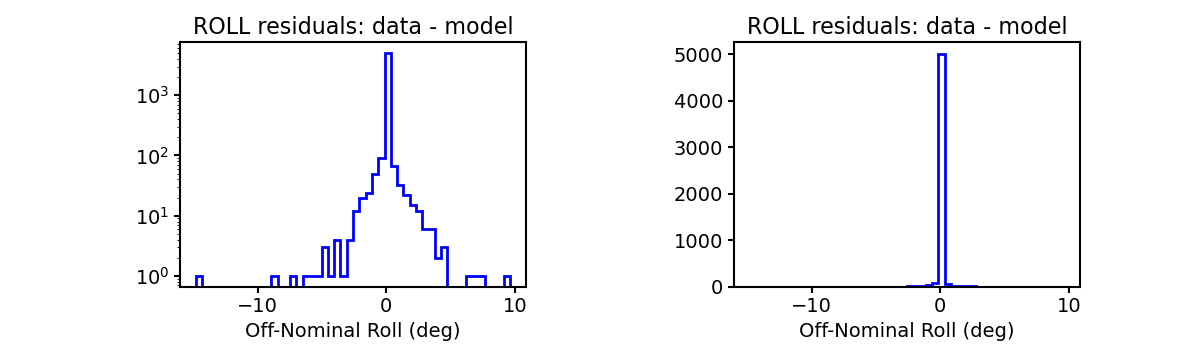

ROLL

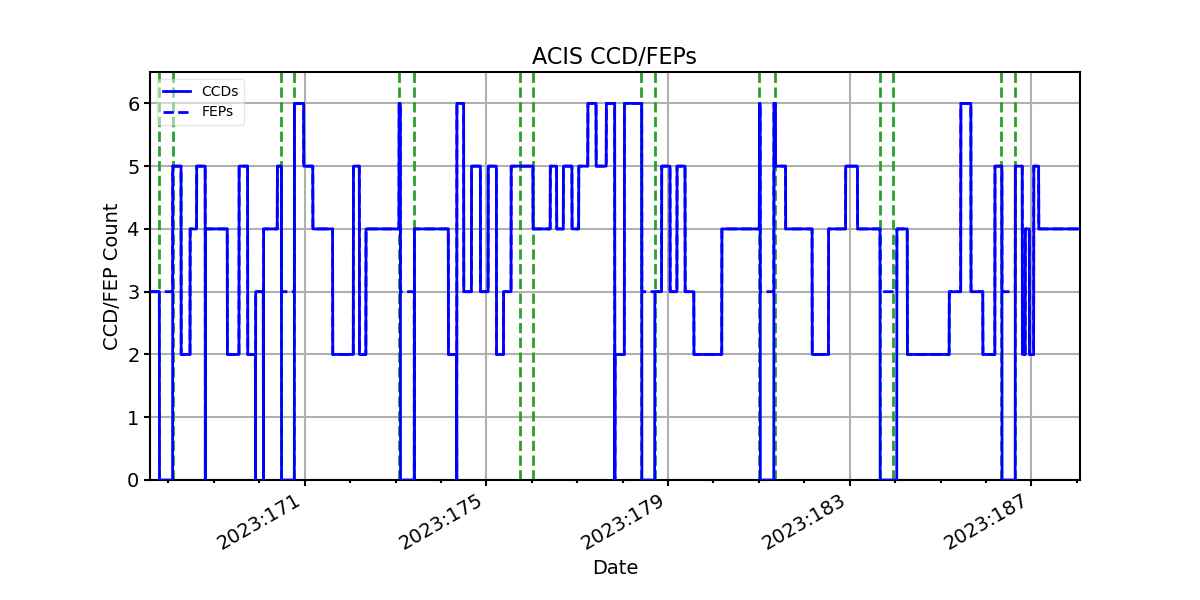

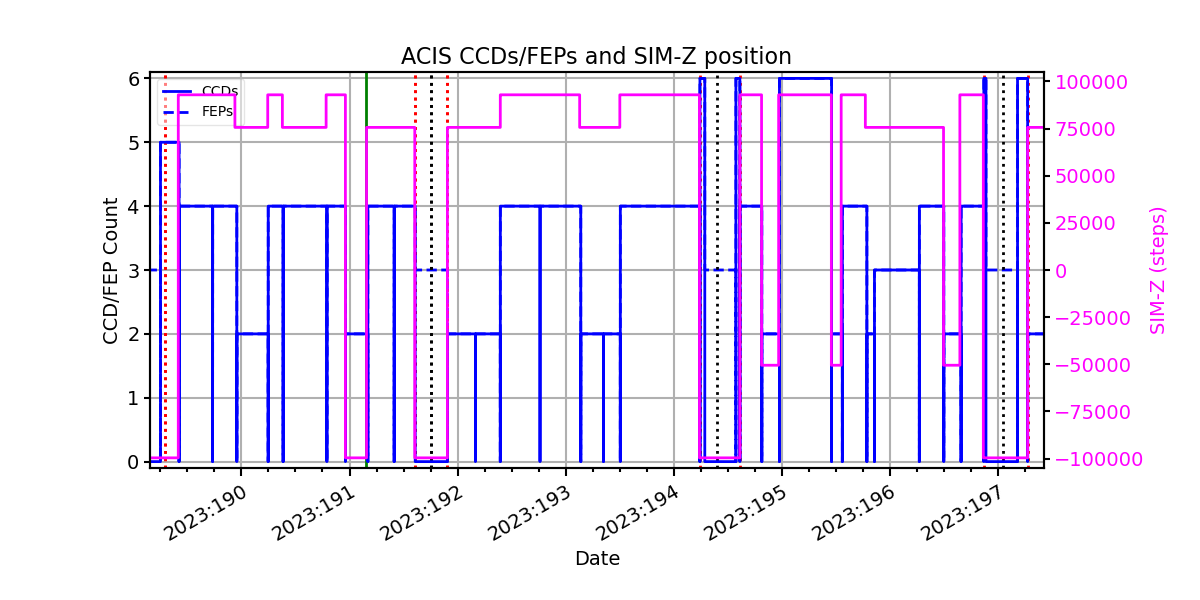

ACIS CCD/FEP Count
