PSMCBT Temperatures Check
Summary
| Date start | 2025:195:01:13:43.816 |
| Date stop | 2025:202:00:04:37.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/JUL1425/oflsa |
| Run time | Thu Oct 8 16:07:23 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.65 | -1.99 | -1.38 | 0.12 | 1.70 | 2.65 | 3.53 |
| pitch | -8.770 | -0.271 | -0.004 | -0.000 | 0.004 | 0.373 | 10.451 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.837 | -0.119 | -0.007 | 0.000 | 0.007 | 0.146 | 1.840 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.65 | 2.50 |
| PITCH | 1 | -8.77 | 3.00 |
| PITCH | 99 | 10.451 | 3.00 |

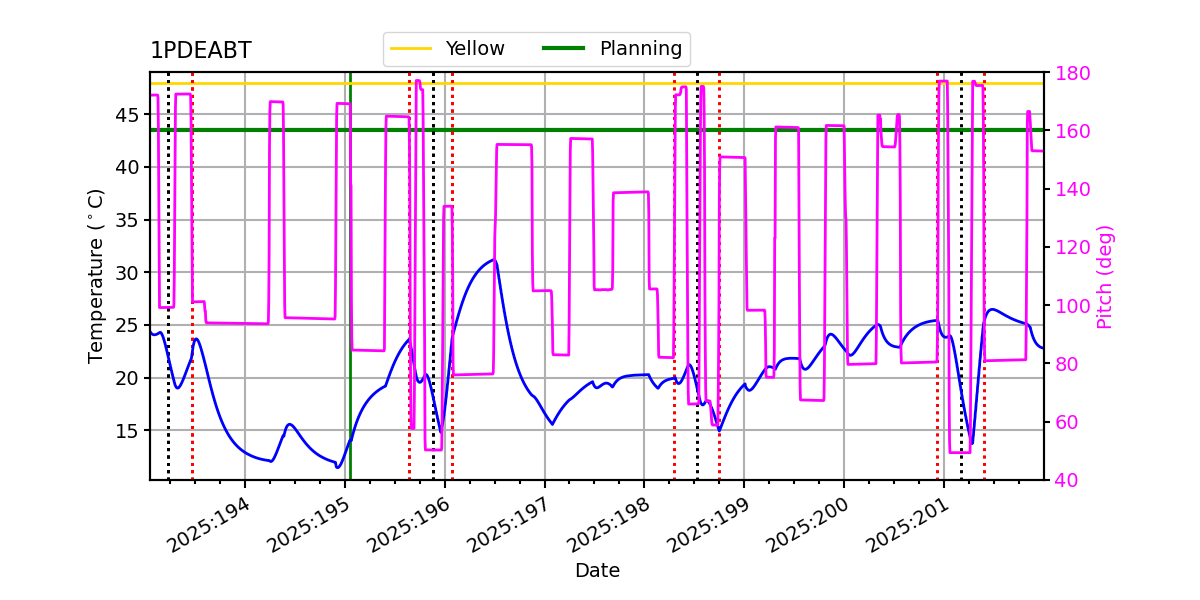

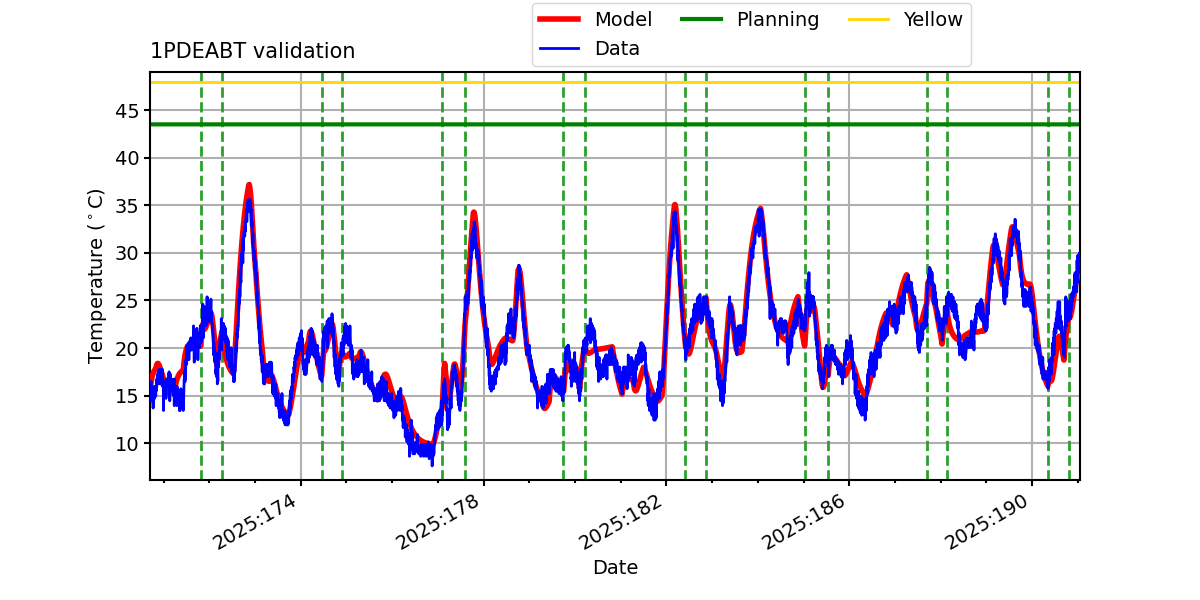

1PDEABT

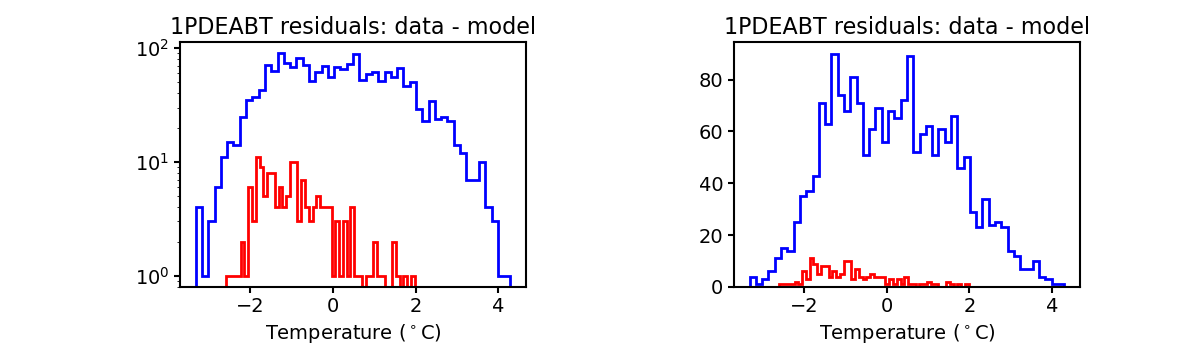

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

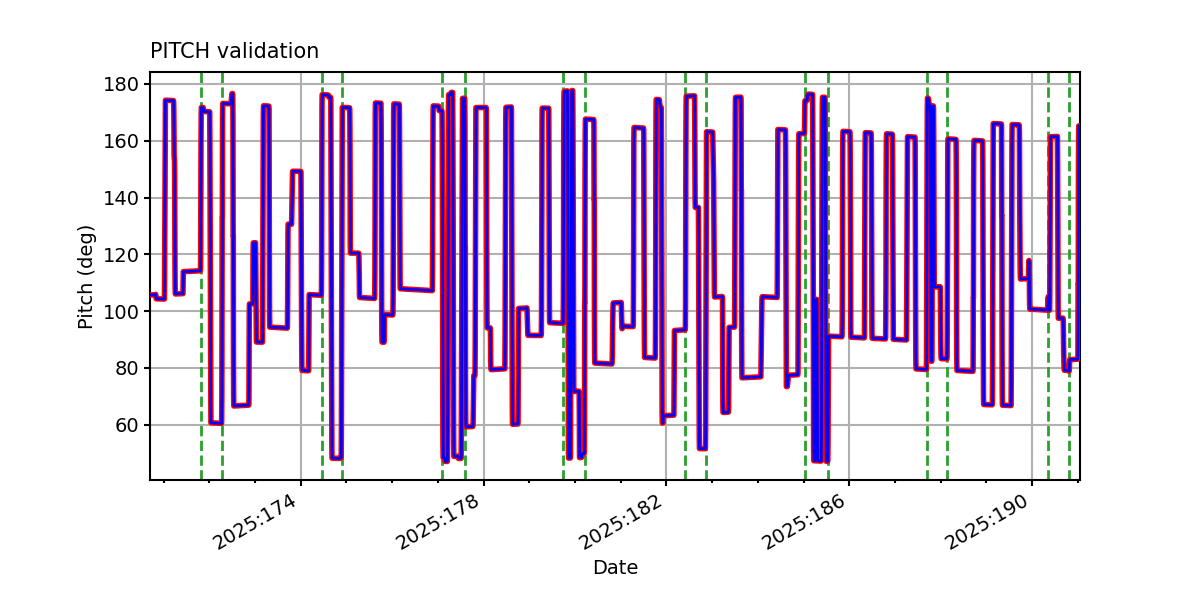

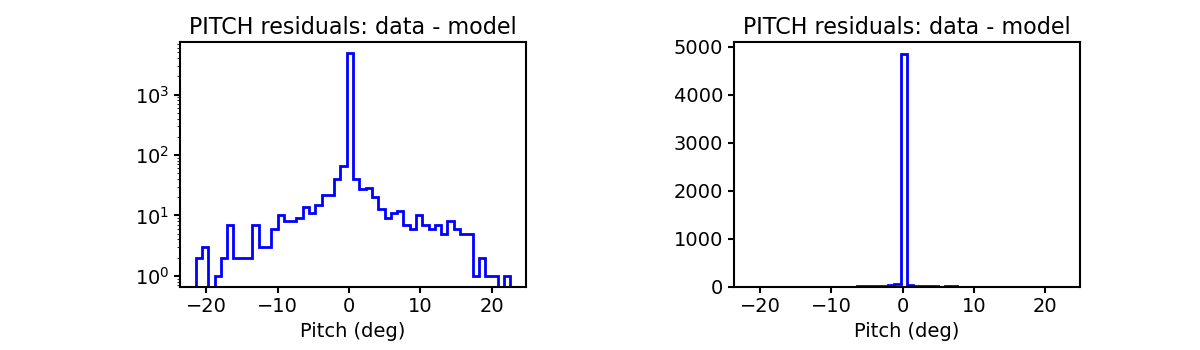

PITCH

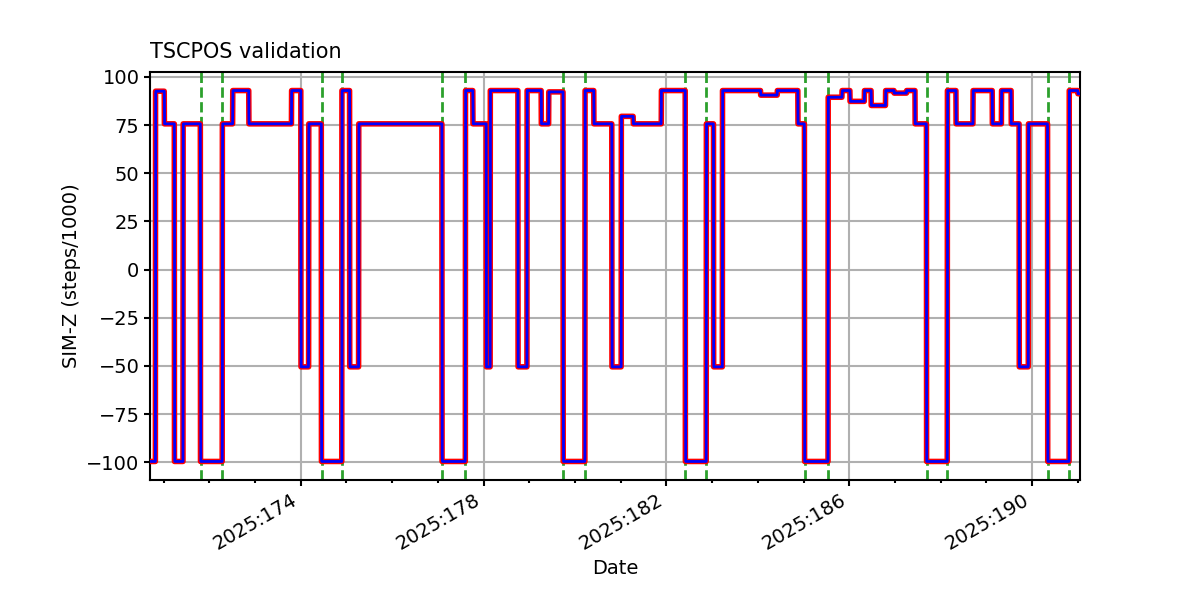

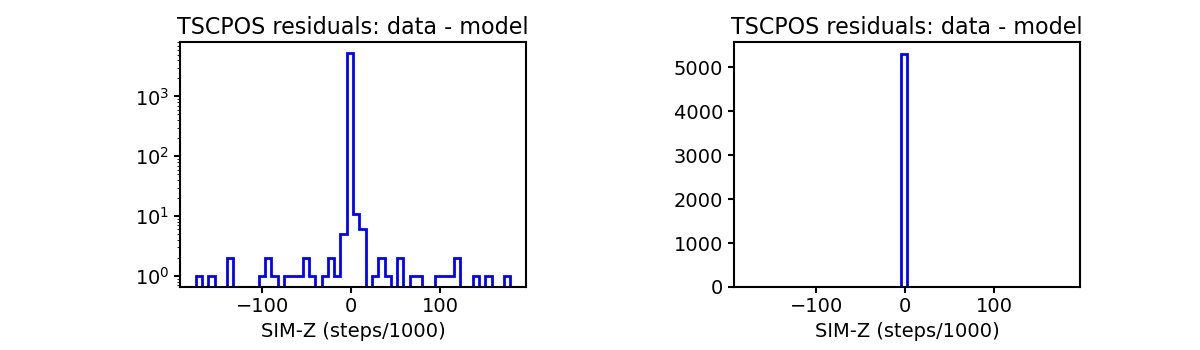

TSCPOS

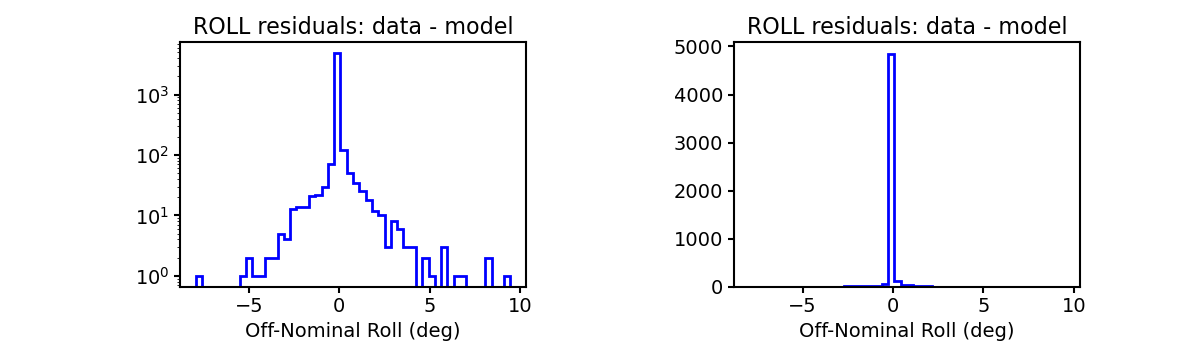

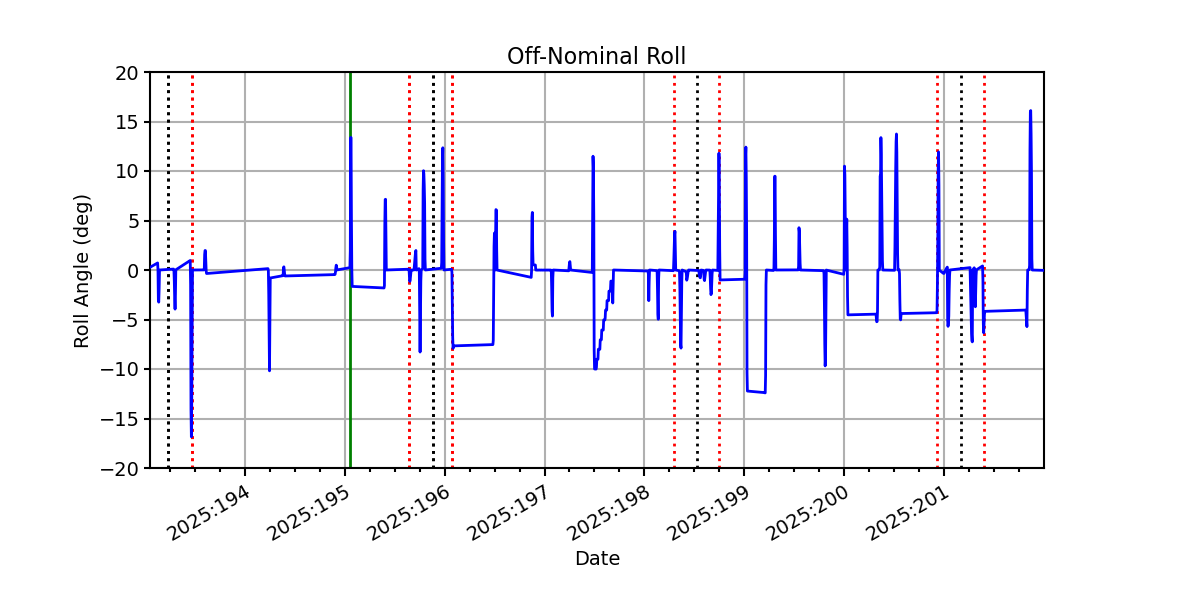

ROLL

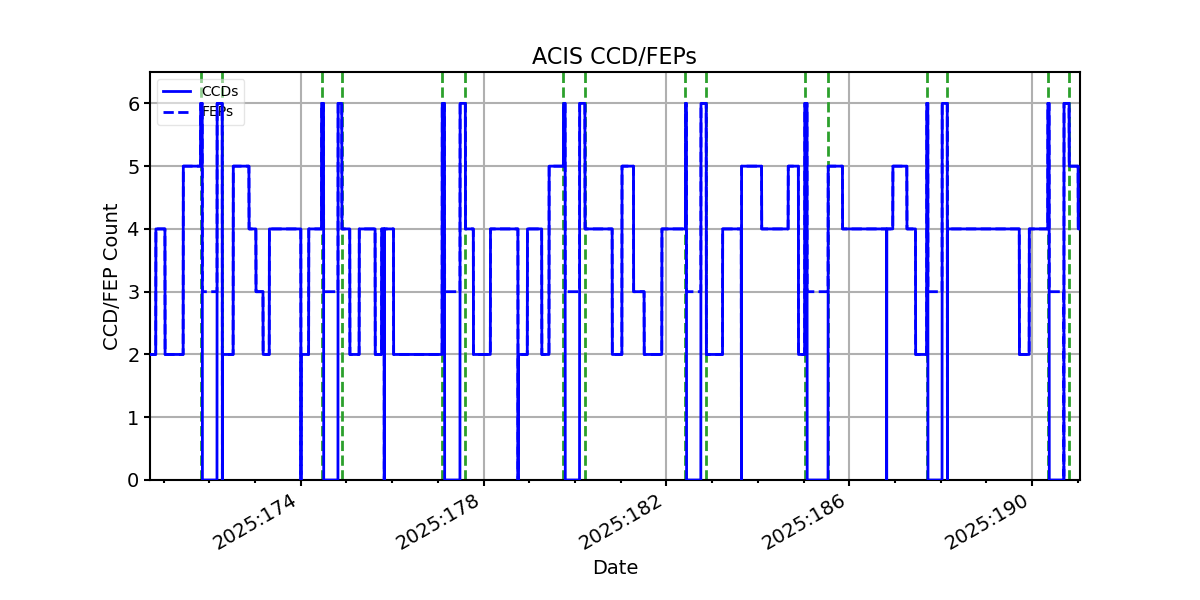

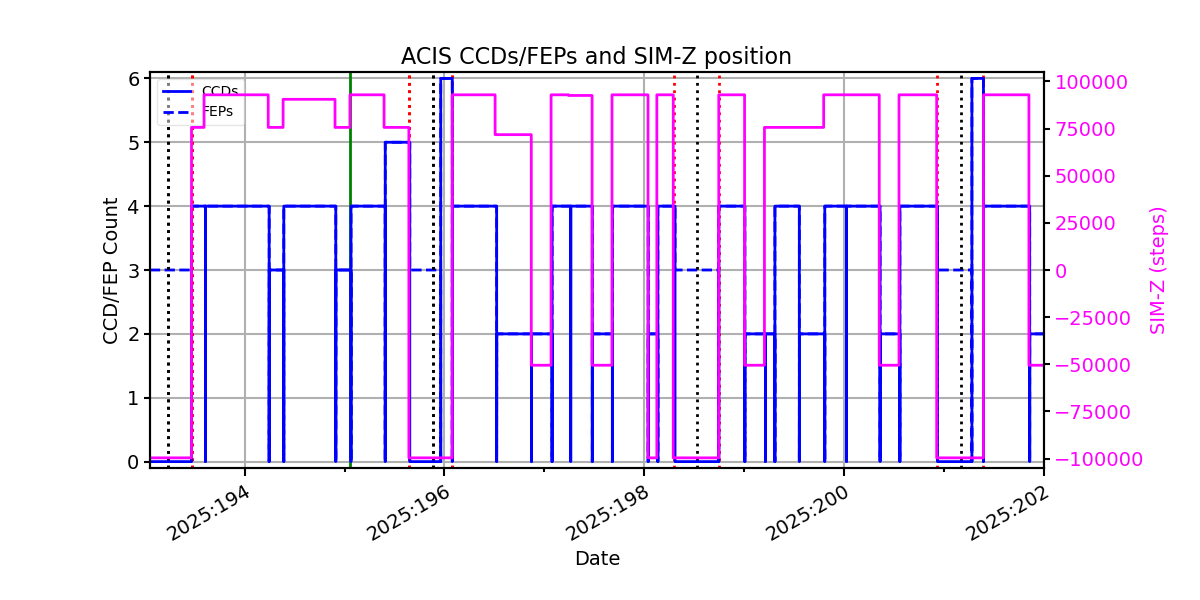

ACIS CCD/FEP Count
