PSMCBT Temperatures Check
Summary
| Date start | 2024:196:18:00:00.016 |
| Date stop | 2024:203:22:48:48.916 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/JUL1524/oflsa |
| Run time | Thu Oct 8 16:07:23 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

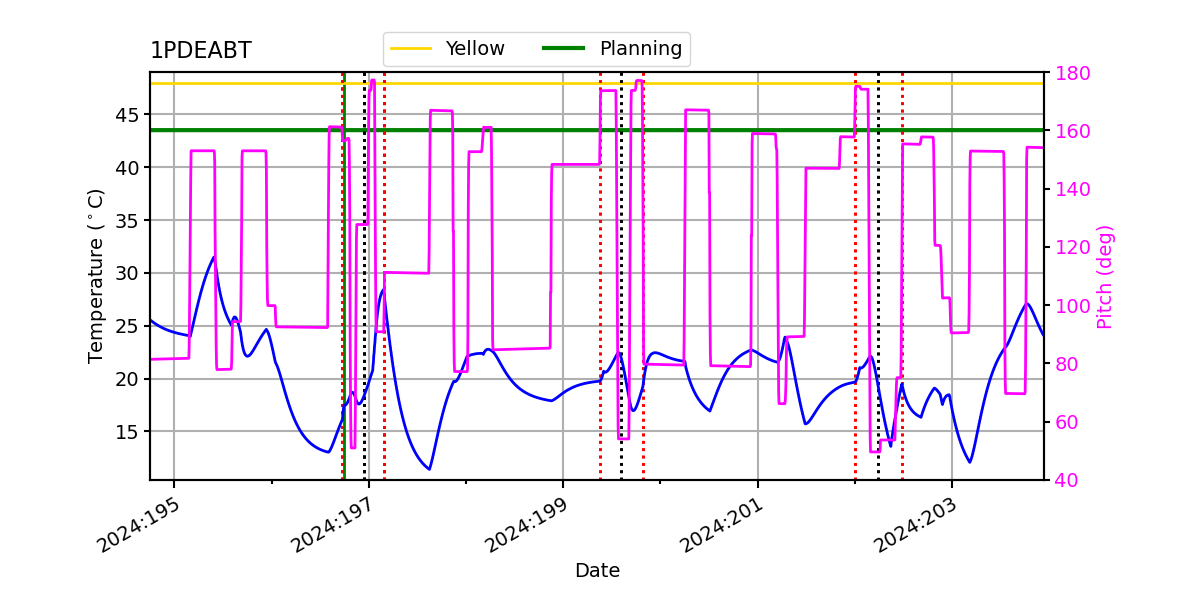

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -4.44 | -3.29 | -2.34 | -0.42 | 1.38 | 2.29 | 2.85 |
| pitch | -8.778 | -0.136 | -0.004 | -0.000 | 0.004 | 0.083 | 8.181 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -2.116 | -0.092 | -0.008 | 0.000 | 0.008 | 0.090 | 1.871 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -4.44 | 2.50 |
| PITCH | 1 | -8.778 | 3.00 |
| PITCH | 99 | 8.181 | 3.00 |

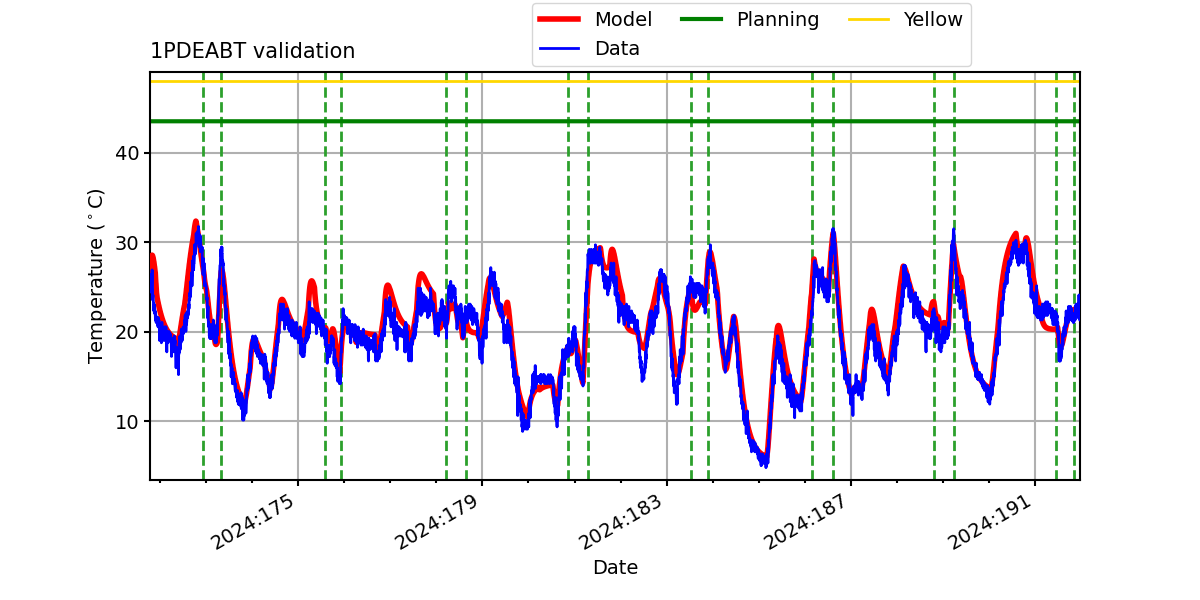

1PDEABT

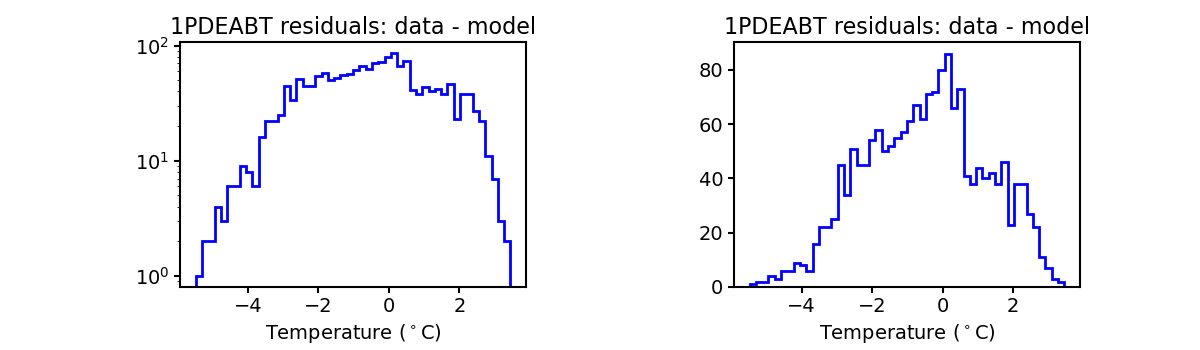

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

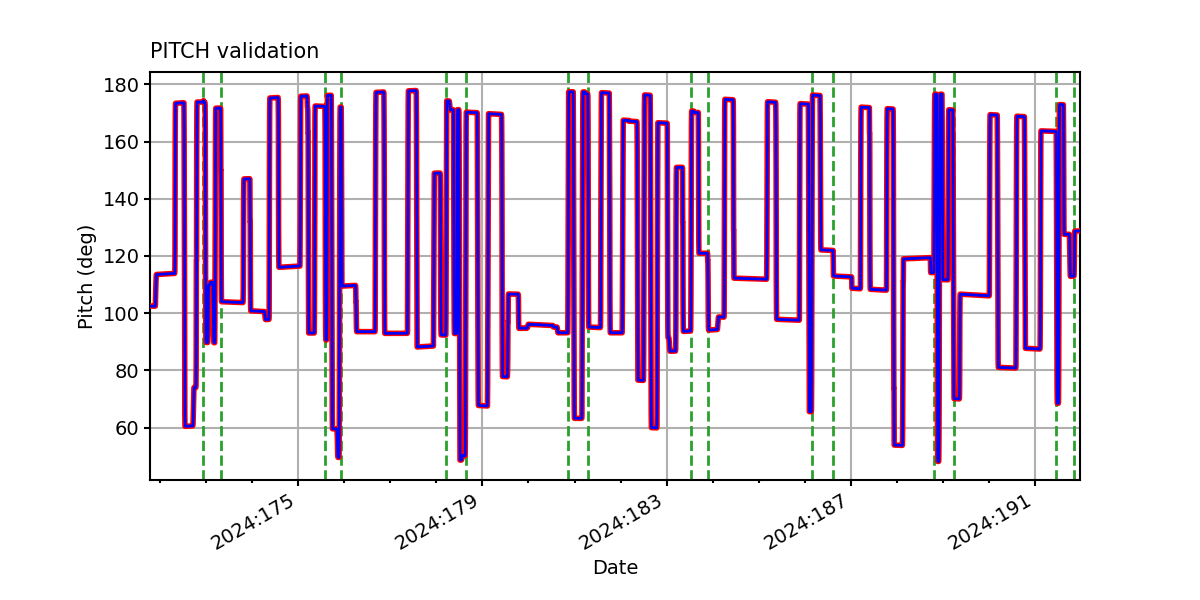

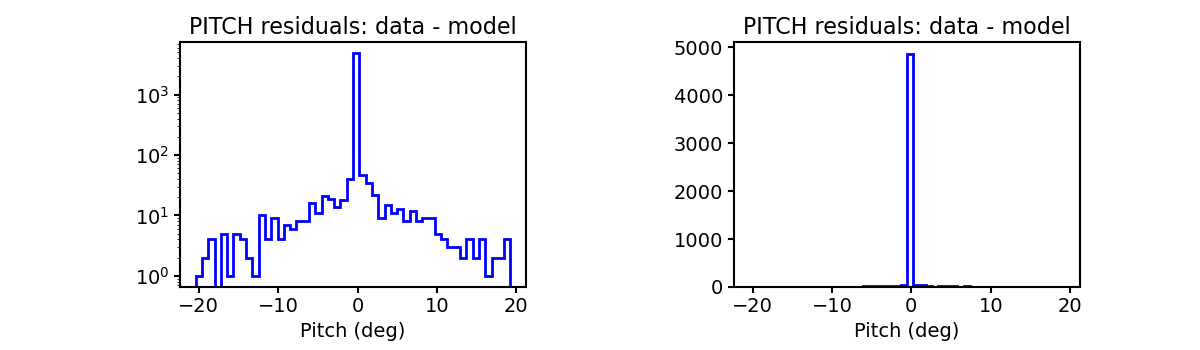

PITCH

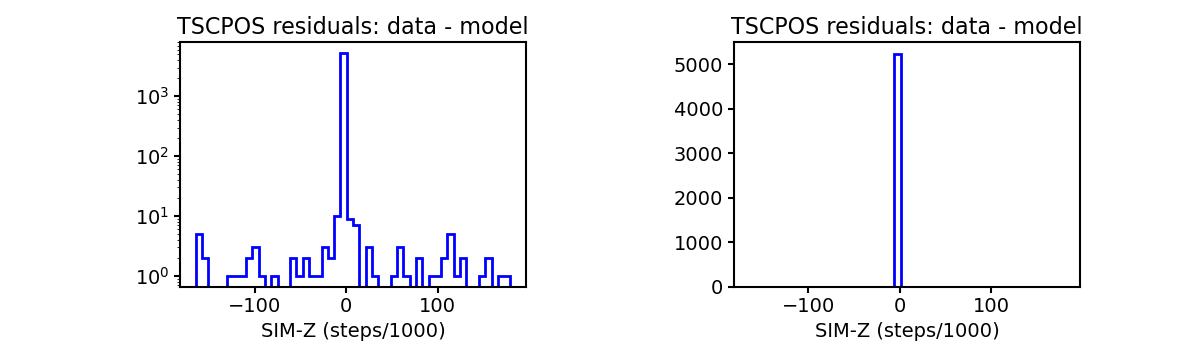

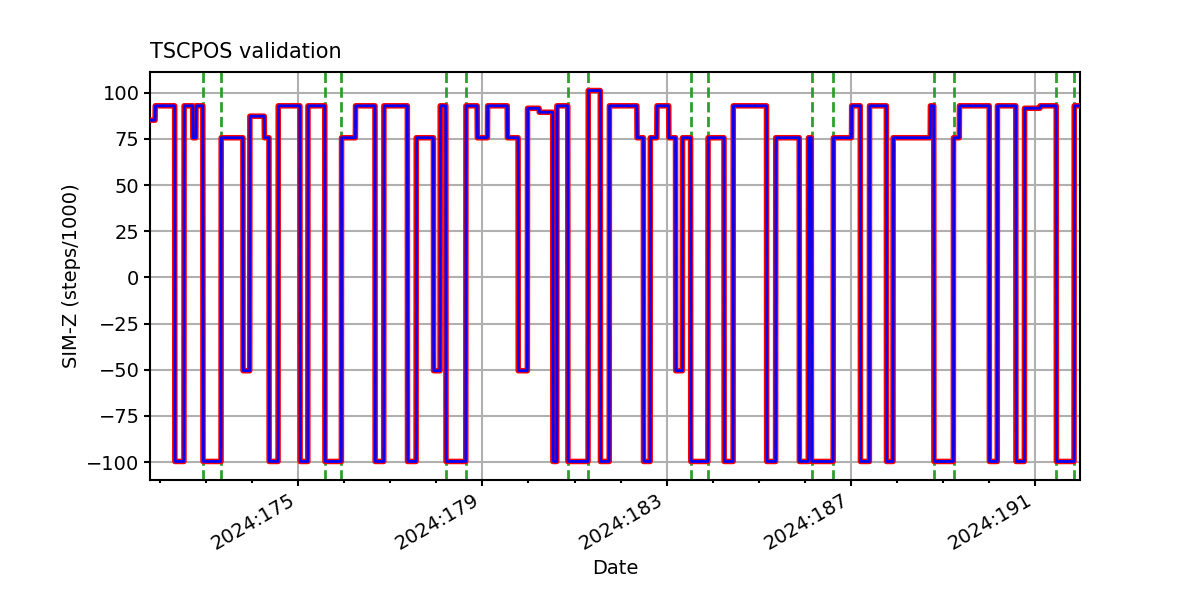

TSCPOS

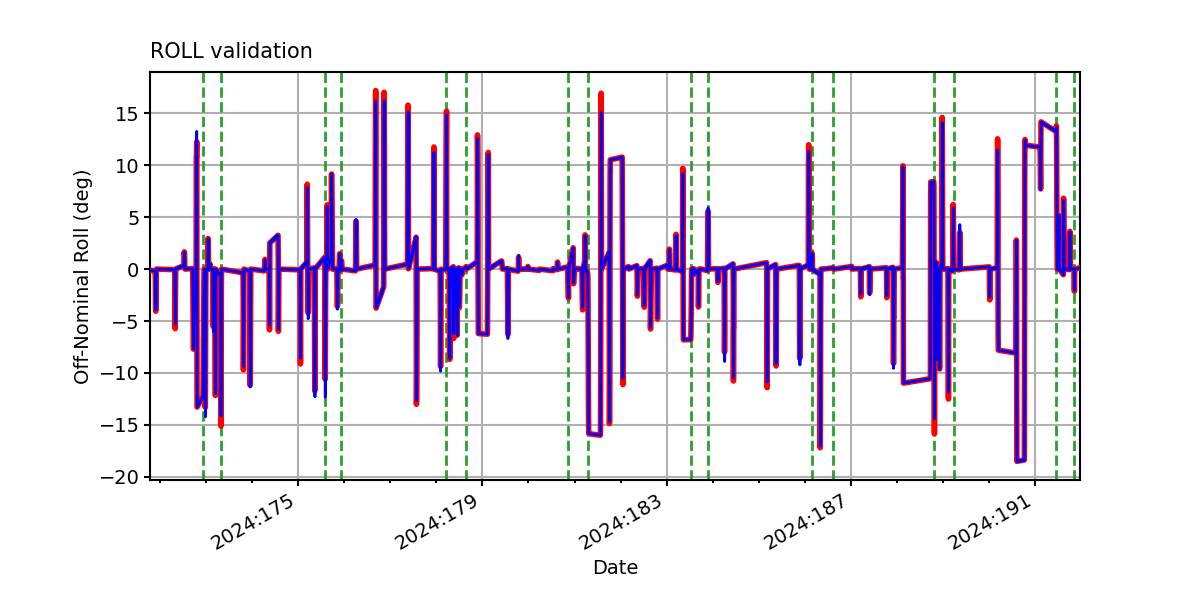

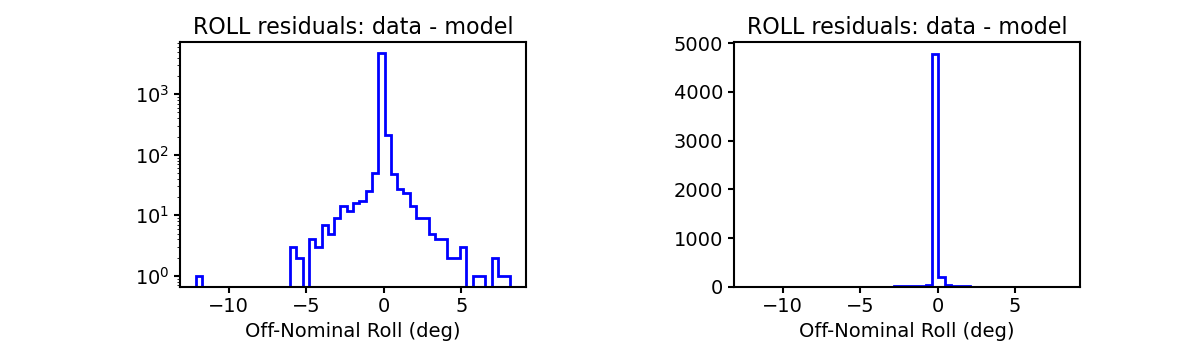

ROLL

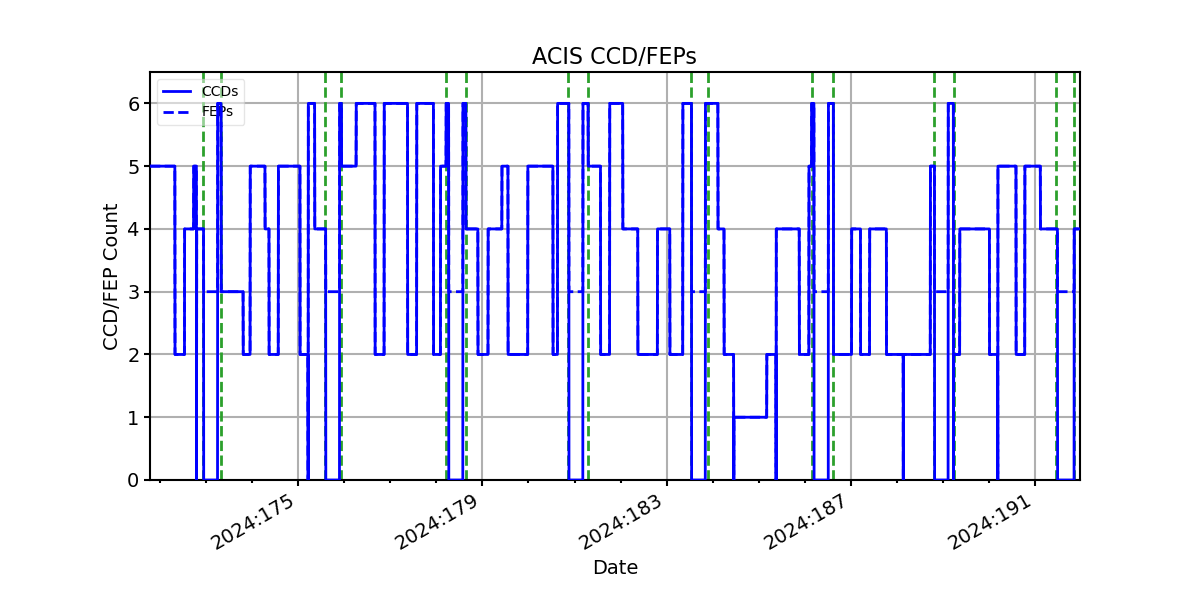

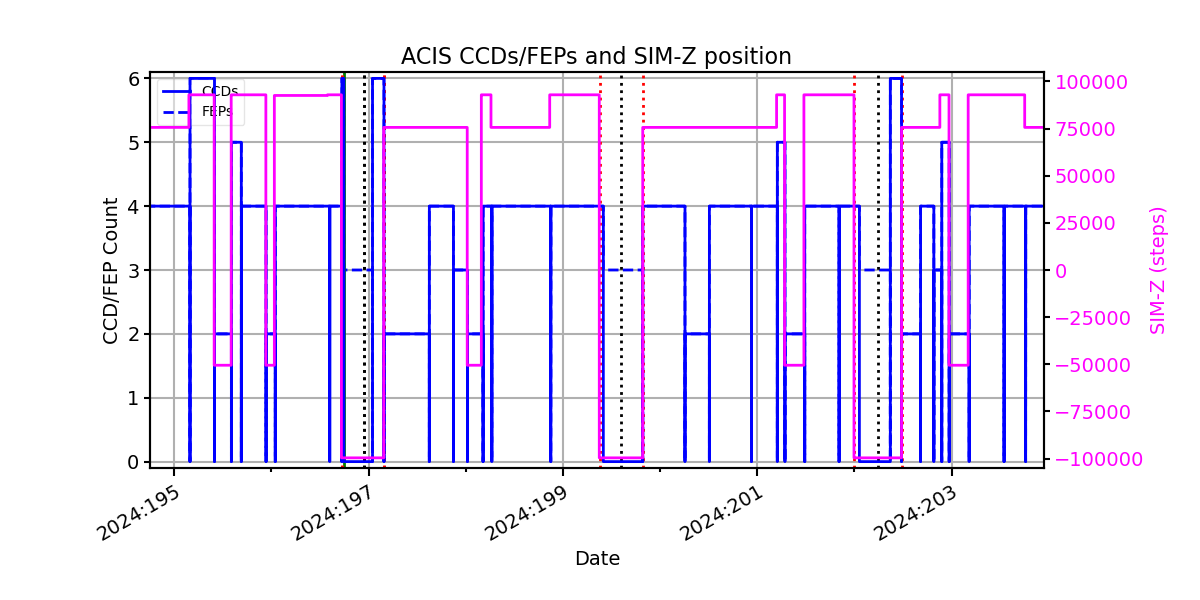

ACIS CCD/FEP Count
