PSMCBT Temperatures Check
Summary
| Date start | 2023:197:10:04:02.216 |
| Date stop | 2023:204:20:02:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/JUL1723/oflsa |
| Run time | Thu Oct 8 16:07:23 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

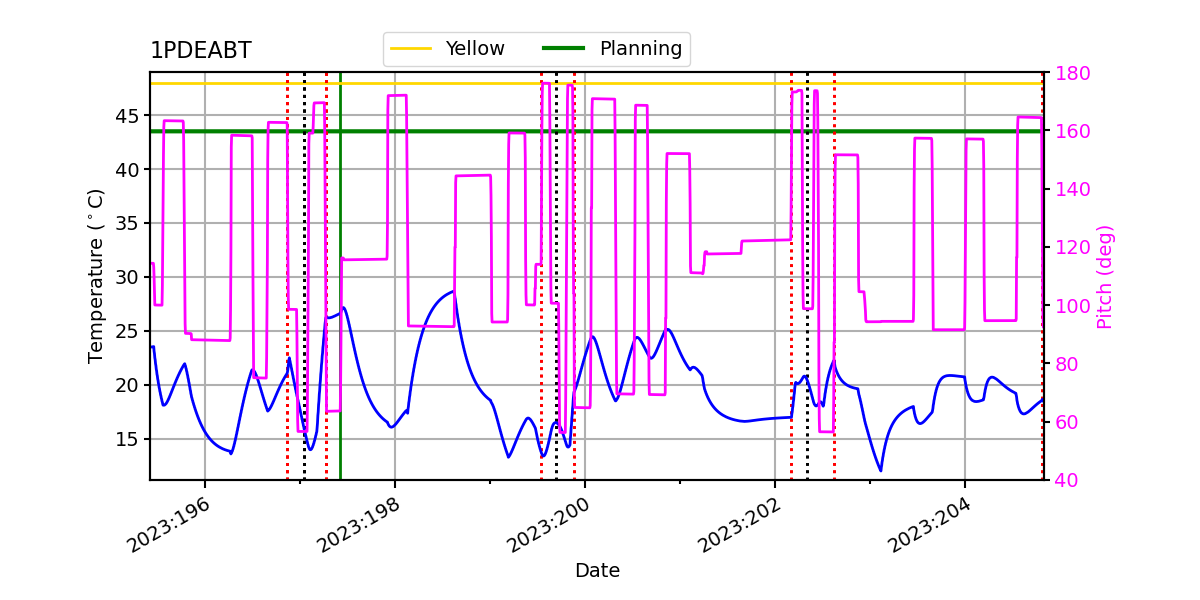

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.90 | -2.37 | -1.68 | 0.19 | 1.82 | 3.53 | 6.00 |
| pitch | -8.795 | -0.085 | -0.003 | 0.000 | 0.003 | 0.280 | 9.163 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.505 | -0.067 | -0.005 | 0.000 | 0.005 | 0.073 | 1.277 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.9 | 2.50 |
| 1PDEABT | 99 | 6.0 | 5.50 |
| PITCH | 1 | -8.795 | 3.00 |
| PITCH | 99 | 9.163 | 3.00 |
1PDEABT

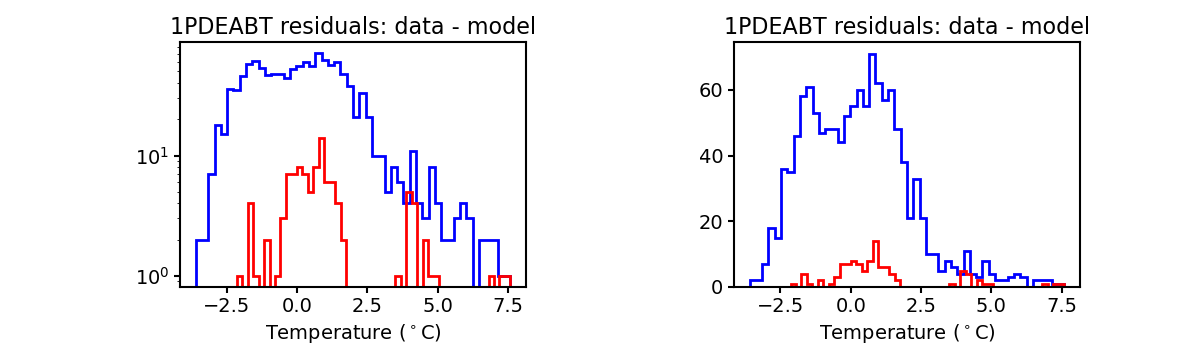

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

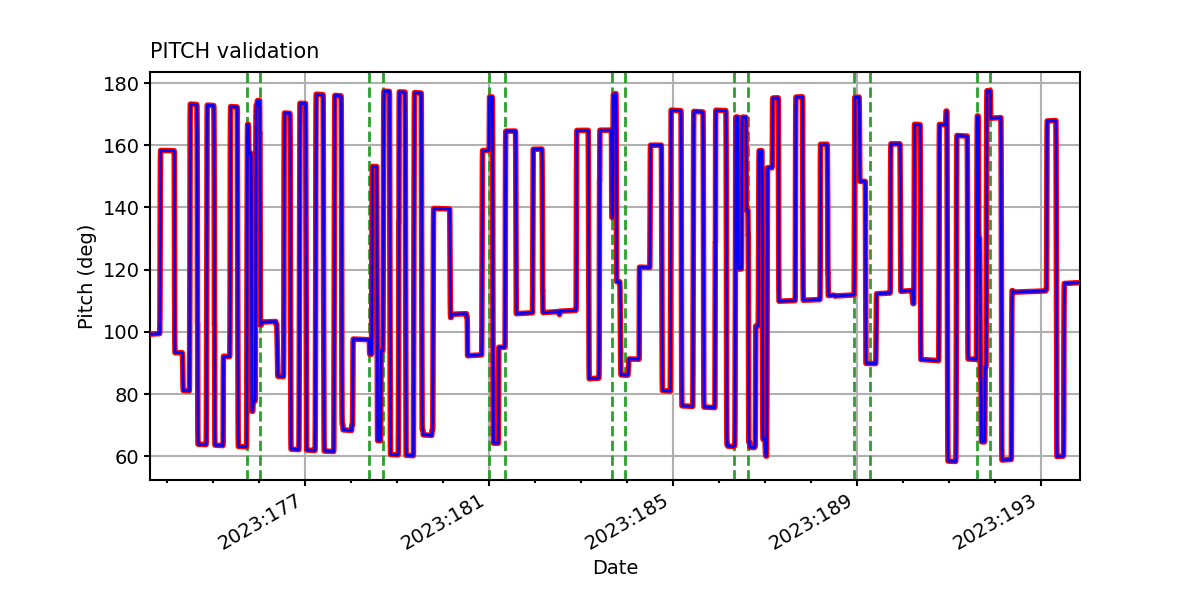

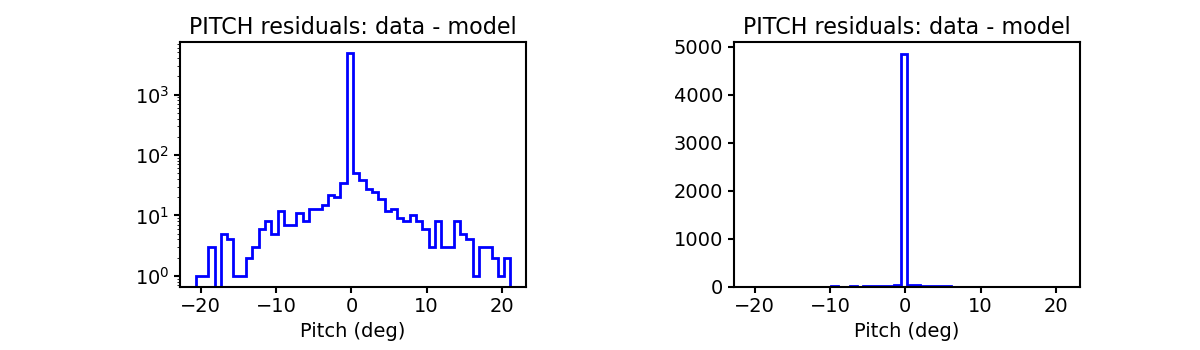

PITCH
TSCPOS

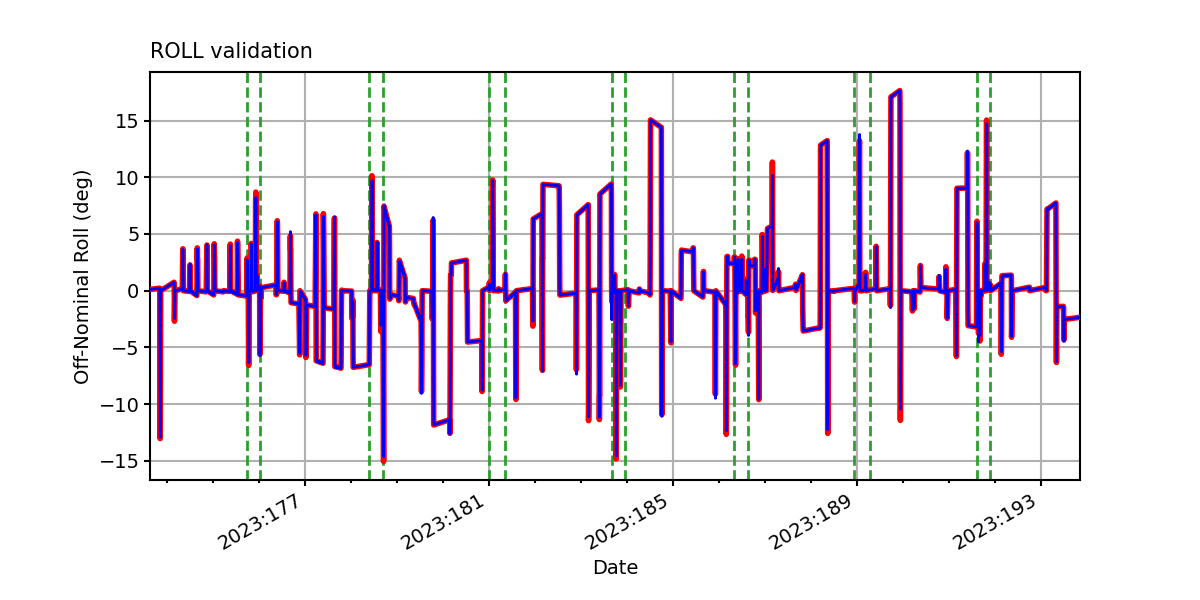

ROLL

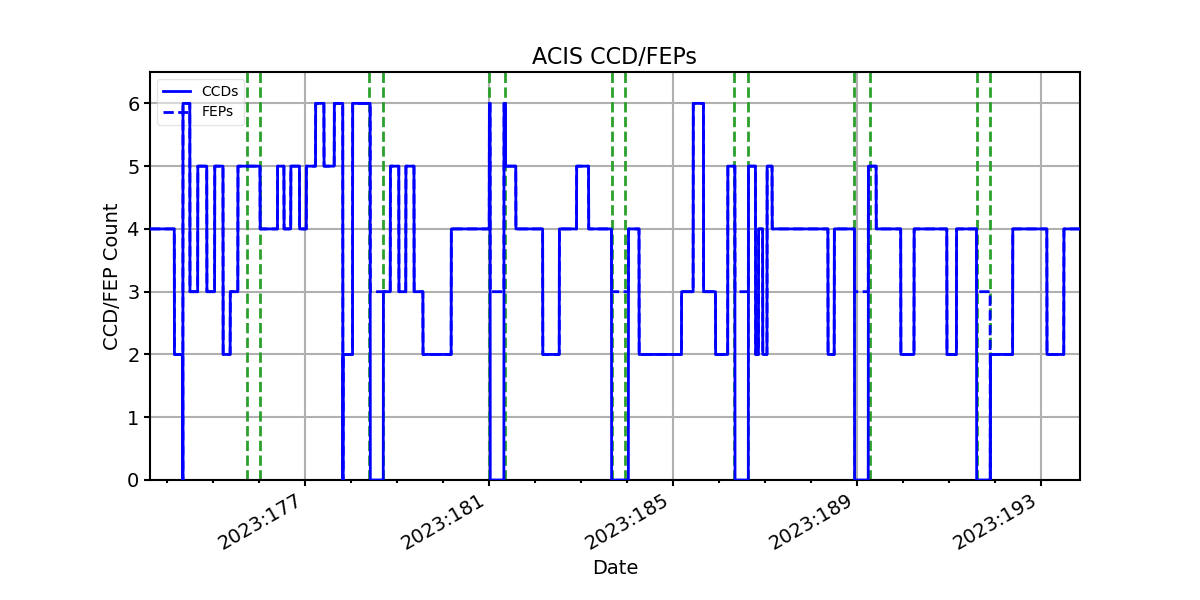

ACIS CCD/FEP Count
