PSMCBT Temperatures Check
Summary
| Date start | 2024:207:03:11:59.016 |
| Date stop | 2024:210:23:29:44.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/JUL2524/oflsa |
| Run time | Thu Oct 8 16:07:51 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

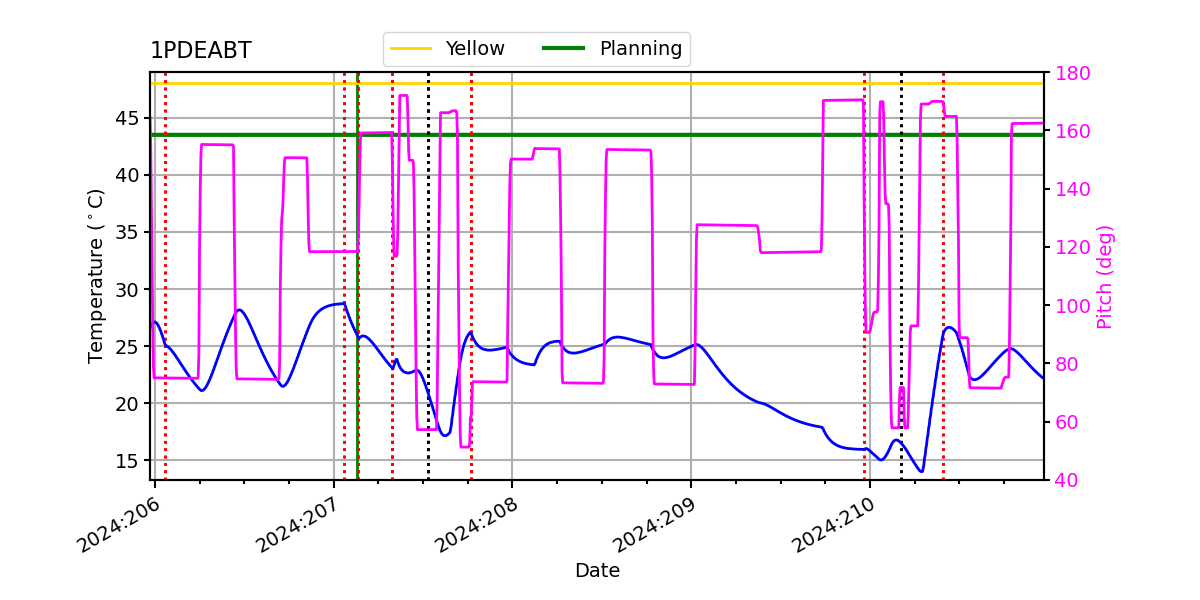

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.29 | -2.77 | -1.85 | -0.16 | 1.25 | 2.19 | 2.97 |
| pitch | -8.632 | -0.120 | -0.004 | -0.000 | 0.004 | 0.008 | 8.602 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 0 |
| roll | -2.050 | -0.059 | -0.005 | 0.000 | 0.005 | 0.044 | 1.751 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.29 | 2.50 |
| PITCH | 1 | -8.632 | 3.00 |
| PITCH | 99 | 8.602 | 3.00 |

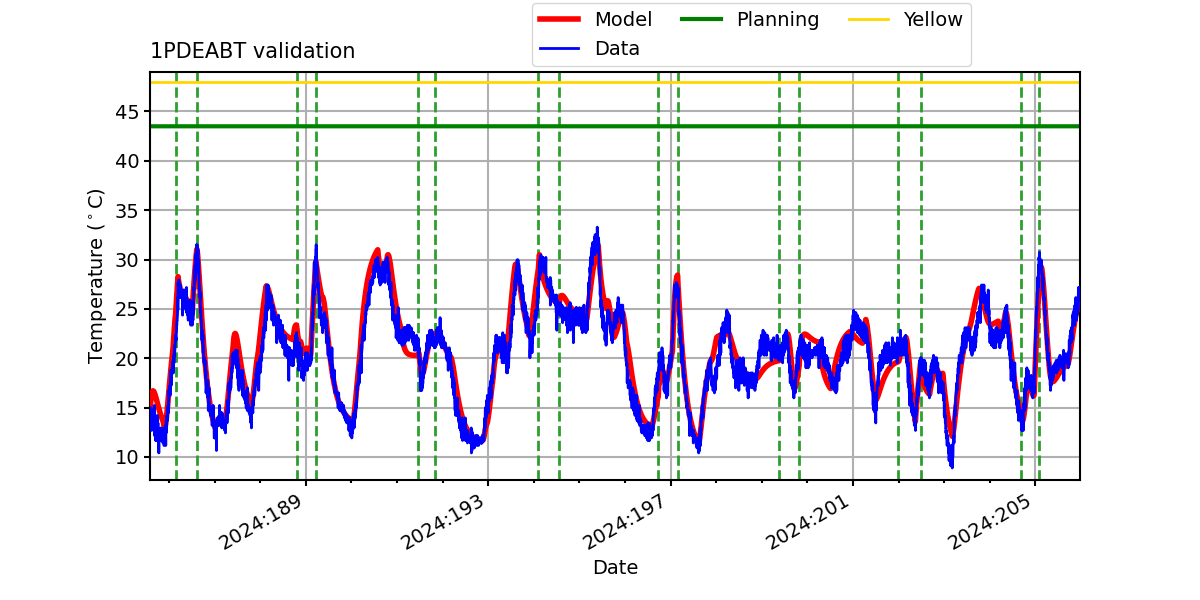

1PDEABT

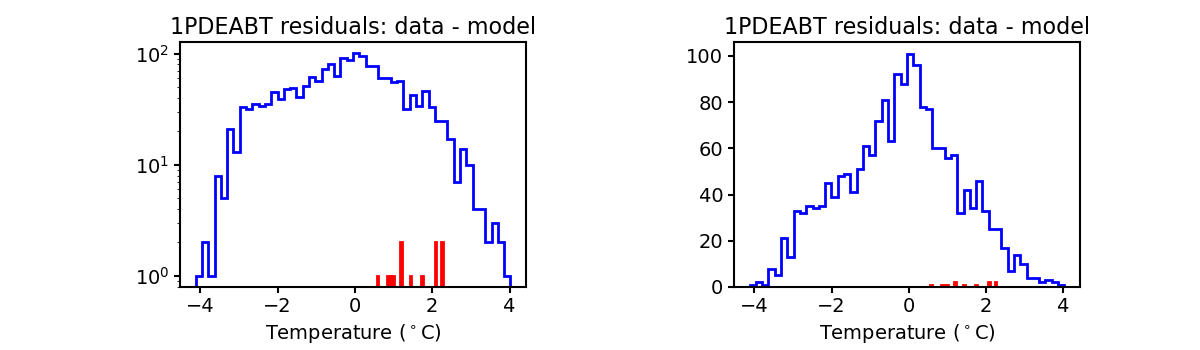

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

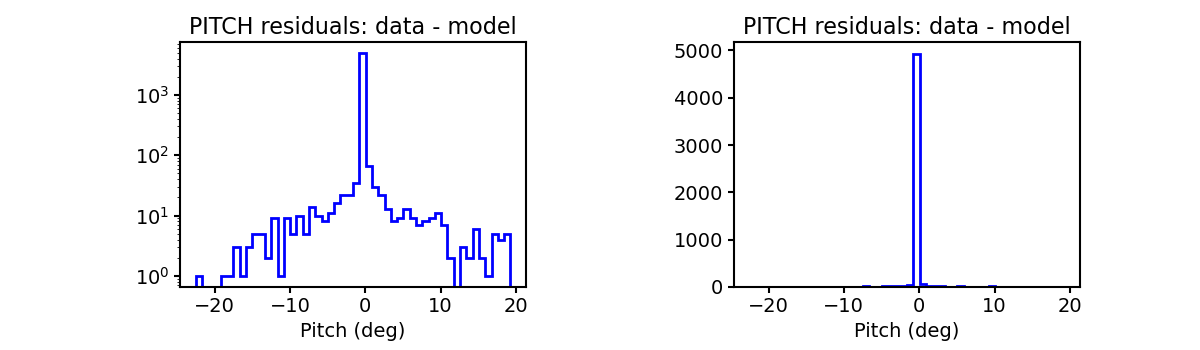

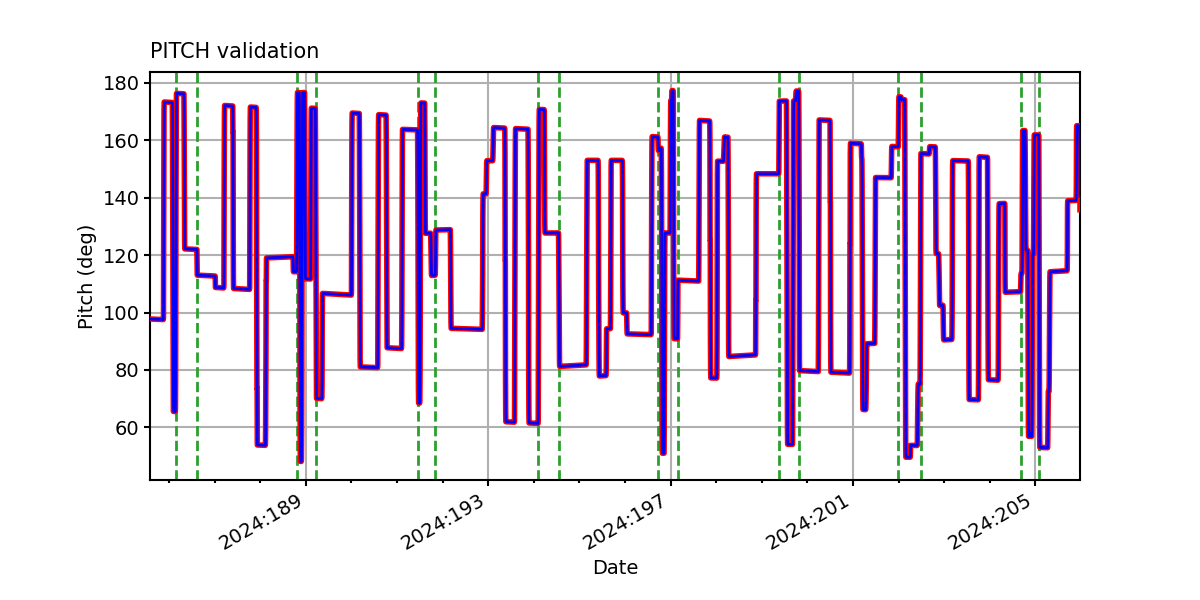

PITCH

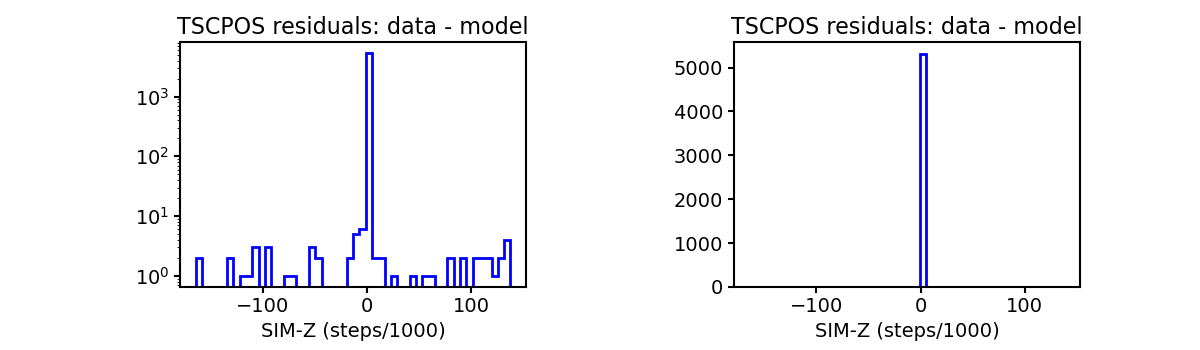

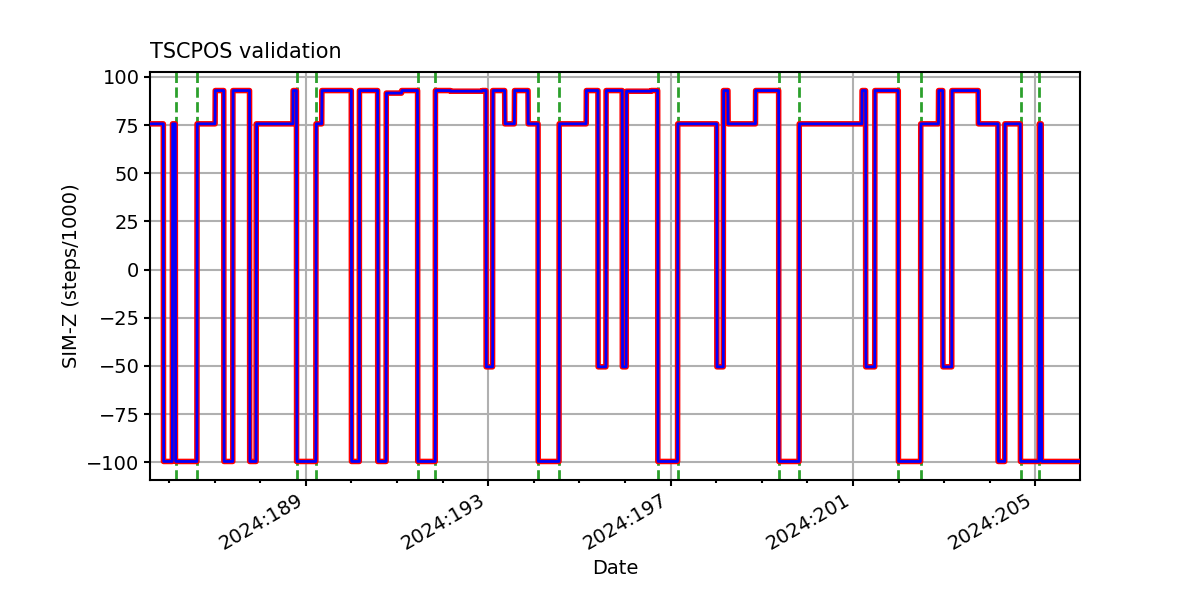

TSCPOS

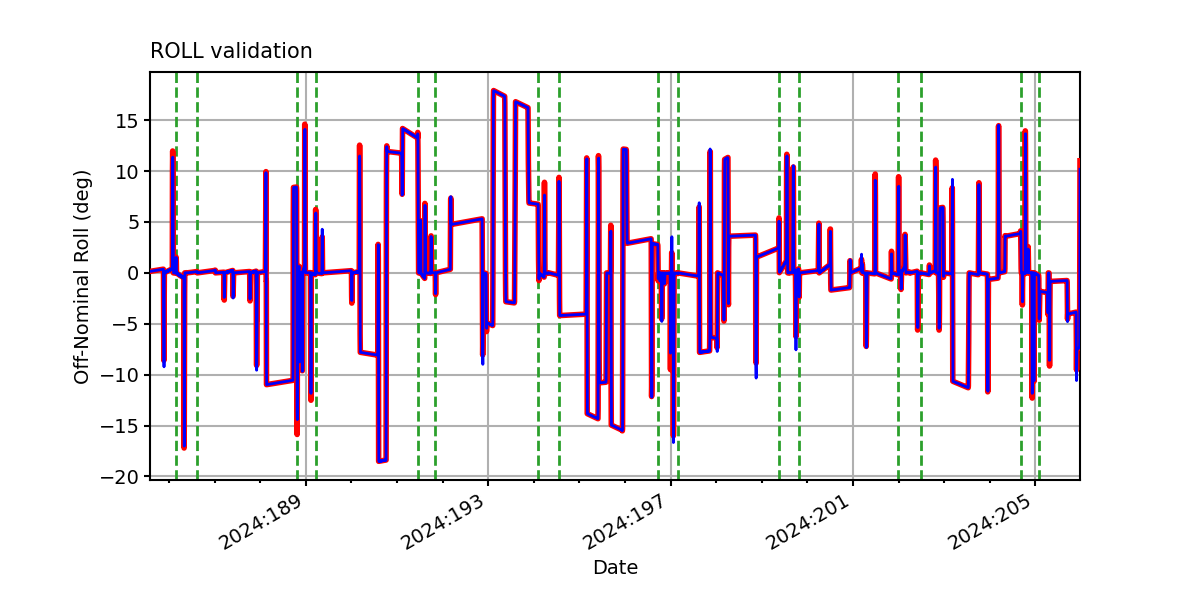

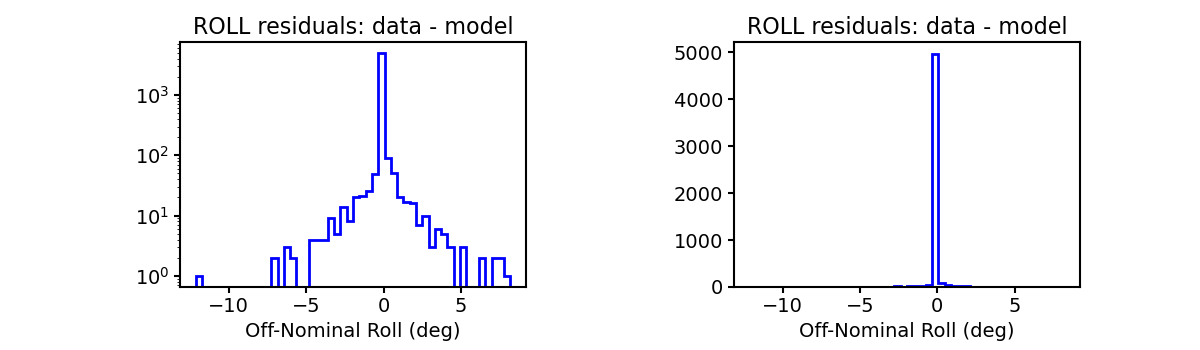

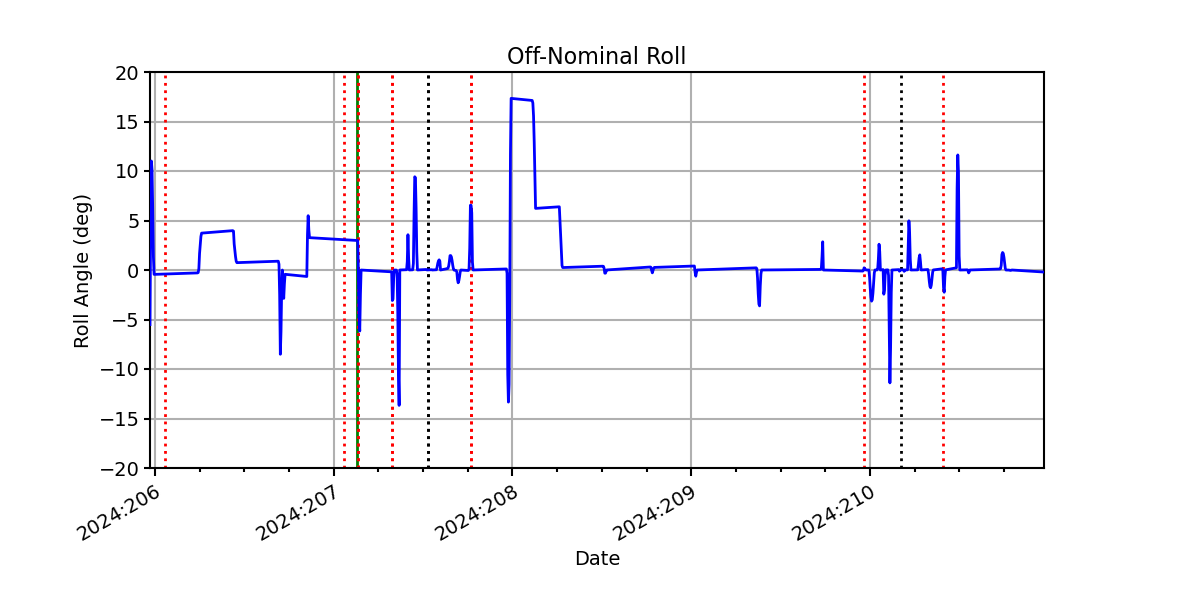

ROLL

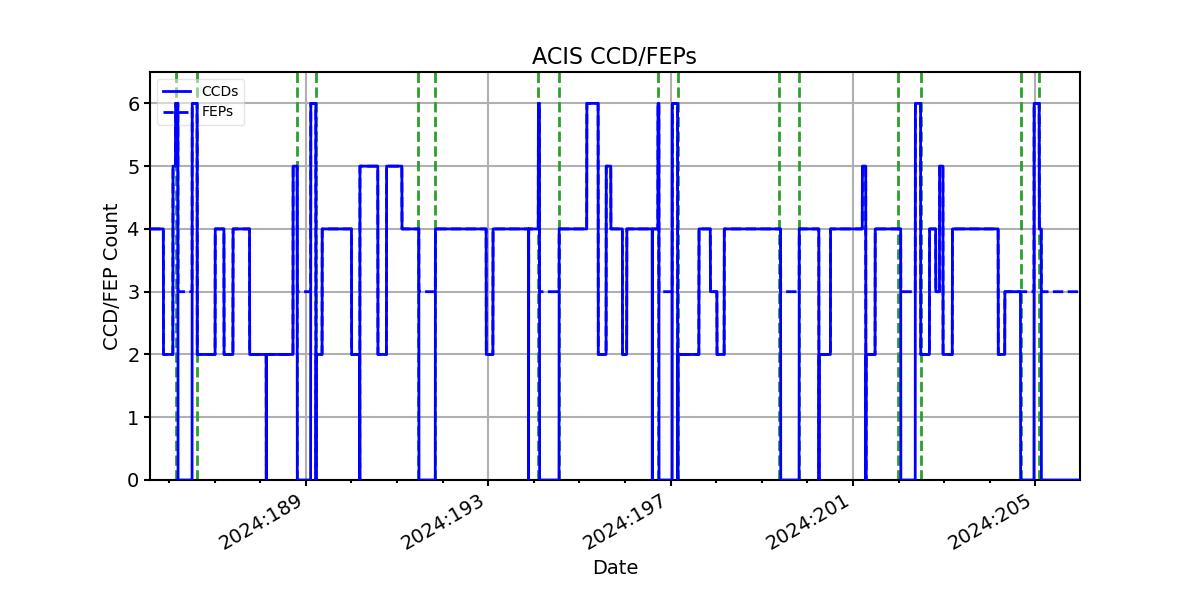

ACIS CCD/FEP Count
