PSMCBT Temperatures Check
Summary
| Date start | 2026:151:22:27:10.716 |
| Date stop | 2026:159:03:18:11.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JUN0126/oflsa |
| Run time | Thu Oct 8 16:07:51 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

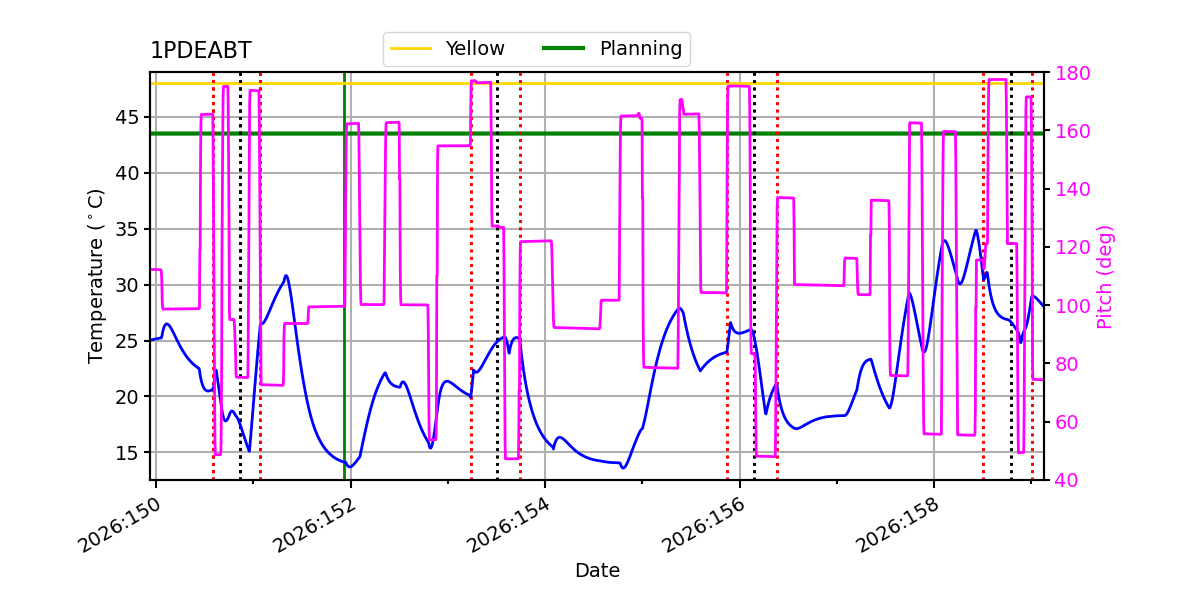

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.66 | -2.06 | -1.34 | 0.03 | 1.55 | 2.52 | 3.15 |
| pitch | -7.524 | -0.393 | -0.004 | -0.000 | 0.004 | 0.118 | 9.520 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.816 | -0.080 | -0.005 | -0.000 | 0.005 | 0.092 | 1.894 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.66 | 2.50 |
| PITCH | 1 | -7.524 | 3.00 |
| PITCH | 99 | 9.52 | 3.00 |

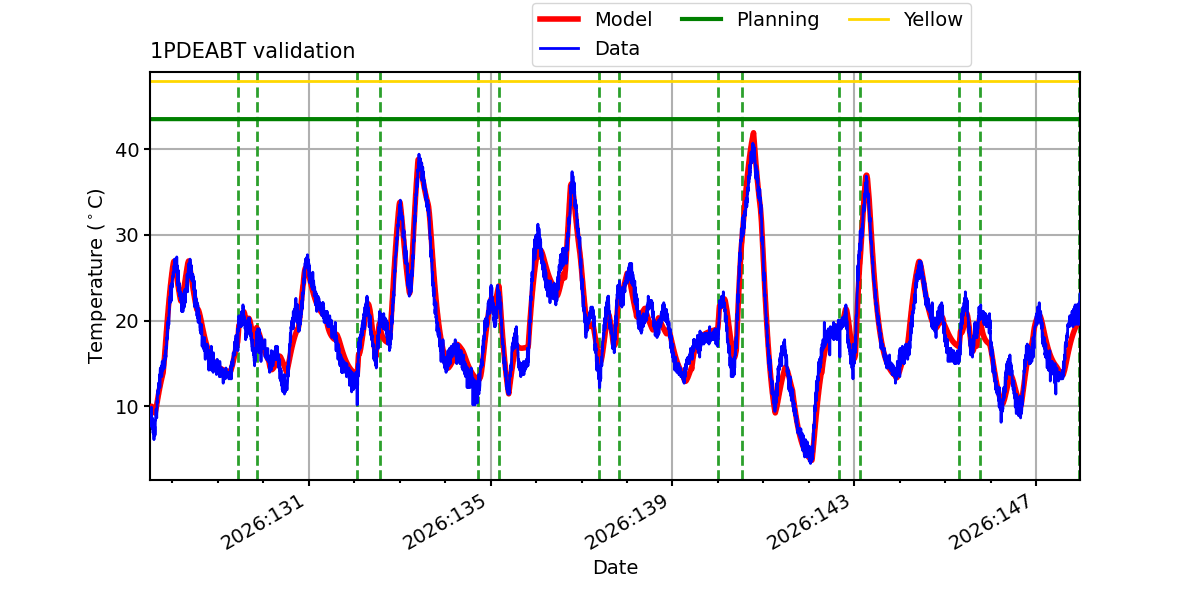

1PDEABT

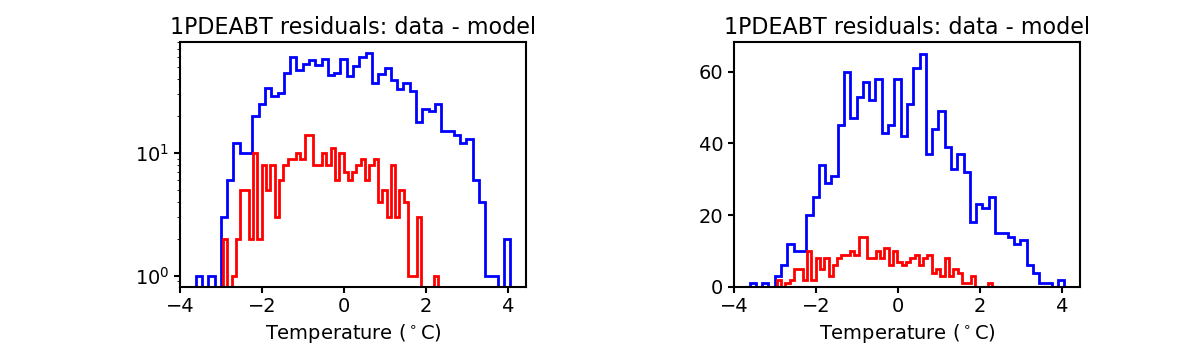

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

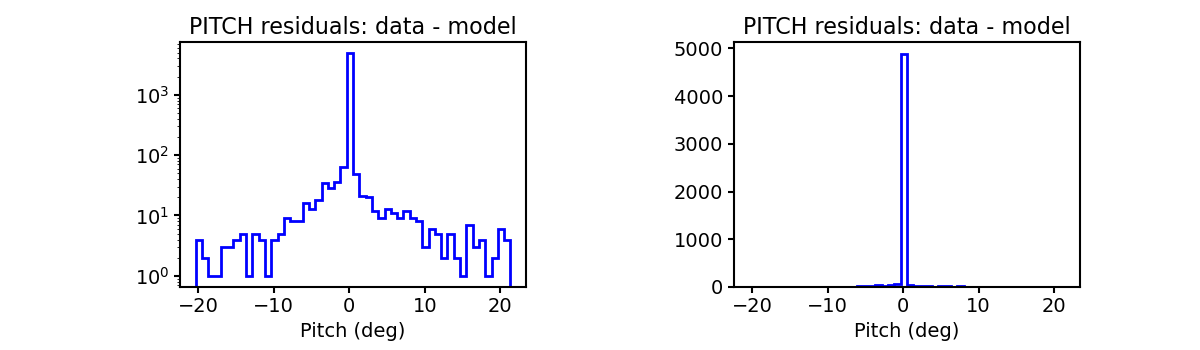

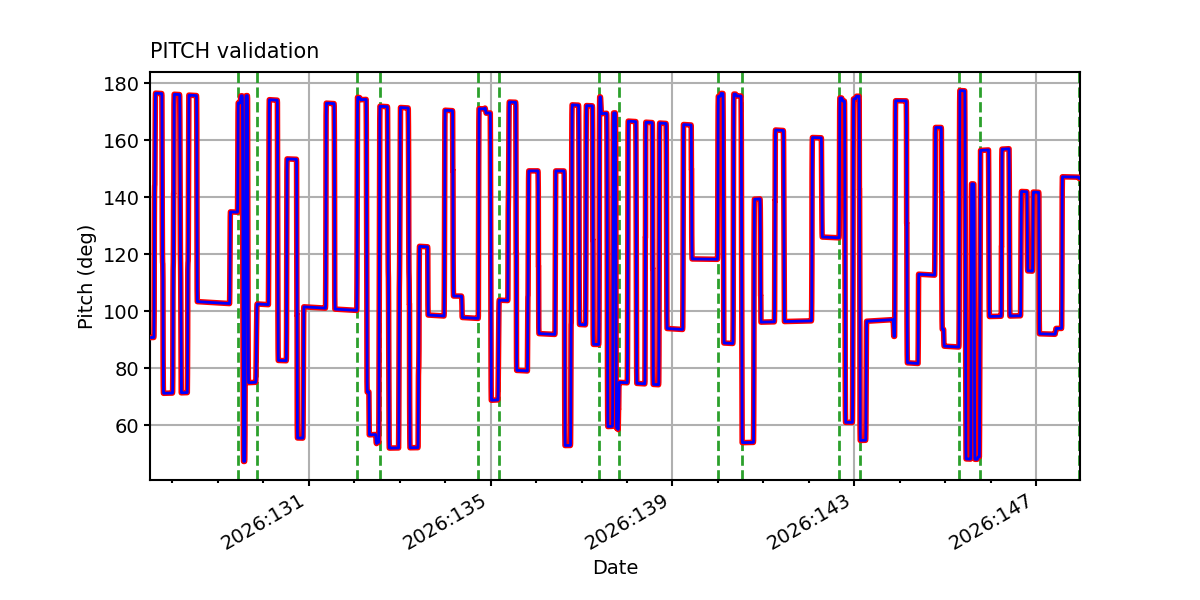

PITCH

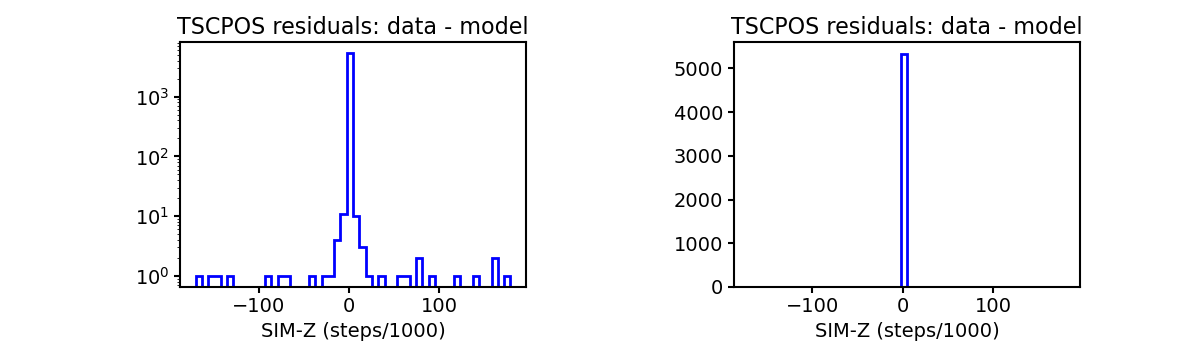

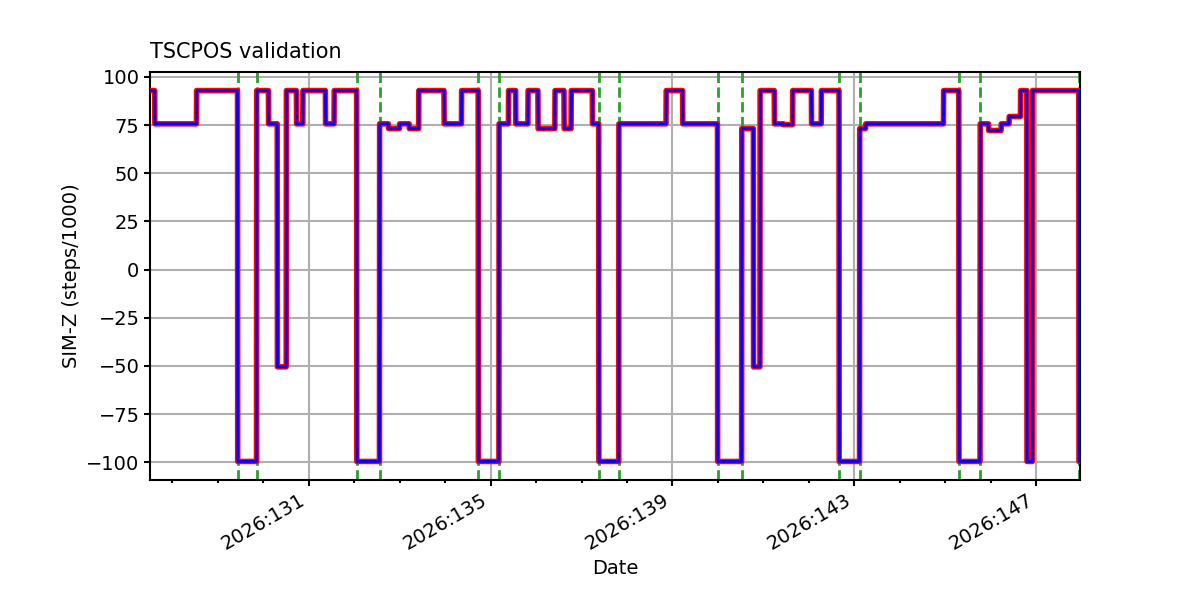

TSCPOS

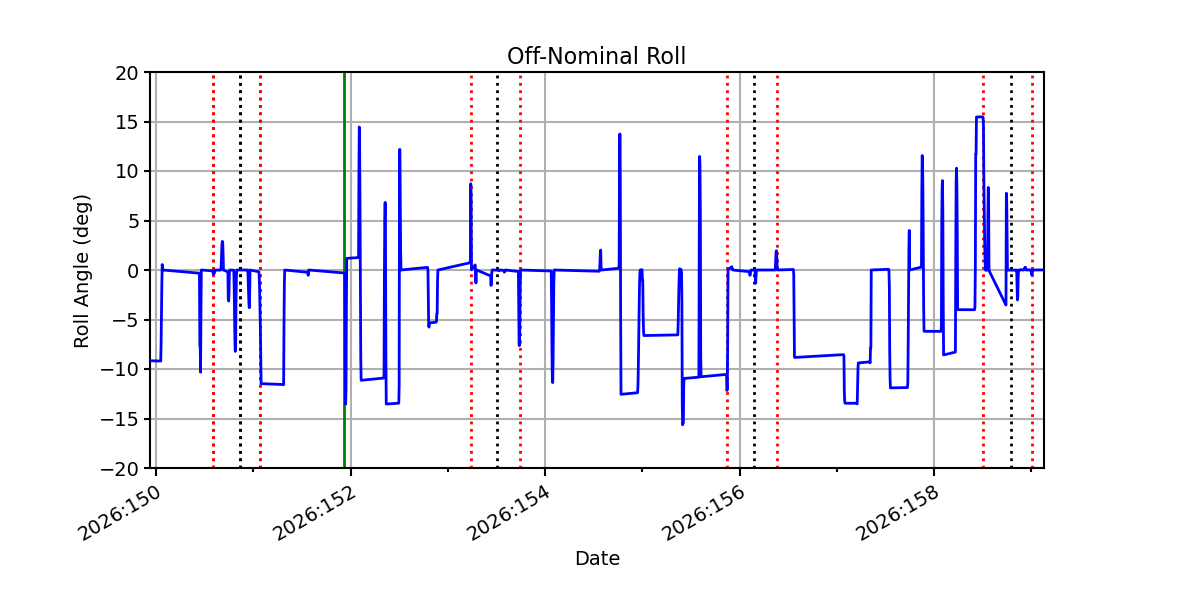

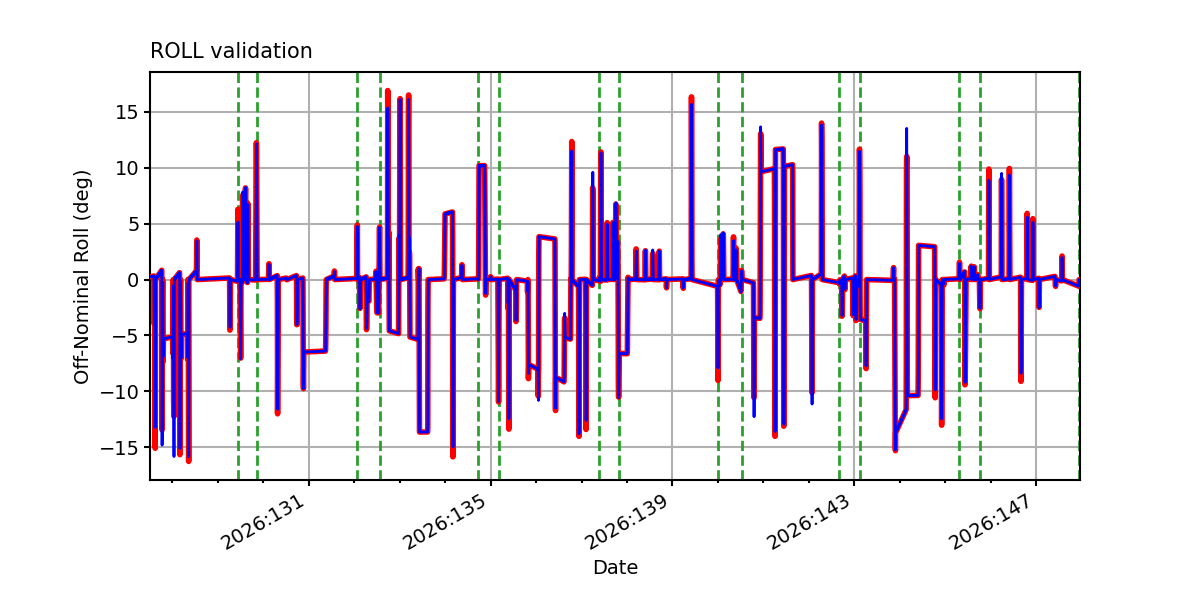

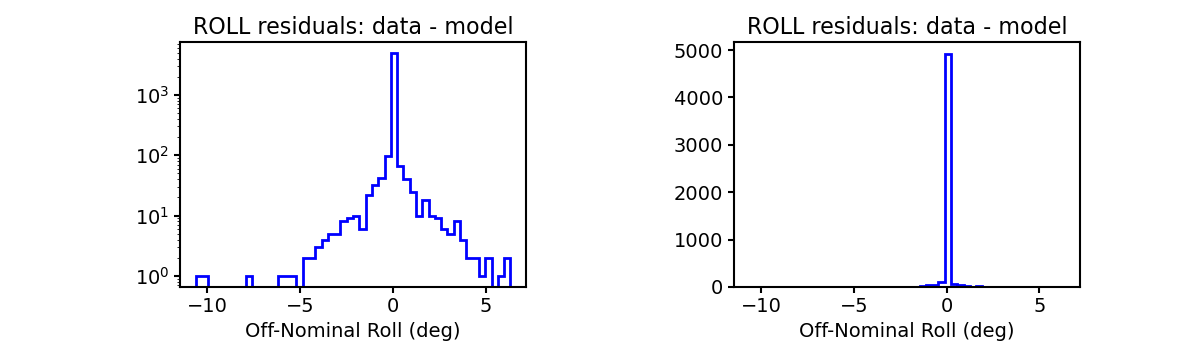

ROLL

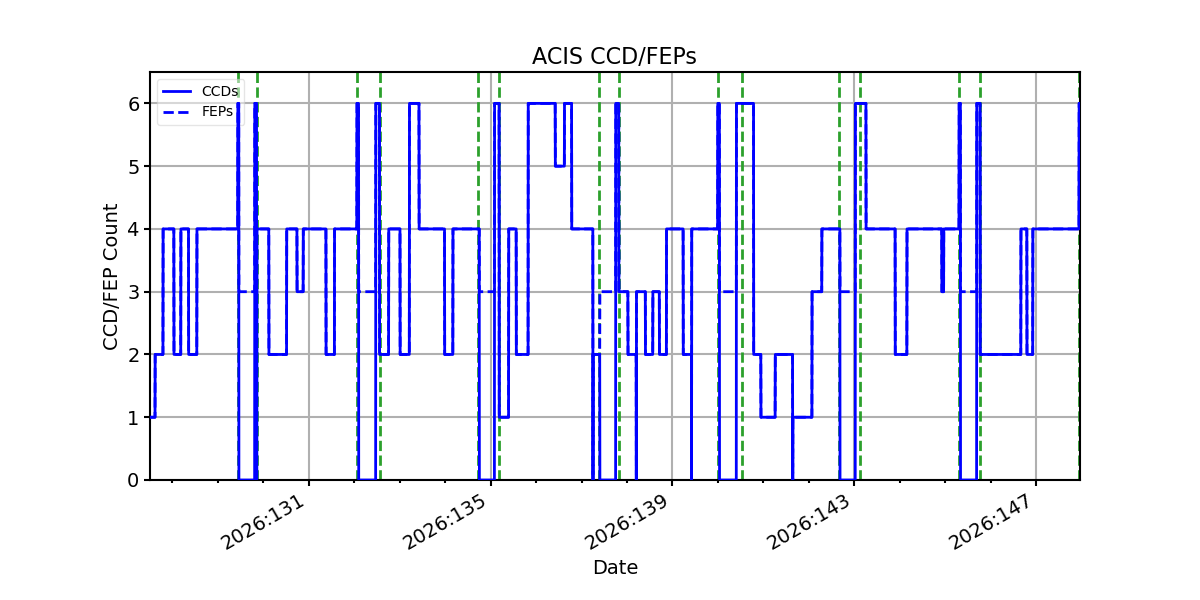

ACIS CCD/FEP Count
