PSMCBT Temperatures Check
Summary
| Date start | 2025:153:19:50:00.016 |
| Date stop | 2025:159:23:43:43.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/JUN0225/oflsb |
| Run time | Thu Oct 8 16:07:51 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

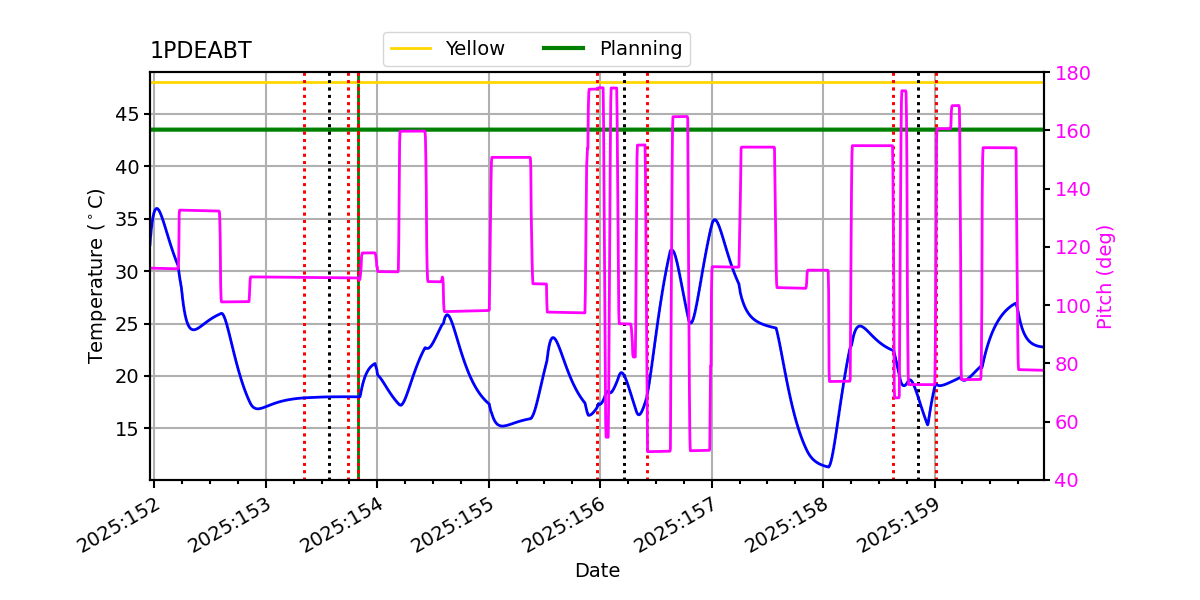

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.49 | -1.84 | -1.01 | 0.65 | 2.10 | 2.90 | 3.64 |
| pitch | -8.529 | -0.464 | -0.004 | -0.000 | 0.004 | 0.374 | 7.568 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -2.070 | -0.138 | -0.005 | -0.000 | 0.006 | 0.156 | 1.779 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -8.529 | 3.00 |
| PITCH | 99 | 7.568 | 3.00 |

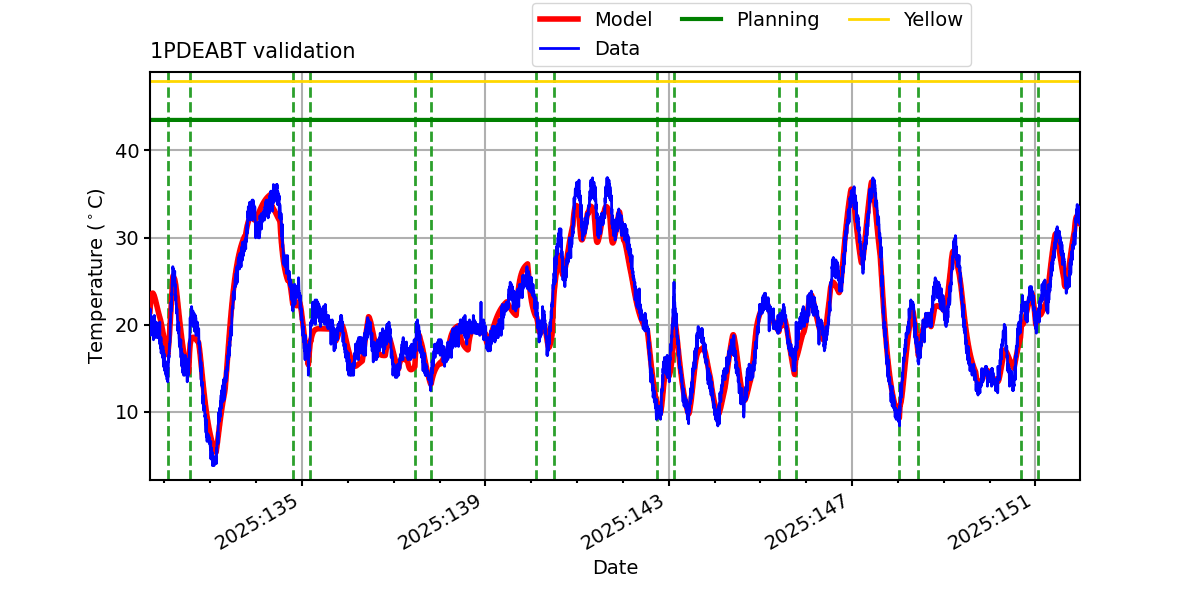

1PDEABT

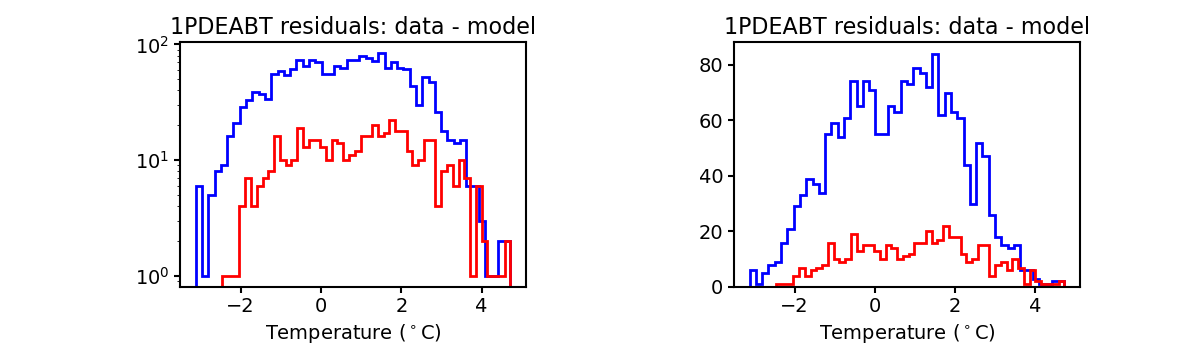

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

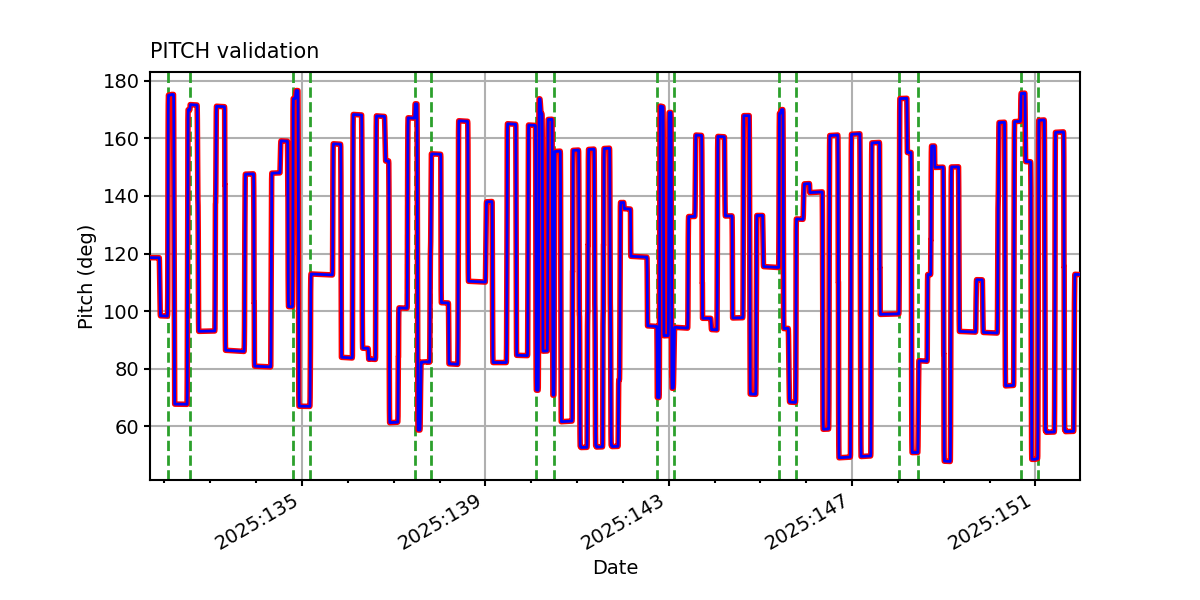

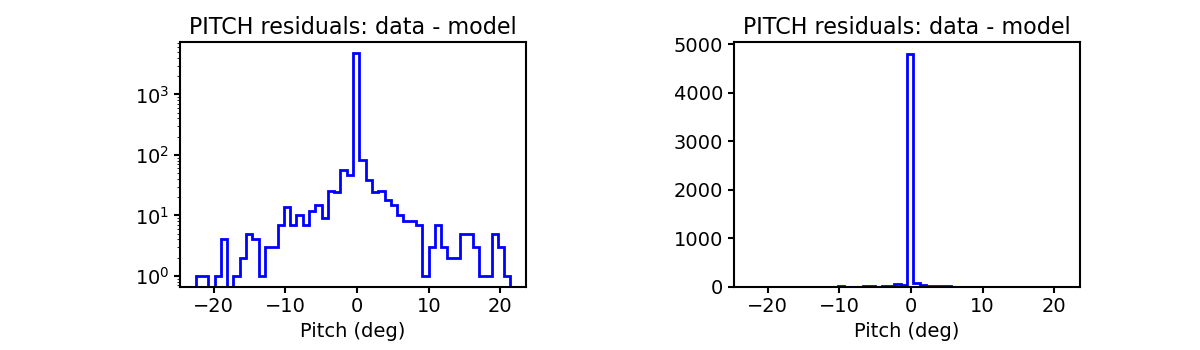

PITCH

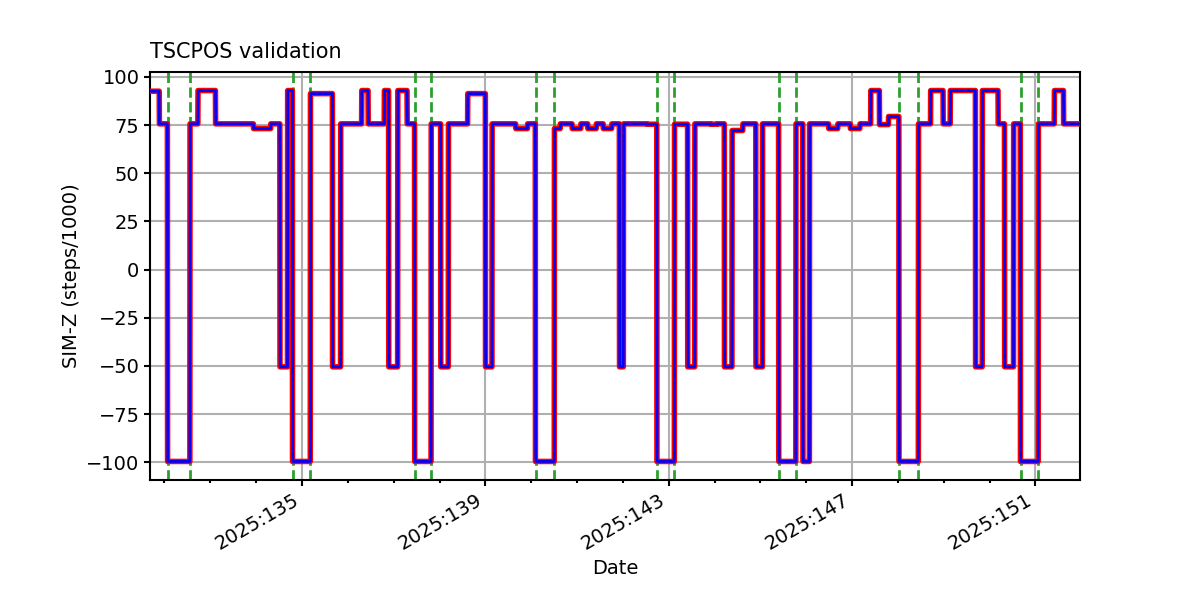

TSCPOS

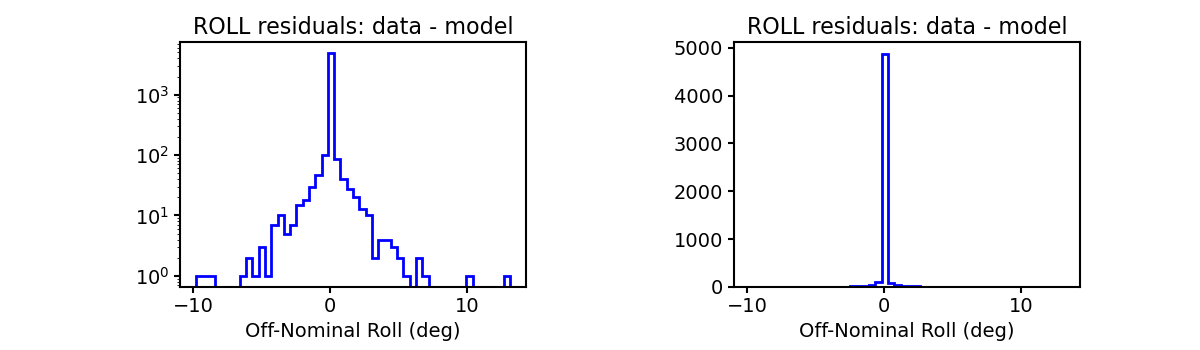

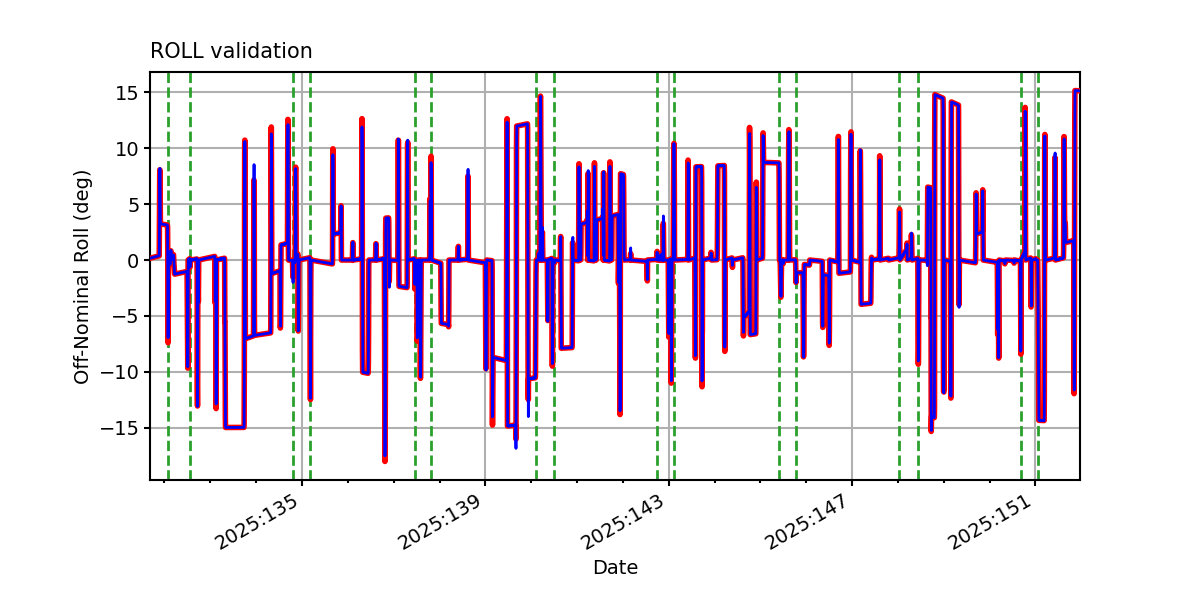

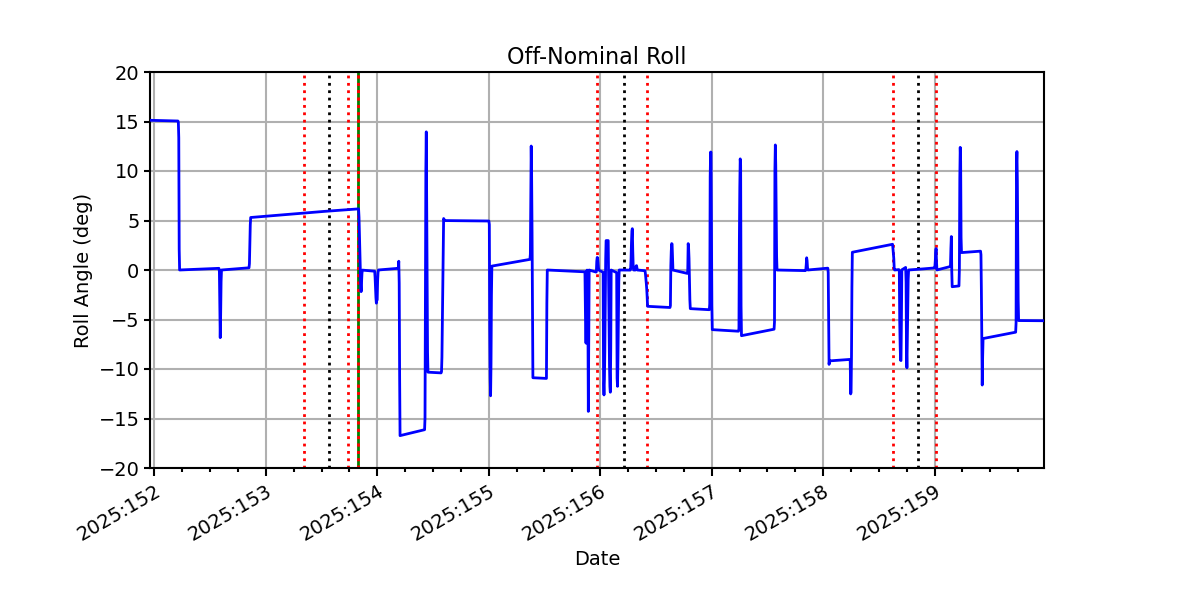

ROLL

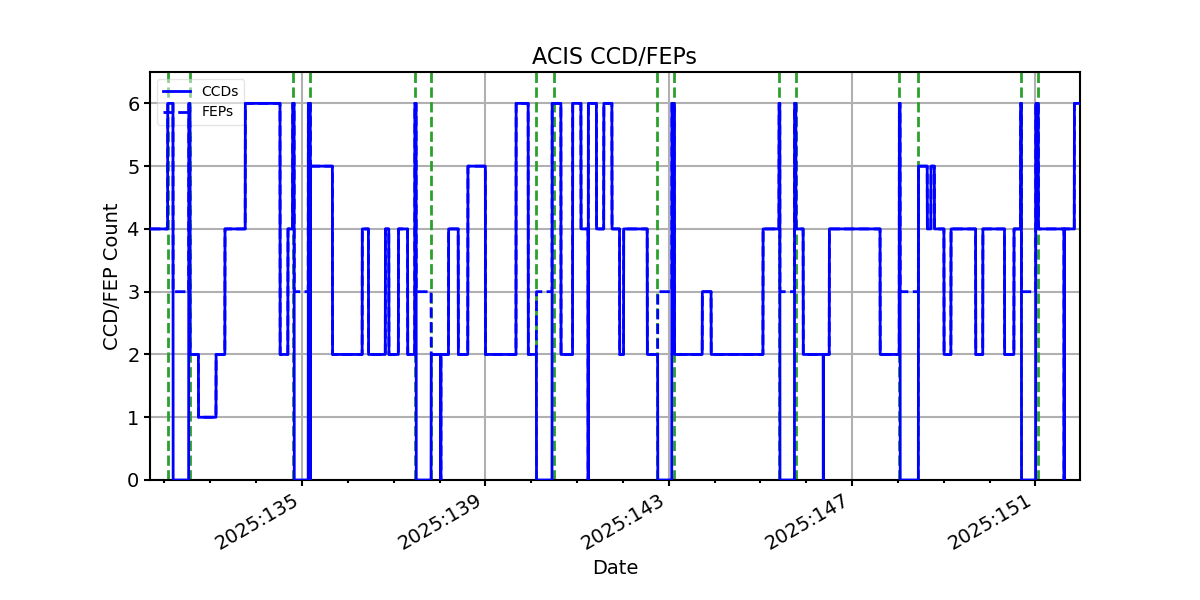

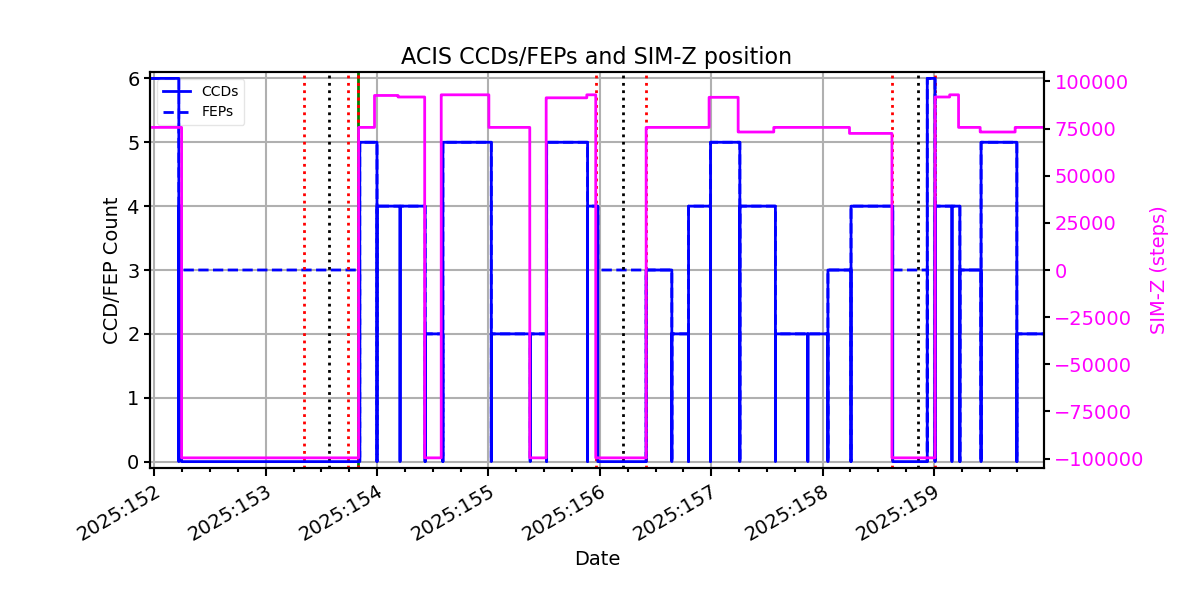

ACIS CCD/FEP Count
