PSMCBT Temperatures Check
Summary
| Date start | 2026:159:03:15:11.516 |
| Date stop | 2026:166:01:12:48.416 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JUN0826/oflsb |
| Run time | Thu Oct 8 16:08:22 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

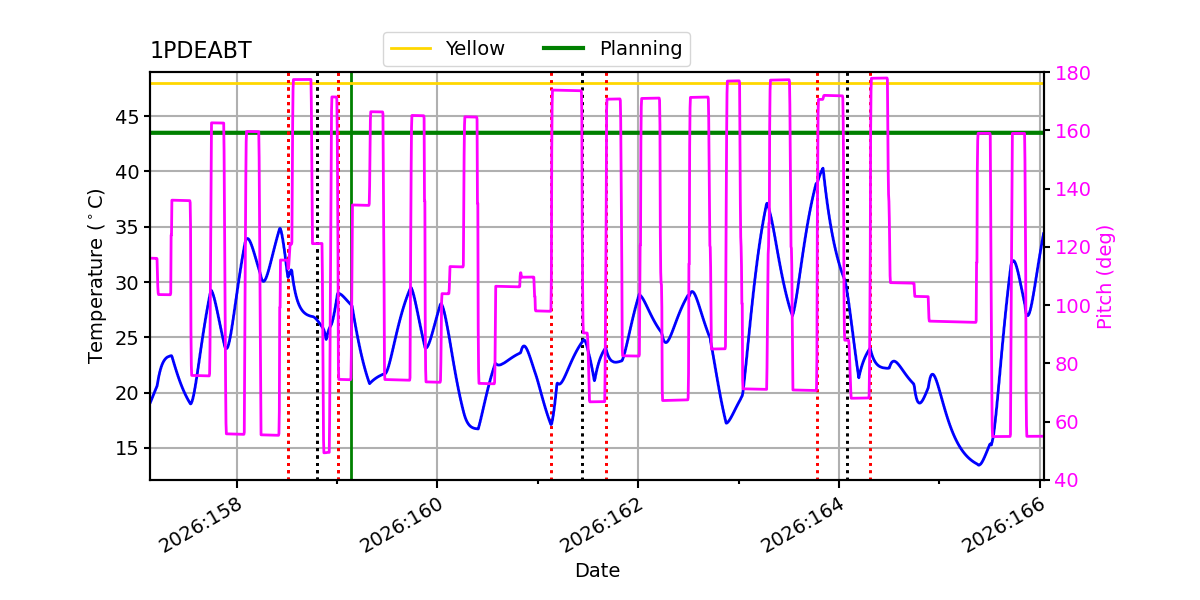

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.44 | -1.84 | -1.10 | 0.09 | 1.72 | 2.46 | 3.12 |
| pitch | -8.342 | -0.174 | -0.004 | 0.000 | 0.004 | 0.234 | 8.087 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.308 | -0.067 | -0.004 | -0.000 | 0.004 | 0.089 | 1.918 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -8.342 | 3.00 |
| PITCH | 99 | 8.087 | 3.00 |

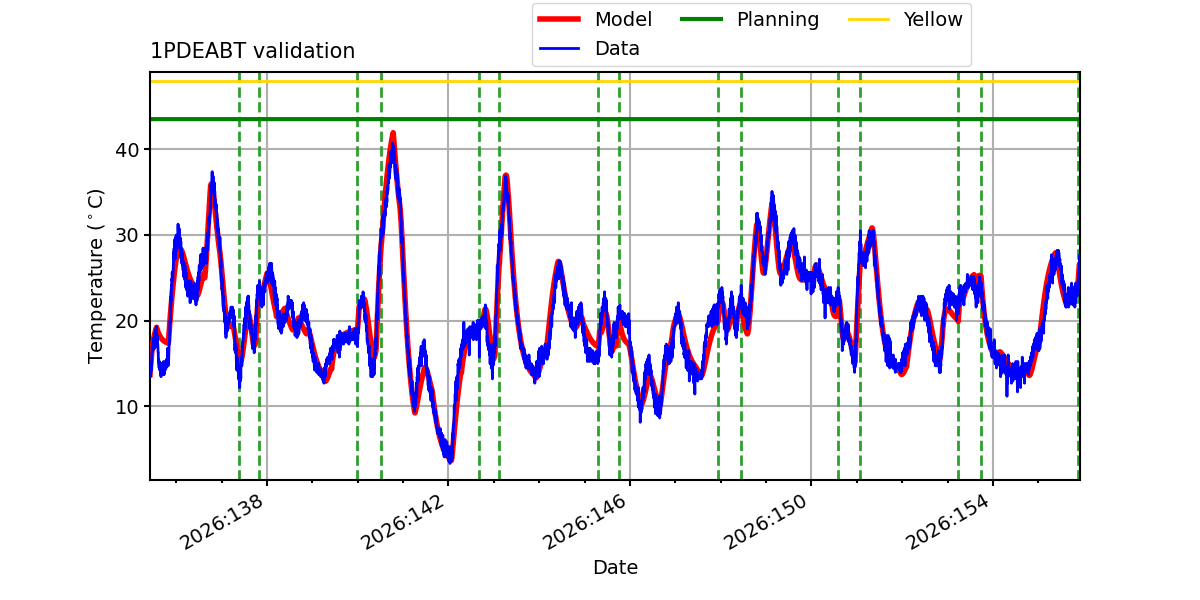

1PDEABT
Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

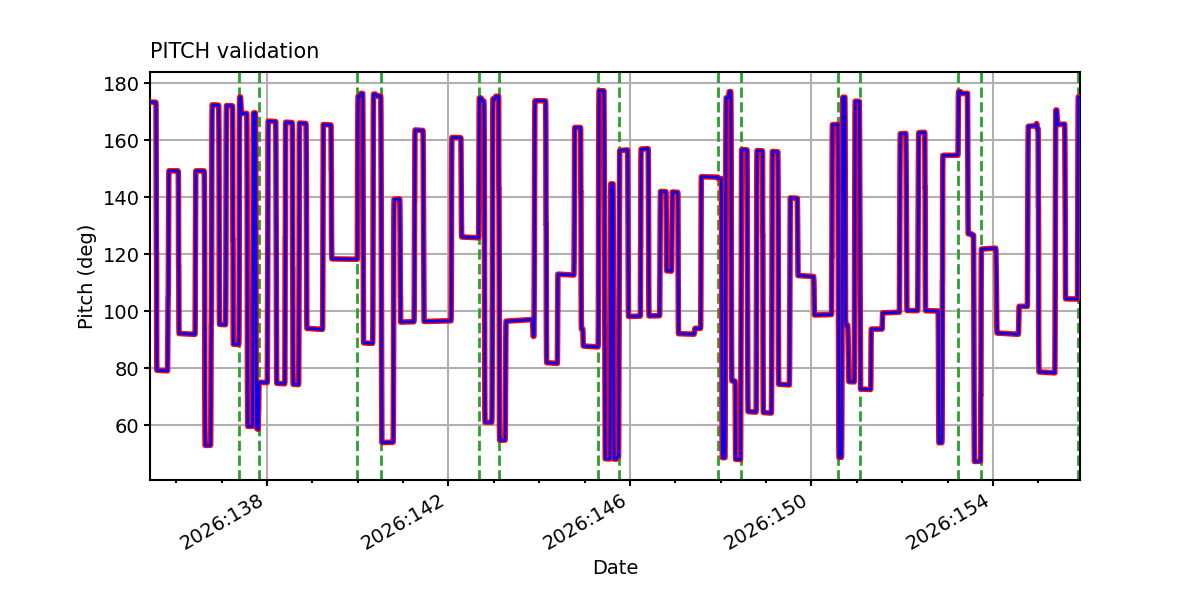

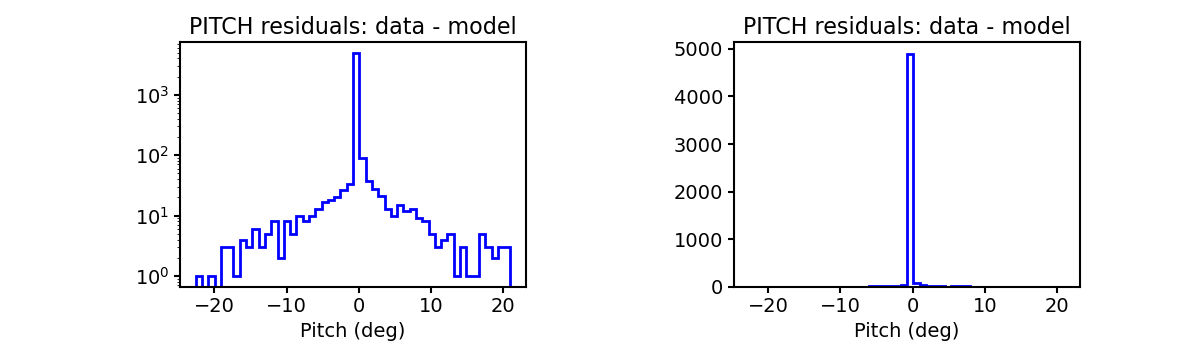

PITCH

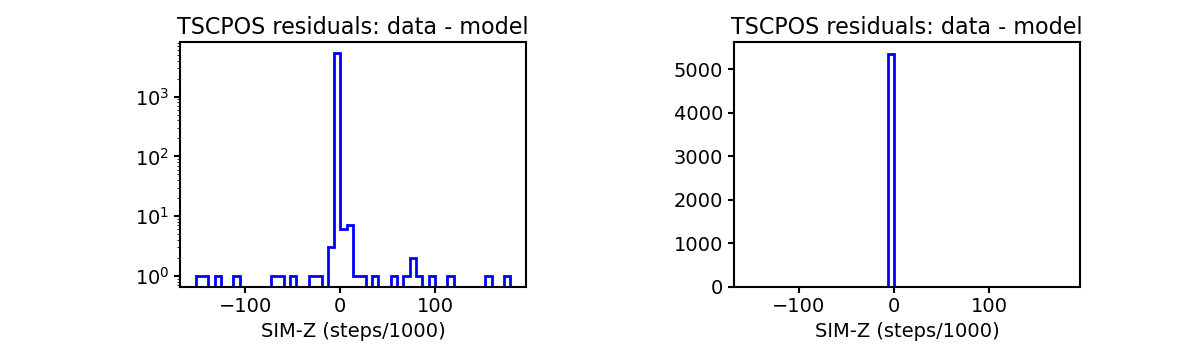

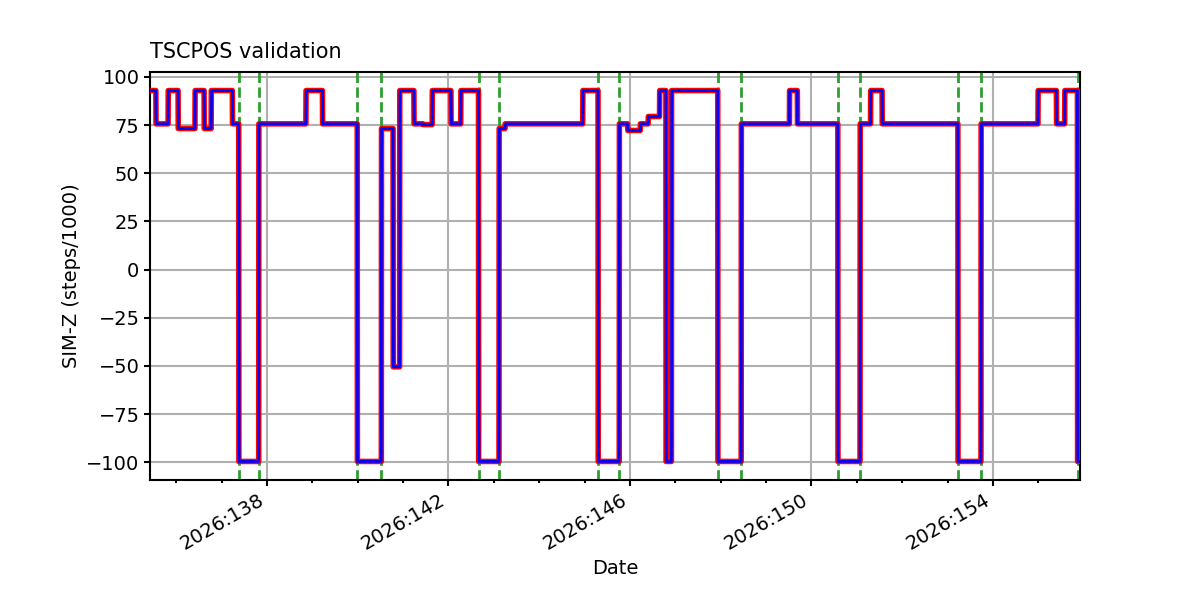

TSCPOS

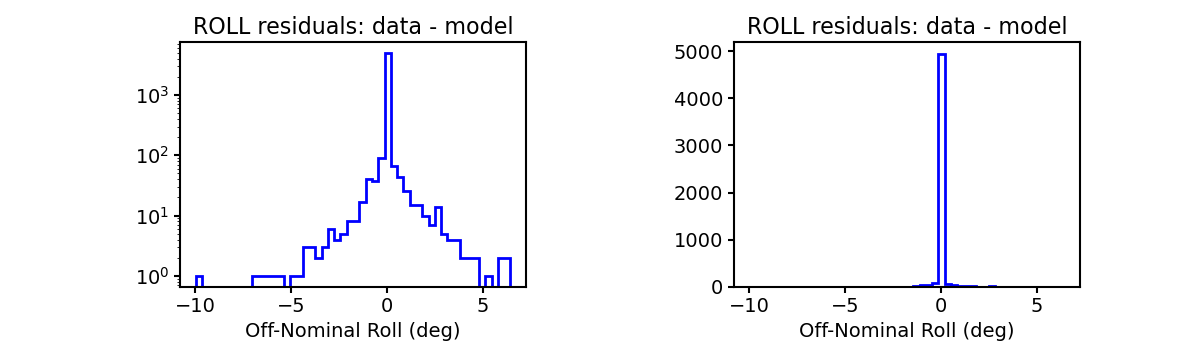

ROLL

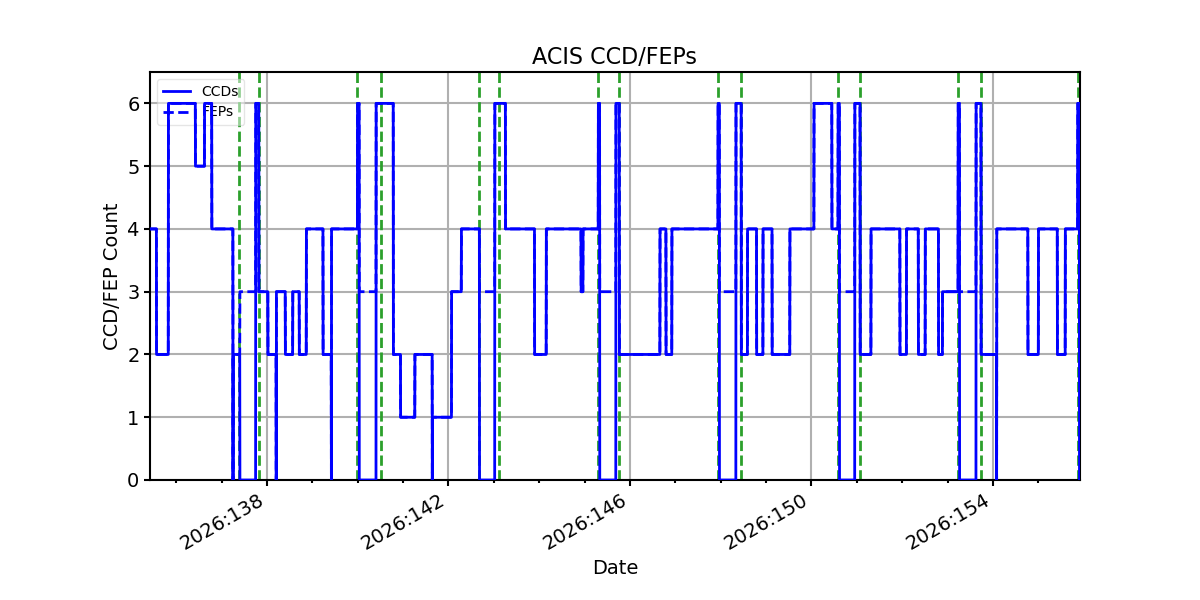

ACIS CCD/FEP Count
