PSMCBT Temperatures Check
Summary
| Date start | 2024:168:22:18:20.216 |
| Date stop | 2024:175:14:51:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/JUN1724/oflsa |
| Run time | Thu Oct 8 16:08:51 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.70 | -2.03 | -1.34 | 0.41 | 1.81 | 2.46 | 2.92 |
| pitch | -9.128 | -0.666 | -0.004 | -0.000 | 0.004 | 0.569 | 10.676 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.908 | -0.121 | -0.006 | 0.000 | 0.006 | 0.136 | 1.858 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.7 | 2.50 |
| PITCH | 1 | -9.128 | 3.00 |
| PITCH | 99 | 10.676 | 3.00 |

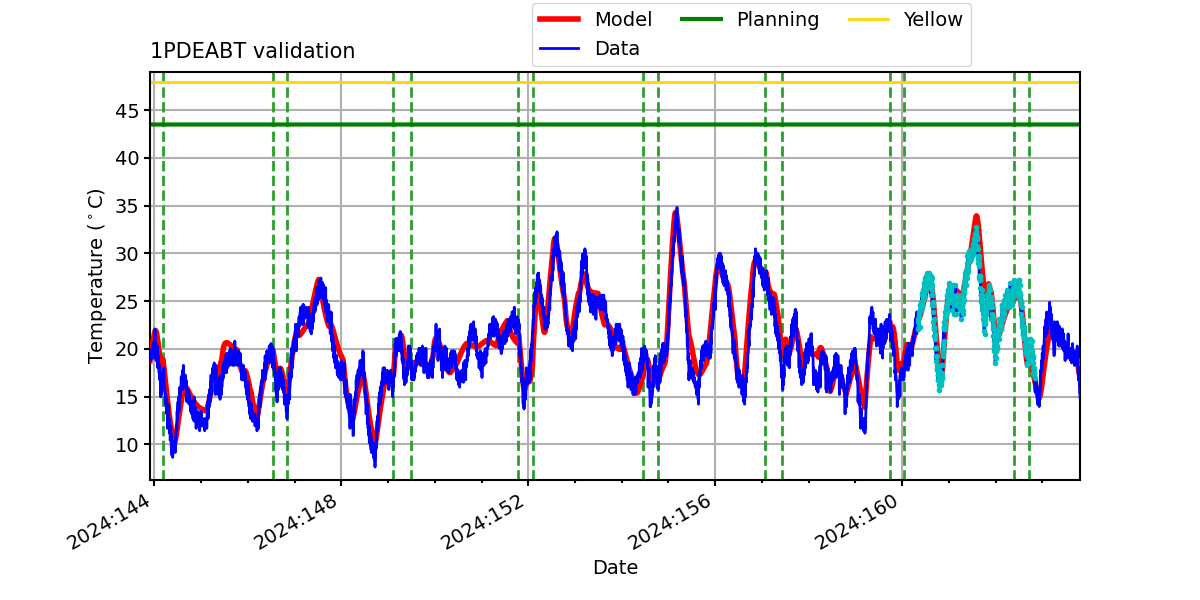

1PDEABT
Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

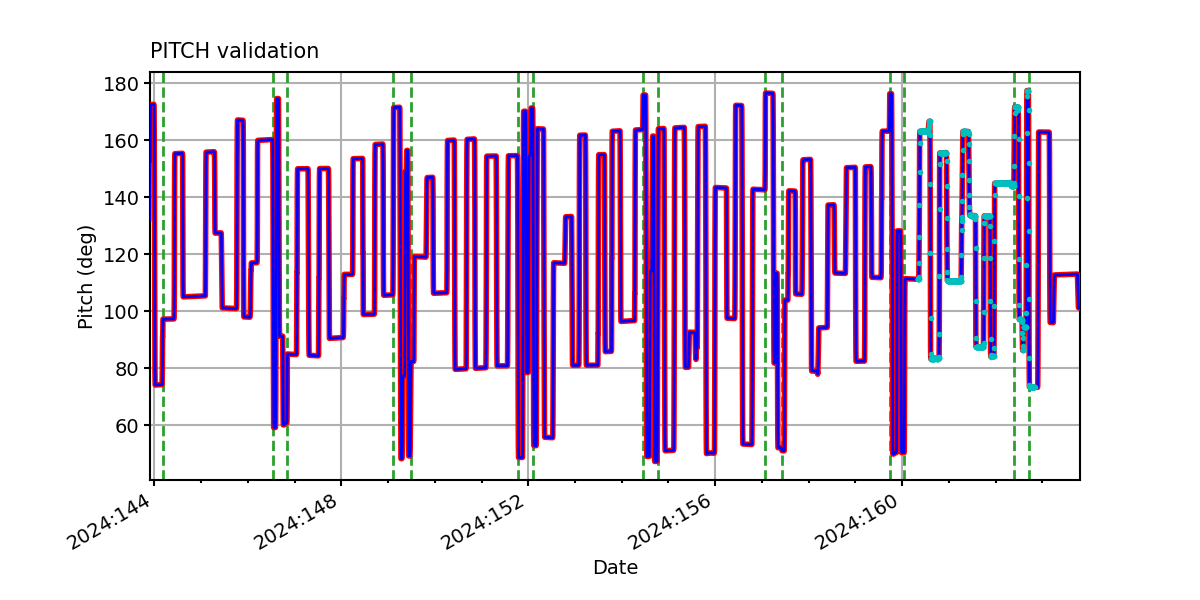

PITCH

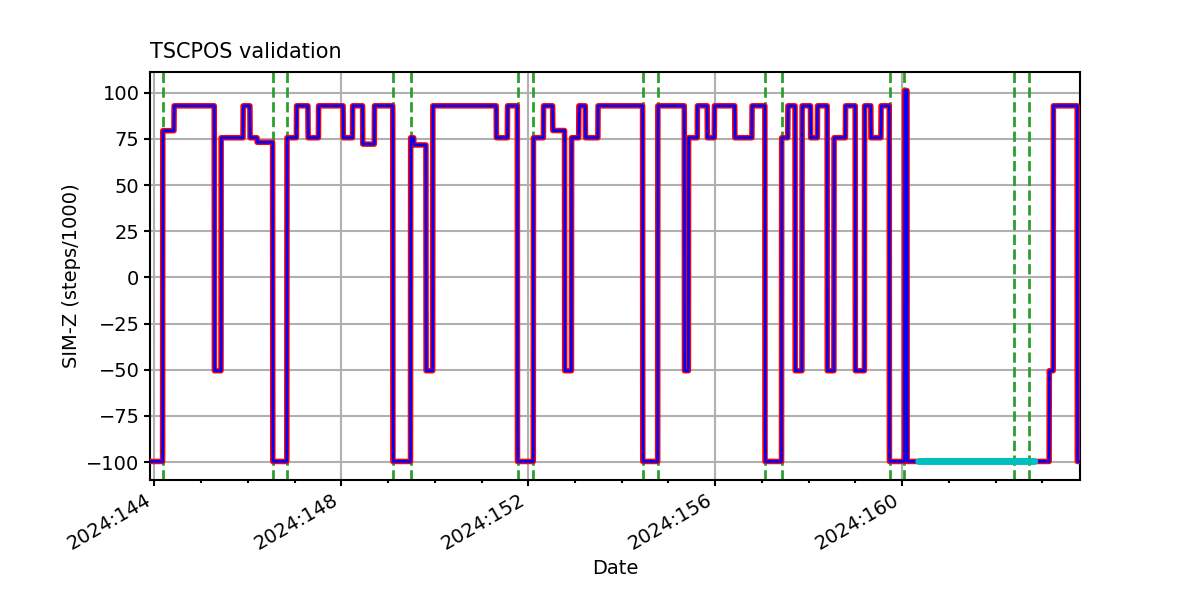

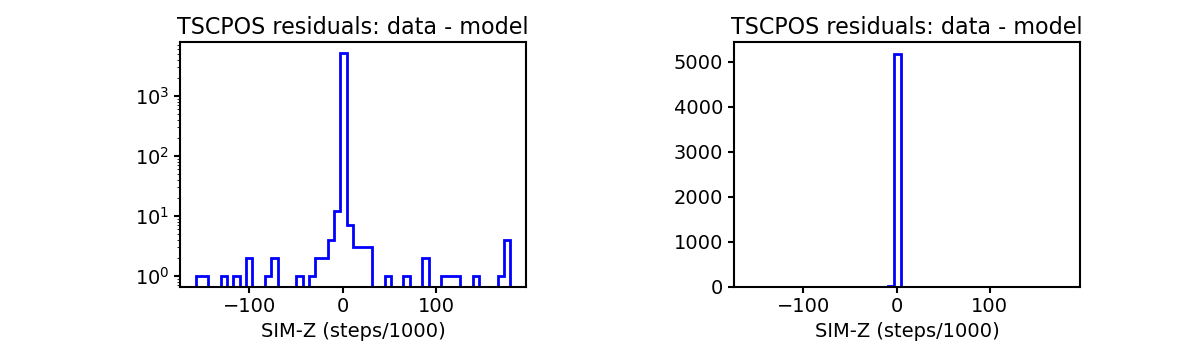

TSCPOS

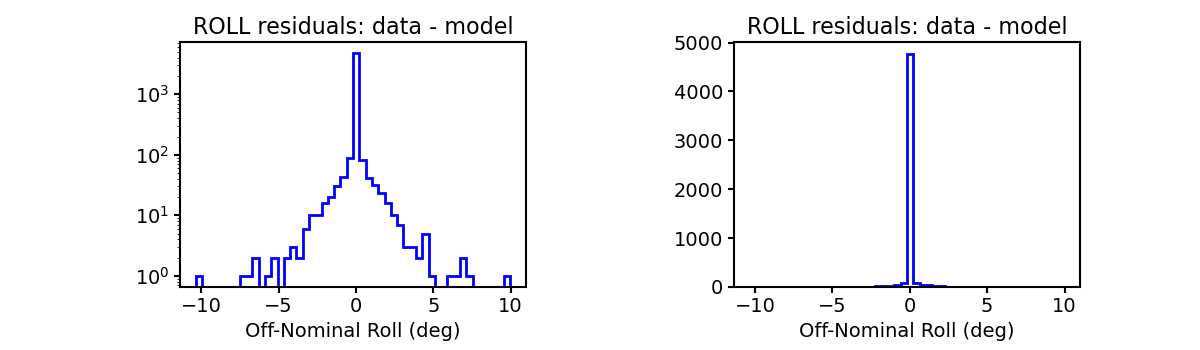

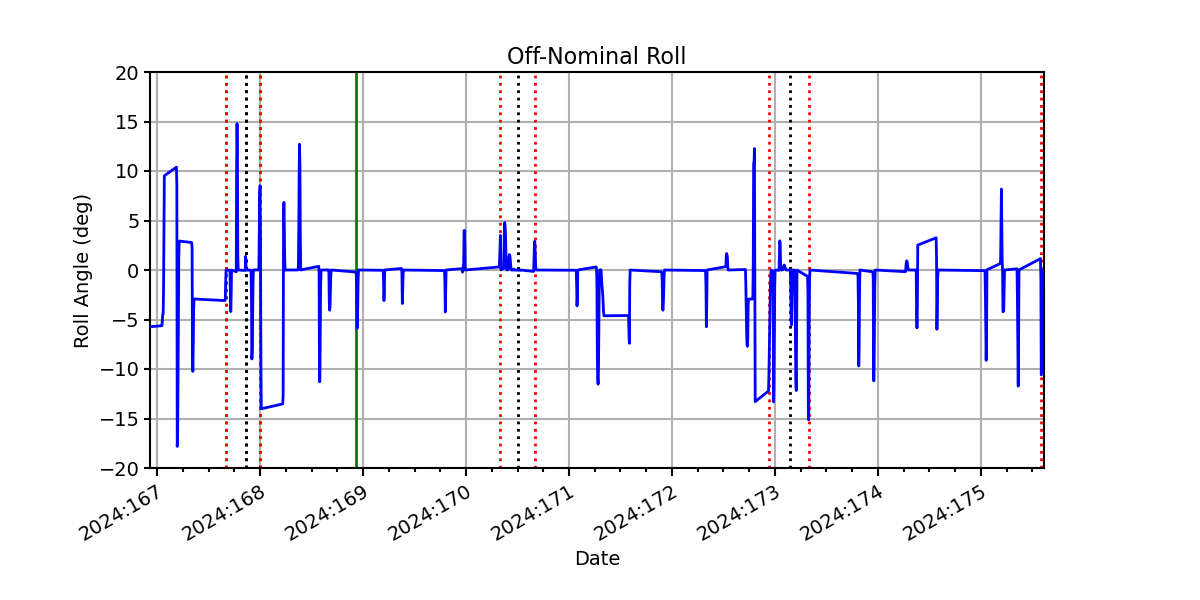

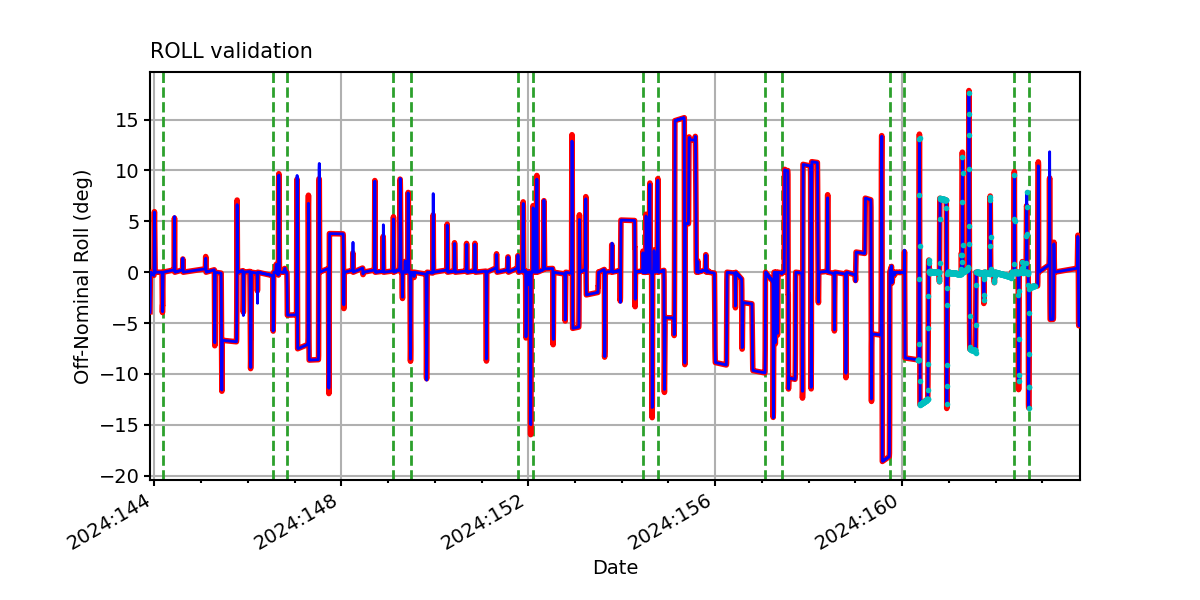

ROLL

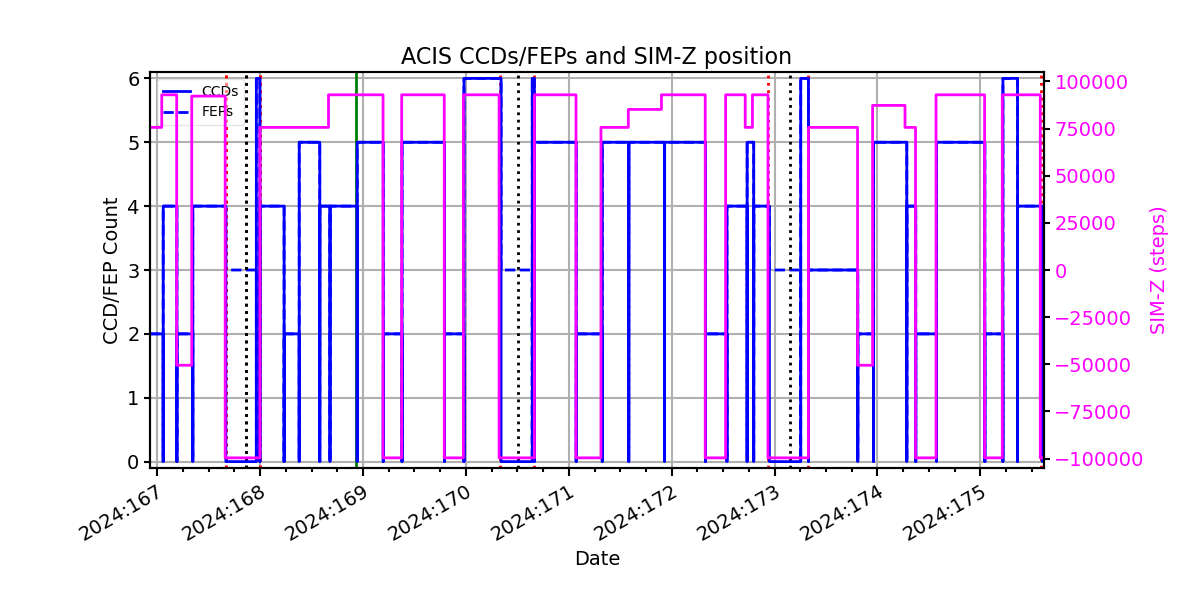

ACIS CCD/FEP Count
