PSMCBT Temperatures Check
Summary
| Date start | 2023:170:01:54:54.616 |
| Date stop | 2023:177:05:22:40.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/JUN1923/oflsa |
| Run time | Thu Oct 8 16:08:51 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.76 | -2.19 | -1.48 | 0.36 | 1.48 | 2.13 | 2.77 |
| pitch | -9.187 | -0.459 | -0.003 | -0.000 | 0.003 | 0.350 | 9.129 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.646 | -0.120 | -0.005 | -0.000 | 0.006 | 0.107 | 1.676 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -2.76 | 2.50 |
| PITCH | 1 | -9.187 | 3.00 |
| PITCH | 99 | 9.129 | 3.00 |

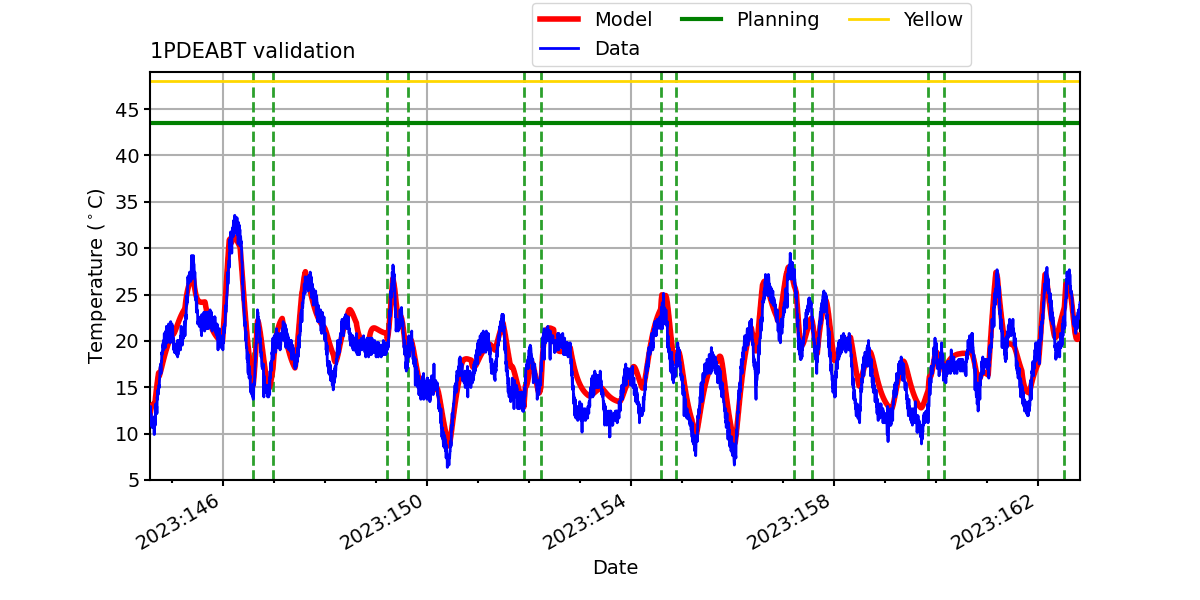

1PDEABT

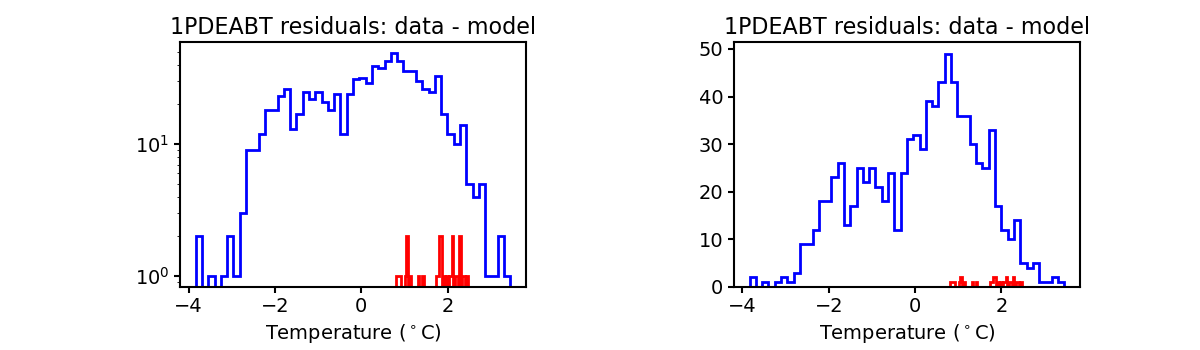

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

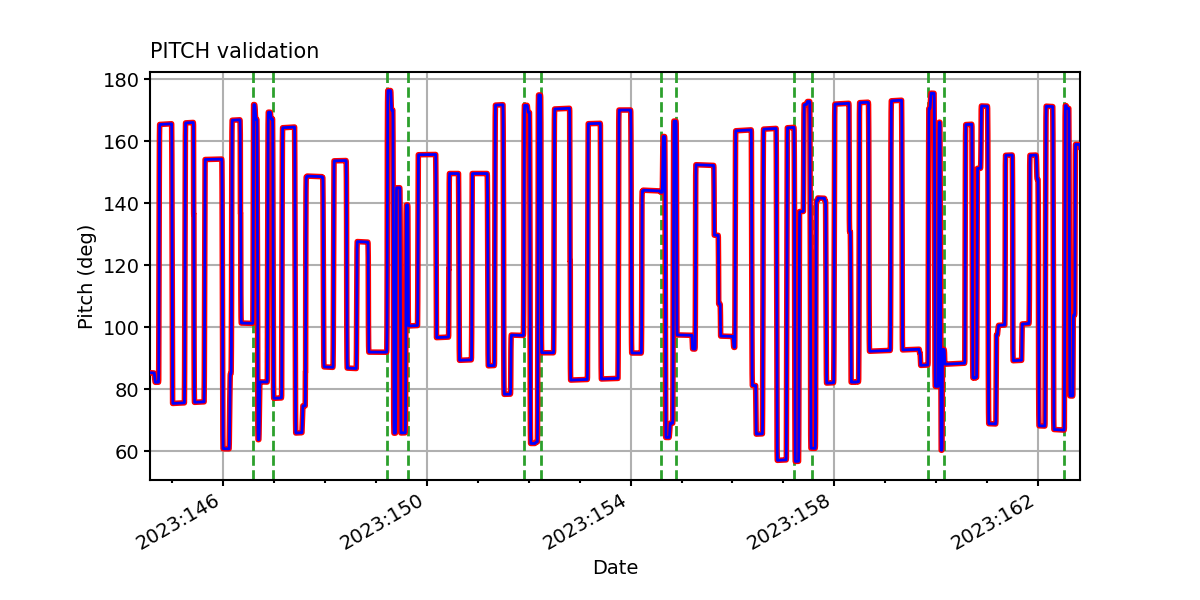

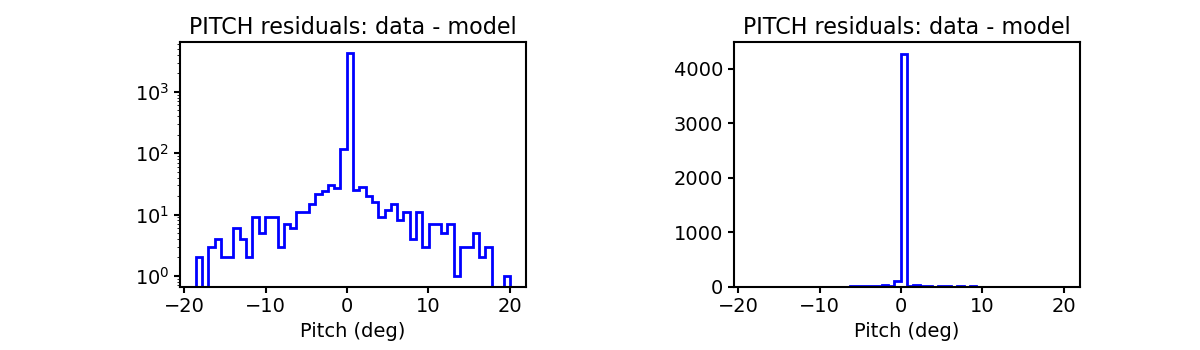

PITCH

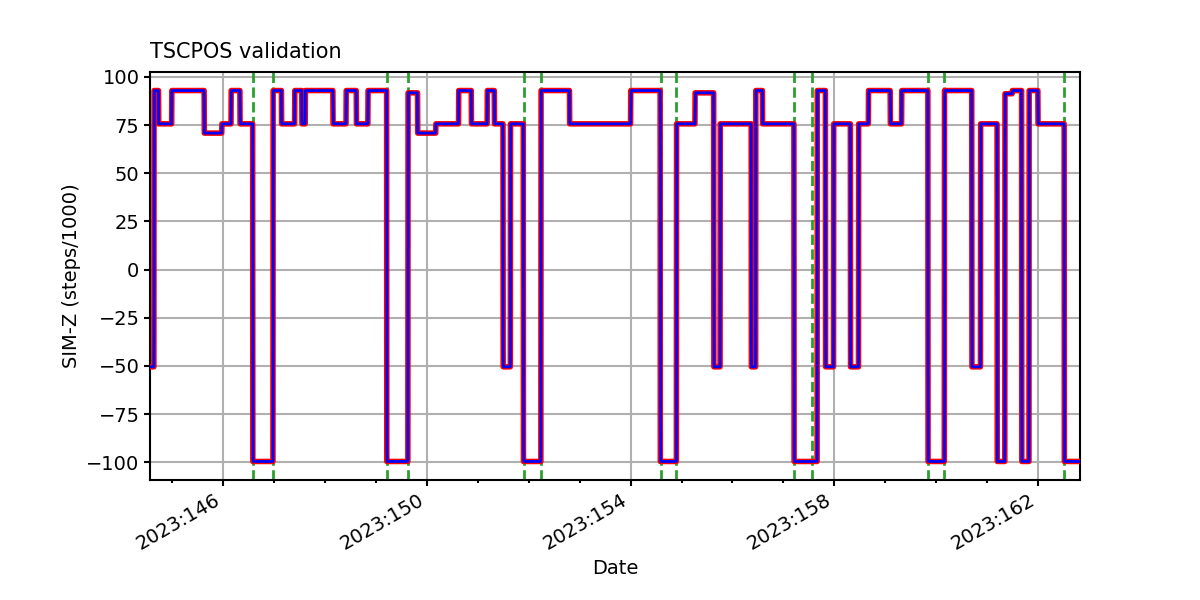

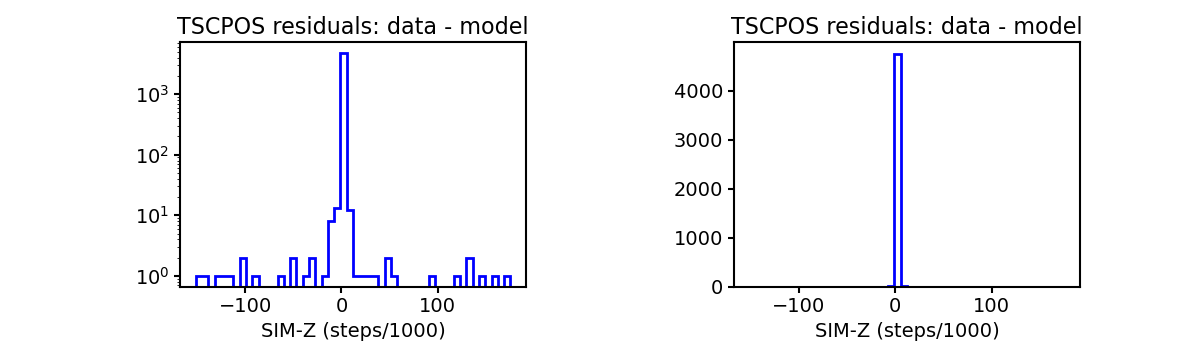

TSCPOS

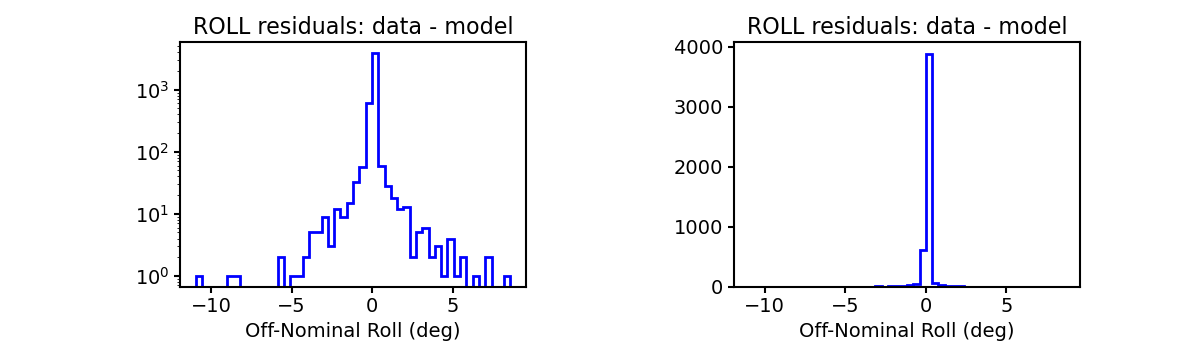

ROLL

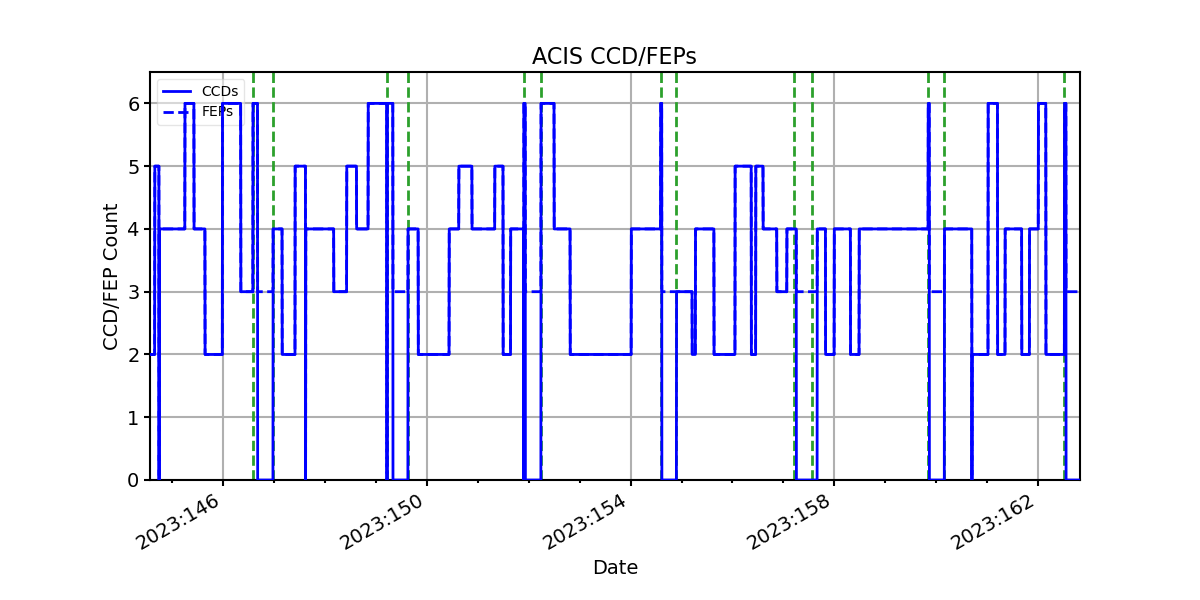

ACIS CCD/FEP Count
