PSMCBT Temperatures Check
Summary
| Date start | 2024:175:14:48:00.016 |
| Date stop | 2024:183:00:15:18.316 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/JUN2424/oflsa |
| Run time | Thu Oct 8 16:08:51 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

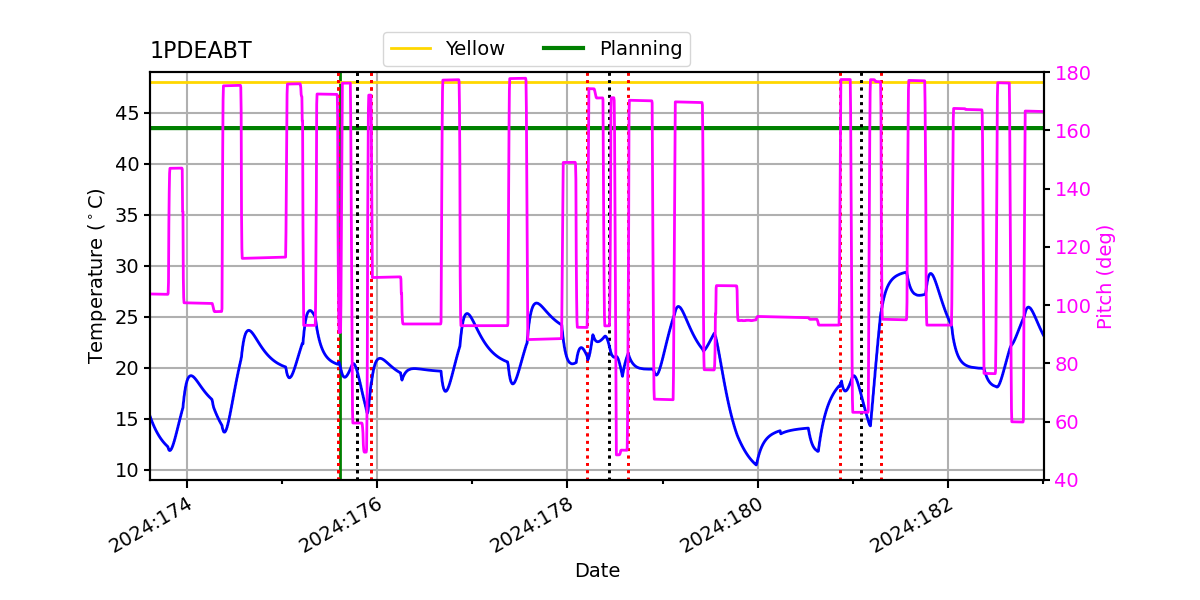

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.20 | -2.51 | -1.76 | 0.03 | 1.34 | 2.14 | 2.77 |
| pitch | -8.632 | -0.741 | -0.004 | -0.000 | 0.004 | 0.595 | 10.139 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -1.953 | -0.214 | -0.007 | -0.000 | 0.006 | 0.133 | 2.142 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.2 | 2.50 |
| PITCH | 1 | -8.632 | 3.00 |
| PITCH | 99 | 10.139 | 3.00 |

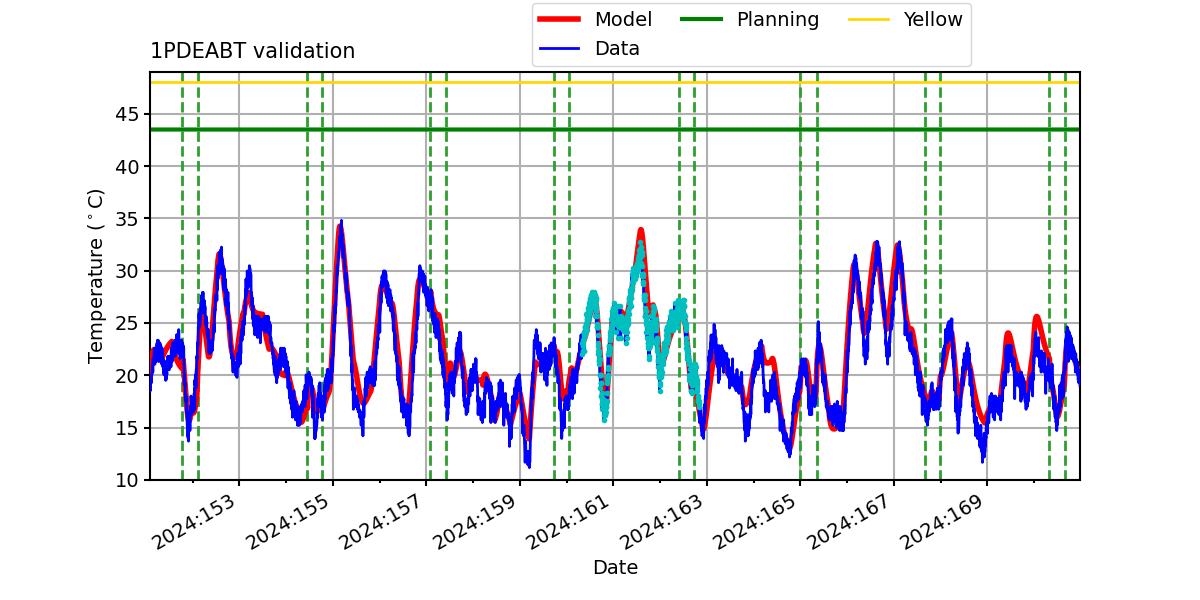

1PDEABT

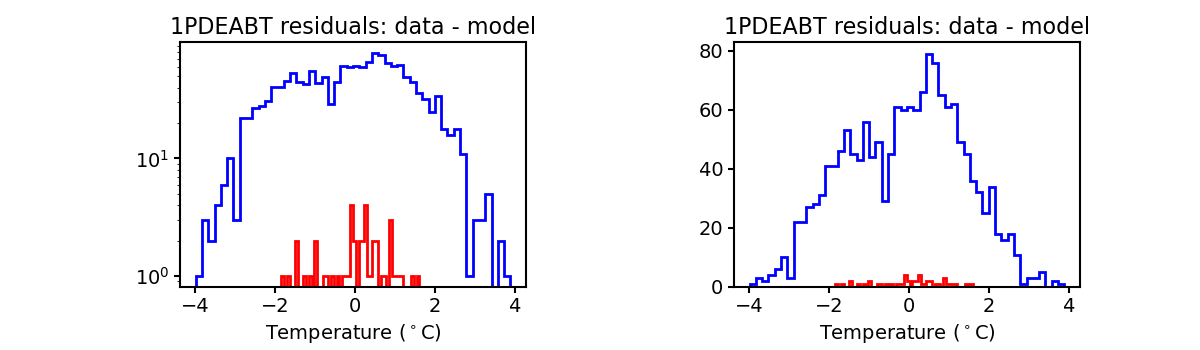

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

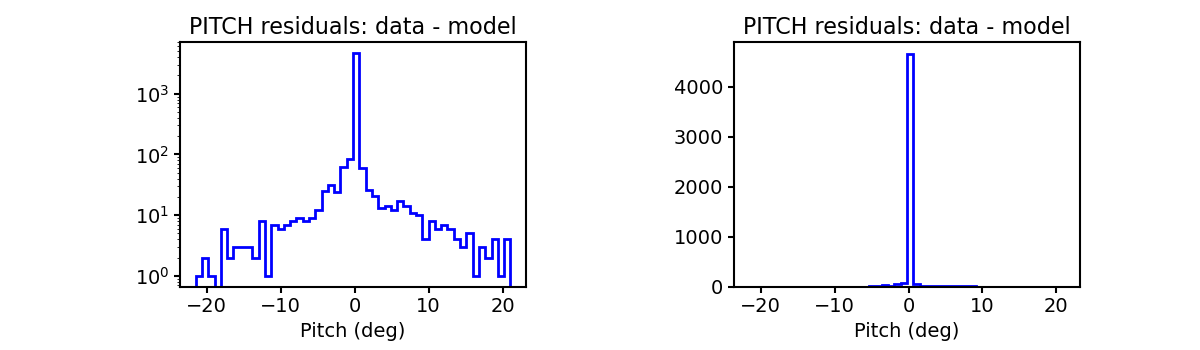

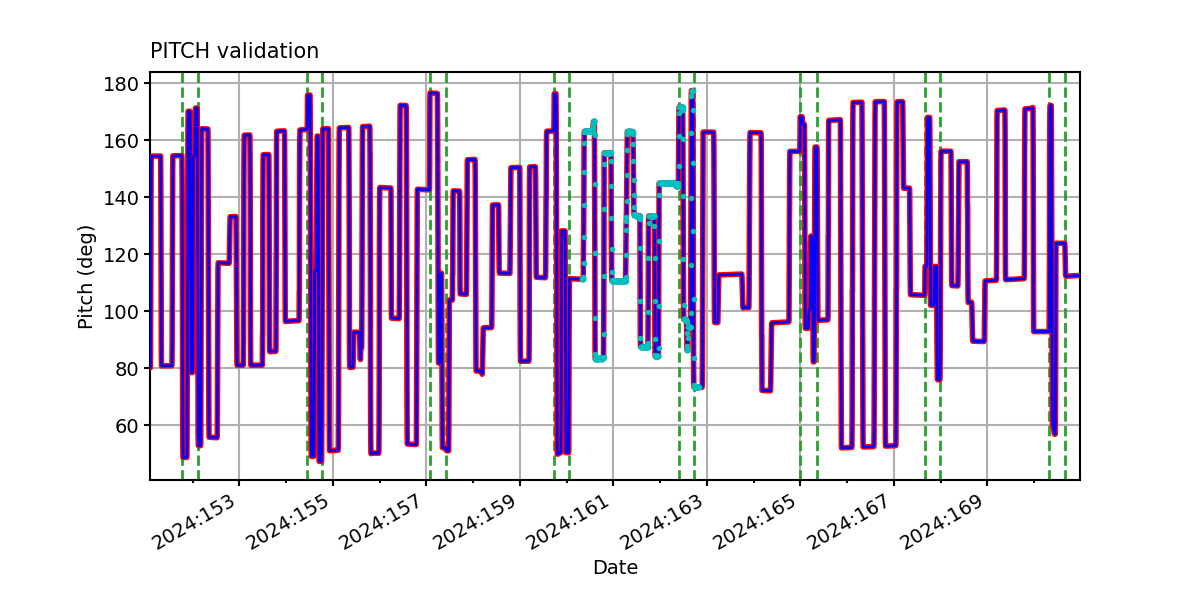

PITCH

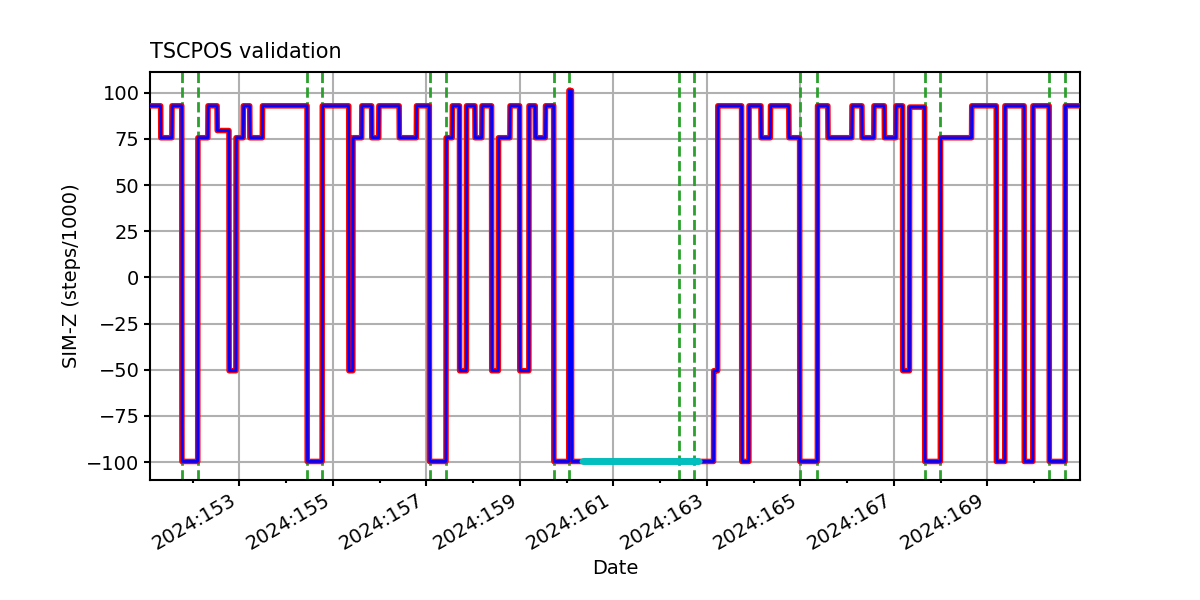

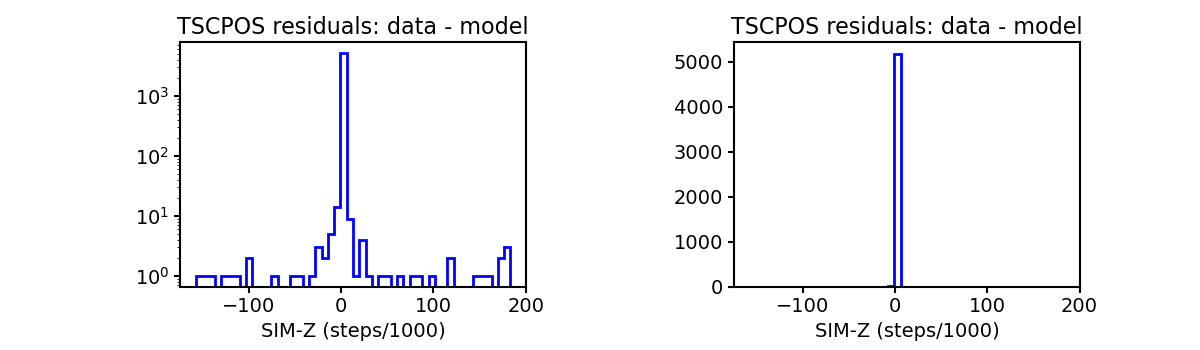

TSCPOS

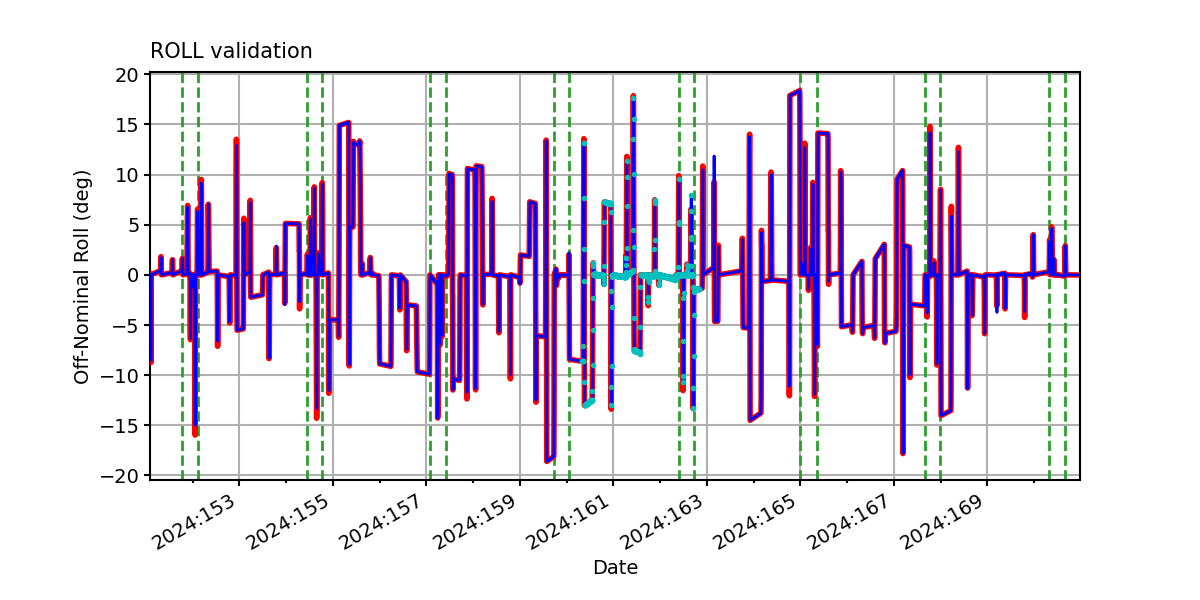

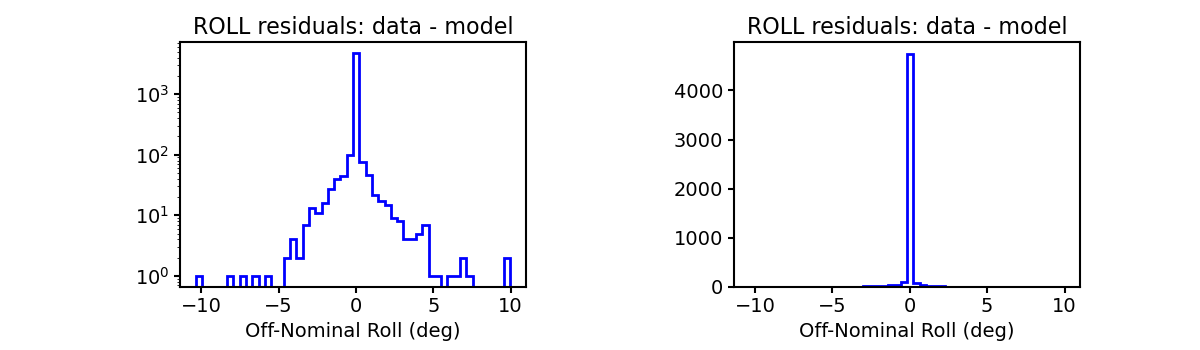

ROLL

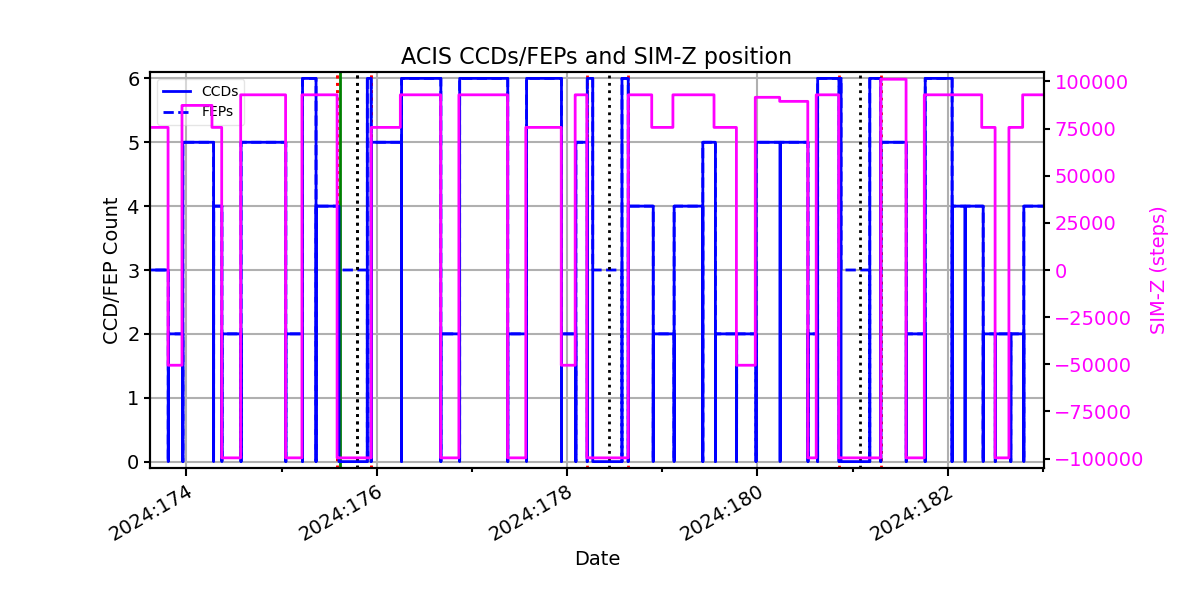

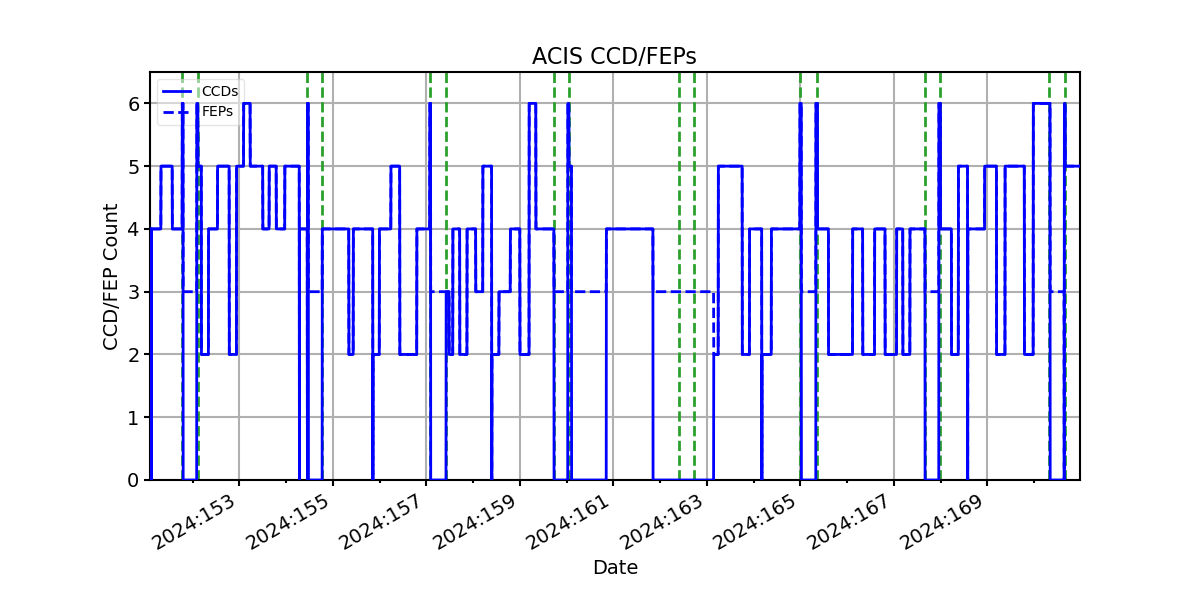

ACIS CCD/FEP Count
